Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11145 - FXZ EXC.EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01C - CLUTCH
▶
2-01C — CLUTCH
(#39819) — 38 parça
◀

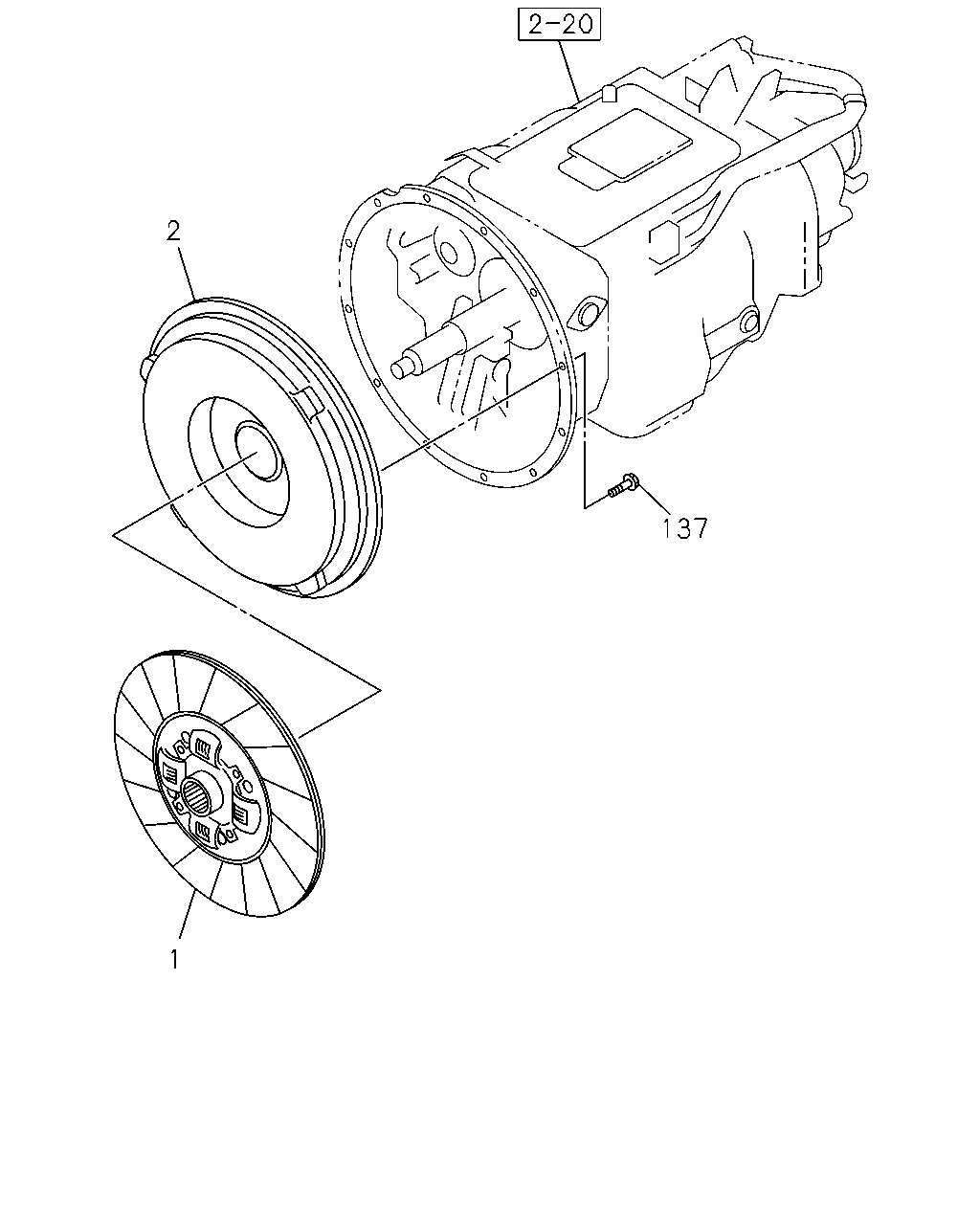

[201C] DISC AND PLATE (3 parça)

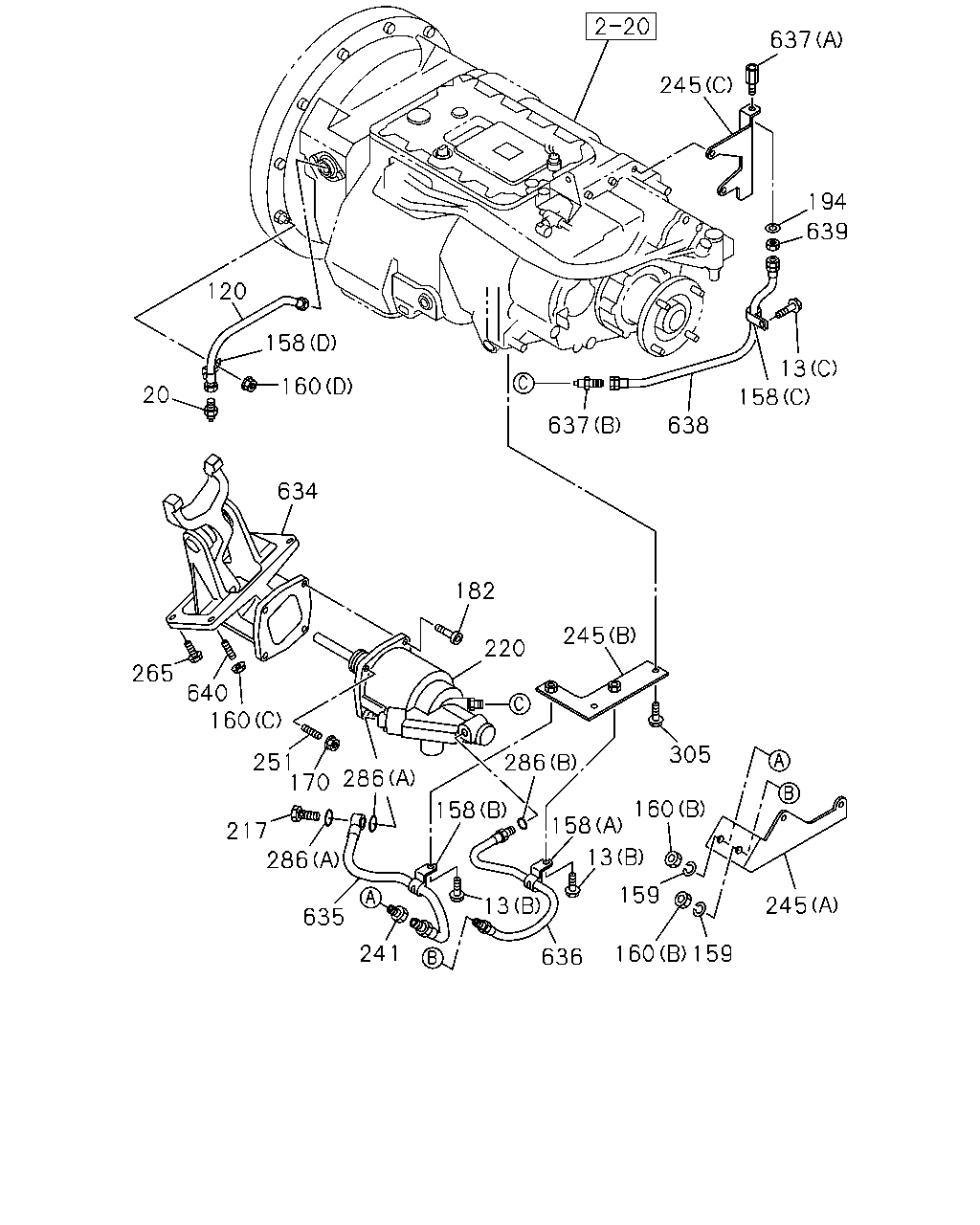

[201C] BOOSTER AND BRACKET (35 parça)
▶
2
137
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
17"
1-31240-864-1
01
1
0801-
2
PLATE ASM; PRESSURE,CLU
1-31220-421-0
01
1
0801-
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
12
1
0801-
2
20
637
245
194
639
120
158
13
160
20
158
637
638
634
182
245
220
265
640
160
286
305
251
170
286
160
158
158
217
13
286
159
245
13
635
241
636
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PLATE ASM; PRESSURE,CLU
1-31220-421-0
01
1
0801-
13
BOLT; CLIP
(C) M8X20 FLANGE
0-28650-820-0
01
1
0801-
13
BOLT; CLIP
(B) M8X16 FLANGE
0-28050-816-0
02
1
0801-
20
NIPPLE; GREASE
PT1/8 STRAIGHT
0-90301-410-0
01
1
0801-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=440
1-09365-412-1
01
1
0801-
158
CLIP; FLEX HOSE
(A) ID=14.5 H=23 L=30
1-09700-859-0
01
1
0801-
158
CLIP; FLEX HOSE
(B) ID=20 H=23 L=27
1-09700-861-0
01
1
0801-
158
CLIP; FLEX HOSE
(C) ID=18 L=40
1-09701-111-0
01
1
0801-
158
CLIP; FLEX HOSE
(D)
9-09917-576-0
01
1
0801-
159
WASHER; LK
ID=12.2
0-91510-512-0
02
1
0801-
160
NUT
(B) M12
9-09840-280-0
02
1
0801-
160
NUT
(D) M10 FLANGE
0-91180-210-0
01
1
0801-
160
NUT
(C) M12
1-09984-184-1
02
1
0801-
170
NUT; BOOSTER FIX
M8 FLANGE
5-09440-010-0
02
1
0801-
182
BOLT
M8X25 HEX SOCKET
0-58330-825-0
02
1
0801-
194
WASHER; LK
ID=12.2
0-91510-512-0
01
1
0801-
217
BOLT; EYE
M16X30
1-09675-026-0
01
1
0801-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-526-0
01
1
0801-
241
CONNECTOR
1-09661-823-0
01
1
0801-
245
BRACKET; HOSE
(A)
1-31429-495-0
01
1
0801-
245
BRACKET; HOSE
(B)
1-31429-496-0
01
1
0801-
245
BRACKET; HOSE
(C)
1-31429-497-0
01
1
0801-
251
STUD; BOOSTER FIX
M8X28 L=44
0-40210-828-0
02
1
0801-
265
BOLT; ADAPTER
M12X30 FLANGE
0-28751-230-0
02
1
0801-
286
GASKET; BOLT,EYE
(A) ID=16.2
1-09630-086-0
02
1
0801-
286
GASKET; BOLT,EYE
(B) ID=14.2 OD=20.0
9-09571-414-0
01
1
0801-
305
BOLT; BRACKET
M8X20 FLANGE
0-28060-820-0
02
1
0801-
634
ADAPTER; CLUTCH
1-31340-070-0
01
1
0801-
635
HOSE; AIR
1-09365-397-0
01
1
0801-
636
HOSE; OIL
1-09365-415-0
01
1
0801-
637
UNION
(A) M8 & M12 STRAIGHT
1-09654-383-0
01
1
0801-
637
UNION
(B)
1-09654-384-0
01
1
0801-
638
HOSE
1-09365-410-0
01
1
0801-
639
NUT; UNION
M12
9-09840-280-0
01
1
0801-
640
STUD
M12X30 L=48
8-98059-951-0
02
1
0801-
