Sayfa 1-50 - Isuzu EPC

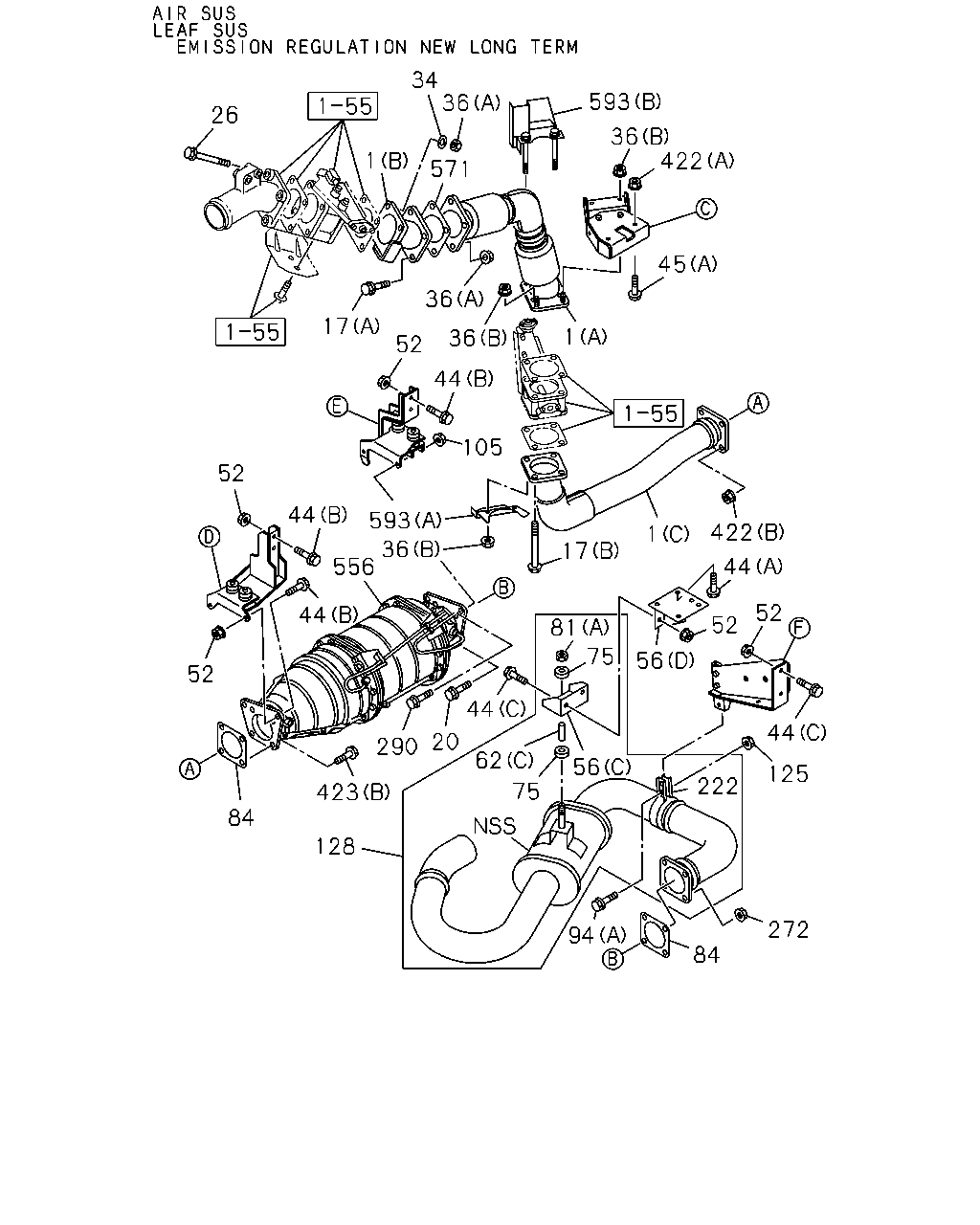

1-50 — EXHAUST PIPE AND SILENCER (#39814) — 325 parça

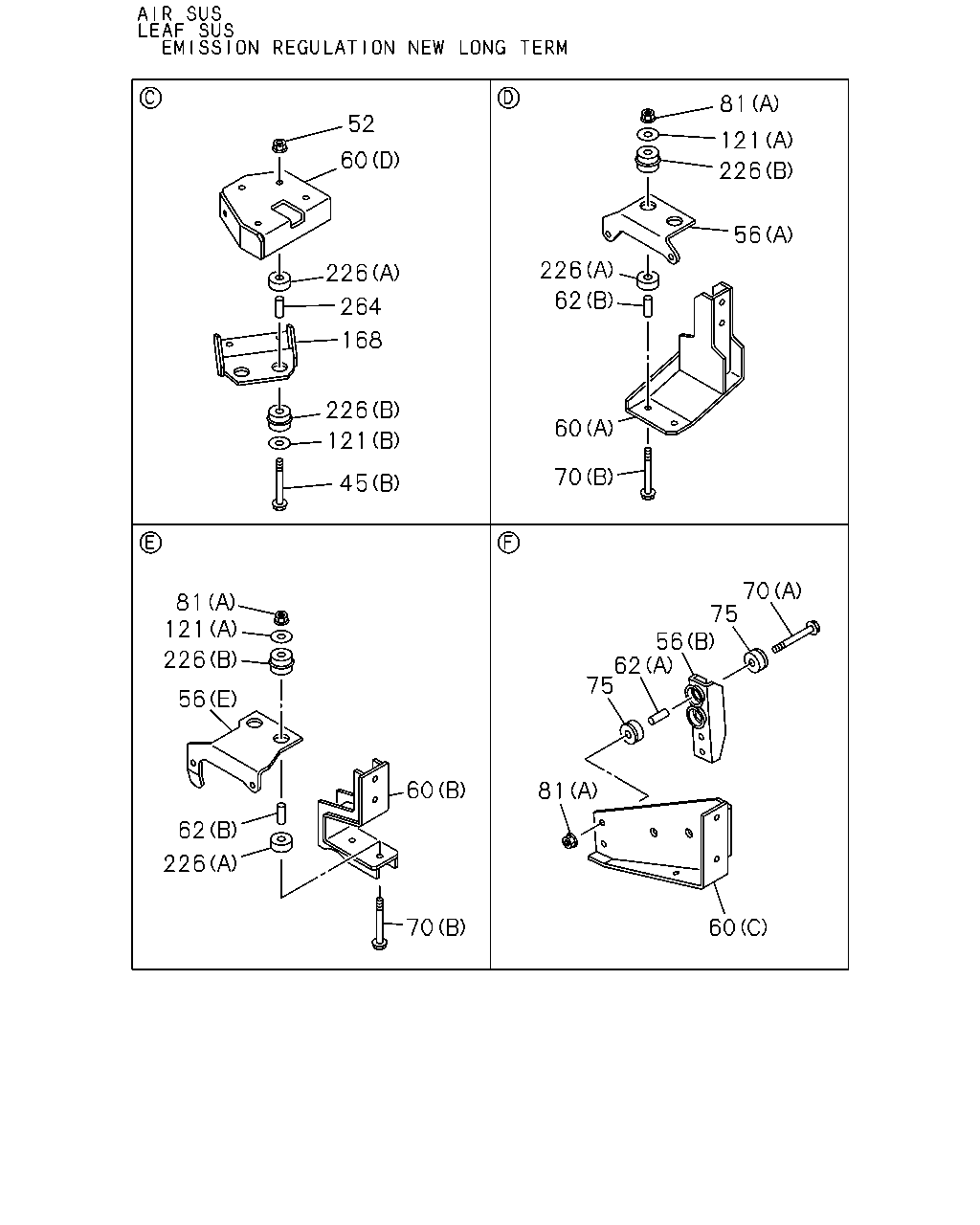

81 52 121 60 226 56 226 226 62 264 168 226 60 121 70 45 70 75 56 62 75 81 121 226 56 60 81 62 226 70 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	BOLT; BRKT (A) M10X40 FLANGE	0-28051-040-0	02	1	0801-	●
45	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X40 FLANGE	0-28051-040-0	02	1	0801-		●
45	BOLT; BRKT (B) M10X60 FLANGE	0-28051-060-0	02	1	0801-	●
45	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X60 FLANGE	0-28051-060-0	02	1	0801-		●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	12	1	0801-	●
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	12	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NJX> (F)	8-98106-290-0	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-97616-511-0	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97616-511-0	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-97616-549-1	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97616-549-1	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98055-099-0	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-98055-099-0	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98055-100-3	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-98055-100-3	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98099-664-0	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (E)	8-98099-664-0	01	1	0801-		●
60	BRACKET; FRAME TO BRKT (A)	8-98055-095-1	01	1	0801-	●
60	BRACKET; FRAME TO BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-98055-095-1	01	1	0801-		●
60	BRACKET; FRAME TO BRKT (B)	8-98055-097-0	01	1	0801-	●
60	BRACKET; FRAME TO BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-98055-097-0	01	1	0801-		●
60	BRACKET; FRAME TO BRKT (C)	8-98055-103-1	01	1	0801-	●
60	BRACKET; FRAME TO BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-98055-103-1	01	1	0801-		●
60	BRACKET; FRAME TO BRKT (D)	8-98059-845-1	01	1	0801-	●
60	BRACKET; FRAME TO BRKT EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-98059-845-1	01	1	0801-		●
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NJX> (A) L=22	1-22159-392-0	01	1	0801-0909		●
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NJX> (A) L=22	9-22159-024-0	01	1	0910-		●
62	TUBE; DIST,BRKT (A) L=22	1-22159-392-0	02	1	0801-0909	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) L=22	1-22159-392-0	02	1	0801-0909		●
62	TUBE; DIST,BRKT (B) L=37.5	9-22151-217-0	04	1	0801-	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) L=37.5	9-22151-217-0	04	1	0801-		●
62	TUBE; DIST,BRKT (C) L=22	9-22159-024-0	01	1	0801-0909	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) L=22	9-22159-024-0	01	1	0801-0909		●
62	TUBE; DIST,BRKT (C) L=22	9-22159-024-0	03	1	0910-	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) L=22	9-22159-024-0	03	1	0910-		●
70	BOLT; BRKT EURO3 SPECIFICATION<NJX> (C) M10X60	0-10856-060-0	02	1	0801-		●
70	BOLT; BRKT EURO3 SPECIFICATION<NJX> (A) M10X50 FLANGE	0-28051-050-0	01	1	0801-		●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0801-	●
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X50 FLANGE	0-28051-050-0	02	1	0801-		●
70	BOLT; BRKT (B) M10X60 FLANGE	0-28051-060-0	04	1	0801-	●
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X60 FLANGE	0-28051-060-0	04	1	0801-		●
75	RUBBER; SUPPORT,BRKT EURO3 SPECIFICATION<NJX> OD=40	1-22159-094-0	10	1	0801-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	06	1	0801-	●
75	RUBBER; SUPPORT,BRKT EMISSION REGULATION NEW LONG TERM<JBG> OD=40	1-22159-094-0	06	1	0801-		●
81	NUT; BRKT EURO3 SPECIFICATION<NJX> (B) M10	0-91110-510-0	04	1	0801-		●
81	NUT; BRKT EURO3 SPECIFICATION<NJX> (A) M10 FLANGE	0-91180-210-0	01	1	0801-		●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0801-	●
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10 FLANGE	0-91180-210-0	07	1	0801-		●
121	WASHER; PL,BRKT (A)	8-97616-543-1	04	1	0801-	●
121	WASHER; PL,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97616-543-1	04	1	0801-		●
121	WASHER; PL,BRKT (B) OD=55	9-09852-169-0	02	1	0801-	●
121	WASHER; PL,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) OD=55	9-09852-169-0	02	1	0801-		●
168	BRACKET; EXH PIPE,FRT	8-98055-093-0	01	1	0801-	●
168	BRACKET; EXH PIPE,FRT EMISSION REGULATION NEW LONG TERM<JBG>	8-98055-093-0	01	1	0801-		●
226	RUBBER; CUSHION (A)	8-94457-277-1	06	1	0801-	●
226	RUBBER; CUSHION EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-94457-277-1	06	1	0801-		●
226	RUBBER; CUSHION (B)	8-94457-278-1	06	1	0801-	●
226	RUBBER; CUSHION EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-94457-278-1	06	1	0801-		●
264	TUBE; DIST,SUPPORT RUBBER L=37.5	9-22151-217-0	02	1	0801-	●
264	TUBE; DIST,SUPPORT RUBBER EMISSION REGULATION NEW LONG TERM<JBG> L=37.5	9-22151-217-0	02	1	0801-		●

70 116 70 116 81 81 94 94 56 44 70 81 62 75 75 59 24 72 105 89 105 75 59 24 72 75 8 75 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BRACKET; EXH PIPE EURO3 SPECIFICATION<NJX>	8-98106-287-0	01	1	0801-		●
24	COLLAR; DIST,CLAMP EURO3 SPECIFICATION<NJX> L=22	9-22159-024-0	04	1	0801-		●
44	BOLT; BRKT (A) M8X25 FLANGE	0-28050-825-0	04	1	0801-	●
44	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28050-825-0	04	1	0801-		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28051-035-0	06	1	0801-	●
44	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X35 FLANGE	0-28051-035-0	06	1	0801-		●
44	BOLT; BRKT (C) M10X40 FLANGE	0-28051-040-0	04	1	0801-0803	●
44	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) M10X40 FLANGE	0-28051-040-0	04	1	0801-0803		●
44	BOLT; BRKT (C) M10X40 FLANGE	0-28051-040-0	03	1	0804-	●
44	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) M10X40 FLANGE	0-28051-040-0	03	1	0804-		●
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NJX> (F)	8-98106-290-0	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-97616-511-0	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97616-511-0	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-97616-549-1	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97616-549-1	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98055-099-0	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-98055-099-0	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98055-100-3	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-98055-100-3	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98099-664-0	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (E)	8-98099-664-0	01	1	0801-		●
59	BRACKET; EXH SILENCER,FRT EURO3 SPECIFICATION<NJX>	8-98055-106-0	02	1	0801-		●
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NJX> (A) L=22	1-22159-392-0	01	1	0801-0909		●
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NJX> (A) L=22	9-22159-024-0	01	1	0910-		●
62	TUBE; DIST,BRKT (A) L=22	1-22159-392-0	02	1	0801-0909	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) L=22	1-22159-392-0	02	1	0801-0909		●
62	TUBE; DIST,BRKT (B) L=37.5	9-22151-217-0	04	1	0801-	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) L=37.5	9-22151-217-0	04	1	0801-		●
62	TUBE; DIST,BRKT (C) L=22	9-22159-024-0	01	1	0801-0909	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) L=22	9-22159-024-0	01	1	0801-0909		●
62	TUBE; DIST,BRKT (C) L=22	9-22159-024-0	03	1	0910-	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) L=22	9-22159-024-0	03	1	0910-		●
70	BOLT; BRKT EURO3 SPECIFICATION<NJX> (C) M10X60	0-10856-060-0	02	1	0801-		●
70	BOLT; BRKT EURO3 SPECIFICATION<NJX> (A) M10X50 FLANGE	0-28051-050-0	01	1	0801-		●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0801-	●
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X50 FLANGE	0-28051-050-0	02	1	0801-		●
70	BOLT; BRKT (B) M10X60 FLANGE	0-28051-060-0	04	1	0801-	●
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X60 FLANGE	0-28051-060-0	04	1	0801-		●
72	WASHER; LK,BRKT EURO3 SPECIFICATION<NJX> ID=10.2	0-91510-810-0	04	1	0801-		●
75	RUBBER; SUPPORT,BRKT EURO3 SPECIFICATION<NJX> OD=40	1-22159-094-0	10	1	0801-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	06	1	0801-	●
75	RUBBER; SUPPORT,BRKT EMISSION REGULATION NEW LONG TERM<JBG> OD=40	1-22159-094-0	06	1	0801-		●
81	NUT; BRKT EURO3 SPECIFICATION<NJX> (B) M10	0-91110-510-0	04	1	0801-		●
81	NUT; BRKT EURO3 SPECIFICATION<NJX> (A) M10 FLANGE	0-91180-210-0	01	1	0801-		●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0801-	●
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10 FLANGE	0-91180-210-0	07	1	0801-		●
89	CLAMP; EXH SILENCER,RR EURO3 SPECIFICATION<NJX>	1-22133-276-0	01	1	0801-		●
94	BOLT; CLAMP EURO3 SPECIFICATION<NJX> (B) M8X35 FLANGE	0-28050-835-0	04	1	0801-		●
94	BOLT; CLAMP (A) M8X40 FLANGE	0-28650-840-0	02	1	0801-	●
94	BOLT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> (A) M8X40 FLANGE	0-28650-840-0	02	1	0801-		●
105	NUT; CLAMP EURO3 SPECIFICATION<NJX> M8	0-91110-508-0	04	1	0801-0810		●
105	NUT; CLAMP EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	04	1	0811-		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0801-	●
105	NUT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	02	1	0801-		●
116	BOLT; BRKT EURO3 SPECIFICATION<NJX> M10X60	0-10856-060-0	02	1	0801-		●

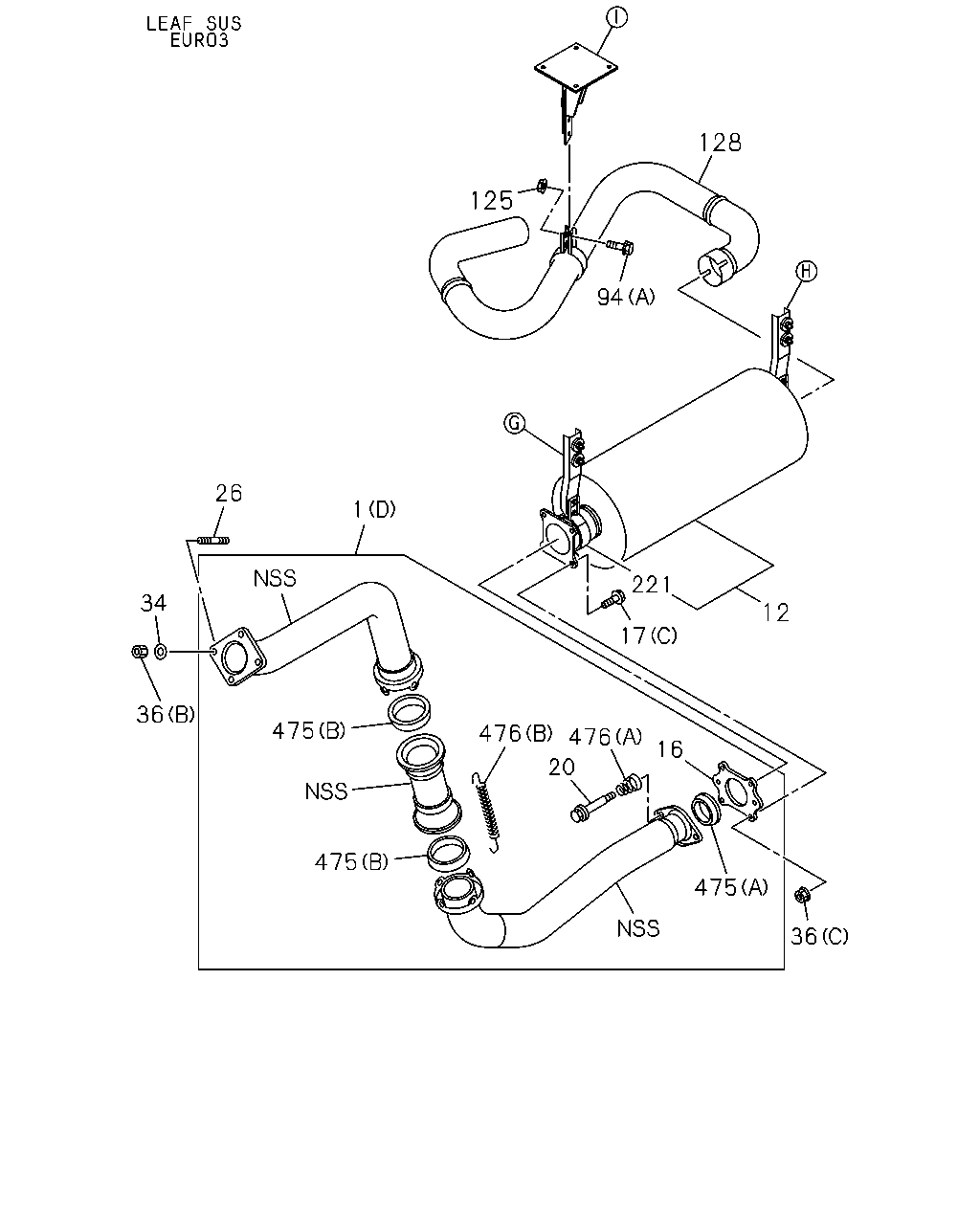

94 26 1 221 34 17 36 475 476 476 16 20 475 475 36 12 125 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EURO3 SPECIFICATION<NJX> (D)	8-98055-105-0	01	1	0801-		●
1	PIPE; EXH (A)	8-97623-354-1	01	1	0801-	●
1	PIPE; EXH EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97623-354-1	01	1	0801-		●
1	PIPE; EXH (B)	8-97624-441-0	01	1	0801-	●
1	PIPE; EXH EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97624-441-0	01	1	0801-		●
1	PIPE; EXH (C)	8-97625-311-0	01	1	0801-	●
1	PIPE; EXH EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-97625-311-0	01	1	0801-		●
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NJX>	8-98059-422-0	01	1	0801-1103		●
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NJX>	8-97639-658-0	01	1	1104-		●
16	FLANGE; EXH PIPE EURO3 SPECIFICATION<NJX>	1-22115-148-1	01	1	0809-		●
17	BOLT; EXH PIPE EURO3 SPECIFICATION<NJX> (C) M12X25 FLANGE	1-09000-604-0	04	1	0801-		●
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	0801-	●
17	BOLT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M12X35 FLANGE	0-28051-235-0	04	1	0801-		●
17	BOLT; EXH PIPE (B) M12X120 FLANGE	0-28056-212-0	02	1	0801-	●
17	BOLT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12X120 FLANGE	0-28056-212-0	02	1	0801-		●
20	BOLT; FLANGE,EXH PIPE EURO3 SPECIFICATION<NJX> M10X51.4	8-94436-943-0	02	1	0809-		●
20	BOLT; FLANGE,EXH PIPE M12X35 FLANGE	0-28051-235-0	04	1	0801-	●
20	BOLT; FLANGE,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> M12X35 FLANGE	0-28051-235-0	04	1	0801-		●
26	STUD; EXH MANIF EURO3 SPECIFICATION<NJX> M12X140 L=160	1-09302-163-0	04	1	0801-		●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	0801-1402	●
26	STUD; EXH MANIF EMISSION REGULATION NEW LONG TERM<JBG> M12X125 L=145	8-97617-265-0	04	1	0801-1402		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-	●
26	STUD; EXH MANIF EMISSION REGULATION NEW LONG TERM<JBG> M12X125 L=145	8-97648-063-0	04	1	1403-		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0801-	●
34	WASHER; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> ID=13 OD=26	1-09556-020-0	04	1	0801-		●
36	NUT; EXH PIPE EURO3 SPECIFICATION<NJX> (C) M12	0-91110-512-0	04	1	0801-		●
36	NUT; EXH PIPE (A) M12 FLANGE	0-91180-212-0	08	1	0801-	●
36	NUT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M12 FLANGE	0-91180-212-0	08	1	0801-		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	0801-	●
36	NUT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> (B) M12	1-09400-131-0	04	1	0801-		●
94	BOLT; CLAMP EURO3 SPECIFICATION<NJX> (B) M8X35 FLANGE	0-28050-835-0	04	1	0801-		●
94	BOLT; CLAMP (A) M8X40 FLANGE	0-28650-840-0	02	1	0801-	●
94	BOLT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> (A) M8X40 FLANGE	0-28650-840-0	02	1	0801-		●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	0801-	●
125	NUT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0801-		●
128	PIPE; EXH,RR EURO3 SPECIFICATION<NJX>	8-98106-278-0	01	1	0801-		●
128	PIPE; EXH,RR	8-98055-098-2	01	1	0801-	●
128	PIPE; EXH,RR EMISSION REGULATION NEW LONG TERM<JBG>	8-98055-098-2	01	1	0801-		●
221	CLAMP; EXH SILENCER EURO3 SPECIFICATION<NJX> D=101.4	1-22133-170-1	01	1	1104-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EURO3 SPECIFICATION<NJX> (A) OD=112	1-22119-294-1	01	1	0809-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EURO3 SPECIFICATION<NJX> (B) OD=122	1-22119-297-1	02	1	0809-		●
476	SPRING; VIBNON,EXH PIPE EURO3 SPECIFICATION<NJX> (B)	1-09583-248-0	04	1	0809-		●
476	SPRING; VIBNON,EXH PIPE EURO3 SPECIFICATION<NJX> (A)	8-94141-851-0	02	1	0809-		●

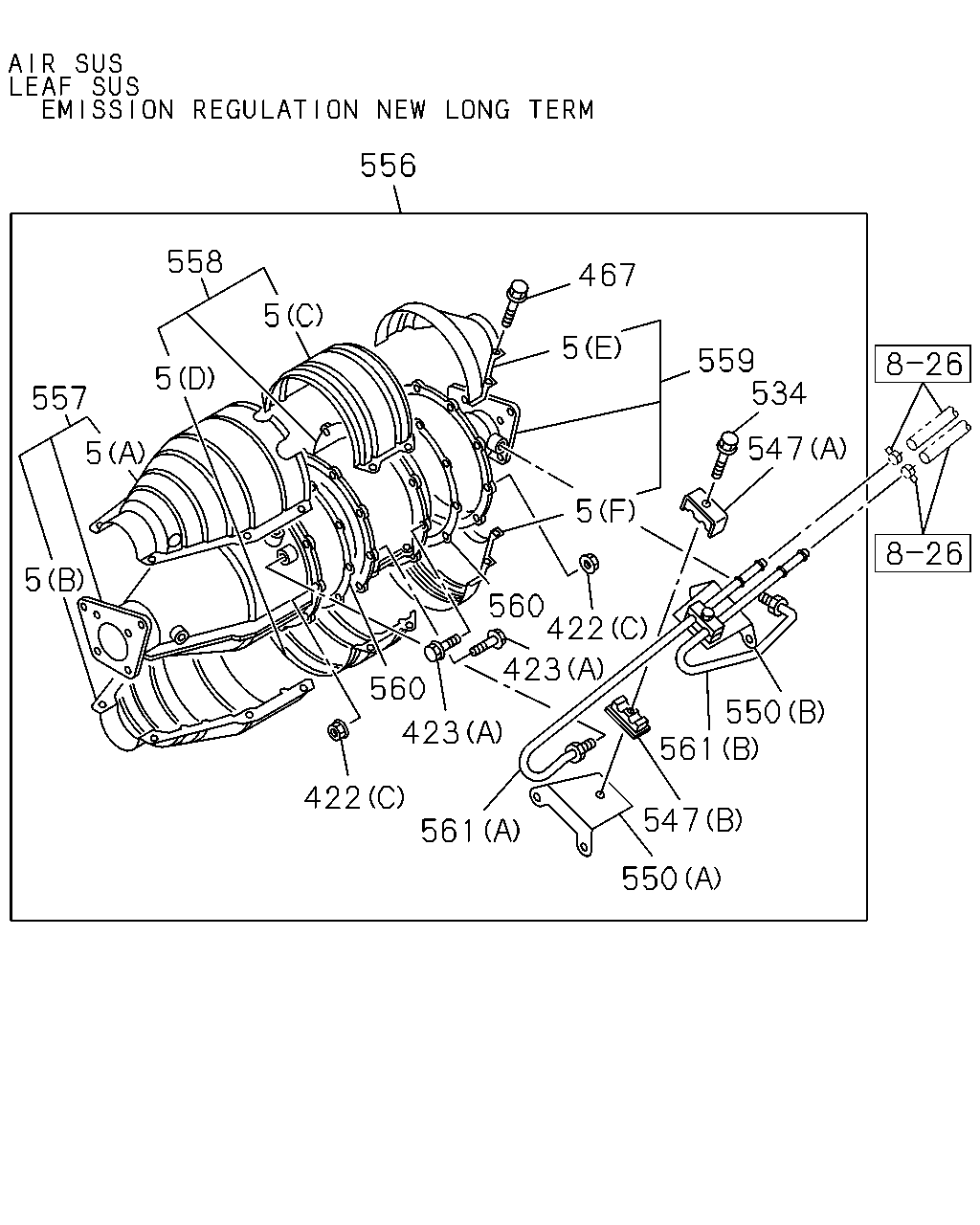

556 558 467 5 5 559 534 5 557 547 5 5 5 560 422 423 560 550 561 423 422 547 561 550

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PROTECTOR; HEAT (A)	8-98027-443-0	01	1	0801-	●
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-98027-443-0	01	1	0801-		●
5	PROTECTOR; HEAT (B)	8-98027-444-0	01	1	0801-	●
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-98027-444-0	01	1	0801-		●
5	PROTECTOR; HEAT (C)	8-98027-445-0	01	1	0801-	●
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-98027-445-0	01	1	0801-		●
5	PROTECTOR; HEAT (D)	8-98027-446-0	01	1	0801-	●
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-98027-446-0	01	1	0801-		●
5	PROTECTOR; HEAT (E)	8-98027-447-0	01	1	0801-	●
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (E)	8-98027-447-0	01	1	0801-		●
5	PROTECTOR; HEAT (F)	8-98027-448-0	01	1	0801-	●
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (F)	8-98027-448-0	01	1	0801-		●
422	NUT; PIPE (C) M8 FLANGE	0-91180-108-0	24	1	0801-	●
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C) M8 FLANGE	0-91180-108-0	24	1	0801-		●
422	NUT; PIPE (A) M10 FLANGE	0-91180-210-0	02	1	0801-	●
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M10 FLANGE	0-91180-210-0	02	1	0801-		●
422	NUT; PIPE (B) M12 FLANGE	0-91180-212-0	04	1	0801-	●
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12 FLANGE	0-91180-212-0	04	1	0801-		●
423	BOLT; PIPE (B) M12X35 FLANGE	0-28051-235-0	04	1	0801-	●
423	BOLT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12X35 FLANGE	0-28051-235-0	04	1	0801-		●
423	BOLT; PIPE (A) M8X35 FLANGE	0-28650-835-0	24	1	0801-	●
423	BOLT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M8X35 FLANGE	0-28650-835-0	24	1	0801-		●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	15	1	0801-0909	●
467	BOLT; PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> M6X16	8-98019-179-0	15	1	0801-0909		●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0910-	●
467	BOLT; PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> M6X16	8-98019-179-0	14	1	0910-		●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	02	1	0801-	●
534	BOLT; CLIP EMISSION REGULATION NEW LONG TERM<JBG> M6X35 FLANGE	0-28650-635-0	02	1	0801-		●
547	CLIP; PIPE (A)	8-97381-635-0	02	1	0801-	●
547	CLIP; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97381-635-0	02	1	0801-		●
547	CLIP; PIPE (B)	8-97381-636-0	02	1	0801-	●
547	CLIP; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97381-636-0	02	1	0801-		●
550	BRACKET; DPD (A)	8-98027-440-0	01	1	0801-	●
550	BRACKET; DPD EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-98027-440-0	01	1	0801-		●
550	BRACKET; DPD (B)	8-98027-442-0	01	1	0801-	●
550	BRACKET; DPD EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-98027-442-0	01	1	0801-		●
556	DPD ASM	8-98027-418-2	01	1	0801-0909	●
556	DPD ASM EMISSION REGULATION NEW LONG TERM<JBG>	8-98027-418-2	01	1	0801-0909		●
556	DPD ASM	8-98084-613-5	01	1	0910-	●
556	DPD ASM EMISSION REGULATION NEW LONG TERM<JBG>	8-98084-613-5	01	1	0910-		●
557	CATALYST ASM	8-98027-419-4	01	1	0801-	●
557	CATALYST ASM EMISSION REGULATION NEW LONG TERM<JBG>	8-98027-419-4	01	1	0801-		●
558	FILTER ASM	8-98027-420-4	01	1	0801-	●
558	FILTER ASM EMISSION REGULATION NEW LONG TERM<JBG>	8-98027-420-4	01	1	0801-		●
559	COVER; RR	8-98027-421-0	01	1	0801-0909	●
559	COVER; RR EMISSION REGULATION NEW LONG TERM<JBG>	8-98027-421-0	01	1	0801-0909		●
559	COVER; RR	8-98084-615-0	01	1	0910-	●
559	COVER; RR EMISSION REGULATION NEW LONG TERM<JBG>	8-98084-615-0	01	1	0910-		●
560	GASKET; DPD	8-98027-449-0	02	1	0801-	●
560	GASKET; DPD EMISSION REGULATION NEW LONG TERM<JBG>	8-98027-449-0	02	1	0801-		●
561	PIPE; DPD (A)	8-98027-437-0	01	1	0801-0909	●
561	PIPE; DPD EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-98027-437-0	01	1	0801-0909		●
561	PIPE; DPD (A)	8-98084-616-1	01	1	0910-	●
561	PIPE; DPD EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-98084-616-1	01	1	0910-		●
561	PIPE; DPD (B)	8-98027-439-0	01	1	0801-0909	●
561	PIPE; DPD EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-98027-439-0	01	1	0801-0909		●
561	PIPE; DPD (B)	8-98084-617-1	01	1	0910-	●
561	PIPE; DPD EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-98084-617-1	01	1	0910-		●

34 36 593 26 36 422 1 571 45 36 17 1 36 52 44 105 52 44 593 422 1 36 556 17 44 52 52 44 81 75 56 52 44 44 20 290 75 62 222 125 423 84 128 272 94 84 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EURO3 SPECIFICATION<NJX> (D)	8-98055-105-0	01	1	0801-		●
1	PIPE; EXH (A)	8-97623-354-1	01	1	0801-	●
1	PIPE; EXH EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97623-354-1	01	1	0801-		●
1	PIPE; EXH (B)	8-97624-441-0	01	1	0801-	●
1	PIPE; EXH EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97624-441-0	01	1	0801-		●
1	PIPE; EXH (C)	8-97625-311-0	01	1	0801-	●
1	PIPE; EXH EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-97625-311-0	01	1	0801-		●
17	BOLT; EXH PIPE EURO3 SPECIFICATION<NJX> (C) M12X25 FLANGE	1-09000-604-0	04	1	0801-		●
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	0801-	●
17	BOLT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M12X35 FLANGE	0-28051-235-0	04	1	0801-		●
17	BOLT; EXH PIPE (B) M12X120 FLANGE	0-28056-212-0	02	1	0801-	●
17	BOLT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12X120 FLANGE	0-28056-212-0	02	1	0801-		●
20	BOLT; FLANGE,EXH PIPE EURO3 SPECIFICATION<NJX> M10X51.4	8-94436-943-0	02	1	0809-		●
20	BOLT; FLANGE,EXH PIPE M12X35 FLANGE	0-28051-235-0	04	1	0801-	●
20	BOLT; FLANGE,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> M12X35 FLANGE	0-28051-235-0	04	1	0801-		●
26	STUD; EXH MANIF EURO3 SPECIFICATION<NJX> M12X140 L=160	1-09302-163-0	04	1	0801-		●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	0801-1402	●
26	STUD; EXH MANIF EMISSION REGULATION NEW LONG TERM<JBG> M12X125 L=145	8-97617-265-0	04	1	0801-1402		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-	●
26	STUD; EXH MANIF EMISSION REGULATION NEW LONG TERM<JBG> M12X125 L=145	8-97648-063-0	04	1	1403-		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0801-	●
34	WASHER; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> ID=13 OD=26	1-09556-020-0	04	1	0801-		●
36	NUT; EXH PIPE EURO3 SPECIFICATION<NJX> (C) M12	0-91110-512-0	04	1	0801-		●
36	NUT; EXH PIPE (A) M12 FLANGE	0-91180-212-0	08	1	0801-	●
36	NUT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M12 FLANGE	0-91180-212-0	08	1	0801-		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	0801-	●
36	NUT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> (B) M12	1-09400-131-0	04	1	0801-		●
44	BOLT; BRKT (A) M8X25 FLANGE	0-28050-825-0	04	1	0801-	●
44	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28050-825-0	04	1	0801-		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28051-035-0	06	1	0801-	●
44	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X35 FLANGE	0-28051-035-0	06	1	0801-		●
44	BOLT; BRKT (C) M10X40 FLANGE	0-28051-040-0	04	1	0801-0803	●
44	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) M10X40 FLANGE	0-28051-040-0	04	1	0801-0803		●
44	BOLT; BRKT (C) M10X40 FLANGE	0-28051-040-0	03	1	0804-	●
44	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) M10X40 FLANGE	0-28051-040-0	03	1	0804-		●
45	BOLT; BRKT (A) M10X40 FLANGE	0-28051-040-0	02	1	0801-	●
45	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X40 FLANGE	0-28051-040-0	02	1	0801-		●
45	BOLT; BRKT (B) M10X60 FLANGE	0-28051-060-0	02	1	0801-	●
45	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X60 FLANGE	0-28051-060-0	02	1	0801-		●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	12	1	0801-	●
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	12	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NJX> (F)	8-98106-290-0	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-97616-511-0	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97616-511-0	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-97616-549-1	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97616-549-1	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98055-099-0	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-98055-099-0	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98055-100-3	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-98055-100-3	01	1	0801-		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98099-664-0	01	1	0801-	●
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (E)	8-98099-664-0	01	1	0801-		●
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NJX> (A) L=22	1-22159-392-0	01	1	0801-0909		●
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NJX> (A) L=22	9-22159-024-0	01	1	0910-		●
62	TUBE; DIST,BRKT (A) L=22	1-22159-392-0	02	1	0801-0909	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) L=22	1-22159-392-0	02	1	0801-0909		●
62	TUBE; DIST,BRKT (B) L=37.5	9-22151-217-0	04	1	0801-	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) L=37.5	9-22151-217-0	04	1	0801-		●
62	TUBE; DIST,BRKT (C) L=22	9-22159-024-0	01	1	0801-0909	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) L=22	9-22159-024-0	01	1	0801-0909		●
62	TUBE; DIST,BRKT (C) L=22	9-22159-024-0	03	1	0910-	●
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) L=22	9-22159-024-0	03	1	0910-		●
75	RUBBER; SUPPORT,BRKT EURO3 SPECIFICATION<NJX> OD=40	1-22159-094-0	10	1	0801-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	06	1	0801-	●
75	RUBBER; SUPPORT,BRKT EMISSION REGULATION NEW LONG TERM<JBG> OD=40	1-22159-094-0	06	1	0801-		●
81	NUT; BRKT EURO3 SPECIFICATION<NJX> (B) M10	0-91110-510-0	04	1	0801-		●
81	NUT; BRKT EURO3 SPECIFICATION<NJX> (A) M10 FLANGE	0-91180-210-0	01	1	0801-		●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0801-	●
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10 FLANGE	0-91180-210-0	07	1	0801-		●
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0801-	●
84	GASKET; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG>	1-22116-030-0	01	1	0801-		●
94	BOLT; CLAMP EURO3 SPECIFICATION<NJX> (B) M8X35 FLANGE	0-28050-835-0	04	1	0801-		●
94	BOLT; CLAMP (A) M8X40 FLANGE	0-28650-840-0	02	1	0801-	●
94	BOLT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> (A) M8X40 FLANGE	0-28650-840-0	02	1	0801-		●
105	NUT; CLAMP EURO3 SPECIFICATION<NJX> M8	0-91110-508-0	04	1	0801-0810		●
105	NUT; CLAMP EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	04	1	0811-		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0801-	●
105	NUT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	02	1	0801-		●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	0801-	●
125	NUT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG>,EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0801-		●
128	PIPE; EXH,RR EURO3 SPECIFICATION<NJX>	8-98106-278-0	01	1	0801-		●
128	PIPE; EXH,RR	8-98055-098-2	01	1	0801-	●
128	PIPE; EXH,RR EMISSION REGULATION NEW LONG TERM<JBG>	8-98055-098-2	01	1	0801-		●
222	CLAMP; EXH PIPE	8-97621-090-0	01	1	0801-	●
222	CLAMP; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG>	8-97621-090-0	01	1	0801-		●
272	NUT; FLANGE M12 FLANGE	0-91180-212-0	04	1	0801-	●
272	NUT; FLANGE EMISSION REGULATION NEW LONG TERM<JBG> M12 FLANGE	0-91180-212-0	04	1	0801-		●
290	BOLT; CLAMP M10X35 FLANGE	0-28051-035-0	02	1	0801-	●
290	BOLT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG> M10X35 FLANGE	0-28051-035-0	02	1	0801-		●
422	NUT; PIPE (C) M8 FLANGE	0-91180-108-0	24	1	0801-	●
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C) M8 FLANGE	0-91180-108-0	24	1	0801-		●
422	NUT; PIPE (A) M10 FLANGE	0-91180-210-0	02	1	0801-	●
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M10 FLANGE	0-91180-210-0	02	1	0801-		●
422	NUT; PIPE (B) M12 FLANGE	0-91180-212-0	04	1	0801-	●
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12 FLANGE	0-91180-212-0	04	1	0801-		●
423	BOLT; PIPE (B) M12X35 FLANGE	0-28051-235-0	04	1	0801-	●
423	BOLT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12X35 FLANGE	0-28051-235-0	04	1	0801-		●
423	BOLT; PIPE (A) M8X35 FLANGE	0-28650-835-0	24	1	0801-	●
423	BOLT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M8X35 FLANGE	0-28650-835-0	24	1	0801-		●
556	DPD ASM	8-98027-418-2	01	1	0801-0909	●
556	DPD ASM EMISSION REGULATION NEW LONG TERM<JBG>	8-98027-418-2	01	1	0801-0909		●
556	DPD ASM	8-98084-613-5	01	1	0910-	●
556	DPD ASM EMISSION REGULATION NEW LONG TERM<JBG>	8-98084-613-5	01	1	0910-		●
571	GASKET ID=100	1-14145-175-0	01	1	0801-	●
571	GASKET EMISSION REGULATION NEW LONG TERM<JBG> ID=100	1-14145-175-0	01	1	0801-		●
593	COVER; EXH THROTTLE (A)	8-97621-937-0	01	1	0801-	●
593	COVER; EXH THROTTLE EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97621-937-0	01	1	0801-		●
593	COVER; EXH THROTTLE (B)	8-98073-719-0	01	1	0801-	●
593	COVER; EXH THROTTLE EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-98073-719-0	01	1	0801-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
