1-41 — FUEL PIPING; CHASSIS (#39812) — 83 parça

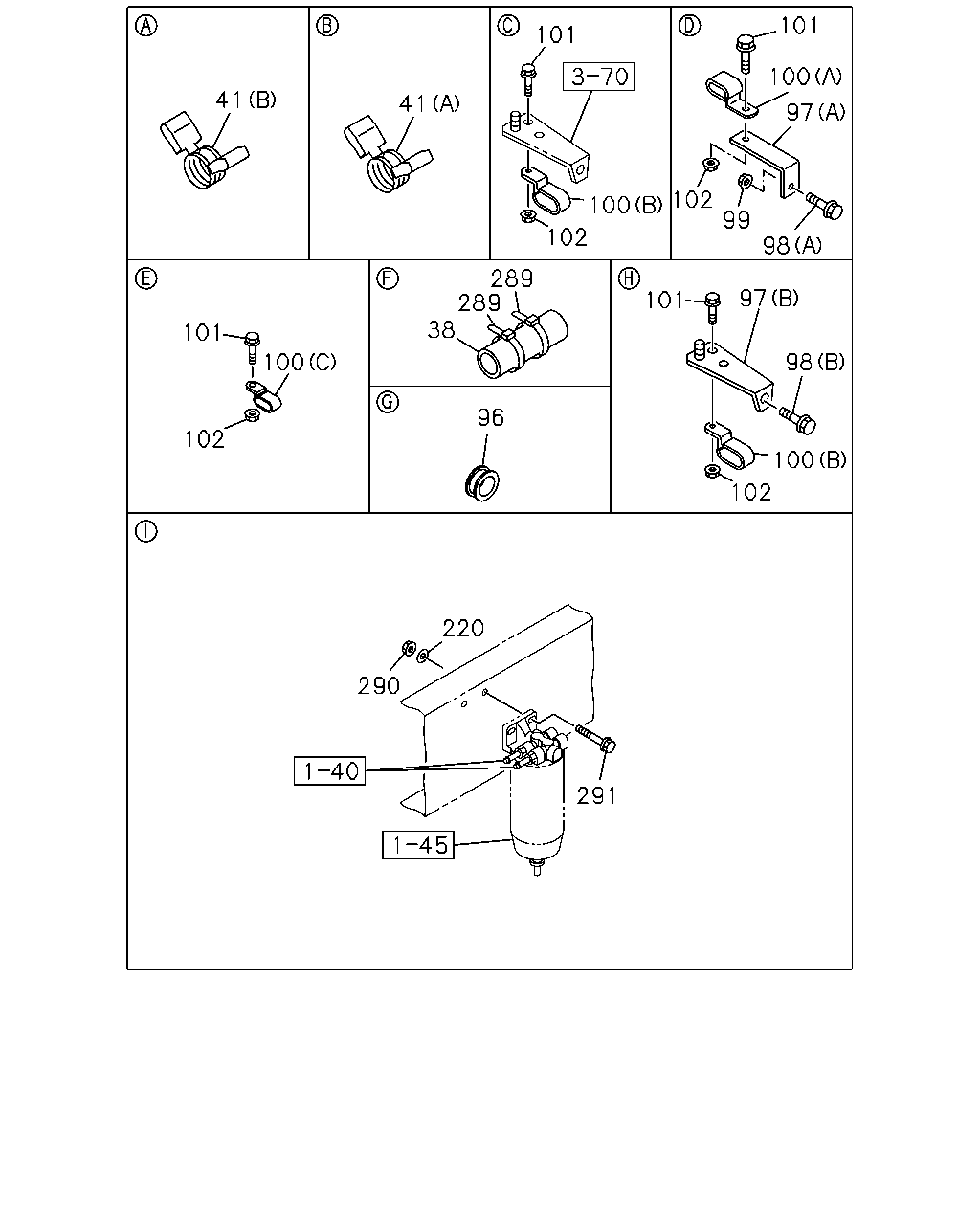

101 101 100 41 41 97 102 100 99 102 98 289 289 38 97 101 101 98 100 96 102 100 102 220 290 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 200L FRAME SIDE<N20> L=350 SERVICED BY L=1300	1-09360-677-1	01	1	0804-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0803	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-1201		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-1201	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1202-		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>,FUEL TANK 370L<8MH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1202-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	0801-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0801-	●	●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	0801-	●	●
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	0801-1010		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A)	1-47475-927-0	01	1	0801-1010	●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1011-		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=68	1-47475-525-0	01	1	1011-	●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	0801-0803		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (B)	8-97609-096-0	01	1	0801-0803	●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	0804-1201		●
97	BRACKET; CLIP FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B)	8-97609-096-0	01	1	0804-1201	●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	1202-		●
97	BRACKET; CLIP FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> ,FUEL TANK 370L<8MH> (B)	8-97609-096-0	01	1	1202-	●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 370L<8MH> (B) M8X35 FLANGE	0-28650-835-0	01	1	1202-	●
98	BOLT; BRKT,FUEL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803		●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 400L<SDH> (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803	●
98	BOLT; BRKT,FUEL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-		●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
98	BOLT; BRKT,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-		●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0801-0803		●
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0801-0803	●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0804-1201		●
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0804-1201	●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1202-		●
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> ,FUEL TANK 370L<8MH> M8 FLANGE	0-91180-108-0	01	1	1202-	●
100	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	03	1	0804-	●
100	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0801-		●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0801-	●
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	0801-0803		●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	0801-0803	●
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	0804-1201		●
100	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	0804-1201	●
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1202-		●
100	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> ,FUEL TANK 370L<8MH> (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1202-	●
100	CLIP; FUEL PIPE (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0801-0803	●	●
100	CLIP; FUEL PIPE (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0804-1201		●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0804-1201	●
100	CLIP; FUEL PIPE (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1202-		●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>,FUEL TANK 370L<8MH> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1202-	●
100	CLIP; FUEL PIPE FUEL TANK 200L AL<THF> (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	01	1	0801-	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> M8X20 FLANGE	0-28650-820-0	04	1	0804-1201	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 370L<8MH> M8X20 FLANGE	0-28650-820-0	04	1	1202-	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> M8X25 FLANGE	0-28650-825-0	02	1	0804-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	0801-		●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> M8X20 FLANGE	0-28650-820-0	05	1	0801-	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	0801-	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 370L<8MH> M8 FLANGE	0-91180-108-0	05	1	1202-	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	07	1	0804-	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	02	1	0801-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	06	1	0801-		●
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	06	1	0801-	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	0801-	●	●
289	CLIP; BAND,HOSE FUEL TANK 200L FRAME SIDE<N20> L=250	5-09707-030-1	03	1	0804-1201	●
289	CLIP; BAND,HOSE FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 370L<8MH> L=250	5-09707-030-1	03	1	1202-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0801-0803	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0804-1302		●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> L=250	5-09707-030-1	04	1	0804-1302	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0801-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0801-	●	●

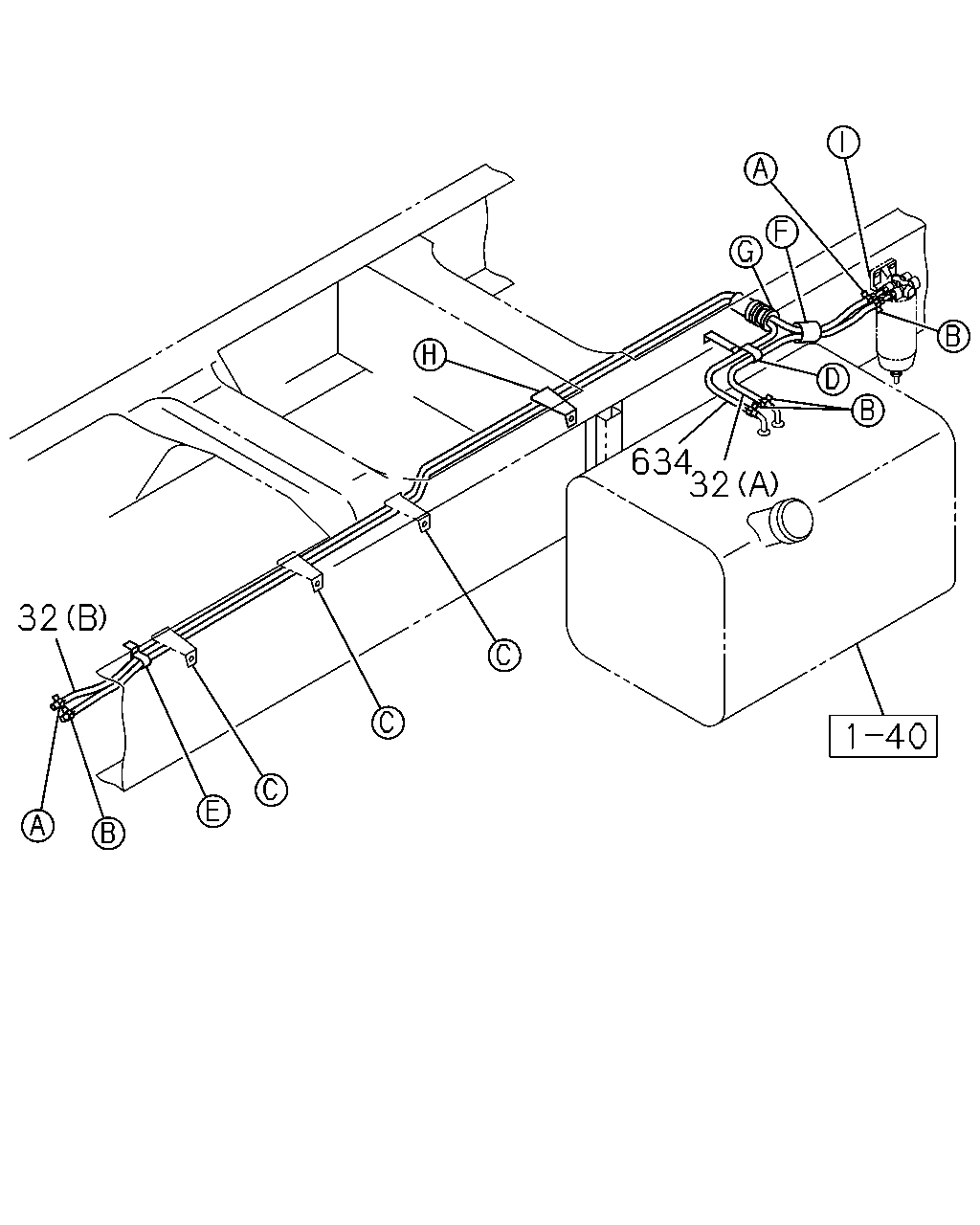

634 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=520 SERVICED BY L=3000	0-01260-300-0	01	1	0804-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=2600 SERVICED BY L=3000	0-01262-300-0	01	1	0804-	●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0801-1201		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0801-1201	●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1202-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH>,FUEL TANK 370L<8MH> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1202-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	0801-1201		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	0801-1201	●
32	PIPE; DELIVERY,FUEL TANK (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1202-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH>,FUEL TANK 370L<8MH> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1202-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	0801-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	0801-	●
634	HOSE; RUBBER RETURN FUEL TANK 370L<8MH> L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	1202-	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20> L=2250 SERVICED BY L=3000	0-01260-300-0	01	1	0804-	●
634	HOSE; RUBBER RETURN L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0801-		●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0801-	●
634	HOSE; RUBBER RETURN FUEL TANK 200L AL<THF> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0801-	●
