◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#3981) — 50 parça

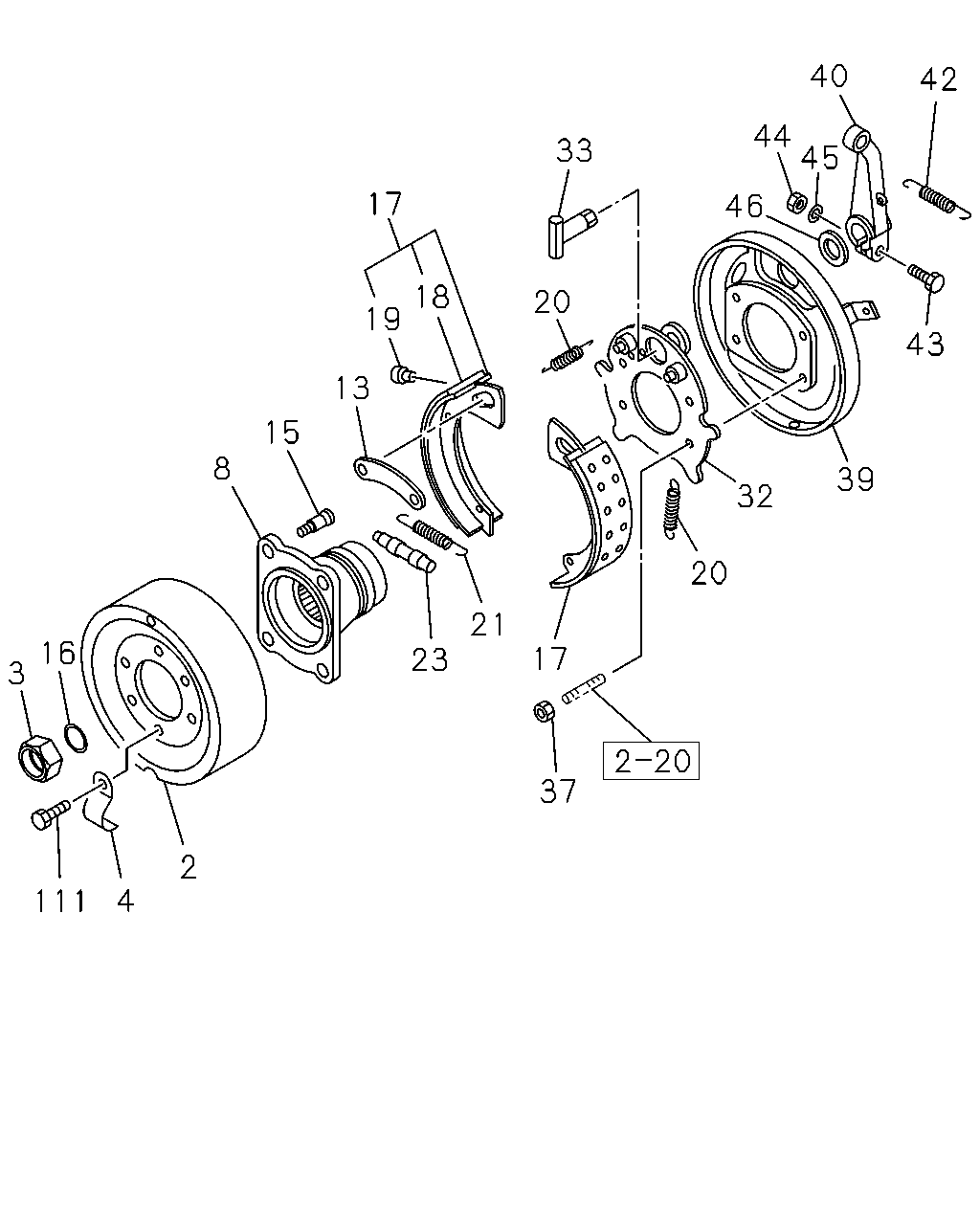

çizim 116015
40 42 44 45 33 17 46 18 20 19 43 13 15 8 39 32 20 21 16 17 23 3 37 2 4 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 DRUM; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46211-019-0 01 1 9510- ● ● ● ● ●
3 NUT; LK
PARKING BRAKE DRUM 10"(B1T) M36 FLANGE 		1-09449-063-0 01 1 9510-0805 ● ● ● ● ●
3 NUT; LK
PARKING BRAKE DRUM 10"(B1T) M36 FLANGE 		8-98014-140-0 01 1 0806- ● ● ● ● ●
4 COVER; ADJ HOLE
PARKING BRAKE DRUM 10"(B1T) 		1-46219-030-0 02 1 9510- ● ● ● ● ●
8 FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-37243-235-0 01 1 9510-1002 ● ● ● ● ●
8 FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		8-98153-193-0 01 1 1003- ● ● ● ● ●
13 BRACE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46239-002-0 01 1 0412- ● ● ● ● ●
13 BRACE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46239-002-0 01 1 9510-0410 ● ● ● ● ●
15 BOLT; FLANGE
PARKING BRAKE DRUM 10"(B1T) M16X55 		1-46219-039-0 04 1 9510-0707 ● ● ● ● ●
15 BOLT; FLANGE
PARKING BRAKE DRUM 10"(B1T) M16X55 		8-98023-172-0 04 1 0708- ● ● ● ● ●
16 GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE DRUM 10"(B1T) ID=47 T=5 		1-09623-380-0 01 1 9510- ● ● ● ● ●
17 SHOE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46220-022-1 02 1 0412- ● ● ● ● ●
17 SHOE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46220-022-0 02 1 9510-0410 ● ● ● ● ●
18 LINING; BRK,PARKING
PARKING BRAKE DRUM 10"(B1T) 		1-46225-023-0 02 1 0412- ● ● ● ● ●
18 LINING; BRK,PARKING
PARKING BRAKE DRUM 10"(B1T) 		1-46225-023-0 02 1 9510-0410 ● ● ● ● ●
19 RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-09732-012-0 32 1 0412-0807 ● ● ● ● ●
19 RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-09732-058-0 32 1 0808- ● ● ● ● ●
19 RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-09732-012-0 32 1 9510-0410 ● ● ● ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-09942-434-0 02 1 0412- ● ● ● ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-09942-434-0 02 1 9510-0410 ● ● ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		9-09942-516-0 01 1 0412- ● ● ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		9-09942-516-0 01 1 9510-0410 ● ● ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		1-46240-003-0 01 1 0412- ● ● ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		1-46240-003-0 01 1 9510-0410 ● ● ● ● ●
32 PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-039-0 01 1 0412- ● ● ● ● ●
32 PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-039-0 01 1 9510-0410 ● ● ● ● ●
33 SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46251-010-0 01 1 0412- ● ● ● ● ●
33 SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46251-006-0 01 1 9510-0410 ● ● ● ● ●
37 NUT; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) M14 FLANGE 		1-09440-048-0 04 1 9510-0604 ● ● ● ● ●
37 NUT; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) M14 FLANGE 		8-97365-444-0 04 1 0605- ● ● ● ● ●
39 COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-038-0 01 1 0412- ● ● ● ● ●
39 COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-038-0 01 1 9510-0410 ● ● ● ● ●
40 LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46252-046-0 01 1 0412- ● ● ● ● ●
40 LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46252-013-0 01 1 9510-0410 ● ● ● ● ●
42 SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"(B1T) 		1-09583-104-0 01 1 9510- ● ● ● ● ●
43 BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) 		0-10811-040-0 01 1 0412-0710 ● ● ● ● ●
43 BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) 		8-98061-595-0 01 1 0711- ● ● ● ● ●
43 BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) 		0-10811-040-0 01 1 9510-0410 ● ● ● ● ●
44 NUT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) M10 		9-09111-410-0 01 1 0412-0512 ● ● ● ● ●
44 NUT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) M10 		0-91111-510-0 01 1 0601- ● ● ● ● ●
44 NUT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) M10 		9-09111-410-0 01 1 9510-0410 ● ● ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) ID=10.2 		9-09150-510-0 01 1 0412-0603 ● ● ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) ID=10.2 		0-91510-510-0 01 1 0604- ● ● ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) ID=10.2 		9-09150-010-0 01 1 9510-9608 ● ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) ID=10.2 		9-09150-510-0 01 1 9609-0410 ● ● ● ● ●
46 WASHER; LEVER
PARKING BRAKE DRUM 10"(B1T) 		9-09855-362-0 01 1 0412- ● ● ● ● ●
46 WASHER; LEVER
PARKING BRAKE DRUM 10"(B1T) 		9-09855-362-0 01 1 9510-0410 ● ● ● ● ●
111 BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9510-0906 ● ● ● ● ●
111 BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER 		0-50540-820-0 02 1 0907-1009 ● ● ● ● ●
111 BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER 		0-50740-820-0 02 1 1010- ● ● ● ● ●
