◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-90 - POWER TAKE OFF; FLYWHEEL ▶
0-90 — POWER TAKE OFF; FLYWHEEL (#39804) — 99 parça

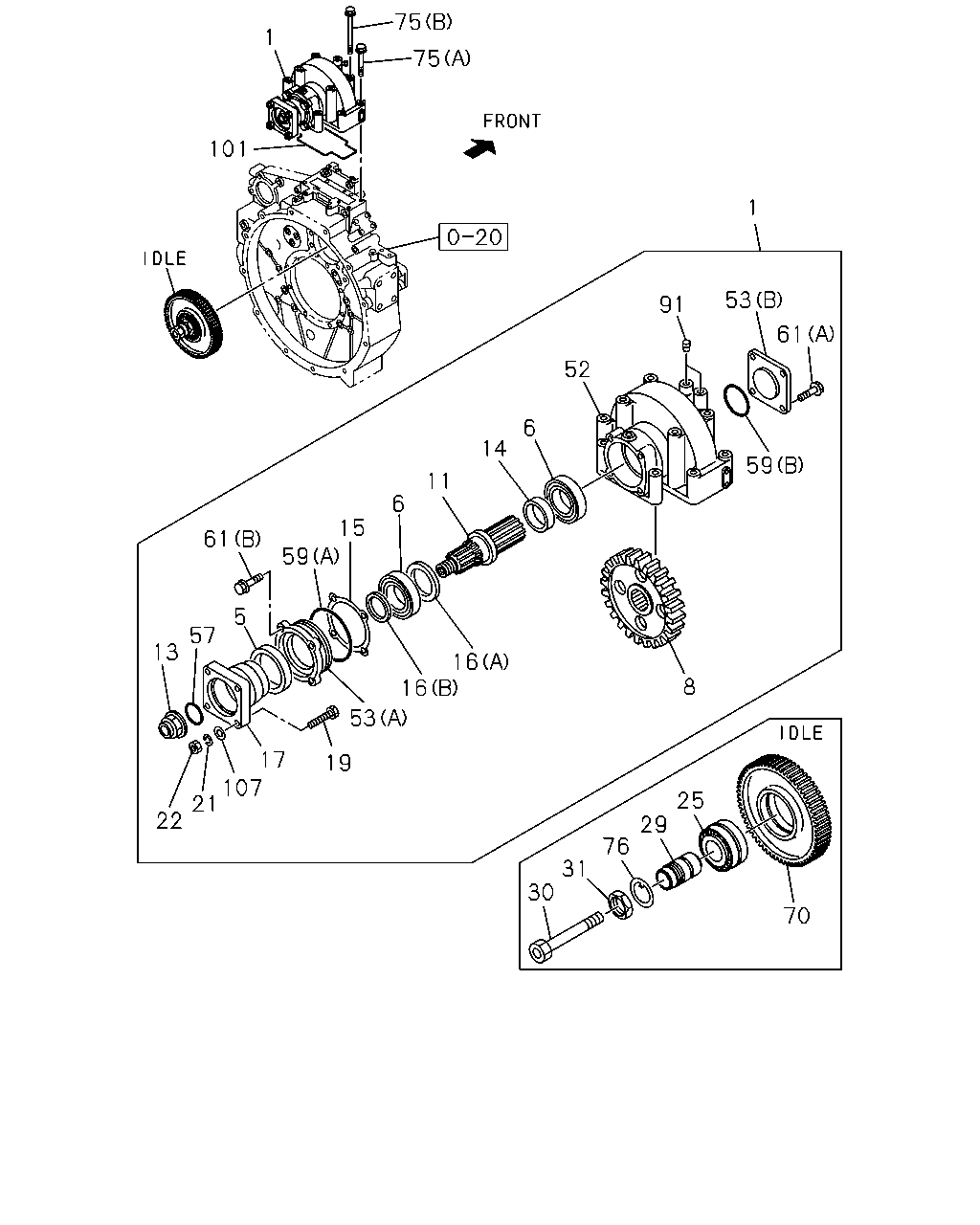

çizim 161848
1 101 75 75 1 91 53 52 61 59 6 14 11 6 15 59 61 5 57 13 53 16 16 19 17 107 21 22 30 76 31 29 70 8 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; ENG RR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98123-891-0 01 1 0806-0807 ●
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		8-98035-593-0 01 1 0801-0805 ● ●
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		8-98035-593-0 01 1 0806-0807 ●
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		8-98035-593-1 01 1 0808- ● ●
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		8-97388-533-0 01 1 0801-0805 ● ●
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		8-97388-533-0 01 1 0806-0807 ●
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		8-97388-533-0 01 1 0808- ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) JTEKT 		8-94248-088-2 02 1 0801-0805 ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) JTEKT 		8-94248-088-2 02 1 0806-0807 ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) JTEKT 		8-94248-088-2 02 1 0808-1204 ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) JTEKT 		8-98171-254-0 02 1 1205- ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 02 1 0801-0805 ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 02 1 0806-0807 ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 02 1 0808- ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) BEST VALUE PARTS 		1-87610-134-0 02 1 1205- ● ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=61 		8-97603-907-0 01 1 0801-0805 ● ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=61 		8-97603-907-0 01 1 0806-0807 ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=61 		8-97603-907-0 01 1 0808- ● ●
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97603-908-0 01 1 0801-0805 ● ●
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97603-908-0 01 1 0806-0807 ●
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97603-908-0 01 1 0808- ● ●
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		8-98013-471-0 01 1 0801-0805 ● ●
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		8-98013-471-0 01 1 0806-0807 ●
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		8-98013-471-0 01 1 0808-1204 ● ●
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) M27 H=25 		8-97360-410-0 01 1 1205- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.20 		9-38226-050-0 01 1 0801-0805 ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.20 		9-38226-050-0 01 1 0806-0807 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.20 		9-38226-050-0 01 1 0808- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.39 		8-97382-615-0 01 1 0801-0805 ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.39 		8-97382-615-0 01 1 0806-0807 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.39 		8-97382-615-0 01 1 0808- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.44 		8-97382-616-0 01 1 0801-0805 ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.44 		8-97382-616-0 01 1 0806-0807 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.44 		8-97382-616-0 01 1 0808- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.49 		8-97382-617-0 01 1 0801-0805 ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.49 		8-97382-617-0 01 1 0806-0807 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.49 		8-97382-617-0 01 1 0808- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.54 		8-97382-618-0 01 1 0801-0805 ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.54 		8-97382-618-0 01 1 0806-0807 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.54 		8-97382-618-0 01 1 0808- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.59 		8-97382-619-0 01 1 0801-0805 ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.59 		8-97382-619-0 01 1 0806-0807 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.59 		8-97382-619-0 01 1 0808- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.64 		8-97382-620-0 01 1 0801-0805 ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.64 		8-97382-620-0 01 1 0806-0807 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.64 		8-97382-620-0 01 1 0808- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.69 		8-97382-621-0 01 1 0801-0805 ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.69 		8-97382-621-0 01 1 0806-0807 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.69 		8-97382-621-0 01 1 0808- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.74 		8-97382-622-0 01 1 0801-0805 ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.74 		8-97382-622-0 01 1 0806-0807 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.74 		8-97382-622-0 01 1 0808- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.79 		8-97382-623-0 01 1 0801-0805 ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.79 		8-97382-623-0 01 1 0806-0807 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=0.79 		8-97382-623-0 01 1 0808- ● ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) (A) 		8-97605-070-1 01 1 0801-0805 ● ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) (A) 		8-97605-070-1 01 1 0806-0807 ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) (A) 		8-97605-070-1 01 1 0808- ● ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) (B) 		8-97605-071-0 01 1 0801-0805 ● ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) (B) 		8-97605-071-0 01 1 0806-0807 ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) (B) 		8-97605-071-0 01 1 0808- ● ●
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38189-010-2 01 1 0801-0805 ● ●
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38189-010-2 01 1 0806-0807 ●
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38189-010-2 01 1 0808- ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) M12X40 		0-20951-240-0 04 1 0801-0805 ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) M12X40 		0-20951-240-0 04 1 0806-0807 ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) M12X40 		0-20951-240-0 04 1 0808- ● ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		0-91510-812-0 04 1 0801-0805 ● ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		0-91510-812-0 04 1 0806-0807 ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		0-91510-812-0 04 1 0808- ● ●
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		0-91110-512-0 04 1 0801-0805 ● ●
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		0-91110-512-0 04 1 0806-0807 ●
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		0-91110-512-0 04 1 0808- ● ●
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09820-105-0 01 1 0801- ● ●
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO(SV1) 		1-12531-108-0 01 1 0801- ● ●
30 BOLT; SPINDLE
ENGINE REAR PTO(SV1) 		9-09805-081-1 01 1 0801- ● ●
31 NUT; IDLE GEAR
ENGINE REAR PTO(SV1) 		9-09843-063-0 01 1 0801- ● ●
52 CASE; BRG,PTO
ENGINE REAR PTO(SV1) 		8-97603-906-1 01 1 0801- ● ●
53 COVER; PTO
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98123-892-0 01 1 0806-0807 ●
53 COVER; PTO
ENGINE REAR PTO(SV1) (A) 		8-97603-909-1 01 1 0801-0805 ● ●
53 COVER; PTO
ENGINE REAR PTO(SV1) (A) 		8-97603-909-1 01 1 0806-0807 ●
53 COVER; PTO
ENGINE REAR PTO(SV1) (A) 		8-97603-909-1 01 1 0808- ● ●
53 COVER; PTO
ENGINE REAR PTO(SV1) (B) 		8-98002-481-1 01 1 0801- ● ●
57 GASKET; FLANGE,PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		9-09920-533-0 01 1 0801-0805 ● ●
57 GASKET; FLANGE,PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		9-09920-533-0 01 1 0806-0807 ●
57 GASKET; FLANGE,PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		9-09920-533-0 01 1 0808- ● ●
59 GASKET; COVER
ENGINE REAR PTO(SV1) (A) 		1-09623-422-0 01 1 0801- ● ●
59 GASKET; COVER
ENGINE REAR PTO(SV1) (B) ID=62.6 		1-09623-505-0 01 1 0801- ● ●
61 BOLT; COVER
ENGINE REAR PTO(SV1) (A) M8X20 FLANGE 		0-28650-820-0 04 1 0801- ● ●
61 BOLT; COVER
ENGINE REAR PTO(SV1) (B) M8X25 FLANGE 		0-28650-825-0 04 1 0801- ● ●
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO(SV1) Z=54 		8-97603-911-0 01 1 0801- ● ●
75 BOLT; COVER
ENGINE REAR PTO(SV1) (A) M10X90 FLANGE 		0-28151-090-0 06 1 0801- ● ●
75 BOLT; COVER
ENGINE REAR PTO(SV1) (B) M10X150 FLANGE 		0-28156-015-0 04 1 0801- ● ●
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO(SV1) 		9-09854-034-0 01 1 0801- ● ●
91 CUP; SEALING
ENGINE REAR PTO(SV1) 		8-97374-579-0 02 1 0801- ● ●
101 GASKET; PTO
ENGINE REAR PTO(SV1) 		8-97603-914-0 01 1 0801- ● ●
107 WASHER; PL,FLANGE
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		0-91610-512-0 04 1 0801-0805 ● ●
107 WASHER; PL,FLANGE
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		0-91610-512-0 04 1 0806-0807 ●
107 WASHER; PL,FLANGE
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		0-91610-512-0 04 1 0808- ● ●
