◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#39803) — 44 parça

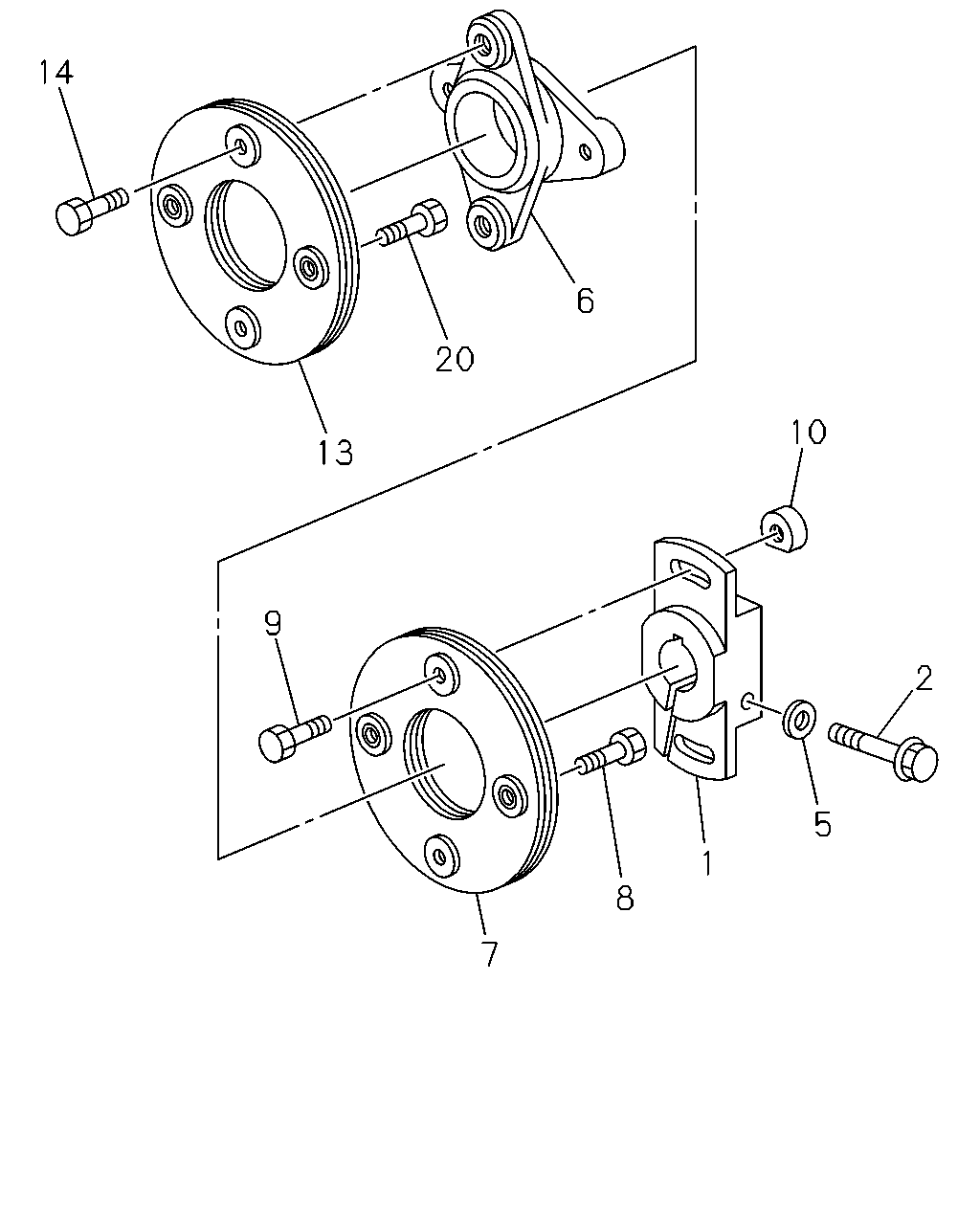

çizim 161821
14 6 20 10 13 9 2 5 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 1-15781-048-0 01 1 0801-1312 ● ●
1 COUPLING; INJ PUMP DRIVE 1-15781-048-0 01 1 1401- ●
1 COUPLING; INJ PUMP DRIVE
ZF M/T<X9E> 		1-15781-048-0 01 1 1401- ●
1 COUPLING; INJ PUMP DRIVE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15781-048-0 01 1 1401- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0801-1312 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 1401- ●
2 BOLT; COUPLING FIX,INJ PUMP
ZF M/T<X9E> 		1-15789-162-0 01 1 1401- ●
2 BOLT; COUPLING FIX,INJ PUMP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15789-162-0 01 1 1401- ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 0801-1312 ● ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 1401- ●
5 WASHER; COUPLING FIX,INJ PUMP
ZF M/T<X9E> 		1-15789-021-0 01 1 1401- ●
5 WASHER; COUPLING FIX,INJ PUMP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15789-021-0 01 1 1401- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-221-0 01 1 0801-1312 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-221-0 01 1 1401- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
ZF M/T<X9E> 		1-15789-221-0 01 1 1401- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15789-221-0 01 1 1401- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 0801-1312 ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 1401- ●
7 PLATE; COUPLING,COUPLING SIDE
ZF M/T<X9E> 		1-15619-181-0 01 1 1401- ●
7 PLATE; COUPLING,COUPLING SIDE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15619-181-0 01 1 1401- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0801-1312 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 1401- ●
8 BOLT; PLATE TO CROSS COUPLING
ZF M/T<X9E> 		1-15619-183-0 02 1 1401- ●
8 BOLT; PLATE TO CROSS COUPLING
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15619-183-0 02 1 1401- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 0801-1312 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 1401- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
ZF M/T<X9E> 		1-15789-159-0 02 1 1401- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15789-159-0 02 1 1401- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 0801-1312 ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 1401- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
ZF M/T<X9E> 		1-15789-165-0 02 1 1401- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15789-165-0 02 1 1401- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0801-1312 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 1401- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
ZF M/T<X9E> 		1-15619-181-0 01 1 1401- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15619-181-0 01 1 1401- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0801-1312 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 1401- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
ZF M/T<X9E> 		1-15619-183-0 02 1 1401- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15619-183-0 02 1 1401- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0801-1312 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 1401- ●
20 BOLT; COUPLING TO INJ PUMP
ZF M/T<X9E> 		1-15619-183-0 02 1 1401- ●
20 BOLT; COUPLING TO INJ PUMP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15619-183-0 02 1 1401- ●
