1 |
SHOE; BRK,RR
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47170-442-0 |
04 |
1 |
0604- |
● |
|
| |
1 |
SHOE; BRK,RR
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47120-325-0 |
04 |
1 |
9811-0004 |
|
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47120-325-0 |
04 |
1 |
9811-0004 |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-325-0 |
04 |
1 |
0005-0603 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7
15.5" HYPOID(W3S)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47170-441-0 |
04 |
1 |
0604-0604 |
|
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7
15.5" HYPOID(W3S)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47170-441-0 |
04 |
1 |
0604-0604 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47170-441-0 |
04 |
1 |
0604- |
|
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47170-441-0 |
04 |
1 |
0604- |
● |
|
| |
1 |
SHOE; BRK,RR

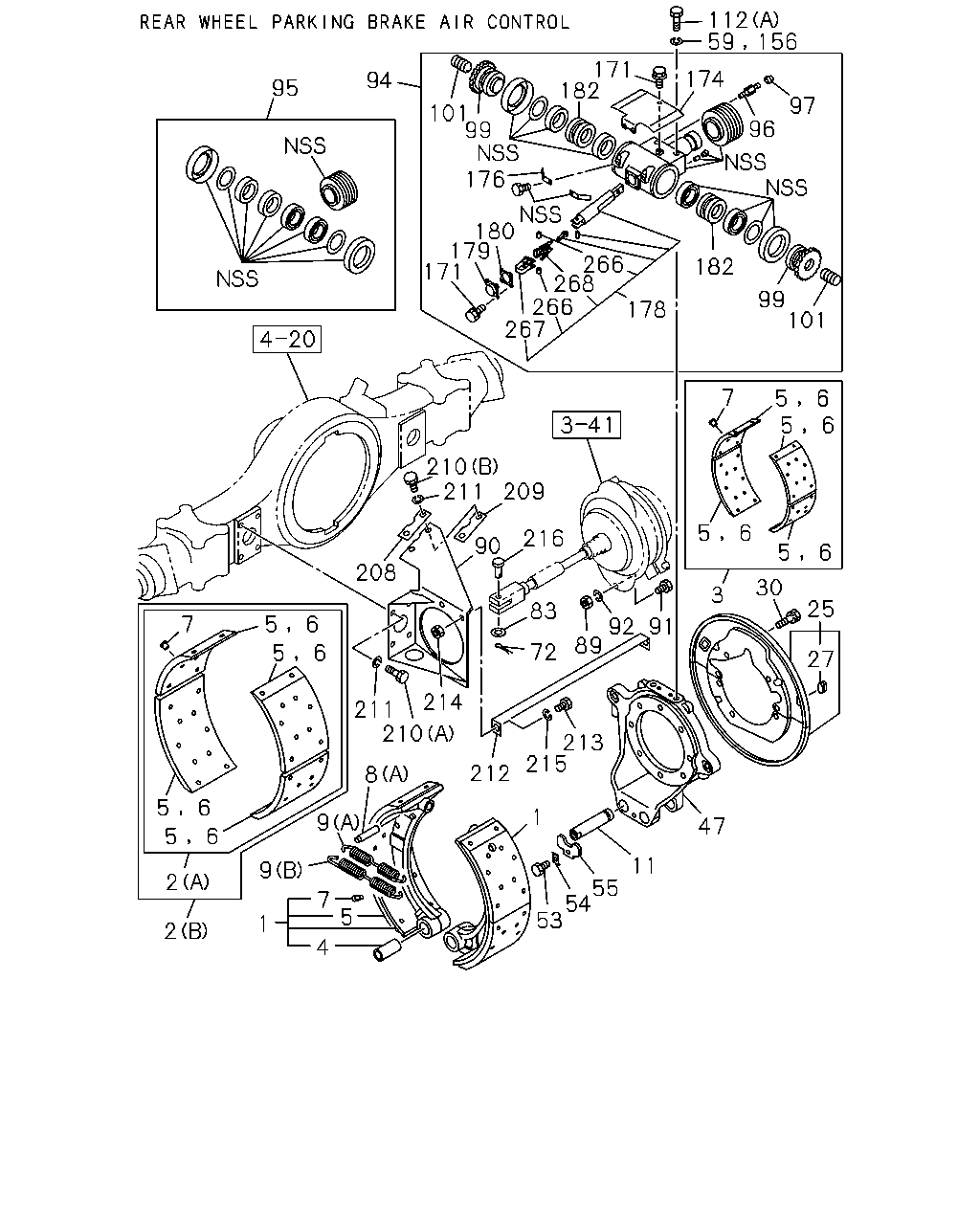

REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47110-988-0 |
04 |
1 |
9510-9802 |
|
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47110-988-0 |
04 |
1 |
9510-9802 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47110-988-0 |
04 |
1 |
9510-9802 |
● |
|
| |
1 |
SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-707-0 |
04 |
1 |
9803-9810 |
|
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-707-0 |
04 |
1 |
9803-9810 |
● |
|
| |
1 |
SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47120-707-0 |
04 |
1 |
9811-0004 |
● |
● |
| |
1 |
SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47120-707-0 |
04 |
1 |
0005-0603 |
|
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47120-707-0 |
04 |
1 |
0005-0603 |
● |
|
| |
1 |
SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47120-707-0 |
04 |
1 |
0604- |
|
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47120-707-0 |
04 |
1 |
0604- |
● |
|
| |
1 |
SHOE; BRK,RR

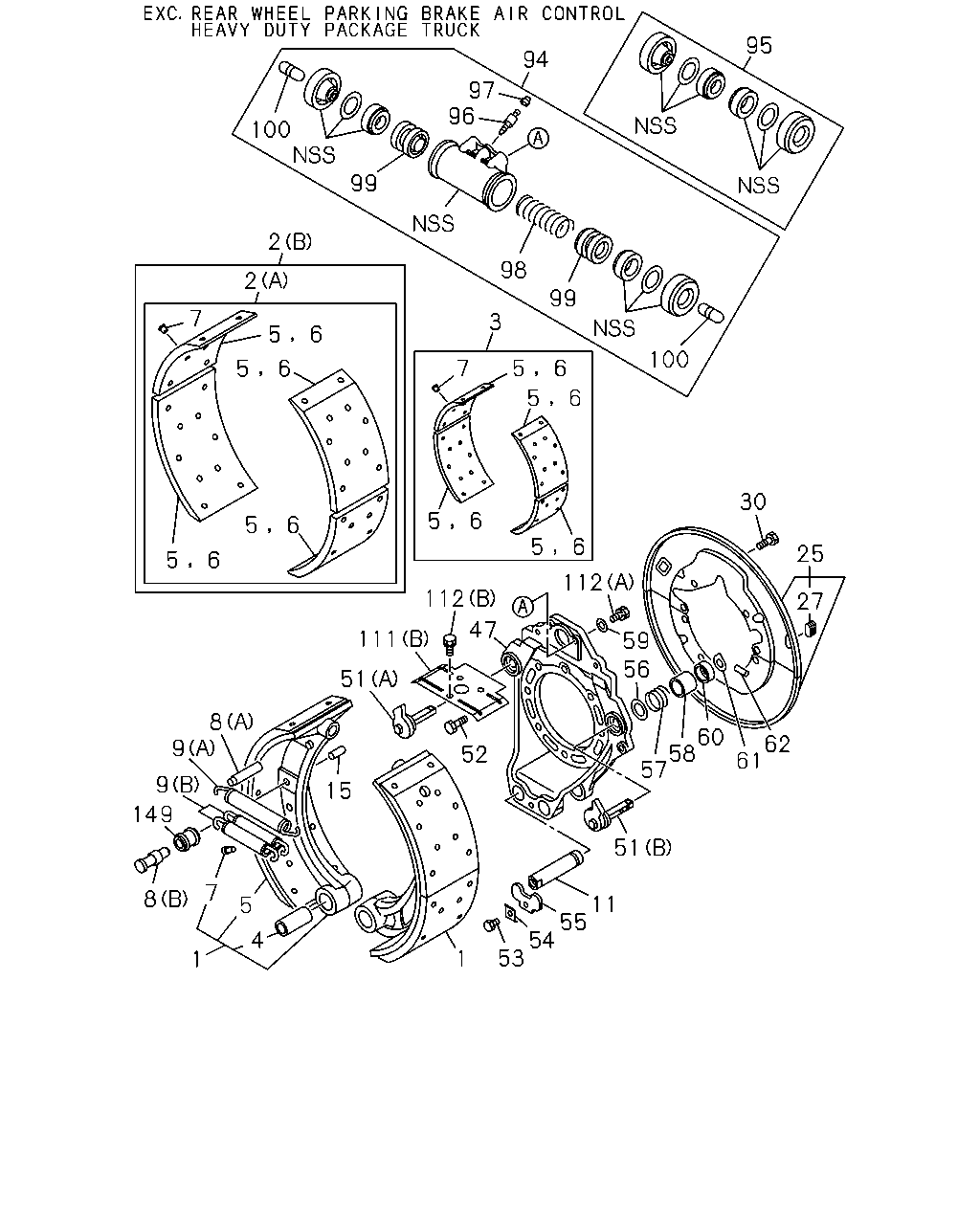

EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47110-962-0 |
04 |
1 |
9510-9705 |
|
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47110-962-0 |
04 |
1 |
9510-9705 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47110-962-0 |
04 |
1 |
9510-9705 |
● |
|
| |
1 |
SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47110-962-0 |
04 |
1 |
9706-9802 |
|
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47110-962-0 |
04 |
1 |
9706-9802 |
● |
|
| |
1 |
SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
9803-9810 |
|
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
9803-9810 |
● |
|
| |
1 |
SHOE; BRK,RR
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
9811-0004 |
|
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
9811-0004 |
● |
|
| |
1 |
SHOE; BRK,RR
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
0005-0603 |
|
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
0005-0603 |
● |
|
| |
1 |
SHOE; BRK,RR
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
0604- |
|
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
0604- |
● |
|
| |
1 |

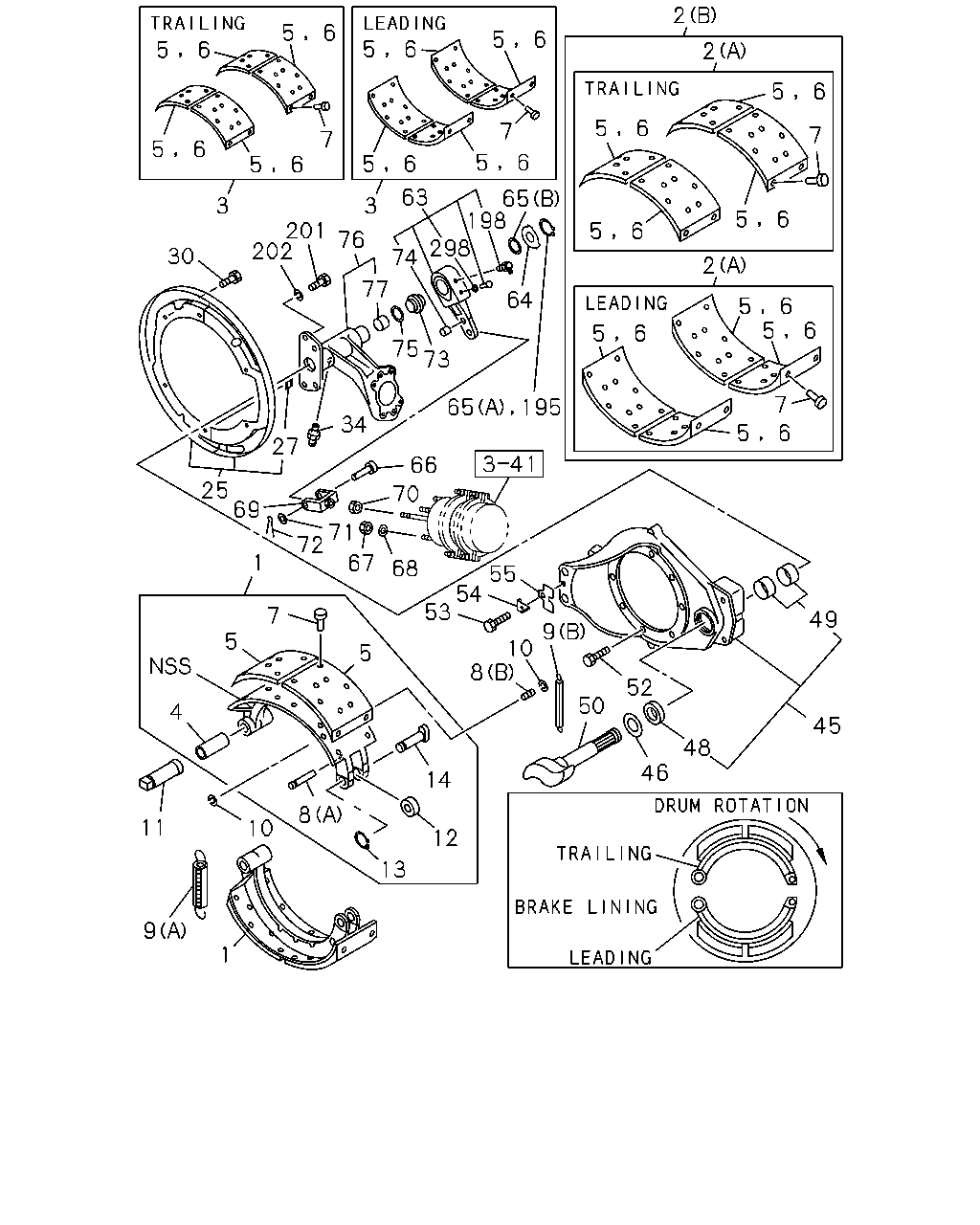

SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47120-715-0 |
01 |
1 |
0005-0106 |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47120-715-0 |
01 |
1 |
0107-0211 |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47120-715-0 |
01 |
1 |
0212- |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47120-716-0 |
01 |
1 |
0005-0106 |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47120-716-0 |
01 |
1 |
0107-0211 |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47120-716-0 |
01 |
1 |
0212- |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47120-713-0 |
01 |
1 |
0005-0106 |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47120-713-0 |
01 |
1 |
0107-0211 |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47120-713-0 |
01 |
1 |
0212- |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47120-714-0 |
01 |
1 |
0005-0106 |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47120-714-0 |
01 |
1 |
0107-0211 |
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47120-714-0 |
01 |
1 |
0212- |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 16.5"<B2Y>
|
1-47120-218-0 |
04 |
1 |
9510-9802 |
● |
|
| |
1 |

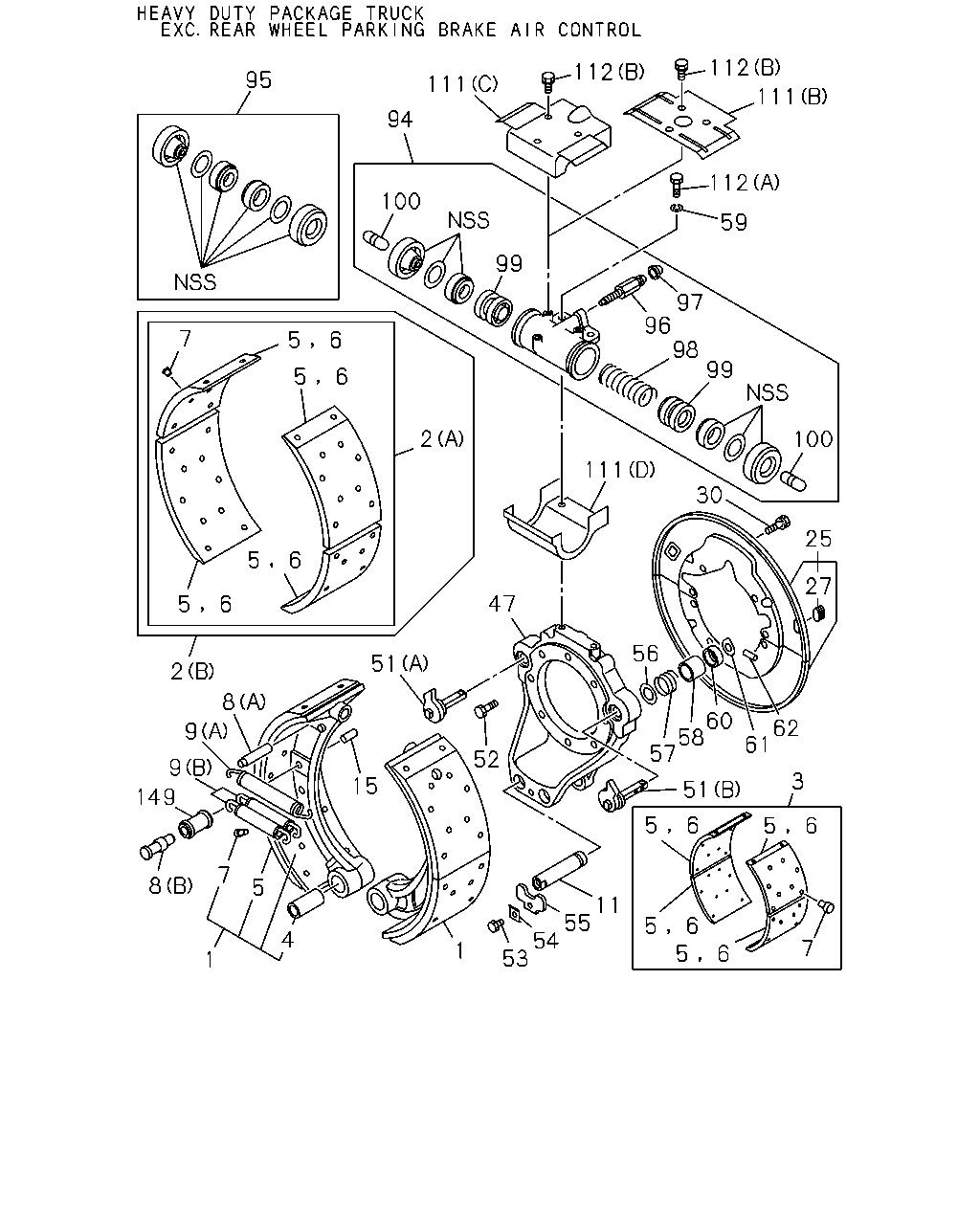

SHOE; BRK,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-218-0 |
04 |
1 |
9510-9802 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
|
1-47120-708-0 |
04 |
1 |
9803-9810 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-708-0 |
04 |
1 |
9811-9909 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 8STUD
20X7.00T 152-12(SDP)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),LIMITED
SLIP DIFF(G86)
|
1-47120-708-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 16.5"<B2Y>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-708-0 |
04 |
1 |
0005-0603 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-708-0 |
04 |
1 |
0604- |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47120-326-0 |
04 |
1 |
9811-0004 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-326-0 |
04 |
1 |
0005-0603 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
T=16
|
1-88311-359-1 |
02 |
1 |
0604- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
(A)
|
1-88302-956-0 |
02 |
1 |
9510-9802 |
|
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
|
1-88302-956-0 |
02 |
1 |
9510-9802 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
(A)
|
1-88302-956-0 |
02 |
1 |
9510-9802 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
(A)
|
1-88310-495-0 |
02 |
1 |
9803-9810 |
|
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 15.5"<B2X>
(A)
|
1-88310-495-0 |
02 |
1 |
9803-9810 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
1-88310-495-0 |
02 |
1 |
9811-0004 |
|
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
1-88310-495-0 |
02 |
1 |
9811-0004 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
1-88310-495-0 |
02 |
1 |
0005-0603 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(A)
|
1-88310-495-0 |
02 |
1 |
0604- |
|
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(A)
|
1-88310-495-0 |
02 |
1 |
0604- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
1-88310-299-0 |
02 |
1 |
9811-0004 |
|
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
1-88310-299-0 |
02 |
1 |
9811-0004 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-88310-299-0 |
02 |
1 |
0005-0603 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-88311-353-1 |
02 |
1 |
0604- |
|
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-88311-353-1 |
02 |
1 |
0604- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) LEADING
|
1-88310-521-0 |
01 |
1 |
0005-0106 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) LEADING
|
1-88310-521-0 |
01 |
1 |
0107-0211 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) LEADING
|
1-88310-521-0 |
01 |
1 |
0212- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) TRAILING
|
1-88310-523-0 |
01 |
1 |
0005-0106 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) TRAILING
|
1-88310-523-0 |
01 |
1 |
0107-0211 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) TRAILING
|
1-88310-523-0 |
01 |
1 |
0212- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 16.5"<B2Y>
(A)
|
1-88302-958-0 |
02 |
1 |
9510-9802 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-88302-958-0 |
02 |
1 |
9510-9802 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
(A)
T=16
|
1-88310-529-0 |
02 |
1 |
9803-9810 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
T=16
|
1-88310-529-0 |
02 |
1 |
9811-9909 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 8STUD
20X7.00T 152-12(SDP)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),LIMITED
SLIP DIFF(G86)
(A)
T=16
|
1-88310-529-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 16.5"<B2Y>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
T=16
|
1-88310-529-0 |
02 |
1 |
0005-0603 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
T=16
|
1-88310-529-0 |
02 |
1 |
0604- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
T=16
|
1-88310-301-0 |
02 |
1 |
9811-0004 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
T=16
|
1-88310-301-0 |
02 |
1 |
0005-0603 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B) LEADING,TRAILING
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
0107-0110 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(B)
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
0005-0603 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(B)
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
0604- |
|
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(B)
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
0604- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
(A)
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
9803-9810 |
|
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 15.5"<B2X>
(A)
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
9803-9810 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
9811-0004 |
|
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
9811-0004 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
0005-0106 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
0212- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
(A)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
9803-9810 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
9811-9909 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 8STUD
20X7.00T 152-12(SDP)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),LIMITED
SLIP DIFF(G86)
(A)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
9910-0004 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
0604- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
0111-0211 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 16.5"<B2Y>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B) LEADING,TRAILING
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
0005-0603 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=17
|
1-88311-360-1 |
02 |
1 |
0604- |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
|
1-88310-001-0 |
02 |
1 |
9510-9802 |
|
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-88310-001-0 |
02 |
1 |
9510-9802 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
|
1-88310-001-0 |
02 |
1 |
9510-9802 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
|
1-88310-496-0 |
02 |
1 |
9803-9810 |
|
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 15.5"<B2X>
|
1-88310-496-0 |
02 |
1 |
9803-9810 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-88310-496-0 |
02 |
1 |
9811-0004 |
|
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-88310-496-0 |
02 |
1 |
9811-0004 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-88310-496-0 |
02 |
1 |
0005-0603 |
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-88310-496-0 |
02 |
1 |
0604- |
|
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-88310-496-0 |
02 |
1 |
0604- |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-88310-300-0 |
02 |
1 |
9811-0004 |
|
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-88310-300-0 |
02 |
1 |
9811-0004 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-88310-300-0 |
02 |
1 |
0005-0603 |
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-88311-354-1 |
02 |
1 |
0604- |
|
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-88311-354-1 |
02 |
1 |
0604- |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-88310-522-0 |
01 |
1 |
0005-0106 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-88310-522-0 |
01 |
1 |
0107-0211 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-88310-522-0 |
01 |
1 |
0212- |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-88310-524-0 |
01 |
1 |
0005-0106 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-88310-524-0 |
01 |
1 |
0107-0211 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-88310-524-0 |
01 |
1 |
0212- |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 16.5"<B2Y>
|
1-88310-157-0 |
02 |
1 |
9510-9802 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-88310-157-0 |
02 |
1 |
9510-9802 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
T=17
|
1-88310-530-0 |
02 |
1 |
9803-9810 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=17
|
1-88310-530-0 |
02 |
1 |
9811-9909 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 8STUD
20X7.00T 152-12(SDP)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),LIMITED
SLIP DIFF(G86)
T=17
|
1-88310-530-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 16.5"<B2Y>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=17
|
1-88310-530-1 |
02 |
1 |
0005-0603 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=17
|
1-88310-530-1 |
02 |
1 |
0604- |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
T=17
|
1-88310-302-0 |
02 |
1 |
9811-0004 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=17
|
1-88310-302-0 |
02 |
1 |
0005-0603 |
● |
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-012-0 |
04 |
1 |
9510-9909 |
|
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-012-0 |
04 |
1 |
9510-9909 |
● |
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 16.5"<B2Y>
|
1-47112-012-0 |
04 |
1 |
9510-9909 |
● |
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 16.5"<B2Y>
|
1-47112-012-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47112-012-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-012-0 |
04 |
1 |
0005-0603 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 16.5"<B2Y>
|
1-47112-012-0 |
04 |
1 |
0005-0603 |
● |
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47112-012-0 |
04 |
1 |
0604- |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47112-012-0 |
04 |
1 |
0604- |
● |
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-011-0 |
04 |
1 |
9510-0004 |
|
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-011-0 |
04 |
1 |
9510-0004 |
● |
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-011-0 |
04 |
1 |
0005-0603 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-011-0 |
04 |
1 |
0604- |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47126-760-0 |
08 |
1 |
0604- |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
|
1-47115-867-0 |
08 |
1 |
9510-9802 |
|
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47115-867-0 |
08 |
1 |
9510-9802 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
|
1-47115-867-0 |
08 |
1 |
9510-9802 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
|
1-47125-811-0 |
08 |
1 |
9803-9810 |
|
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 15.5"<B2X>
|
1-47125-811-0 |
08 |
1 |
9803-9810 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-811-0 |
08 |
1 |
9811-0004 |
|
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-811-0 |
08 |
1 |
9811-0004 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-811-0 |
08 |
1 |
0005-0603 |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47125-811-0 |
08 |
1 |
0604- |
|
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47125-811-0 |
08 |
1 |
0604- |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-418-0 |
08 |
1 |
9811-0004 |
|
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-418-0 |
08 |
1 |
9811-0004 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47125-418-0 |
08 |
1 |
0005-0603 |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47126-758-0 |
08 |
1 |
0604- |
|
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47126-758-0 |
08 |
1 |
0604- |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47125-797-0 |
04 |
1 |
0005-0106 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47125-797-0 |
04 |
1 |
0107-0211 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47125-797-0 |
04 |
1 |
0212- |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47125-799-0 |
04 |
1 |
0005-0106 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47125-799-0 |
04 |
1 |
0107-0211 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47125-799-0 |
04 |
1 |
0212- |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 16.5"<B2Y>
|
1-47125-055-0 |
08 |
1 |
9510-9802 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47125-055-0 |
08 |
1 |
9510-9802 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
T=16
|
1-47125-813-0 |
08 |
1 |
9803-9810 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=16
|
1-47125-813-0 |
08 |
1 |
9811-9909 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 8STUD
20X7.00T 152-12(SDP)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),LIMITED
SLIP DIFF(G86)
T=16
|
1-47125-813-0 |
08 |
1 |
9910-0004 |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 16.5"<B2Y>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=16
|
1-47125-813-0 |
08 |
1 |
0005-0603 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=16
|
1-47125-813-0 |
08 |
1 |
0604- |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
T=16
|
1-47125-420-0 |
08 |
1 |
9811-0004 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=16
|
1-47125-420-0 |
08 |
1 |
0005-0603 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=17
|
1-47126-761-0 |
08 |
1 |
0604- |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
|
1-47115-869-0 |
08 |
1 |
9510-9802 |
|
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47115-869-0 |
08 |
1 |
9510-9802 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
|
1-47115-869-0 |
08 |
1 |
9510-9802 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
|
1-47125-812-0 |
08 |
1 |
9803-9810 |
|
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 15.5"<B2X>
|
1-47125-812-0 |
08 |
1 |
9803-9810 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-812-0 |
08 |
1 |
9811-0004 |
|
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-812-0 |
08 |
1 |
9811-0004 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-812-0 |
08 |
1 |
0005-0603 |
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47125-812-0 |
08 |
1 |
0604- |
|
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47125-812-0 |
08 |
1 |
0604- |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-419-0 |
08 |
1 |
9811-0004 |
|
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-419-0 |
08 |
1 |
9811-0004 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47125-419-0 |
08 |
1 |
0005-0603 |
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47126-759-0 |
08 |
1 |
0604- |
|
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5"
HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR
43/9 15.5" HYPOID(W4P)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47126-759-0 |
08 |
1 |
0604- |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47125-798-0 |
04 |
1 |
0005-0106 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47125-798-0 |
04 |
1 |
0107-0211 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LEADING
|
1-47125-798-0 |
04 |
1 |
0212- |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47125-800-0 |
04 |
1 |
0005-0106 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47125-800-0 |
04 |
1 |
0107-0211 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TRAILING
|
1-47125-800-0 |
04 |
1 |
0212- |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 16.5"<B2Y>
|
1-47125-057-0 |
08 |
1 |
9510-9802 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47125-057-0 |
08 |
1 |
9510-9802 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
T=17
|
1-47125-814-0 |
08 |
1 |
9803-9810 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=17
|
1-47125-814-0 |
08 |
1 |
9811-9909 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 8STUD
20X7.00T 152-12(SDP)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),LIMITED
SLIP DIFF(G86)
T=17
|
1-47125-814-0 |
08 |
1 |
9910-0004 |
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 16.5"<B2Y>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=17
|
1-47125-814-0 |
08 |
1 |
0005-0603 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=17
|
1-47125-814-0 |
08 |
1 |
0604- |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
T=17
|
1-47125-421-0 |
08 |
1 |
9811-0004 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
T=17
|
1-47125-421-0 |
08 |
1 |
0005-0603 |
● |
|
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
9811-0004 |
|
● |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 15.5"<B2X>
L=18.5
|
1-09732-034-0 |
AR |
1 |
9811-0004 |
● |
|
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
0005-0307 |
|
● |
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
L=18.5
|
1-09732-034-0 |
AR |
1 |
0005-0307 |
● |
|
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
80 |
1 |
0308- |
|
● |
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
L=18.5
|
1-09732-034-0 |
80 |
1 |
0308- |
● |
|
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
L=18.5
|
1-09732-034-0 |
AR |
1 |
9510-9810 |
● |
|
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 16.5"<B2Y>
L=18.5
|
1-09732-034-0 |
AR |
1 |
9811-9909 |
● |
|
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 16.5"<B2Y>
L=18.5
|
1-09732-034-0 |
AR |
1 |
9910-0004 |
● |
● |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 16.5"<B2Y>
L=18.5
|
1-09732-034-0 |
AR |
1 |
0005-0603 |
● |
|
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=18.5
|
1-09732-034-0 |
AR |
1 |
0005-0603 |
● |
|
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
L=18.5
|
1-09732-034-0 |
AR |
1 |
0604- |
● |
|
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=18.5
|
1-09732-034-0 |
AR |
1 |
0604- |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
9510-9802 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
9510-9802 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
9510-9802 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
9803-0004 |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 15.5"<B2X>
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
9803-0004 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
0005- |
|
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
0005- |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47119-021-0 |
04 |
1 |
0005-0106 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47119-021-0 |
04 |
1 |
0107-0211 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47119-021-0 |
04 |
1 |
0212-1209 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47119-029-0 |
04 |
1 |
0005-0106 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47119-029-0 |
04 |
1 |
0107-0211 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47119-029-0 |
04 |
1 |
0212- |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
(A)
|
1-09744-051-0 |
04 |
1 |
9510-9802 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09744-051-0 |
04 |
1 |
9510-9802 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
(A)
|
1-09744-051-0 |
04 |
1 |
9803-9810 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
(A)
|
1-09744-051-0 |
04 |
1 |
9811-9909 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
(A)
|
1-09744-051-0 |
04 |
1 |
9910-0106 |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
(A)
|
1-09744-051-0 |
04 |
1 |
0107-0603 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-09744-051-0 |
04 |
1 |
0604- |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
(B)
|
1-47119-025-0 |
04 |
1 |
9510-9705 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
(B)
|
1-47119-025-0 |
04 |
1 |
9706-9802 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47119-025-0 |
04 |
1 |
9706-9802 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
(B)
|
1-47119-025-0 |
04 |
1 |
9803-9810 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
(B)
|
1-47119-025-0 |
04 |
1 |
9811-9909 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
(B)
|
1-47119-025-0 |
04 |
1 |
9910-0106 |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 16.5"<B2Y>
(B)
|
1-47119-025-0 |
04 |
1 |
0107-0603 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-47119-025-0 |
04 |
1 |
0604- |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-236-0 |
02 |
1 |
9510-9810 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-236-0 |
02 |
1 |
9510-9810 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
1-09583-236-0 |
02 |
1 |
9811-0004 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
1-09583-236-0 |
02 |
1 |
0005-0603 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
1-09583-236-0 |
02 |
1 |
0005-0603 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(A)
|
1-09583-236-0 |
02 |
1 |
0604- |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(A)
|
1-09583-236-0 |
02 |
1 |
0604- |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-09583-237-1 |
02 |
1 |
9510-0004 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-09583-237-1 |
02 |
1 |
9510-0004 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-09583-237-1 |
02 |
1 |
0005- |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
9510-9909 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
9510-9909 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 16.5"<B2Y>
(A)
|
1-09583-175-0 |
02 |
1 |
9510-9909 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 16.5"<B2Y>
(A)
|
1-09583-175-0 |
02 |
1 |
9910-0004 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0005-0107 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0005-0107 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 16.5"<B2Y>
(A)
|
1-09583-175-0 |
02 |
1 |
0005-0107 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0108-0603 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0108-0603 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 16.5"<B2Y>
(A)
|
1-09583-175-0 |
02 |
1 |
0108-0603 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
FINAL GEAR 15.5"<B2X>
(A)
|
1-09583-175-0 |
02 |
1 |
0108-0603 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0108-0603 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0108-0603 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0108-0603 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0604-1209 |
|
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0604-1209 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
(A)
|
1-09583-175-0 |
02 |
1 |
0604-1209 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-09583-175-0 |
02 |
1 |
0604-1209 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
1210- |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-09583-196-0 |
02 |
1 |
0005-0106 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-09583-196-0 |
02 |
1 |
0107-0211 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-09583-196-0 |
02 |
1 |
0212-1209 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
8-98219-175-0 |
02 |
1 |
1210- |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 16.5"<B2Y>
(B)
|
1-09583-210-0 |
04 |
1 |
9510-9705 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 16.5"<B2Y>
(B)
|
1-09583-210-0 |
04 |
1 |
9706-9802 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-09583-210-0 |
04 |
1 |
9706-9802 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
(B)
|
1-09583-210-0 |
04 |
1 |
9803-9810 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 16.5"<B2Y>
(B)
|
1-09583-210-0 |
04 |
1 |
9811-9909 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 16.5"<B2Y>
(B)
|
1-09583-210-0 |
04 |
1 |
9910-0106 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 16.5"<B2Y>
(B)
|
1-09583-210-0 |
04 |
1 |
0107-0603 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-09583-210-0 |
04 |
1 |
0604- |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9510-9909 |
|
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9510-9909 |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 16.5"<B2Y>
L=121.5
|
1-47131-039-0 |
04 |
1 |
9510-9909 |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 16.5"<B2Y>
L=121.5
|
1-47131-039-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
L=121.5
|
1-47131-039-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0005-0603 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 16.5"<B2Y>
L=121.5
|
1-47131-039-0 |
04 |
1 |
0005-0603 |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
L=121.5
|
1-47131-039-0 |
04 |
1 |
0604- |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0604- |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=106.5
|
1-47131-038-0 |
04 |
1 |
9510-0004 |
|
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=106.5
|
1-47131-038-0 |
04 |
1 |
9510-0004 |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=106.5
|
1-47131-038-0 |
04 |
1 |
0005-0603 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=106.5
|
1-47131-038-0 |
04 |
1 |
0604- |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-482-1 |
02 |
1 |
9510-9705 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-482-1 |
02 |
1 |
9510-9705 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-482-1 |
02 |
1 |
9706-9802 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-482-1 |
02 |
1 |
9706-9802 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 39/7 15.5" HYPOID(W3K)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47151-482-1 |
02 |
1 |
9706-9802 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-482-1 |
02 |
1 |
9803-0004 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-482-1 |
02 |
1 |
9803-0004 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-458-1 |
02 |
1 |
9510-0004 |
|
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-458-1 |
02 |
1 |
9510-0004 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-458-1 |
02 |
1 |
0005-0603 |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-458-1 |
02 |
1 |
0604- |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47151-482-1 |
02 |
1 |
0005- |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-462-1 |
02 |
1 |
0005-0106 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-462-1 |
02 |
1 |
0107-0211 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-462-1 |
02 |
1 |
0212- |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 16.5"<B2Y>
|
1-47151-461-1 |
02 |
1 |
9510-9909 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 16.5"<B2Y>
|
1-47151-461-1 |
02 |
1 |
9910-0106 |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 16.5"<B2Y>
|
1-47151-461-1 |
02 |
1 |
0107-0603 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47151-461-1 |
02 |
1 |
0604- |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-526-1 |
02 |
1 |
9706-9802 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-095-0 |
04 |
1 |
9510-0004 |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-095-0 |
04 |
1 |
9510-0004 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-09333-095-0 |
04 |
1 |
0005- |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
9510-9909 |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
9510-9909 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 16.5"<B2Y>
|
1-09333-151-0 |
04 |
1 |
9510-9909 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 16.5"<B2Y>
|
1-09333-151-0 |
04 |
1 |
9910-0004 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
0005-0107 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
0005-0107 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 16.5"<B2Y>
|
1-09333-151-0 |
04 |
1 |
0005-0107 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 15.5"<B2X>
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
0108-0603 |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 16.5"<B2Y>
|
1-09333-151-0 |
04 |
1 |
0108-0603 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-09333-151-0 |
04 |
1 |
0108-0603 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-09333-151-0 |
04 |
1 |
0108-0603 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
0108-0603 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
0604- |
|
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
0604- |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
|
1-09333-151-0 |
04 |
1 |
0604- |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-09333-151-0 |
04 |
1 |
0604- |
● |
|
| |
30 |
BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M10X12
|
1-47159-187-0 |
12 |
1 |
1210- |
● |
|
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9510-0107 |
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0108-0906 |
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
0907-1209 |
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
1210- |
|
● |
| |
30 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
1210- |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47130-088-1 |
02 |
1 |
9510-9810 |
|
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47130-088-1 |
02 |
1 |
9510-9810 |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47130-088-1 |
02 |
1 |
9811-0004 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47130-088-1 |
02 |
1 |
0005-0603 |
|
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47130-088-1 |
02 |
1 |
0005-0603 |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47130-088-1 |
02 |
1 |
0604- |
|
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47130-088-1 |
02 |
1 |
0604- |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47137-112-3 |
02 |
1 |
9510-0004 |
|
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47137-112-3 |
02 |
1 |
9510-0004 |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47137-112-3 |
02 |
1 |
0005-0603 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47137-112-4 |
02 |
1 |
0604- |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 16.5"<B2Y>
|
1-47137-151-0 |
02 |
1 |
9510-9909 |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 16.5"<B2Y>
|
1-47137-151-0 |
02 |
1 |
9910-0106 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 16.5"<B2Y>
|
1-47137-151-0 |
02 |
1 |
0107-0603 |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47137-151-0 |
02 |
1 |
0604- |
● |
|
| |
53 |
BOLT; LOCK PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M10X16
|
1-47139-173-0 |
02 |
1 |
1210- |
● |
|
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9510-0512 |
● |
● |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20851-016-0 |
02 |
1 |
0601-1209 |
● |
● |
| |
53 |
BOLT; LOCK PLATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X16
|
0-20851-016-0 |
02 |
1 |
1210- |
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9510- |
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9510- |
● |
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9510-9810 |
|
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9510-9810 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9811-0004 |
● |
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
ID=12.2
|
9-09150-612-0 |
02 |
1 |
0005-0603 |
|
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
ID=12.2
|
9-09150-612-0 |
02 |
1 |
0005-0603 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0604-0604 |
|
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0604-0604 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0605- |
|
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0605- |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9510-9705 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9706-9802 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9706-9802 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9803-9810 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9811-9909 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9910-0106 |
● |
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
0107-0603 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=14.2
|
0-91510-514-0 |
04 |
1 |
0604-0604 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=14.2
|
0-91510-514-0 |
04 |
1 |
0605- |
● |
|
| |
72 |
PIN; SPLIT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=2.8 L=18
|
9-08113-018-0 |
02 |
1 |
9510-0004 |
|
● |
| |
72 |
PIN; SPLIT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=2.8 L=18
|
9-08113-018-0 |
02 |
1 |
9510-0004 |
● |
|
| |
72 |
PIN; SPLIT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
OD=2.8 L=18
|
9-08113-018-0 |
02 |
1 |
0005-0606 |
● |
● |
| |
72 |
PIN; SPLIT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=2.8 L=18
|
0-81123-018-0 |
02 |
1 |
0607-0607 |
|
● |
| |
72 |
PIN; SPLIT
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=2.8 L=18
|
0-81123-018-0 |
02 |
1 |
0607-0607 |
● |
|
| |
72 |
PIN; SPLIT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
OD=2.8 L=18
|
0-81123-018-0 |
02 |
1 |
0608- |
● |
● |
| |
72 |
PIN; SPLIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
0005-0106 |
● |
|
| |
72 |
PIN; SPLIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
0107-0211 |
● |
|
| |
72 |
PIN; SPLIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
0212-0606 |
● |
|
| |
72 |
PIN; SPLIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=3.7 L=28
|
0-81124-028-0 |
02 |
1 |
0607- |
● |
|
| |
83 |
WASHER; PL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
9510-0004 |
|
● |
| |
83 |
WASHER; PL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
9510-0004 |
● |
|
| |
83 |
WASHER; PL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
0005-0605 |
● |
● |
| |
83 |
WASHER; PL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=10.5
|
0-91610-510-0 |
02 |
1 |
0606-0607 |
|
● |
| |
83 |
WASHER; PL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=10.5
|
0-91610-510-0 |
02 |
1 |
0606-0607 |
● |
|
| |
83 |
WASHER; PL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=10.5
|
0-91610-510-0 |
02 |
1 |
0608- |
● |
● |
| |
89 |
NUT; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12
|
9-99110-512-0 |
04 |
1 |
9510-0004 |
|
● |
| |
89 |
NUT; CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12
|
9-99110-512-0 |
04 |
1 |
9510-0004 |
● |
|
| |
89 |
NUT; CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12
|
9-99110-512-0 |
04 |
1 |
0005-0512 |
● |
● |
| |
89 |
NUT; CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
● |
● |
| |
90 |
BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48258-147-0 |
01 |
1 |
9510-0004 |
|
● |
| |
90 |
BRACKET; CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48258-147-0 |
01 |
1 |
9510-0004 |
● |
|
| |
90 |
BRACKET; CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-48258-147-0 |
01 |
1 |
0005- |
● |
● |
| |
90 |
BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48258-146-0 |
01 |
1 |
9510-0004 |
|
● |
| |
90 |
BRACKET; CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48258-146-0 |
01 |
1 |
9510-0004 |
● |
|
| |
90 |
BRACKET; CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-48258-146-0 |
01 |
1 |
0005- |
● |
● |
| |
91 |
BOLT; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12X30
|
0-20801-230-0 |
04 |
1 |
9510-0004 |
|
● |
| |
91 |
BOLT; CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12X30
|
0-20801-230-0 |
04 |
1 |
9510-0004 |
● |
|
| |
91 |
BOLT; CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12X30
|
0-20801-230-0 |
04 |
1 |
0005- |
● |
● |
| |
92 |
WASHER; LK,CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
9510-0004 |
|
● |
| |
92 |
WASHER; LK,CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
9510-0004 |
● |
|
| |
92 |
WASHER; LK,CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
0005-0603 |
● |
● |
| |
92 |
WASHER; LK,CHAMBER
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
0-91510-612-0 |
04 |
1 |
0604- |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-580-1 |
01 |
1 |
9510-9810 |
|
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-580-1 |
01 |
1 |
9510-9810 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47600-580-1 |
01 |
1 |
9811-0004 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47600-580-1 |
01 |
1 |
0005-0603 |
|
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47600-580-1 |
01 |
1 |
0005-0603 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47600-580-1 |
01 |
1 |
0604- |
|
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47600-580-1 |
01 |
1 |
0604- |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-579-1 |
01 |
1 |
9510-9810 |
|
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-579-1 |
01 |
1 |
9510-9810 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47600-579-1 |
01 |
1 |
9811-0004 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47600-579-1 |
01 |
1 |
0005-0603 |
|
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47600-579-1 |
01 |
1 |
0005-0603 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47600-579-1 |
01 |
1 |
0604- |
|
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47600-579-1 |
01 |
1 |
0604- |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-524-1 |
02 |
1 |
9510-0004 |
|
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-524-1 |
02 |
1 |
9510-0004 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-524-1 |
02 |
1 |
0005-0603 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-524-1 |
02 |
1 |
0604- |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 16.5"<B2Y>
|
1-47600-682-0 |
02 |
1 |
9510-9705 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 16.5"<B2Y>
|
1-47600-682-0 |
02 |
1 |
9706-9802 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-682-0 |
02 |
1 |
9706-9802 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
|
1-47600-682-0 |
02 |
1 |
9803-9810 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 16.5"<B2Y>
|
1-47600-682-0 |
02 |
1 |
9811-9909 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 16.5"<B2Y>
|
1-47600-682-0 |
02 |
1 |
9910-0106 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 16.5"<B2Y>
|
1-47600-682-0 |
02 |
1 |
0107-0603 |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47600-682-0 |
02 |
1 |
0604- |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-721-0 |
04 |
1 |
9510-9810 |
|
● |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-721-0 |
04 |
1 |
9510-9810 |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-87830-721-0 |
04 |
1 |
9811-0004 |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-87830-721-0 |
02 |
1 |
0005-0603 |
|
● |
| |
95 |
CUP SET; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-87830-721-0 |
02 |
1 |
0005-0603 |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-87830-721-0 |
02 |
1 |
0604- |
|
● |
| |
95 |
CUP SET; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-87830-721-0 |
02 |
1 |
0604- |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-527-0 |
04 |
1 |
9510-0004 |
|
● |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-527-0 |
04 |
1 |
9510-0004 |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-527-0 |
02 |
1 |
0005-0603 |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-527-0 |
02 |
1 |
0604- |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
|
1-87830-528-0 |
04 |
1 |
9510-9705 |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
|
1-87830-528-0 |
04 |
1 |
9706-9802 |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-528-0 |
04 |
1 |
9706-9802 |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
|
1-87830-528-0 |
02 |
1 |
9803-9810 |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
|
1-87830-528-0 |
02 |
1 |
9811-9909 |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
|
1-87830-528-0 |
02 |
1 |
9910-0106 |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
|
1-87830-528-0 |
02 |
1 |
0107-0603 |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-87830-528-0 |
02 |
1 |
0604- |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
9510-9909 |
|
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
9510-9909 |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 16.5"<B2Y>
|
1-47615-002-0 |
02 |
1 |
9510-9909 |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 16.5"<B2Y>
|
1-47615-002-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47615-002-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
0005-0107 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47615-002-0 |
02 |
1 |
0108-0603 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 16.5"<B2Y>
|
1-47615-002-0 |
02 |
1 |
0108-0603 |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47615-002-0 |
02 |
1 |
0604- |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47615-002-0 |
02 |
1 |
0604- |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=66.5
|
1-47615-005-0 |
02 |
1 |
9510-0004 |
|
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=66.5
|
1-47615-005-0 |
02 |
1 |
9510-0004 |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=66.5
|
1-47615-005-0 |
02 |
1 |
0005-0603 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=66.5
|
1-47615-005-0 |
02 |
1 |
0604- |
● |
● |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
OD=12
|
1-47619-011-0 |
02 |
1 |
9510-0004 |
● |
● |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
OD=12
|
1-47619-011-0 |
02 |
1 |
0005- |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-210-0 |
04 |
1 |
9510-9810 |
|
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-210-0 |
04 |
1 |
9510-9810 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47624-210-0 |
04 |
1 |
9811-0004 |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47624-210-0 |
04 |
1 |
0005-0603 |
|
● |
| |
99 |
PISTON; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47624-210-0 |
04 |
1 |
0005-0603 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47624-210-0 |
04 |
1 |
0604- |
|
● |
| |
99 |
PISTON; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47624-210-0 |
04 |
1 |
0604- |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-043-0 |
04 |
1 |
9510-9701 |
|
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47624-043-0 |
04 |
1 |
9510-9701 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-043-0 |
04 |
1 |
9510-9701 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-302-0 |
04 |
1 |
9702-9705 |
|
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-47624-302-0 |
04 |
1 |
9702-9705 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-302-0 |
04 |
1 |
9702-9705 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-302-0 |
04 |
1 |
9706-0004 |
|
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-302-0 |
04 |
1 |
9706-0004 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-302-0 |
04 |
1 |
0005-0603 |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-302-0 |
04 |
1 |
0604- |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
|
1-47624-044-0 |
04 |
1 |
9510-9701 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-044-0 |
04 |
1 |
9510-9701 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
|
1-47624-303-0 |
04 |
1 |
9702-9802 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-303-0 |
04 |
1 |
9702-9802 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
|
1-47624-303-0 |
04 |
1 |
9803-9810 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
|
1-47624-303-0 |
04 |
1 |
9811-9909 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
|
1-47624-303-0 |
04 |
1 |
9910-0106 |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 16.5"<B2Y>
|
1-47624-303-0 |
04 |
1 |
0107-0603 |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47624-303-0 |
04 |
1 |
0604- |
● |
|
| |
101 |
SCREW; ADJ,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47622-030-0 |
04 |
1 |
9510-9810 |
|
● |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47622-030-0 |
04 |
1 |
9510-9810 |
● |
|
| |
101 |
SCREW; ADJ,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47622-030-0 |
04 |
1 |
9811-0004 |
● |
● |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47622-030-0 |
04 |
1 |
0005-0603 |
|
● |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47622-030-0 |
04 |
1 |
0005-0603 |
● |
|
| |
101 |
SCREW; ADJ,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47622-030-0 |
04 |
1 |
0604- |
|
● |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47622-030-0 |
04 |
1 |
0604- |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
0-16806-270-0 |
04 |
1 |
9510-9810 |
|
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
0-16806-270-0 |
04 |
1 |
9510-9810 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
0-16806-270-0 |
04 |
1 |
9811-0004 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
0-16806-270-0 |
04 |
1 |
0005-0603 |
|
● |
| |
112 |
BOLT; WHEEL CYL SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
0-16806-270-0 |
04 |
1 |
0005-0603 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(A)
|
0-16806-270-0 |
04 |
1 |
0604- |
|
● |
| |
112 |
BOLT; WHEEL CYL SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(A)
|
0-16806-270-0 |
04 |
1 |
0604- |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X32 W/LK WASHER
|
0-50051-232-0 |
04 |
1 |
9510-0004 |
|
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X32 W/LK WASHER
|
0-50051-232-0 |
04 |
1 |
9510-0004 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X32 W/LK WASHER
|
0-50051-232-0 |
04 |
1 |
0005-0603 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X32 W/LK WASHER
|
0-50051-232-0 |
04 |
1 |
0604-0906 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X32 W/LK WASHER
|
0-50551-232-0 |
04 |
1 |
0907- |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(A)
M14X35
|
0-20801-435-0 |
04 |
1 |
9510-9705 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(A)
M14X35
|
0-20801-435-0 |
04 |
1 |
9706-9802 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M14X35
|
0-20801-435-0 |
04 |
1 |
9706-9802 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
(A)
M14X35
|
0-20801-435-0 |
04 |
1 |
9803-9810 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(A)
M14X35
|
0-20801-435-0 |
04 |
1 |
9811-9909 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(A)
M14X35
|
0-20801-435-0 |
04 |
1 |
9910-0106 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(A)
M14X35
|
0-20801-435-0 |
04 |
1 |
0107-0512 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(A)
M14X35
|
0-20851-435-0 |
04 |
1 |
0601-0603 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M14X35
|
0-20851-435-0 |
04 |
1 |
0604- |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
9510-9705 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
9706-9802 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
9706-9802 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
9803-9810 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
9811-9909 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
9910-0106 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
0107-0512 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 16.5"<B2Y>
(B)
M8X16 W/LK WASHER
|
0-50540-816-0 |
06 |
1 |
0601-0603 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M8X16 W/LK WASHER
|
0-50540-816-0 |
06 |
1 |
0604- |
● |
|
| |
156 |
WASHER; LK,WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9510-9810 |
|
● |
| |
156 |
WASHER; LK,WHEEL CYL SETTING
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9510-9810 |
● |
|
| |
156 |
WASHER; LK,WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9811-0004 |
● |
● |
| |
156 |
WASHER; LK,WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
ID=12.2
|
9-09150-612-0 |
02 |
1 |
0005-0603 |
|
● |
| |
156 |
WASHER; LK,WHEEL CYL SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
ID=12.2
|
9-09150-612-0 |
02 |
1 |
0005-0603 |
● |
|
| |
156 |
WASHER; LK,WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
ID=12.2
|
9-09150-612-0 |
02 |
1 |
0604-0604 |
|
● |
| |
156 |
WASHER; LK,WHEEL CYL SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
ID=12.2
|
9-09150-612-0 |
02 |
1 |
0604-0604 |
● |
|
| |
156 |
WASHER; LK,WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0604- |
|
● |
| |
156 |
WASHER; LK,WHEEL CYL SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0604- |
● |
|
| |
171 |
BOLT; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X10
|
9-01900-610-0 |
14 |
1 |
9510-9810 |
|
● |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X10
|
9-01900-610-0 |
14 |
1 |
9510-9810 |
● |
|
| |
171 |
BOLT; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
M6X10
|
9-01900-610-0 |
14 |
1 |
9811-0004 |
● |
● |
| |
171 |
BOLT; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
M6X10
|
9-01900-610-0 |
14 |
1 |
0005-0603 |
|
● |
| |
171 |
BOLT; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
M6X10
|
9-01900-610-0 |
14 |
1 |
0005-0603 |
● |
|
| |
171 |
BOLT; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
M6X10
|
9-01900-610-0 |
14 |
1 |
0604- |
|
● |
| |
171 |
BOLT; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
M6X10
|
9-01900-610-0 |
14 |
1 |
0604- |
● |
|
| |
174 |
COVER; CYL,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-035-0 |
02 |
1 |
9510-9608 |
|
● |
| |
174 |
COVER; CYL,RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-035-0 |
02 |
1 |
9510-9608 |
● |
|
| |
174 |
COVER; CYL,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-115-0 |
02 |
1 |
9609-9810 |
|
● |
| |
174 |
COVER; CYL,RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-115-0 |
02 |
1 |
9609-9810 |
● |
|
| |
174 |
COVER; CYL,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47619-115-0 |
02 |
1 |
9811-0004 |
● |
● |
| |
174 |
COVER; CYL,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47619-115-0 |
02 |
1 |
0005-0603 |
|
● |
| |
174 |
COVER; CYL,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47619-115-0 |
02 |
1 |
0005-0603 |
● |
|
| |
174 |
COVER; CYL,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47619-115-0 |
02 |
1 |
0604- |
|
● |
| |
174 |
COVER; CYL,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47619-115-0 |
02 |
1 |
0604- |
● |
|
| |
176 |
STOPPER; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47629-070-0 |
04 |
1 |
9510-9810 |
|
● |
| |
176 |
STOPPER; RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47629-070-0 |
04 |
1 |
9510-9810 |
● |
|
| |
176 |
STOPPER; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47629-070-0 |
04 |
1 |
9811-0004 |
● |
● |
| |
176 |
STOPPER; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47629-070-0 |
04 |
1 |
0005-0603 |
|
● |
| |
176 |
STOPPER; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47629-070-0 |
04 |
1 |
0005-0603 |
● |
|
| |
176 |
STOPPER; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47629-070-0 |
04 |
1 |
0604- |
|
● |
| |
176 |
STOPPER; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47629-070-0 |
04 |
1 |
0604- |
● |
|
| |
178 |
WEDGE; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47640-003-0 |
02 |
1 |
9510-9810 |
|
● |
| |
178 |
WEDGE; RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47640-003-0 |
02 |
1 |
9510-9810 |
● |
|
| |
178 |
WEDGE; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47640-003-0 |
02 |
1 |
9811-0004 |
● |
● |
| |
178 |
WEDGE; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47640-003-0 |
02 |
1 |
0005-0603 |
|
● |
| |
178 |
WEDGE; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47640-003-0 |
02 |
1 |
0005-0603 |
● |
|
| |
178 |
WEDGE; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47640-003-0 |
02 |
1 |
0604- |
|
● |
| |
178 |
WEDGE; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47640-003-0 |
02 |
1 |
0604- |
● |
|
| |
179 |
COVER; WEDGE,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-011-0 |
02 |
1 |
9510-9810 |
|
● |
| |
179 |
COVER; WEDGE,RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-011-0 |
02 |
1 |
9510-9810 |
● |
|
| |
179 |
COVER; WEDGE,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-011-0 |
02 |
1 |
9811-0004 |
● |
● |
| |
179 |
COVER; WEDGE,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-011-0 |
02 |
1 |
0005-0603 |
|
● |
| |
179 |
COVER; WEDGE,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-011-0 |
02 |
1 |
0005-0603 |
● |
|
| |
179 |
COVER; WEDGE,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47649-011-0 |
02 |
1 |
0604- |
|
● |
| |
179 |
COVER; WEDGE,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47649-011-0 |
02 |
1 |
0604- |
● |
|
| |
180 |
GASKET; COVER,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-017-0 |
02 |
1 |
9510-9810 |
|
● |
| |
180 |
GASKET; COVER,RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-017-0 |
02 |
1 |
9510-9810 |
● |
|
| |
180 |
GASKET; COVER,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47619-017-0 |
02 |
1 |
9811-0004 |
● |
● |
| |
180 |
GASKET; COVER,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47619-017-0 |
02 |
1 |
0005-0603 |
|
● |
| |
180 |
GASKET; COVER,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47619-017-0 |
02 |
1 |
0005-0603 |
● |
|
| |
180 |
GASKET; COVER,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47619-017-0 |
02 |
1 |
0604- |
|
● |
| |
180 |
GASKET; COVER,RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47619-017-0 |
02 |
1 |
0604- |
● |
|
| |
182 |
TAPPET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47629-071-0 |
04 |
1 |
9510-9810 |
|
● |
| |
182 |
TAPPET; RR WHEEL CYL
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47629-071-0 |
04 |
1 |
9510-9810 |
● |
|
| |
182 |
TAPPET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47629-071-0 |
04 |
1 |
9811-0004 |
● |
● |
| |
182 |
TAPPET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47629-071-0 |
04 |
1 |
0005-0603 |
|
● |
| |
182 |
TAPPET; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47629-071-0 |
04 |
1 |
0005-0603 |
● |
|
| |
182 |
TAPPET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47629-071-0 |
04 |
1 |
0604- |
|
● |
| |
182 |
TAPPET; RR WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47629-071-0 |
04 |
1 |
0604- |
● |
|
| |
208 |
WASHER; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LOWER T=8.0
L=106
|
1-42129-028-3 |
02 |
1 |
9510-0004 |
|
● |
| |
208 |
WASHER; BRKT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LOWER T=8.0
L=106
|
1-42129-028-3 |
02 |
1 |
9510-0004 |
● |
|
| |
208 |
WASHER; BRKT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
LOWER T=8.0
L=106
|
1-42129-028-3 |
02 |
1 |
0005- |
● |
● |
| |
208 |
WASHER; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
UPPER T=8.0
L=113
|
1-42129-163-2 |
02 |
1 |
9510-0004 |
|
● |
| |
208 |
WASHER; BRKT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
UPPER T=8.0
L=113
|
1-42129-163-2 |
02 |
1 |
9510-0004 |
● |
|
| |
208 |
WASHER; BRKT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
UPPER T=8.0
L=113
|
1-42129-163-2 |
02 |
1 |
0005- |
● |
● |
| |
209 |
SHIM; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LOWER T=1.2
L=106
|
1-42129-027-4 |
06 |
1 |
9510-0004 |
|
● |
| |
209 |
SHIM; BRKT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
LOWER T=1.2
L=106
|
1-42129-027-4 |
06 |
1 |
9510-0004 |
● |
|
| |
209 |
SHIM; BRKT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
LOWER T=1.2
L=106
|
1-42129-027-4 |
06 |
1 |
0005- |
● |
● |
| |
209 |
SHIM; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
UPPER T=1.2
L=113
|
1-42129-162-1 |
06 |
1 |
9510-0004 |
|
● |
| |
209 |
SHIM; BRKT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
UPPER T=1.2
L=113
|
1-42129-162-1 |
06 |
1 |
9510-0004 |
● |
|
| |
209 |
SHIM; BRKT
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
UPPER T=1.2
L=113
|
1-42129-162-1 |
06 |
1 |
0005- |
● |
● |
| |
210 |
BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X25
|
0-20801-225-0 |
08 |
1 |
9510-0004 |
|
● |
| |
210 |
BOLT; BRKT FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X25
|
0-20801-225-0 |
08 |
1 |
9510-0004 |
● |
|
| |
210 |
BOLT; BRKT FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M12X25
|
0-20801-225-0 |
08 |
1 |
0005- |
● |
● |
| |
210 |
BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M12X38
|
0-20801-238-0 |
08 |
1 |
9510-0004 |
|
● |
| |
210 |
BOLT; BRKT FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M12X38
|
0-20801-238-0 |
08 |
1 |
9510-0004 |
● |
|
| |
210 |
BOLT; BRKT FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M12X38
|
0-20801-238-0 |
08 |
1 |
0005- |
● |
● |
| |
211 |
WASHER; LK,BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
16 |
1 |
9510-0004 |
|
● |
| |
211 |
WASHER; LK,BRKT FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
16 |
1 |
9510-0004 |
● |
|
| |
211 |
WASHER; LK,BRKT FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
9-09150-612-0 |
16 |
1 |
0005-0603 |
● |
● |
| |
211 |
WASHER; LK,BRKT FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
0-91510-612-0 |
16 |
1 |
0605-0605 |
● |
● |
| |
211 |
WASHER; LK,BRKT FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
0-91510-612-0 |
16 |
1 |
0606- |
● |
● |
| |
212 |
STAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48258-078-0 |
01 |
1 |
9510-0004 |
|
● |
| |
212 |
STAY
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48258-078-0 |
01 |
1 |
9510-0004 |
● |
|
| |
212 |
STAY
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-48258-078-0 |
01 |
1 |
0005- |
● |
● |
| |
213 |
BOLT; STAY FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12X25
|
0-20801-225-0 |
02 |
1 |
9510-0004 |
|
● |
| |
213 |
BOLT; STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12X25
|
0-20801-225-0 |
02 |
1 |
9510-0004 |
● |
|
| |
213 |
BOLT; STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12X25
|
0-20801-225-0 |
02 |
1 |
0005- |
● |
● |
| |
214 |
NUT; STAY FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12
|
9-99111-512-0 |
02 |
1 |
9510-0004 |
|
● |
| |
214 |
NUT; STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12
|
9-99111-512-0 |
02 |
1 |
9510-0004 |
● |
|
| |
214 |
NUT; STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12
|
9-99111-512-0 |
02 |
1 |
0005-0512 |
● |
● |
| |
214 |
NUT; STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12
|
0-91111-512-0 |
02 |
1 |
0601- |
● |
● |
| |
215 |
WASHER; LK,STAY FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9510-0004 |
|
● |
| |
215 |
WASHER; LK,STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9510-0004 |
● |
|
| |
215 |
WASHER; LK,STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
0005-0603 |
● |
● |
| |
215 |
WASHER; LK,STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0605-0605 |
● |
● |
| |
215 |
WASHER; LK,STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0606- |
● |
● |
| |
216 |
PIN; STAY FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-08234-038-0 |
02 |
1 |
9510-0004 |
|
● |
| |
216 |
PIN; STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-08234-038-0 |
02 |
1 |
9510-0004 |
● |
|
| |
216 |
PIN; STAY FIX
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
9-08234-038-0 |
02 |
1 |
0005- |
● |
● |
| |
266 |
ROLLER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47643-004-0 |
04 |
1 |
9510-9810 |
|
● |
| |
266 |
ROLLER; WEDGE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47643-004-0 |
04 |
1 |
9510-9810 |
● |
|
| |
266 |
ROLLER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47643-004-0 |
04 |
1 |
9811-0004 |
● |
● |
| |
266 |
ROLLER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47643-004-0 |
04 |
1 |
0005-0603 |
|
● |
| |
266 |
ROLLER; WEDGE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47643-004-0 |
04 |
1 |
0005-0603 |
● |
|
| |
266 |
ROLLER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47643-004-0 |
04 |
1 |
0604- |
|
● |
| |
266 |
ROLLER; WEDGE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47643-004-0 |
04 |
1 |
0604- |
● |
|
| |
267 |
CAGE; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-007-0 |
02 |
1 |
9510-9810 |
|
● |
| |
267 |
CAGE; WEDGE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-007-0 |
02 |
1 |
9510-9810 |
● |
|
| |
267 |
CAGE; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-007-0 |
02 |
1 |
9811-0004 |
● |
● |
| |
267 |
CAGE; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-007-0 |
02 |
1 |
0005-0603 |
|
● |
| |
267 |
CAGE; WEDGE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-007-0 |
02 |
1 |
0005-0603 |
● |
|
| |
267 |
CAGE; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47649-007-0 |
02 |
1 |
0604- |
|
● |
| |
267 |
CAGE; WEDGE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47649-007-0 |
02 |
1 |
0604- |
● |
|
| |
268 |
RETAINER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-008-0 |
02 |
1 |
9510-9610 |
|
● |
| |
268 |
RETAINER; WEDGE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-008-0 |
02 |
1 |
9510-9610 |
● |
|
| |
268 |
RETAINER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-016-0 |
02 |
1 |
9611-9810 |
|
● |
| |
268 |
RETAINER; WEDGE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-016-0 |
02 |
1 |
9611-9810 |
● |
|
| |
268 |
RETAINER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-016-0 |
02 |
1 |
9811-0004 |
● |
● |
| |
268 |
RETAINER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-016-0 |
02 |
1 |
0005-0603 |
|
● |
| |
268 |
RETAINER; WEDGE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-016-0 |
02 |
1 |
0005-0603 |
● |
|
| |
268 |
RETAINER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47649-016-0 |
02 |
1 |
0604- |
|
● |
| |
268 |
RETAINER; WEDGE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47649-016-0 |
02 |
1 |
0604- |
● |
|
