0-57 — EMISSION PIPING (#39798) — 171 parça

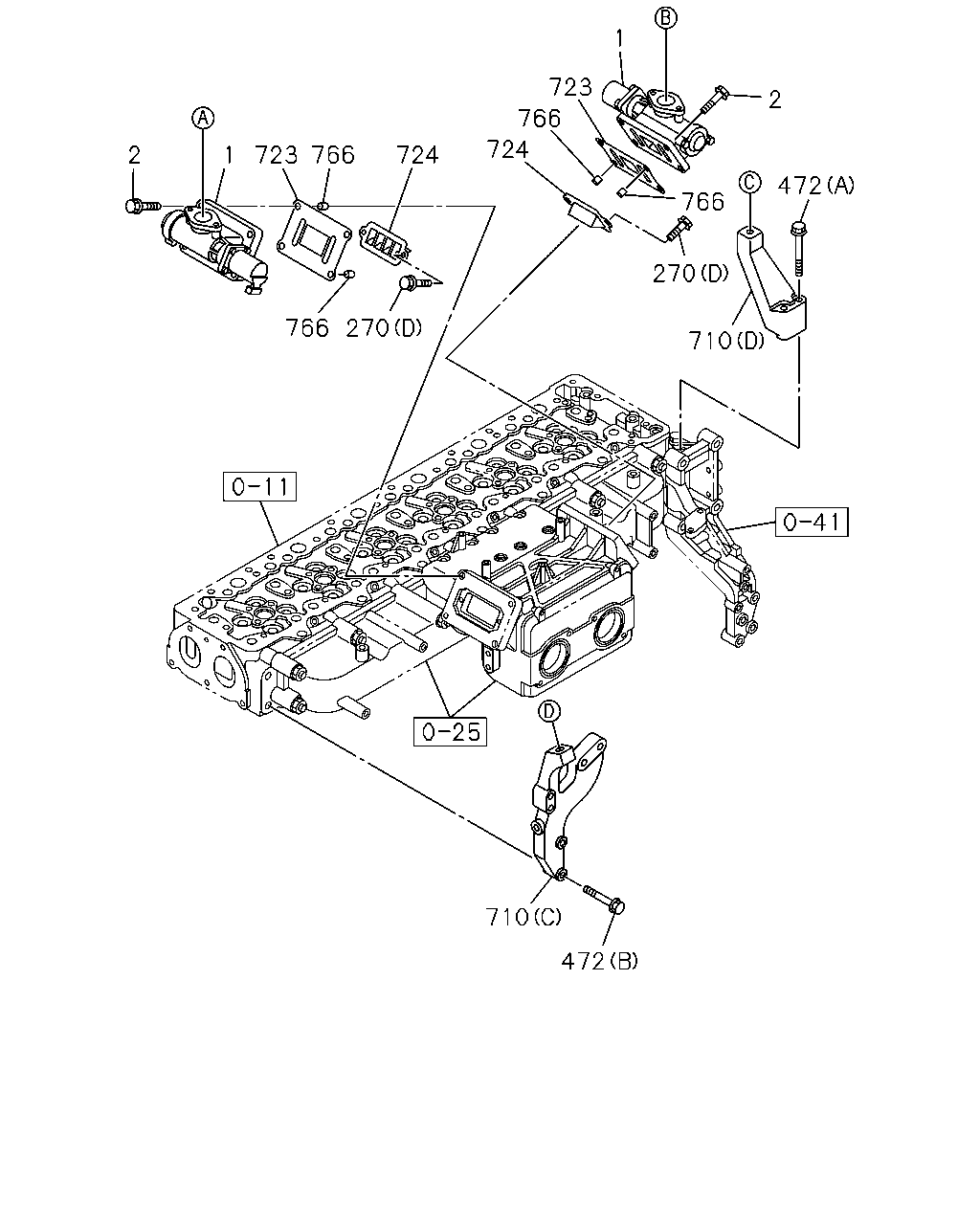

1 723 2 766 724 2 723 766 724 1 472 766 270 766 270 710 710 472

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR	8-97603-872-9	02	1	0801-1405	●	●
1	VALVE; EGR	8-98238-263-3	02	1	1406-	●	●
2	BOLT; EGR VLV M10X30 FLANGE	0-28751-030-0	06	1	0801-	●	●
2	BOLT; EGR VLV M10X40 FLANGE	0-28751-040-0	02	1	0801-	●	●
270	BOLT (E) M10X80 FLANGE	0-28151-080-0	01	1	1202-1302	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E) M10X80 FLANGE	0-28151-080-0	01	1	1202-1302		●
270	BOLT ZF M/T<X9E> (E) M10X80 FLANGE	0-28151-080-0	01	1	1202-1302		●
270	BOLT (E) M10X80 FLANGE	0-28151-080-0	01	1	1303-	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E) M10X80 FLANGE	0-28151-080-0	01	1	1303-		●
270	BOLT ZF M/T<X9E> (E) M10X80 FLANGE	0-28151-080-0	01	1	1303-		●
270	BOLT ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) M10X60 FLANGE	0-28151-060-0	04	1	1202-		●
270	BOLT (A) M10X60 FLANGE	0-28151-060-0	04	1	0801-1201	●	●
270	BOLT (A) M10X60 FLANGE	0-28151-060-0	03	1	1202-1302	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M10X60 FLANGE	0-28151-060-0	03	1	1202-1302		●
270	BOLT ZF M/T<X9E> (A) M10X60 FLANGE	0-28151-060-0	03	1	1202-1302		●
270	BOLT (A) M10X60 FLANGE	0-28151-060-0	03	1	1303-	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M10X60 FLANGE	0-28151-060-0	03	1	1303-		●
270	BOLT ZF M/T<X9E> (A) M10X60 FLANGE	0-28151-060-0	03	1	1303-		●
270	BOLT (B) M10X90 FLANGE	0-28151-090-0	02	1	0801-	●	●
270	BOLT (C) M10X35 FLANGE	0-28751-035-0	20	1	0801-	●	●
270	BOLT (D) M6X12 HEX SOCKET	0-58330-612-0	04	1	0801-1405	●	●
270	BOLT (D) M6X12 HEX SOCKET	8-98272-417-0	04	1	1406-	●	●
472	BOLT; BRKT (A) M10X70 FLANGE	0-28151-070-0	02	1	0801-	●	●
472	BOLT; BRKT (B) M12X45 FLANGE	0-28151-245-0	04	1	0801-	●	●
710	BRACKET; EGR COOLER (A)	8-97604-631-2	01	1	0801-1004	●	●
710	BRACKET; EGR COOLER (A)	8-98153-690-1	01	1	1005-	●	●
710	BRACKET; EGR COOLER (B)	8-97604-739-1	01	1	0801-	●	●
710	BRACKET; EGR COOLER (C)	8-97606-746-0	01	1	0801-	●	●
710	BRACKET; EGR COOLER (D)	8-97606-747-0	01	1	0801-	●	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97608-423-0	02	1	0801-1405	●	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97647-879-0	02	1	1406-	●	●
724	VALVE; REED	8-98186-738-0	02	1	0801-1405	●	●
724	VALVE; REED	8-98272-702-0	02	1	1406-1502	●	●
724	VALVE; REED	8-98291-639-0	02	1	1503-	●	●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	04	1	0801-	●	●

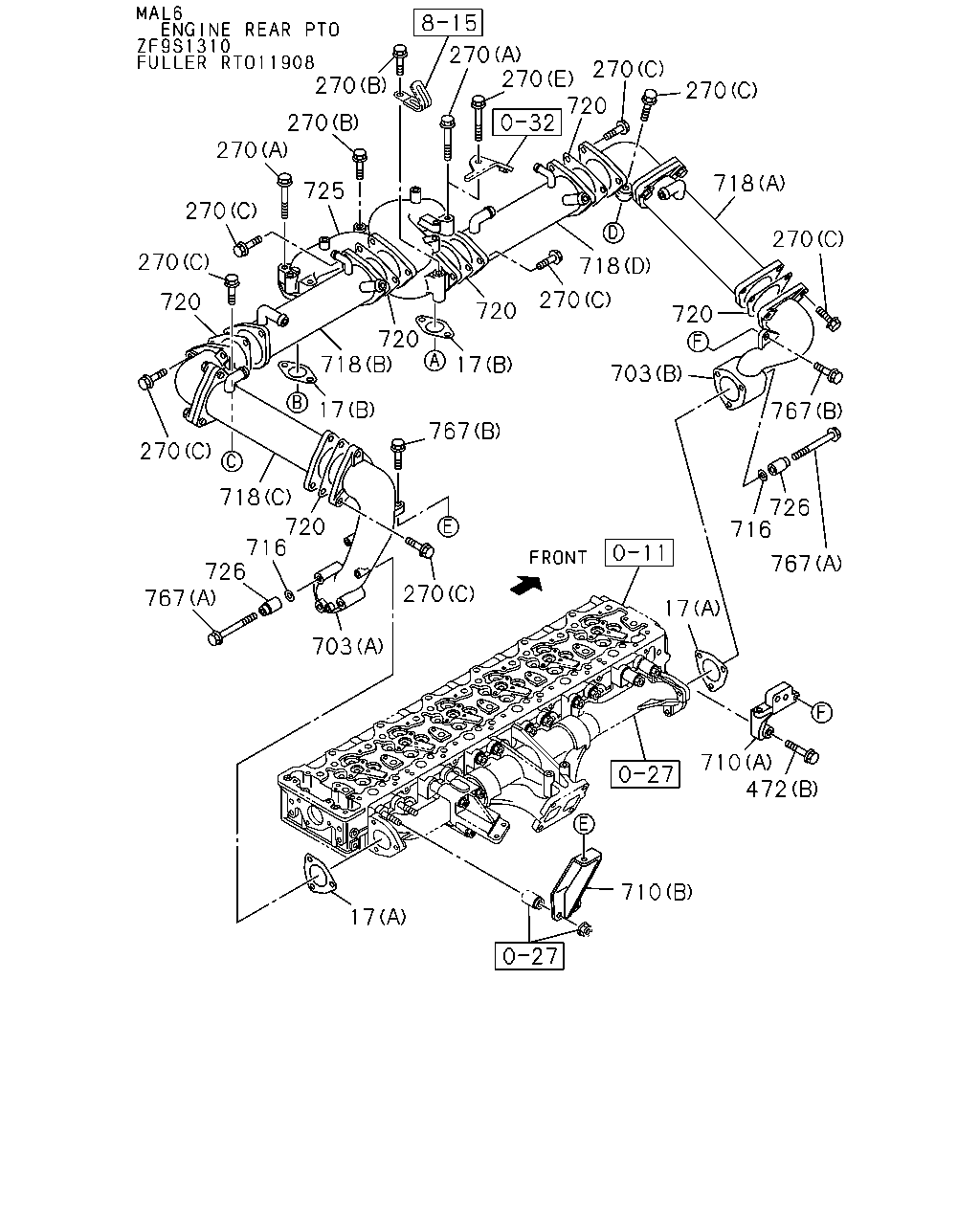

270 270 270 270 270 720 725 270 270 718 716 726 767 703 270 767 17 718 720 17 720 270 718 270 270 270 720 718 270 720 703 767 726 716 767 710 472 710 17 17 720

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-16157-017-1	02	1	0801-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	02	1	0801-	●	●
270	BOLT (E) M10X80 FLANGE	0-28151-080-0	01	1	1202-1302	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E) M10X80 FLANGE	0-28151-080-0	01	1	1202-1302		●
270	BOLT ZF M/T<X9E> (E) M10X80 FLANGE	0-28151-080-0	01	1	1202-1302		●
270	BOLT (E) M10X80 FLANGE	0-28151-080-0	01	1	1303-	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E) M10X80 FLANGE	0-28151-080-0	01	1	1303-		●
270	BOLT ZF M/T<X9E> (E) M10X80 FLANGE	0-28151-080-0	01	1	1303-		●
270	BOLT ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) M10X60 FLANGE	0-28151-060-0	04	1	1202-		●
270	BOLT (A) M10X60 FLANGE	0-28151-060-0	04	1	0801-1201	●	●
270	BOLT (A) M10X60 FLANGE	0-28151-060-0	03	1	1202-1302	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M10X60 FLANGE	0-28151-060-0	03	1	1202-1302		●
270	BOLT ZF M/T<X9E> (A) M10X60 FLANGE	0-28151-060-0	03	1	1202-1302		●
270	BOLT (A) M10X60 FLANGE	0-28151-060-0	03	1	1303-	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M10X60 FLANGE	0-28151-060-0	03	1	1303-		●
270	BOLT ZF M/T<X9E> (A) M10X60 FLANGE	0-28151-060-0	03	1	1303-		●
270	BOLT (B) M10X90 FLANGE	0-28151-090-0	02	1	0801-	●	●
270	BOLT (C) M10X35 FLANGE	0-28751-035-0	20	1	0801-	●	●
270	BOLT (D) M6X12 HEX SOCKET	0-58330-612-0	04	1	0801-1405	●	●
270	BOLT (D) M6X12 HEX SOCKET	8-98272-417-0	04	1	1406-	●	●
472	BOLT; BRKT (A) M10X70 FLANGE	0-28151-070-0	02	1	0801-	●	●
472	BOLT; BRKT (B) M12X45 FLANGE	0-28151-245-0	04	1	0801-	●	●
703	DUCT; EGR ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C)	8-98169-031-2	02	1	1201-		●
703	DUCT; EGR (A)	8-97604-165-1	01	1	0801-1501	●	●
703	DUCT; EGR (A)	8-98292-565-0	01	1	1502-	●	●
703	DUCT; EGR (B)	8-97604-519-2	01	1	0801-1501	●	●
703	DUCT; EGR (B)	8-98292-566-0	01	1	1502-	●	●
710	BRACKET; EGR COOLER (A)	8-97604-631-2	01	1	0801-1004	●	●
710	BRACKET; EGR COOLER (A)	8-98153-690-1	01	1	1005-	●	●
710	BRACKET; EGR COOLER (B)	8-97604-739-1	01	1	0801-	●	●
710	BRACKET; EGR COOLER (C)	8-97606-746-0	01	1	0801-	●	●
710	BRACKET; EGR COOLER (D)	8-97606-747-0	01	1	0801-	●	●
716	WASHER; EGR PIPE T=2.2	1-09556-015-0	06	1	0801-	●	●
718	COOLER; EGR ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (E)	8-98168-723-0	01	1	1201-		●
718	COOLER; EGR ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (F)	8-98168-724-0	01	1	1201-		●
718	COOLER; EGR (A)	8-97606-717-3	01	1	0801-1112	●	●
718	COOLER; EGR (A)	8-97606-717-3	01	1	1201-1302	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97606-717-3	01	1	1201-1302		●
718	COOLER; EGR ZF M/T<X9E> (A)	8-97606-717-3	01	1	1201-1302		●
718	COOLER; EGR (A)	8-97606-717-3	01	1	1303-	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97606-717-3	01	1	1303-		●
718	COOLER; EGR ZF M/T<X9E> (A)	8-97606-717-3	01	1	1303-		●
718	COOLER; EGR (D)	8-97606-718-2	01	1	0801-1112	●	●
718	COOLER; EGR (D)	8-97606-718-2	01	1	1201-1302	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-97606-718-2	01	1	1201-1302		●
718	COOLER; EGR ZF M/T<X9E> (D)	8-97606-718-2	01	1	1201-1302		●
718	COOLER; EGR (D)	8-97606-718-2	01	1	1303-	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-97606-718-2	01	1	1303-		●
718	COOLER; EGR ZF M/T<X9E> (D)	8-97606-718-2	01	1	1303-		●
718	COOLER; EGR (C)	8-97606-719-3	01	1	0801-1112	●	●
718	COOLER; EGR (C)	8-97606-719-3	01	1	1201-1302	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97606-719-3	01	1	1201-1302		●
718	COOLER; EGR ZF M/T<X9E> (C)	8-97606-719-3	01	1	1201-1302		●
718	COOLER; EGR (C)	8-97606-719-3	01	1	1303-	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97606-719-3	01	1	1303-		●
718	COOLER; EGR ZF M/T<X9E> (C)	8-97606-719-3	01	1	1303-		●
718	COOLER; EGR (B)	8-97606-720-2	01	1	0801-1112	●	●
718	COOLER; EGR (B)	8-97606-720-2	01	1	1201-1302	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97606-720-2	01	1	1201-1302		●
718	COOLER; EGR ZF M/T<X9E> (B)	8-97606-720-2	01	1	1201-1302		●
718	COOLER; EGR (B)	8-97606-720-2	01	1	1303-	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97606-720-2	01	1	1303-		●
718	COOLER; EGR ZF M/T<X9E> (B)	8-97606-720-2	01	1	1303-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=80	8-97603-889-0	06	1	0801-	●	●
725	DUCT; EGR VLV	8-97603-690-0	01	1	0801-	●	●
726	TUBE; DISTANCE L=28	8-97250-073-1	06	1	0801-	●	●
767	BOLT; DUCT,EGR (A) M10X100 FLANGE	0-28151-000-0	06	1	0801-	●	●
767	BOLT; DUCT,EGR (B) M10X35 FLANGE	0-28751-035-0	02	1	0801-	●	●

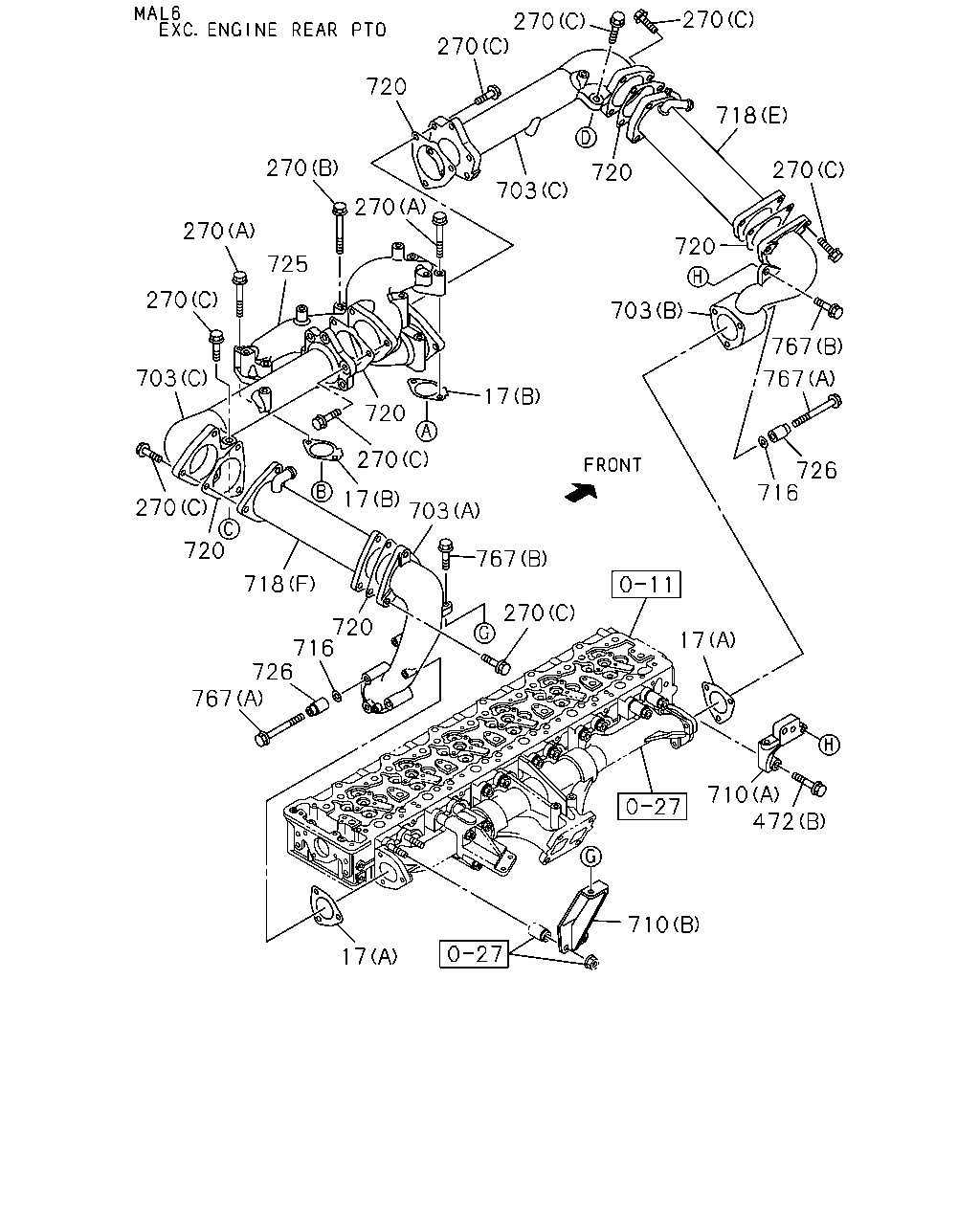

270 270 270 703 720 718 270 720 703 767 767 726 716 17 710 472 710 17 270 767 703 17 718 720 716 726 767 720 270 703 270 270 270 720 270 725 720 17 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-16157-017-1	02	1	0801-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	02	1	0801-	●	●
270	BOLT (E) M10X80 FLANGE	0-28151-080-0	01	1	1202-1302	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E) M10X80 FLANGE	0-28151-080-0	01	1	1202-1302		●
270	BOLT ZF M/T<X9E> (E) M10X80 FLANGE	0-28151-080-0	01	1	1202-1302		●
270	BOLT (E) M10X80 FLANGE	0-28151-080-0	01	1	1303-	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E) M10X80 FLANGE	0-28151-080-0	01	1	1303-		●
270	BOLT ZF M/T<X9E> (E) M10X80 FLANGE	0-28151-080-0	01	1	1303-		●
270	BOLT ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) M10X60 FLANGE	0-28151-060-0	04	1	1202-		●
270	BOLT (A) M10X60 FLANGE	0-28151-060-0	04	1	0801-1201	●	●
270	BOLT (A) M10X60 FLANGE	0-28151-060-0	03	1	1202-1302	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M10X60 FLANGE	0-28151-060-0	03	1	1202-1302		●
270	BOLT ZF M/T<X9E> (A) M10X60 FLANGE	0-28151-060-0	03	1	1202-1302		●
270	BOLT (A) M10X60 FLANGE	0-28151-060-0	03	1	1303-	●
270	BOLT ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M10X60 FLANGE	0-28151-060-0	03	1	1303-		●
270	BOLT ZF M/T<X9E> (A) M10X60 FLANGE	0-28151-060-0	03	1	1303-		●
270	BOLT (B) M10X90 FLANGE	0-28151-090-0	02	1	0801-	●	●
270	BOLT (C) M10X35 FLANGE	0-28751-035-0	20	1	0801-	●	●
270	BOLT (D) M6X12 HEX SOCKET	0-58330-612-0	04	1	0801-1405	●	●
270	BOLT (D) M6X12 HEX SOCKET	8-98272-417-0	04	1	1406-	●	●
472	BOLT; BRKT (A) M10X70 FLANGE	0-28151-070-0	02	1	0801-	●	●
472	BOLT; BRKT (B) M12X45 FLANGE	0-28151-245-0	04	1	0801-	●	●
703	DUCT; EGR ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C)	8-98169-031-2	02	1	1201-		●
703	DUCT; EGR (A)	8-97604-165-1	01	1	0801-1501	●	●
703	DUCT; EGR (A)	8-98292-565-0	01	1	1502-	●	●
703	DUCT; EGR (B)	8-97604-519-2	01	1	0801-1501	●	●
703	DUCT; EGR (B)	8-98292-566-0	01	1	1502-	●	●
710	BRACKET; EGR COOLER (A)	8-97604-631-2	01	1	0801-1004	●	●
710	BRACKET; EGR COOLER (A)	8-98153-690-1	01	1	1005-	●	●
710	BRACKET; EGR COOLER (B)	8-97604-739-1	01	1	0801-	●	●
710	BRACKET; EGR COOLER (C)	8-97606-746-0	01	1	0801-	●	●
710	BRACKET; EGR COOLER (D)	8-97606-747-0	01	1	0801-	●	●
716	WASHER; EGR PIPE T=2.2	1-09556-015-0	06	1	0801-	●	●
718	COOLER; EGR ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (E)	8-98168-723-0	01	1	1201-		●
718	COOLER; EGR ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (F)	8-98168-724-0	01	1	1201-		●
718	COOLER; EGR (A)	8-97606-717-3	01	1	0801-1112	●	●
718	COOLER; EGR (A)	8-97606-717-3	01	1	1201-1302	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97606-717-3	01	1	1201-1302		●
718	COOLER; EGR ZF M/T<X9E> (A)	8-97606-717-3	01	1	1201-1302		●
718	COOLER; EGR (A)	8-97606-717-3	01	1	1303-	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97606-717-3	01	1	1303-		●
718	COOLER; EGR ZF M/T<X9E> (A)	8-97606-717-3	01	1	1303-		●
718	COOLER; EGR (D)	8-97606-718-2	01	1	0801-1112	●	●
718	COOLER; EGR (D)	8-97606-718-2	01	1	1201-1302	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-97606-718-2	01	1	1201-1302		●
718	COOLER; EGR ZF M/T<X9E> (D)	8-97606-718-2	01	1	1201-1302		●
718	COOLER; EGR (D)	8-97606-718-2	01	1	1303-	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-97606-718-2	01	1	1303-		●
718	COOLER; EGR ZF M/T<X9E> (D)	8-97606-718-2	01	1	1303-		●
718	COOLER; EGR (C)	8-97606-719-3	01	1	0801-1112	●	●
718	COOLER; EGR (C)	8-97606-719-3	01	1	1201-1302	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97606-719-3	01	1	1201-1302		●
718	COOLER; EGR ZF M/T<X9E> (C)	8-97606-719-3	01	1	1201-1302		●
718	COOLER; EGR (C)	8-97606-719-3	01	1	1303-	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97606-719-3	01	1	1303-		●
718	COOLER; EGR ZF M/T<X9E> (C)	8-97606-719-3	01	1	1303-		●
718	COOLER; EGR (B)	8-97606-720-2	01	1	0801-1112	●	●
718	COOLER; EGR (B)	8-97606-720-2	01	1	1201-1302	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97606-720-2	01	1	1201-1302		●
718	COOLER; EGR ZF M/T<X9E> (B)	8-97606-720-2	01	1	1201-1302		●
718	COOLER; EGR (B)	8-97606-720-2	01	1	1303-	●
718	COOLER; EGR ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97606-720-2	01	1	1303-		●
718	COOLER; EGR ZF M/T<X9E> (B)	8-97606-720-2	01	1	1303-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=80	8-97603-889-0	06	1	0801-	●	●
725	DUCT; EGR VLV	8-97603-690-0	01	1	0801-	●	●
726	TUBE; DISTANCE L=28	8-97250-073-1	06	1	0801-	●	●
767	BOLT; DUCT,EGR (A) M10X100 FLANGE	0-28151-000-0	06	1	0801-	●	●
767	BOLT; DUCT,EGR (B) M10X35 FLANGE	0-28751-035-0	02	1	0801-	●	●
