Sayfa 0-52 - Isuzu EPC

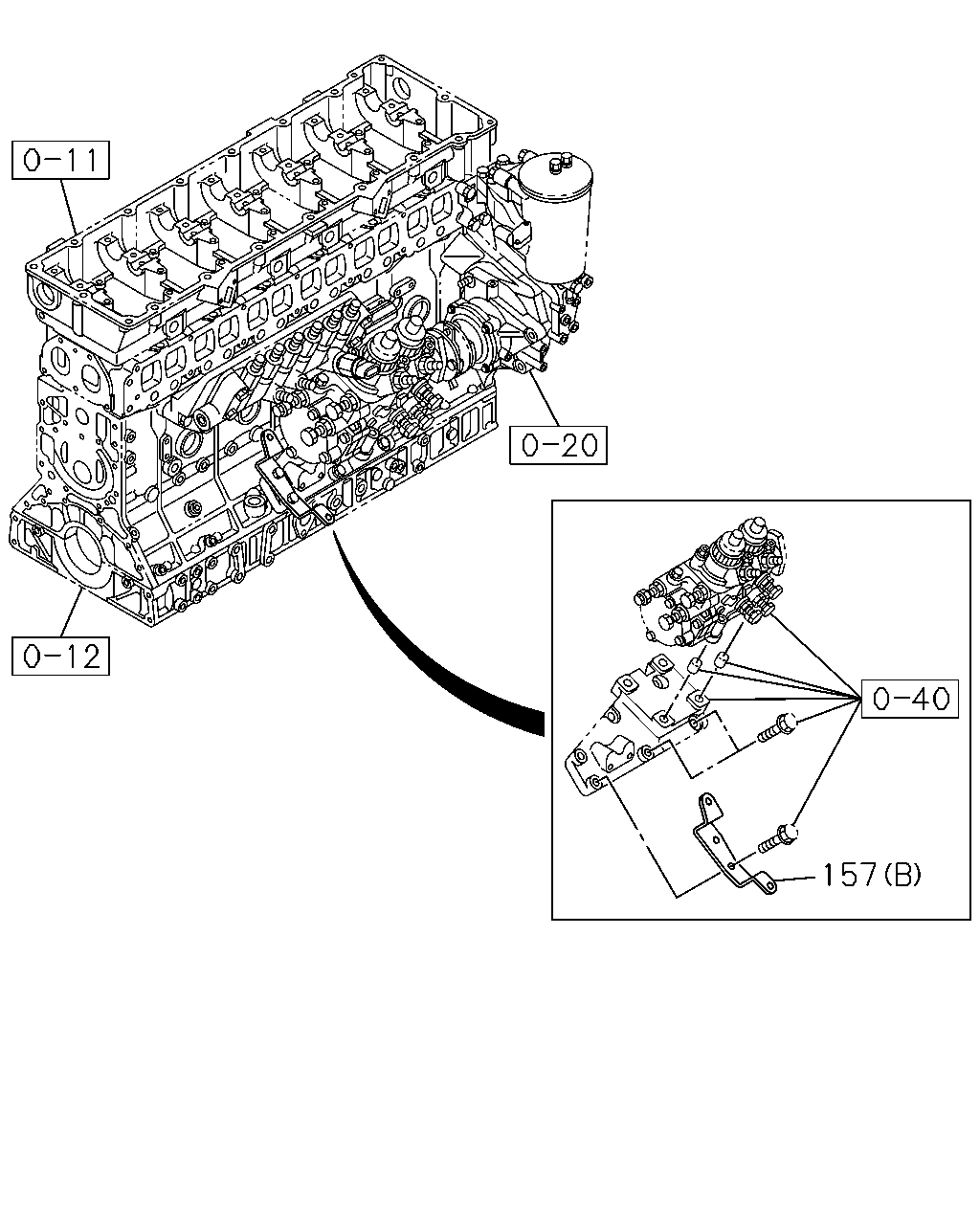

157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
157	BRACKET; OIL PIPE ENGINE REAR PTO(SV1) (C)	8-97607-498-0	01	1	0801-	●	●
157	BRACKET; OIL PIPE (A)	8-97610-356-1	01	1	0801-	●	●
157	BRACKET; OIL PIPE (B)	8-97620-045-0	01	1	0801-	●	●

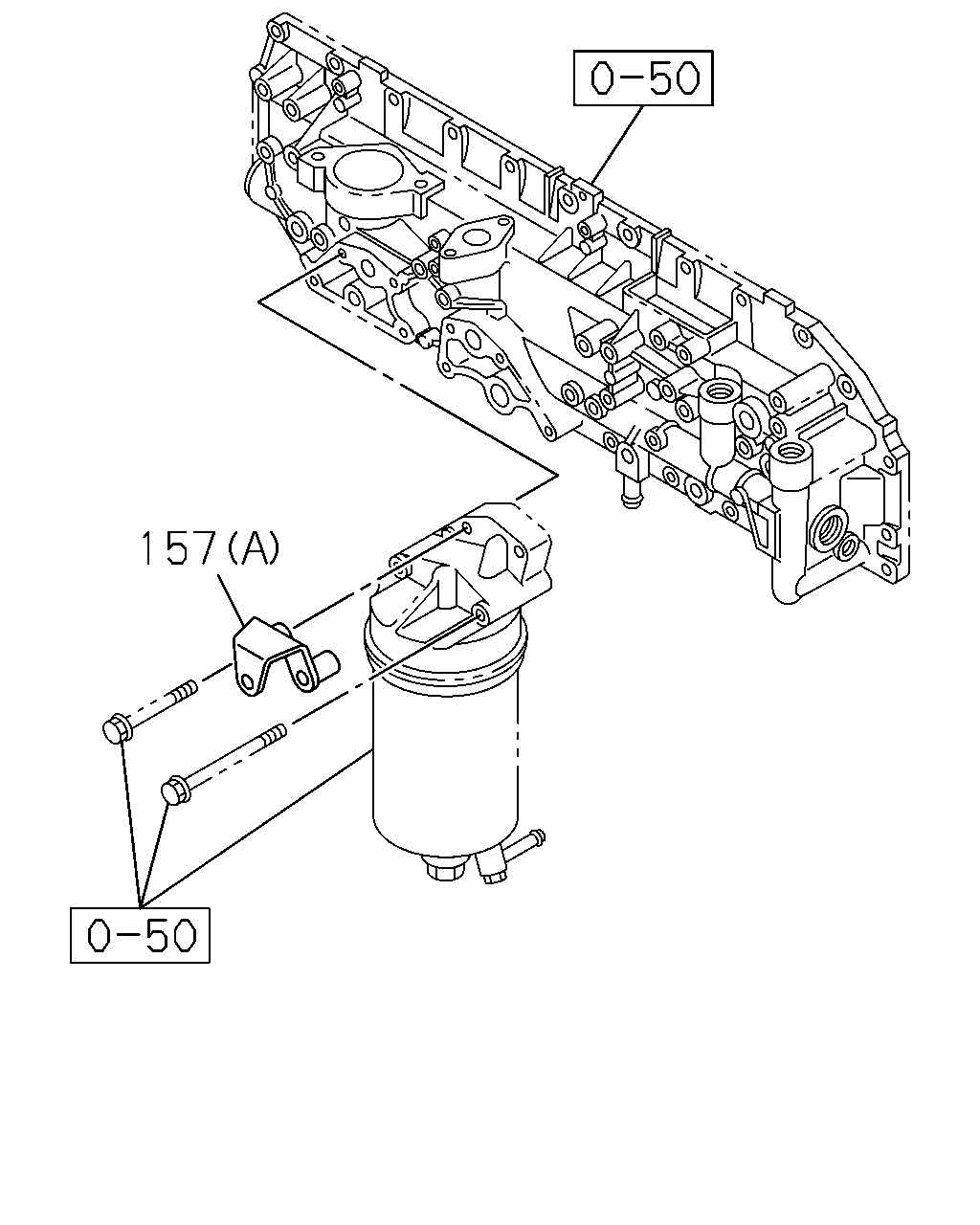

157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
157	BRACKET; OIL PIPE ENGINE REAR PTO(SV1) (C)	8-97607-498-0	01	1	0801-	●	●
157	BRACKET; OIL PIPE (A)	8-97610-356-1	01	1	0801-	●	●
157	BRACKET; OIL PIPE (B)	8-97620-045-0	01	1	0801-	●	●

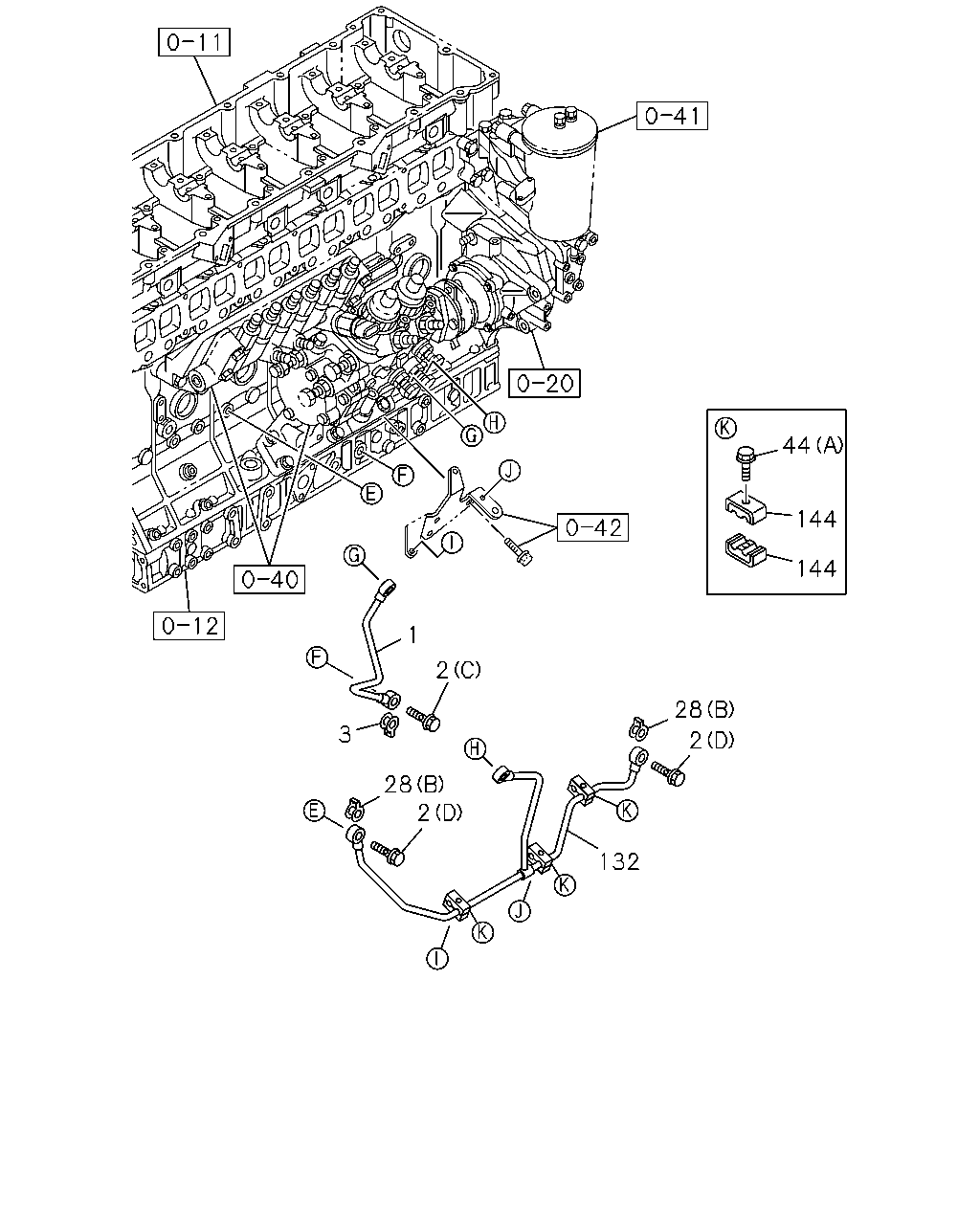

44 144 144 2 1 3 28 2 28 2 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	8-97603-876-0	01	1	0801-	●	●
2	BOLT; EYE,OIL PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X20 FLANGE	0-28051-020-0	01	1	0806-0807		●
2	BOLT; EYE,OIL PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X21 FLANGE	8-97372-238-0	01	1	0806-0807		●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	0801-0805	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	1-09675-077-0	02	1	0801-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0806	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0806	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0807	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0807	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	0808-1211	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	0808-1211	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	1212-1302	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	1212-1302	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	1303-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	1303-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M12X27 FLANGE	1-09675-160-0	01	1	0801-0805	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (C) M14X33 FLANGE	1-09675-088-0	01	1	0801-	●	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0801-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=21	8-97251-047-0	01	1	0801-	●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6	8-97240-975-0	02	1	0801-1301	●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6	8-98231-393-0	02	1	1302-	●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.2	9-09566-226-0	02	1	0801-	●	●
44	BOLT; CLIP,OIL PIPE (A) M6X30 FLANGE	0-28050-630-0	03	1	0801-	●	●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28650-635-0	01	1	0801-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	8-98174-716-0	01	1	0801-	●	●
144	CLIP; OIL PIPE,INJ PUMP ID=11 & 11 L=19	8-98039-293-0	06	1	0801-1405	●	●
144	CLIP; OIL PIPE,INJ PUMP ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●	●

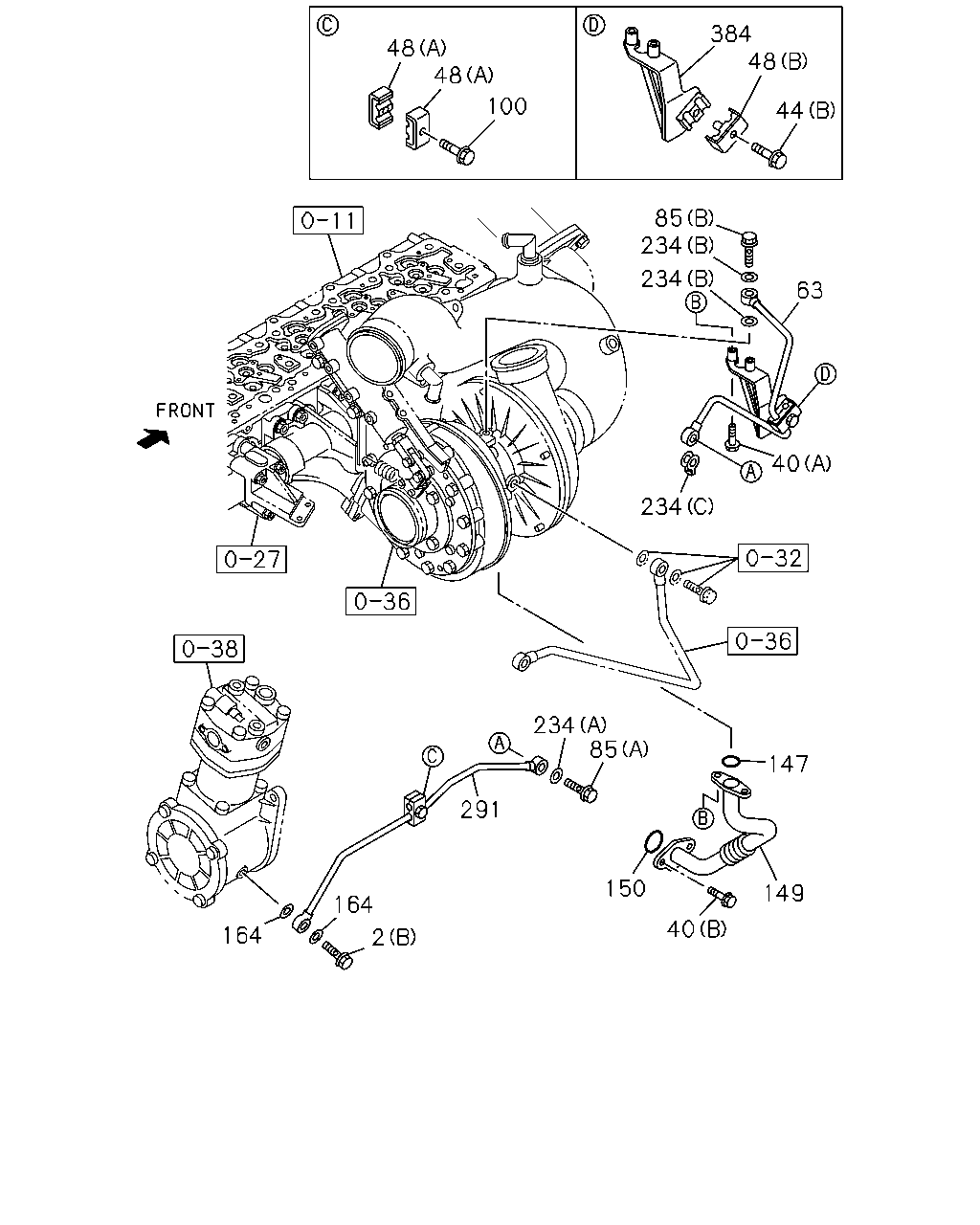

48 100 48 384 44 48 85 234 234 63 40 234 147 149 40 150 85 234 291 164 2 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X20 FLANGE	0-28051-020-0	01	1	0806-0807		●
2	BOLT; EYE,OIL PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X21 FLANGE	8-97372-238-0	01	1	0806-0807		●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	0801-0805	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	1-09675-077-0	02	1	0801-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0806	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0806	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0807	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0807	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	0808-1211	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	0808-1211	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	1212-1302	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	1212-1302	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	1303-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	1303-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M12X27 FLANGE	1-09675-160-0	01	1	0801-0805	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (C) M14X33 FLANGE	1-09675-088-0	01	1	0801-	●	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0801-	●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0801-	●	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	0801-	●	●
44	BOLT; CLIP,OIL PIPE (A) M6X30 FLANGE	0-28050-630-0	03	1	0801-	●	●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28650-635-0	01	1	0801-	●	●
48	CLIP; OIL PIPE (A) ID=11 & 11 L=19	8-98039-293-0	02	1	0801-1211	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A) ID=11 & 11 L=19	8-98039-293-0	02	1	0801-1211	●	●
48	CLIP; OIL PIPE (A) ID=11 & 11 L=19	8-98039-293-0	02	1	1212-1302	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A) ID=11 & 11 L=19	8-98039-293-0	02	1	1212-1302	●	●
48	CLIP; OIL PIPE (A) ID=11 & 11 L=19	8-98039-293-0	02	1	1303-1405	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A) ID=11 & 11 L=19	8-98039-293-0	02	1	1303-1405	●	●
48	CLIP; OIL PIPE (A) ID=11 & 11 L=19	8-98148-996-2	02	1	1406-	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A) ID=11 & 11 L=19	8-98148-996-2	02	1	1406-	●	●
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	01	1	0801-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97604-871-0	01	1	0801-	●	●
85	BOLT; EYE,OIL PIPE FIX (A) M12X41	1-09675-140-0	01	1	0801-	●	●
85	BOLT; EYE,OIL PIPE FIX (B) M12X27 FLANGE	1-09675-160-0	01	1	0801-0805	●	●
85	BOLT; EYE,OIL PIPE FIX (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
100	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0801-1211	●	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28050-630-0	01	1	0801-1211	●	●
100	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1212-1302	●	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28050-630-0	01	1	1212-1302	●	●
100	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1303-	●	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28050-630-0	01	1	1303-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	0801-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97603-712-2	01	1	0801-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0801-	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.6	8-97240-975-0	02	1	0801-1301	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.6	8-98231-393-0	02	1	1302-1405	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.6	8-98231-393-0	01	1	1406-	●	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	0801-1312	●	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	01	1	1401-	●	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	8-97256-733-0	01	1	0801-	●	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0801-	●	●
291	PIPE; OIL	8-97604-870-0	01	1	0801-1011	●	●
291	PIPE; OIL	8-98145-554-0	01	1	1012-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13345-216-0	01	1	0801-	●	●

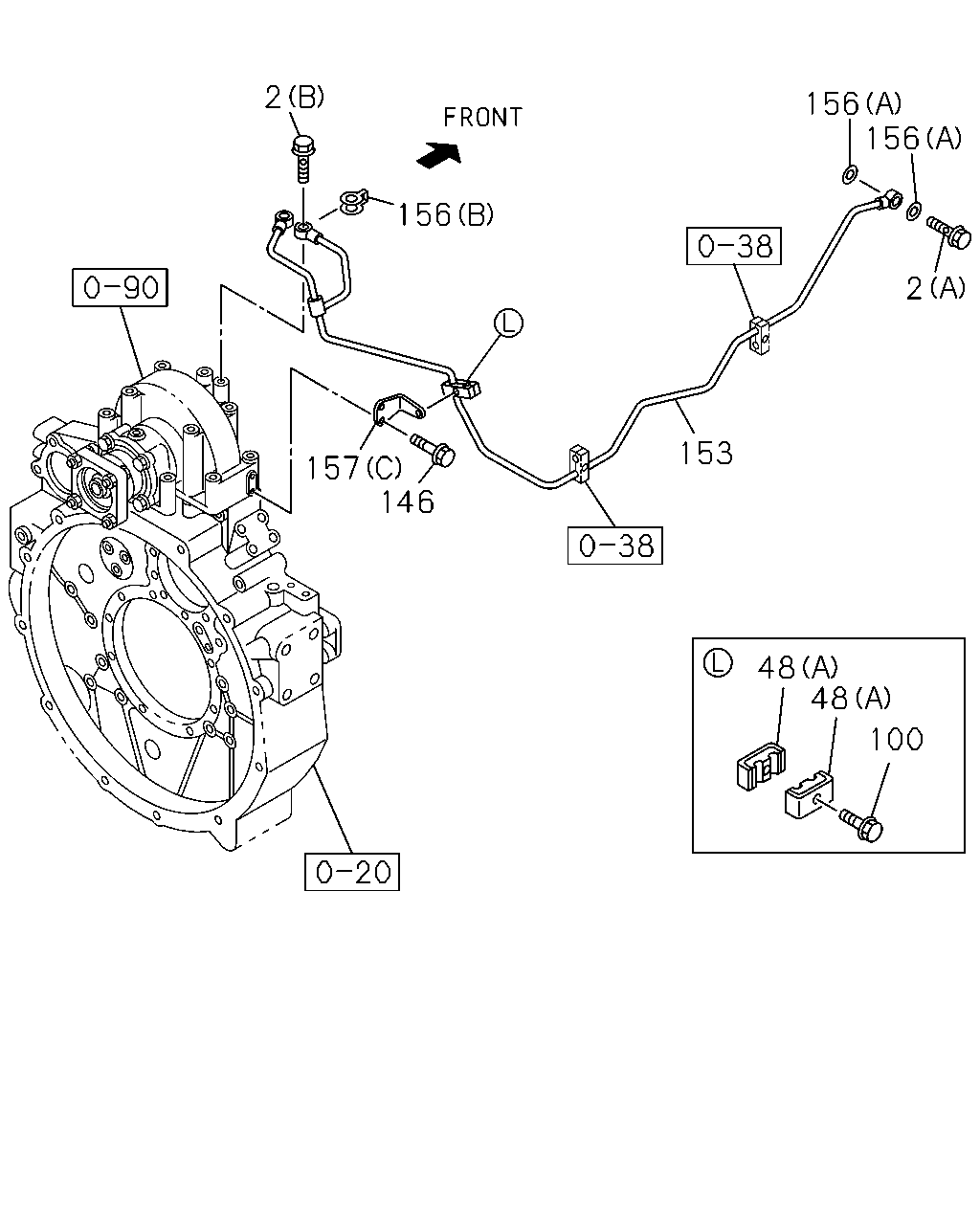

2 156 156 156 2 153 157 146 48 48 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X20 FLANGE	0-28051-020-0	01	1	0806-0807		●
2	BOLT; EYE,OIL PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X21 FLANGE	8-97372-238-0	01	1	0806-0807		●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	0801-0805	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	1-09675-077-0	02	1	0801-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0806	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0806	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0807	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	0806-0807	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	0808-1211	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	0808-1211	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	1212-1302	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	1212-1302	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	02	1	1303-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	8-97372-238-0	02	1	1303-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M12X27 FLANGE	1-09675-160-0	01	1	0801-0805	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (C) M14X33 FLANGE	1-09675-088-0	01	1	0801-	●	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0801-	●	●
48	CLIP; OIL PIPE (A) ID=11 & 11 L=19	8-98039-293-0	02	1	0801-1211	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A) ID=11 & 11 L=19	8-98039-293-0	02	1	0801-1211	●	●
48	CLIP; OIL PIPE (A) ID=11 & 11 L=19	8-98039-293-0	02	1	1212-1302	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A) ID=11 & 11 L=19	8-98039-293-0	02	1	1212-1302	●	●
48	CLIP; OIL PIPE (A) ID=11 & 11 L=19	8-98039-293-0	02	1	1303-1405	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A) ID=11 & 11 L=19	8-98039-293-0	02	1	1303-1405	●	●
48	CLIP; OIL PIPE (A) ID=11 & 11 L=19	8-98148-996-2	02	1	1406-	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A) ID=11 & 11 L=19	8-98148-996-2	02	1	1406-	●	●
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	01	1	0801-	●	●
100	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0801-1211	●	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28050-630-0	01	1	0801-1211	●	●
100	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1212-1302	●	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28050-630-0	01	1	1212-1302	●	●
100	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1303-	●	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28050-630-0	01	1	1303-	●	●
146	BOLT; BRKT ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	02	1	0801-	●	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-97611-180-1	01	1	0801-0801	●	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-97625-920-0	01	1	0802-1011	●	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-98149-196-0	01	1	1012-	●	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=12.2	1-09630-084-0	02	1	0801-1312	●	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=10.6	8-97240-975-0	02	1	0801-1301	●	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=10.6	8-98231-393-0	02	1	1302-	●	●
157	BRACKET; OIL PIPE ENGINE REAR PTO(SV1) (C)	8-97607-498-0	01	1	0801-	●	●
157	BRACKET; OIL PIPE (A)	8-97610-356-1	01	1	0801-	●	●
157	BRACKET; OIL PIPE (B)	8-97620-045-0	01	1	0801-	●	●

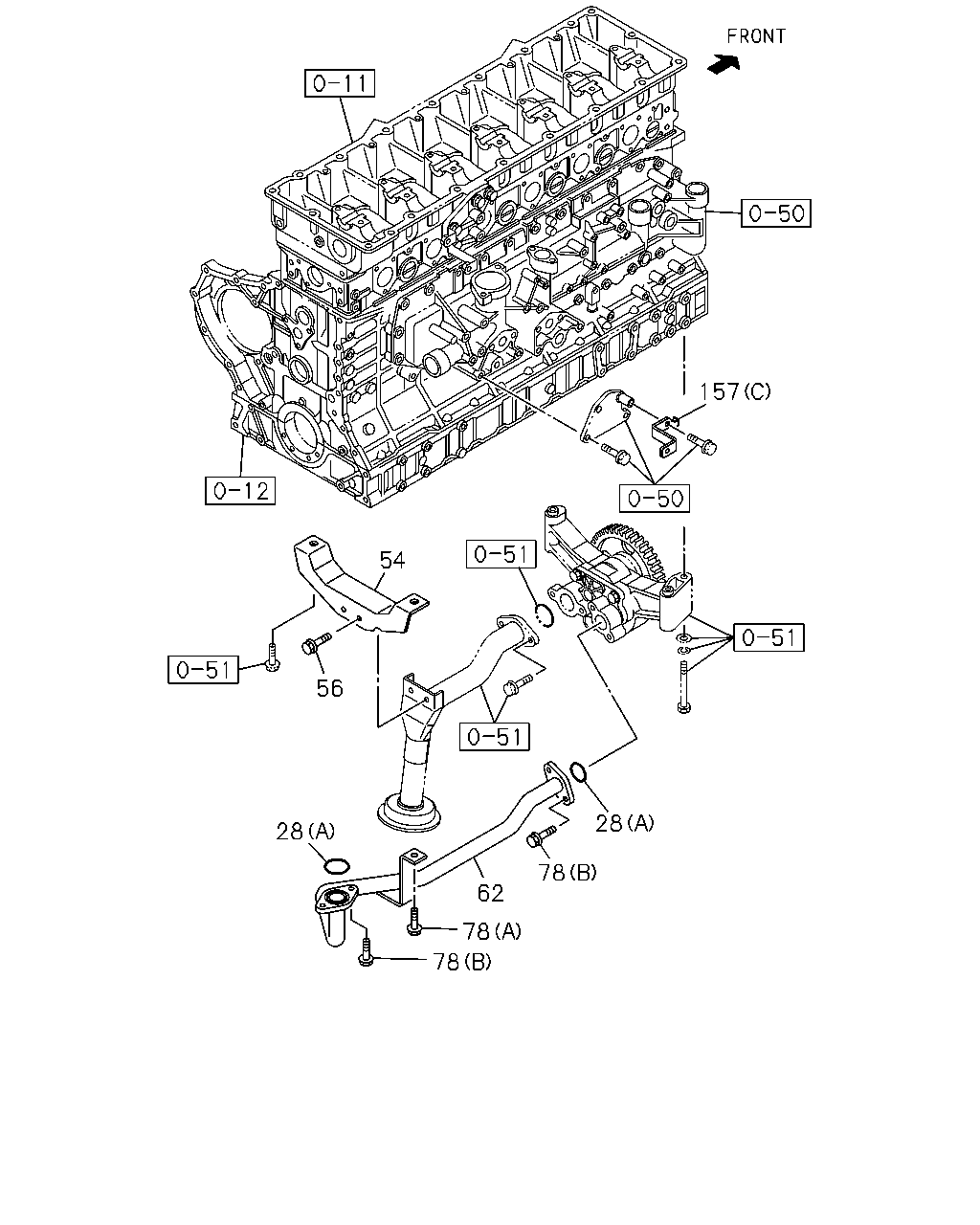

157 54 56 28 28 78 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6	8-97240-975-0	02	1	0801-1301	●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6	8-98231-393-0	02	1	1302-	●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.2	9-09566-226-0	02	1	0801-	●	●
54	STAY; OIL STRAINER	1-13345-182-0	01	1	0801-	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0801-	●	●
62	PIPE; OIL,PUMP TO C/BL	8-97603-066-1	01	1	0801-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X16 FLANGE	0-28050-816-0	01	1	0801-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X25 FLANGE	0-28650-825-0	04	1	0801-	●	●
157	BRACKET; OIL PIPE ENGINE REAR PTO(SV1) (C)	8-97607-498-0	01	1	0801-	●	●
157	BRACKET; OIL PIPE (A)	8-97610-356-1	01	1	0801-	●	●
157	BRACKET; OIL PIPE (B)	8-97620-045-0	01	1	0801-	●	●
