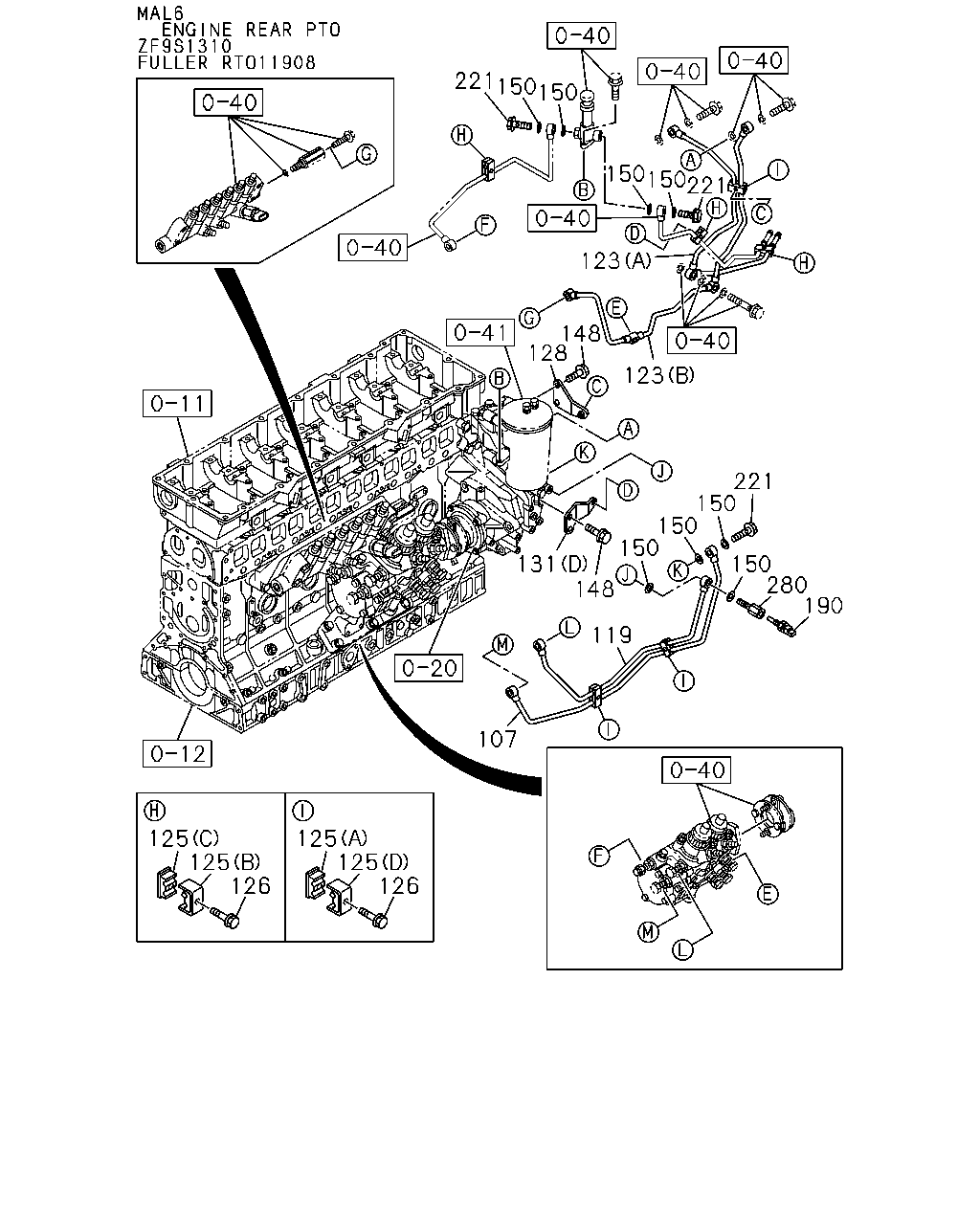

0-42 — FUEL PUMP AND PIPE (#39794) — 57 parça

221 150 150 150 150 221 123 148 123 128 221 150 150 150 280 150 119 190 148 131 107 125 125 125 125 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97606-621-1	01	1	0801-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97603-752-0	01	1	0801-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C)	8-98170-939-0	01	1	1201-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97606-623-0	01	1	0801-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97606-624-0	01	1	0801-1112	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97606-624-0	01	1	1201-1302	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97606-624-0	01	1	1201-1302		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ZF M/T<X9E> (B)	8-97606-624-0	01	1	1201-1302		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97606-624-0	01	1	1303-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97606-624-0	01	1	1303-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ZF M/T<X9E> (B)	8-97606-624-0	01	1	1303-		●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0801-	●	●
125	CLIP; FUEL PIPE (B) ID=9 & 11 L=28	1-09701-193-1	03	1	0801-	●	●
125	CLIP; FUEL PIPE (C) ID=9 & 11 L=28	1-09701-194-1	03	1	0801-	●	●
125	CLIP; FUEL PIPE (D) ID=9 & 9 L=25	8-94393-280-3	03	1	0801-	●	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	06	1	0801-	●	●
128	BRACKET; FUEL RETURN CLIP	8-97606-626-0	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (A)	8-97603-874-0	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (B)	8-97605-982-1	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (D)	8-97606-625-0	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (C)	8-97610-280-0	01	1	0801-	●	●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	11	1	0801-	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0801-	●	●
190	SENSOR; FUEL TEMP	8-97224-993-0	01	1	0801-	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	03	1	0801-	●	●
280	ADAPTER; FUEL TEMP SEN M12 & M14 STRAIGHT	1-15419-716-1	01	1	0801-	●	●

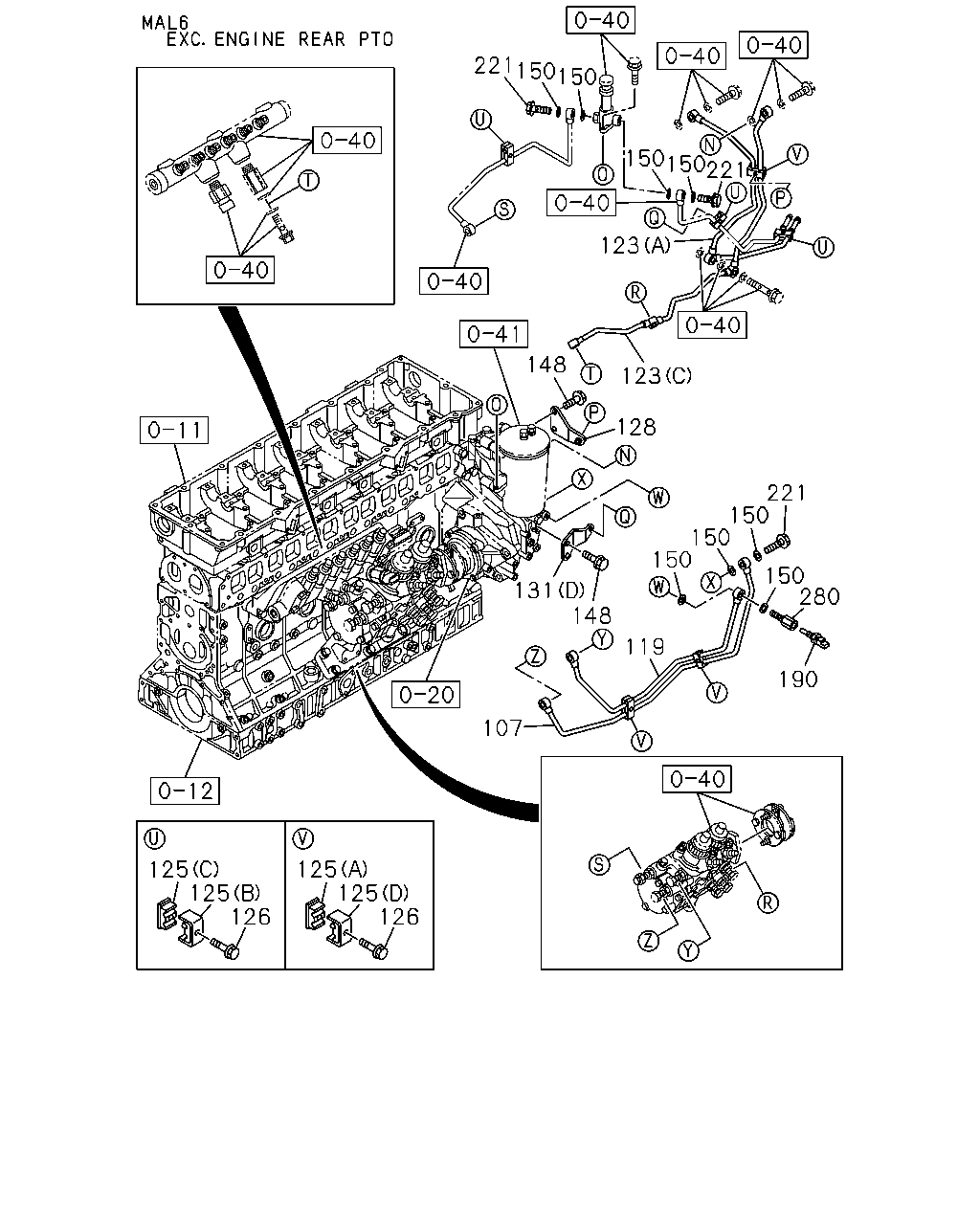

190 280 150 221 150 150 150 148 119 131 107 123 148 128 123 126 125 125 126 125 125 150 150 221 150 150 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97606-621-1	01	1	0801-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97603-752-0	01	1	0801-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C)	8-98170-939-0	01	1	1201-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97606-623-0	01	1	0801-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97606-624-0	01	1	0801-1112	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97606-624-0	01	1	1201-1302	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97606-624-0	01	1	1201-1302		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ZF M/T<X9E> (B)	8-97606-624-0	01	1	1201-1302		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97606-624-0	01	1	1303-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97606-624-0	01	1	1303-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ZF M/T<X9E> (B)	8-97606-624-0	01	1	1303-		●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0801-	●	●
125	CLIP; FUEL PIPE (B) ID=9 & 11 L=28	1-09701-193-1	03	1	0801-	●	●
125	CLIP; FUEL PIPE (C) ID=9 & 11 L=28	1-09701-194-1	03	1	0801-	●	●
125	CLIP; FUEL PIPE (D) ID=9 & 9 L=25	8-94393-280-3	03	1	0801-	●	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	06	1	0801-	●	●
128	BRACKET; FUEL RETURN CLIP	8-97606-626-0	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (A)	8-97603-874-0	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (B)	8-97605-982-1	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (D)	8-97606-625-0	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (C)	8-97610-280-0	01	1	0801-	●	●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	11	1	0801-	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0801-	●	●
190	SENSOR; FUEL TEMP	8-97224-993-0	01	1	0801-	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	03	1	0801-	●	●
280	ADAPTER; FUEL TEMP SEN M12 & M14 STRAIGHT	1-15419-716-1	01	1	0801-	●	●

131 148 148 131 148 131

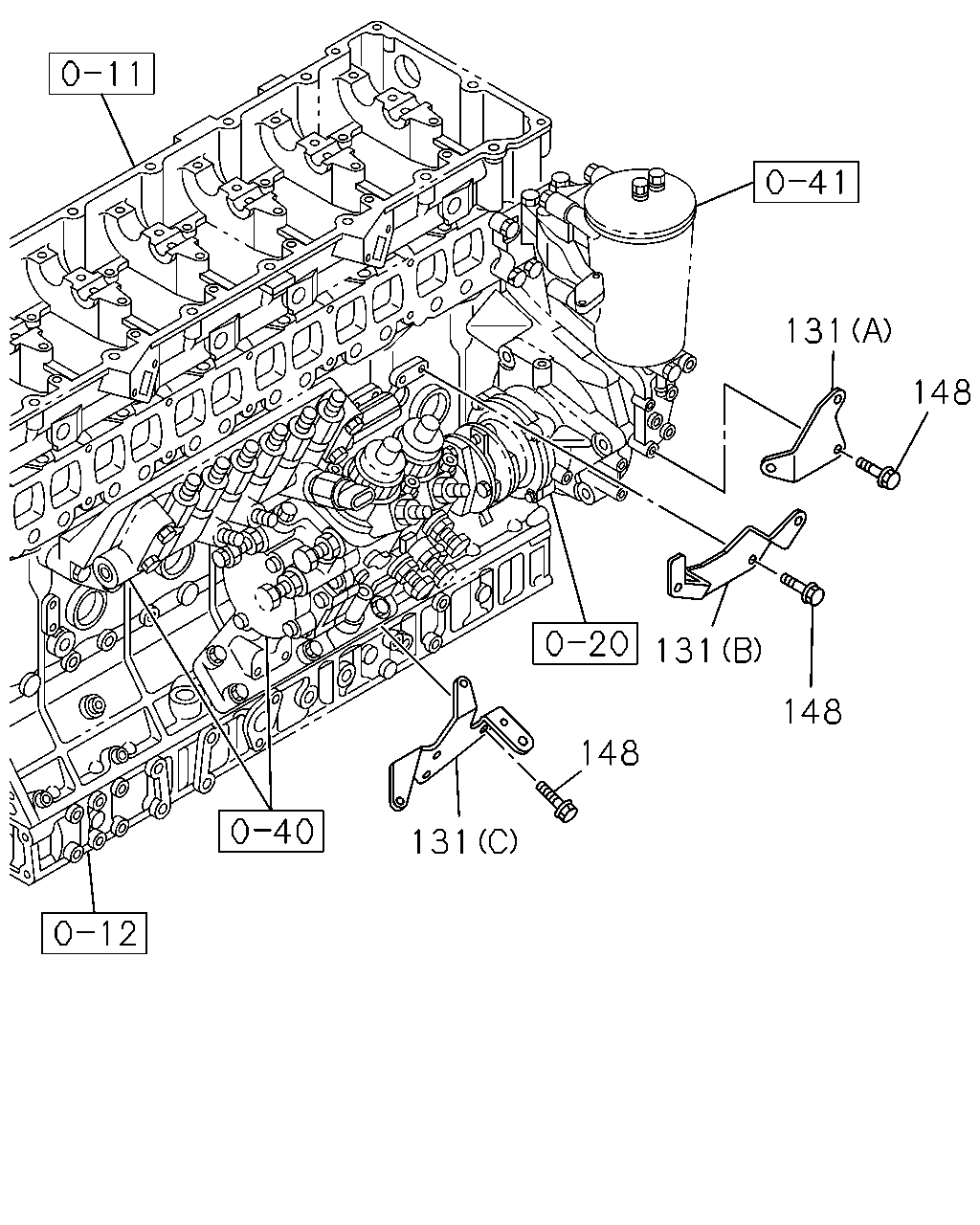

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
131	BRACKET; FUEL PIPE CLIP (A)	8-97603-874-0	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (B)	8-97605-982-1	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (D)	8-97606-625-0	01	1	0801-	●	●
131	BRACKET; FUEL PIPE CLIP (C)	8-97610-280-0	01	1	0801-	●	●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	11	1	0801-	●	●
