◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#39792) — 464 parça

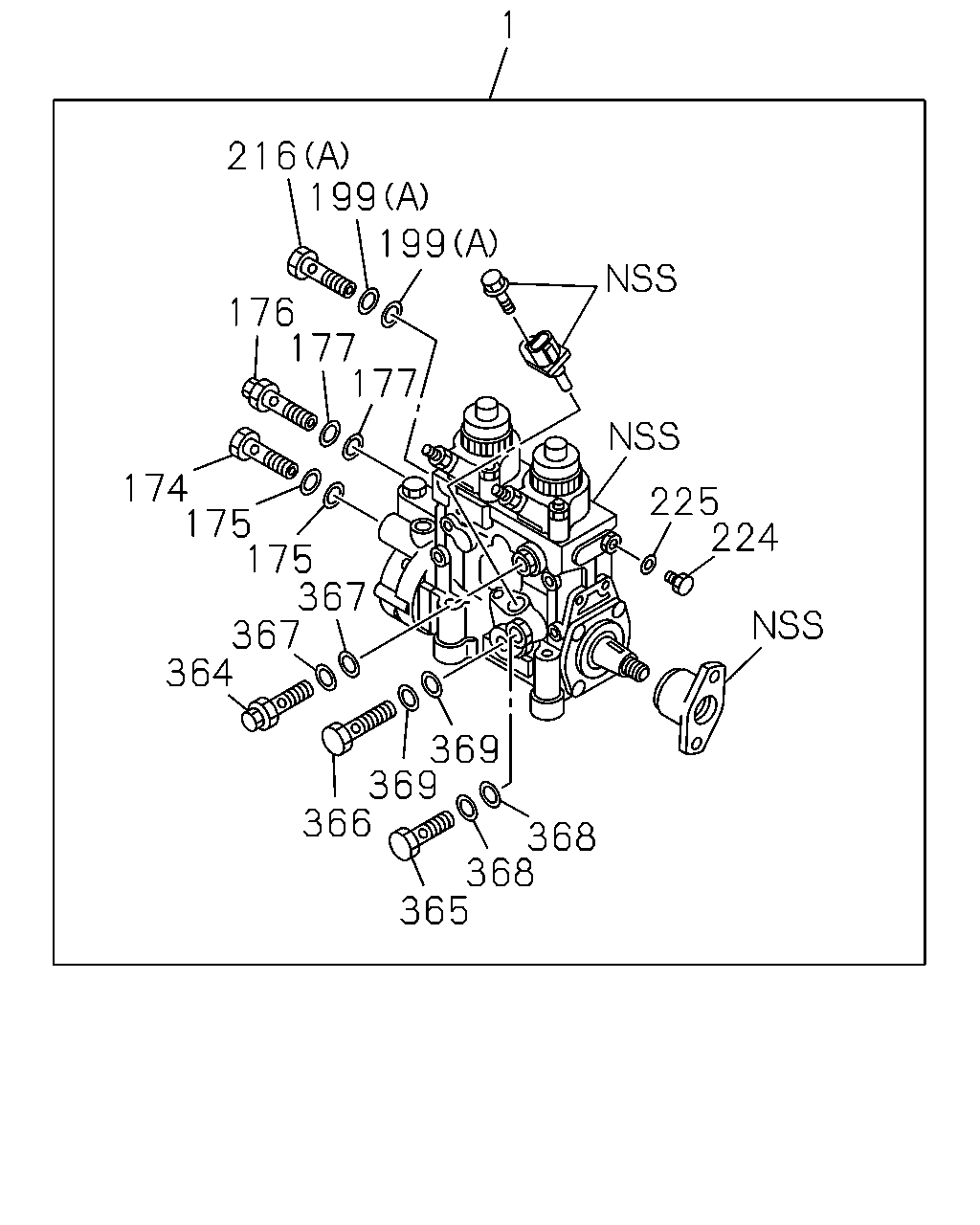

çizim 161770
1 216 199 199 176 177 177 174 175 175 367 367 364 225 224 369 369 366 368 368 365
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98176-117-2 01 1 1401- ●
1 PUMP ASM; INJ 8-98013-910-4 01 1 0801-1312 ● ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98013-910-4 01 1 1401- ●
1 PUMP ASM; INJ
ZF M/T<X9E> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98013-910-4 01 1 1401- ●
1 PUMP ASM; INJ
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98013-910-4 01 1 1401- ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0801-1312 ● ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 1401- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 0801-1312 ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 1401- ● ●
176 BOLT; EYE,FEED PUMP
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		5-15759-002-0 01 1 1406- ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 0801-1312 ● ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 1401-1405 ● ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 1406- ●
176 BOLT; EYE,FEED PUMP
ZF M/T<X9E> 		1-15619-509-0 01 1 1406- ●
176 BOLT; EYE,FEED PUMP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15619-509-0 01 1 1406- ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0801-1312 ● ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 1401- ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0801- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0801-1312 ● ●
199 GASKET; EYE BOLT
(A) ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15619-507-0 02 1 1401- ● ●
216 BOLT; EYE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) 		8-98043-033-0 01 1 1201- ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0801-1112 ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 1201-1302 ●
216 BOLT; EYE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) 		8-97602-173-0 01 1 1201-1302 ●
216 BOLT; EYE
ZF M/T<X9E> (B) 		8-97602-173-0 01 1 1201-1302 ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 1303- ●
216 BOLT; EYE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) 		8-97602-173-0 01 1 1303- ●
216 BOLT; EYE
ZF M/T<X9E> (B) 		8-97602-173-0 01 1 1303- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0801-1312 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1401- ● ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0801-1312 ● ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 1401- ● ●
225 GASKET; PLUG 1-15619-502-0 01 1 0801-1312 ● ●
225 GASKET; PLUG 1-15619-502-0 01 1 1401- ● ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0801-1312 ● ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 1401- ● ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0801-1312 ● ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 1401- ● ●
366 BOLT; EYE,OIL OUTLET
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		5-15759-003-0 01 1 1401-1405 ●
366 BOLT; EYE,OIL OUTLET 1-15619-513-0 01 1 0801-1312 ● ●
366 BOLT; EYE,OIL OUTLET 1-15619-513-0 01 1 1401-1405 ●
366 BOLT; EYE,OIL OUTLET
ZF M/T<X9E> 		1-15619-513-0 01 1 1401-1405 ●
366 BOLT; EYE,OIL OUTLET
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15619-513-0 01 1 1401-1405 ●
366 BOLT; EYE,OIL OUTLET 1-15619-513-0 01 1 1406- ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0801-1312 ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 1401- ● ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 0801-1312 ● ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 1401- ● ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-507-0 02 1 0801-1312 ● ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-507-0 02 1 1401- ● ●

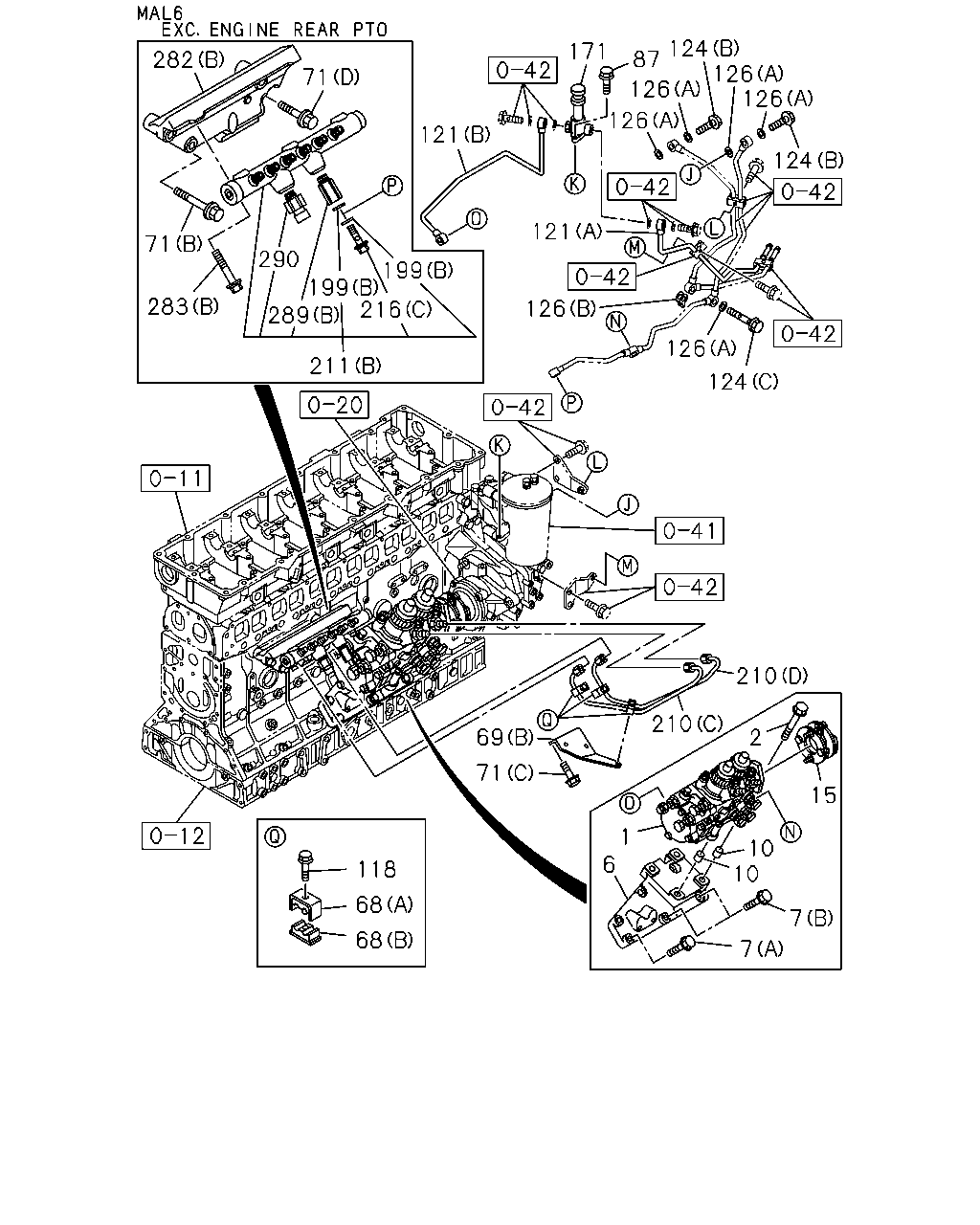

çizim 161781
7 10 7 6 10 15 2 210 210 68 118 68 71 69 124 126 126 124 126 126 124 126 87 171 126 121 121 211 216 199 199 289 290 283 71 71 282 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98176-117-2 01 1 1401- ●
1 PUMP ASM; INJ 8-98013-910-4 01 1 0801-1312 ● ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98013-910-4 01 1 1401- ●
1 PUMP ASM; INJ
ZF M/T<X9E> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98013-910-4 01 1 1401- ●
1 PUMP ASM; INJ
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98013-910-4 01 1 1401- ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0801- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97603-738-1 01 1 0801- ● ●
7 BOLT; INJ PUMP BRKT
(B) M12X70 FLANGE 		0-28151-270-0 02 1 0801- ● ●
7 BOLT; INJ PUMP BRKT
(A) M12X40 FLANGE 		0-28181-240-0 04 1 0801-0804 ● ●
7 BOLT; INJ PUMP BRKT
(A) M12X40 FLANGE 		0-28151-240-0 04 1 0805- ● ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0801- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		8-97610-800-0 01 1 1401- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-202-1 01 1 0801-1312 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-202-1 01 1 1401- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. ZF M/T<X9E> 		1-15780-202-1 01 1 1401- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15780-202-1 01 1 1401- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) 		8-97330-118-3 02 1 1201- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-97330-119-3 02 1 1201- ●
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 0801-1112 ● ●
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) 		1-09701-269-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (C) 		1-09701-269-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 1303- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) 		1-09701-269-0 02 1 1303- ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (C) 		1-09701-269-0 02 1 1303- ●
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 0801-1112 ● ●
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D) 		8-94396-371-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (D) 		8-94396-371-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 1303- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D) 		8-94396-371-0 02 1 1303- ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (D) 		8-94396-371-0 02 1 1303- ●
68 CLIP; INJ PIPE
(A) 		8-97330-118-3 08 1 0801- ● ●
68 CLIP; INJ PIPE
(B) 		8-97330-119-3 08 1 0801- ● ●
69 BRACKET; INJ PIPE CLIP
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-98175-342-0 01 1 1201- ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-97603-113-0 01 1 0801-1112 ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-97603-113-0 01 1 1201-1302 ●
69 BRACKET; INJ PIPE CLIP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-113-0 01 1 1201-1302 ●
69 BRACKET; INJ PIPE CLIP
ZF M/T<X9E> (A) 		8-97603-113-0 01 1 1201-1302 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-97603-113-0 01 1 1303- ●
69 BRACKET; INJ PIPE CLIP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-113-0 01 1 1303- ●
69 BRACKET; INJ PIPE CLIP
ZF M/T<X9E> (A) 		8-97603-113-0 01 1 1303- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 03 1 1201- ● ●
71 BOLT; BRKT
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28050-820-0 02 1 1201- ●
71 BOLT; BRKT
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (D) M10X40 FLANGE 		0-28151-040-0 01 1 1201- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0801-1112 ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1201-1302 ●
71 BOLT; BRKT
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1201-1302 ●
71 BOLT; BRKT
ZF M/T<X9E> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1201-1302 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1303- ●
71 BOLT; BRKT
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1303- ●
71 BOLT; BRKT
ZF M/T<X9E> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1303- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0801-1112 ● ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 01 1 1201-1302 ●
71 BOLT; BRKT
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) M10X60 FLANGE 		0-28151-060-0 01 1 1201-1302 ●
71 BOLT; BRKT
ZF M/T<X9E> (B) M10X60 FLANGE 		0-28151-060-0 01 1 1201-1302 ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 01 1 1303- ●
71 BOLT; BRKT
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) M10X60 FLANGE 		0-28151-060-0 01 1 1303- ●
71 BOLT; BRKT
ZF M/T<X9E> (B) M10X60 FLANGE 		0-28151-060-0 01 1 1303- ●
87 BOLT; PUMP
M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 07 1 1201- ● ●
118 BOLT; CLIP,INJ PIPE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) M6X35 FLANGE 		0-28650-635-0 03 1 1201- ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 10 1 0801-1112 ● ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 03 1 1201-1302 ●
118 BOLT; CLIP,INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) M6X30 FLANGE 		0-28650-630-0 03 1 1201-1302 ●
118 BOLT; CLIP,INJ PIPE
ZF M/T<X9E> M6X30 FLANGE 		0-28650-630-0 03 1 1201-1302 ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 03 1 1303- ●
118 BOLT; CLIP,INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) M6X30 FLANGE 		0-28650-630-0 03 1 1303- ●
118 BOLT; CLIP,INJ PIPE
ZF M/T<X9E> M6X30 FLANGE 		0-28650-630-0 03 1 1303- ●
121 PIPE; FUEL,FEED PUMP,SUCTION
(A) 		8-97606-231-0 01 1 0801-1403 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
(A) 		8-98257-406-0 01 1 1404- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
(B) 		8-97606-232-0 01 1 0801- ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0801- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0801-1405 ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1406- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M14X42 		1-09675-090-0 01 1 0801-0805 ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M14X43 EYE-BOLT 		8-98037-829-0 01 1 0806- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25 		1-09630-141-0 05 1 0801-1405 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25 		1-09630-141-0 03 1 1406- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=21 		8-97251-047-0 01 1 0801- ● ●
171 PUMP ASM; FUEL FEED 1-15761-012-0 01 1 0801-1403 ● ●
171 PUMP ASM; FUEL FEED 8-98257-686-0 01 1 1404- ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0801- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0801-1312 ● ●
199 GASKET; EYE BOLT
(A) ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15619-507-0 02 1 1401- ● ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) 		8-98170-937-1 01 1 1201- ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (D) 		8-98170-938-1 01 1 1201- ●
210 PIPE; INJ,C/R
(A) 		8-97603-101-0 01 1 0801-1112 ● ●
210 PIPE; INJ,C/R
(A) 		8-97603-101-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-101-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
ZF M/T<X9E> (A) 		8-97603-101-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
(A) 		8-97603-101-0 01 1 1303- ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-101-0 01 1 1303- ●
210 PIPE; INJ,C/R
ZF M/T<X9E> (A) 		8-97603-101-0 01 1 1303- ●
210 PIPE; INJ,C/R
(B) 		8-97603-102-0 01 1 0801-1112 ● ●
210 PIPE; INJ,C/R
(B) 		8-97603-102-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) 		8-97603-102-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
ZF M/T<X9E> (B) 		8-97603-102-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
(B) 		8-97603-102-0 01 1 1303- ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) 		8-97603-102-0 01 1 1303- ●
210 PIPE; INJ,C/R
ZF M/T<X9E> (B) 		8-97603-102-0 01 1 1303- ●
211 RAIL ASM; COMMON
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-97622-718-1 01 1 1201-1501 ●
211 RAIL ASM; COMMON
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-98299-773-0 01 1 1502- ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 0801-1112 ● ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 1201-1302 ●
211 RAIL ASM; COMMON
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-121-2 01 1 1201-1302 ●
211 RAIL ASM; COMMON
ZF M/T<X9E> (A) 		8-97603-121-2 01 1 1201-1302 ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 1303- ●
211 RAIL ASM; COMMON
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-121-2 01 1 1303- ●
211 RAIL ASM; COMMON
ZF M/T<X9E> (A) 		8-97603-121-2 01 1 1303- ●
216 BOLT; EYE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) 		8-98043-033-0 01 1 1201- ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0801-1112 ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 1201-1302 ●
216 BOLT; EYE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) 		8-97602-173-0 01 1 1201-1302 ●
216 BOLT; EYE
ZF M/T<X9E> (B) 		8-97602-173-0 01 1 1201-1302 ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 1303- ●
216 BOLT; EYE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) 		8-97602-173-0 01 1 1303- ●
216 BOLT; EYE
ZF M/T<X9E> (B) 		8-97602-173-0 01 1 1303- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0801-1312 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1401- ● ●
282 BRACKET; COMMON RAIL
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-98098-851-1 01 1 1201- ●
282 BRACKET; COMMON RAIL
(A) 		8-97603-838-0 01 1 0801-1112 ● ●
282 BRACKET; COMMON RAIL
(A) 		8-97603-838-0 01 1 1201-1302 ●
282 BRACKET; COMMON RAIL
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-838-0 01 1 1201-1302 ●
282 BRACKET; COMMON RAIL
ZF M/T<X9E> (A) 		8-97603-838-0 01 1 1201-1302 ●
282 BRACKET; COMMON RAIL
(A) 		8-97603-838-0 01 1 1303- ●
282 BRACKET; COMMON RAIL
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-838-0 01 1 1303- ●
282 BRACKET; COMMON RAIL
ZF M/T<X9E> (A) 		8-97603-838-0 01 1 1303- ●
283 BOLT; COMMON RAIL
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 02 1 1201- ●
283 BOLT; COMMON RAIL
(A) M10X40 FLANGE 		0-28151-040-0 04 1 0801-1112 ● ●
283 BOLT; COMMON RAIL
(A) M10X40 FLANGE 		0-28151-040-0 04 1 1201-1302 ●
283 BOLT; COMMON RAIL
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M10X40 FLANGE 		0-28151-040-0 04 1 1201-1302 ●
283 BOLT; COMMON RAIL
ZF M/T<X9E> (A) M10X40 FLANGE 		0-28151-040-0 04 1 1201-1302 ●
283 BOLT; COMMON RAIL
(A) M10X40 FLANGE 		0-28151-040-0 04 1 1303- ●
283 BOLT; COMMON RAIL
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M10X40 FLANGE 		0-28151-040-0 04 1 1303- ●
283 BOLT; COMMON RAIL
ZF M/T<X9E> (A) M10X40 FLANGE 		0-28151-040-0 04 1 1303- ●
289 LIMITER; FUEL PRESS
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-98097-606-0 01 1 1201- ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-283-0 01 1 0801-1112 ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-283-0 01 1 1201-1302 ●
289 LIMITER; FUEL PRESS
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-98032-283-0 01 1 1201-1302 ●
289 LIMITER; FUEL PRESS
ZF M/T<X9E> (A) 		8-98032-283-0 01 1 1201-1302 ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-283-0 01 1 1303- ●
289 LIMITER; FUEL PRESS
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-98032-283-0 01 1 1303- ●
289 LIMITER; FUEL PRESS
ZF M/T<X9E> (A) 		8-98032-283-0 01 1 1303- ●
290 SENSOR; PRESS
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		8-97318-684-0 01 1 1201- ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0801-1102 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1103-1112 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1201-1302 ●
290 SENSOR; PRESS
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-98119-790-0 01 1 1201-1302 ●
290 SENSOR; PRESS
ZF M/T<X9E> 		8-98119-790-0 01 1 1201-1302 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1303- ●
290 SENSOR; PRESS
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-98119-790-0 01 1 1303- ●
290 SENSOR; PRESS
ZF M/T<X9E> 		8-98119-790-0 01 1 1303- ●

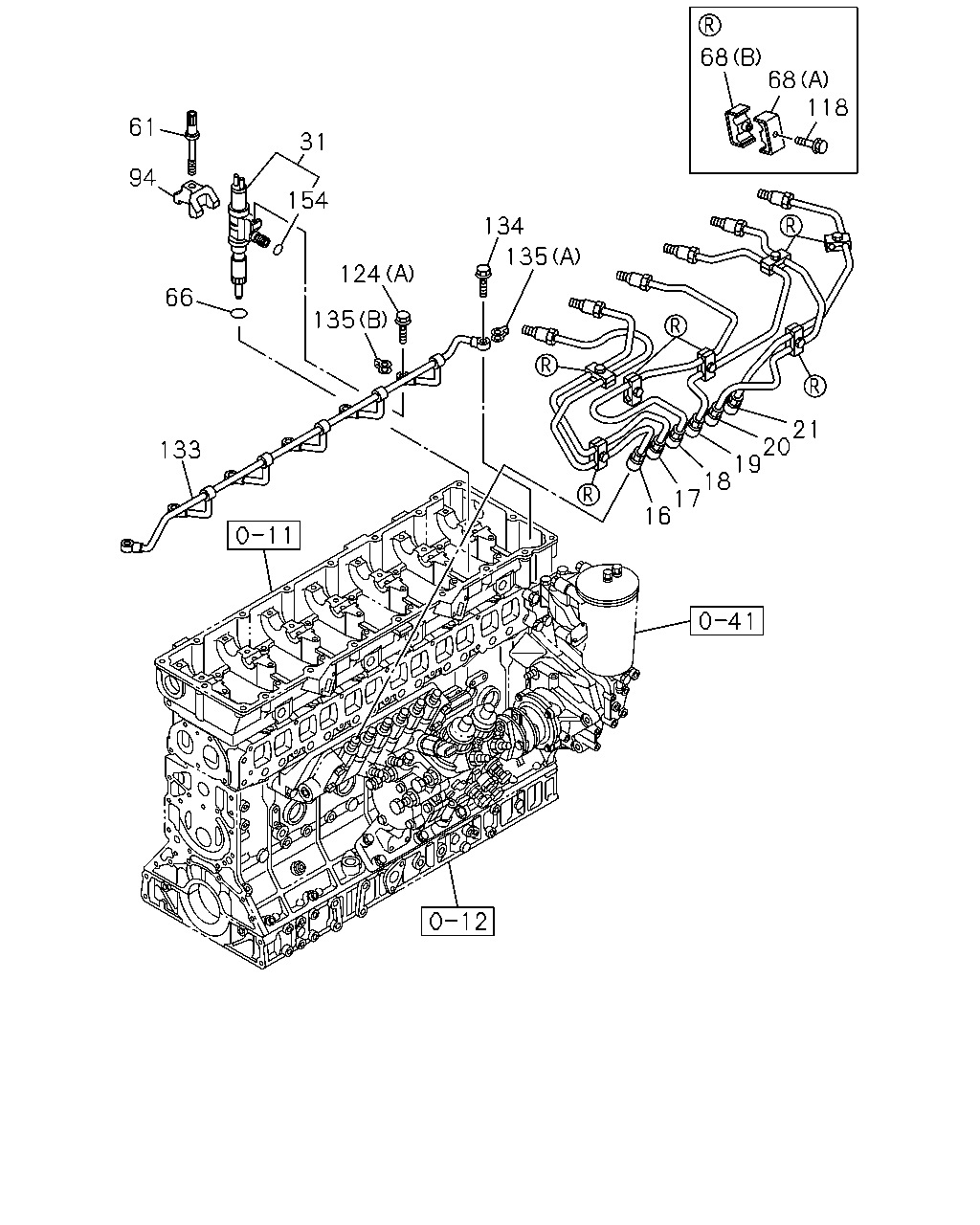

çizim 161808
16 17 18 19 20 21 118 68 68 135 134 124 135 66 154 31 61 94 133
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		8-98170-931-0 01 1 1201- ●
16 PIPE; INJ NO.1 8-97605-246-1 01 1 0801-1112 ● ●
16 PIPE; INJ NO.1 8-97605-246-1 01 1 1201-1302 ●
16 PIPE; INJ NO.1
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97605-246-1 01 1 1201-1302 ●
16 PIPE; INJ NO.1
ZF M/T<X9E> 		8-97605-246-1 01 1 1201-1302 ●
16 PIPE; INJ NO.1 8-97605-246-1 01 1 1303- ●
16 PIPE; INJ NO.1
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97605-246-1 01 1 1303- ●
16 PIPE; INJ NO.1
ZF M/T<X9E> 		8-97605-246-1 01 1 1303- ●
17 PIPE; INJ NO.2
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		8-98170-932-0 01 1 1201- ●
17 PIPE; INJ NO.2 8-97605-247-1 01 1 0801-1112 ● ●
17 PIPE; INJ NO.2 8-97605-247-1 01 1 1201-1302 ●
17 PIPE; INJ NO.2
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97605-247-1 01 1 1201-1302 ●
17 PIPE; INJ NO.2
ZF M/T<X9E> 		8-97605-247-1 01 1 1201-1302 ●
17 PIPE; INJ NO.2 8-97605-247-1 01 1 1303- ●
17 PIPE; INJ NO.2
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97605-247-1 01 1 1303- ●
17 PIPE; INJ NO.2
ZF M/T<X9E> 		8-97605-247-1 01 1 1303- ●
18 PIPE; INJ NO.3
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		8-98170-933-0 01 1 1201- ●
18 PIPE; INJ NO.3 8-97605-248-1 01 1 0801-1112 ● ●
18 PIPE; INJ NO.3 8-97605-248-1 01 1 1201-1302 ●
18 PIPE; INJ NO.3
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97605-248-1 01 1 1201-1302 ●
18 PIPE; INJ NO.3
ZF M/T<X9E> 		8-97605-248-1 01 1 1201-1302 ●
18 PIPE; INJ NO.3 8-97605-248-1 01 1 1303- ●
18 PIPE; INJ NO.3
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97605-248-1 01 1 1303- ●
18 PIPE; INJ NO.3
ZF M/T<X9E> 		8-97605-248-1 01 1 1303- ●
19 PIPE; INJ NO.4
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		8-98170-934-0 01 1 1201- ●
19 PIPE; INJ NO.4 8-97603-742-1 01 1 0801-1112 ● ●
19 PIPE; INJ NO.4 8-97603-742-1 01 1 1201-1302 ●
19 PIPE; INJ NO.4
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97603-742-1 01 1 1201-1302 ●
19 PIPE; INJ NO.4
ZF M/T<X9E> 		8-97603-742-1 01 1 1201-1302 ●
19 PIPE; INJ NO.4 8-97603-742-1 01 1 1303- ●
19 PIPE; INJ NO.4
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97603-742-1 01 1 1303- ●
19 PIPE; INJ NO.4
ZF M/T<X9E> 		8-97603-742-1 01 1 1303- ●
20 PIPE; INJ NO.5
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		8-98170-935-0 01 1 1201- ●
20 PIPE; INJ NO.5 8-97605-945-1 01 1 0801-1112 ● ●
20 PIPE; INJ NO.5 8-97605-945-1 01 1 1201-1302 ●
20 PIPE; INJ NO.5
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97605-945-1 01 1 1201-1302 ●
20 PIPE; INJ NO.5
ZF M/T<X9E> 		8-97605-945-1 01 1 1201-1302 ●
20 PIPE; INJ NO.5 8-97605-945-1 01 1 1303- ●
20 PIPE; INJ NO.5
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97605-945-1 01 1 1303- ●
20 PIPE; INJ NO.5
ZF M/T<X9E> 		8-97605-945-1 01 1 1303- ●
21 PIPE; INJ NO.6
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		8-98170-936-0 01 1 1201- ●
21 PIPE; INJ NO.6 8-97603-744-1 01 1 0801-1112 ● ●
21 PIPE; INJ NO.6 8-97603-744-1 01 1 1201-1302 ●
21 PIPE; INJ NO.6
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97603-744-1 01 1 1201-1302 ●
21 PIPE; INJ NO.6
ZF M/T<X9E> 		8-97603-744-1 01 1 1201-1302 ●
21 PIPE; INJ NO.6 8-97603-744-1 01 1 1303- ●
21 PIPE; INJ NO.6
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-97603-744-1 01 1 1303- ●
21 PIPE; INJ NO.6
ZF M/T<X9E> 		8-97603-744-1 01 1 1303- ●
31 NOZZLE ASM; INJ 8-97603-099-5 06 1 0801- ●
31 NOZZLE ASM; INJ 8-97610-254-4 06 1 0801- ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X60 		8-97603-301-0 06 1 0801- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97608-858-0 06 1 0801- ● ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) 		8-97330-118-3 02 1 1201- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-97330-119-3 02 1 1201- ●
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 0801-1112 ● ●
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) 		1-09701-269-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (C) 		1-09701-269-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 1303- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) 		1-09701-269-0 02 1 1303- ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (C) 		1-09701-269-0 02 1 1303- ●
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 0801-1112 ● ●
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D) 		8-94396-371-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (D) 		8-94396-371-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 1303- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D) 		8-94396-371-0 02 1 1303- ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (D) 		8-94396-371-0 02 1 1303- ●
68 CLIP; INJ PIPE
(A) 		8-97330-118-3 08 1 0801- ● ●
68 CLIP; INJ PIPE
(B) 		8-97330-119-3 08 1 0801- ● ●
94 BRACKET; INJ NOZZLE 1-15337-028-0 06 1 0801- ● ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 07 1 1201- ● ●
118 BOLT; CLIP,INJ PIPE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) M6X35 FLANGE 		0-28650-635-0 03 1 1201- ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 10 1 0801-1112 ● ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 03 1 1201-1302 ●
118 BOLT; CLIP,INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) M6X30 FLANGE 		0-28650-630-0 03 1 1201-1302 ●
118 BOLT; CLIP,INJ PIPE
ZF M/T<X9E> M6X30 FLANGE 		0-28650-630-0 03 1 1201-1302 ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 03 1 1303- ●
118 BOLT; CLIP,INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) M6X30 FLANGE 		0-28650-630-0 03 1 1303- ●
118 BOLT; CLIP,INJ PIPE
ZF M/T<X9E> M6X30 FLANGE 		0-28650-630-0 03 1 1303- ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0801- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0801-1405 ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1406- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M14X42 		1-09675-090-0 01 1 0801-0805 ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M14X43 EYE-BOLT 		8-98037-829-0 01 1 0806- ● ●
133 PIPE; INJ NOZZLE LEAK OFF 8-97603-112-0 01 1 0801- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M12X27 FLANGE 		1-09675-160-0 01 1 0801-0805 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0801- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=12.6 		8-98065-993-0 01 1 0801- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0801-1106 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107- ● ●

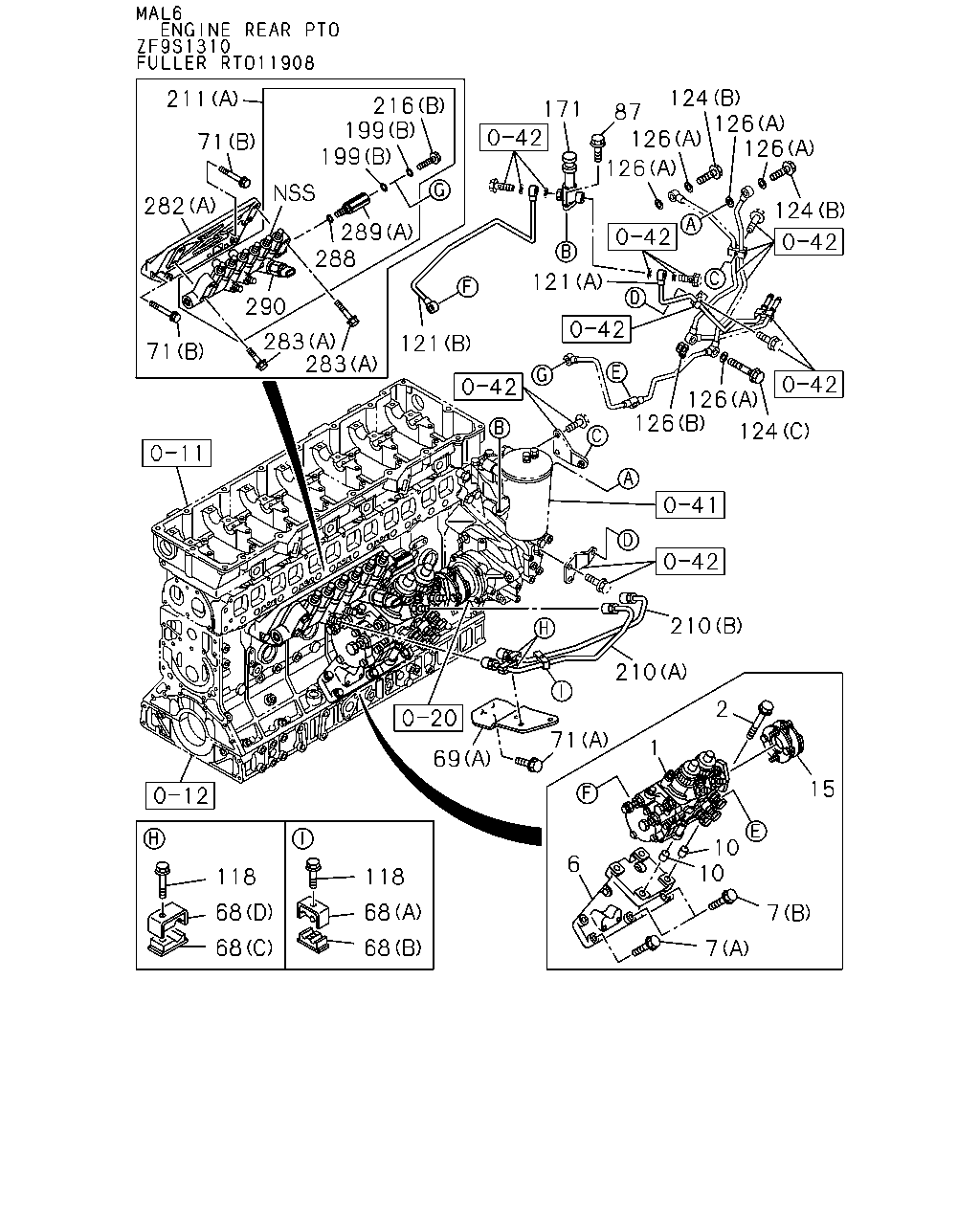

çizim 161812
7 10 10 15 2 1 6 7 118 68 68 68 118 68 69 71 210 210 124 126 126 124 126 126 124 126 126 121 87 171 121 283 283 71 290 288 289 199 199 216 282 211 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98176-117-2 01 1 1401- ●
1 PUMP ASM; INJ 8-98013-910-4 01 1 0801-1312 ● ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98013-910-4 01 1 1401- ●
1 PUMP ASM; INJ
ZF M/T<X9E> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98013-910-4 01 1 1401- ●
1 PUMP ASM; INJ
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98013-910-4 01 1 1401- ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0801- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97603-738-1 01 1 0801- ● ●
7 BOLT; INJ PUMP BRKT
(B) M12X70 FLANGE 		0-28151-270-0 02 1 0801- ● ●
7 BOLT; INJ PUMP BRKT
(A) M12X40 FLANGE 		0-28181-240-0 04 1 0801-0804 ● ●
7 BOLT; INJ PUMP BRKT
(A) M12X40 FLANGE 		0-28151-240-0 04 1 0805- ● ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0801- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		8-97610-800-0 01 1 1401- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-202-1 01 1 0801-1312 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-202-1 01 1 1401- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. ZF M/T<X9E> 		1-15780-202-1 01 1 1401- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		1-15780-202-1 01 1 1401- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) 		8-97330-118-3 02 1 1201- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-97330-119-3 02 1 1201- ●
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 0801-1112 ● ●
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) 		1-09701-269-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (C) 		1-09701-269-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 1303- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) 		1-09701-269-0 02 1 1303- ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (C) 		1-09701-269-0 02 1 1303- ●
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 0801-1112 ● ●
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D) 		8-94396-371-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (D) 		8-94396-371-0 02 1 1201-1302 ●
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 1303- ●
68 CLIP; INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D) 		8-94396-371-0 02 1 1303- ●
68 CLIP; INJ PIPE
ZF M/T<X9E> (D) 		8-94396-371-0 02 1 1303- ●
68 CLIP; INJ PIPE
(A) 		8-97330-118-3 08 1 0801- ● ●
68 CLIP; INJ PIPE
(B) 		8-97330-119-3 08 1 0801- ● ●
69 BRACKET; INJ PIPE CLIP
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-98175-342-0 01 1 1201- ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-97603-113-0 01 1 0801-1112 ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-97603-113-0 01 1 1201-1302 ●
69 BRACKET; INJ PIPE CLIP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-113-0 01 1 1201-1302 ●
69 BRACKET; INJ PIPE CLIP
ZF M/T<X9E> (A) 		8-97603-113-0 01 1 1201-1302 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-97603-113-0 01 1 1303- ●
69 BRACKET; INJ PIPE CLIP
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-113-0 01 1 1303- ●
69 BRACKET; INJ PIPE CLIP
ZF M/T<X9E> (A) 		8-97603-113-0 01 1 1303- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 03 1 1201- ● ●
71 BOLT; BRKT
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28050-820-0 02 1 1201- ●
71 BOLT; BRKT
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (D) M10X40 FLANGE 		0-28151-040-0 01 1 1201- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0801-1112 ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1201-1302 ●
71 BOLT; BRKT
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1201-1302 ●
71 BOLT; BRKT
ZF M/T<X9E> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1201-1302 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1303- ●
71 BOLT; BRKT
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1303- ●
71 BOLT; BRKT
ZF M/T<X9E> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1303- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0801-1112 ● ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 01 1 1201-1302 ●
71 BOLT; BRKT
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) M10X60 FLANGE 		0-28151-060-0 01 1 1201-1302 ●
71 BOLT; BRKT
ZF M/T<X9E> (B) M10X60 FLANGE 		0-28151-060-0 01 1 1201-1302 ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 01 1 1303- ●
71 BOLT; BRKT
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) M10X60 FLANGE 		0-28151-060-0 01 1 1303- ●
71 BOLT; BRKT
ZF M/T<X9E> (B) M10X60 FLANGE 		0-28151-060-0 01 1 1303- ●
87 BOLT; PUMP
M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 07 1 1201- ● ●
118 BOLT; CLIP,INJ PIPE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) M6X35 FLANGE 		0-28650-635-0 03 1 1201- ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 10 1 0801-1112 ● ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 03 1 1201-1302 ●
118 BOLT; CLIP,INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) M6X30 FLANGE 		0-28650-630-0 03 1 1201-1302 ●
118 BOLT; CLIP,INJ PIPE
ZF M/T<X9E> M6X30 FLANGE 		0-28650-630-0 03 1 1201-1302 ●
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28650-630-0 03 1 1303- ●
118 BOLT; CLIP,INJ PIPE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) M6X30 FLANGE 		0-28650-630-0 03 1 1303- ●
118 BOLT; CLIP,INJ PIPE
ZF M/T<X9E> M6X30 FLANGE 		0-28650-630-0 03 1 1303- ●
121 PIPE; FUEL,FEED PUMP,SUCTION
(A) 		8-97606-231-0 01 1 0801-1403 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
(A) 		8-98257-406-0 01 1 1404- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
(B) 		8-97606-232-0 01 1 0801- ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0801- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0801-1405 ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1406- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M14X42 		1-09675-090-0 01 1 0801-0805 ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M14X43 EYE-BOLT 		8-98037-829-0 01 1 0806- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25 		1-09630-141-0 05 1 0801-1405 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25 		1-09630-141-0 03 1 1406- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=21 		8-97251-047-0 01 1 0801- ● ●
171 PUMP ASM; FUEL FEED 1-15761-012-0 01 1 0801-1403 ● ●
171 PUMP ASM; FUEL FEED 8-98257-686-0 01 1 1404- ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0801- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0801-1312 ● ●
199 GASKET; EYE BOLT
(A) ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15619-507-0 02 1 1401- ● ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) 		8-98170-937-1 01 1 1201- ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (D) 		8-98170-938-1 01 1 1201- ●
210 PIPE; INJ,C/R
(A) 		8-97603-101-0 01 1 0801-1112 ● ●
210 PIPE; INJ,C/R
(A) 		8-97603-101-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-101-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
ZF M/T<X9E> (A) 		8-97603-101-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
(A) 		8-97603-101-0 01 1 1303- ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-101-0 01 1 1303- ●
210 PIPE; INJ,C/R
ZF M/T<X9E> (A) 		8-97603-101-0 01 1 1303- ●
210 PIPE; INJ,C/R
(B) 		8-97603-102-0 01 1 0801-1112 ● ●
210 PIPE; INJ,C/R
(B) 		8-97603-102-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) 		8-97603-102-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
ZF M/T<X9E> (B) 		8-97603-102-0 01 1 1201-1302 ●
210 PIPE; INJ,C/R
(B) 		8-97603-102-0 01 1 1303- ●
210 PIPE; INJ,C/R
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) 		8-97603-102-0 01 1 1303- ●
210 PIPE; INJ,C/R
ZF M/T<X9E> (B) 		8-97603-102-0 01 1 1303- ●
211 RAIL ASM; COMMON
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-97622-718-1 01 1 1201-1501 ●
211 RAIL ASM; COMMON
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-98299-773-0 01 1 1502- ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 0801-1112 ● ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 1201-1302 ●
211 RAIL ASM; COMMON
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-121-2 01 1 1201-1302 ●
211 RAIL ASM; COMMON
ZF M/T<X9E> (A) 		8-97603-121-2 01 1 1201-1302 ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 1303- ●
211 RAIL ASM; COMMON
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-121-2 01 1 1303- ●
211 RAIL ASM; COMMON
ZF M/T<X9E> (A) 		8-97603-121-2 01 1 1303- ●
216 BOLT; EYE
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) 		8-98043-033-0 01 1 1201- ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0801-1112 ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 1201-1302 ●
216 BOLT; EYE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) 		8-97602-173-0 01 1 1201-1302 ●
216 BOLT; EYE
ZF M/T<X9E> (B) 		8-97602-173-0 01 1 1201-1302 ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 1303- ●
216 BOLT; EYE
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B) 		8-97602-173-0 01 1 1303- ●
216 BOLT; EYE
ZF M/T<X9E> (B) 		8-97602-173-0 01 1 1303- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0801-1312 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1401- ● ●
282 BRACKET; COMMON RAIL
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-98098-851-1 01 1 1201- ●
282 BRACKET; COMMON RAIL
(A) 		8-97603-838-0 01 1 0801-1112 ● ●
282 BRACKET; COMMON RAIL
(A) 		8-97603-838-0 01 1 1201-1302 ●
282 BRACKET; COMMON RAIL
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-838-0 01 1 1201-1302 ●
282 BRACKET; COMMON RAIL
ZF M/T<X9E> (A) 		8-97603-838-0 01 1 1201-1302 ●
282 BRACKET; COMMON RAIL
(A) 		8-97603-838-0 01 1 1303- ●
282 BRACKET; COMMON RAIL
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-97603-838-0 01 1 1303- ●
282 BRACKET; COMMON RAIL
ZF M/T<X9E> (A) 		8-97603-838-0 01 1 1303- ●
283 BOLT; COMMON RAIL
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 02 1 1201- ●
283 BOLT; COMMON RAIL
(A) M10X40 FLANGE 		0-28151-040-0 04 1 0801-1112 ● ●
283 BOLT; COMMON RAIL
(A) M10X40 FLANGE 		0-28151-040-0 04 1 1201-1302 ●
283 BOLT; COMMON RAIL
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M10X40 FLANGE 		0-28151-040-0 04 1 1201-1302 ●
283 BOLT; COMMON RAIL
ZF M/T<X9E> (A) M10X40 FLANGE 		0-28151-040-0 04 1 1201-1302 ●
283 BOLT; COMMON RAIL
(A) M10X40 FLANGE 		0-28151-040-0 04 1 1303- ●
283 BOLT; COMMON RAIL
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M10X40 FLANGE 		0-28151-040-0 04 1 1303- ●
283 BOLT; COMMON RAIL
ZF M/T<X9E> (A) M10X40 FLANGE 		0-28151-040-0 04 1 1303- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0801-1112 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1201-1302 ●
288 GASKET
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) ID=11 OD=16.3 		1-15641-046-0 01 1 1201-1302 ●
288 GASKET
ZF M/T<X9E> ID=11 OD=16.3 		1-15641-046-0 01 1 1201-1302 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1303- ●
288 GASKET
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) ID=11 OD=16.3 		1-15641-046-0 01 1 1303- ●
288 GASKET
ZF M/T<X9E> ID=11 OD=16.3 		1-15641-046-0 01 1 1303- ●
289 LIMITER; FUEL PRESS
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) 		8-98097-606-0 01 1 1201- ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-283-0 01 1 0801-1112 ● ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-283-0 01 1 1201-1302 ●
289 LIMITER; FUEL PRESS
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-98032-283-0 01 1 1201-1302 ●
289 LIMITER; FUEL PRESS
ZF M/T<X9E> (A) 		8-98032-283-0 01 1 1201-1302 ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-283-0 01 1 1303- ●
289 LIMITER; FUEL PRESS
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) 		8-98032-283-0 01 1 1303- ●
289 LIMITER; FUEL PRESS
ZF M/T<X9E> (A) 		8-98032-283-0 01 1 1303- ●
290 SENSOR; PRESS
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) 		8-97318-684-0 01 1 1201- ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0801-1102 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1103-1112 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1201-1302 ●
290 SENSOR; PRESS
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-98119-790-0 01 1 1201-1302 ●
290 SENSOR; PRESS
ZF M/T<X9E> 		8-98119-790-0 01 1 1201-1302 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1303- ●
290 SENSOR; PRESS
ISUZU M/T<X9A> ENGINE REAR PTO(SV1) 		8-98119-790-0 01 1 1303- ●
290 SENSOR; PRESS
ZF M/T<X9E> 		8-98119-790-0 01 1 1303- ●
çizim 161941
171 172 173 180 181 179 182 179 178
BalonParca AdiParca NoAdetTipApplied Date A B
171 PUMP ASM; FUEL FEED 1-15761-012-0 01 1 0801-1403 ● ●
171 PUMP ASM; FUEL FEED 8-98257-686-0 01 1 1404- ● ●
172 PUMP; PRIMING,FUEL FEED PUMP 1-15761-013-0 01 1 0801-1403 ● ●
173 GASKET; PRIMING PUMP,FUEL FEED PUMP 1-15769-030-0 01 1 0801-1403 ● ●
178 CYLINDER; FUEL FEED PUMP 1-15769-024-0 01 1 0801-1403 ● ●
179 VALVE; CHECK,FEED PUMP 1-15769-027-0 02 1 0801-1403 ● ●
180 ADAPTER; EYE BOLT,FUEL FEED PUMP 1-15769-031-0 01 1 0801-1403 ● ●
181 GASKET; ADAPTER 1-15769-029-0 01 1 0801-1403 ● ●
182 BUSHING; VLV 1-15769-028-0 01 1 0801-1403 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
