Sayfa 0-32 - Isuzu EPC

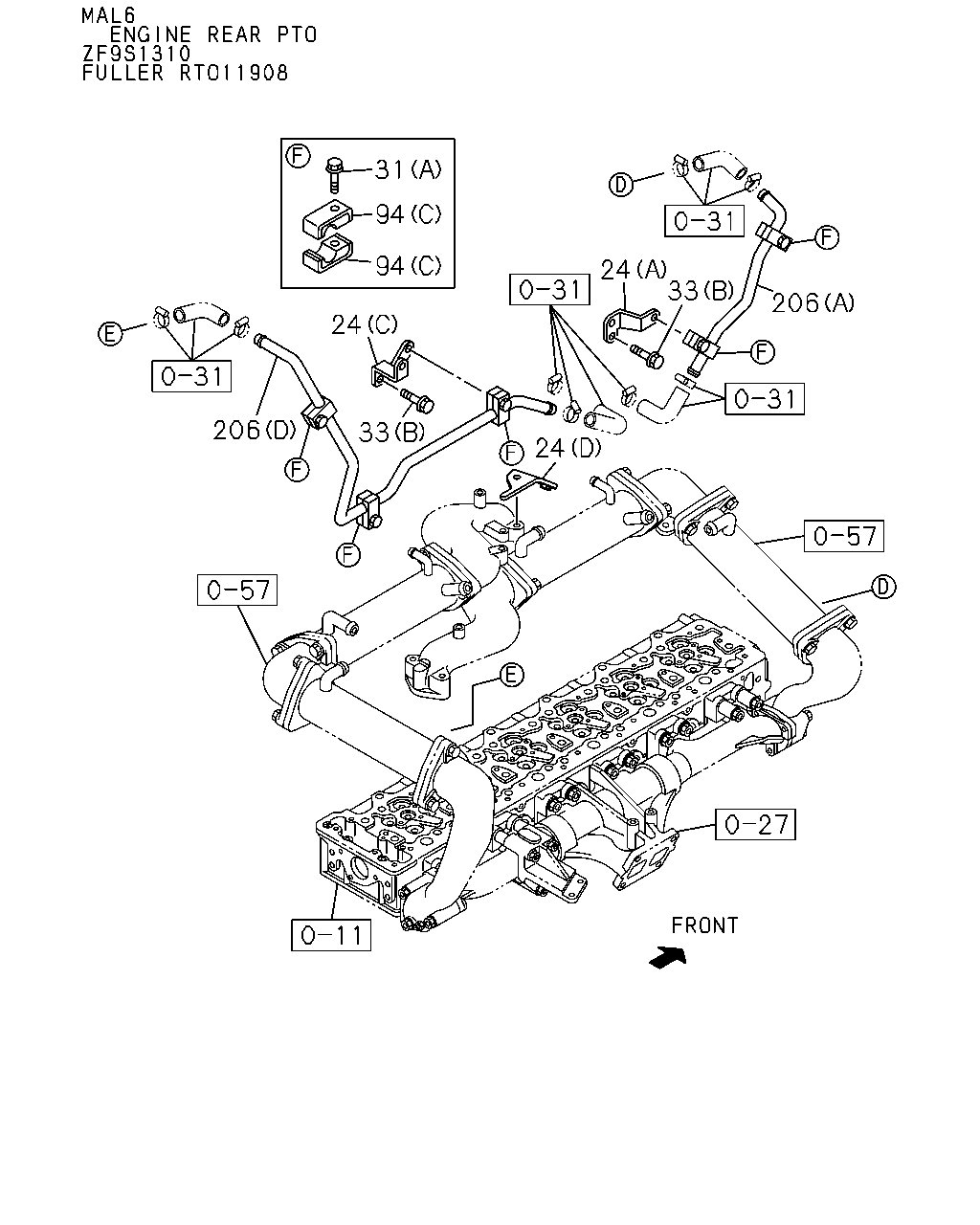

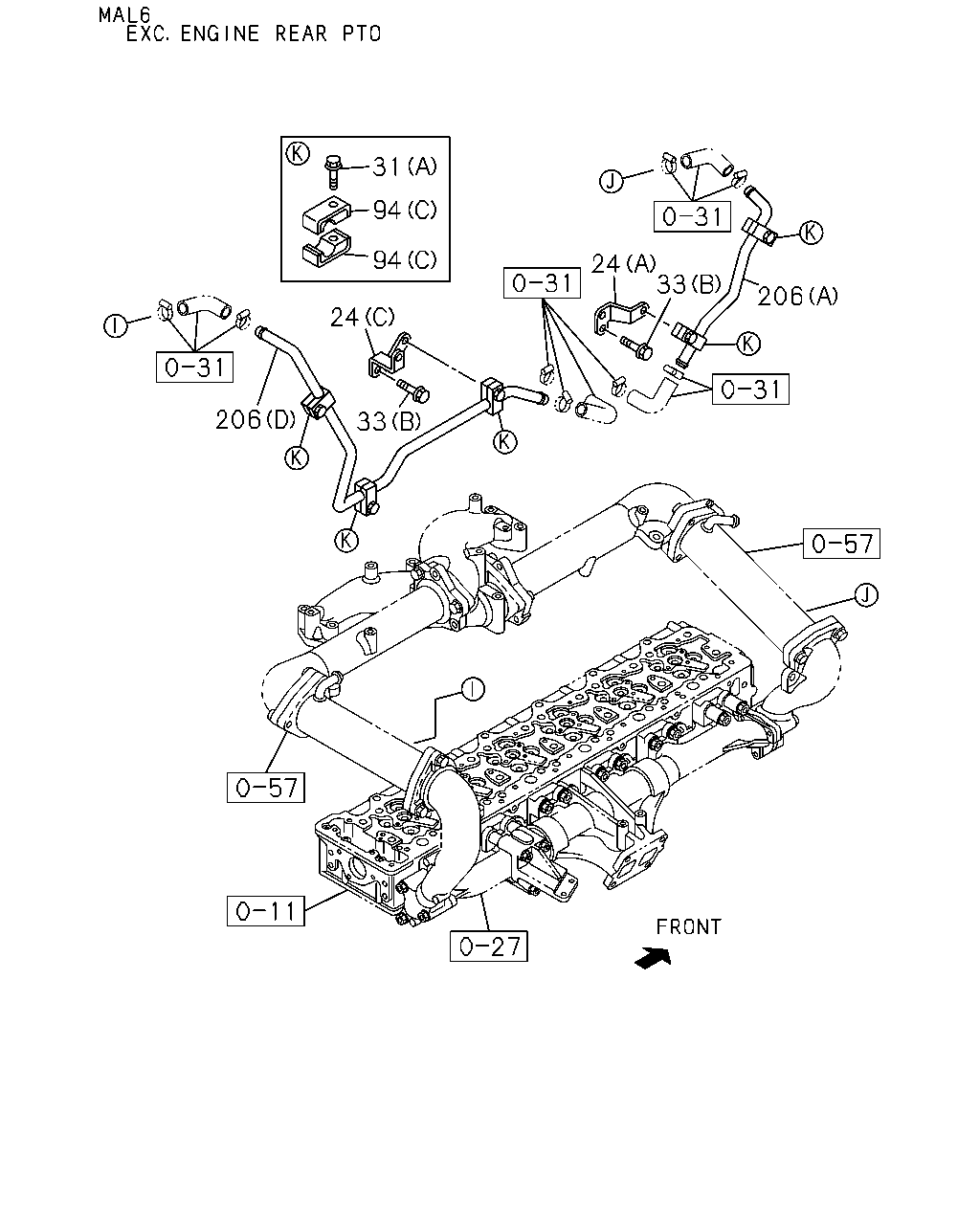

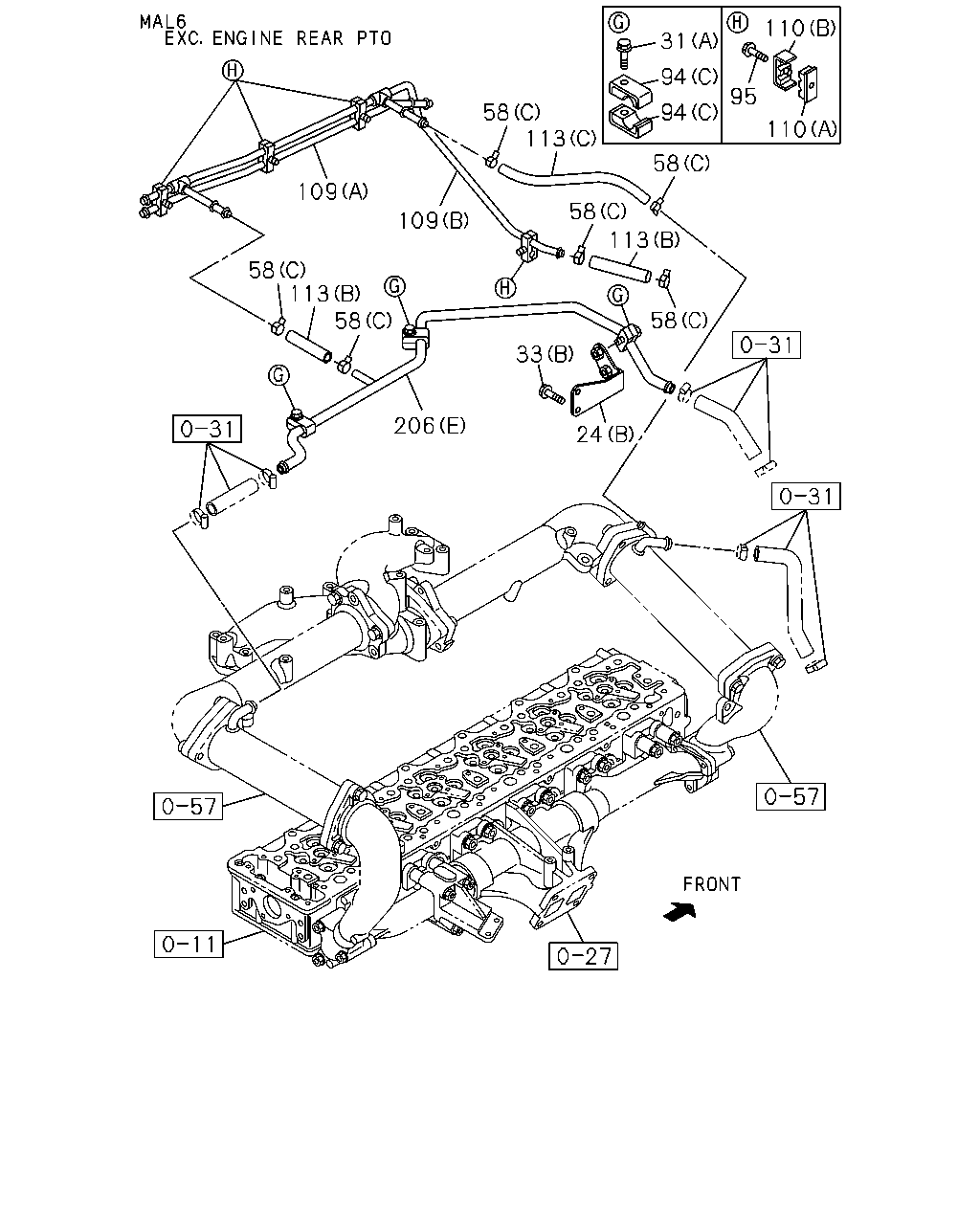

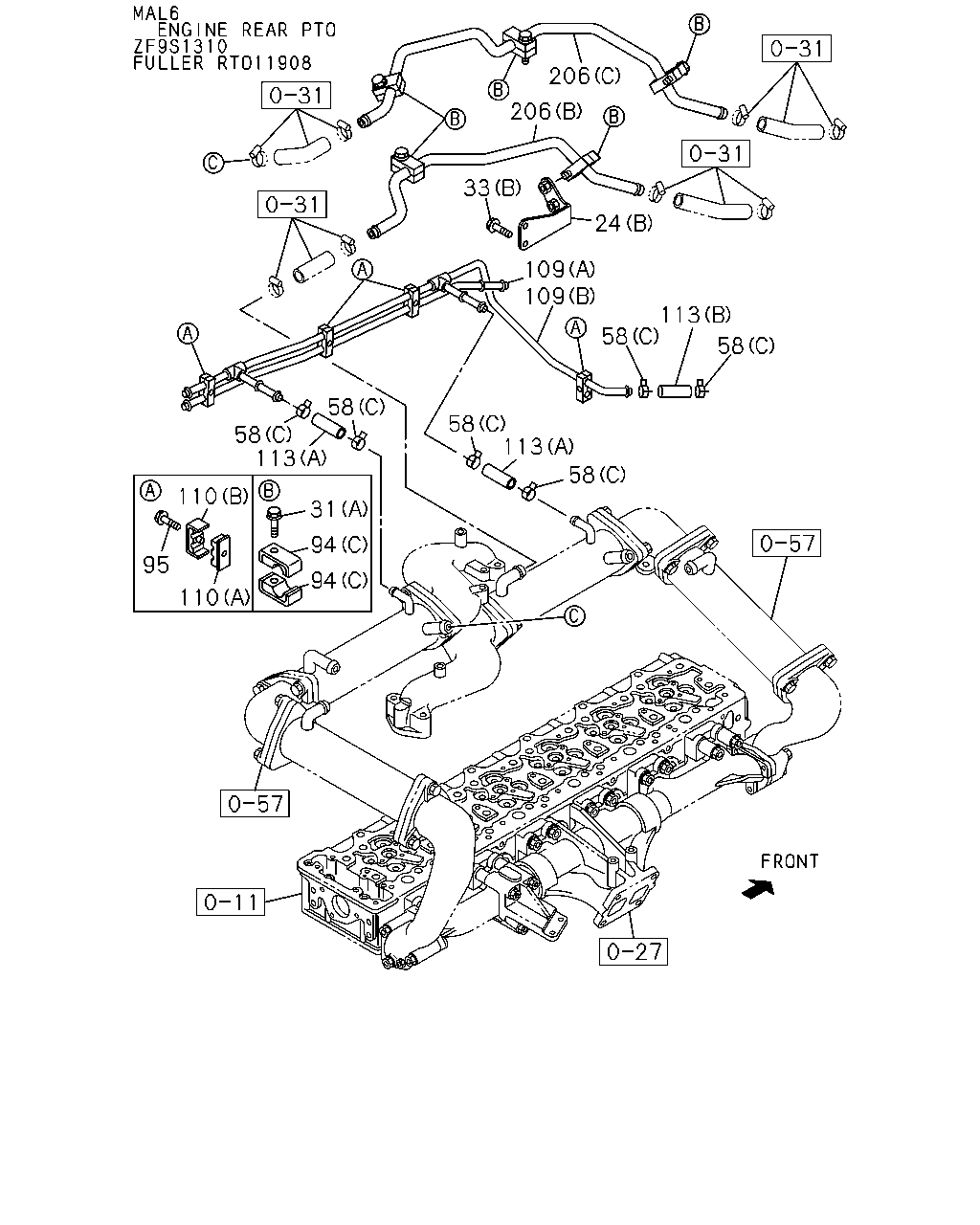

0-32 — WATER PIPING; ENGINE (#39787) — 304 parça

24 206 58 113 58 109 109 58 113 58 113 58 94 94 31 110 95 110 58 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (D)	8-98147-674-2	01	1	1202-1302	●
24	BRACKET; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-98147-674-2	01	1	1202-1302		●
24	BRACKET; WATER PIPE ZF M/T<X9E> (D)	8-98147-674-2	01	1	1202-1302		●
24	BRACKET; WATER PIPE (D)	8-98147-674-2	01	1	1303-	●
24	BRACKET; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-98147-674-2	01	1	1303-		●
24	BRACKET; WATER PIPE ZF M/T<X9E> (D)	8-98147-674-2	01	1	1303-		●
24	BRACKET; WATER PIPE (A)	8-97603-939-1	01	1	0801-	●	●
24	BRACKET; WATER PIPE (B)	8-97606-635-0	01	1	0801-	●	●
24	BRACKET; WATER PIPE (C)	8-97607-436-0	01	1	0801-	●	●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	07	1	1201-	●	●
31	BOLT; CLIP ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	01	1	1201-		●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	10	1	0801-1112	●	●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302	●
31	BOLT; CLIP ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302		●
31	BOLT; CLIP ZF M/T<X9E> (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302		●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-	●
31	BOLT; CLIP ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-		●
31	BOLT; CLIP ZF M/T<X9E> (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-		●
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	0801-	●	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0801-	●	●
33	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	06	1	0801-	●	●
58	CLIP; RUBBER HOSE (A) ID=7 & 11 L=28	1-09701-230-1	01	1	0801-	●	●
58	CLIP; RUBBER HOSE (B) ID=7 & 11 L=28	1-09701-231-1	01	1	0801-	●	●
58	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	06	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1201-	●	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	02	1	1201-		●
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0801-1112	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1303-	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
95	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	07	1	0801-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97603-725-0	01	1	0801-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97603-726-1	01	1	0801-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0801-	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0801-	●	●
113	HOSE; RUBBER,AIR LEAK ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) L=280 SERVICED BY L=3000	0-03559-300-0	01	1	1201-		●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	0801-1112	●	●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1201-1302	●
113	HOSE; RUBBER,AIR LEAK ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1201-1302		●
113	HOSE; RUBBER,AIR LEAK ZF M/T<X9E> (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1201-1302		●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1303-	●
113	HOSE; RUBBER,AIR LEAK ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1303-		●
113	HOSE; RUBBER,AIR LEAK ZF M/T<X9E> (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1303-		●
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	0801-1112	●	●
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1201-1211	●	●
113	HOSE; RUBBER,AIR LEAK ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1201-1211		●
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1212-1302	●	●
113	HOSE; RUBBER,AIR LEAK AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE REAR PTO(SV1) (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1212-1302		●
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1303-	●	●
113	HOSE; RUBBER,AIR LEAK ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1303-		●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (E)	8-98172-218-0	01	1	1201-		●
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	0801-	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	0801-1112	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1201-1302	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-722-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (B)	8-97603-722-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1303-	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-722-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (B)	8-97603-722-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	0801-1112	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1201-1302	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97603-723-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (C)	8-97603-723-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1303-	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97603-723-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (C)	8-97603-723-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	0801-	●	●

58 58 113 31 94 94 110 110 95 58 58 113 109 58 109 113 24 33 206 206 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (D)	8-98147-674-2	01	1	1202-1302	●
24	BRACKET; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-98147-674-2	01	1	1202-1302		●
24	BRACKET; WATER PIPE ZF M/T<X9E> (D)	8-98147-674-2	01	1	1202-1302		●
24	BRACKET; WATER PIPE (D)	8-98147-674-2	01	1	1303-	●
24	BRACKET; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-98147-674-2	01	1	1303-		●
24	BRACKET; WATER PIPE ZF M/T<X9E> (D)	8-98147-674-2	01	1	1303-		●
24	BRACKET; WATER PIPE (A)	8-97603-939-1	01	1	0801-	●	●
24	BRACKET; WATER PIPE (B)	8-97606-635-0	01	1	0801-	●	●
24	BRACKET; WATER PIPE (C)	8-97607-436-0	01	1	0801-	●	●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	07	1	1201-	●	●
31	BOLT; CLIP ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	01	1	1201-		●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	10	1	0801-1112	●	●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302	●
31	BOLT; CLIP ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302		●
31	BOLT; CLIP ZF M/T<X9E> (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302		●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-	●
31	BOLT; CLIP ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-		●
31	BOLT; CLIP ZF M/T<X9E> (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-		●
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	0801-	●	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0801-	●	●
33	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	06	1	0801-	●	●
58	CLIP; RUBBER HOSE (A) ID=7 & 11 L=28	1-09701-230-1	01	1	0801-	●	●
58	CLIP; RUBBER HOSE (B) ID=7 & 11 L=28	1-09701-231-1	01	1	0801-	●	●
58	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	06	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1201-	●	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	02	1	1201-		●
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0801-1112	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1303-	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
95	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	07	1	0801-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97603-725-0	01	1	0801-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97603-726-1	01	1	0801-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0801-	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0801-	●	●
113	HOSE; RUBBER,AIR LEAK ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) L=280 SERVICED BY L=3000	0-03559-300-0	01	1	1201-		●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	0801-1112	●	●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1201-1302	●
113	HOSE; RUBBER,AIR LEAK ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1201-1302		●
113	HOSE; RUBBER,AIR LEAK ZF M/T<X9E> (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1201-1302		●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1303-	●
113	HOSE; RUBBER,AIR LEAK ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1303-		●
113	HOSE; RUBBER,AIR LEAK ZF M/T<X9E> (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1303-		●
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	0801-1112	●	●
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1201-1211	●	●
113	HOSE; RUBBER,AIR LEAK ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1201-1211		●
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1212-1302	●	●
113	HOSE; RUBBER,AIR LEAK AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE REAR PTO(SV1) (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1212-1302		●
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1303-	●	●
113	HOSE; RUBBER,AIR LEAK ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1303-		●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (E)	8-98172-218-0	01	1	1201-		●
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	0801-	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	0801-1112	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1201-1302	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-722-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (B)	8-97603-722-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1303-	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-722-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (B)	8-97603-722-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	0801-1112	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1201-1302	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97603-723-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (C)	8-97603-723-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1303-	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97603-723-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (C)	8-97603-723-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	0801-	●	●

31 94 94 24 206 33 33 24 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (D)	8-98147-674-2	01	1	1202-1302	●
24	BRACKET; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-98147-674-2	01	1	1202-1302		●
24	BRACKET; WATER PIPE ZF M/T<X9E> (D)	8-98147-674-2	01	1	1202-1302		●
24	BRACKET; WATER PIPE (D)	8-98147-674-2	01	1	1303-	●
24	BRACKET; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-98147-674-2	01	1	1303-		●
24	BRACKET; WATER PIPE ZF M/T<X9E> (D)	8-98147-674-2	01	1	1303-		●
24	BRACKET; WATER PIPE (A)	8-97603-939-1	01	1	0801-	●	●
24	BRACKET; WATER PIPE (B)	8-97606-635-0	01	1	0801-	●	●
24	BRACKET; WATER PIPE (C)	8-97607-436-0	01	1	0801-	●	●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	07	1	1201-	●	●
31	BOLT; CLIP ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	01	1	1201-		●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	10	1	0801-1112	●	●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302	●
31	BOLT; CLIP ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302		●
31	BOLT; CLIP ZF M/T<X9E> (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302		●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-	●
31	BOLT; CLIP ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-		●
31	BOLT; CLIP ZF M/T<X9E> (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-		●
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	0801-	●	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0801-	●	●
33	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	06	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1201-	●	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	02	1	1201-		●
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0801-1112	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1303-	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (E)	8-98172-218-0	01	1	1201-		●
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	0801-	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	0801-1112	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1201-1302	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-722-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (B)	8-97603-722-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1303-	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-722-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (B)	8-97603-722-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	0801-1112	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1201-1302	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97603-723-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (C)	8-97603-723-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1303-	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97603-723-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (C)	8-97603-723-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	0801-	●	●

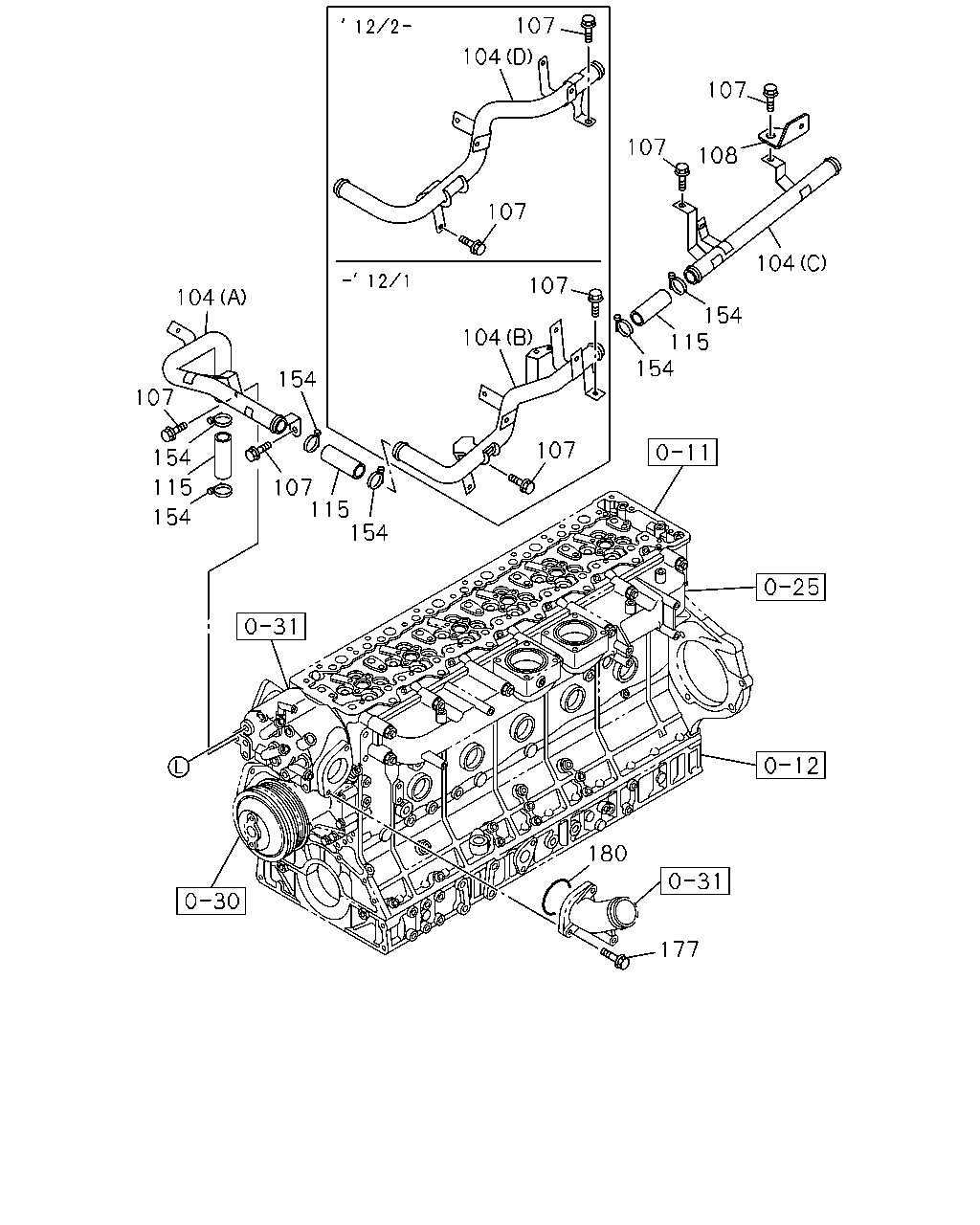

107 104 107 107 108 107 104 107 104 154 115 154 104 154 107 107 154 115 107 115 154 154 180 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
104	PIPE; WATER CHARGE (A)	8-97604-530-0	01	1	0801-	●	●
104	PIPE; WATER CHARGE (B)	8-97610-821-0	01	1	0801-1201	●	●
104	PIPE; WATER CHARGE (D)	8-98210-201-0	01	1	1202-	●	●
104	PIPE; WATER CHARGE (C)	8-97610-822-0	01	1	0801-	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	06	1	0801-	●	●
108	BRACKET; WATER CHARGE	8-97610-823-0	01	1	0801-	●	●
115	HOSE; RUBBER L=100 SERVICED BY L=3000	0-03580-300-0	03	1	0801-	●	●
154	CLIP; WATER HOSE ID=44	1-09704-077-0	06	1	0801-	●	●
177	BOLT; WATER DUCT M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6	9-09565-271-0	01	1	0801-	●	●

31 94 94 24 206 33 24 24 206 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (D)	8-98147-674-2	01	1	1202-1302	●
24	BRACKET; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-98147-674-2	01	1	1202-1302		●
24	BRACKET; WATER PIPE ZF M/T<X9E> (D)	8-98147-674-2	01	1	1202-1302		●
24	BRACKET; WATER PIPE (D)	8-98147-674-2	01	1	1303-	●
24	BRACKET; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (D)	8-98147-674-2	01	1	1303-		●
24	BRACKET; WATER PIPE ZF M/T<X9E> (D)	8-98147-674-2	01	1	1303-		●
24	BRACKET; WATER PIPE (A)	8-97603-939-1	01	1	0801-	●	●
24	BRACKET; WATER PIPE (B)	8-97606-635-0	01	1	0801-	●	●
24	BRACKET; WATER PIPE (C)	8-97607-436-0	01	1	0801-	●	●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	07	1	1201-	●	●
31	BOLT; CLIP ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	01	1	1201-		●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	10	1	0801-1112	●	●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302	●
31	BOLT; CLIP ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302		●
31	BOLT; CLIP ZF M/T<X9E> (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302		●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-	●
31	BOLT; CLIP ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-		●
31	BOLT; CLIP ZF M/T<X9E> (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-		●
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	0801-	●	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0801-	●	●
33	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	06	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1201-	●	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	02	1	1201-		●
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0801-1112	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1303-	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (E)	8-98172-218-0	01	1	1201-		●
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	0801-	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	0801-1112	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1201-1302	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-722-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (B)	8-97603-722-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1303-	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-722-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (B)	8-97603-722-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	0801-1112	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1201-1302	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97603-723-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (C)	8-97603-723-1	01	1	1201-1302		●
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1303-	●
206	PIPE; WATER,EGR COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97603-723-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER ZF M/T<X9E> (C)	8-97603-723-1	01	1	1303-		●
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	0801-	●	●

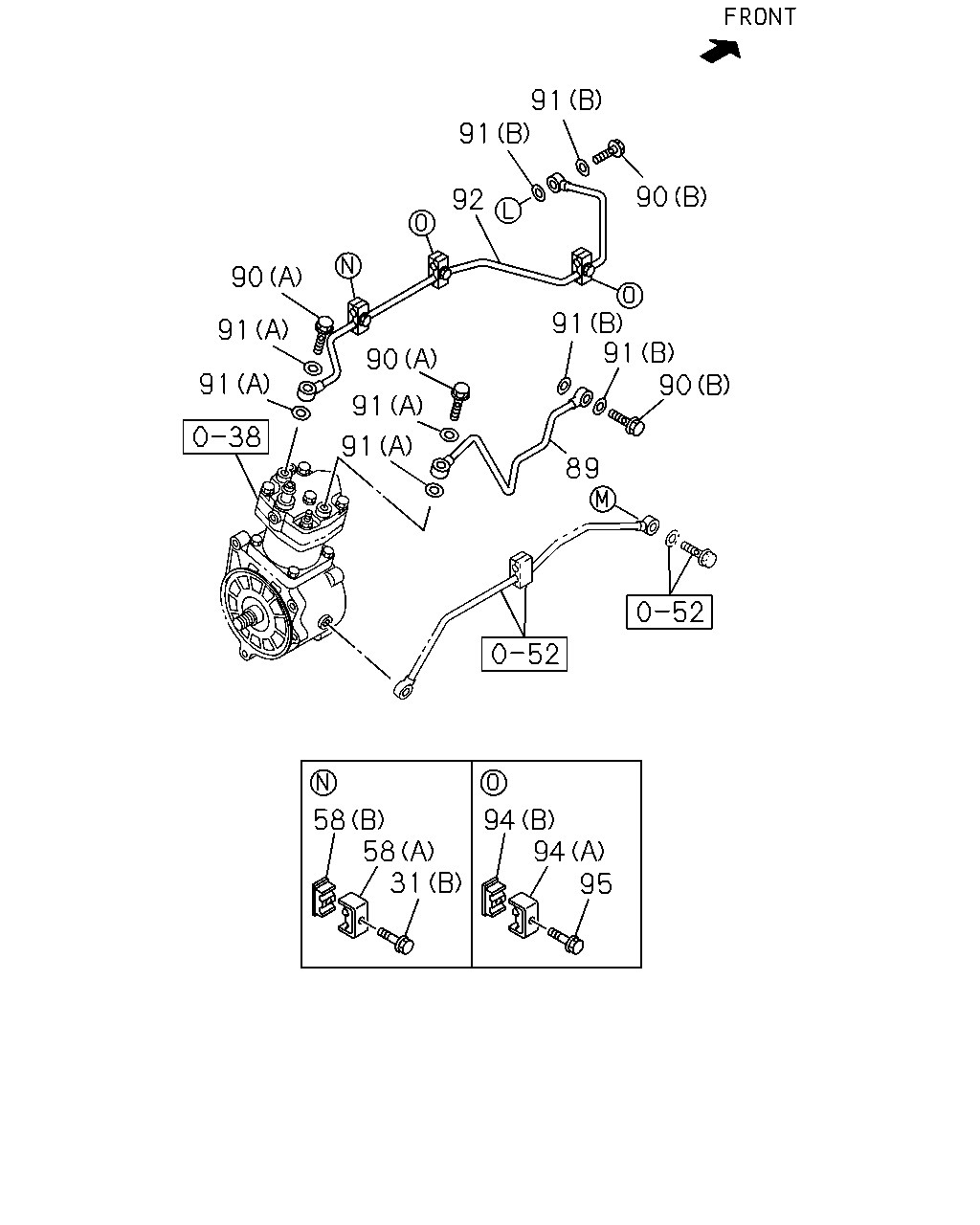

91 91 90 92 90 91 91 90 91 90 91 91 91 89 58 58 31 94 94 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	07	1	1201-	●	●
31	BOLT; CLIP ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	01	1	1201-		●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	10	1	0801-1112	●	●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302	●
31	BOLT; CLIP ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302		●
31	BOLT; CLIP ZF M/T<X9E> (A) M8X45 FLANGE	0-28050-845-0	03	1	1201-1302		●
31	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-	●
31	BOLT; CLIP ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-		●
31	BOLT; CLIP ZF M/T<X9E> (A) M8X45 FLANGE	0-28050-845-0	03	1	1303-		●
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	0801-	●	●
58	CLIP; RUBBER HOSE (A) ID=7 & 11 L=28	1-09701-230-1	01	1	0801-	●	●
58	CLIP; RUBBER HOSE (B) ID=7 & 11 L=28	1-09701-231-1	01	1	0801-	●	●
58	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	06	1	0801-	●	●
89	PIPE; WATER,AIR CMPR,IN	8-97611-169-0	01	1	0801-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M16X30 FLANGE	1-09675-095-1	02	1	0801-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	0801-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=16.2	1-09630-086-0	04	1	0801-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=25	1-09630-141-0	04	1	0801-	●	●
92	PIPE; WATER,AIR CMPR,OUT	8-97611-171-0	01	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1201-	●	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	02	1	1201-		●
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0801-1112	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1303-	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
95	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	07	1	0801-	●	●

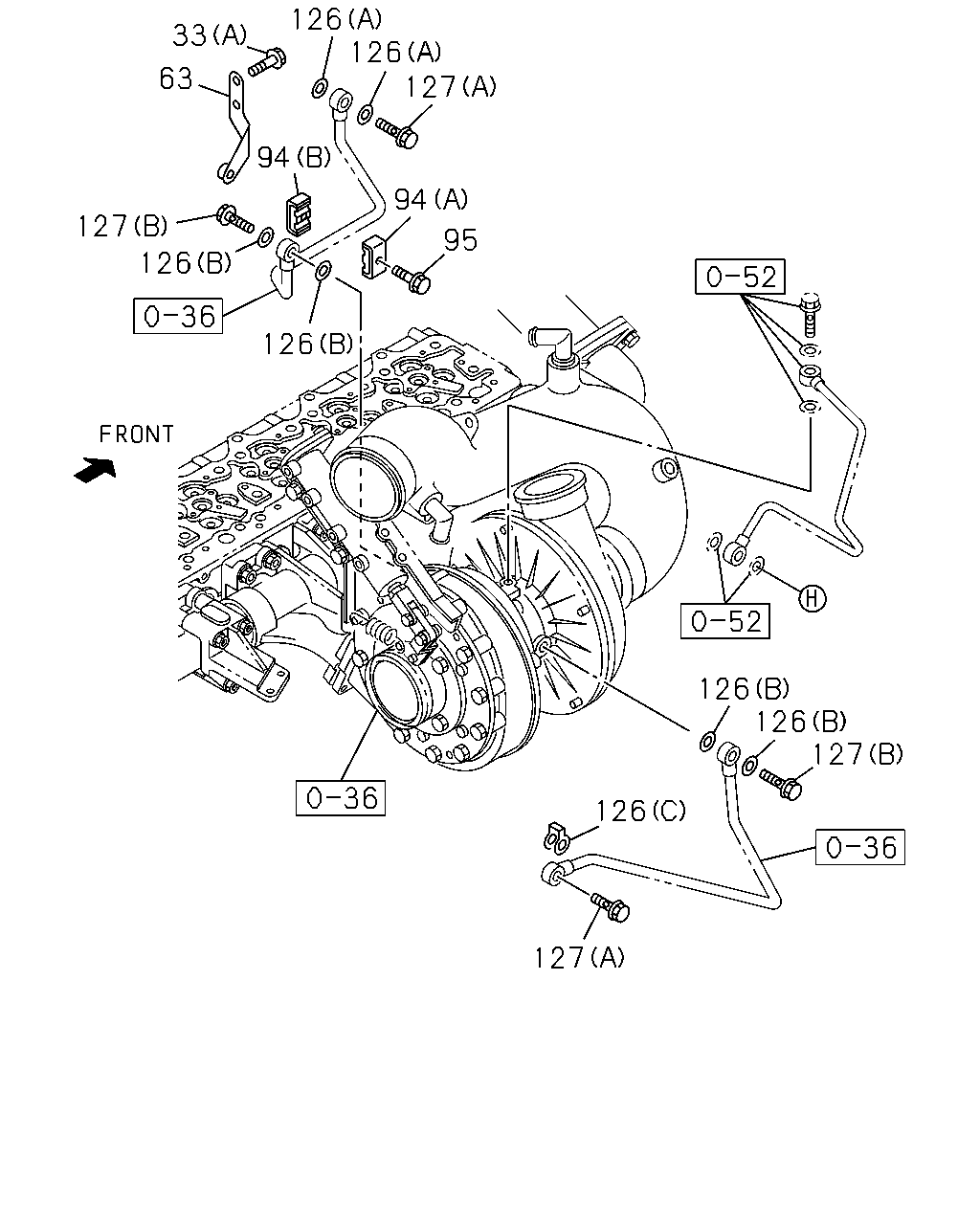

126 33 63 126 94 127 94 127 95 126 126 126 126 127 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0801-	●	●
33	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	06	1	0801-	●	●
63	BRACKET; WATER PIPE	8-97615-267-0	01	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1201-	●	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	02	1	1201-		●
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0801-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0801-1112	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1201-1302		●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	06	1	1303-	●
94	CLIP; WATER PIPE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
94	CLIP; WATER PIPE ZF M/T<X9E> (C) ID=17 L=17	1-09701-284-0	06	1	1303-		●
95	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	07	1	0801-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0801-1312	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0801-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=21	8-97251-047-0	01	1	0801-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	02	1	0801-	●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
