Sayfa 0-31 - Isuzu EPC

0-31 — THERMOSTAT AND HOUSING (#39786) — 216 parça

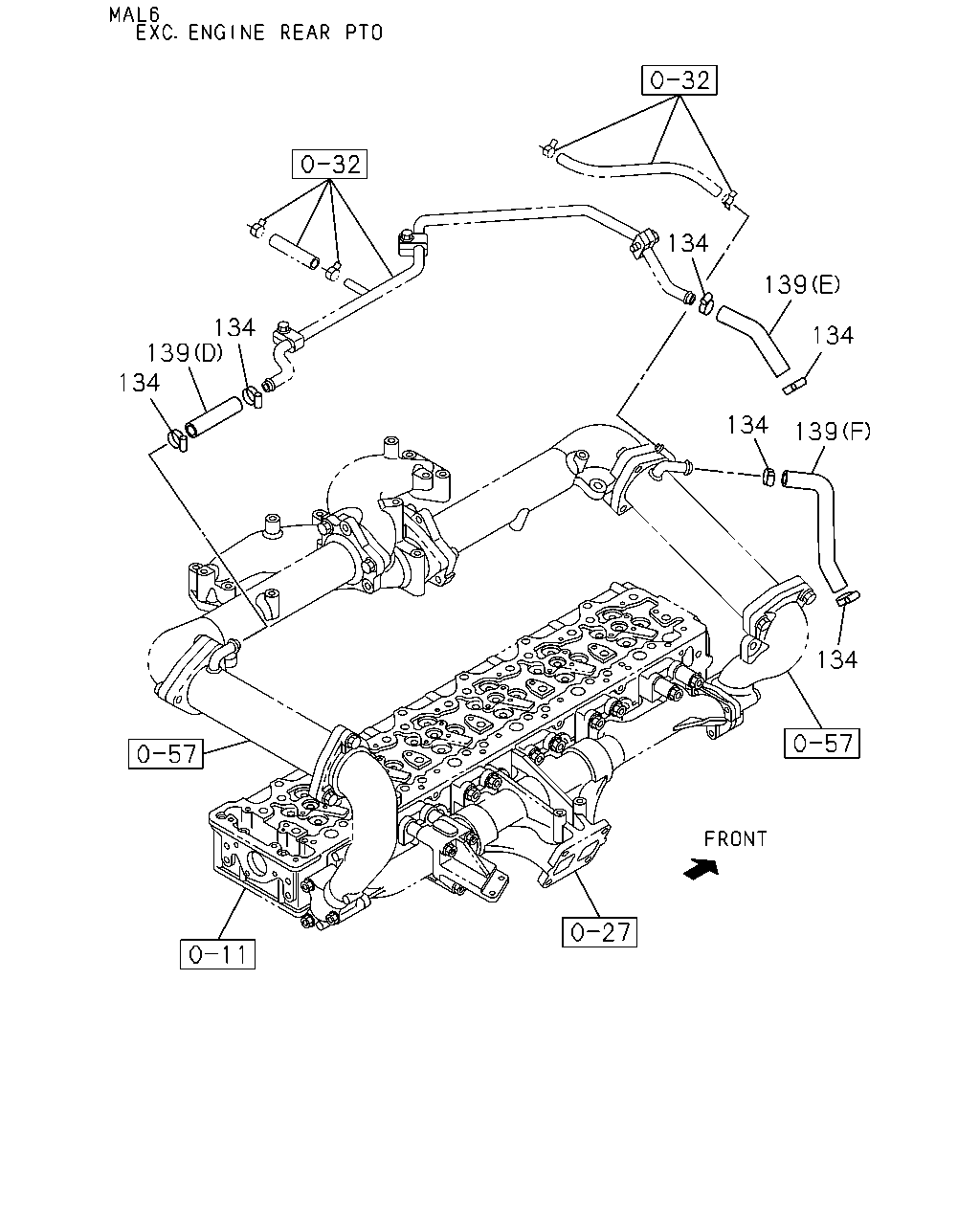

134 139 134 134 139 134 134 139 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	04	1	1201-	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	20	1	0801-1112	●	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1201-1302	●	●
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	10	1	1201-1302	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1303-	●	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1303-		●
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	10	1	1303-	●
134	CLIP; RUBBER HOSE ZF M/T<X9E> ID=25	8-97177-581-0	10	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1201-1302	●	●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E)	8-97608-473-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1303-	●	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E)	8-97608-473-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (E)	8-97608-473-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (F)	8-98172-756-0	01	1	1201-	●
139	HOSE; RUBBER,PIPE TO COOLER (D) L=100 SERVICED BY L=3000	0-03566-300-0	01	1	0801-	●	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97603-981-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (A)	8-97603-981-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97603-981-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (A)	8-97603-981-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-982-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (B)	8-97603-982-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-982-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (B)	8-97603-982-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	05	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97604-063-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (C)	8-97604-063-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97604-063-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (C)	8-97604-063-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	02	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	04	1	1201-	●	●

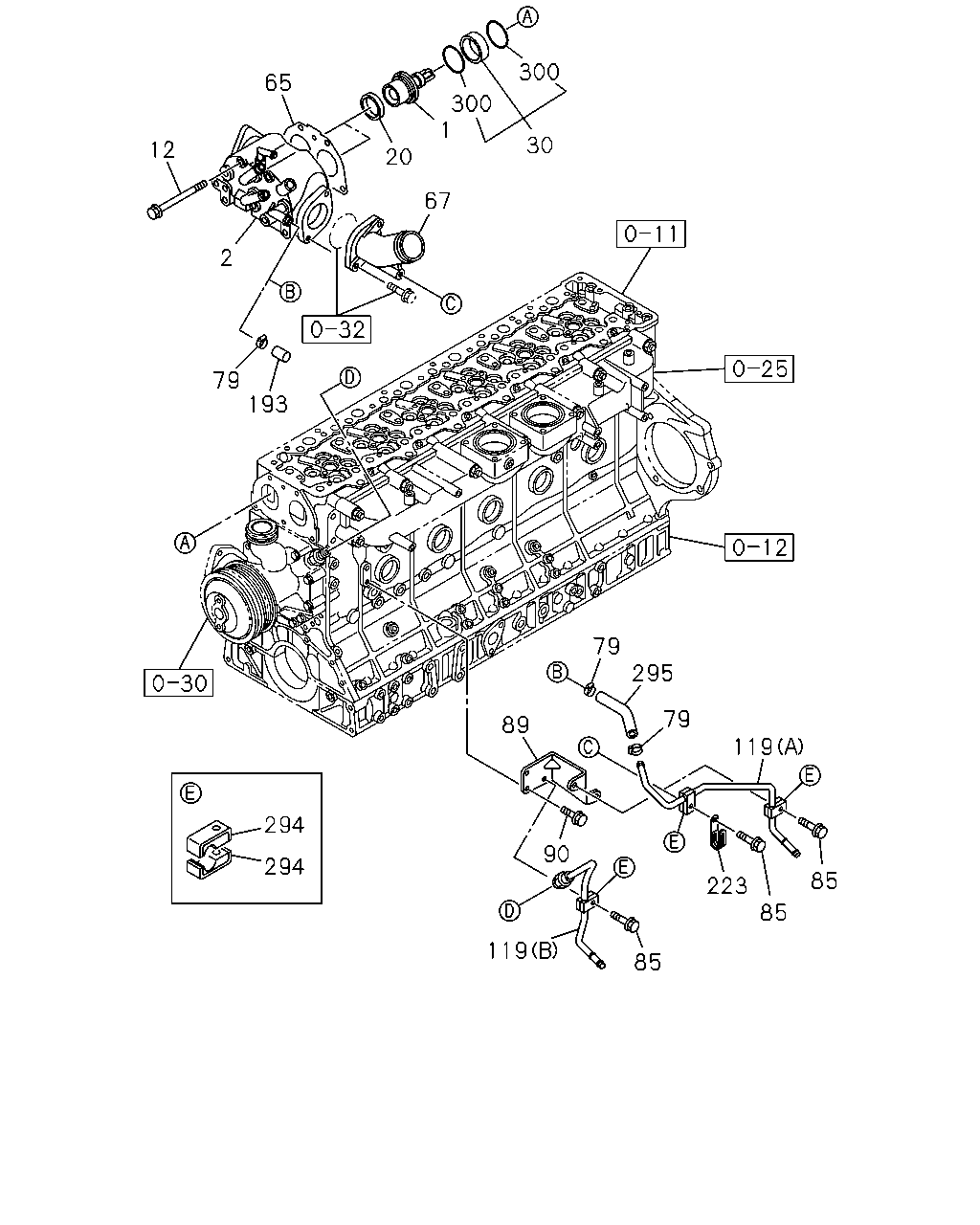

300 65 300 1 30 12 20 67 2 79 193 79 295 79 89 119 294 90 294 85 223 85 119 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	THERMOSTAT 82 CELSIUS	8-98271-161-0	02	1	0801-	●	●
2	HOUSING; THERMOSTAT	8-98043-957-2	01	1	0801-1306	●	●
2	HOUSING; THERMOSTAT	8-98236-233-0	01	1	1307-	●	●
12	BOLT; HSG M10X120 FLANGE	0-28156-012-0	05	1	0801-	●	●
20	RING; SEAL ID=59 OD=66.1	1-13779-011-0	02	1	0801-	●	●
30	SPACER	8-98088-098-0	02	1	0801-1002	●	●
30	SPACER	8-98158-701-0	02	1	1003-	●	●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98089-091-0	01	1	0801-	●	●
67	DUCT; WATER,OUTLET	8-97603-796-0	01	1	0801-	●	●
79	CLIP; RUBBER HOSE HEATER & DEFROSTER(C41) ID=25	8-97177-581-0	01	1	0801-1302		●
79	CLIP; RUBBER HOSE ISUZU M/T<X9A> ID=25	8-97177-581-0	01	1	0801-1302	●
79	CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=25	8-97177-581-0	01	1	1303-		●
79	CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=25	8-97177-581-0	02	1	0801-1302		●
79	CLIP; RUBBER HOSE ZF M/T<X9E> ID=25	8-97177-581-0	02	1	0801-1302	●
79	CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=25	8-97177-581-0	02	1	1303-	●	●
85	BOLT; CLIP HEATER & DEFROSTER(C41) M8X16 FLANGE	0-28050-816-0	01	1	0801-1302		●
85	BOLT; CLIP ISUZU M/T<X9A> M8X16 FLANGE	0-28050-816-0	01	1	0801-1302	●
85	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M8X16 FLANGE	0-28050-816-0	01	1	1303-		●
85	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X45 FLANGE	0-28050-845-0	03	1	0801-1302		●
85	BOLT; CLIP ZF M/T<X9E> M8X45 FLANGE	0-28050-845-0	03	1	0801-1302	●
85	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X45 FLANGE	0-28050-845-0	03	1	1303-	●	●
89	BRACKET AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97606-634-0	01	1	0801-1302		●
89	BRACKET ZF M/T<X9E>	8-97606-634-0	01	1	0801-1302	●
89	BRACKET AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97606-634-0	01	1	1303-	●	●
90	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M10X20 FLANGE	0-28151-020-0	02	1	0801-1302		●
90	BOLT; BRKT ZF M/T<X9E> M10X20 FLANGE	0-28151-020-0	02	1	0801-1302	●
90	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M10X20 FLANGE	0-28151-020-0	02	1	1303-	●	●
119	PIPE; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97606-632-1	01	1	0801-1302		●
119	PIPE; HTR ZF M/T<X9E> (A)	8-97606-632-1	01	1	0801-1302	●
119	PIPE; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97606-632-1	01	1	1303-	●	●
119	PIPE; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97606-633-0	01	1	0801-1302		●
119	PIPE; HTR ZF M/T<X9E> (B)	8-97606-633-0	01	1	0801-1302	●
119	PIPE; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97606-633-0	01	1	1303-	●	●
193	CAP; RUBBER HEATER & DEFROSTER(C41) ID=15 L=42	8-94231-115-0	01	1	0801-1302		●
193	CAP; RUBBER ISUZU M/T<X9A> ID=15 L=42	8-94231-115-0	01	1	0801-1302	●
193	CAP; RUBBER AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=15 L=42	8-94231-115-0	01	1	1303-		●
223	CLIP; HARNESS	8-94136-604-0	01	1	0801-	●	●
294	CLIP; HTR PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 L=17	1-09701-284-0	06	1	0801-1302		●
294	CLIP; HTR PIPE ZF M/T<X9E> ID=17 L=17	1-09701-284-0	06	1	0801-1302	●
294	CLIP; HTR PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 L=17	1-09701-284-0	06	1	1303-	●	●
295	HOSE; RUBBER,HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97608-473-0	01	1	0801-1302		●
295	HOSE; RUBBER,HTR ZF M/T<X9E>	8-97608-473-0	01	1	0801-1302	●
295	HOSE; RUBBER,HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97608-473-0	01	1	1303-	●	●
300	GASKET; SPACER ID=65.3	8-98088-101-0	04	1	0801-	●	●

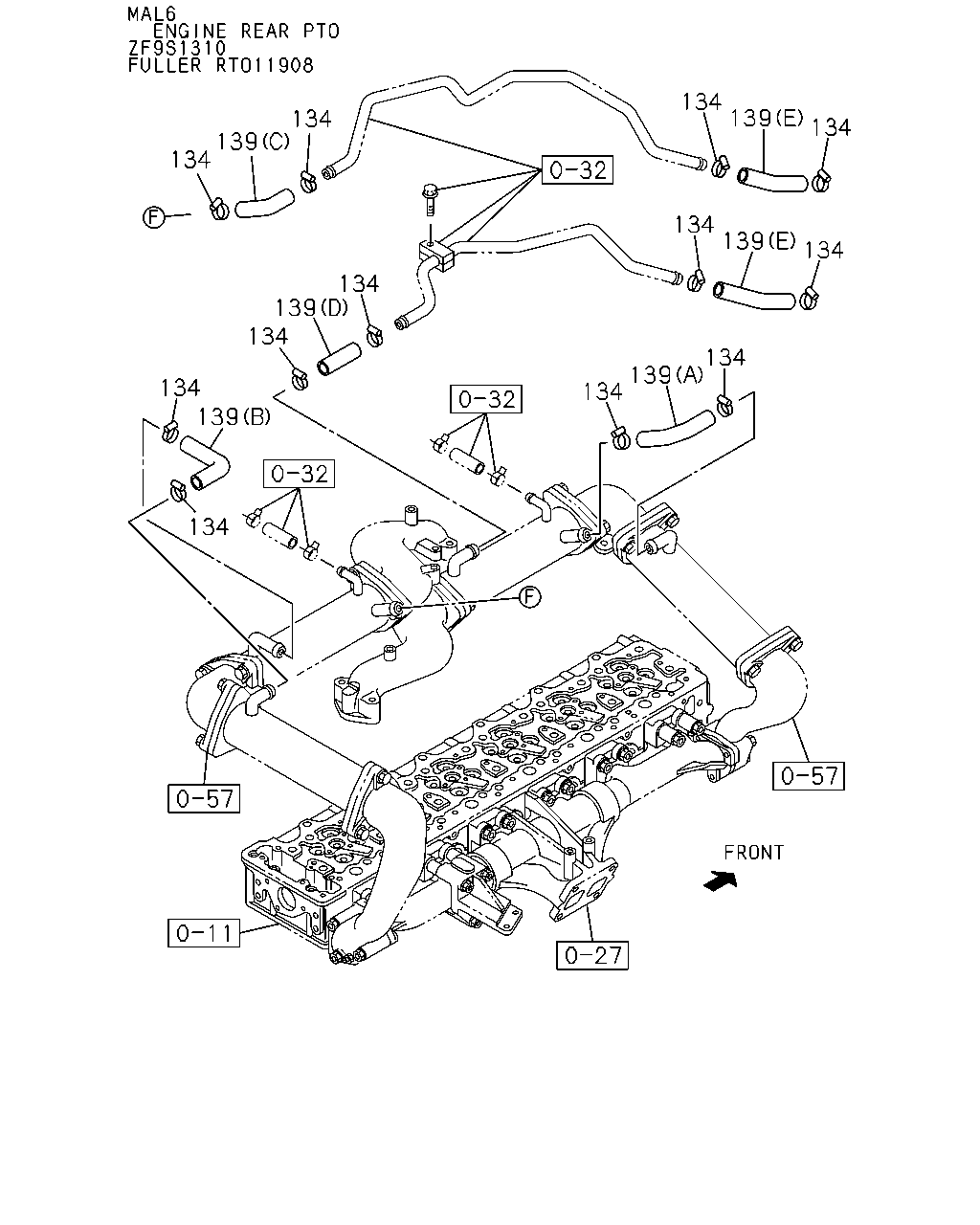

134 139 134 134 139 134 134 139 134 134 139 134 134 139 134 139 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	04	1	1201-	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	20	1	0801-1112	●	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1201-1302	●	●
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	10	1	1201-1302	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1303-	●	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1303-		●
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	10	1	1303-	●
134	CLIP; RUBBER HOSE ZF M/T<X9E> ID=25	8-97177-581-0	10	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1201-1302	●	●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E)	8-97608-473-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1303-	●	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E)	8-97608-473-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (E)	8-97608-473-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (F)	8-98172-756-0	01	1	1201-	●
139	HOSE; RUBBER,PIPE TO COOLER (D) L=100 SERVICED BY L=3000	0-03566-300-0	01	1	0801-	●	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97603-981-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (A)	8-97603-981-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97603-981-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (A)	8-97603-981-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-982-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (B)	8-97603-982-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-982-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (B)	8-97603-982-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	05	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97604-063-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (C)	8-97604-063-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97604-063-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (C)	8-97604-063-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	02	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	04	1	1201-	●	●

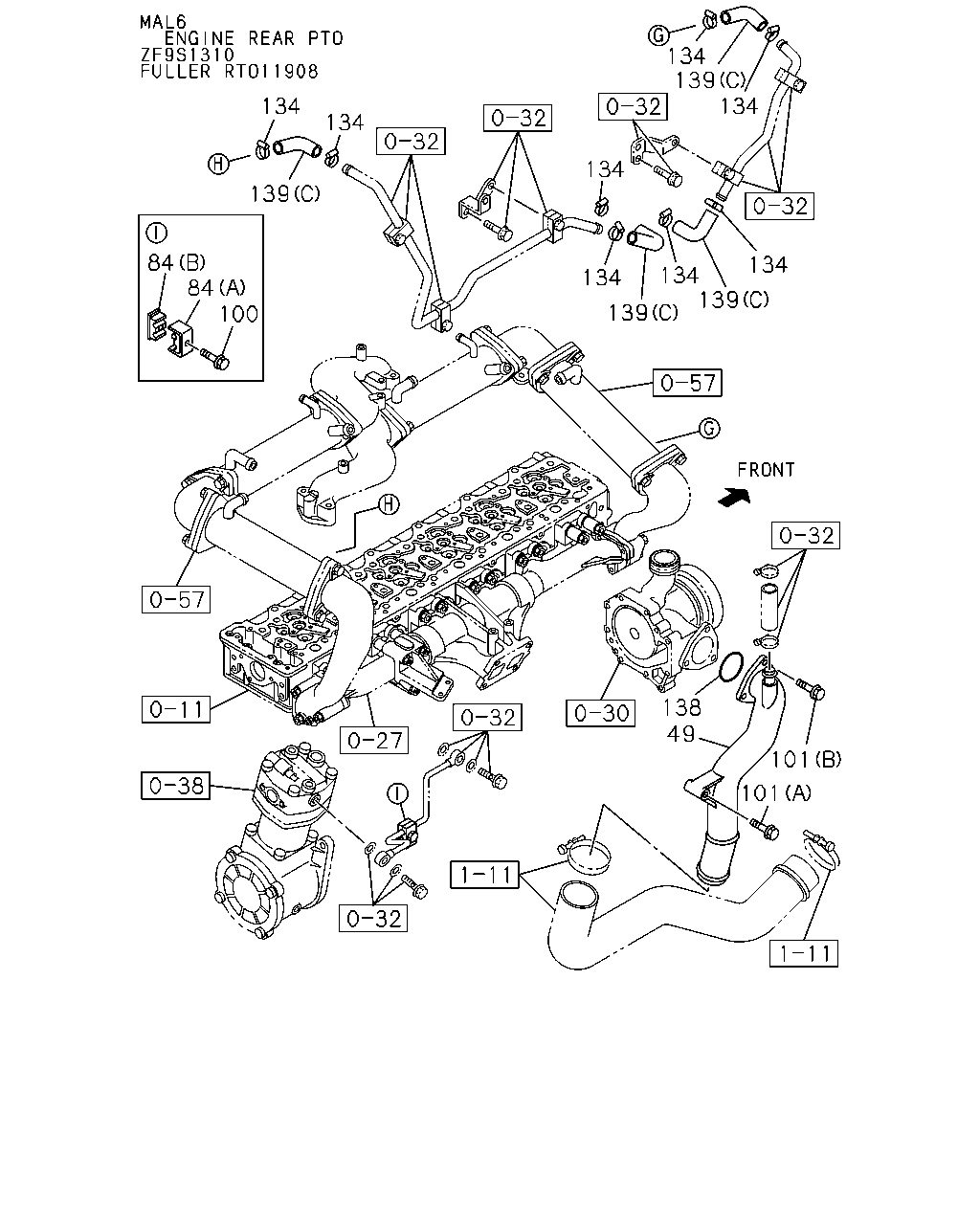

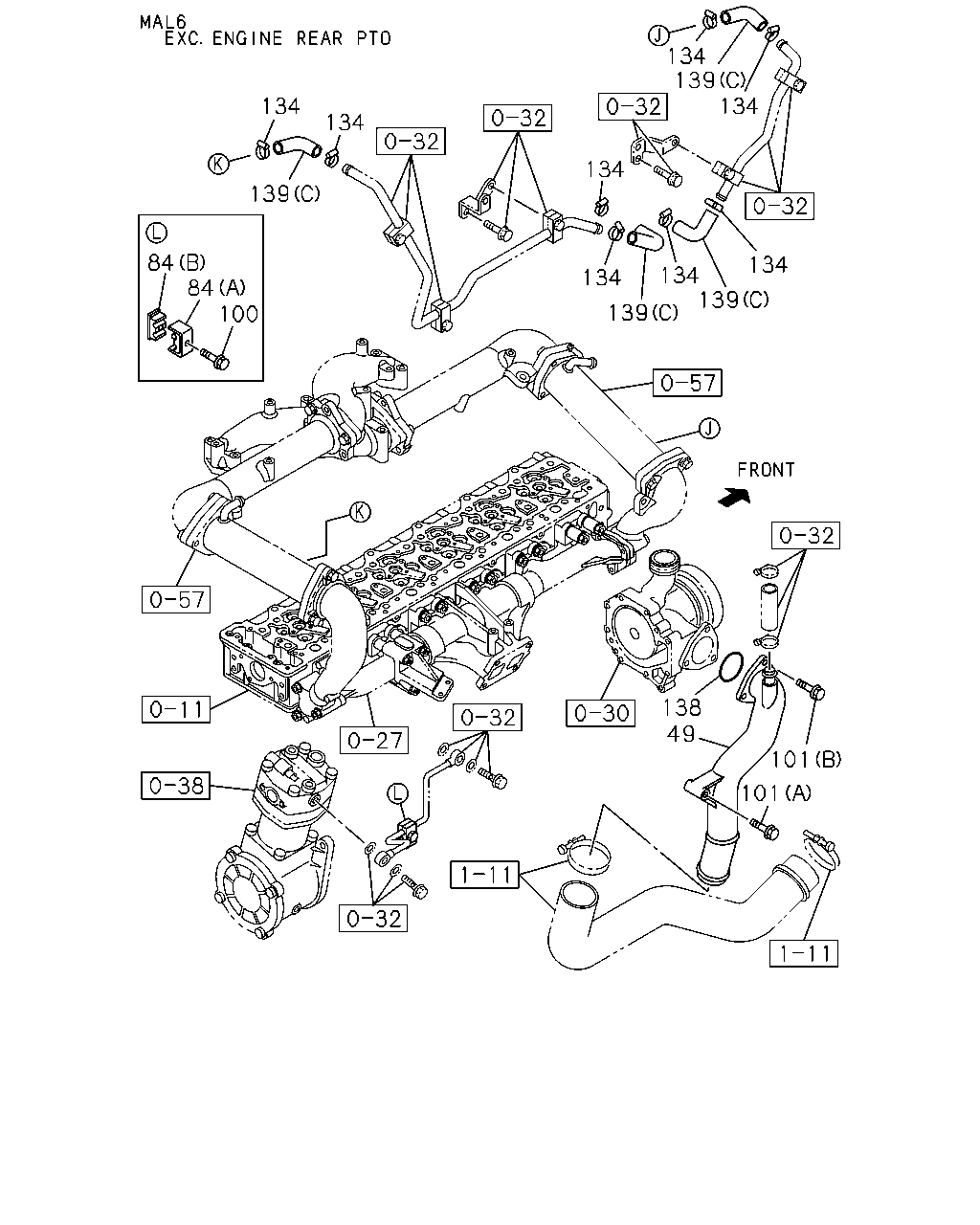

134 134 139 84 84 100 134 134 139 134 139 134 134 139 134 138 49 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; WATER OUTLET	8-97604-542-0	01	1	0801-1308	●	●
49	PIPE; WATER OUTLET	8-98252-190-0	01	1	1309-	●	●
84	CLIP; WATER PIPE (A)	1-09701-174-0	01	1	0801-	●	●
84	CLIP; WATER PIPE (B)	1-09701-175-0	01	1	0801-	●	●
100	BOLT; WATER PIPE M6X35 FLANGE	0-28650-635-0	01	1	0801-	●	●
101	BOLT; PIPE (A) M12X60 FLANGE	0-28151-260-0	01	1	0801-	●	●
101	BOLT; PIPE (B) M8X30 FLANGE	0-28650-830-0	03	1	0801-	●	●
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	04	1	1201-	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	20	1	0801-1112	●	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1201-1302	●	●
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	10	1	1201-1302	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1303-	●	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1303-		●
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	10	1	1303-	●
134	CLIP; RUBBER HOSE ZF M/T<X9E> ID=25	8-97177-581-0	10	1	1303-	●
138	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6	9-09565-271-0	01	1	0801-	●	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1201-1302	●	●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E)	8-97608-473-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1303-	●	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E)	8-97608-473-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (E)	8-97608-473-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (F)	8-98172-756-0	01	1	1201-	●
139	HOSE; RUBBER,PIPE TO COOLER (D) L=100 SERVICED BY L=3000	0-03566-300-0	01	1	0801-	●	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97603-981-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (A)	8-97603-981-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97603-981-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (A)	8-97603-981-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-982-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (B)	8-97603-982-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-982-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (B)	8-97603-982-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	05	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97604-063-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (C)	8-97604-063-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97604-063-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (C)	8-97604-063-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	02	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	04	1	1201-	●	●

134 134 139 84 84 100 134 134 139 134 134 134 139 134 139 138 49 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; WATER OUTLET	8-97604-542-0	01	1	0801-1308	●	●
49	PIPE; WATER OUTLET	8-98252-190-0	01	1	1309-	●	●
84	CLIP; WATER PIPE (A)	1-09701-174-0	01	1	0801-	●	●
84	CLIP; WATER PIPE (B)	1-09701-175-0	01	1	0801-	●	●
100	BOLT; WATER PIPE M6X35 FLANGE	0-28650-635-0	01	1	0801-	●	●
101	BOLT; PIPE (A) M12X60 FLANGE	0-28151-260-0	01	1	0801-	●	●
101	BOLT; PIPE (B) M8X30 FLANGE	0-28650-830-0	03	1	0801-	●	●
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	04	1	1201-	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	20	1	0801-1112	●	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1201-1302	●	●
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	10	1	1201-1302	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1303-	●	●
134	CLIP; RUBBER HOSE ID=25	8-97177-581-0	10	1	1303-		●
134	CLIP; RUBBER HOSE ISUZU M/T<X9A> ENGINE REAR PTO(SV1) ID=25	8-97177-581-0	10	1	1303-	●
134	CLIP; RUBBER HOSE ZF M/T<X9E> ID=25	8-97177-581-0	10	1	1303-	●
138	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6	9-09565-271-0	01	1	0801-	●	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1201-1302	●	●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E)	8-97608-473-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1303-	●	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (E)	8-97608-473-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (E)	8-97608-473-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (F)	8-98172-756-0	01	1	1201-	●
139	HOSE; RUBBER,PIPE TO COOLER (D) L=100 SERVICED BY L=3000	0-03566-300-0	01	1	0801-	●	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97603-981-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (A)	8-97603-981-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (A)	8-97603-981-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (A)	8-97603-981-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (A)	8-97603-981-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-982-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (B)	8-97603-982-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (B)	8-97603-982-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (B)	8-97603-982-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (B)	8-97603-982-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	05	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	01	1	1201-1302		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97604-063-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (C)	8-97604-063-0	01	1	1201-1302	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	01	1	1303-		●
139	HOSE; RUBBER,PIPE TO COOLER ISUZU M/T<X9A> ENGINE REAR PTO(SV1) (C)	8-97604-063-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER ZF M/T<X9E> (C)	8-97604-063-0	01	1	1303-	●
139	HOSE; RUBBER,PIPE TO COOLER (E)	8-97608-473-0	02	1	0801-1112	●	●
139	HOSE; RUBBER,PIPE TO COOLER (C)	8-97604-063-0	04	1	1201-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
