Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11145 - FXZ EXC.EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

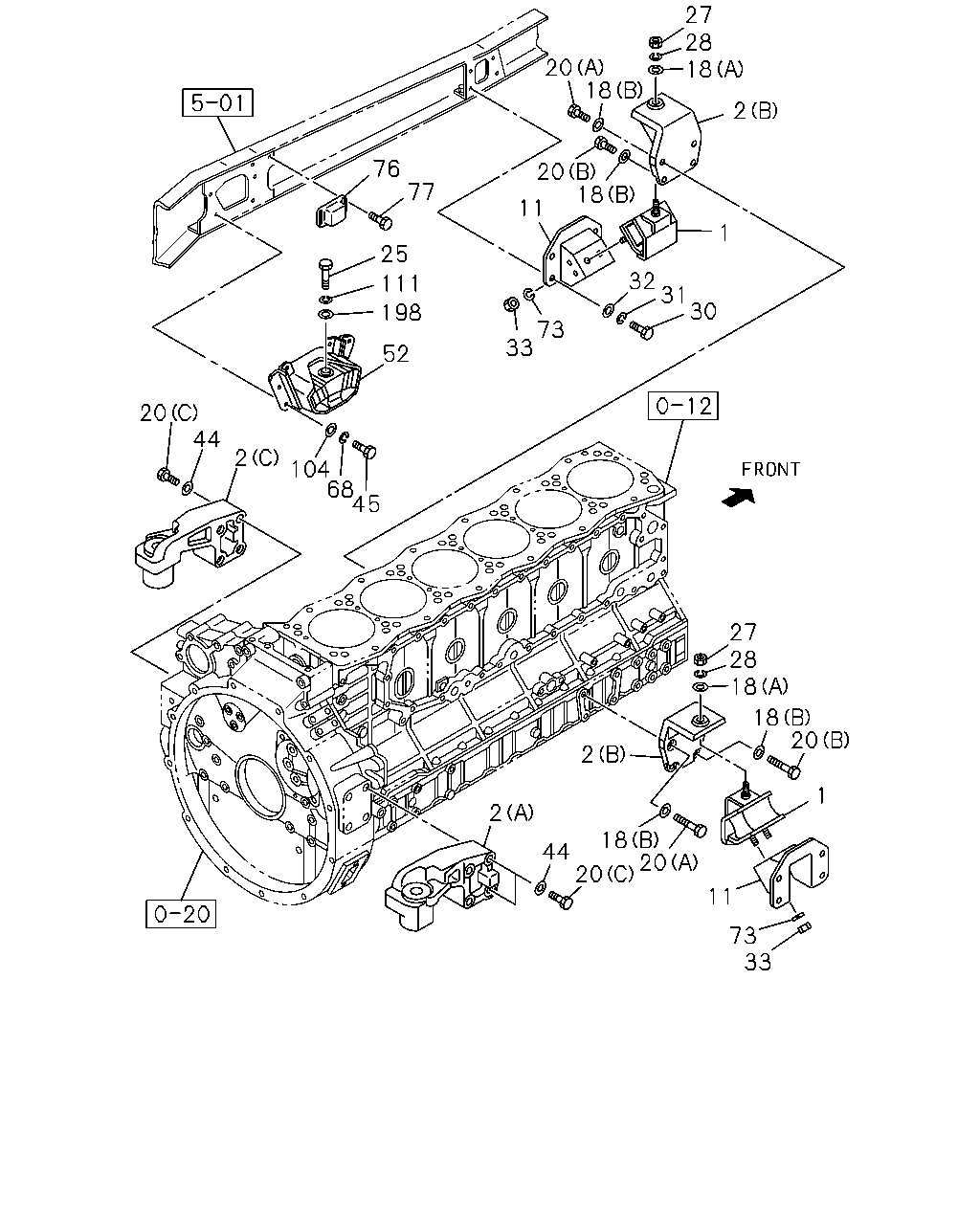

0-22 — ENGINE MOUNTING
(#39781) — 28 parça
Tümü
A - 6UZ1 TC-N
B - 6UZ1 TC-C
27
28
18
20
18
2
76
77
20
18
11
1
25
32
31
30
111
198
73
33
52
20
44
2
104
68
45
27
28
18
18
20
2
1
2
18
44
20
20
11
73
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
1-53215-227-0
02
1
0801-
●
●
2
FOOT; ENG
(A)
1-11777-179-0
01
1
0801-
●
●
2
FOOT; ENG
(B)
8-97603-754-1
02
1
0801-
●
●
2
FOOT; ENG
(C)
8-97605-933-0
01
1
0801-
●
●
11
BRACKET; CUSHION RUBBER,FRT
8-98055-378-1
02
1
0801-
●
●
18
WASHER; PL,ENG FOOT
(B) ID=12.2
1-09503-008-0
08
1
0801-
●
●
18
WASHER; PL,ENG FOOT
(A) ID=19 OD=36
0-91614-618-0
02
1
0801-
●
●
20
BOLT; ENG FOOT
(A) M12X28.5
1-09020-100-0
04
1
0801-
●
●
20
BOLT; ENG FOOT
(B) M12X24
1-09020-101-0
04
1
0801-
●
●
20
BOLT; ENG FOOT
(C) M16X78
1-09020-113-0
08
1
0801-
●
●
25
BOLT; CUSHION RUBBER TO BRKT
M20X85
8-98013-797-0
02
1
0801-
●
●
27
NUT; CUSHION RUBBER TO ENG FOOT
M18
0-91110-518-0
02
1
0801-
●
●
28
WASHER; LK,SUPPORT BRKT
ID=18.2
0-91510-518-0
02
1
0801-
●
●
30
BOLT; BRKT TO FRAME
M14X35
0-20951-435-0
08
1
0801-
●
●
31
WASHER; LK,BRKT TO FRAME
ID=14.2
0-91510-814-0
08
1
0801-
●
●
32
WASHER; PL,BRKT TO FRAME
ID=15
8-98010-627-1
08
1
0801-
●
●
33
NUT; CUSHION RUBBER TO BRKT
M14
0-91110-514-0
04
1
0801-
●
●
44
WASHER; LK,ENG FOOT
ID=16.2
9-09851-672-2
08
1
0801-
●
●
45
BOLT; CUSHION RUBBER TO FRAME
M14X40
0-20951-440-0
12
1
0801-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
8-98055-380-0
01
1
0801-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
8-98055-382-0
01
1
0801-
●
●
68
WASHER; LK,CUSHION RUBBER
ID=14.2
0-91510-814-0
12
1
0801-
●
●
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
0-91510-514-0
04
1
0801-
●
●
76
STOPPER; ENG MTG RUBBER
1-53229-056-1
02
1
0801-
●
●
77
BOLT; STOPPER
M8X16 FLANGE
0-28050-816-0
04
1
0801-
●
●
104
WASHER; PL,CUSHION RUBBER
ID=15
8-98010-627-1
12
1
0801-
●
●
111
WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5
0-91510-622-0
02
1
0801-
●
●
198
WASHER; PL,CUSHION TO BRKT,RR
9-09164-622-0
02
1
0801-
●
●
