2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#3974) — 66 parça

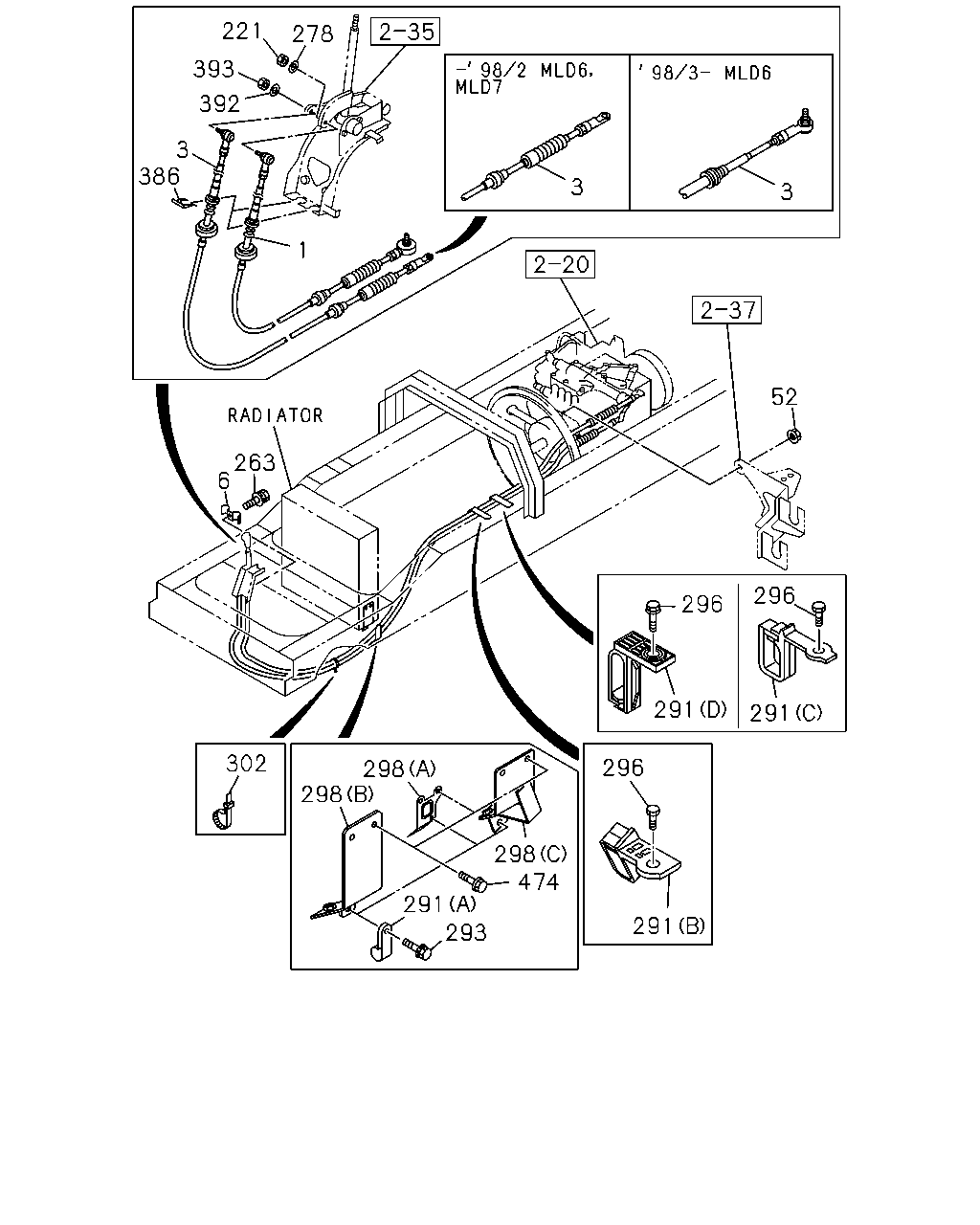

çizim 116011
221 278 393 392 3 386 3 3 1 52 263 6 296 296 291 291 302 296 298 298 298 474 291 291 293
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CABLE; SHIFT,TRANS CONT
6HK1 TCC ENG(81L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98053-703-1 01 1 0608- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3297 		1-33670-792-0 01 1 9510-9802 ● ● ●
1 CABLE; SHIFT,TRANS CONT
L=3297 		1-33670-792-0 01 1 9510-9802 ● ●
1 CABLE; SHIFT,TRANS CONT
L=3297 		1-33670-792-0 01 1 9803-0305 ● ●
1 CABLE; SHIFT,TRANS CONT
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) L=3297 		1-33670-792-0 01 1 0306- ● ●
1 CABLE; SHIFT,TRANS CONT
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=3297 		1-33670-792-0 01 1 0306- ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3385 		1-33671-135-0 01 1 9803-0004 ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3385 		1-33671-135-0 01 1 0005-0305 ● ● ●
1 CABLE; SHIFT,TRANS CONT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> L=3385 		1-33671-135-0 01 1 0306- ● ● ●
1 CABLE; SHIFT,TRANS CONT
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3385 		1-33671-135-0 01 1 0306- ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3424 		1-33670-790-0 01 1 9510-9802 ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3425 		1-33671-127-0 01 1 9803-0004 ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3425 		1-33671-127-0 01 1 0005-0305 ● ● ●
1 CABLE; SHIFT,TRANS CONT
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3425 		1-33671-127-0 01 1 0306- ● ● ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> ASSISTOR SHIFT CONTROL<WX8> L=3450 		1-33671-592-0 01 1 0005- ● ● ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3490 		1-33671-593-0 01 1 0005- ● ● ●
3 CABLE; SELECT,TRANS CONT
6HK1 TCC ENG(81L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3610 		8-98053-705-0 01 1 0608- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3504 		1-33670-798-1 01 1 9510-9802 ● ● ●
3 CABLE; SELECT,TRANS CONT
L=3504 		1-33670-798-1 01 1 9510-9802 ● ●
3 CABLE; SELECT,TRANS CONT
L=3504 		1-33670-798-1 01 1 9803-0305 ● ●
3 CABLE; SELECT,TRANS CONT
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) L=3504 		1-33670-798-1 01 1 0306- ● ●
3 CABLE; SELECT,TRANS CONT
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=3504 		1-33670-798-1 01 1 0306- ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3465 		1-33671-136-0 01 1 9803-0004 ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3465 		1-33671-136-0 01 1 0005-0305 ● ● ●
3 CABLE; SELECT,TRANS CONT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> L=3465 		1-33671-136-0 01 1 0306- ● ● ●
3 CABLE; SELECT,TRANS CONT
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3465 		1-33671-136-0 01 1 0306- ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3486 		1-33670-797-1 01 1 9510-9802 ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485 		1-33671-133-0 01 1 9803-0004 ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3485 		1-33671-133-0 01 1 0005-0305 ● ● ●
3 CABLE; SELECT,TRANS CONT
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3485 		1-33671-133-0 01 1 0306- ● ● ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> ASSISTOR SHIFT CONTROL<WX8> L=3540 		1-33671-595-0 01 1 0005- ● ● ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3560 		1-33671-596-0 01 1 0005- ● ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9510- ● ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 9510-9605 ● ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9606-0602 ● ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9510-9802 ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9803-1011 ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9510-9812 ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901- ● ● ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9510-9802 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09700-621-2 01 1 9510-9602 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9603-9609 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9510-0406 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) 		1-09701-307-2 01 1 0407- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9510-0606 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9610-0506 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 01 1 0507- ● ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512 ● ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X25 FLANGE 		0-28680-825-0 02 1 9510-9610 ● ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 02 1 9611-0512 ● ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ● ● ● ●
298 BRACKET
6HK1 TCC ENG(81L) (C) 		1-36183-235-0 01 1 0608- ●
298 BRACKET
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HE1TCC ENG(76L) (A) 		1-82659-149-0 01 1 9510- ● ● ● ● ●
298 BRACKET
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82659-149-0 01 1 9510- ● ● ● ● ●
298 BRACKET
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) 		1-47478-690-0 01 1 0005- ● ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 9510- ● ● ● ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 9510- ● ● ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9510-9802 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9510-9802 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9803-1011 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ● ● ●
474 BOLT; BRKT
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9510- ● ● ● ● ●
