◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11114 - EXD AUST JAPAN NEW LONG TERM 2005 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#39733) — 94 parça

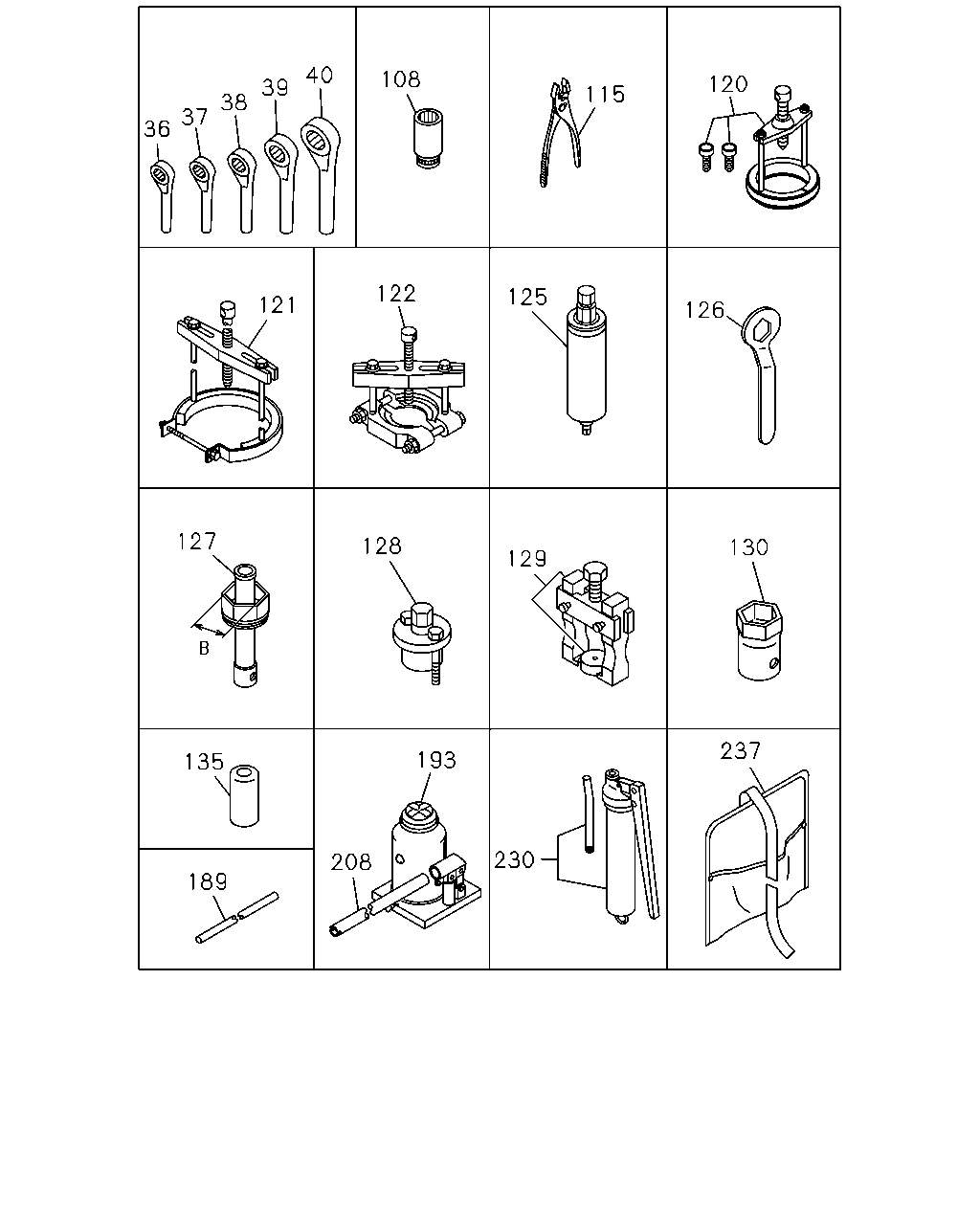

çizim 180346
36 37 38 39 40 108 115 120 126 125 122 121 127 128 129 130 237 230 193 208 189 135
BalonParca AdiParca NoAdetTipApplied Date
36 WRENCH; 24 9-85111-377-0 01 1 0710-
37 WRENCH; 27 9-85111-375-0 01 1 0710-
38 WRENCH; 32 9-85111-358-0 01 1 0710-
39 WRENCH; 36 9-85111-374-0 01 1 0710-
40 WRENCH; 41 9-85111-356-0 01 1 0710-
108 WRENCH; SOCKET 9-85113-132-0 01 1 0710-
115 PLIER 5-85171-002-0 01 1 0710-1410
115 PLIER 8-98282-845-0 01 1 1411-
120 PULLER ASM; MAIN REAR BRG
L=285 		9-85210-184-0 01 1 0710-
121 PULLER ASM; COUNTER REAR 1-85210-069-0 01 1 0710-
122 PULLER ASM; COUNTER FRT 9-85210-195-0 01 1 0710-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0710-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0710-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 0710-0808
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 0809-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0710-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0710-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0710-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0710-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0710-
193 JACK ASM
15TON 		1-85510-019-2 01 1 0710-
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0710-1107
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108-
230 PUMP; GREASE 1-85556-007-5 01 1 0710-
237 BAG; TOOL 8-97130-902-1 01 1 0710-
çizim 180351
186 192 227 355 249 250 245 246 247 248 388 388 404 405 447 445 417 407
BalonParca AdiParca NoAdetTipApplied Date
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0710-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0710-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0710-
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0710-
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0710-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0710-
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 0710-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0710-
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 0710-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0710-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0710-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0710-
355 REPLACER KIT; BUSH,V-LINK
BUSH OD=62 		1-85230-016-0 01 1 0710-
355 REPLACER KIT; BUSH,V-LINK
BUSH OD=70 		1-85230-017-0 01 1 0710-
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 0710-
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 0710-
404 TOOL; SETTING,MAIN COUNTER 1-85221-262-0 02 1 0710-
405 GUIDE; COUNTER 1-85221-264-0 01 1 0710-
407 SOCKET; SW 1-85221-267-1 01 1 0710-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 0710-
445 PULLER ATTACHMENT
BRAKE SYSTEM RETARDER<RE2> 		1-85221-334-0 01 1 0710-
447 REPLACER KIT; BUSH,STABILIZER BAR
ID=65 OD=90 L=65 		8-97608-200-0 01 1 0710-
447 REPLACER KIT; BUSH,STABILIZER BAR
ID=43.1 OD=48.6 L=65 		8-97608-274-0 01 1 0710-

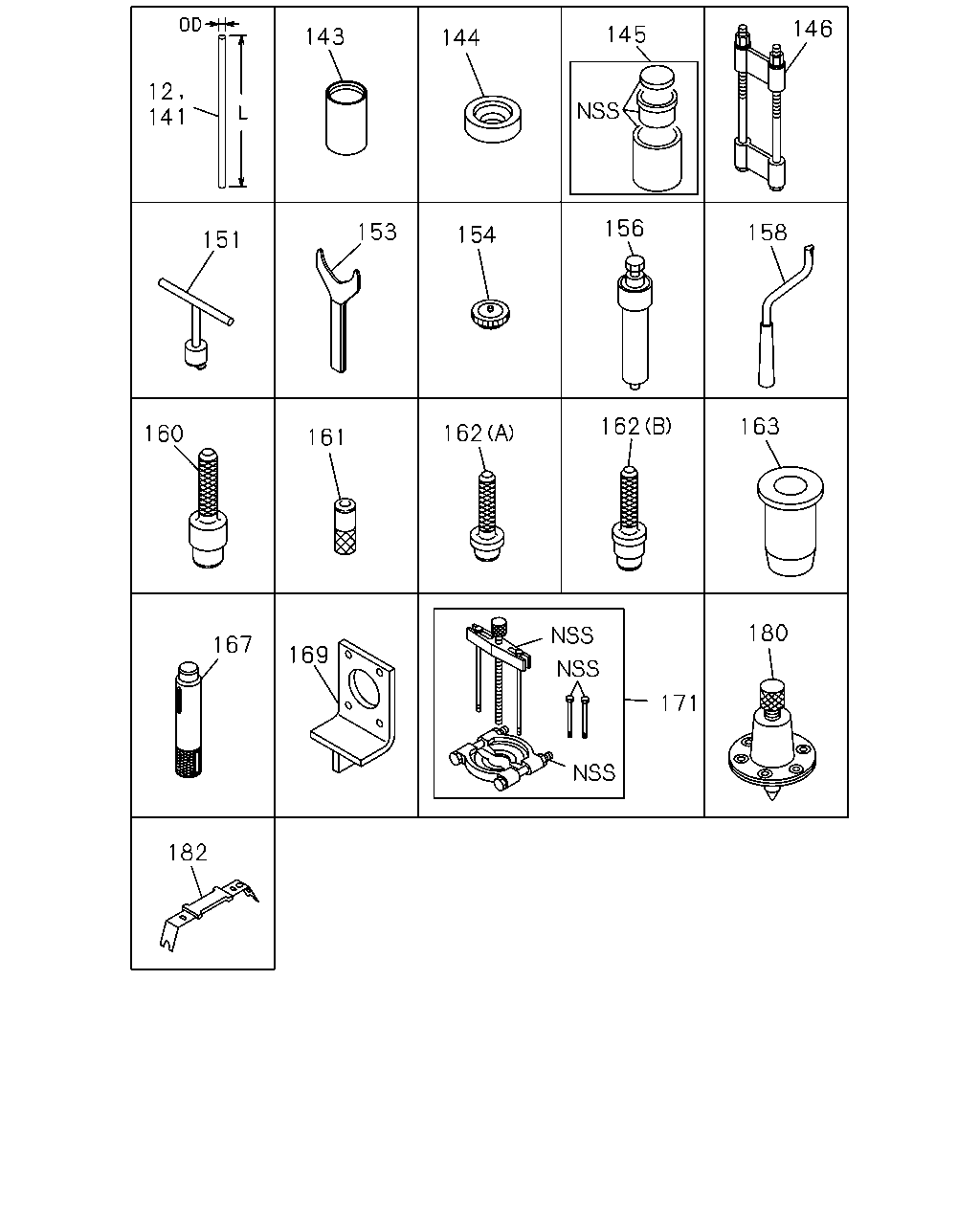

çizim 180361
12 141 143 144 145 146 158 156 154 153 151 160 161 162 162 163 167 169 171 180 182
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0710-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0710-1501
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502-
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0710-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0710-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0710-
145 REPLACER ASM; BUSHING 1-85230-008-0 01 1 0710-
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 0710-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0710-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0710-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0710-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0710-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0710-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0710-
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0710-
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0710-
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0710-
167 ALIGNER; CLU PILOT
L=300 OD=52.5 		1-85253-025-0 01 1 0710-
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0710-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0710-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0710-
182 REMOVER ASM 1-85239-008-0 01 1 0710-

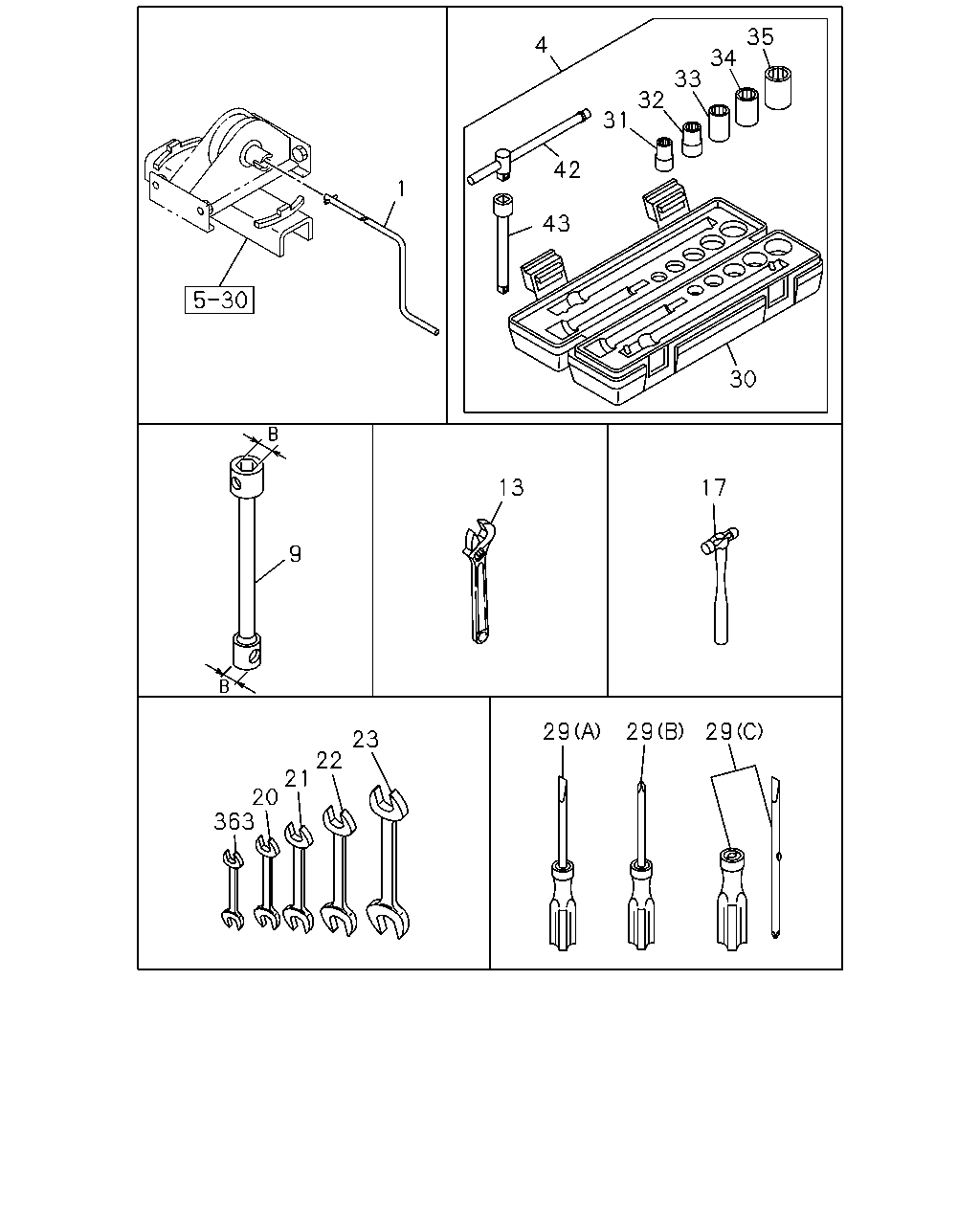

çizim 180362
1 4 43 42 31 32 33 34 35 30 17 13 9 23 22 21 20 363 29 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 0710-
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 0710-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0710-
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0710-0907
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0908-1407
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408-
17 HAMMER 9-85121-406-0 01 1 0710-
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0710-
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0710-
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0710-
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0710-
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0710-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0710-
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 0710-
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 0710-
31 WRENCH; 12 1-85000-495-0 01 1 0710-
32 WRENCH; 14 1-85000-496-0 01 1 0710-
33 WRENCH; 17 1-85000-497-0 01 1 0710-
34 WRENCH; 19 1-85000-498-0 01 1 0710-
35 WRENCH; 22 1-85000-499-0 01 1 0710-
42 HANDLE; SLIDING 1-85000-500-0 01 1 0710-
43 BAR; EXTENSION,SOCKET WRENCH 1-85000-501-0 01 1 0710-
363 WRENCH; OPEN END 8X10
8X10 		0-95902-508-0 01 1 0710-
