◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11114 - EXD AUST JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#39732) — 28 parça
çizim 180344
49 48 52 68 215 63 62 49 48 215 52
BalonParca AdiParca NoAdetTipApplied Date
48 SPEAKER; AUDIO
(A) 		1-84114-073-0 02 1 0710-0905
48 SPEAKER; AUDIO
(A) 		8-98140-326-1 02 1 0906-
48 SPEAKER; AUDIO
(B) 		1-84114-075-1 02 1 0710-
49 SCREW; SPEAKER
M5X16 W/LK&PL WASHER 		8-94279-400-0 08 1 0710-
52 GROMMET; SCREW,SPEAKER
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0710-
52 GROMMET; SCREW,SPEAKER
LOW ROOF<6XQ> D=8.6X7.7 L=7.5 		8-94279-078-0 08 1 0710-
62 BOX; RR SPEAKER
HIGH ROOF<S2F> 		1-73347-749-4 01 1 0710-
62 BOX; RR SPEAKER
HIGH ROOF<S2F> 		1-73347-748-4 01 1 0710-
63 SCREW; RR SPEAKER BOX
HIGH ROOF<S2F> M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 0710-
68 BRACKET; RR SPEAKER
LOW ROOF<6XQ> 		1-73347-786-2 01 1 0710-
68 BRACKET; RR SPEAKER
LOW ROOF<6XQ> 		1-73347-785-2 01 1 0710-
215 SCREW; BRKT,SPEAKER
HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 0710-
215 SCREW; BRKT,SPEAKER
LOW ROOF<6XQ> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 0710-

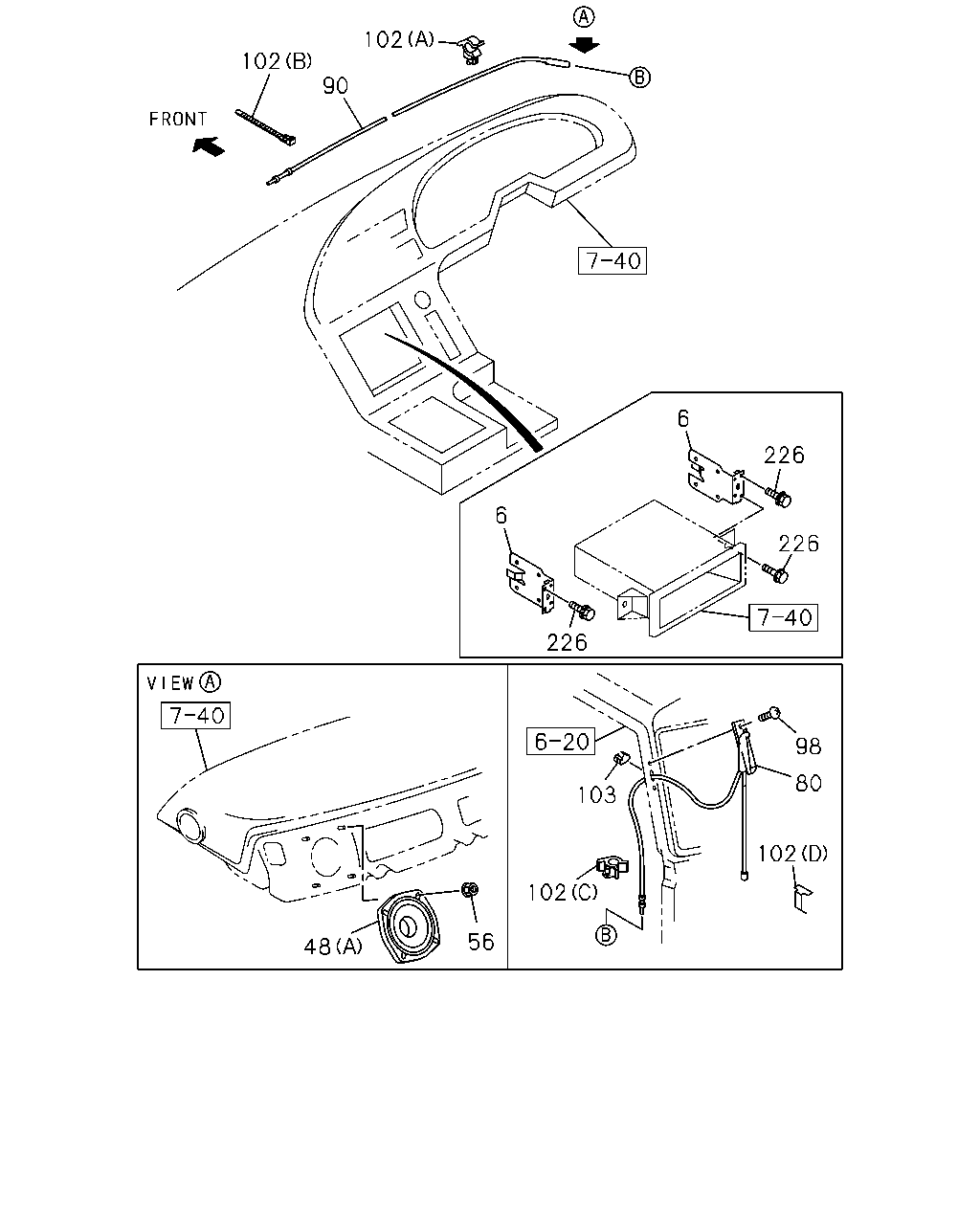

çizim 180349
102 102 226 226 226 98 80 102 103 102 56 48 90 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 0710-
48 SPEAKER; AUDIO
(A) 		1-84114-073-0 02 1 0710-0905
48 SPEAKER; AUDIO
(A) 		8-98140-326-1 02 1 0906-
48 SPEAKER; AUDIO
(B) 		1-84114-075-1 02 1 0710-
56 NUT; SPEAKER,RADIO OR STEREO
M5 FLANGE 		1-09984-170-0 08 1 0710-
80 ANTENNA 1-84115-055-2 01 1 0710-1203
80 ANTENNA 8-98210-874-1 01 1 1204-
90 CABLE; ANTENNA,FEEDER 1-84113-011-2 01 1 0710-
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 0710-
102 CLIP; CABLE
(D) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1410-
102 CLIP; CABLE
(A) ID=4.8 		1-73907-618-0 05 1 0710-
102 CLIP; CABLE
(B) L=140 		5-09707-031-1 01 1 0710-
102 CLIP; CABLE
(C) ID=4.8 		8-94128-483-0 03 1 0710-
103 GROMMET; ANTENNA HOLE,FRT 8-97027-381-0 01 1 0710-
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710-
