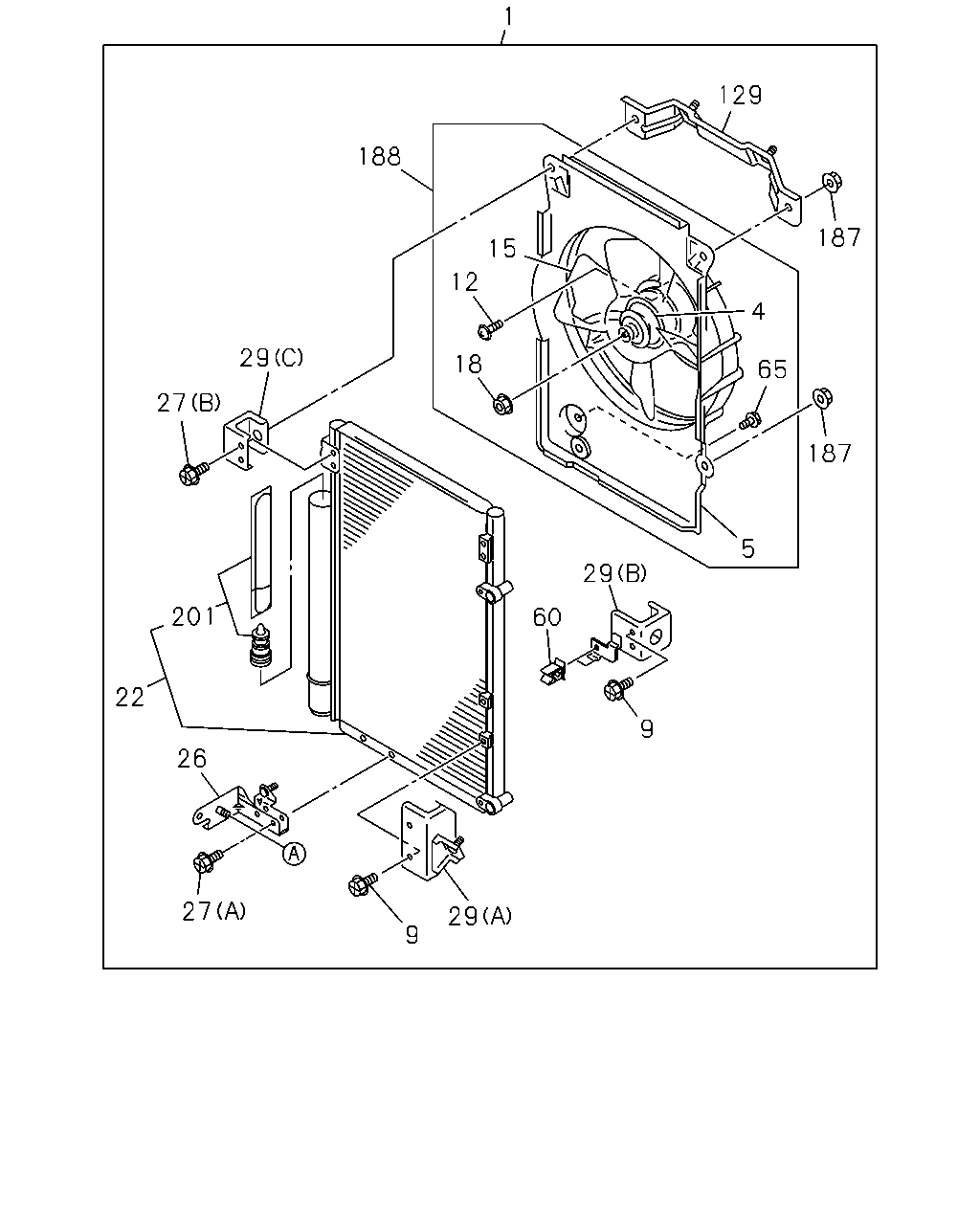

1 |
CONDENSER; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
8-98076-087-2 |
01 |
1 |
0710- |
| |
4 |
MOTOR ASM; FAN
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
8-98078-763-0 |
01 |
1 |
0710- |
| |
5 |
SHROUD; FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
8-98076-093-0 |
01 |
1 |
0710- |
| |
9 |
BOLT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
M6X14
|
1-83539-382-0 |
04 |
1 |
0710- |
| |
12 |
BOLT; FAN MOTOR
|
8-98290-384-0 |
03 |
1 |
0710-1201 |
| |
12 |
BOLT; FAN MOTOR
|
8-98290-384-0 |
01 |
1 |
1202-1409 |
| |
12 |
BOLT; FAN MOTOR
|
8-98290-384-0 |
03 |
1 |
1410- |
| |
15 |
FAN; MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
8-98076-092-0 |
01 |
1 |
0710- |
| |
18 |
NUT; FAN,CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83539-313-0 |
01 |
1 |
0710- |
| |
22 |
CONDENSER ASM; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83534-261-0 |
01 |
1 |
0710-1409 |
| |
22 |
CONDENSER ASM; A/C
|
8-98275-189-0 |
01 |
1 |
1410- |
| |
26 |
BRACKET; LOW
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83573-281-0 |
01 |
1 |
0710- |
| |
27 |
BOLT; BRKT,LOW SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(B)
M6X14
|
1-83539-382-0 |
02 |
1 |
0710- |
| |
27 |
BOLT; BRKT,LOW SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(A)
M5X25
|
8-97178-770-0 |
02 |
1 |
0710- |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(C)
|
1-83573-278-0 |
01 |
1 |
0710- |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(B)
|
1-83573-279-0 |
01 |
1 |
0710- |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(A)
|
1-83573-280-0 |
01 |
1 |
0710- |
| |
60 |
CLIP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83574-266-0 |
01 |
1 |
0710- |
| |
65 |
BOLT; SHROUD
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
M6X16
|
8-97096-525-0 |
01 |
1 |
0710- |
| |
129 |
BRACKET; UPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83573-129-0 |
01 |
1 |
0710- |
| |
187 |
NUT; SHROUD
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
M6
|
1-83539-354-0 |
04 |
1 |
0710- |
| |
188 |
BLOWER ASM; SHROUD
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
8-98078-760-1 |
01 |
1 |
0710- |
| |
201 |
DRYER ASM; CONDENSER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83535-097-0 |
01 |
1 |
0710-1409 |
| |
201 |
DRYER ASM; CONDENSER
|
8-98282-482-0 |
01 |
1 |
1410- |
