8-73 — BLOWER UNIT (#39728) — 102 parça

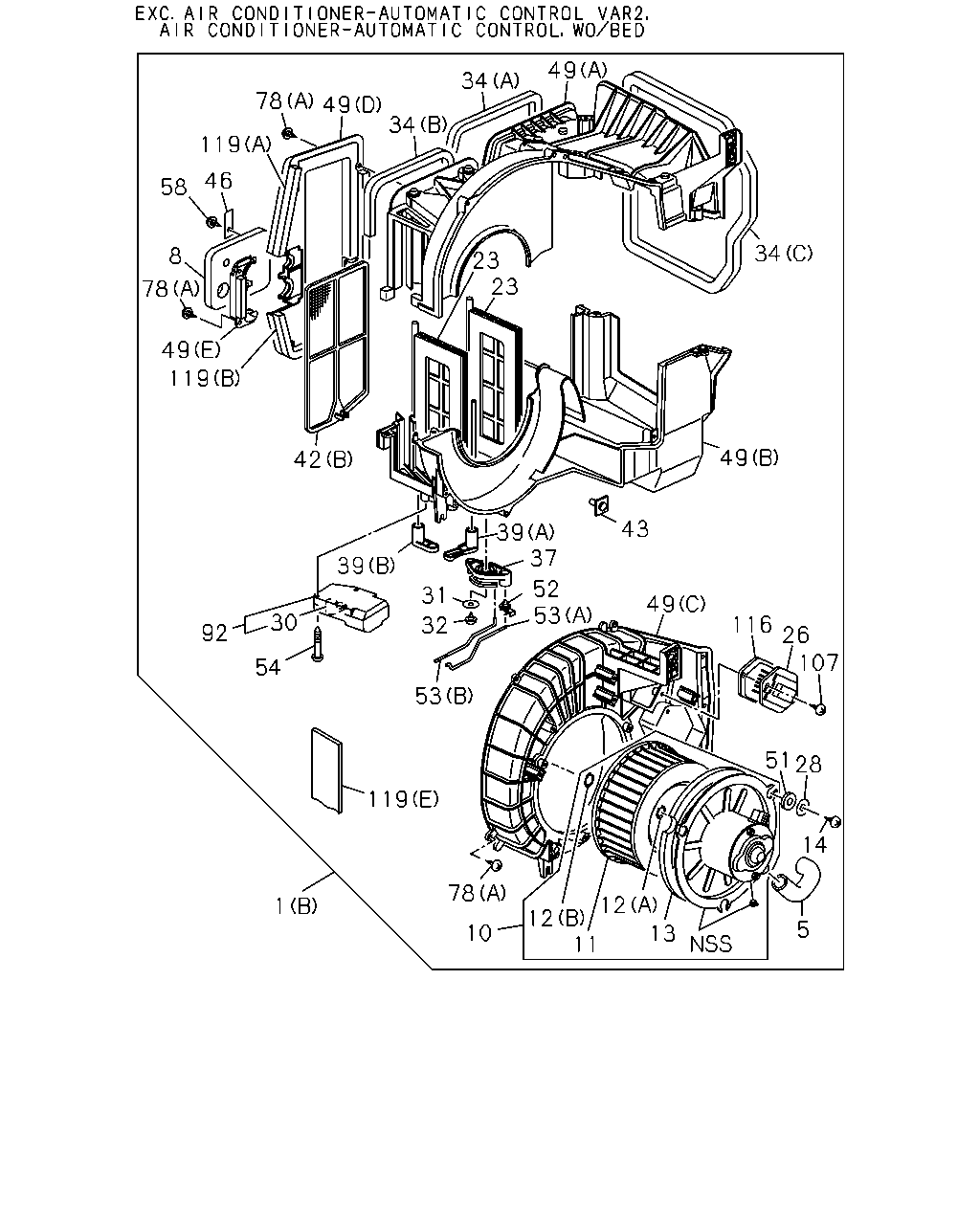

çizim 180347
49 34 34 49 78 119 46 58 8 78 49 119 42 23 23 34 49 43 39 37 52 53 31 32 39 30 92 54 119 1 53 49 116 26 107 51 28 14 5 13 12 11 12 10 78
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83561-154-5 01 1 0710-
1 BLOWER ASM
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83561-160-5 01 1 0710-
5 HOSE; AIR 1-83563-140-0 01 1 0710-
8 SEAL; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83539-261-1 01 1 0710-
8 SEAL; BLOWER UNIT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-801-1 01 1 0710-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0710-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0710-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0710-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0710-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0710-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0710-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0710-
26 TRANSISTOR; BLOWER UNIT 1-83579-654-0 01 1 0710-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0710-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0710-
31 WASHER; LEVER 1-83579-095-0 01 1 0710-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0710-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0710-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0710-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0710-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0710-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0710-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0710-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0710-
42 FILTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-993-0 02 1 0710-
43 BOLT; CASE 1-83579-657-2 04 1 0710-
46 PLATE; BLOWER UNIT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83571-870-1 01 1 0710-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0710-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0710-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0710-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0710-
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F) 		1-83564-340-1 01 1 0710-
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-406-1 01 1 0710-
49 CASE; BLOWER UNIT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-352-5 01 1 0710-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0710-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0710-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0710-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0710-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0710-
58 SCREW; PLATE TO CASE
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16 		8-94324-850-0 01 1 0710-
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 0710-
78 SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 0710-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0710-
107 SCREW; TRANSISTOR
M4X16 		8-94324-850-0 02 1 0710-
116 SEAL; TRANSISTOR 1-83579-656-0 01 1 0710-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0710-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0710-
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83578-032-0 01 1 0710-
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83579-961-0 01 1 0710-
119 LINING; CASE
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83579-839-0 02 1 0710-

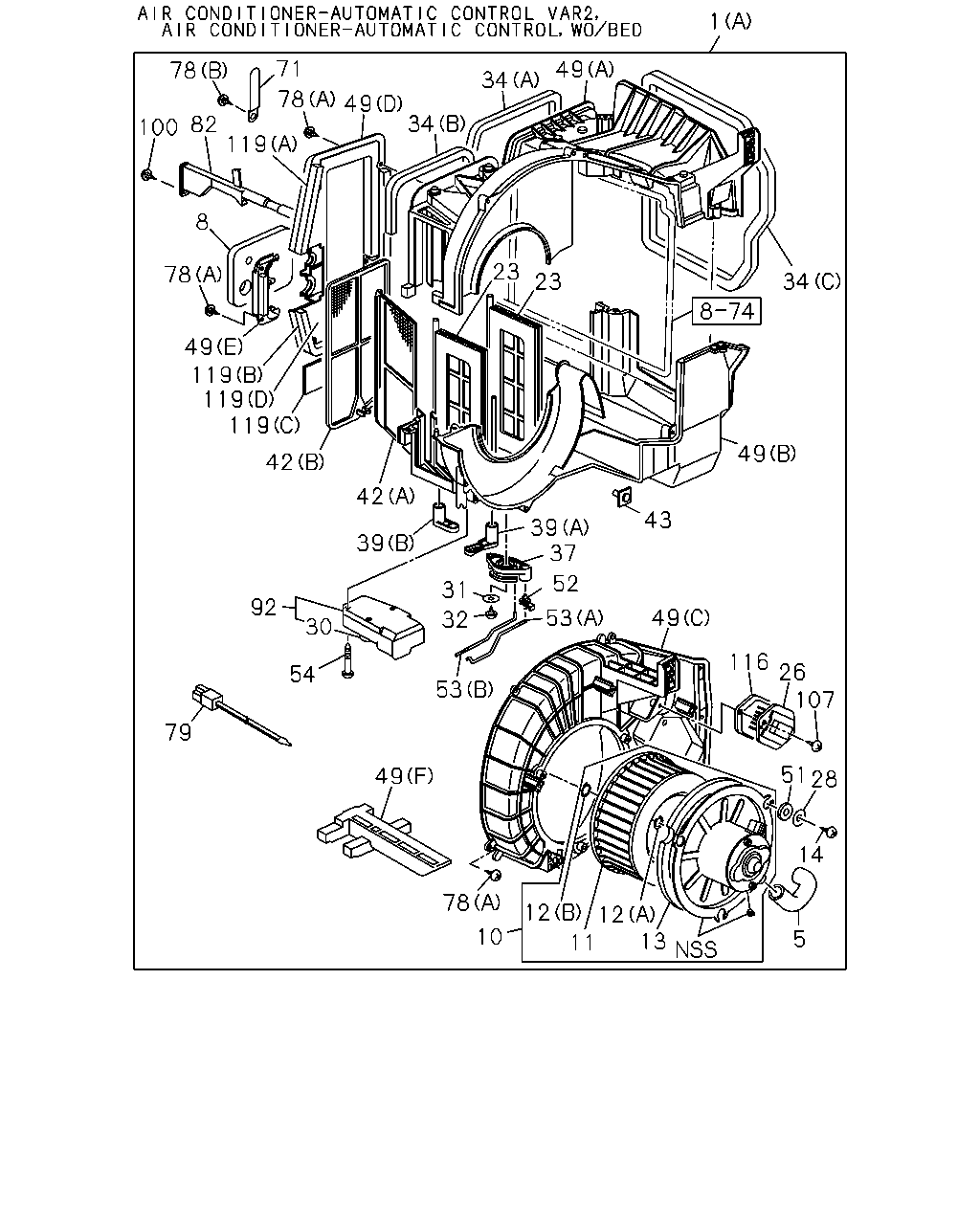

çizim 180369
1 49 34 34 49 78 71 78 100 82 119 8 78 49 119 119 119 42 42 39 92 30 54 79 49 53 32 31 53 52 37 39 43 49 34 23 23 49 116 26 107 28 51 14 5 13 12 11 12 10 78
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83561-154-5 01 1 0710-
1 BLOWER ASM
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83561-160-5 01 1 0710-
5 HOSE; AIR 1-83563-140-0 01 1 0710-
8 SEAL; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83539-261-1 01 1 0710-
8 SEAL; BLOWER UNIT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-801-1 01 1 0710-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0710-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0710-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0710-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0710-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0710-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0710-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0710-
26 TRANSISTOR; BLOWER UNIT 1-83579-654-0 01 1 0710-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0710-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0710-
31 WASHER; LEVER 1-83579-095-0 01 1 0710-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0710-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0710-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0710-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0710-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0710-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0710-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0710-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0710-
42 FILTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-993-0 02 1 0710-
43 BOLT; CASE 1-83579-657-2 04 1 0710-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0710-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0710-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0710-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0710-
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F) 		1-83564-340-1 01 1 0710-
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-406-1 01 1 0710-
49 CASE; BLOWER UNIT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-352-5 01 1 0710-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0710-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0710-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0710-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0710-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0710-
71 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83574-080-0 01 1 0710-
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 0710-
78 SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 0710-
79 SENSOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83544-037-0 01 1 0710-
82 BRACKET; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83571-871-1 01 1 0710-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0710-
100 SCREW; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16 		8-94324-850-0 01 1 0710-
107 SCREW; TRANSISTOR
M4X16 		8-94324-850-0 02 1 0710-
116 SEAL; TRANSISTOR 1-83579-656-0 01 1 0710-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0710-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0710-
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83578-032-0 01 1 0710-
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83579-961-0 01 1 0710-
119 LINING; CASE
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83579-839-0 02 1 0710-
