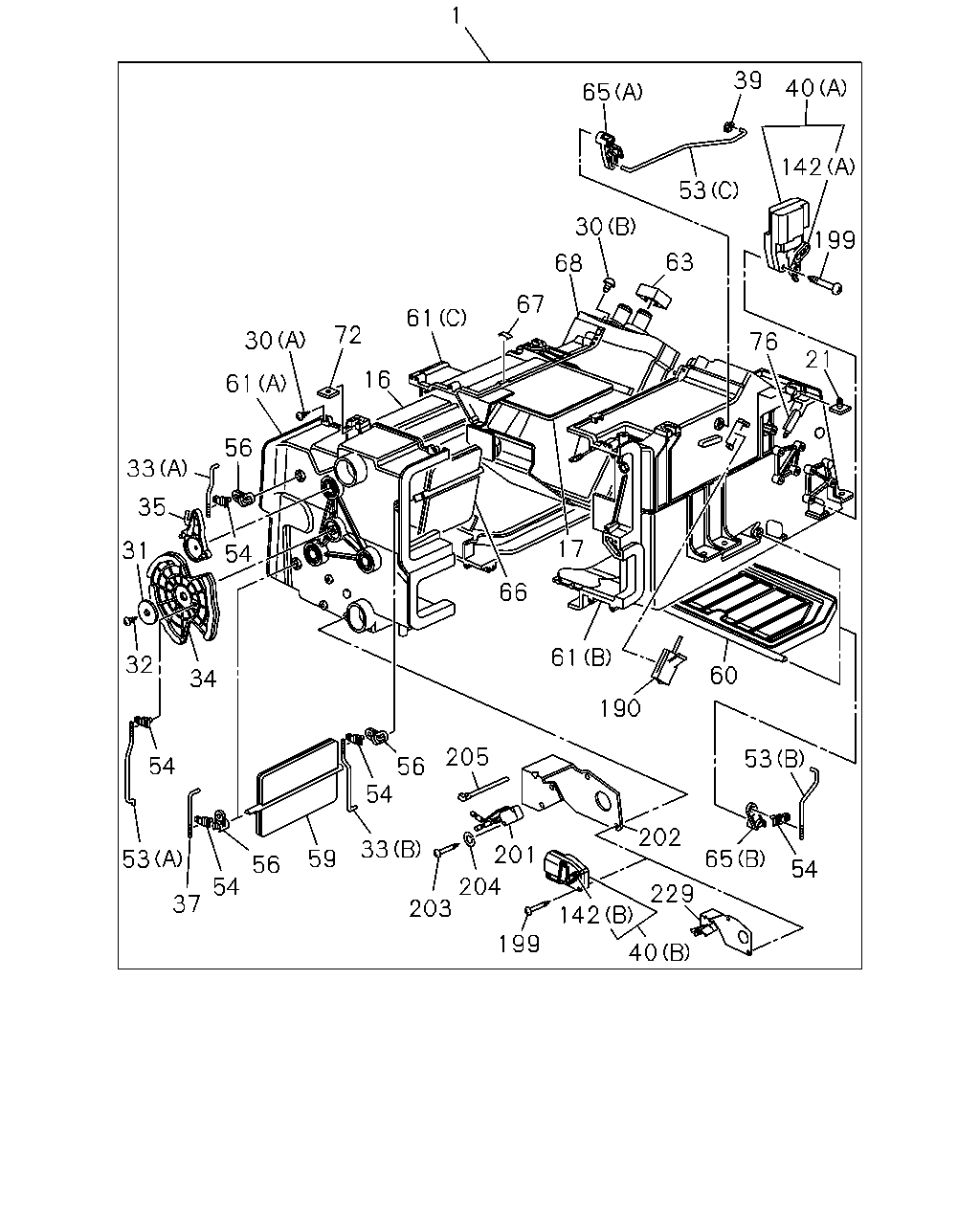

8-60 — HEATER UNIT; FRONT (#39726) — 54 parça

1 65 30 68 67 61 16 72 30 61 56 54 35 33 32 31 34 54 53 37 54 56 59 54 33 56 205 201 204 203 199 202 229 142 40 65 53 54 60 190 61 66 17 76 21 63 53 39 40 142 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83511-182-1	01	1	0710-1409
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98238-480-0	01	1	1410-
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83511-184-1	01	1	0710-1409
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98238-482-0	01	1	1410-
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-625-1	01	1	0710-
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-628-1	01	1	0710-
21	BOLT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	02	1	0710-
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	12	1	0710-
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X20	9-09829-324-1	01	1	0710-1409
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X16	8-94248-820-0	01	1	1410-
31	WASHER; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94129-950-0	01	1	0710-
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	0710-1409
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X16	8-94248-820-0	01	1	1410-
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-619-0	01	1	0710-
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-621-0	01	1	0710-
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-326-0	01	1	0710-
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94389-502-1	03	1	0710-
37	ROD; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-620-1	01	1	0710-
39	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-136-0	01	1	0710-
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-676-2	01	1	0710-
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-650-1	01	1	0710-
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-649-2	01	1	0710-
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-622-0	01	1	0710-
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-623-0	01	1	0710-
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-624-0	01	1	0710-
54	CLIP; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	05	1	0710-
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-325-0	03	1	0710-
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-626-2	01	1	0710-
60	DOOR; MIX,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83578-084-0	01	1	0710-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-323-5	01	1	0710-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-347-3	01	1	0710-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-346-3	01	1	0710-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-401-0	01	1	0710-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-402-0	01	1	0710-
63	LINING; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-557-0	02	1	0710-
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-327-0	01	1	0710-
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-328-1	01	1	0710-
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-680-0	01	1	0710-
67	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-148-0	01	1	0710-
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83562-078-1	01	1	0710-1409
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98238-475-0	01	1	1410-
72	NUT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-659-4	02	1	0710-
76	BRACKET; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-874-0	01	1	0710-
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-409-0	01	1	0710-
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-414-0	01	1	0710-
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-345-1	01	1	0710-
190	SENSOR; HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-658-1	01	1	0710-
199	SCREW; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	04	1	0710-
201	SWITCH; MICRO,HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-679-1	01	1	1410-
202	BRACKET; MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83571-907-1	01	1	1410-
203	SCREW; MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	5-83569-141-0	02	1	1410-
204	WASHER; LK,MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1	9-09150-503-0	02	1	1410-
205	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92	1-83574-159-0	01	1	1410-
229	SWITCH ASM; MICRO,HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-688-2	01	1	0710-1409
