Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#39721) — 384 parça

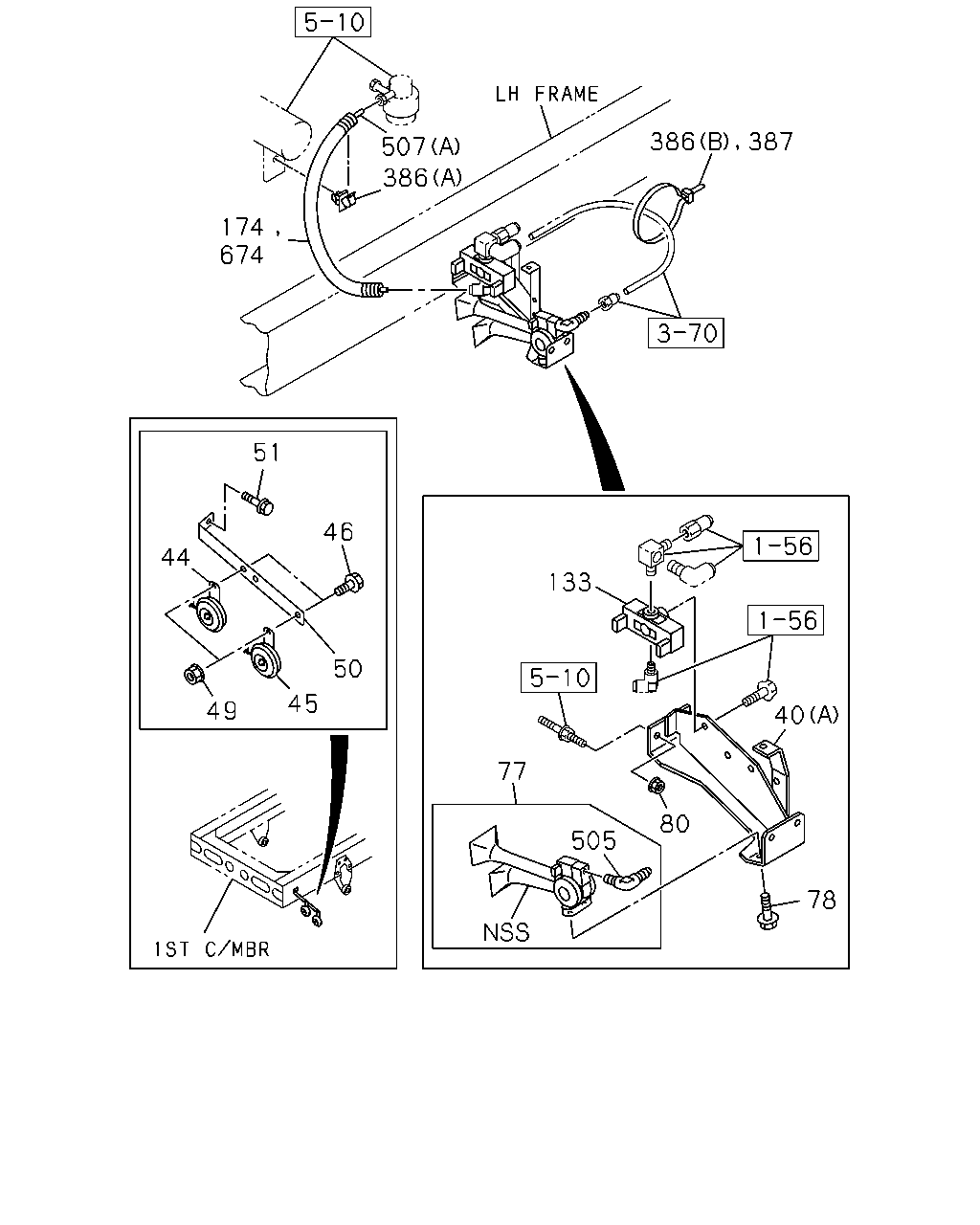

507 386 174 674 51 44 46 50 45 49 77 505 80 78 40 133 386 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (A)	1-53457-199-0	01	1	0710-1006
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	1007-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0710-
40	BRACKET; MAG VLV (B)	8-98072-918-0	01	1	0710-
40	BRACKET; MAG VLV (C)	8-98082-772-0	01	1	0710-
44	HORN; HIGH NOTE	1-83410-061-1	01	1	0710-
45	HORN; LOW NOTE	1-83410-062-1	01	1	0710-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0710-
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0710-
50	BRACKET; HORN	1-53457-196-0	01	1	0710-
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-
77	HORN ASM	1-83430-041-2	01	1	0710-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0710-
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0710-
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0710-
174	COVER L=800	1-83129-031-1	01	1	0710-
386	CLIP; HARNESS (B) L=350	1-09707-183-0	02	1	0710-
386	CLIP; HARNESS (A) ID=9.5	5-09709-020-0	01	1	0710-
387	CLIP; BAND L=350	1-09707-183-0	01	1	0710-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0710-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0710-
674	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-

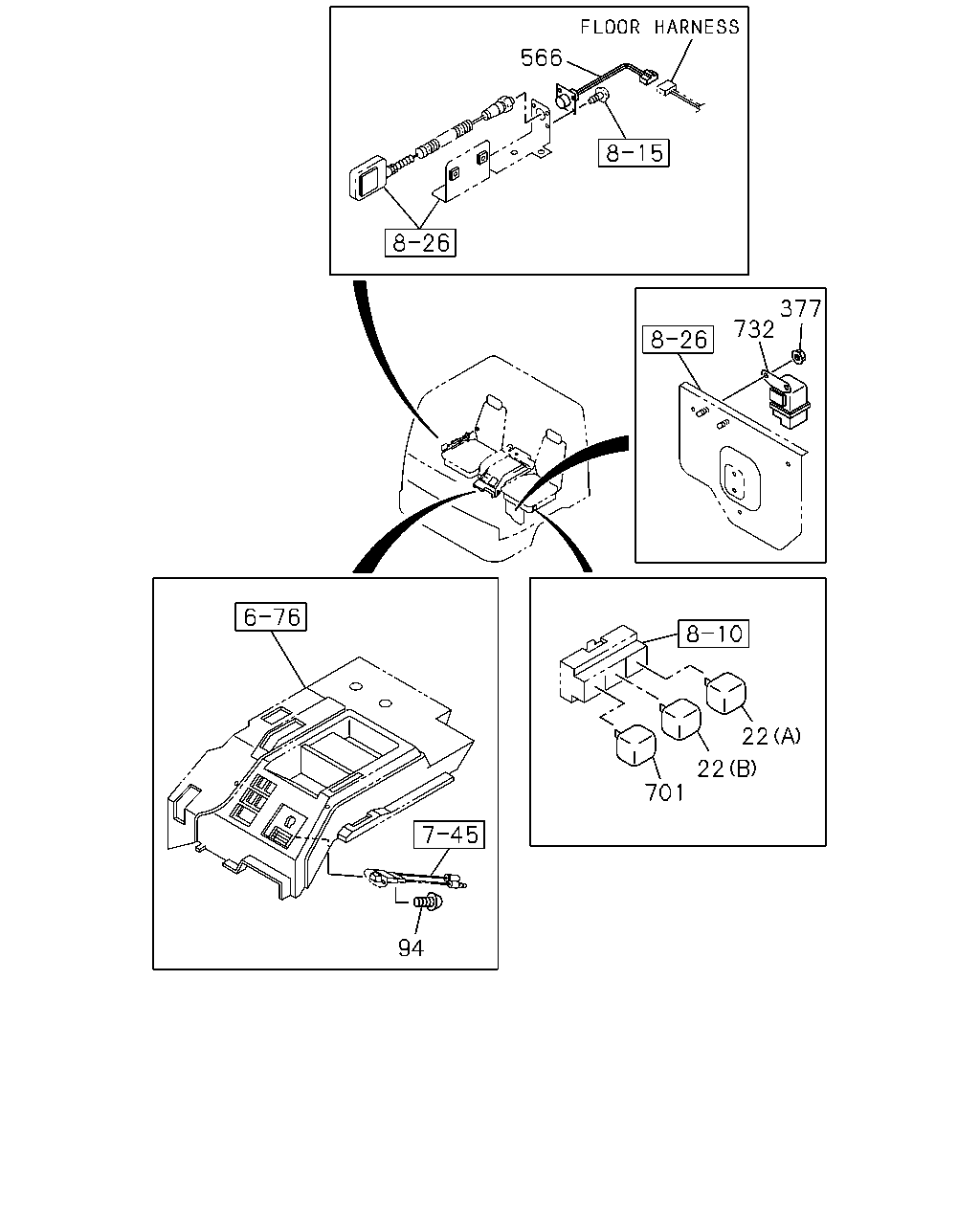

377 732 566 22 22 701 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0710-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0710-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0710-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0710-
701	RELAY; BRK,EBS 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
732	RELAY; EDS	1-82550-337-1	01	1	0710-

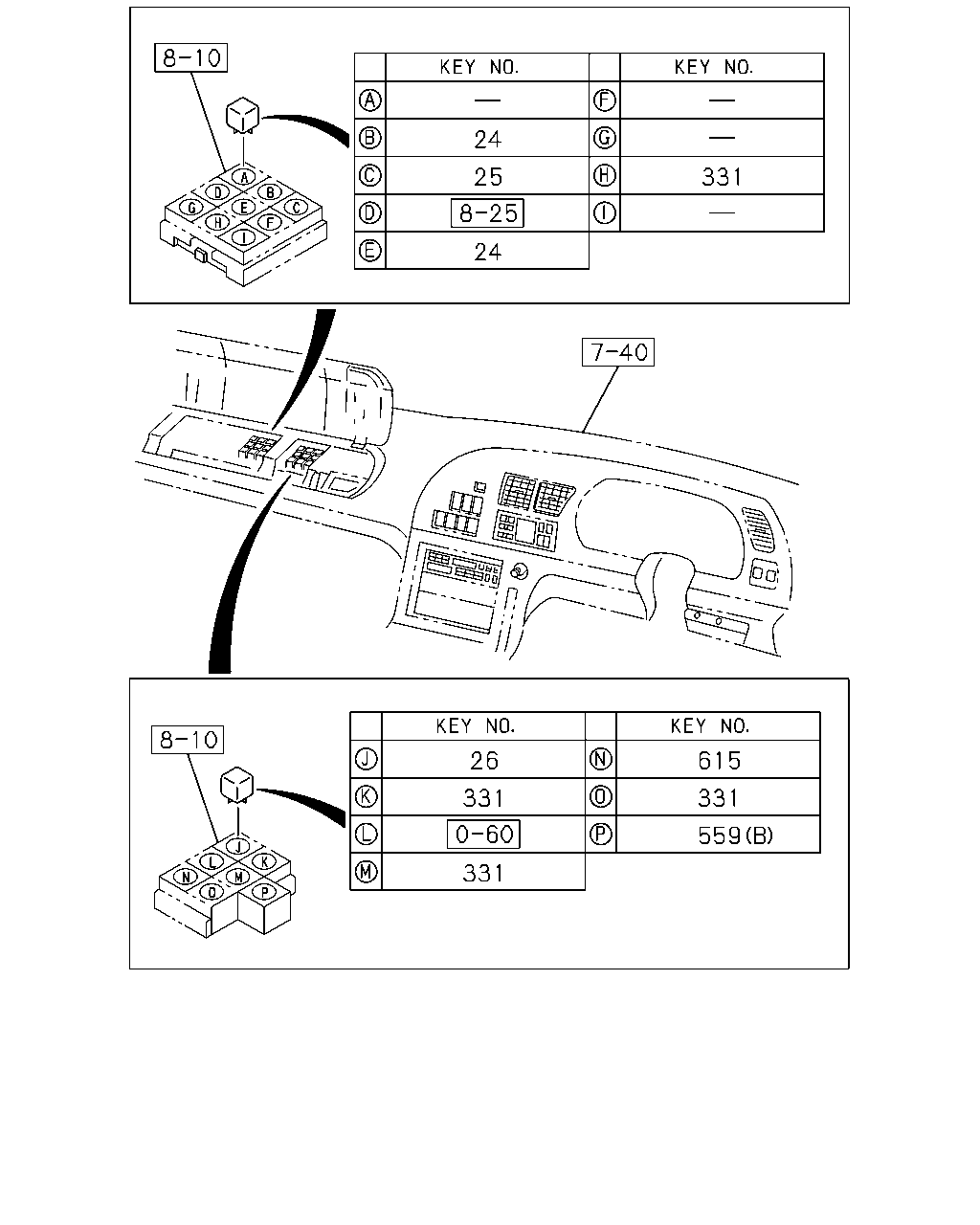

24 25 24 331 26 331 331 615 331 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-

667 721 88 88 88 88 424 89 88 298 40 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (A)	1-53457-199-0	01	1	0710-1006
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	1007-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0710-
40	BRACKET; MAG VLV (B)	8-98072-918-0	01	1	0710-
40	BRACKET; MAG VLV (C)	8-98082-772-0	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	07	1	0710-0808
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	06	1	0809-
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-
88	CONNECTOR; MAG VLV (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-
88	CONNECTOR; MAG VLV (I) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-
88	CONNECTOR; MAG VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0808
88	CONNECTOR; MAG VLV (J) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0809-
88	CONNECTOR; MAG VLV (D) PT3/8 3WAY	1-09661-300-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK (E)	1-82564-095-1	02	1	0710-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-354-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-407-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-872-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	0710-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	08	1	0710-
285	NUT; MAG VLV (C) M8 FLANGE	0-91180-108-0	02	1	0710-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M6 FLANGE	0-91180-106-0	01	1	0710-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M6 FLANGE	0-91180-106-0	02	1	0710-
298	NUT; MAG VLV M8 FLANGE	0-91180-108-0	04	1	0710-
424	ADAPTER PT3/8	1-09664-210-0	01	1	0710-
667	LUBRICATION	8-98063-001-0	01	1	0710-
721	ELEMENT; LUBRICATION	1-33779-028-0	01	1	0710-

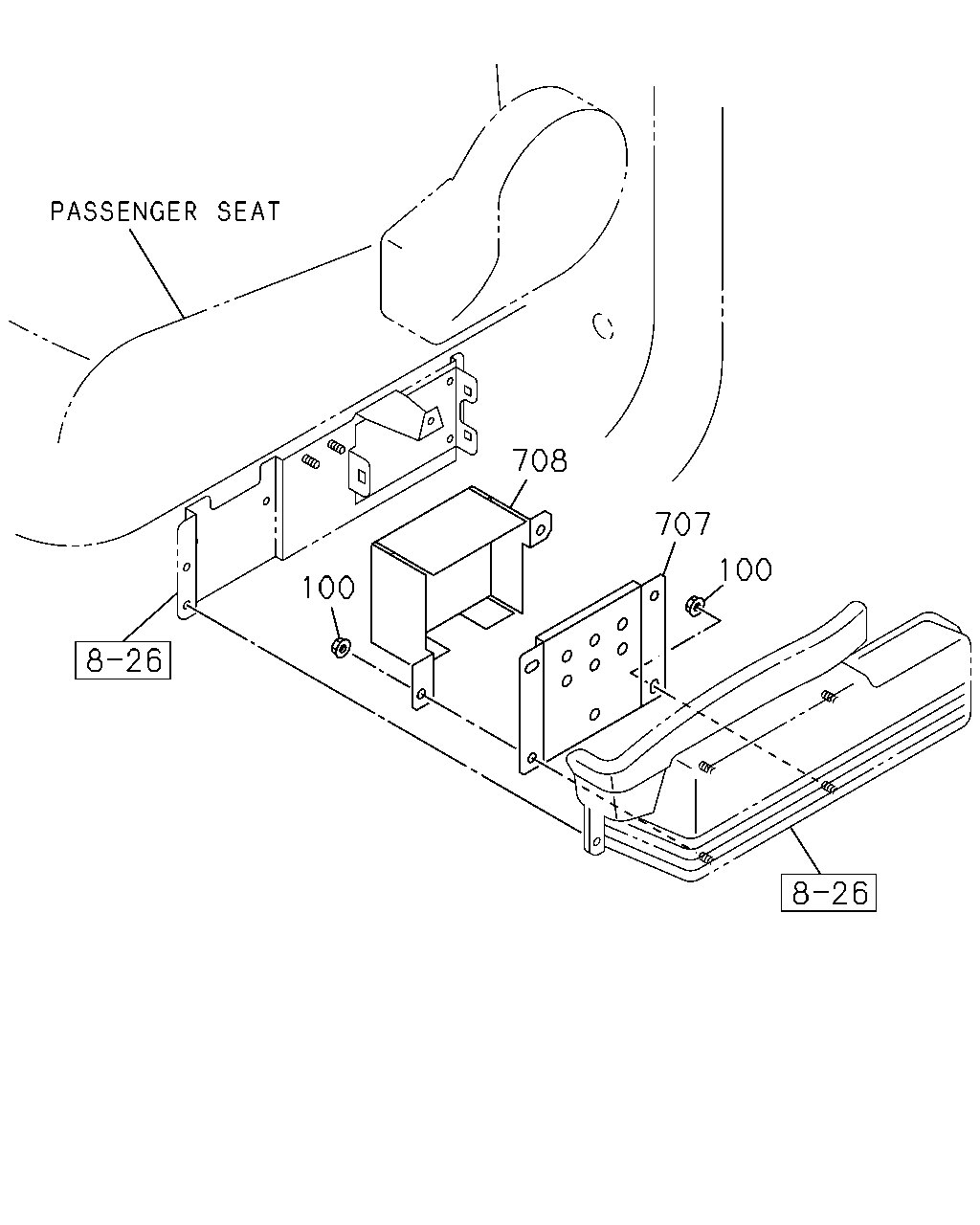

100 707 708 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	NUT; RELAY BOX COVER M6 FLANGE	0-91180-106-0	04	1	0710-
707	BOX; BASE BRKT	1-82510-603-1	01	1	0710-
708	COVER; BRKT	1-82510-604-1	01	1	0710-0902

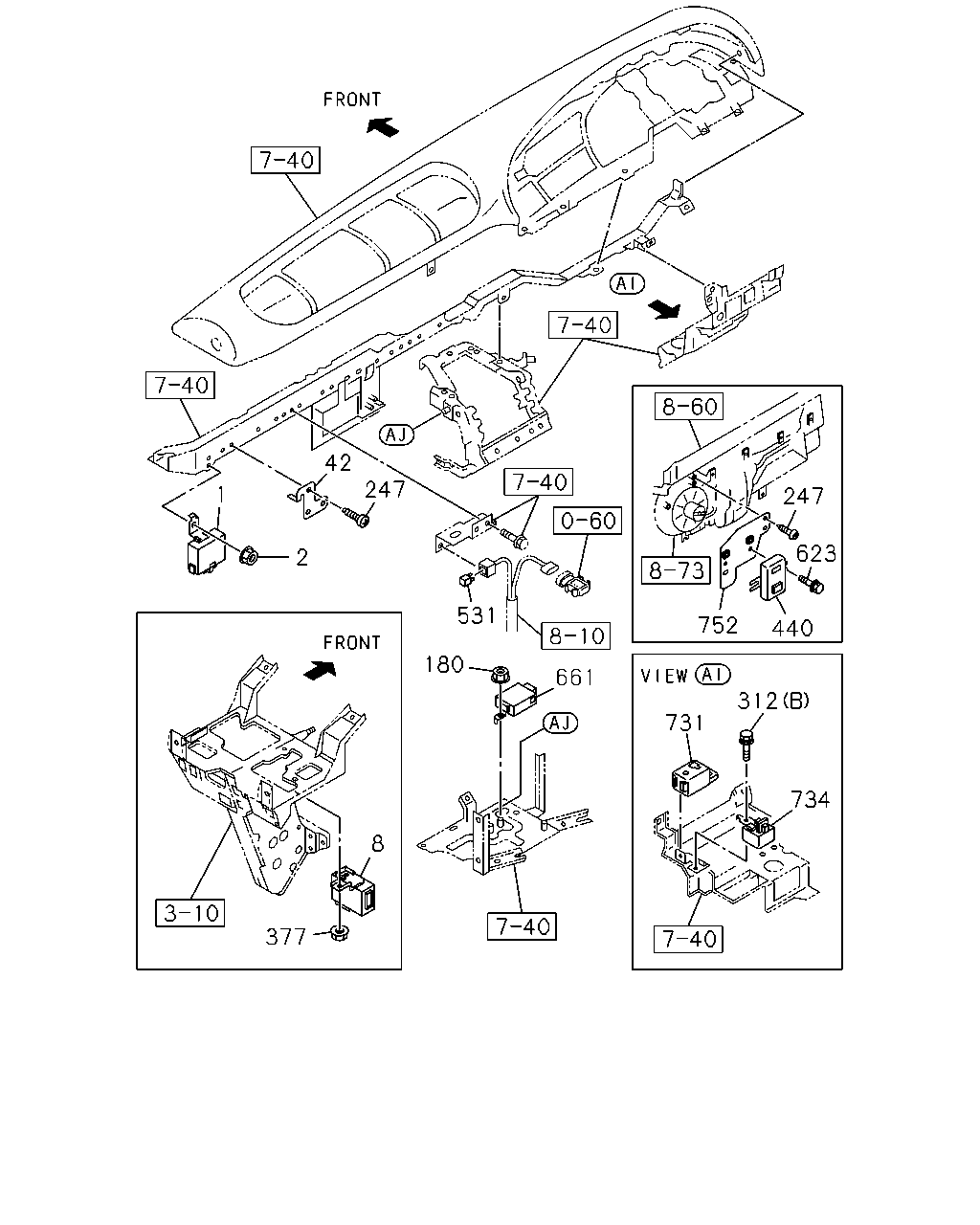

42 247 2 531 180 661 731 312 734 377 8 752 440 623 247 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0710-
8	RELAY; WIPER	1-83316-002-4	01	1	0710-
42	BRACKET; RELAY	1-82698-128-2	01	1	0710-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	02	1	0710-
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	0710-
247	SCREW; BRKT M5X14	8-94279-325-0	03	1	0710-
312	BOLT; BUZZER (A) M10X30 FLANGE	0-28651-030-0	01	1	0710-
312	BOLT; BUZZER (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0710-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0710-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0710-
531	RELAY; MAIN 24V	1-82550-308-1	01	1	0710-1005
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1006-
623	BOLT; MODULE M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0710-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0710-
731	ALARM; INFORMATION	1-83460-051-1	01	1	0710-
734	ALARM; MULTI	1-83460-106-0	01	1	0710-
752	BRACKET; MODULE	8-97611-710-0	01	1	0710-

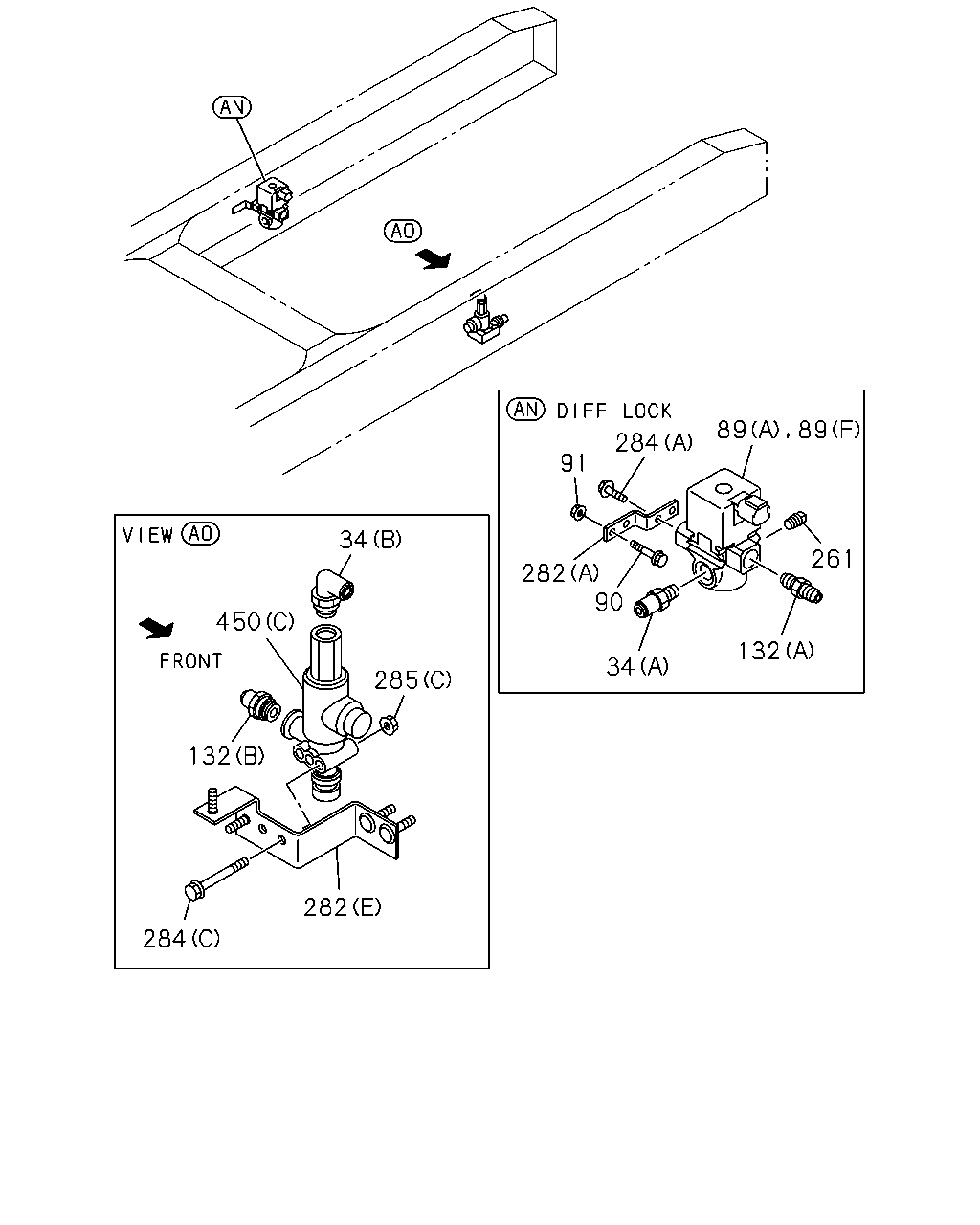

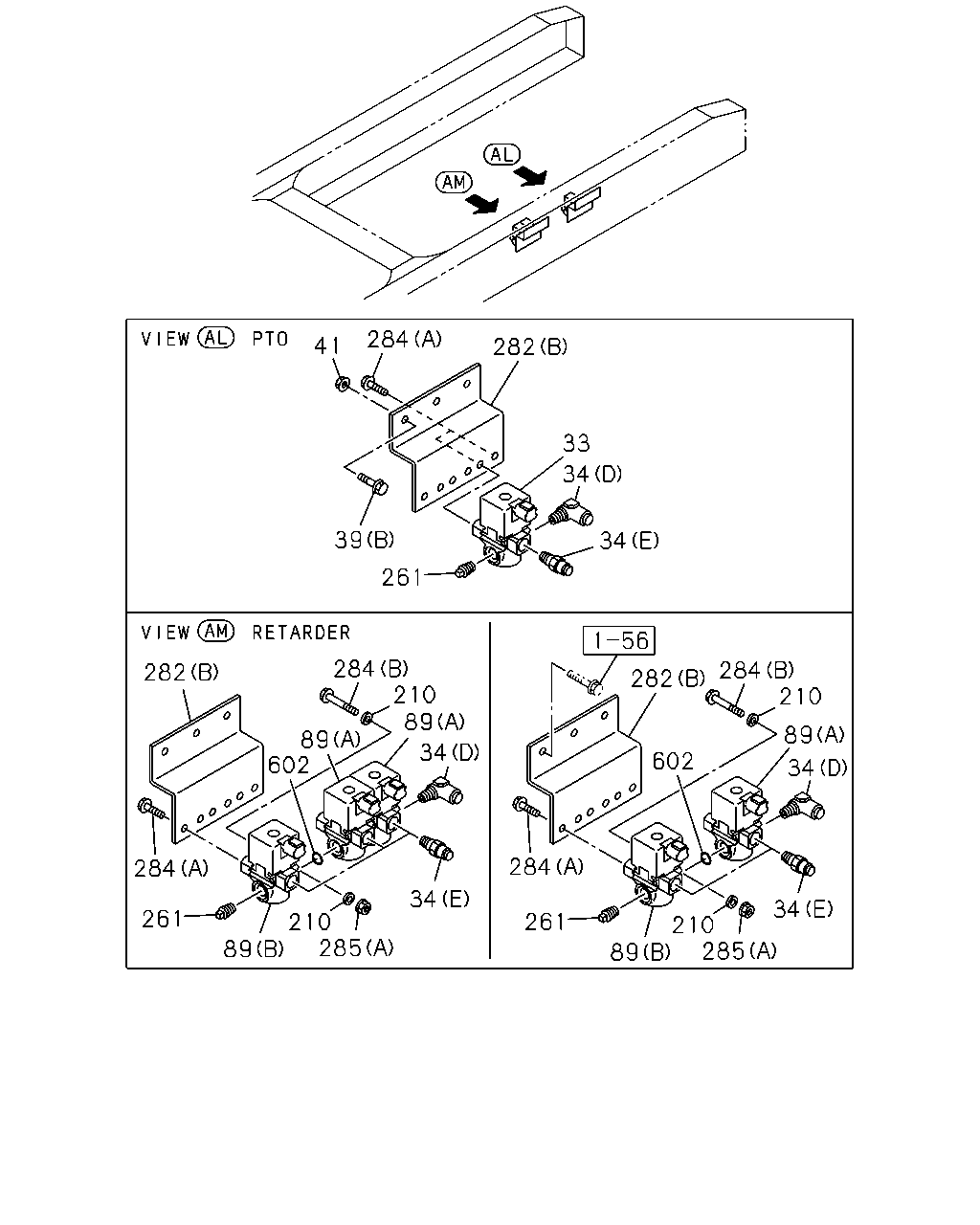

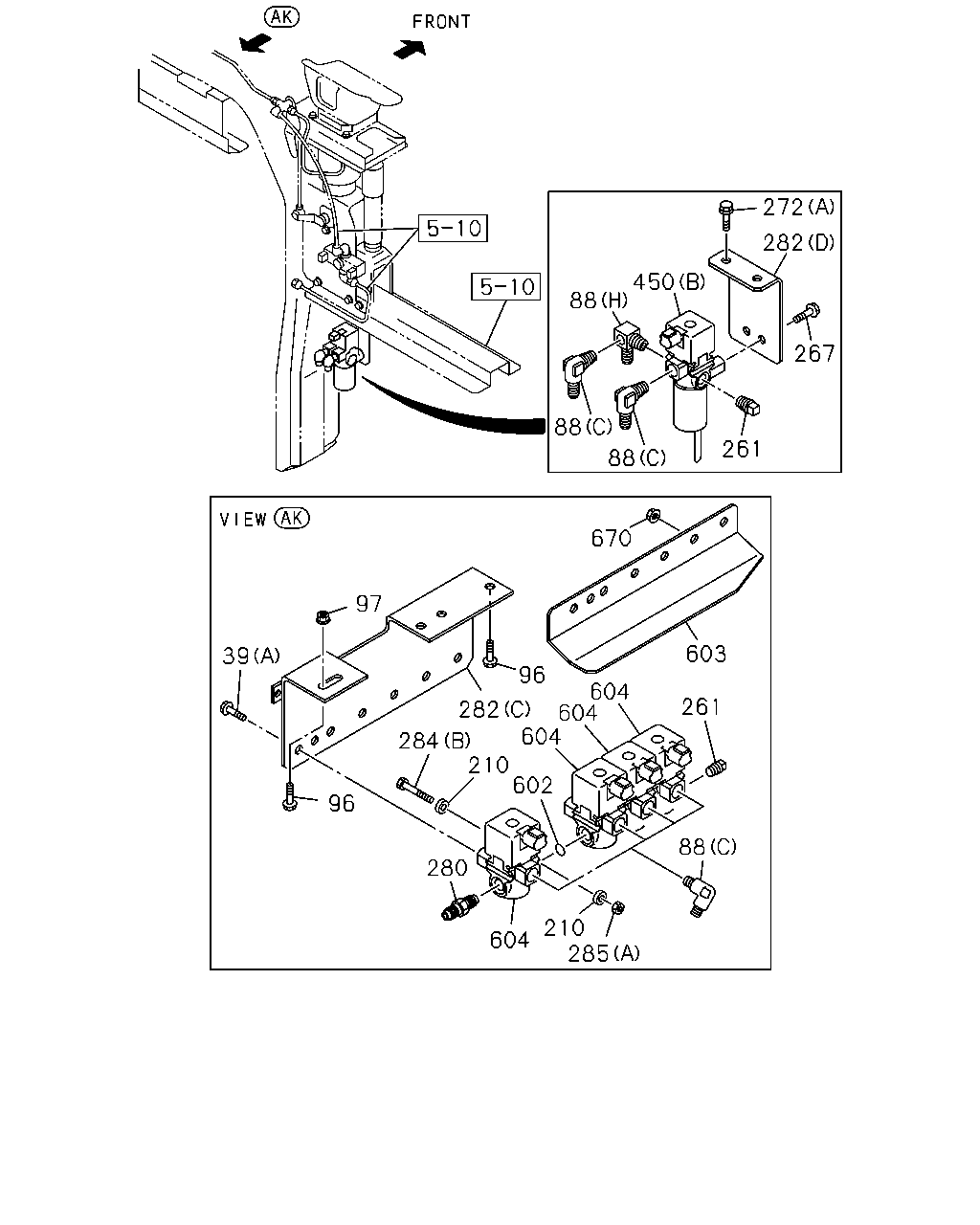

450 34 285 282 284 132 34 282 91 284 90 132 261 89 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	03	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK (E)	1-82564-095-1	02	1	0710-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-354-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-407-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-872-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	0710-
90	BOLT; MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	0710-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-
132	CONNECTOR; OUTLET,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-
132	CONNECTOR; OUTLET,MAG VLV (D) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-
132	CONNECTOR; OUTLET,MAG VLV (C) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	0710-
132	CONNECTOR; OUTLET,MAG VLV (B) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	0710-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	04	1	0710-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	0710-
282	BRACKET; MAG VLV (E)	8-98098-375-0	01	1	0710-
282	BRACKET; MAG VLV (A)	1-82569-278-0	01	1	0710-
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	0710-
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	0710-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	8-98072-382-0	01	1	0710-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	8-98072-382-0	01	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	08	1	0710-
284	BOLT; MAG VLV (C) M8X60 FLANGE	0-28050-860-0	02	1	0710-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	08	1	0710-
285	NUT; MAG VLV (C) M8 FLANGE	0-91180-108-0	02	1	0710-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M6 FLANGE	0-91180-106-0	01	1	0710-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M6 FLANGE	0-91180-106-0	02	1	0710-
450	VALVE; MAG (C)	1-48240-345-0	01	1	0710-
450	VALVE; MAG (A)	1-53458-378-2	01	1	0710-
450	VALVE; MAG (B)	8-97376-939-3	01	1	0710-0910
450	VALVE; MAG (B)	8-97633-075-0	01	1	0911-

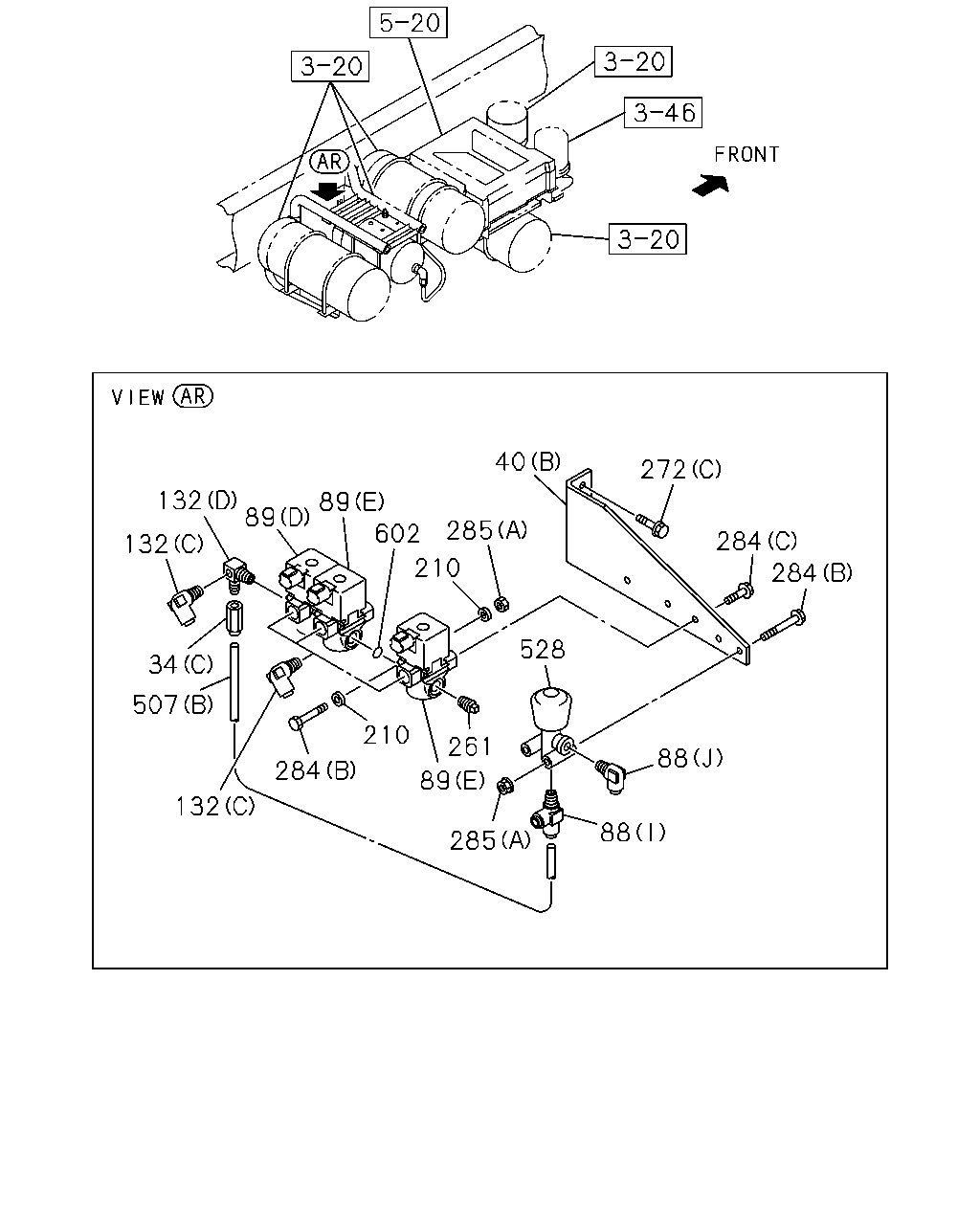

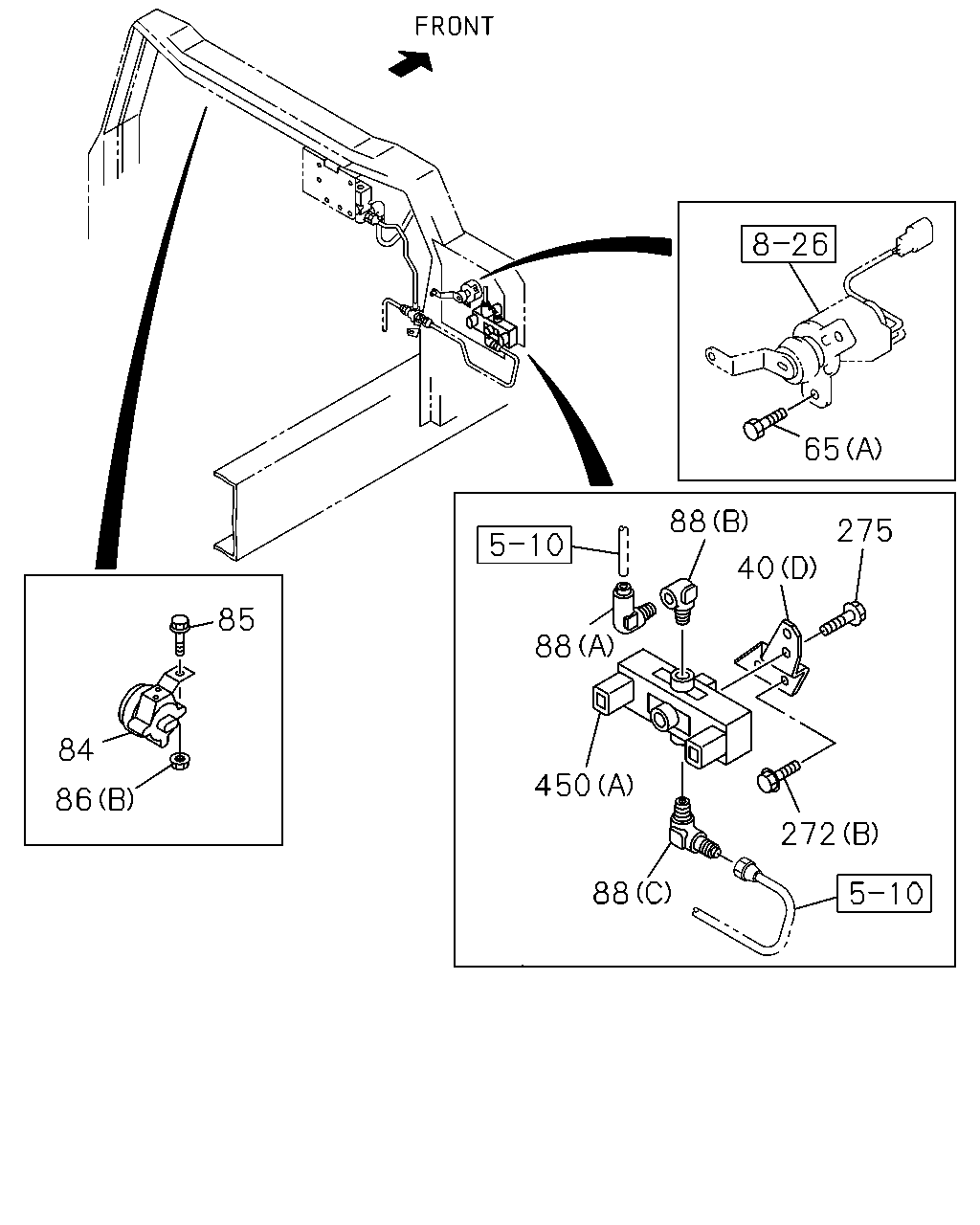

65 88 275 40 85 88 84 450 86 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (A)	1-53457-199-0	01	1	0710-1006
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	1007-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0710-
40	BRACKET; MAG VLV (B)	8-98072-918-0	01	1	0710-
40	BRACKET; MAG VLV (C)	8-98082-772-0	01	1	0710-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	06	1	1005-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0710-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0710-
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0710-
86	NUT; BUZZER (A) M10 FLANGE	0-91180-210-0	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	07	1	0710-0808
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	06	1	0809-
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-
88	CONNECTOR; MAG VLV (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-
88	CONNECTOR; MAG VLV (I) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-
88	CONNECTOR; MAG VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0808
88	CONNECTOR; MAG VLV (J) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0809-
88	CONNECTOR; MAG VLV (D) PT3/8 3WAY	1-09661-300-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
272	BOLT; MAG VLV (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-
272	BOLT; MAG VLV (C) M8X30 FLANGE	0-28650-830-0	02	1	0710-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
275	BOLT; BRKT M8X14 FLANGE	0-28080-814-0	01	1	0710-
450	VALVE; MAG (C)	1-48240-345-0	01	1	0710-
450	VALVE; MAG (A)	1-53458-378-2	01	1	0710-
450	VALVE; MAG (B)	8-97376-939-3	01	1	0710-0910
450	VALVE; MAG (B)	8-97633-075-0	01	1	0911-

117 115 116 86 200 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0710-
86	NUT; BUZZER (A) M10 FLANGE	0-91180-210-0	01	1	0710-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0710-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0710-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0710-
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	0710-
312	BOLT; BUZZER (A) M10X30 FLANGE	0-28651-030-0	01	1	0710-
312	BOLT; BUZZER (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-

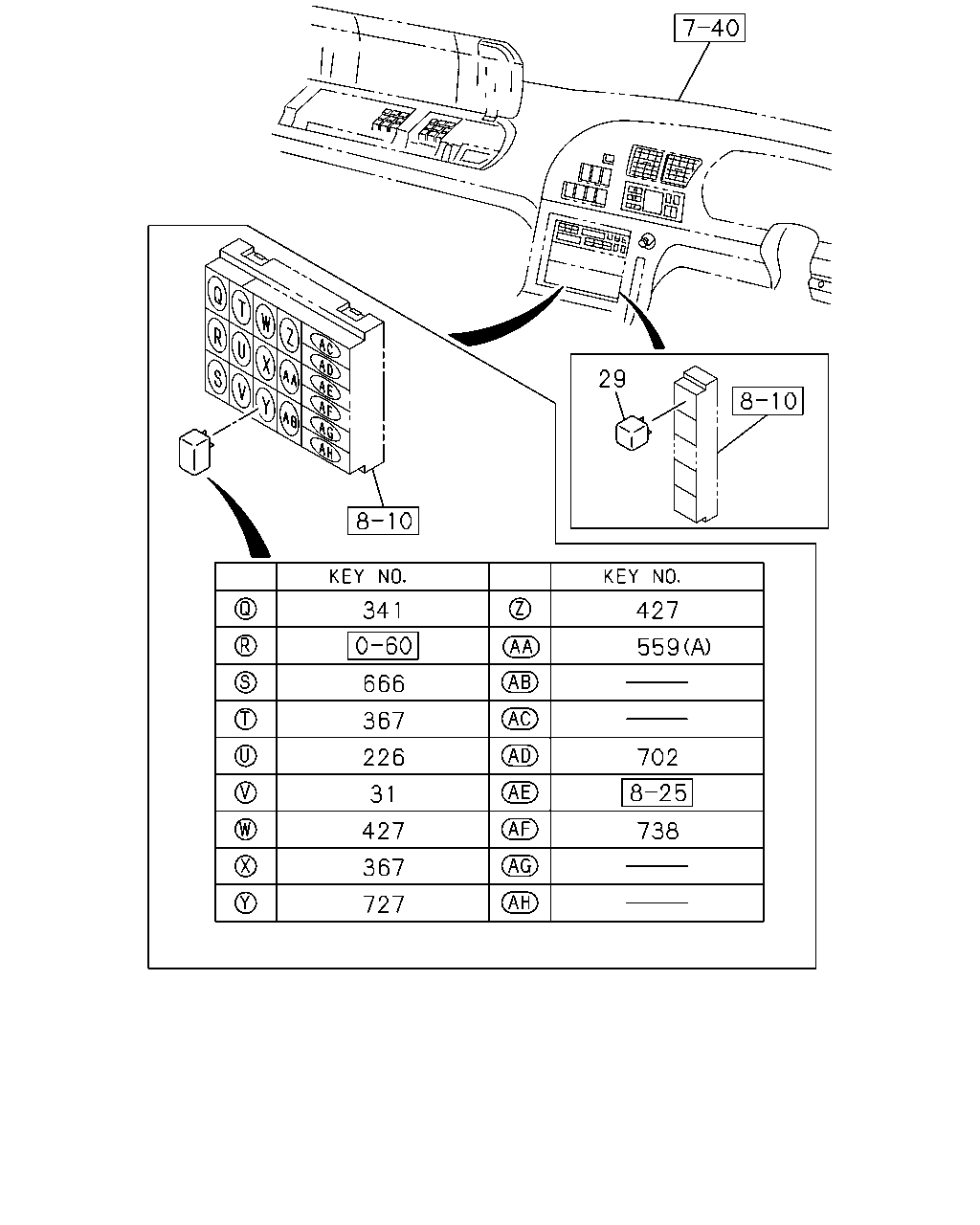

29 341 427 559 666 367 226 702 31 427 738 367 727

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 10A PANASONIC	8-97173-035-1	02	1	0710-
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
666	RELAY; STARTER 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
702	RELAY; EBS 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0710-1306
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0710-

282 41 284 39 261 33 34 34 282 284 210 89 34 602 34 210 285 89 261 284 34 285 210 89 261 284 602 89 282 284 210 89 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2>	1-82563-871-2	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	03	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0710-
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK (E)	1-82564-095-1	02	1	0710-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-354-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-407-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-872-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	12	1	0710-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0710-
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0710-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	04	1	0710-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	0710-
282	BRACKET; MAG VLV (E)	8-98098-375-0	01	1	0710-
282	BRACKET; MAG VLV (A)	1-82569-278-0	01	1	0710-
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	0710-
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	0710-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	8-98072-382-0	01	1	0710-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	8-98072-382-0	01	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	08	1	0710-
284	BOLT; MAG VLV (C) M8X60 FLANGE	0-28050-860-0	02	1	0710-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	08	1	0710-
285	NUT; MAG VLV (C) M8 FLANGE	0-91180-108-0	02	1	0710-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M6 FLANGE	0-91180-106-0	01	1	0710-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M6 FLANGE	0-91180-106-0	02	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	06	1	0710-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0710-
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0710-

132 132 34 507 132 284 210 261 89 285 88 88 528 210 602 89 89 285 40 272 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	03	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-
40	BRACKET; MAG VLV (A)	1-53457-199-0	01	1	0710-1006
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	1007-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0710-
40	BRACKET; MAG VLV (B)	8-98072-918-0	01	1	0710-
40	BRACKET; MAG VLV (C)	8-98082-772-0	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	07	1	0710-0808
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	06	1	0809-
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-
88	CONNECTOR; MAG VLV (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-
88	CONNECTOR; MAG VLV (I) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-
88	CONNECTOR; MAG VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0808
88	CONNECTOR; MAG VLV (J) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0809-
88	CONNECTOR; MAG VLV (D) PT3/8 3WAY	1-09661-300-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK (E)	1-82564-095-1	02	1	0710-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-354-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-407-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-872-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	0710-
132	CONNECTOR; OUTLET,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-
132	CONNECTOR; OUTLET,MAG VLV (D) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-
132	CONNECTOR; OUTLET,MAG VLV (C) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	0710-
132	CONNECTOR; OUTLET,MAG VLV (B) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	12	1	0710-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0710-
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0710-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	04	1	0710-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	0710-
272	BOLT; MAG VLV (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-
272	BOLT; MAG VLV (C) M8X30 FLANGE	0-28650-830-0	02	1	0710-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	08	1	0710-
284	BOLT; MAG VLV (C) M8X60 FLANGE	0-28050-860-0	02	1	0710-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	08	1	0710-
285	NUT; MAG VLV (C) M8 FLANGE	0-91180-108-0	02	1	0710-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M6 FLANGE	0-91180-106-0	01	1	0710-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M6 FLANGE	0-91180-106-0	02	1	0710-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0710-
528	VALVE; PRESSURE REDUCING	1-48410-737-0	01	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	06	1	0710-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0710-
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0710-

635 717 289 718 724 722 718 290 717

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT M8X35 FLANGE	0-28650-835-0	02	1	0710-
290	NUT M8 FLANGE	0-91180-108-0	04	1	0710-
635	SENSOR; PICK UP,INPUT SHAFT	1-81510-736-1	01	1	0710-
717	FILTER; MAG VLV	8-98092-703-0	01	1	0710-
718	CONNECTOR; FILTER DIN8 & M16 ELBOW	1-09661-531-0	02	1	0710-
722	ELEMENT; AIR FILTER	1-33779-040-0	01	1	0710-
724	GASKET; AIR FILTER	5-09623-075-0	01	1	0710-

272 282 450 88 88 88 261 267 670 603 261 604 604 604 602 210 284 282 96 97 39 96 280 604 210 285 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	07	1	0710-0808
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	06	1	0809-
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-
88	CONNECTOR; MAG VLV (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-
88	CONNECTOR; MAG VLV (I) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-
88	CONNECTOR; MAG VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0808
88	CONNECTOR; MAG VLV (J) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0809-
88	CONNECTOR; MAG VLV (D) PT3/8 3WAY	1-09661-300-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	0710-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	03	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	12	1	0710-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0710-
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0710-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	04	1	0710-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	0710-
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-
272	BOLT; MAG VLV (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-
272	BOLT; MAG VLV (C) M8X30 FLANGE	0-28650-830-0	02	1	0710-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-
282	BRACKET; MAG VLV (E)	8-98098-375-0	01	1	0710-
282	BRACKET; MAG VLV (A)	1-82569-278-0	01	1	0710-
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	0710-
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	0710-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	8-98072-382-0	01	1	0710-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	8-98072-382-0	01	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	08	1	0710-
284	BOLT; MAG VLV (C) M8X60 FLANGE	0-28050-860-0	02	1	0710-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	08	1	0710-
285	NUT; MAG VLV (C) M8 FLANGE	0-91180-108-0	02	1	0710-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M6 FLANGE	0-91180-106-0	01	1	0710-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M6 FLANGE	0-91180-106-0	02	1	0710-
450	VALVE; MAG (C)	1-48240-345-0	01	1	0710-
450	VALVE; MAG (A)	1-53458-378-2	01	1	0710-
450	VALVE; MAG (B)	8-97376-939-3	01	1	0710-0910
450	VALVE; MAG (B)	8-97633-075-0	01	1	0911-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	06	1	0710-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0710-
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0710-
603	PROTECTOR; MAG VLV	8-98076-312-1	01	1	0710-
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	0710-
670	NUT; PROTECTOR M8 FLANGE	0-91180-108-0	01	1	0710-

64 65 299 66 65 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	1005-
64	SOCKET; TRAILER (B)	1-82698-363-0	01	1	1005-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	06	1	1005-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1005-
299	SOCKET; PARKING	1-82699-396-2	01	1	1005-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
