Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#3972) — 723 parça

382 383 382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
382	BRACKET; PARKING BRK CONT CABLE PARKING BRAKE DRUM 10"(B1T)	1-46147-109-1	01	1	9510-	●	●	●
382	BRACKET; PARKING BRK CONT CABLE PARKING BRAKE DRUM 10"(B1T)	1-46147-105-1	01	1	9510-				●	●
383	BOLT; BRKT,PARK BRAKE PARKING BRAKE DRUM 10"(B1T) M10X22 FLANGE	0-28181-022-0	03	1	9510-9802	●	●	●		●
383	BOLT; BRKT,PARK BRAKE PARKING BRAKE DRUM 10"(B1T) M10X22 FLANGE	0-28181-022-0	03	1	9803-	●	●	●	●	●

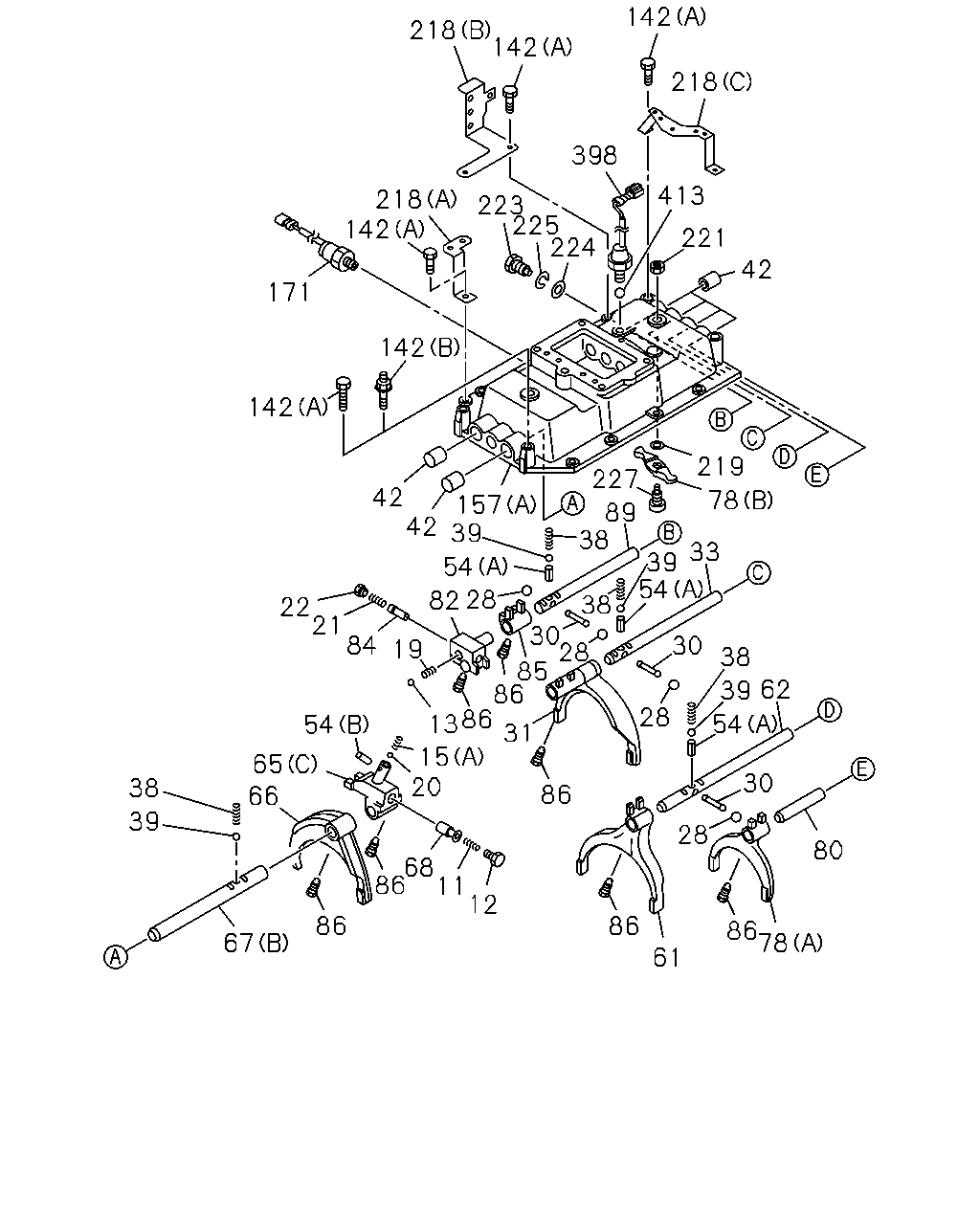

142 218 142 218 398 413 218 142 223 225 224 221 42 171 142 142 219 227 42 42 78 157 39 89 38 39 54 33 54 38 22 21 84 30 28 30 19 38 85 86 13 86 28 54 54 31 15 20 65 30 38 86 66 39 28 80 68 86 11 12 86 86 86 78 67 61 82 28 39 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9510-	●	●	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9510-				●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9510-9604	●	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-9604				●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9605-	●	●	●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9510-	●	●	●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9510-9510	●	●		●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9511-9702	●	●	●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9703-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9510-				●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	9703-				●	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9510-	●	●	●
19	SPRING; COIL COMP	1-09580-531-0	01	1	9510-				●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9510-	●	●	●	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9510-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9510-				●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9510-	●	●	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9510-	●	●	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9510-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9510-				●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9510-1202	●	●	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9510-1202				●	●
33	ROD; SHIFT,LOW & 2ND	8-98207-577-0	01	1	1203-				●	●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9510-	●	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	9510-				●	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9510-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9510-	●	●	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9510-	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9510-				●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9510-	●	●	●	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9510-0201	●	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9510-	●	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-2	01	1	9510-				●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9510-1202	●	●	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9510-1202				●	●
62	ROD; SHIFT,3RD & 4TH	8-98207-585-0	01	1	1203-				●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-357-1	01	1	9510-9602	●	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	9603-	●	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-331-3	01	1	9510-				●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	9511-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	9511-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9510-		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9510-				●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	9511-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	9510-1202	●	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●	●	●
67	ROD; SHIFT,5TH & 6TH (C) L=407	1-33531-248-0	01	1	9510-1202				●	●
67	ROD; SHIFT,5TH & 6TH (C) L=407	8-98207-588-0	01	1	1203-				●	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	9511-1202	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9510-	●	●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9510-	●	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9510-	●	●	●
78	ARM; SHIFT,REV (C)	1-33511-232-5	01	1	9510-				●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9510-1202	●	●	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9510-	●	●	●
84	SLEEVE; REV	1-33516-025-0	01	1	9510-	●	●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9510-	●	●	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9510-9512		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9601-		●	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9510-9512	●			●	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	9601-	●			●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9510-1202	●	●	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9510-0805	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	9510-9802	●	●	●	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28181-060-0	03	1	9803-0512	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	9803-0512				●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-				●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9510-0805	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9510-9802	●	●	●	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9803-	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9803-				●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28181-060-0	04	1	9803-0512	●	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9510-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9510-9802	●	●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9803-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9510-9603	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9510-9601				●	●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-				●	●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9510-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9511-9601	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9510-9510		●			●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9511-0702	●	●	●	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●	●	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●	●	●	●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●	●	●	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9510-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9510-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9510-	●	●	●	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9510-	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9510-0602	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9510-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9510-0605	●	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9510-0603	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9510-	●	●	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9510-9510		●			●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9511-0602	●	●	●	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●	●	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9510-	●	●	●	●	●

142 218 218 142 398 42 42 42 42 413 171 142 218 142 142 42 42 42 67 38 39 157 38 54 39 33 28 30 51 28 54 30 28 12 11 55 66 38 39 31 54 62 30 28 15 20 76 38 86 39 75 61 65 15 13 77 11 22 75 87 78 88 8 6 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	9803-	●	●	●
6	LEVER; RELAY	1-33511-009-1	01	1	9510-				●	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9510-0004				●	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-				●	●
8	SPINDLE; REV & 7TH	9-33513-022-1	01	1	9510-				●	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9510-				●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9510-	●	●	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9510-				●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9510-9604	●	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-9604				●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9605-	●	●	●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9510-	●	●	●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9510-9510	●	●		●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9511-9702	●	●	●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9703-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9510-				●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	9703-				●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9510-	●	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9510-				●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9510-	●	●	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9510-	●	●	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9510-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9510-				●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9510-1202	●	●	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9510-1202				●	●
33	ROD; SHIFT,LOW & 2ND	8-98207-577-0	01	1	1203-				●	●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9510-	●	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	9510-				●	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9510-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9510-	●	●	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9510-	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9510-				●	●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-311-2	01	1	9510-				●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9510-	●	●	●	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9510-0201	●	●	●
55	SLEEVE; 1ST & 2ND	1-33516-025-0	01	1	9510-				●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9510-	●	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-2	01	1	9510-				●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9510-1202	●	●	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9510-1202				●	●
62	ROD; SHIFT,3RD & 4TH	8-98207-585-0	01	1	1203-				●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-357-1	01	1	9510-9602	●	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	9603-	●	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-331-3	01	1	9510-				●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	9511-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	9511-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9510-		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9510-				●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	9511-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	9510-1202	●	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●	●	●
67	ROD; SHIFT,5TH & 6TH (C) L=407	1-33531-248-0	01	1	9510-1202				●	●
67	ROD; SHIFT,5TH & 6TH (C) L=407	8-98207-588-0	01	1	1203-				●	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	9511-1202	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-	●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-202-3	01	1	9510-				●	●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-309-1	01	1	9510-				●	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-249-0	01	1	9510-1202				●	●
76	ROD; SHIFT,REV & 7TH BLOCK	8-98207-591-0	01	1	1203-				●	●
77	SLEEVE; REV & 7TH	1-33516-025-0	01	1	9510-				●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9510-	●	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9510-	●	●	●
78	ARM; SHIFT,REV (C)	1-33511-232-5	01	1	9510-				●	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9510-9512		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9601-		●	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9510-9512	●			●	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	9601-	●			●	●
87	ARM; SHIFT,7TH	1-33511-229-4	01	1	9510-				●	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-250-0	01	1	9510-1202				●	●
88	ROD; SHIFT,REV & 7TH ARM	8-98207-592-0	01	1	1203-				●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9510-0805	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	9510-9802	●	●	●	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28181-060-0	03	1	9803-0512	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	9803-0512				●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-				●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9510-0805	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9510-9802	●	●	●	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9803-	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9803-				●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28181-060-0	04	1	9803-0512	●	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9510-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9510-9802	●	●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9803-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9510-9603	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9510-9601				●	●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-				●	●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9510-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9511-9601	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9510-9510		●			●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9511-0702	●	●	●	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●	●	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●	●	●	●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●	●	●	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9510-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9510-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9510-	●	●	●	●	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9510-9510		●			●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9511-0602	●	●	●	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●	●	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9510-	●	●	●	●	●

296 292 295 167 292 296 293 188 187 433 317 292 292 181 335 315 317 433 324 274 319 285 271 321 157 289 323 271 289 277 277 280 282 19 275 281 284 276 272 298 163 130 306

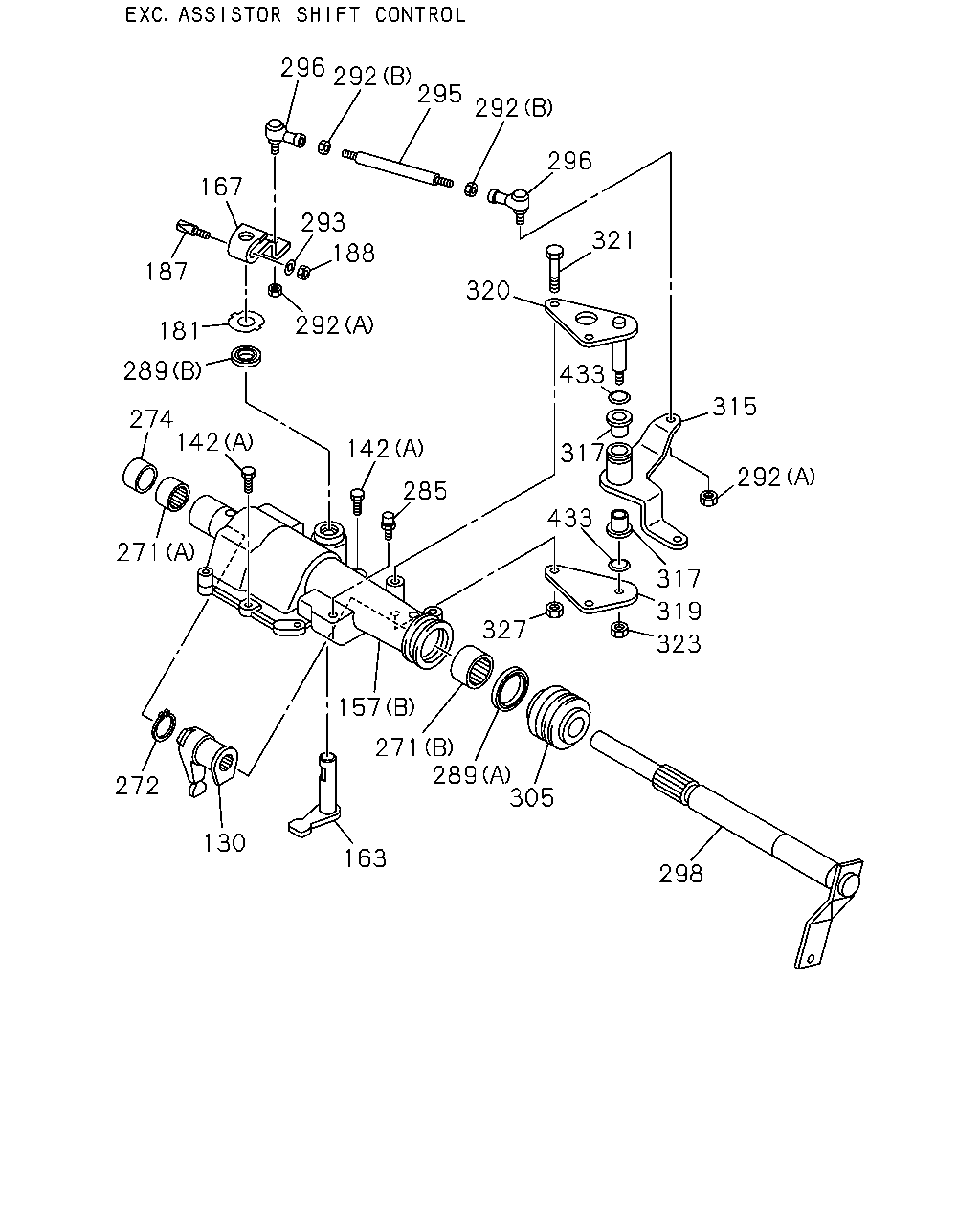

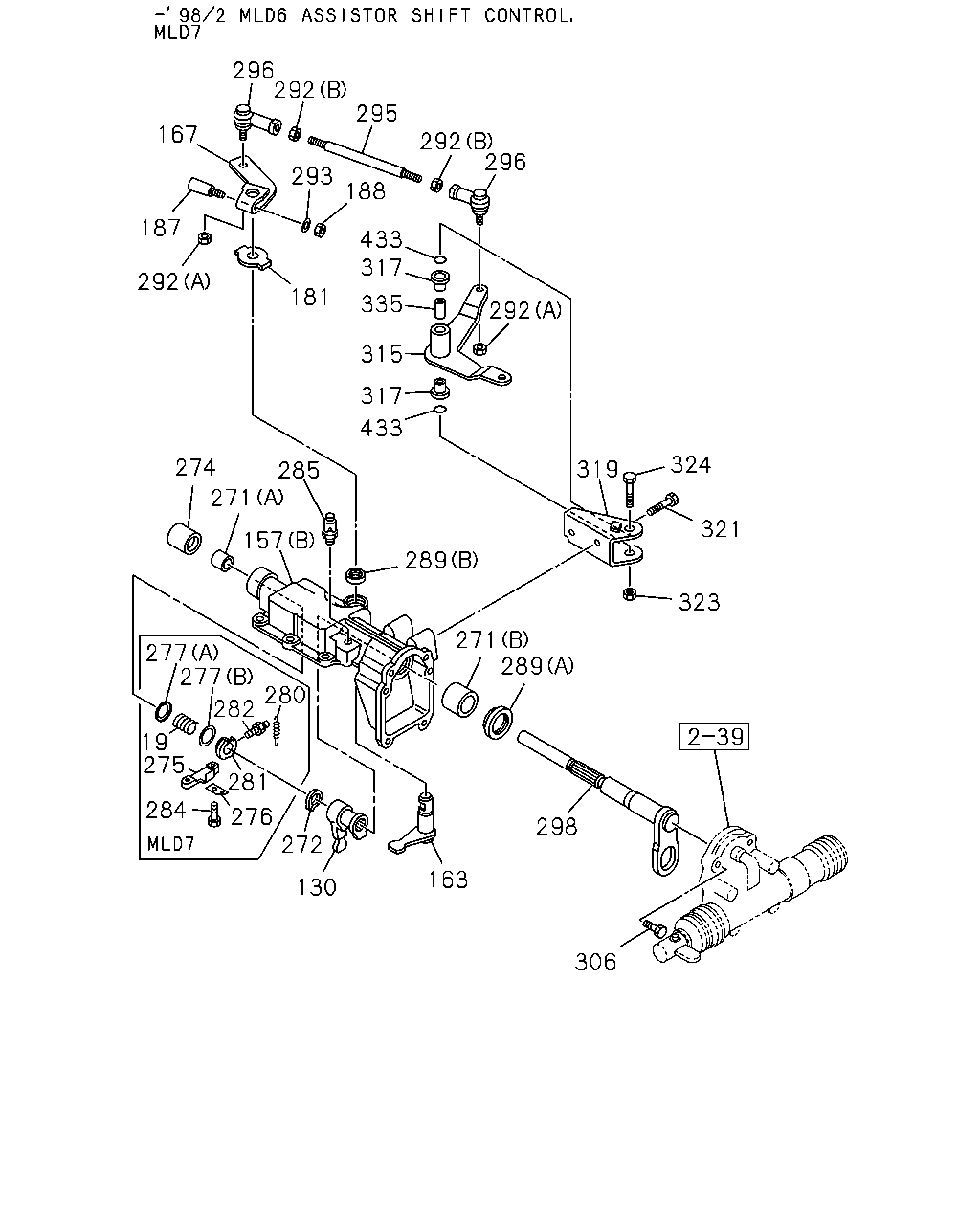

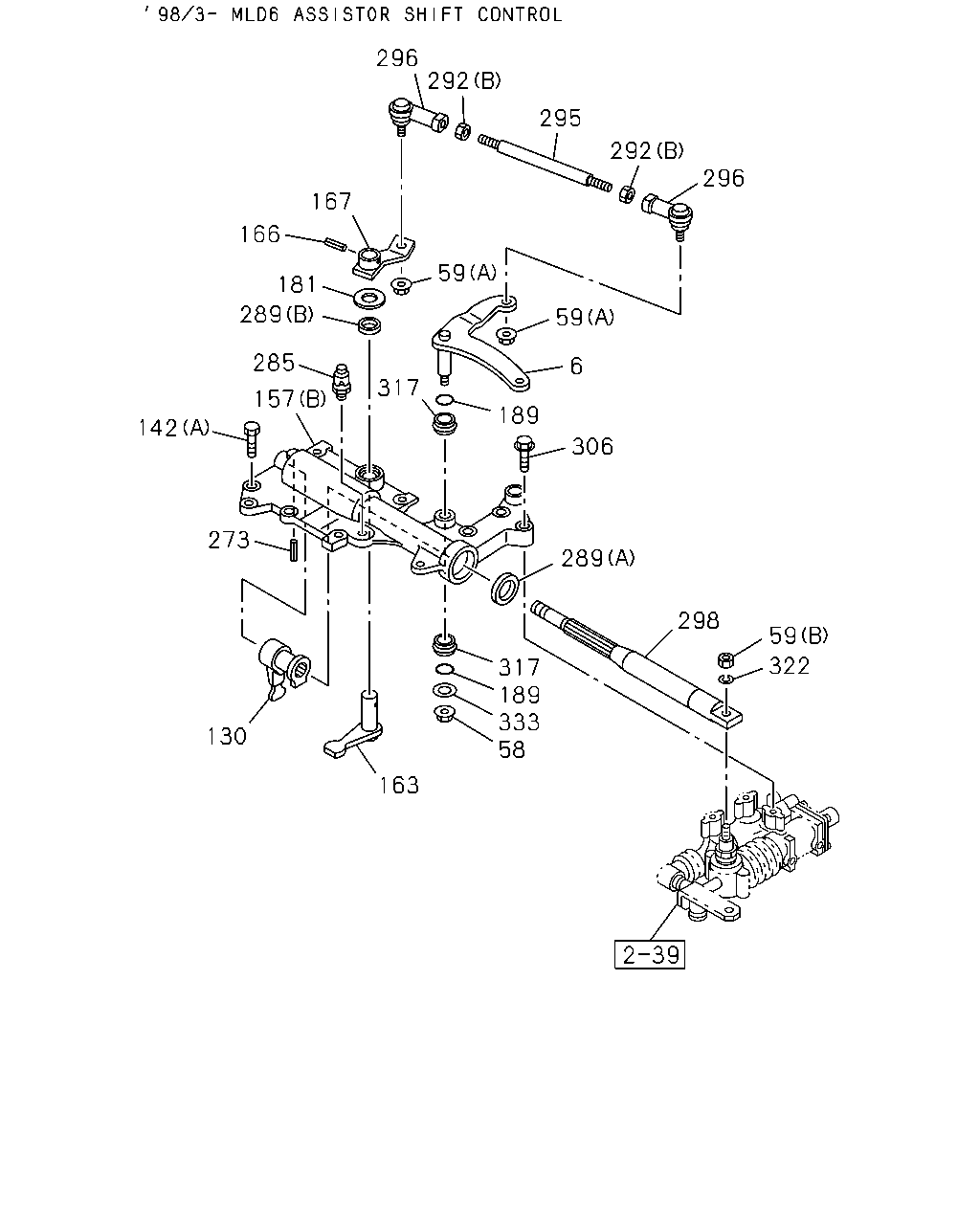

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
19	SPRING; COIL COMP	1-09580-441-0	01	1	9510-	●	●	●
19	SPRING; COIL COMP	1-09580-531-0	01	1	9510-				●	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9510-9802	●	●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9803-	●	●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	9803-	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	9510-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9510-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9510-9802	●	●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9803-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9510-9603	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9510-9601				●	●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-				●	●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9510-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9511-9601	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-133-0	01	1	9510-9802	●	●	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	9803-	●	●	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	9510-	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9510-				●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-145-0	01	1	9510-9802	●	●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	9803-	●	●	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	9510-	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	9510-				●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9510-9802	●	●	●	●	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	9803-	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9803-				●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	9803-	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9510-9802	●	●	●	●	●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	9803-	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9803-				●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9510-9802	●	●	●	●	●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	9803-9804	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9803-9804				●	●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	9805-	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-				●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9510-9802	●	●	●	●	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9803-	●	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9803-				●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9510-9802	●	●	●	●	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9803-	●	●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9803-				●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9510-9802	●	●	●	●	●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9803-	●	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9803-				●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9510-9802	●	●	●	●	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	9803-	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9803-				●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-063-0	01	1	9510-				●	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9510-				●	●
277	PLATE; SPRING SEAT (A)	1-33529-061-0	01	1	9510-				●	●
277	PLATE; SPRING SEAT (B)	9-38216-008-0	01	1	9510-9802				●	●
277	PLATE; SPRING SEAT (B)	1-09503-198-0	01	1	9803-				●	●
280	SPRING; COIL TENSION	1-09583-227-0	01	1	9510-				●	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-060-0	01	1	9510-				●	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9510-				●	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9510-				●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9510-	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9510-9802	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (A) OD=41	1-09625-334-0	01	1	9803-0307	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9803-0307				●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (A) OD=41	1-09625-647-0	01	1	0308-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-				●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9510-9802	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (B) OD=30	1-09625-386-0	01	1	9803-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9803-				●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	9803-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	9803-	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9510-9802	●	●	●	●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-049-0	02	1	9803-9804		●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9803-9804				●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004		●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004				●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0005-	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-				●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9510-0512	●	●	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●	●	●	●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-				●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9510-9802	●	●	●	●	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	9803-0605	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9803-0605				●	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-				●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9510-9802	●	●	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	9803-	●	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	9803-0705	●	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0706-	●	●	●
295	ROD; LINK,RELAY LEVER L=222	9-08400-818-0	01	1	9510-				●	●
296	ROD END L=48	1-09760-038-1	02	1	9510-0309	●	●	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0705	●	●	●	●	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-				●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-125-0	01	1	9510-9802	●	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	9803-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-122-0	01	1	9510-9802	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-166-0	01	1	9803-0307	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0308-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-136-0	01	1	9510-0307				●	●
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0308-				●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9510-9802	●	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9510-9802				●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9803-0512				●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-				●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	04	1	9510-9802	●	●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9510-9802				●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9803-0512				●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0601-				●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28081-050-0	03	1	9803-0512	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0601-	●	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-650-0	01	1	9510-9802	●	●	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-648-1	01	1	9510-9802	●	●	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	9803-	●	●	●
315	LEVER; SELECT	1-33651-640-1	01	1	9510-				●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9510-	●	●	●	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-603-0	01	1	9510-9802	●	●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9510-9802				●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9803-				●	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	9510-	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9510-9802	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9510-9802				●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9803-				●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9510-0512	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-	●	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9510-9802	●	●	●	●	●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	9803-	●	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9803-				●	●
324	BOLT; SHAFT ASSISTOR SHIFT CONTROL<WX8> M10X60	0-10811-060-0	01	1	9510-9802	●	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	9510-				●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTOR SHIFT CONTROL<WX8>	1-33659-192-0	01	1	9510-9802	●	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9510-9802				●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9803-				●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9510-9802	●	●	●	●	●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	9803-	●	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9803-				●	●

296 292 295 292 296 167 166 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	9803-	●	●	●
6	LEVER; RELAY	1-33511-009-1	01	1	9510-				●	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	9803-0602	●	●	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91150-108-0	02	1	9803-0602	●	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M12	9-99110-412-0	01	1	9803-0512	●	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M12	0-91110-512-0	01	1	0601-	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9510-9802	●	●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9803-	●	●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	9803-	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	9510-				●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9510-0805	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	9510-9802	●	●	●	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28181-060-0	03	1	9803-0512	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	9803-0512				●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-				●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9510-0805	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9510-9802	●	●	●	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9803-	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9803-				●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28181-060-0	04	1	9803-0512	●	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9510-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9510-9802	●	●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9803-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9510-9603	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9510-9601				●	●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-				●	●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9510-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9511-9601	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-133-0	01	1	9510-9802	●	●	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	9803-	●	●	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	9510-	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9510-				●	●
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	9803-	●	●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-145-0	01	1	9510-9802	●	●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	9803-	●	●	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	9510-	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	9510-				●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9510-9802	●	●	●	●	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	9803-	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9803-				●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	9803-	●	●	●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	9803-	●	●	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	9803-	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9510-	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9510-9802	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (A) OD=41	1-09625-334-0	01	1	9803-0307	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9803-0307				●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (A) OD=41	1-09625-647-0	01	1	0308-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-				●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9510-9802	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (B) OD=30	1-09625-386-0	01	1	9803-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9803-				●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	9803-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	9803-	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9510-9802	●	●	●	●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-049-0	02	1	9803-9804		●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9803-9804				●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004		●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004				●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0005-	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-				●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9510-0512	●	●	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●	●	●	●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-				●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9510-9802	●	●	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	9803-	●	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	9803-0705	●	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0706-	●	●	●
295	ROD; LINK,RELAY LEVER L=222	9-08400-818-0	01	1	9510-				●	●
296	ROD END L=48	1-09760-038-1	02	1	9510-0309	●	●	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0705	●	●	●	●	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-				●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-125-0	01	1	9510-9802	●	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	9803-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-122-0	01	1	9510-9802	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-166-0	01	1	9803-0307	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0308-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-136-0	01	1	9510-0307				●	●
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0308-				●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9510-9802	●	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9510-9802				●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9803-0512				●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-				●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	04	1	9510-9802	●	●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9510-9802				●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9803-0512				●	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0601-				●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28081-050-0	03	1	9803-0512	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0601-	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9510-	●	●	●	●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9803-0603	●	●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-0705	●	●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0706-	●	●	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=26	9-09160-710-0	01	1	9803-0705	●	●	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0706-	●	●	●

38 39 28 85 54 89 30 28 33 21 84 82 22 19 38 39 86 54 62 20 38 30 39 86 54 28 86 38 218 39 142 30 28 31 86 225 224 223 398 80 142 221 413 218 61 86 78 142 42 218 71 171 157 142 142 219 78 70 42 54 65 227 66 69 13 15 65 65 67 67 68 11 72 12 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9510-	●	●	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9510-				●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9510-9604	●	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-9604				●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9605-	●	●	●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9510-	●	●	●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9510-9510	●	●		●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9511-9702	●	●	●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9703-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9510-				●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	9703-				●	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9510-	●	●	●
19	SPRING; COIL COMP	1-09580-531-0	01	1	9510-				●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9510-	●	●	●	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9510-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9510-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9510-				●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9510-	●	●	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9510-	●	●	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9510-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9510-				●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9510-1202	●	●	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9510-1202				●	●
33	ROD; SHIFT,LOW & 2ND	8-98207-577-0	01	1	1203-				●	●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9510-	●	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	9510-				●	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9510-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9510-	●	●	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9510-	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9510-				●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9510-	●	●	●	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9510-0201	●	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9510-	●	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-2	01	1	9510-				●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9510-1202	●	●	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9510-1202				●	●
62	ROD; SHIFT,3RD & 4TH	8-98207-585-0	01	1	1203-				●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-357-1	01	1	9510-9602	●	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	9603-	●	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-331-3	01	1	9510-				●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	9511-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	9511-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9510-		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9510-				●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	9511-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	9510-1202	●	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●	●	●
67	ROD; SHIFT,5TH & 6TH (C) L=407	1-33531-248-0	01	1	9510-1202				●	●
67	ROD; SHIFT,5TH & 6TH (C) L=407	8-98207-588-0	01	1	1203-				●	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	9511-1202	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9510-	●	●	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	9511-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	9511-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	9511-0602	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0603-	●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	9511-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9510-	●	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9510-	●	●	●
78	ARM; SHIFT,REV (C)	1-33511-232-5	01	1	9510-				●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9510-1202	●	●	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9510-	●	●	●
84	SLEEVE; REV	1-33516-025-0	01	1	9510-	●	●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9510-	●	●	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9510-9512		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9601-		●	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9510-9512	●			●	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	9601-	●			●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9510-1202	●	●	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9510-0805	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	9510-9802	●	●	●	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28181-060-0	03	1	9803-0512	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	9803-0512				●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-				●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9510-0805	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9510-9802	●	●	●	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9803-	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9803-				●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28181-060-0	04	1	9803-0512	●	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9510-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9510-9802	●	●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9803-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9510-9603	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9510-9601				●	●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-				●	●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9510-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9511-9601	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9510-9510		●			●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9511-0702	●	●	●	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●	●	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●	●	●	●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●	●	●	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9510-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9510-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9510-	●	●	●	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9510-	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9510-0602	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9510-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9510-0605	●	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9510-0603	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9510-	●	●	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9510-9510		●			●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9511-0602	●	●	●	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●	●	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9510-	●	●	●	●	●

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9510-9802	●	●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9803-	●	●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	9803-	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	9510-				●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9510-0805	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	9510-9802	●	●	●	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28181-060-0	03	1	9803-0512	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	9803-0512				●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-				●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9510-0805	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9510-9802	●	●	●	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9803-	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	9803-				●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28181-060-0	04	1	9803-0512	●	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9510-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9510-9802	●	●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9803-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9510-9603	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9510-9601				●	●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-				●	●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9510-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-296-7	01	1	9511-9601	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	9602-	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-133-0	01	1	9510-9802	●	●	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	9803-	●	●	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	9510-	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9510-				●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-145-0	01	1	9510-9802	●	●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	9803-	●	●	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	9510-	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	9510-				●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9510-9802	●	●	●	●	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	9803-	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9803-				●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	9803-	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9510-9802	●	●	●	●	●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	9803-	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9803-				●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9510-9802	●	●	●	●	●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	9803-9804	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9803-9804				●	●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	9805-	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-				●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9510-9802	●	●	●	●	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9803-	●	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9803-				●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9510-9802	●	●	●	●	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9803-	●	●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9803-				●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9510-9802	●	●	●	●	●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9803-	●	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9803-				●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9510-9802	●	●	●	●	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	9803-	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9803-				●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9510-	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9510-9802	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (A) OD=41	1-09625-334-0	01	1	9803-0307	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9803-0307				●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (A) OD=41	1-09625-647-0	01	1	0308-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-				●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9510-9802	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (B) OD=30	1-09625-386-0	01	1	9803-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9803-				●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	9803-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	9803-	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9510-9802	●	●	●	●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-049-0	02	1	9803-9804		●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9803-9804				●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004		●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0004				●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0005-	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-				●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9510-0512	●	●	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●	●	●	●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-	●	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-				●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9510-9802	●	●	●	●	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	9803-0605	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9803-0605				●	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-				●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9510-9802	●	●	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	9803-	●	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	9803-0705	●	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0706-	●	●	●
295	ROD; LINK,RELAY LEVER L=222	9-08400-818-0	01	1	9510-				●	●
296	ROD END L=48	1-09760-038-1	02	1	9510-0309	●	●	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0705	●	●	●	●	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-	●	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-				●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-125-0	01	1	9510-9802	●	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	9803-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-122-0	01	1	9510-9802	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-166-0	01	1	9803-0307	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0308-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-136-0	01	1	9510-0307				●	●
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0308-				●	●
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	9510-	●	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-650-0	01	1	9510-9802	●	●	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-648-1	01	1	9510-9802	●	●	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	9803-	●	●	●
315	LEVER; SELECT	1-33651-640-1	01	1	9510-				●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9510-	●	●	●	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-603-0	01	1	9510-9802	●	●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9510-9802				●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9803-				●	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	9510-	●	●	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	9510-	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9510-9802	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9510-9802				●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9803-				●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9510-0512	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-	●	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9510-9802	●	●	●	●	●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	9803-	●	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9803-				●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9510-0602	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9510-9802	●	●	●	●	●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	9803-	●	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9803-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
