◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11114 - EXD AUST JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#39719) — 101 parça
çizim 180309
380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0710-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0710-
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0710-
657 CONTROL UNIT; MIMAMORI 1-80190-186-0 01 1 0710-0710
657 CONTROL UNIT; MIMAMORI 8-98105-893-1 01 1 0711-

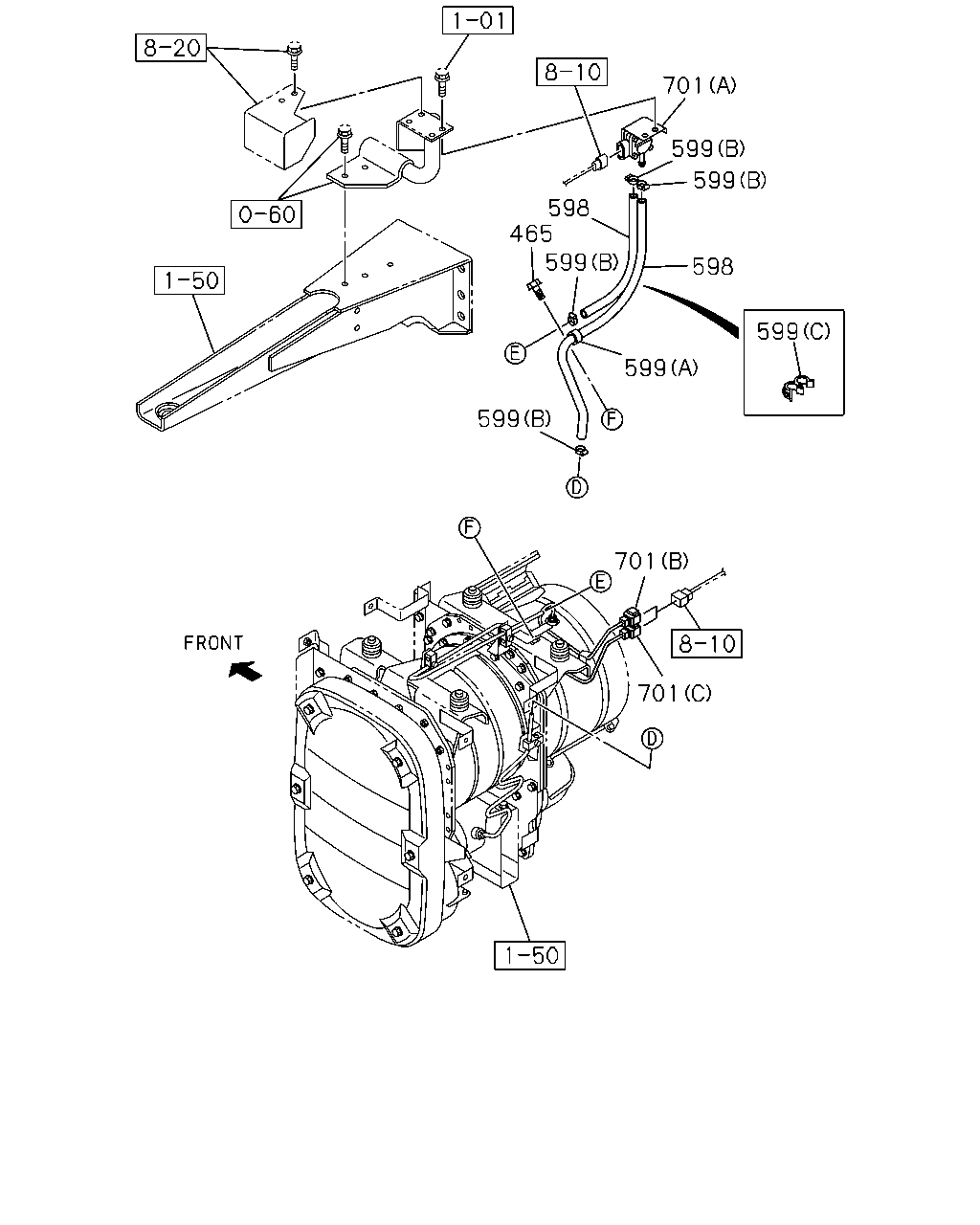

çizim 180318
701 599 599 598 598 465 599 599 599 599 701 701
BalonParca AdiParca NoAdetTipApplied Date
465 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0710-
598 HOSE; RUBBER,SENSOR
L=460 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-
598 HOSE; RUBBER,SENSOR
L=240 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-
599 CLIP; HOSE
(A) 		8-97173-119-0 01 1 0710-
599 CLIP; HOSE
(C) ID=19 L=24 		1-09701-259-0 01 1 0710-
599 CLIP; HOSE
(B) ID=8-16.5 		8-94426-596-0 04 1 0710-0802
599 CLIP; HOSE
(B) ID=13 		8-97329-627-0 04 1 0803-
701 SENSOR; DPD
(A) 		8-97359-985-2 01 1 0710-
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0710-
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0710-

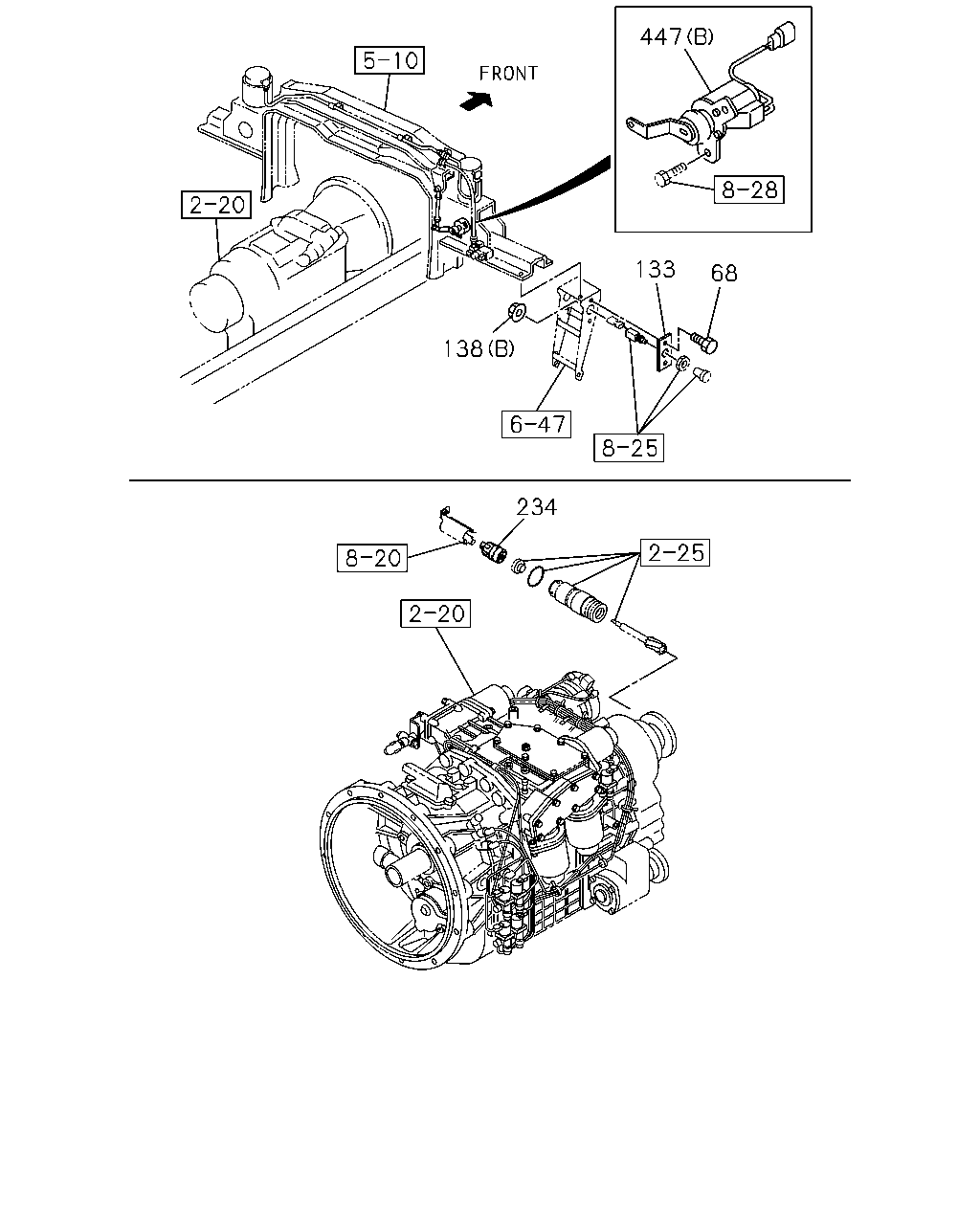

çizim 180327
447 133 68 138 234
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
133 BRACKET; SWITCH 1-82699-815-0 01 1 0710-
138 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 0710-
138 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-0801
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 0710-1301
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1302-
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710-

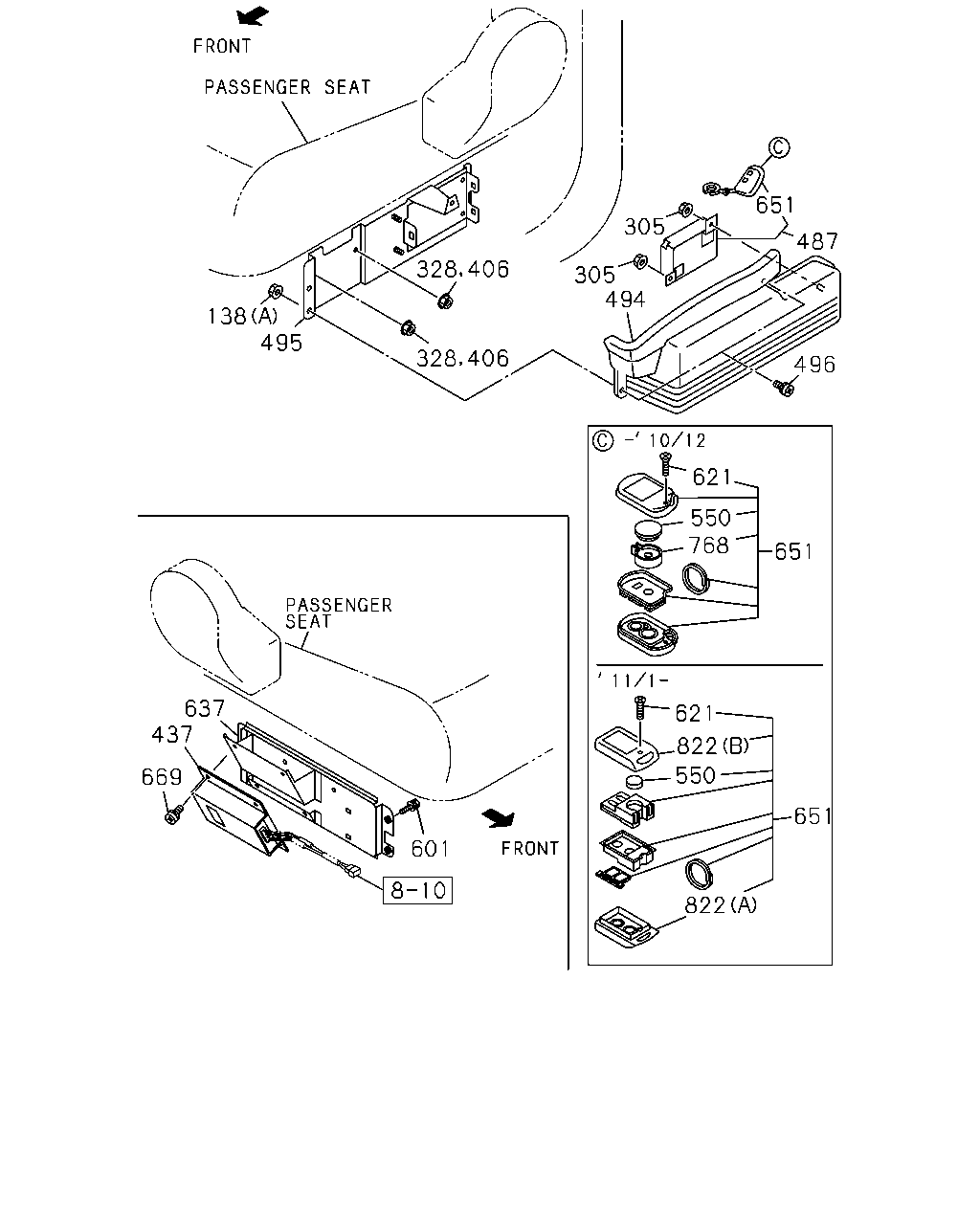

çizim 180337
138 495 328 328 406 305 305 494 651 487 496 406 651 550 621 768 637 437 669 601 621 822 550 651 822
BalonParca AdiParca NoAdetTipApplied Date
138 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 0710-
138 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-0801
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
328 NUT
M6 FLANGE 		0-91180-106-0 02 1 0710-
406 NUT; COVER
M6 FLANGE 		0-91180-106-0 02 1 0710-
437 CONVERTER; DC
METRO DENSO 		8-98046-423-0 01 1 0710-
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98050-457-1 01 1 0710-1012
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98181-808-0 01 1 1101-1205
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98218-230-0 01 1 1206-
494 COVER; ELEC BOX 8-97589-725-0 01 1 0710-
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0710-
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0710-
550 BATTERY; TRANSMITTER 8-98078-061-0 01 1 0710-
601 BOLT; DC-DC CONVERTER
SCREW M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0710-
621 SCREW
M2X5 		8-98078-067-0 01 1 0710-1205
621 SCREW
M2X5 		8-98218-239-0 01 1 1206-
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0710-
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98048-459-1 01 1 0710-1012
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98180-751-0 01 1 1101-1205
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98218-236-0 01 1 1206-
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0710-
768 HOLDER; BATTERY 8-98078-063-0 01 1 0710-1012
822 COVER; TRANSMITTER
(A) 		8-98218-240-0 01 1 1206-
822 COVER; TRANSMITTER
(B) 		8-98218-243-0 01 1 1206-

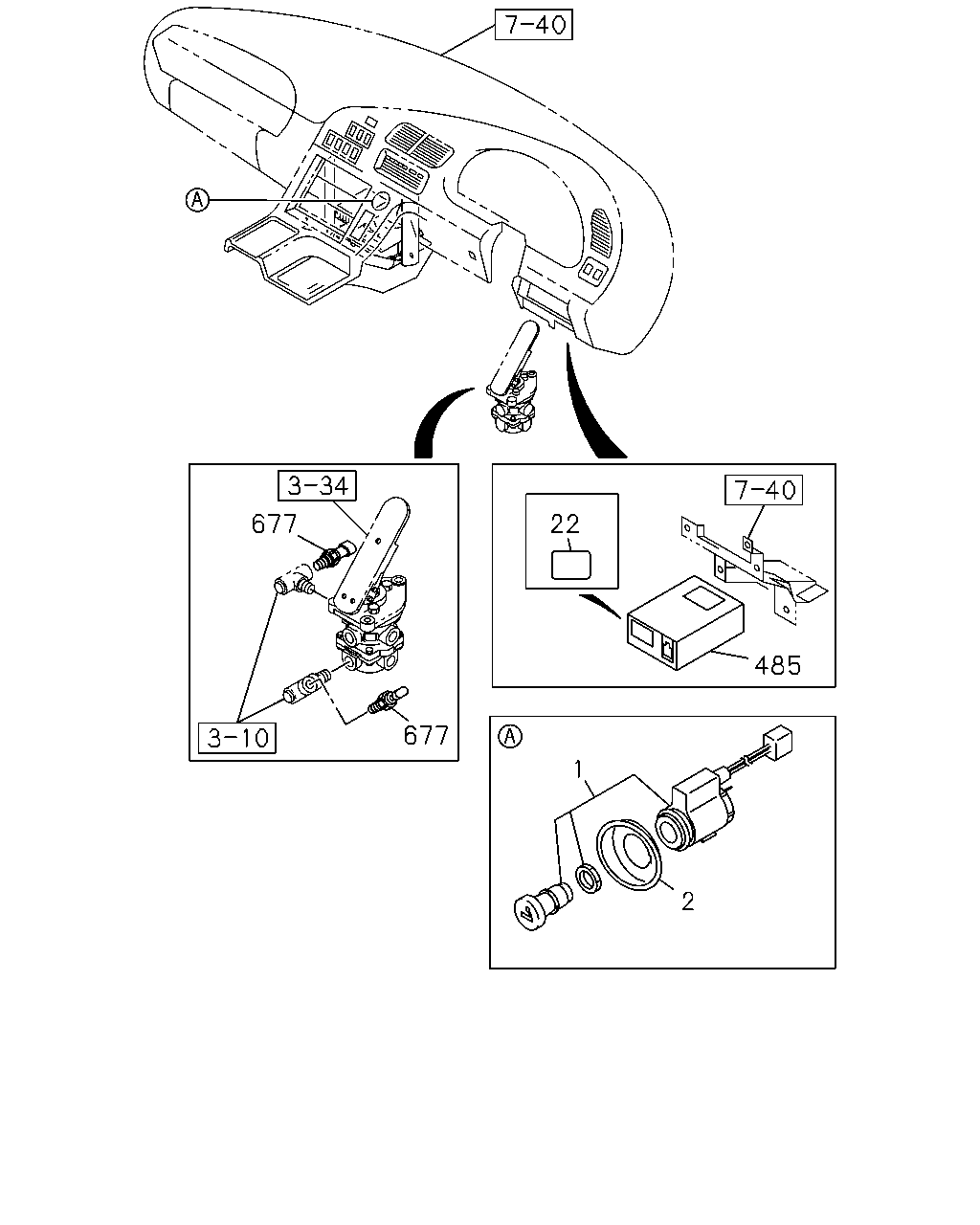

çizim 180356
485 22 677 677 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0710-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0710-
22 SEAL; TAPE 8-98083-174-0 01 1 0710-
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0710-1008
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110-
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 0710-
çizim 180370
491 435 447 448 497 726 726 497
BalonParca AdiParca NoAdetTipApplied Date
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0710-
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710-
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0710-
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0710-
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0710-

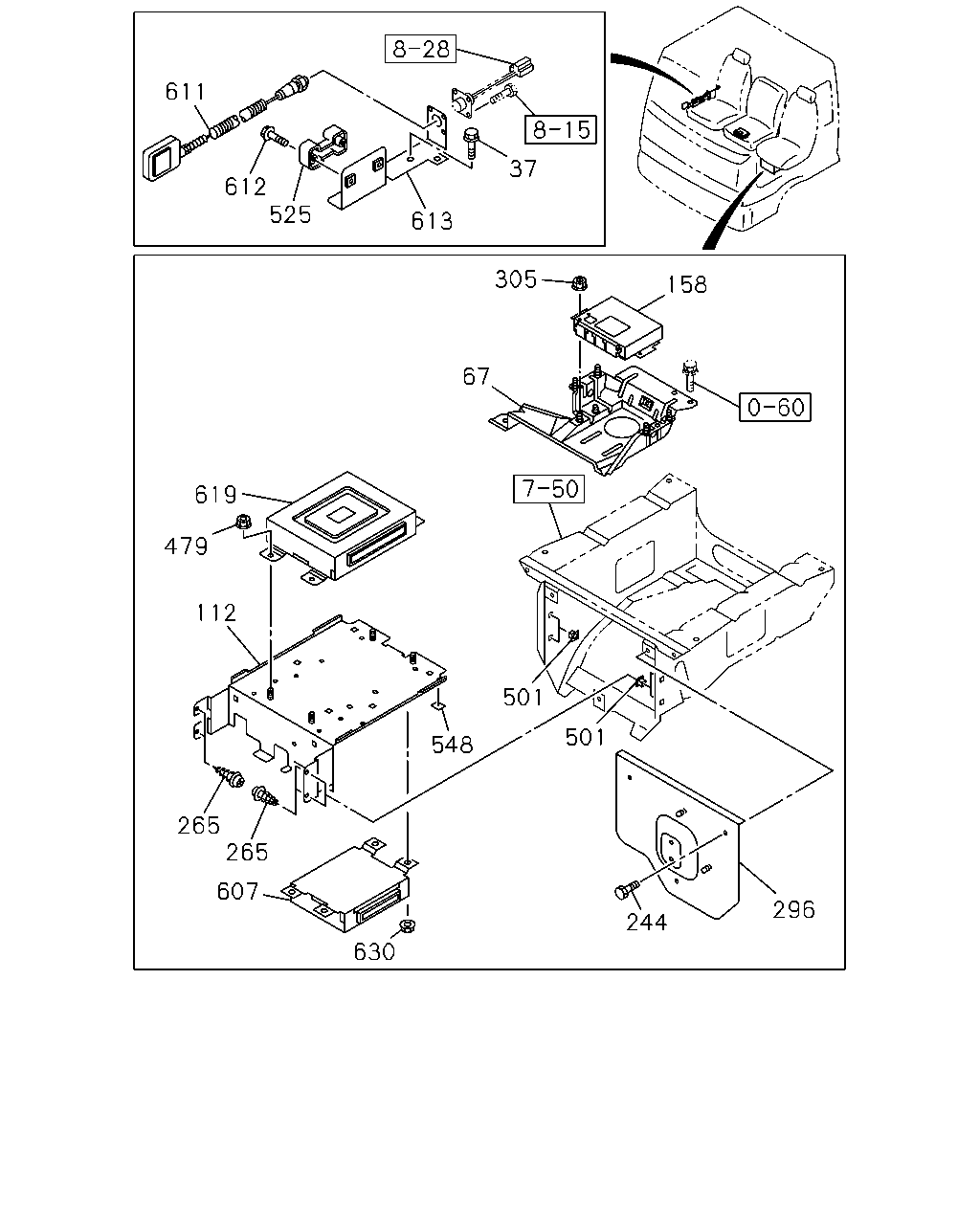

çizim 180457
611 612 525 613 37 305 158 67 619 479 112 265 265 607 630 548 501 501 244 296
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; BRKT FIX
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0710-
67 BRACKET; CONT UNIT 1-72537-234-1 01 1 0710-
112 BRACKET; CONT UNIT 8-97589-714-2 01 1 0710-
158 CONTROLLER; ABS 1-80119-274-0 01 1 0710-0811
158 CONTROLLER; ABS 1-80119-916-0 01 1 0812-
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0710-
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0710-
296 COVER; CONT UNIT 8-97388-687-0 01 1 0710-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
479 NUT; CONTROLLER
M6 FLANGE 		0-91180-106-0 04 1 0710-
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0710-
525 HOLDER; SW 1-82389-018-0 01 1 0710-
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0710-0908
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306-
607 CONTROL UNIT; AIR SUSPENSION 8-98064-555-0 01 1 0710-
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 0710-
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 0710-
613 BRACKET; HOLDER,SW 1-79907-125-1 01 1 0710-
619 CONTROL UNIT; T/M 8-98079-024-0 01 1 0710-0804
619 CONTROL UNIT; T/M 8-98109-796-0 01 1 0805-1002
619 CONTROL UNIT; T/M 8-98155-984-0 01 1 1003-1501
619 CONTROL UNIT; T/M 8-98290-347-0 01 1 1502-
630 NUT; CONT UNIT,AIR SUSP
M6 FLANGE 		0-91180-106-0 04 1 0710-
