Isuzu WW
▶
TRUCKS
▶
EXD
▶
11114 - EXD AUST JAPAN NEW LONG TERM 2005
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#39718) — 42 parça
◀
[825A] FRAME SIDE NO.2 (6 parça)
[825A] FRAME SIDE NO.1 (6 parça)
[825A] CAB SIDE NO.1 (13 parça)
[825A] CAB SIDE NO.3 (4 parça)
[825A] CAB SIDE NO.2 (13 parça)
▶

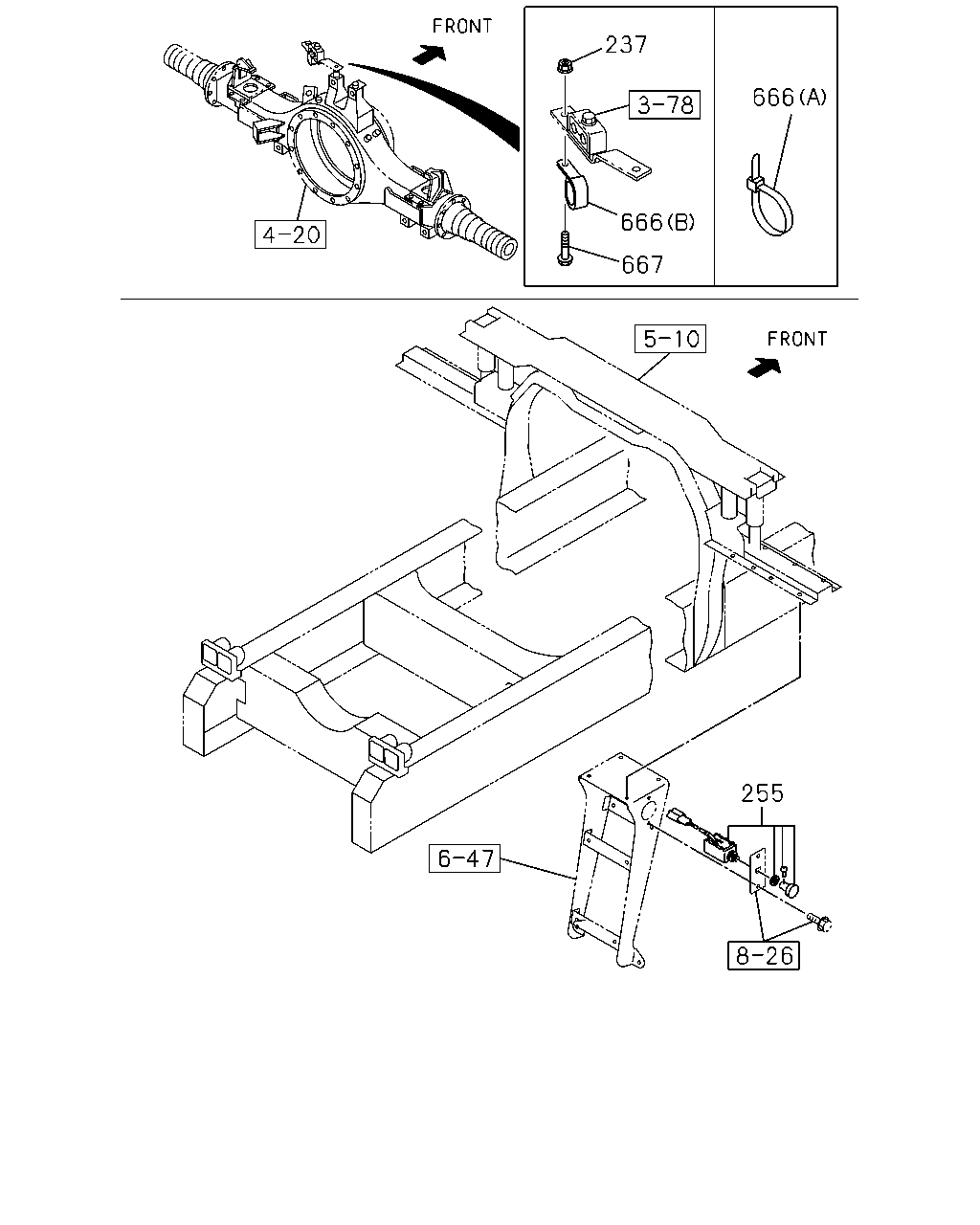

237
666
666
667
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
237
NUT
M8 FLANGE
0-91180-108-0
01
1
0710-
255
SWITCH; SEARCH LIGHT
8-97621-403-0
01
1
0710-0711
255
SWITCH; SEARCH LIGHT
8-98106-483-0
01
1
0712-
666
CLIP; AXLE HARNESS
(B) ID=11X2 L=20
1-09700-871-0
01
1
0710-
666
CLIP; AXLE HARNESS
(A) L=350
1-09707-183-0
01
1
0710-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0710-

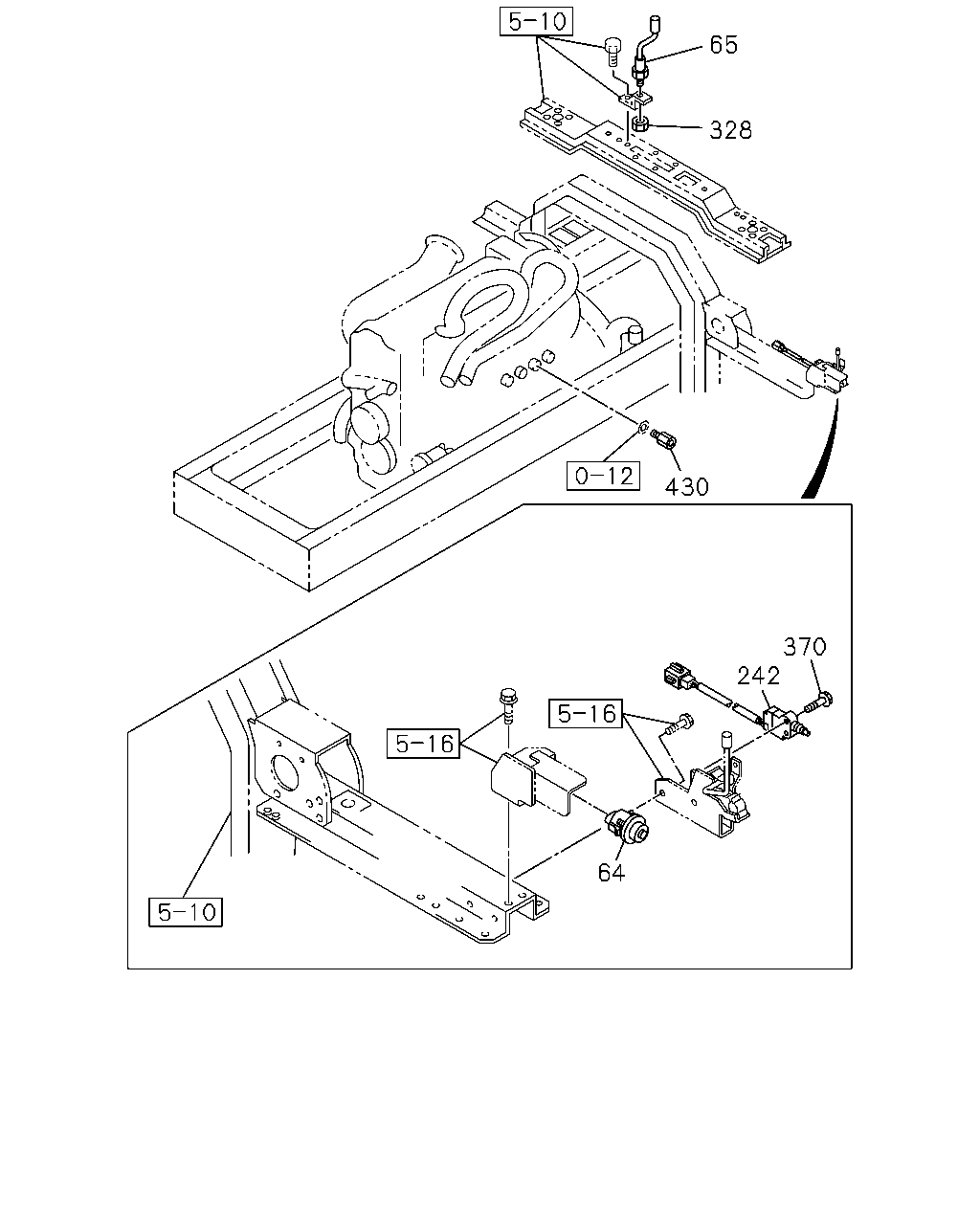

65
328
430
370
242
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
0710-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0710-
242
SWITCH
STAMP NO
1-82380-172-1
01
1
0710-
328
NUT; SW
M16
0-91110-516-0
01
1
0710-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
0710-
430
ADAPTER; SW
M14 & PT1/4 STRAIGHT
1-09669-130-0
01
1
0710-

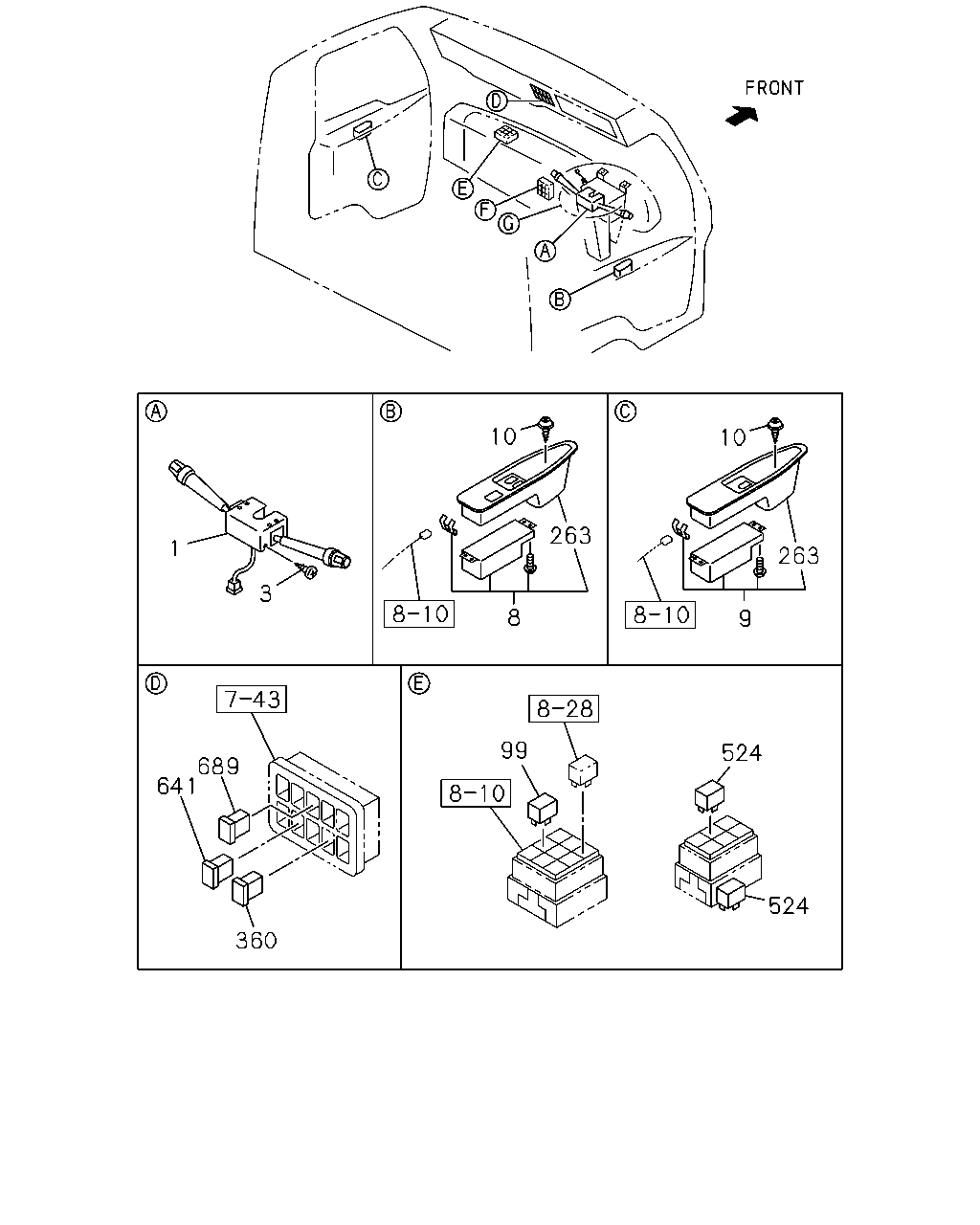

1
3
8
263
10
10
263
9
524
524
99
689
641
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2>
1-82360-694-2
01
1
0710-
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2>
1-82360-695-2
01
1
0710-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0710-
8
SWITCH; POWER WINDOW
DRIVER
1-82380-166-2
01
1
0710-
9
SWITCH; POWER WINDOW
PASSENGER
1-82380-167-1
01
1
0710-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0710-
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0710-
263
COVER; SW
DRIVER
1-82385-005-2
01
1
0710-
263
COVER; SW
PASSENGER
1-82385-006-3
01
1
0710-
360
SWITCH ASM; DIFF LK
1-82340-660-1
01
1
0710-
524
RELAY; LAMP
24V 12.5A PANASONIC
8-97262-933-0
02
1
0710-
641
SWITCH; MAP
8-97615-637-0
01
1
0710-
689
SWITCH; DPD
1-82340-693-0
01
1
0710-
359
30
29
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
0710-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
0710-
106
SWITCH; REMOTE CONT MIRROR
1-82350-223-0
02
1
0710-
359
SWITCH; TRAILER BRAKE
GREEN
1-82410-176-1
01
1
0710-

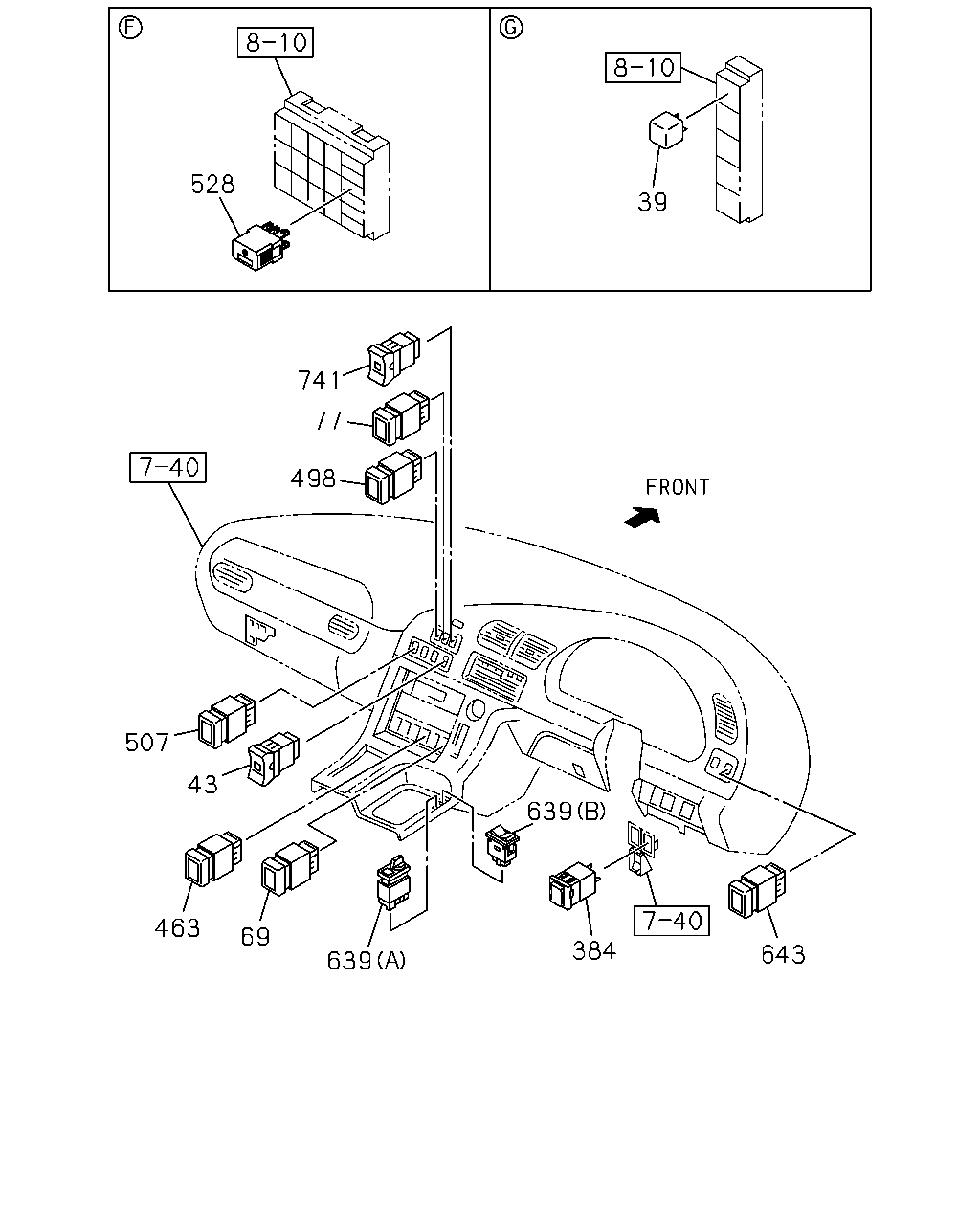

528
39
741
77
498
507
43
639
463
69
384
643
639
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
RELAY; DOOR LK
24V 12.5A PANASONIC
8-97262-933-0
02
1
0710-
43
SWITCH; HORN
1-82350-332-0
01
1
0710-
69
SWITCH; AUTO CRUISE
8-97610-834-0
01
1
0710-
77
SWITCH; PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P)
1-82340-413-0
01
1
0710-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0710-
463
SWITCH; SPOT LAMP
1-82340-411-0
01
1
0710-
498
SWITCH; ASR
1-82340-642-0
01
1
0710-
507
SWITCH; MIRROR HEATER
1-82340-423-0
01
1
0710-
528
RELAY; BUZZER
24V 10A PANASONIC
8-97173-035-1
01
1
0710-
639
SWITCH; EMERGENCY
(A)
1-82330-068-0
01
1
0710-
639
SWITCH; EMERGENCY
(B)
1-82350-363-0
01
1
0710-
643
SWITCH; SKIP SHIFT
8-97381-251-0
01
1
0710-
741
SWITCH; TRAILER
8-98147-983-0
01
1
0908-
