◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11114 - EXD AUST JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#39717) — 39 parça

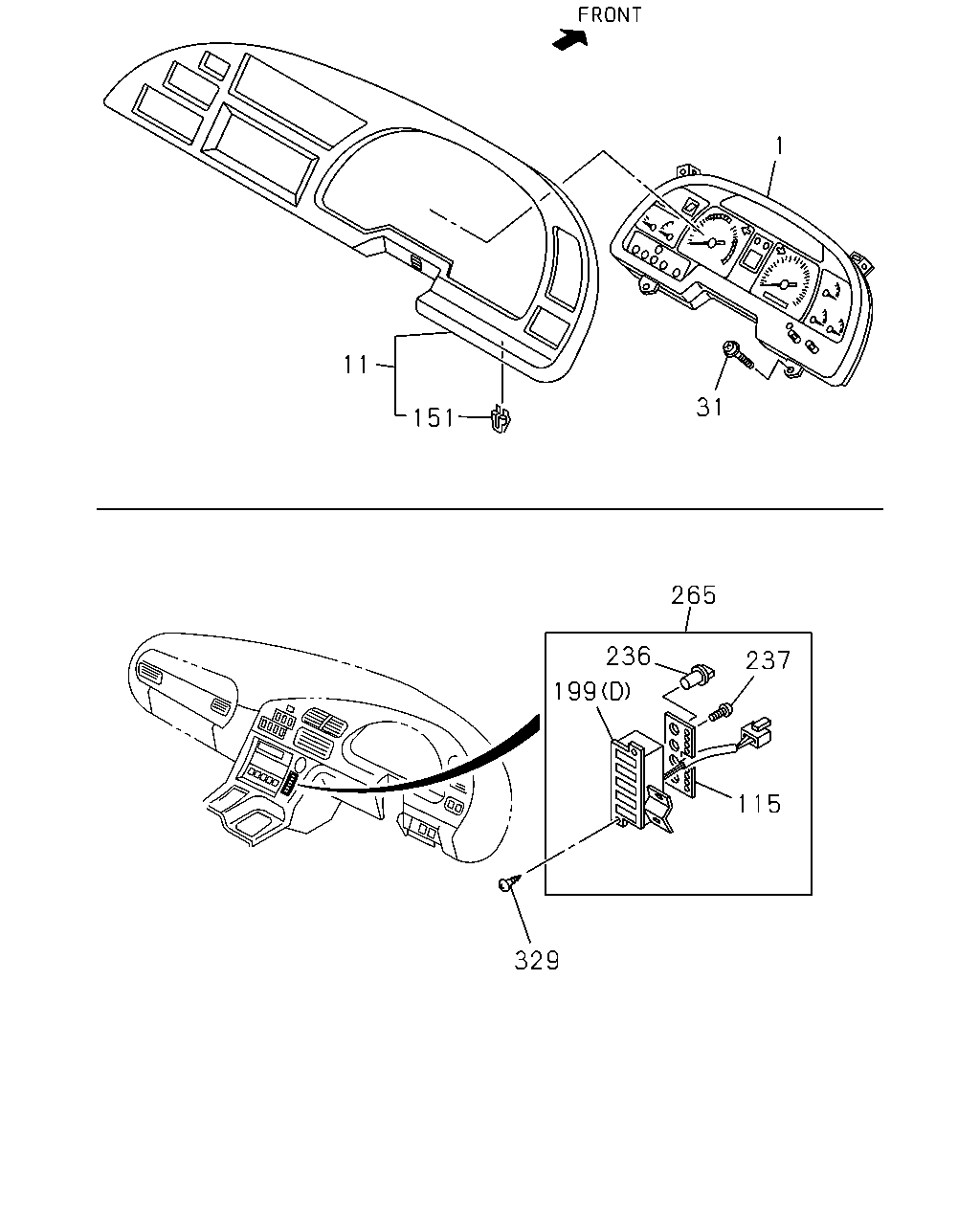

çizim 180310
11 151 31 1 265 236 199 237 115 329
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83116-408-2 01 1 0710-0809
1 METER COMPL; CLUSTER 8-98120-530-2 01 1 0810-1103
1 METER COMPL; CLUSTER 8-97638-832-1 01 1 1104-
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 0710-
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 0710-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0710-
115 CIRCUIT; PRINTED,CLUSTER METER 1-82259-006-0 01 1 0710-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0710-
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0710-
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 0710-
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 0710-
199 LENS; WARNING LAMP
(A) 		1-83119-944-0 01 1 0710-0809
199 LENS; WARNING LAMP
(A) 		8-98125-273-1 01 1 0810-
236 BULB ASM; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 0710-
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
M3 TAPPING 		1-83119-052-0 03 1 0710-
265 LAMP ASM; WARNING 1-82250-358-1 01 1 0710-
329 SCREW; WARNING LAMP
M5X14 		8-94279-325-0 02 1 0710-

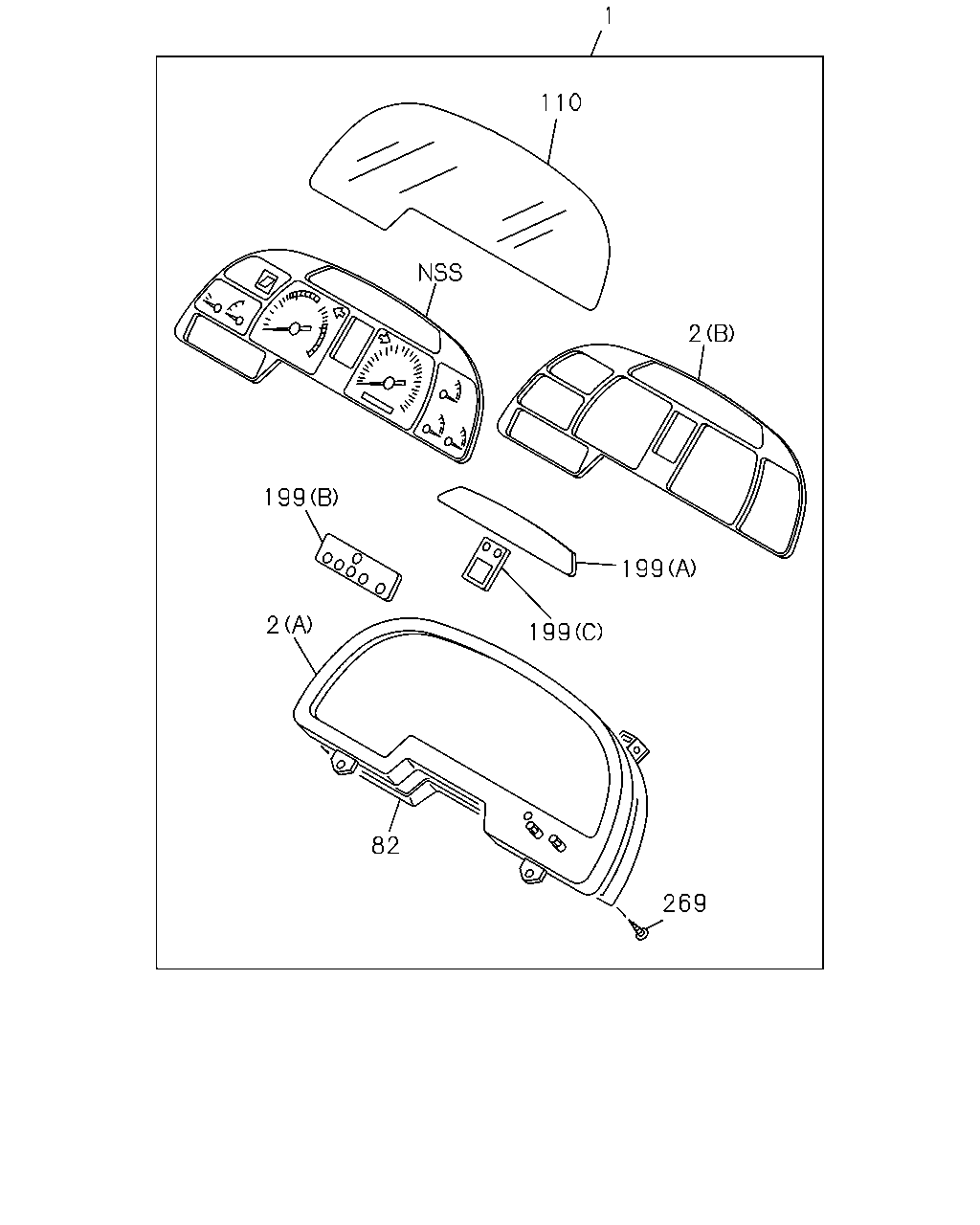

çizim 180312
110 1 2 199 199 199 2 82 269
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83116-408-2 01 1 0710-0809
1 METER COMPL; CLUSTER 8-98120-530-2 01 1 0810-1103
1 METER COMPL; CLUSTER 8-97638-832-1 01 1 1104-
2 PANEL; CLUSTER
(B) 		1-83119-885-0 01 1 0710-
2 PANEL; CLUSTER
(A) 		1-83119-887-0 01 1 0710-
82 CASE ASM; CLUSTER METER 1-83119-892-0 01 1 0710-
110 GLASS; CLUSTER METER 1-83119-886-0 01 1 0710-
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0710-
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 0710-
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 0710-
199 LENS; WARNING LAMP
(A) 		1-83119-944-0 01 1 0710-0809
199 LENS; WARNING LAMP
(A) 		8-98125-273-1 01 1 0810-
269 SCREW; METER CLUSTER 1-83119-893-0 09 1 0710-

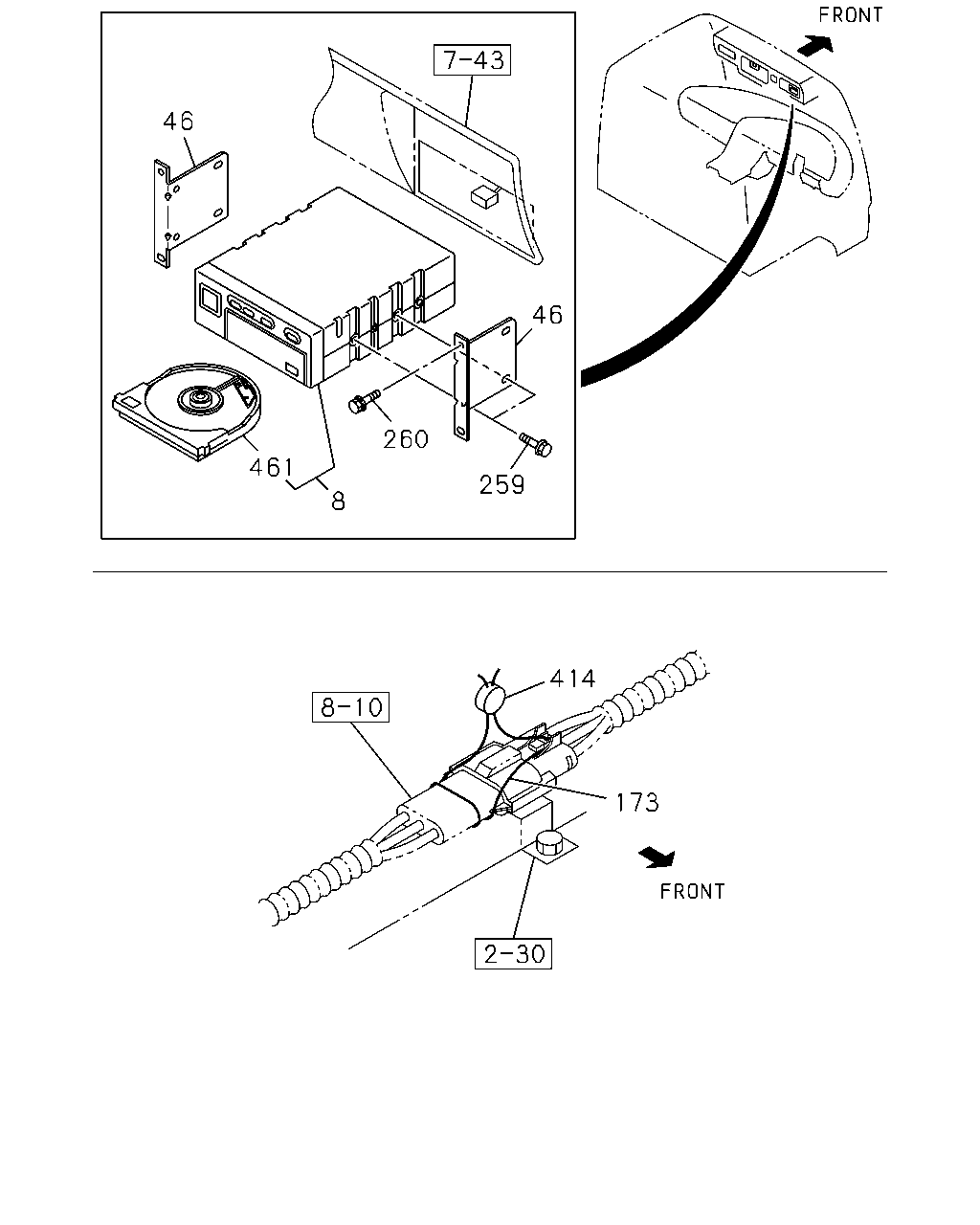

çizim 180448
46 46 260 461 259 8 414 173
BalonParca AdiParca NoAdetTipApplied Date
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-838-3 01 1 0710-
46 BRACKET; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-73907-724-0 02 1 0710-
173 WIRE; LEAD 1-80249-010-0 01 1 0710-
259 SCREW; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> M5X8 W/LK WASHER 		0-36220-508-0 04 1 0710-
260 BOLT; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710-
414 SEAL; LEAD 1-15739-008-0 01 1 0710-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-83129-433-0 01 1 0710-
çizim 180449
414 173
BalonParca AdiParca NoAdetTipApplied Date
173 WIRE; LEAD 1-80249-010-0 01 1 0710-
414 SEAL; LEAD 1-15739-008-0 01 1 0710-
