◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11114 - EXD AUST JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#39716) — 20 parça

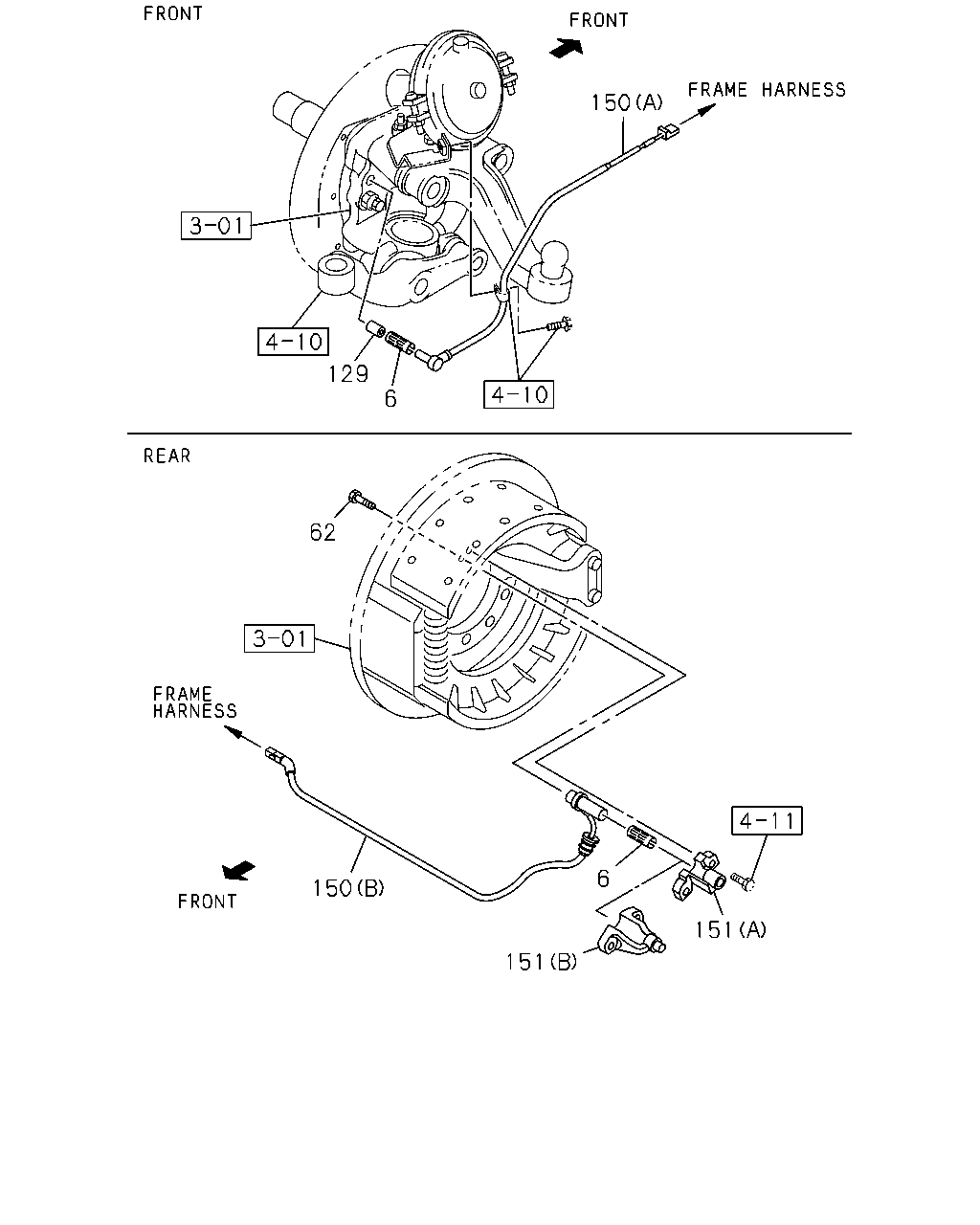

çizim 180305
150 6 129 62 150 151 6 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0710-
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0710-
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0710-1506
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507-
129 COLLAR 1-83129-471-0 02 1 0710-
150 SENSOR; SPEED,ABS
(B) 		1-83227-042-0 01 1 0710-
150 SENSOR; SPEED,ABS
(B) 		1-83227-043-0 01 1 0710-
150 SENSOR; SPEED,ABS
(A) 		1-83127-895-2 02 1 0710-
151 BRACKET; SPD SENSOR
(A) 		1-83129-405-0 01 1 0710-1504
151 BRACKET; SPD SENSOR
(B) 		8-98299-398-0 01 1 1505-
151 BRACKET; SPD SENSOR
(A) 		1-83129-406-0 01 1 0710-1504
151 BRACKET; SPD SENSOR
(B) 		8-98299-399-0 01 1 1505-

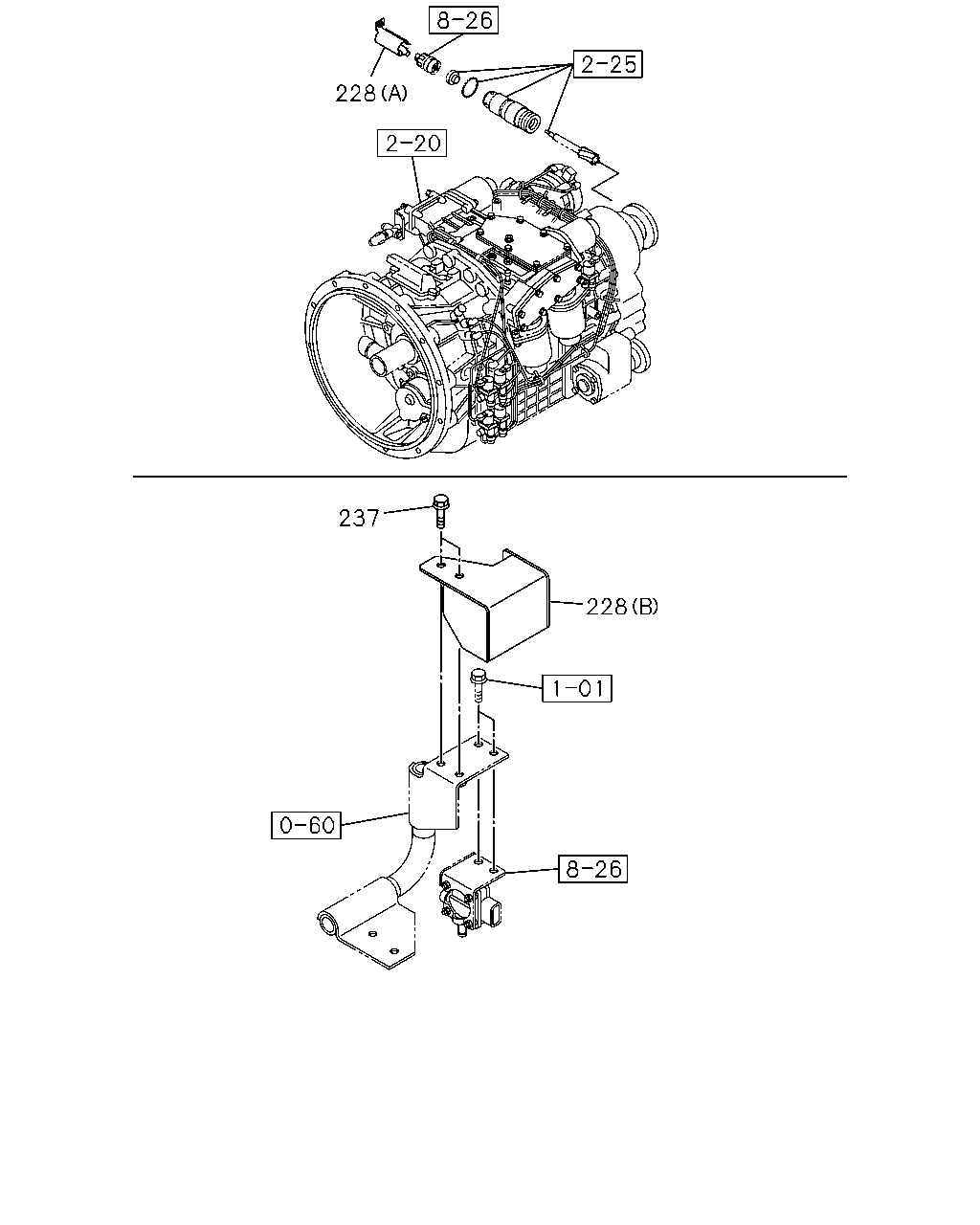

çizim 180447
228 237 228
BalonParca AdiParca NoAdetTipApplied Date
228 PROTECTOR; SENSOR
(A) 		8-97168-308-0 01 1 0710-0808
228 PROTECTOR; SENSOR
(A) 		8-98119-901-0 01 1 0809-
228 PROTECTOR; SENSOR
(B) 		8-97619-451-0 01 1 0710-
237 BOLT; PROTECTOR
M8X20 FLANGE 		0-28050-820-0 02 1 0710-
çizim 180454
237 228
BalonParca AdiParca NoAdetTipApplied Date
228 PROTECTOR; SENSOR
(A) 		8-97168-308-0 01 1 0710-0808
228 PROTECTOR; SENSOR
(A) 		8-98119-901-0 01 1 0809-
228 PROTECTOR; SENSOR
(B) 		8-97619-451-0 01 1 0710-
237 BOLT; PROTECTOR
M8X20 FLANGE 		0-28050-820-0 02 1 0710-
