◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11114 - EXD AUST JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#39715) — 484 parça

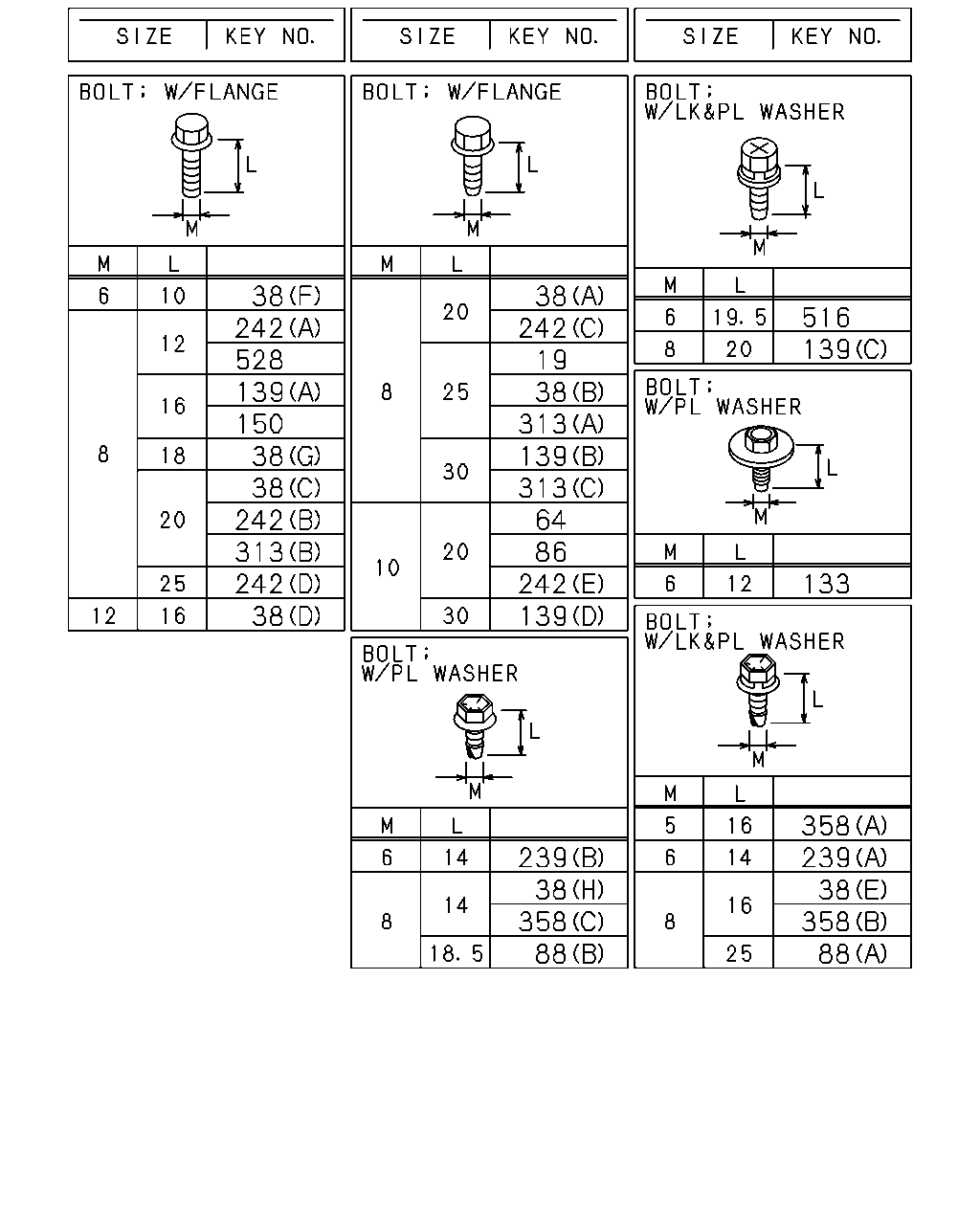

çizim 180431
38 242 528 139 150 38 38 242 313 242 38 38 242 19 38 313 139 313 64 86 242 139 516 139 133 358 239 38 358 88 239 38 358 88
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 08 1 0710-
38 BOLT; CLIP,HARNESS
(F) M6X10 FLANGE 		0-28050-610-0 01 1 0710-0802
38 BOLT; CLIP,HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (F) M6X10 FLANGE 		0-28050-610-0 01 1 0803-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0710-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 03 1 0710-
38 BOLT; CLIP,HARNESS
(G) M8X18 FLANGE 		0-28080-818-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0710-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0710-
38 BOLT; CLIP,HARNESS
(D) M12X16 FLANGE 		1-09044-079-0 01 1 0710-1105
38 BOLT; CLIP,HARNESS
(D) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(E) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-1201
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
64 SCREW; CLIP
M10X20 FLANGE 		0-28751-020-0 02 1 0710-
86 BOLT; CLIP BRKT
M10X20 FLANGE 		0-28751-020-0 01 1 0710-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0710-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0710-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1112-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 07 1 0710-
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
150 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 13 1 0710-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0710-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 04 1 0710-
242 BOLT; BRKT,HARNESS
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0710-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
242 BOLT; BRKT,HARNESS
(E) M10X20 FLANGE 		0-28651-020-0 02 1 0710-
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 0710-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0710-
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0710-1201
358 BOLT; EARTH
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
528 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0710-
çizim 180436
127 524 219 294 340 469 515 294 515 119 423 82
BalonParca AdiParca NoAdetTipApplied Date
82 WASHER; PL BRKT,HARNESS
ID=10.5 OD=22 		0-91614-610-0 02 1 0710-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0710-
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 16 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0710-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0710-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710-
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 0710-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 05 1 0710-
469 NUT; PROTECTOR
M8 FLANGE 		0-91180-108-0 02 1 0710-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0710-

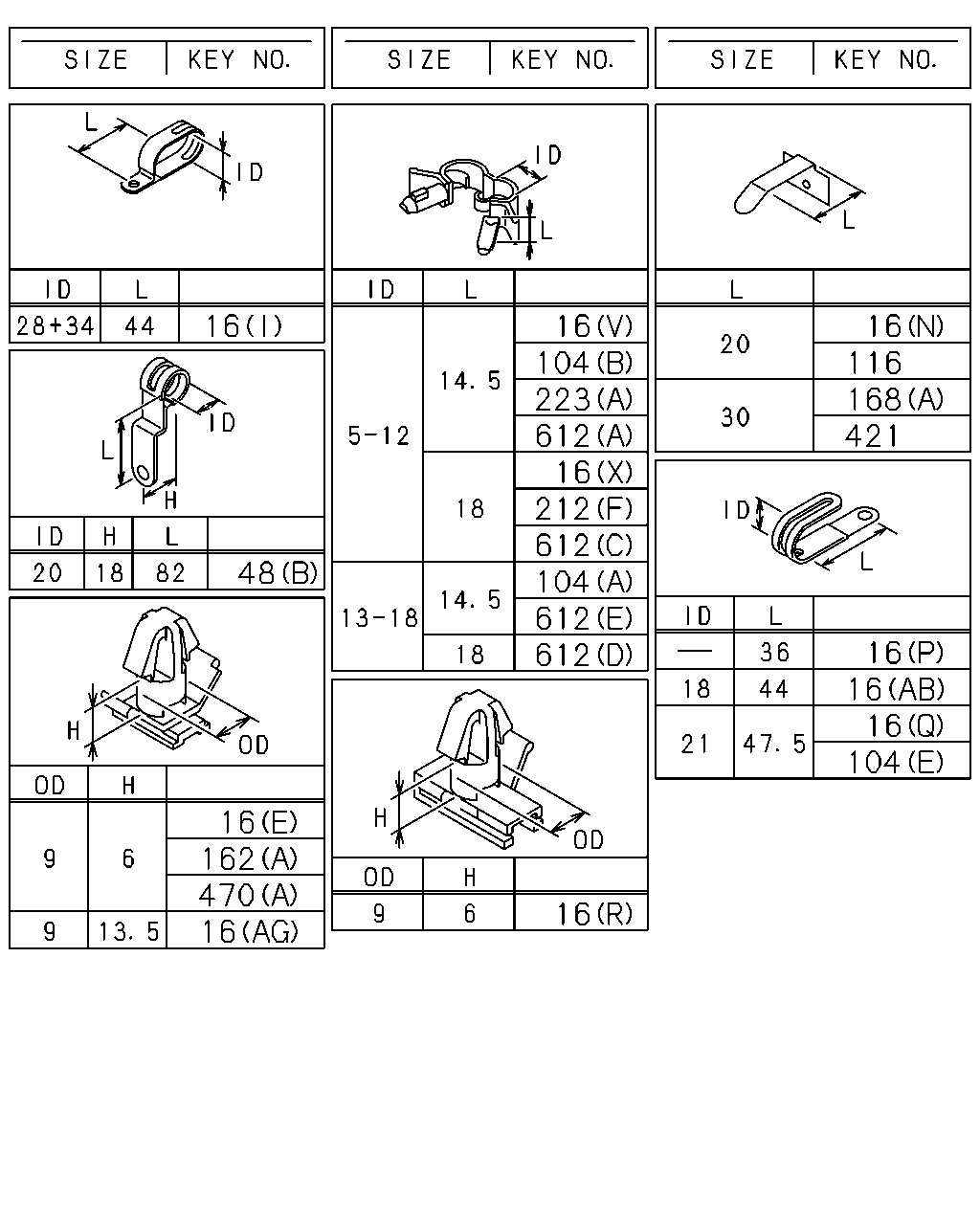

çizim 180441
16 16 104 223 612 16 212 612 104 612 612 16 116 168 421 48 16 16 16 104 16 162 470 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AM) ID=9 L=20 		0-95234-835-0 02 1 1106-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 07 1 1005-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AL) ID=28 L=32 		1-09701-107-1 01 1 0710-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 06 1 0710-0806
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 05 1 0807-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 05 1 0807-
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 06 1 0710-
16 CLIP; HARNESS
(AJ) ID=11 L=16 		0-95235-025-0 02 1 0710-
16 CLIP; HARNESS
(C) ID=11 L=20 		0-95235-035-0 05 1 0710-1105
16 CLIP; HARNESS
(C) ID=11 L=20 		0-95235-035-0 03 1 1106-
16 CLIP; HARNESS
(AI) T=0.8 ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
(AI) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 0710-
16 CLIP; HARNESS
(AD) ID=19 L=20 		0-95235-836-0 03 1 0710-
16 CLIP; HARNESS
(Y) ID=28 L=58 		1-09700-400-0 03 1 0710-0712
16 CLIP; HARNESS
(Y) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 04 1 0710-0806
16 CLIP; HARNESS
(A) ID=11 L=61 		1-09700-484-0 01 1 0710-
16 CLIP; HARNESS
(A) ID=11 L=61 		1-09700-484-0 01 1 0710-
16 CLIP; HARNESS
(L) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
(D) ID=33 L=63 		1-09700-807-0 02 1 0710-0712
16 CLIP; HARNESS
(D) ID=33 L=63 		1-09700-807-0 04 1 0801-
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 03 1 0710-1004
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 02 1 1005-
16 CLIP; HARNESS
(O) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(O) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AE) ID=24 L=24 		1-09701-001-1 01 1 0710-
16 CLIP; HARNESS
(F) ID=15 L=28 		1-09701-216-0 02 1 0710-
16 CLIP; HARNESS
(I) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 07 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(AF) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 05 1 0710-1409
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 1410-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
(AG) OD=9 H=13.5 		1-09709-180-0 01 1 0710-
16 CLIP; HARNESS
(X) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(X) ID=5-12 L=18 		1-09709-287-0 02 1 0710-
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 06 1 0710-1009
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 05 1 1010-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0710-1004
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) L=250 		5-09707-030-1 01 1 0710-1004
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) L=250 		5-09707-030-1 01 1 1005-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 09 1 0710-1205
16 CLIP; HARNESS
(B) L=250 		8-98216-430-0 09 1 1206-
16 CLIP; HARNESS
(Q) ID=21 L=47.5 		8-94178-108-0 05 1 0710-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(AB) ID=18 L=44 		8-94225-185-0 05 1 0710-0801
16 CLIP; HARNESS
(AB) ID=18 L=44 		8-97367-985-1 05 1 0802-
16 CLIP; HARNESS
(AK) ID=14-20 		8-97061-603-0 03 1 0710-
16 CLIP; HARNESS
(R) OD=9 H=6 		8-97368-793-0 04 1 0710-
16 CLIP; HARNESS
(S) L=251 		8-97619-917-0 03 1 0710-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 05 1 0710-0712
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 07 1 0801-0806
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 08 1 0807-
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 03 1 0710-
16 CLIP; HARNESS
(K) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(K) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (G) ID=35 H=45 L=33 		8-97615-568-0 03 1 0710-
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (J) ID=24.5 H=35 L=25 		1-09700-990-0 03 1 0710-0712
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (AA) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0801-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (T) ID=25 L=54 		1-09700-392-1 01 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1004
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1005-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1005-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (M) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (H) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (N) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
48 CLIP; FRAME HARNESS
(A) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 11 1 0710-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0710-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0710-
104 CLIP; HEADLAMP HARNESS
(D) L=250 		5-09707-030-1 02 1 0710-
104 CLIP; HEADLAMP HARNESS
(C) L=140 		5-09707-031-1 06 1 0710-
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0710-0710
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 0710-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 08 1 1410-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0710-1409
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410-
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0710-0710
162 CLIP; SW HARNESS
(B) L=180 		1-09707-162-1 01 1 0711-1009
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1010-
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 05 1 0710-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0710-
212 CLIP; HORN HARNESS
(B) L=140 		5-09707-031-1 01 1 0710-
212 CLIP; HORN HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0710-
212 CLIP; HORN HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0710-
212 CLIP; HORN HARNESS
(A) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0710-
212 CLIP; HORN HARNESS
(F) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0710-
421 CLIP; FLOOR HARNESS
L=30 SET=10 PIECE 		1-09987-265-0 05 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-
612 CLIP; HARNESS DPD
(D) ID=13-18 L=18 		1-09709-291-0 01 1 0802-
612 CLIP; HARNESS DPD
(B) ID=4.8 		1-09701-218-0 03 1 0710-
612 CLIP; HARNESS DPD
(C) ID=5-12 L=18 		1-09709-287-0 02 1 0710-0801
612 CLIP; HARNESS DPD
(E) ID=13-18 L=14.5 		1-09709-290-0 01 1 0802-
612 CLIP; HARNESS DPD
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-
çizim 180442
530 1 1 1 1 178 178 178 178 178 178 224
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(D) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0710-
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0710-
1 SLEEVE; RUBBER
(C) ID=18 OD=22 L=25 		8-94412-773-0 01 1 0710-
1 SLEEVE; RUBBER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=38.1 L=50 		5-09360-835-0 01 1 0710-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0710-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0710-
178 GROMMET; HARNESS
(C) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0710-
178 GROMMET; HARNESS
(B) ID=32 OD=40 T=23 		1-09332-112-0 02 1 0710-
178 GROMMET; HARNESS
(C) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0710-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0710-
178 GROMMET; HARNESS
(F) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0710-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0710-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0710-0904
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 0710-
530 SEAL; HARNESS
100X40 		1-72498-022-1 02 1 0710-
530 SEAL; HARNESS
LOW ROOF<6XQ> 100X40 		1-72498-022-1 01 1 0710-

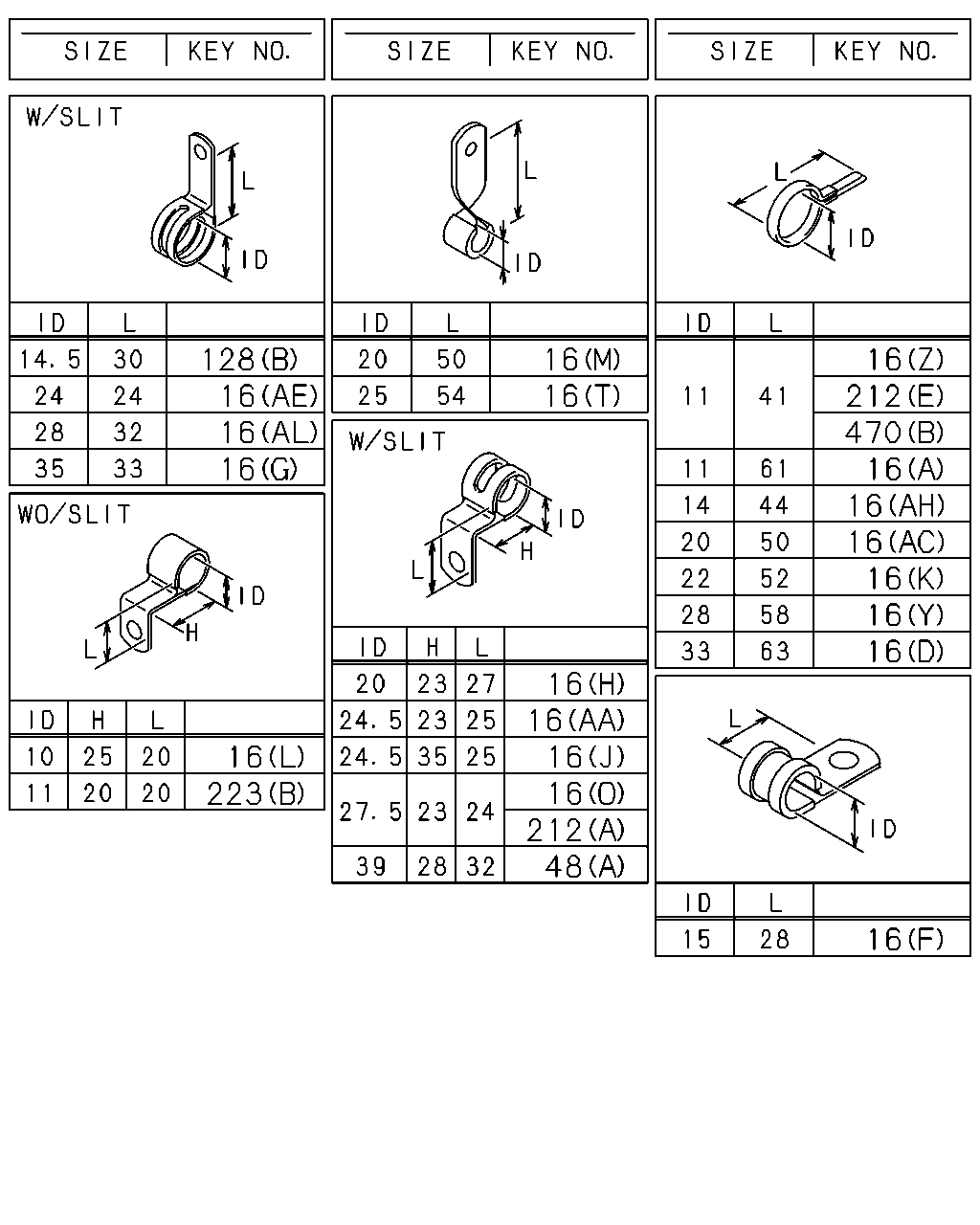

çizim 180443
128 16 16 16 16 16 16 212 470 16 16 16 16 16 16 16 16 16 16 212 48 16 223 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AM) ID=9 L=20 		0-95234-835-0 02 1 1106-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 07 1 1005-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AL) ID=28 L=32 		1-09701-107-1 01 1 0710-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 06 1 0710-0806
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 05 1 0807-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 05 1 0807-
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 06 1 0710-
16 CLIP; HARNESS
(AJ) ID=11 L=16 		0-95235-025-0 02 1 0710-
16 CLIP; HARNESS
(C) ID=11 L=20 		0-95235-035-0 05 1 0710-1105
16 CLIP; HARNESS
(C) ID=11 L=20 		0-95235-035-0 03 1 1106-
16 CLIP; HARNESS
(AI) T=0.8 ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
(AI) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 0710-
16 CLIP; HARNESS
(AD) ID=19 L=20 		0-95235-836-0 03 1 0710-
16 CLIP; HARNESS
(Y) ID=28 L=58 		1-09700-400-0 03 1 0710-0712
16 CLIP; HARNESS
(Y) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 04 1 0710-0806
16 CLIP; HARNESS
(A) ID=11 L=61 		1-09700-484-0 01 1 0710-
16 CLIP; HARNESS
(A) ID=11 L=61 		1-09700-484-0 01 1 0710-
16 CLIP; HARNESS
(L) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
(D) ID=33 L=63 		1-09700-807-0 02 1 0710-0712
16 CLIP; HARNESS
(D) ID=33 L=63 		1-09700-807-0 04 1 0801-
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 03 1 0710-1004
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 02 1 1005-
16 CLIP; HARNESS
(O) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(O) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AE) ID=24 L=24 		1-09701-001-1 01 1 0710-
16 CLIP; HARNESS
(F) ID=15 L=28 		1-09701-216-0 02 1 0710-
16 CLIP; HARNESS
(I) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 07 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(AF) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 05 1 0710-1409
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 1410-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
(AG) OD=9 H=13.5 		1-09709-180-0 01 1 0710-
16 CLIP; HARNESS
(X) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(X) ID=5-12 L=18 		1-09709-287-0 02 1 0710-
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 06 1 0710-1009
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 05 1 1010-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0710-1004
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) L=250 		5-09707-030-1 01 1 0710-1004
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) L=250 		5-09707-030-1 01 1 1005-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 09 1 0710-1205
16 CLIP; HARNESS
(B) L=250 		8-98216-430-0 09 1 1206-
16 CLIP; HARNESS
(Q) ID=21 L=47.5 		8-94178-108-0 05 1 0710-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(AB) ID=18 L=44 		8-94225-185-0 05 1 0710-0801
16 CLIP; HARNESS
(AB) ID=18 L=44 		8-97367-985-1 05 1 0802-
16 CLIP; HARNESS
(AK) ID=14-20 		8-97061-603-0 03 1 0710-
16 CLIP; HARNESS
(R) OD=9 H=6 		8-97368-793-0 04 1 0710-
16 CLIP; HARNESS
(S) L=251 		8-97619-917-0 03 1 0710-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 05 1 0710-0712
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 07 1 0801-0806
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 08 1 0807-
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 03 1 0710-
16 CLIP; HARNESS
(K) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(K) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (G) ID=35 H=45 L=33 		8-97615-568-0 03 1 0710-
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (J) ID=24.5 H=35 L=25 		1-09700-990-0 03 1 0710-0712
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (AA) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0801-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (T) ID=25 L=54 		1-09700-392-1 01 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1004
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1005-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1005-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (M) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (H) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (N) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
48 CLIP; FRAME HARNESS
(A) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 11 1 0710-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0710-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0710-
212 CLIP; HORN HARNESS
(B) L=140 		5-09707-031-1 01 1 0710-
212 CLIP; HORN HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0710-
212 CLIP; HORN HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0710-
212 CLIP; HORN HARNESS
(A) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0710-
212 CLIP; HORN HARNESS
(F) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-
çizim 180445
312 312 312 211 312 312 312 312 342 334 334 312 375 600
BalonParca AdiParca NoAdetTipApplied Date
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 0710-
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(G) 		1-82698-556-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-570-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-586-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(H) 		1-82699-199-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(C) 		8-98035-927-1 01 1 0710-
312 BRACKET; CLIP HARNESS
(D) 		8-98052-591-0 01 1 0710-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F) 		1-82698-443-0 01 1 0710-
334 BRACKET
(A) 		1-53457-153-2 01 1 0710-
334 BRACKET
(B) 		1-82698-650-0 01 1 0710-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0710-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0710-
600 PROTECTOR; HEAT 8-98084-026-0 01 1 0710-

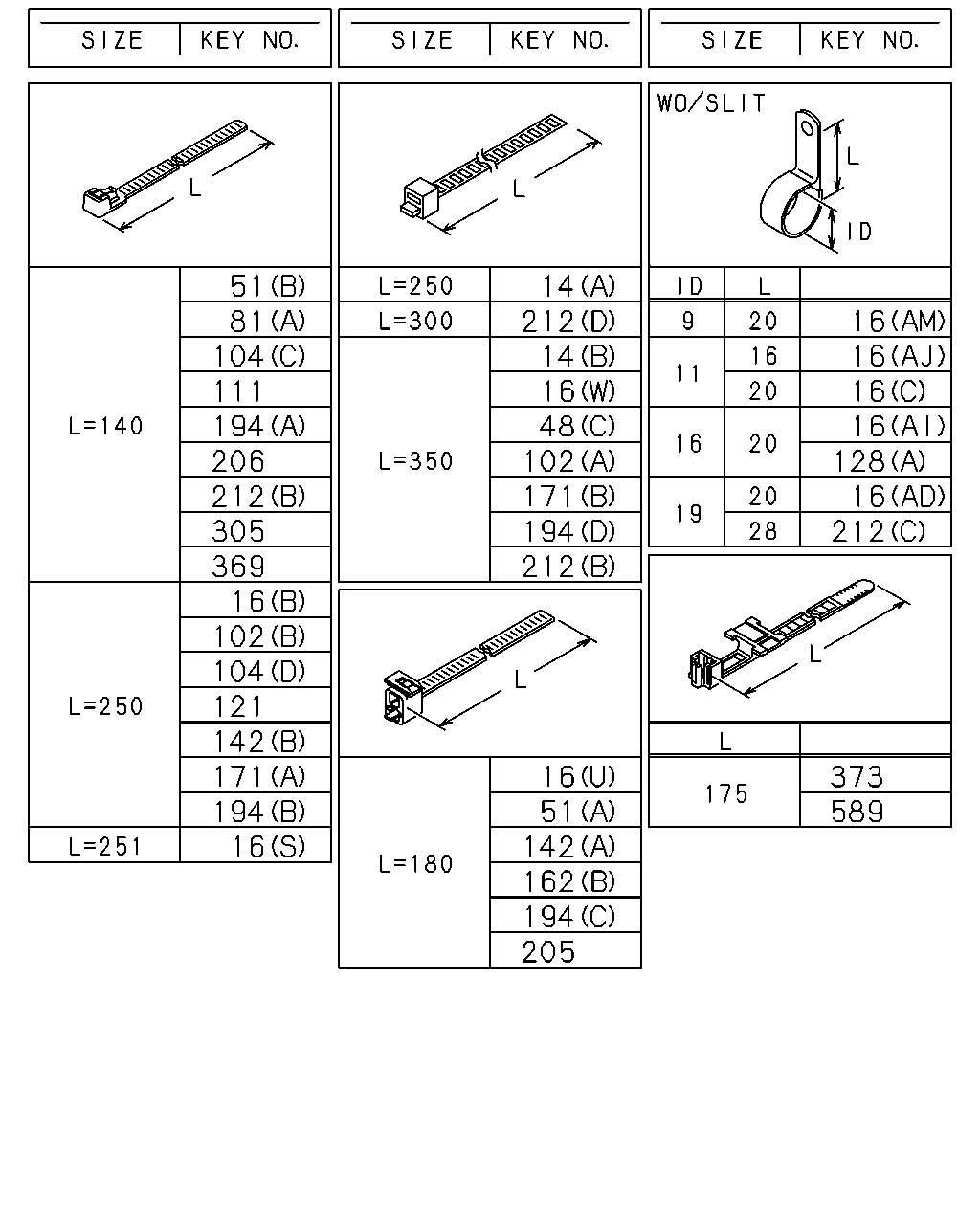

çizim 180450
51 81 104 111 194 206 212 305 369 16 102 104 121 142 171 194 16 14 212 14 16 48 102 171 194 212 16 51 142 162 194 205 16 16 16 16 128 16 212 373 589
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 03 1 0710-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0710-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 04 1 0710-
16 CLIP; HARNESS
(AM) ID=9 L=20 		0-95234-835-0 02 1 1106-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 07 1 1005-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AL) ID=28 L=32 		1-09701-107-1 01 1 0710-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 06 1 0710-0806
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 05 1 0807-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 05 1 0807-
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 06 1 0710-
16 CLIP; HARNESS
(AJ) ID=11 L=16 		0-95235-025-0 02 1 0710-
16 CLIP; HARNESS
(C) ID=11 L=20 		0-95235-035-0 05 1 0710-1105
16 CLIP; HARNESS
(C) ID=11 L=20 		0-95235-035-0 03 1 1106-
16 CLIP; HARNESS
(AI) T=0.8 ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
(AI) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 0710-
16 CLIP; HARNESS
(AD) ID=19 L=20 		0-95235-836-0 03 1 0710-
16 CLIP; HARNESS
(Y) ID=28 L=58 		1-09700-400-0 03 1 0710-0712
16 CLIP; HARNESS
(Y) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 04 1 0710-0806
16 CLIP; HARNESS
(A) ID=11 L=61 		1-09700-484-0 01 1 0710-
16 CLIP; HARNESS
(A) ID=11 L=61 		1-09700-484-0 01 1 0710-
16 CLIP; HARNESS
(L) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
(D) ID=33 L=63 		1-09700-807-0 02 1 0710-0712
16 CLIP; HARNESS
(D) ID=33 L=63 		1-09700-807-0 04 1 0801-
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 03 1 0710-1004
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 02 1 1005-
16 CLIP; HARNESS
(O) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(O) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AE) ID=24 L=24 		1-09701-001-1 01 1 0710-
16 CLIP; HARNESS
(F) ID=15 L=28 		1-09701-216-0 02 1 0710-
16 CLIP; HARNESS
(I) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 07 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(AF) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 05 1 0710-1409
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 1410-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
(AG) OD=9 H=13.5 		1-09709-180-0 01 1 0710-
16 CLIP; HARNESS
(X) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(X) ID=5-12 L=18 		1-09709-287-0 02 1 0710-
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 06 1 0710-1009
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 05 1 1010-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0710-1004
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) L=250 		5-09707-030-1 01 1 0710-1004
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) L=250 		5-09707-030-1 01 1 1005-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 09 1 0710-1205
16 CLIP; HARNESS
(B) L=250 		8-98216-430-0 09 1 1206-
16 CLIP; HARNESS
(Q) ID=21 L=47.5 		8-94178-108-0 05 1 0710-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(AB) ID=18 L=44 		8-94225-185-0 05 1 0710-0801
16 CLIP; HARNESS
(AB) ID=18 L=44 		8-97367-985-1 05 1 0802-
16 CLIP; HARNESS
(AK) ID=14-20 		8-97061-603-0 03 1 0710-
16 CLIP; HARNESS
(R) OD=9 H=6 		8-97368-793-0 04 1 0710-
16 CLIP; HARNESS
(S) L=251 		8-97619-917-0 03 1 0710-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 05 1 0710-0712
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 07 1 0801-0806
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 08 1 0807-
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 03 1 0710-
16 CLIP; HARNESS
(K) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(K) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (G) ID=35 H=45 L=33 		8-97615-568-0 03 1 0710-
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (J) ID=24.5 H=35 L=25 		1-09700-990-0 03 1 0710-0712
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (AA) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0801-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (T) ID=25 L=54 		1-09700-392-1 01 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1004
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1005-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1005-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (M) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (H) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (N) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
48 CLIP; FRAME HARNESS
(A) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 11 1 0710-
51 CLIP; COOLER CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=180 		1-09707-162-1 01 1 0710-
51 CLIP; COOLER CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) L=140 		5-09707-031-1 01 1 0710-
81 CLIP; HARNESS
(C) ID=10 & 12 		1-09709-278-1 02 1 0710-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0710-
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0710-
102 CLIP; BAND
(A) L=350 		1-09707-183-0 04 1 0710-
102 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 0710-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0710-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0710-
104 CLIP; HEADLAMP HARNESS
(D) L=250 		5-09707-030-1 02 1 0710-
104 CLIP; HEADLAMP HARNESS
(C) L=140 		5-09707-031-1 06 1 0710-
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0710-0710
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 0710-
121 CLIP; FACIA HARNESS
L=250 		5-09707-030-1 02 1 0710-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0710-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0710-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0710-1207
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208-
142 CLIP; HARNESS,ENG
(B) L=250 		5-09707-030-1 01 1 0710-1205
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 01 1 1206-
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0710-0710
162 CLIP; SW HARNESS
(B) L=180 		1-09707-162-1 01 1 0711-1009
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1010-
171 CLIP; STARTER HARNESS
(B) L=350 		1-09707-183-0 02 1 0710-
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 04 1 0710-
194 CLIP; BAND
(D) L=350 		1-09707-183-0 03 1 0710-
194 CLIP; BAND
(D) L=350 		1-09707-183-0 08 1 0710-1202
194 CLIP; BAND
(D) L=350 		1-09707-183-0 09 1 1203-1409
194 CLIP; BAND
(D) L=350 		1-09707-183-0 05 1 1410-
194 CLIP; BAND
(C) L=180 		1-09707-162-1 03 1 0710-
194 CLIP; BAND
(B) L=250 		5-09707-030-1 06 1 0710-
194 CLIP; BAND
(A) L=140 		5-09707-031-1 01 1 0710-
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 0710-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 03 1 0710-
212 CLIP; HORN HARNESS
(B) L=140 		5-09707-031-1 01 1 0710-
212 CLIP; HORN HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0710-
212 CLIP; HORN HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0710-
212 CLIP; HORN HARNESS
(A) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0710-
212 CLIP; HORN HARNESS
(F) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0710-
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-1 01 1 0710-
373 CLIP; BAND,GEN HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=175 		1-09707-176-1 01 1 1407-
589 CLIP; GLOW PLUG
GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=175 		1-09707-176-1 01 1 1407-
çizim 180451
148 168 612 81 81 16 16 462
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AM) ID=9 L=20 		0-95234-835-0 02 1 1106-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 07 1 1005-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AL) ID=28 L=32 		1-09701-107-1 01 1 0710-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 06 1 0710-0806
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 05 1 0807-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 05 1 0807-
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 06 1 0710-
16 CLIP; HARNESS
(AJ) ID=11 L=16 		0-95235-025-0 02 1 0710-
16 CLIP; HARNESS
(C) ID=11 L=20 		0-95235-035-0 05 1 0710-1105
16 CLIP; HARNESS
(C) ID=11 L=20 		0-95235-035-0 03 1 1106-
16 CLIP; HARNESS
(AI) T=0.8 ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
(AI) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 0710-
16 CLIP; HARNESS
(AD) ID=19 L=20 		0-95235-836-0 03 1 0710-
16 CLIP; HARNESS
(Y) ID=28 L=58 		1-09700-400-0 03 1 0710-0712
16 CLIP; HARNESS
(Y) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
(Z) ID=11 L=41 		1-09700-403-0 04 1 0710-0806
16 CLIP; HARNESS
(A) ID=11 L=61 		1-09700-484-0 01 1 0710-
16 CLIP; HARNESS
(A) ID=11 L=61 		1-09700-484-0 01 1 0710-
16 CLIP; HARNESS
(L) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
(D) ID=33 L=63 		1-09700-807-0 02 1 0710-0712
16 CLIP; HARNESS
(D) ID=33 L=63 		1-09700-807-0 04 1 0801-
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 03 1 0710-1004
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 02 1 1005-
16 CLIP; HARNESS
(O) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(O) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AE) ID=24 L=24 		1-09701-001-1 01 1 0710-
16 CLIP; HARNESS
(F) ID=15 L=28 		1-09701-216-0 02 1 0710-
16 CLIP; HARNESS
(I) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 07 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(AF) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 05 1 0710-1409
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 1410-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
(AG) OD=9 H=13.5 		1-09709-180-0 01 1 0710-
16 CLIP; HARNESS
(X) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(X) ID=5-12 L=18 		1-09709-287-0 02 1 0710-
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 06 1 0710-1009
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 05 1 1010-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0710-1004
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) L=250 		5-09707-030-1 01 1 0710-1004
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) L=250 		5-09707-030-1 01 1 1005-
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 09 1 0710-1205
16 CLIP; HARNESS
(B) L=250 		8-98216-430-0 09 1 1206-
16 CLIP; HARNESS
(Q) ID=21 L=47.5 		8-94178-108-0 05 1 0710-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(AB) ID=18 L=44 		8-94225-185-0 05 1 0710-0801
16 CLIP; HARNESS
(AB) ID=18 L=44 		8-97367-985-1 05 1 0802-
16 CLIP; HARNESS
(AK) ID=14-20 		8-97061-603-0 03 1 0710-
16 CLIP; HARNESS
(R) OD=9 H=6 		8-97368-793-0 04 1 0710-
16 CLIP; HARNESS
(S) L=251 		8-97619-917-0 03 1 0710-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 05 1 0710-0712
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 07 1 0801-0806
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 08 1 0807-
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 03 1 0710-
16 CLIP; HARNESS
(K) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(K) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (G) ID=35 H=45 L=33 		8-97615-568-0 03 1 0710-
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (J) ID=24.5 H=35 L=25 		1-09700-990-0 03 1 0710-0712
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (AA) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0801-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (T) ID=25 L=54 		1-09700-392-1 01 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1004
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1005-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1005-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (M) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (H) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (N) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
81 CLIP; HARNESS
(C) ID=10 & 12 		1-09709-278-1 02 1 0710-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0710-
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0710-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 0710-
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 05 1 0710-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0710-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20 		1-09709-068-0 02 1 0710-
612 CLIP; HARNESS DPD
(D) ID=13-18 L=18 		1-09709-291-0 01 1 0802-
612 CLIP; HARNESS DPD
(B) ID=4.8 		1-09701-218-0 03 1 0710-
612 CLIP; HARNESS DPD
(C) ID=5-12 L=18 		1-09709-287-0 02 1 0710-0801
612 CLIP; HARNESS DPD
(E) ID=13-18 L=14.5 		1-09709-290-0 01 1 0802-
612 CLIP; HARNESS DPD
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-

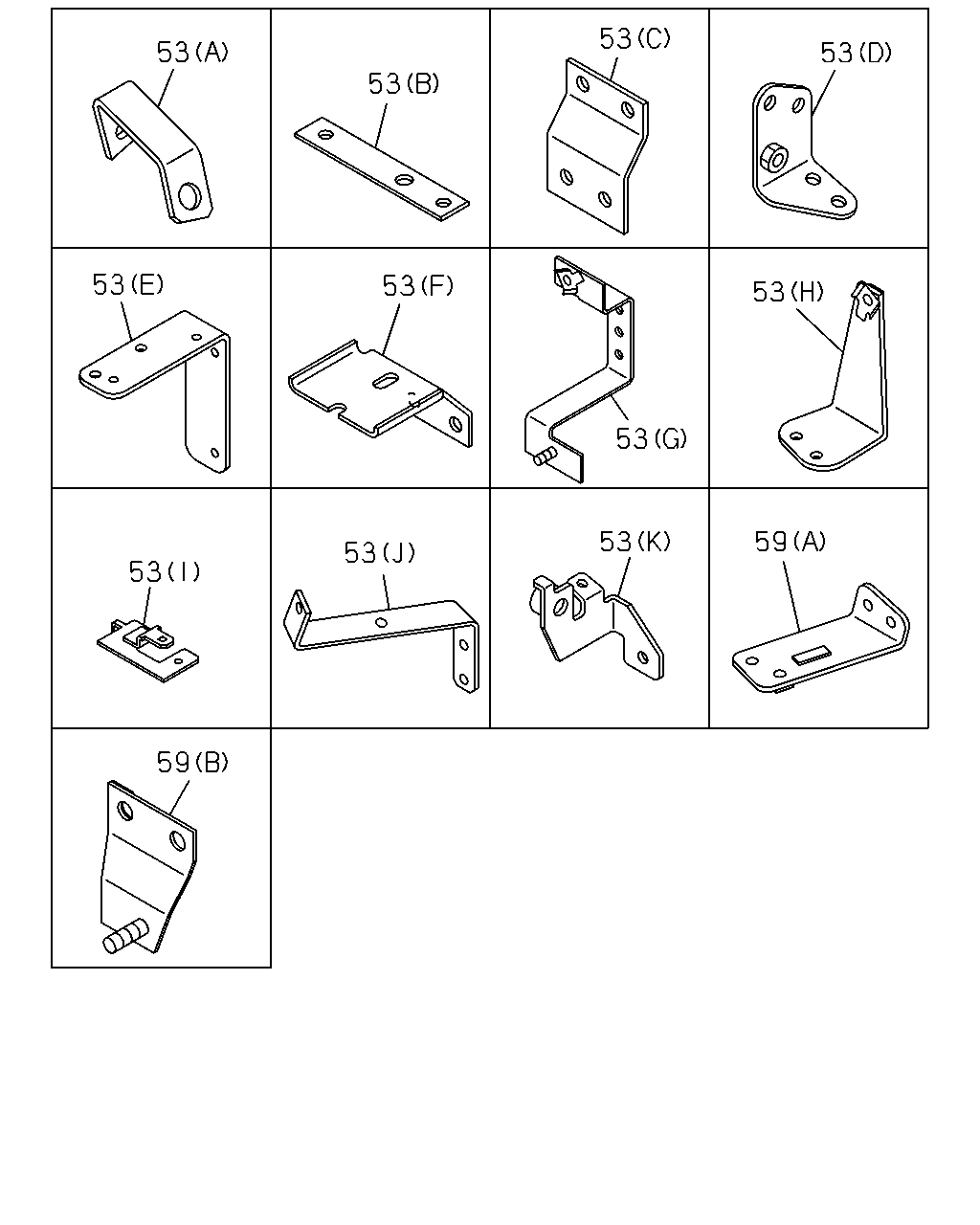

çizim 180452
53 53 53 53 53 53 53 53 53 59 53 53 59
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(K) 		8-98194-068-0 01 1 1112-
53 BRACKET; HARNESS
(B) L=130 		1-47478-959-0 02 1 0710-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 11 1 0710-
53 BRACKET; HARNESS
(I) 		1-82698-495-2 01 1 0710-
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 0710-
53 BRACKET; HARNESS
(E) 		8-97610-340-1 01 1 0710-
53 BRACKET; HARNESS
(C) 		8-97616-268-1 01 1 0710-
53 BRACKET; HARNESS
(J) 		8-97622-857-0 01 1 0710-
53 BRACKET; HARNESS
(F) 		8-98032-696-0 01 1 0710-
53 BRACKET; HARNESS
(G) 		8-98050-989-0 01 1 0710-
53 BRACKET; HARNESS
(H) 		8-98052-592-0 01 1 0710-
59 BRACKET; FRAME HARNESS
(A) 		1-82698-531-0 01 1 0710-
59 BRACKET; FRAME HARNESS
(B) 		8-98061-135-1 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
