Isuzu WW
▶
TRUCKS
▶
EXD
▶
11114 - EXD AUST JAPAN NEW LONG TERM 2005
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶
8-03 — LAMP; REAR AND REAR SIDE
(#39712) — 47 parça
◀

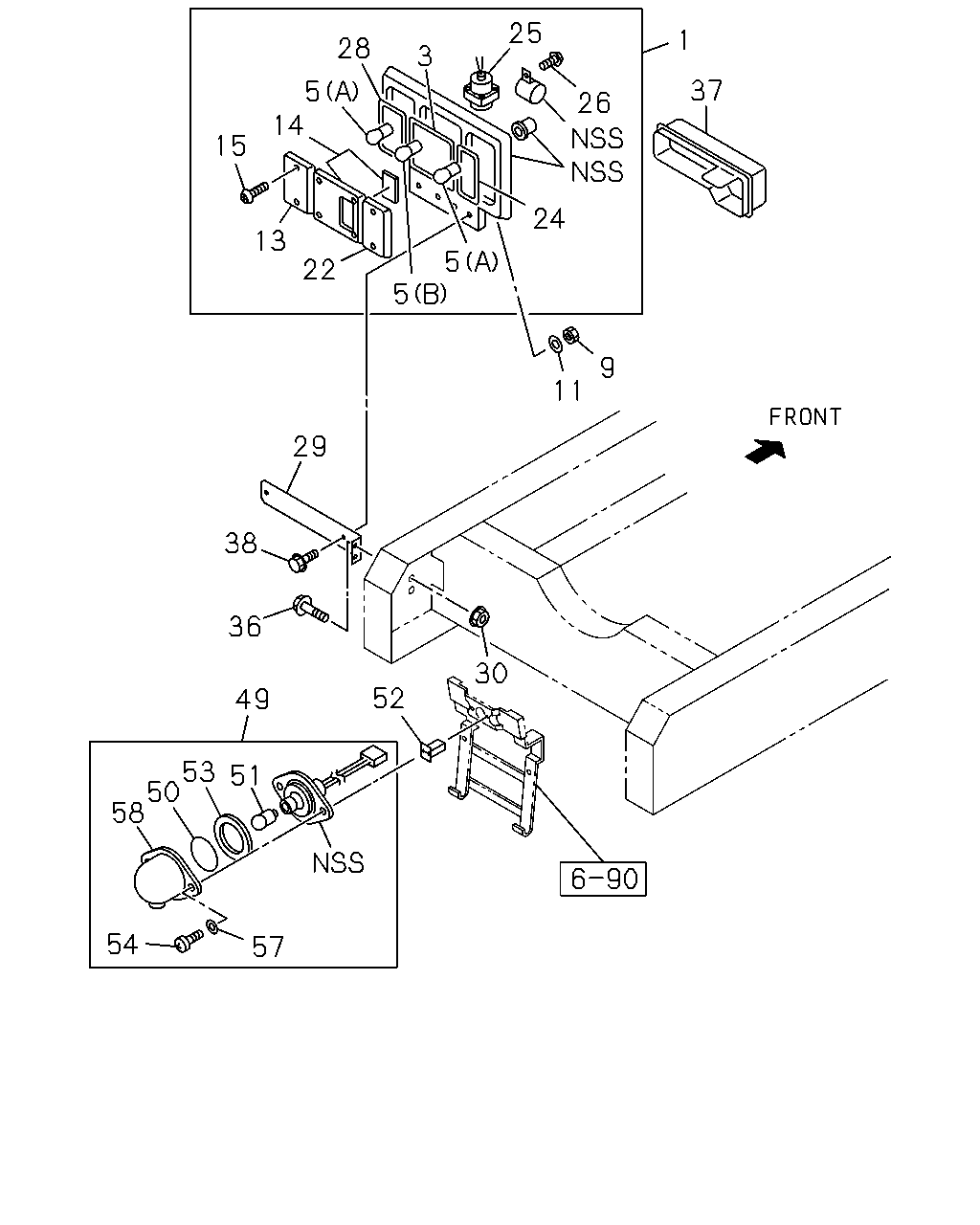

[803A] RR COMB AND LICENSE LAMP (41 parça)
[803A] SEARCH LIGHT (6 parça)
▶
37
1
26
25
3
28
5
14
15
13
22
5
5
24
9
11
29
38
36
49
52
30
51
53
50
58
54
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
8-97213-369-0
01
1
0710-0712
1
LAMP ASM; RR COMB
1-82230-208-0
01
1
0801-
1
LAMP ASM; RR COMB
8-97213-370-0
01
1
0710-0712
1
LAMP ASM; RR COMB
1-82230-209-0
01
1
0801-
3
GASKET; RR COMB LAMP
8-94257-505-0
01
1
0710-
3
GASKET; RR COMB LAMP
8-94257-505-0
01
1
0710-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
0710-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
0710-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
01
1
0710-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
01
1
0710-
9
NUT; LAMP,RR COMB
M6
0-91110-506-0
04
1
0710-
11
WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18
0-91610-706-0
04
1
0710-
13
LENS; TURN SIGNAL
8-94174-639-0
01
1
0710-
13
LENS; TURN SIGNAL
8-94174-638-0
01
1
0710-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-625-0
01
1
0710-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-624-0
01
1
0710-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0710-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0710-
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-1
01
1
0710-
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-1
01
1
0710-
24
GASKET; BACK,LAMP
8-94257-506-0
01
1
0710-
24
GASKET; BACK,LAMP
8-94257-506-0
01
1
0710-
25
HORN ASM; BACK
8-94257-518-0
01
1
0710-
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
0710-
26
SCREW; BACK HORN
M4X12 TAPPING
9-07076-412-0
02
1
0710-
28
GASKET; TURN,LAMP
8-94257-507-0
01
1
0710-
28
GASKET; TURN,LAMP
8-94257-507-0
01
1
0710-
29
BRACKET; LAMP,RR COMB
1-53487-022-0
02
1
0710-
30
NUT; BRKT,RR COMB
M8 FLANGE
0-91180-108-0
04
1
0710-
36
BOLT; BRKT,RR COMB
M8X30 FLANGE
0-28650-830-0
04
1
0710-
37
COVER; RR COMB LAMP
1-82239-008-0
01
1
0710-
37
COVER; RR COMB LAMP
1-82239-007-0
01
1
0710-
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER
0-50640-630-0
04
1
0710-
49
LAMP; LICENSE PLATE
24V 10W
1-82120-024-1
01
1
0710-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
0710-
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
0710-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
0710-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
0710-
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
0710-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
0710-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
0710-
250
254
255
253
256
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
LAMP ASM; SEARCH LIGHT
1-82180-012-0
01
1
0710-
253
BULB; SEARCH LIGHT
9-82691-605-0
01
1
0710-
254
LENS; SEARCH LIGHT
9-82681-207-0
01
1
0710-
255
GASKET; SEARCH LIGHT
9-82681-706-0
01
1
0710-
256
RIM; SEARCH LIGHT
9-82681-402-0
01
1
0710-
257
NUT; SEARCH LIGHT
M10 FLANGE
0-91180-110-0
01
1
0710-
