◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11114 - EXD AUST JAPAN NEW LONG TERM 2005 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#39709) — 12 parça

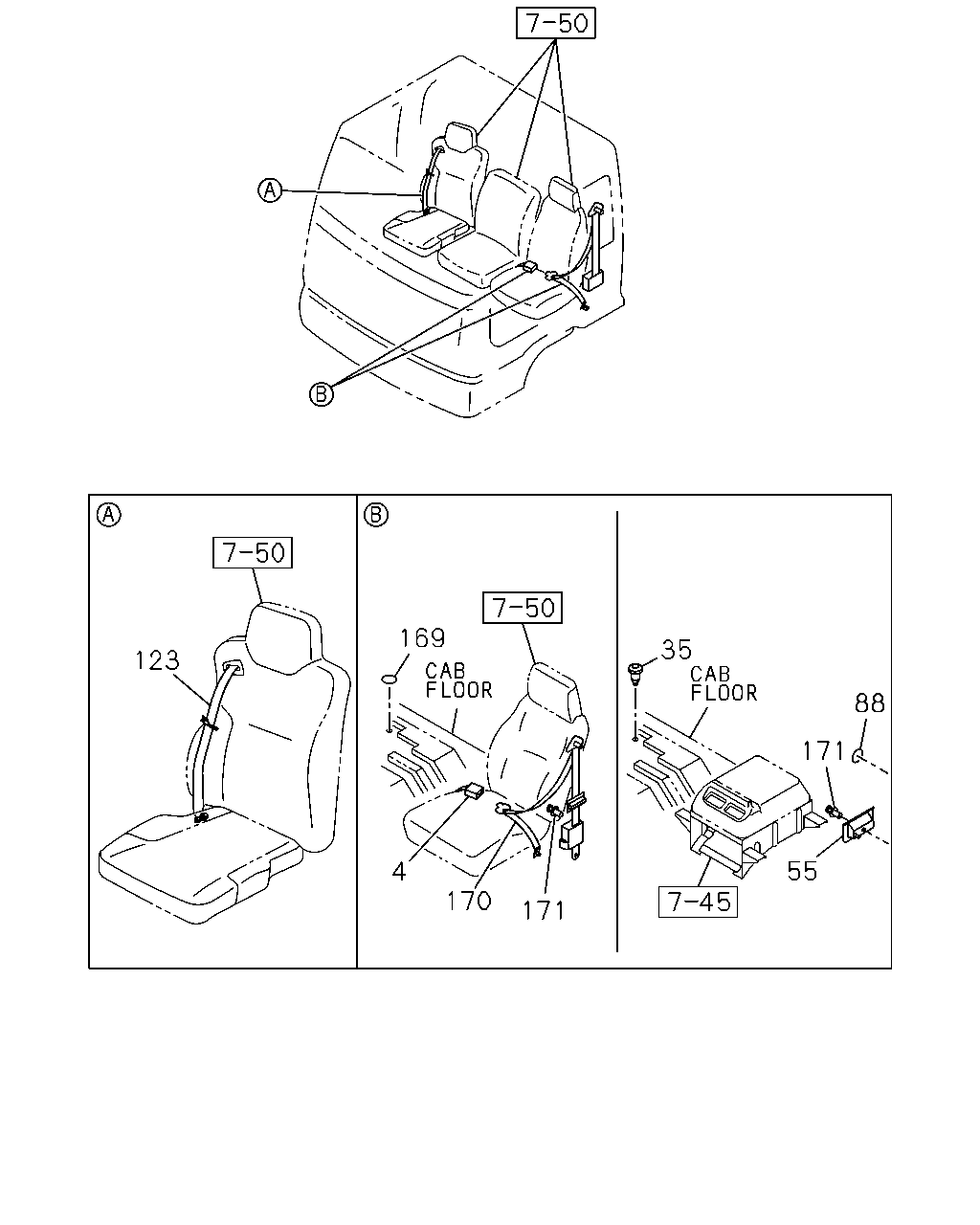

çizim 180427
169 35 123 88 171 55 4 170 171
BalonParca AdiParca NoAdetTipApplied Date
4 BELT; PASSENGER SEAT,BUCKLE SIDE 1-75617-546-1 01 1 0710-
35 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 01 1 1006-
55 GUIDE; SEAT BELT 1-75617-556-0 01 1 0710-
88 PLUG; HOLE
OD=31.6 		8-94198-177-0 01 1 0710-
123 BELT ASM; SEAT 8-98097-971-0 01 1 0710-
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710-1005
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1006-
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1006-
169 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0710-1005
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-605-1 01 1 0710-1310
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98184-486-1 01 1 1311-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
