Isuzu WW
▶
TRUCKS
▶
EXD
▶
11114 - EXD AUST JAPAN NEW LONG TERM 2005
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#39708) — 79 parça
◀
[750A] DRIVER NO.3 (26 parça)
[750A] DRIVER NO.2 (9 parça)
[750A] DRIVER NO.1 (29 parça)
[750A] PASSENGER (15 parça)
▶

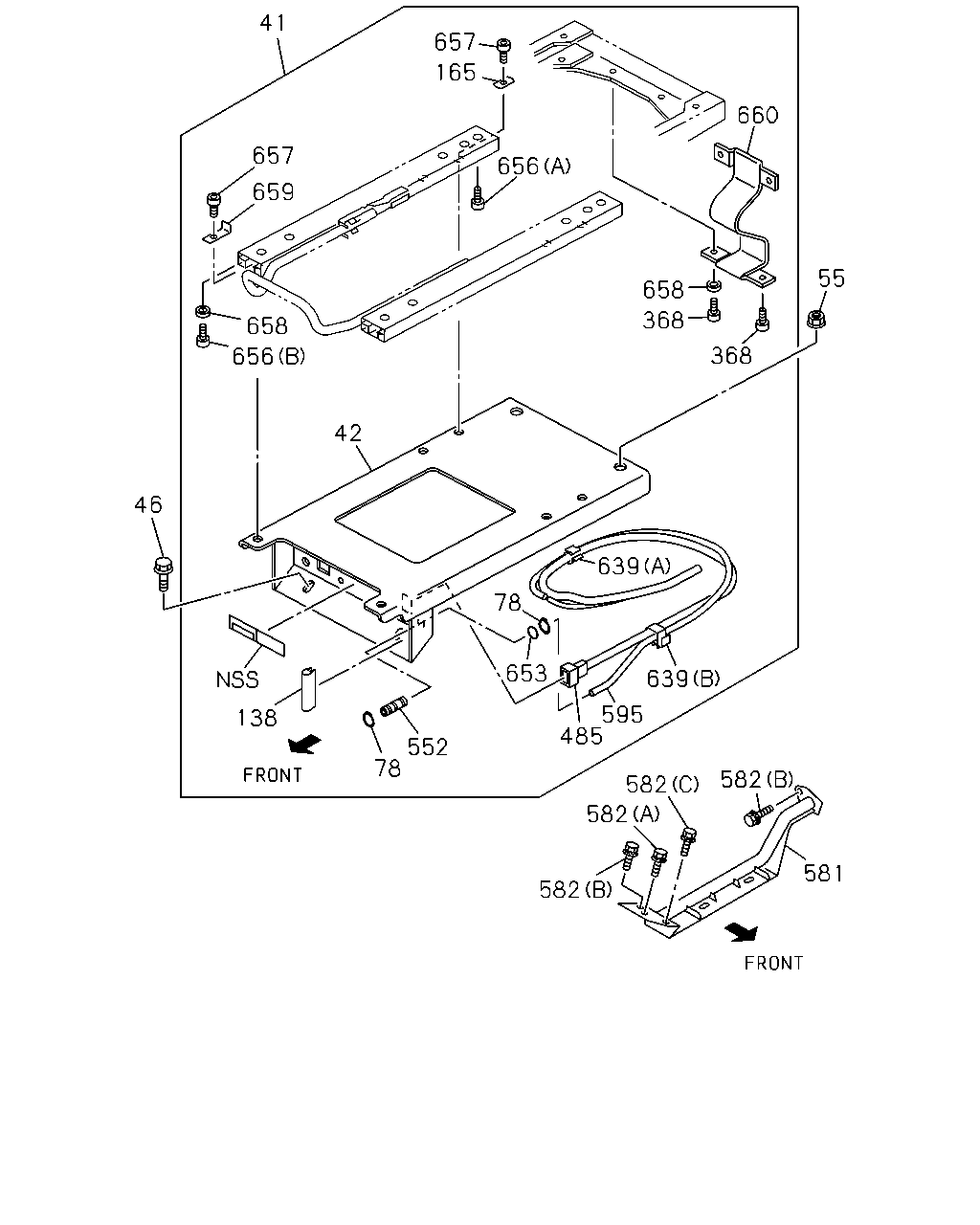

660
656
165
657
41
657
658
659
656
42
46
138
78
653
552
78
485
582
582
582
582
581
595
639
368
368
658
55
639
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
SEAT ASM; DRIVER
8-98036-942-2
01
1
0710-1212
41
SEAT ASM; DRIVER
8-98195-067-0
01
1
1301-
42
STAND; DRIVER SEAT
8-98106-347-0
01
1
0710-
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
0710-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
0-91180-110-0
02
1
0710-
78
RING; SNAP
8-98101-900-0
02
1
0710-
138
PROTECTOR; SEAT STAND
8-98106-351-0
01
1
0710-
165
WASHER; PL
1-75590-086-0
04
1
0710-
368
BOLT; SEAT
8-98106-353-0
04
1
0710-
485
HARNESS; FRT SEAT
8-98106-360-0
01
1
0710-
552
CONNECTOR
8-98101-902-0
01
1
0710-
581
PIPE; SEAT
1-73907-605-2
01
1
0710-
582
BOLT; PIPE,SEAT
(B)
1-09980-619-1
02
1
0710-
582
BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0710-0904
582
BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
582
BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
01
1
0710-
595
TUBE; NYLON
8-98106-348-0
01
1
0710-
639
CLIP; SEAT
(A)
8-98106-349-0
01
1
0710-
639
CLIP; SEAT
(B)
8-98106-350-0
01
1
0710-
653
GASKET
8-98101-901-0
01
1
0710-
656
BOLT; SLIDER TO SEAT
(A)
1-75590-085-0
04
1
0710-
656
BOLT; SLIDER TO SEAT
(B)
8-98106-354-0
02
1
0710-
657
BOLT; SLIDER TO STAND
1-75590-085-0
06
1
0710-
658
SPACER; BOLT
8-98106-355-0
02
1
0710-
659
STOPPER
8-98106-356-0
02
1
0710-
660
BELT; TETHER
8-98106-357-0
01
1
0710-

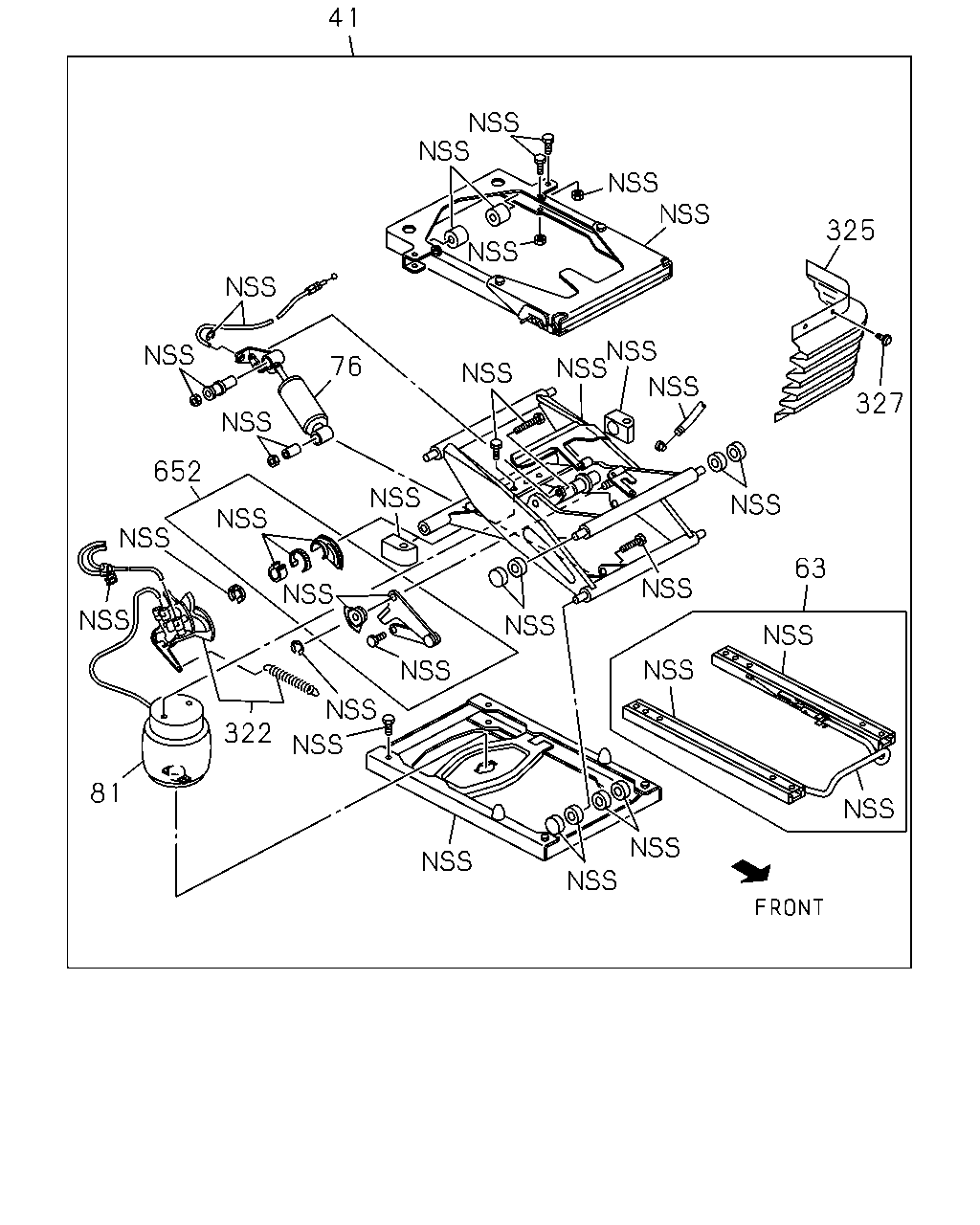

41
81
322
63
327
325
76
652
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
SEAT ASM; DRIVER
8-98036-942-2
01
1
0710-1212
41
SEAT ASM; DRIVER
8-98195-067-0
01
1
1301-
63
ADJUSTER; SEAT SLIDE
8-98098-005-0
01
1
0710-
76
DAMPER; AIR SUSP
8-98097-999-0
01
1
0710-
81
SPRING; AIR
8-98098-000-0
01
1
0710-
322
VALVE; AIR SPRING
8-98098-001-0
01
1
0710-
325
COVER; SUSPENSION DEVICE
8-98098-003-0
01
1
0710-
327
CLIP; COVER
8-98098-004-0
01
1
0710-
652
LOCK ASM; HEIGHT
8-98098-002-0
01
1
0710-

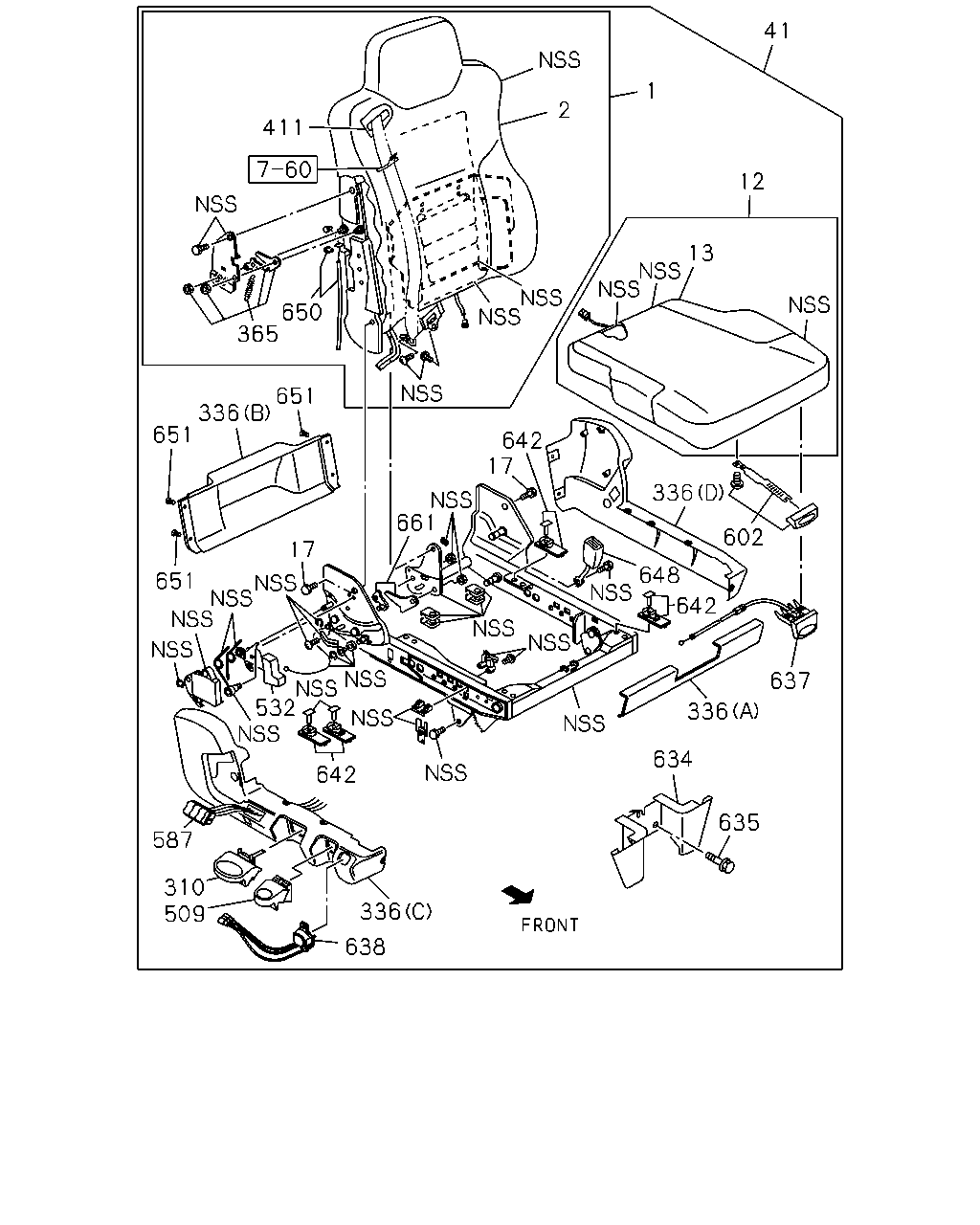

41
1
2
12
13
650
365
411
336
651
651
17
661
642
17
336
602
637
336
634
635
642
532
651
587
310
509
336
638
642
648
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
8-98097-964-0
01
1
0710-
2
COVER; TRIM,FRT SEAT,BACK
8-98097-966-0
01
1
0710-1212
2
COVER; TRIM,FRT SEAT,BACK
8-98232-353-0
01
1
1301-
12
CUSHION; SEAT,FRT
8-98098-006-0
01
1
0710-
13
COVER; TRIM,FRT SEAT,CUSHION
8-98098-007-0
01
1
0710-
17
BOLT; RECLINING
8-98097-974-0
02
1
0710-
41
SEAT ASM; DRIVER
8-98036-942-2
01
1
0710-1212
41
SEAT ASM; DRIVER
8-98195-067-0
01
1
1301-
310
LEVER ASM; HEIGHT ADJ DRIVER SEAT
8-98097-992-0
01
1
0710-
336
COVER; DRIVER SEAT
(D)
8-98097-978-0
01
1
0710-
336
COVER; DRIVER SEAT
(C)
8-98097-984-0
01
1
0710-
336
COVER; DRIVER SEAT
(A)
8-98097-995-0
01
1
0710-
336
COVER; DRIVER SEAT
(B)
8-98097-996-0
01
1
0710-
365
LOCK ASM; SEAT
8-98097-972-0
01
1
0710-
411
GUIDE; SEAT BELT
8-98097-967-0
01
1
0710-
509
LEVER; DAMPER
8-98097-988-0
01
1
0710-
532
LEVER ASM; TILT
8-98097-982-0
01
1
0710-
587
VALVE; LUMBAR SUPPORT
8-98097-986-0
01
1
0710-
602
KNOB; ADJ,SEAT
8-98098-008-0
01
1
0710-
634
COVER; CONNECTOR,SEAT
8-98088-279-0
01
1
0710-
635
BOLT; COVER
M6X16
0-52000-616-0
02
1
0710-
637
LEVER; SLOPE ADJ
8-98097-989-0
01
1
0710-
638
VALVE; LOWERING
8-98097-994-0
01
1
0710-
642
SLIDER; CUSHION
8-98192-932-0
04
1
0710-
648
BUCKLE; SEAT BELT
8-98097-976-0
01
1
0710-
650
CABLE
8-98097-973-0
01
1
0710-1212
650
CABLE
8-98232-354-0
01
1
1301-
651
RIVET
8-98194-075-0
04
1
0710-
661
LOCK ASM; RECLINING
8-98097-980-0
01
1
0710-

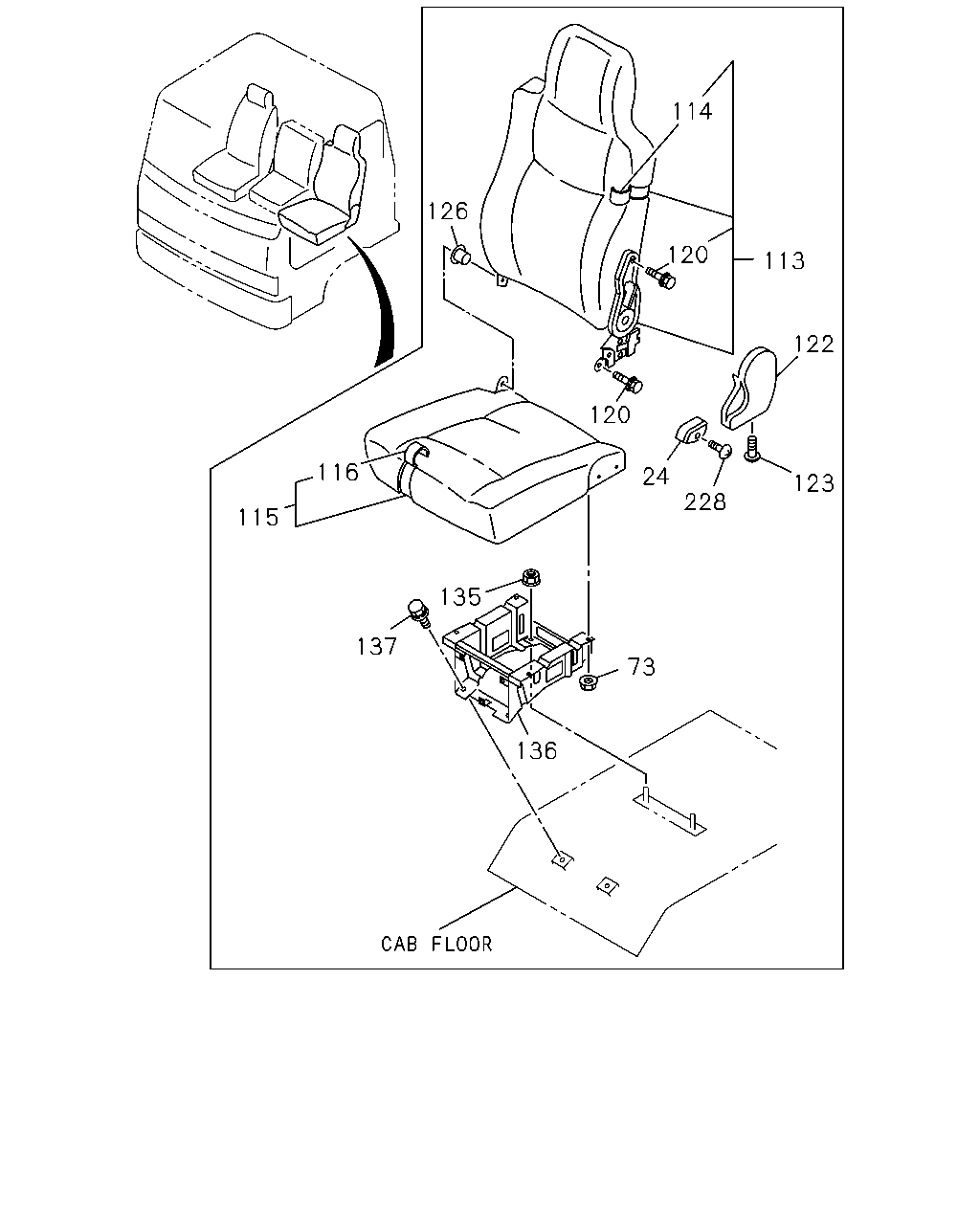

126
114
120
113
120
122
228
24
123
116
115
137
135
136
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
KNOB; RECLINING,FRT,SEAT
1-75418-067-0
01
1
0710-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
0710-
113
BACK ASM; SEAT
8-98054-773-0
01
1
0710-
114
COVER; TRIM,PASSENGER SEAT,BACK
8-98054-777-0
01
1
0710-
115
CUSHION ASM; PASSENGER SEAT
8-98054-770-0
01
1
0710-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
8-98054-775-0
01
1
0710-
120
BOLT; RECLINING ADJ
M8X20
8-97255-906-0
02
1
0710-
122
COVER; ADJ,RECLINING
DARK GRAY
8-97859-018-0
01
1
0710-
123
SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER
0-74360-516-0
01
1
0710-
126
BUSHING; HINGE,RECLINING
8-97854-087-0
01
1
0710-
135
NUT; SEAT STAND
M10 FLANGE
0-91180-110-0
02
1
0710-
136
STAND; PASSENGER SEAT
1-75558-601-3
01
1
0710-1305
136
STAND; PASSENGER SEAT
8-98242-298-0
01
1
1306-
137
BOLT; STAND
M10X20 FLANGE
0-28451-020-0
02
1
0710-
228
SCREW; KNOB
M4
8-98062-662-0
01
1
0710-
