7-45 — CONSOLE BOX
(#39707) — 52 parça
◀

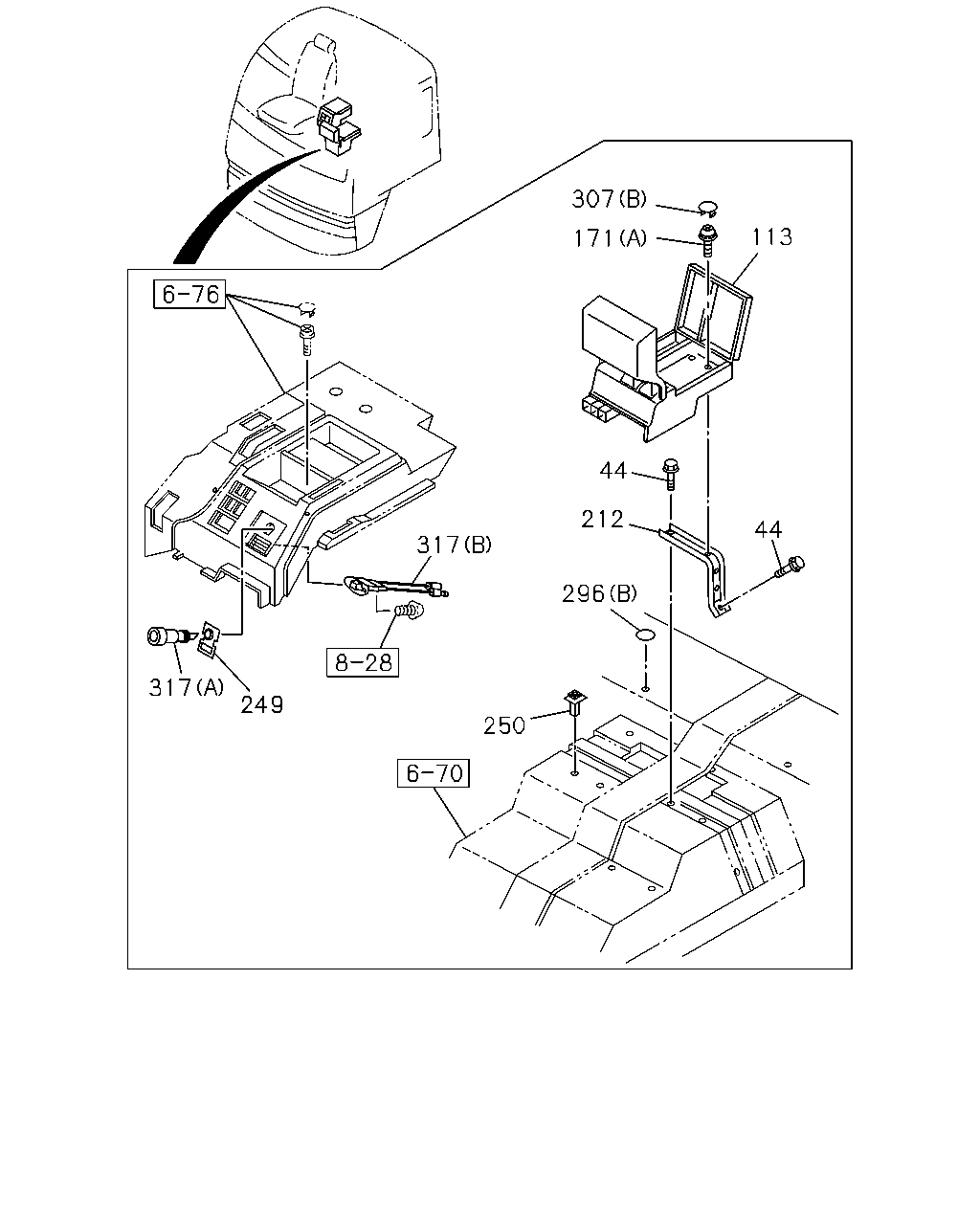

[745A] CONSOLE BOX AND OTHER PARTS (16 parça)

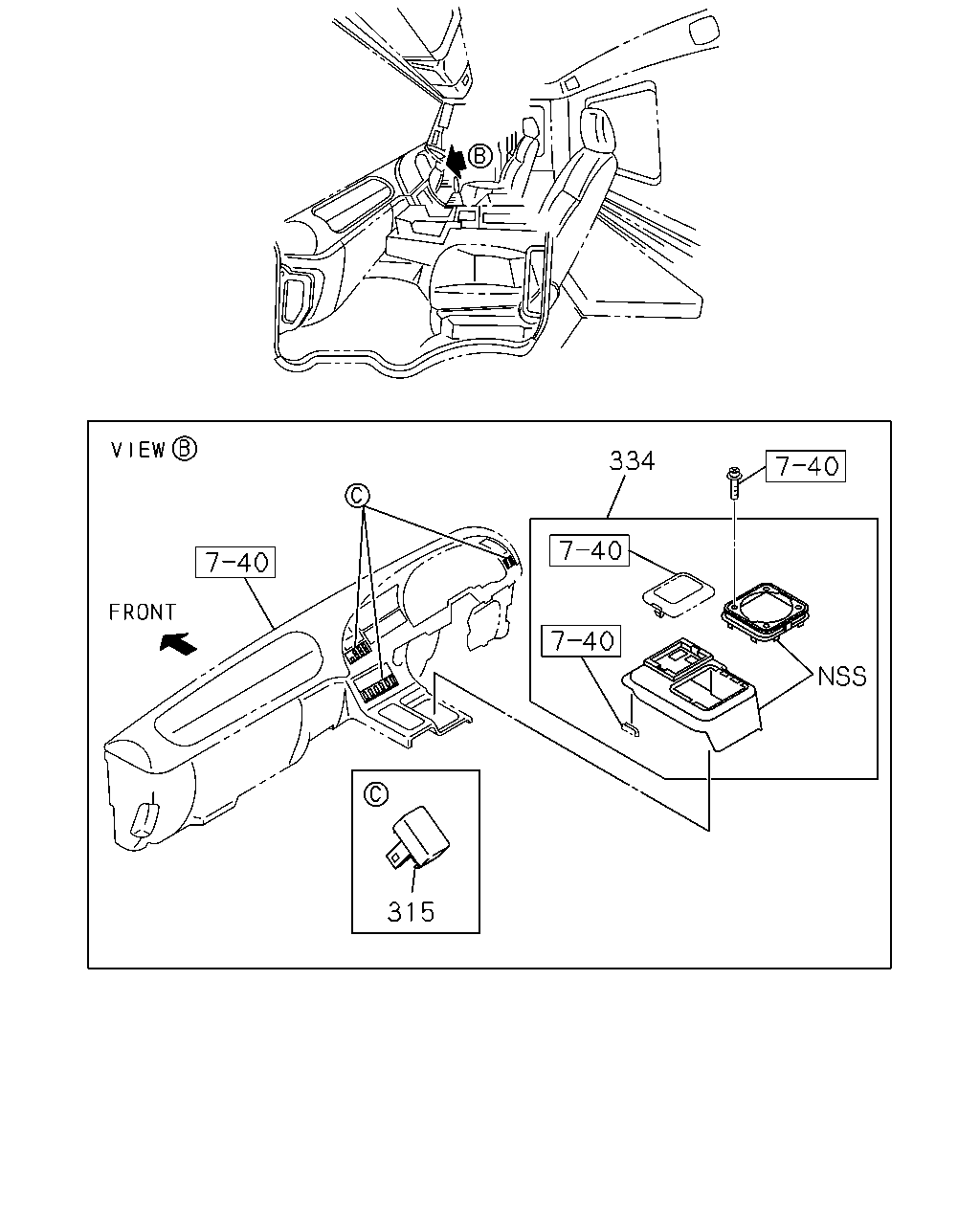

[745A] SWITCH HOLE AND CHANGE LEVER COVER (2 parça)

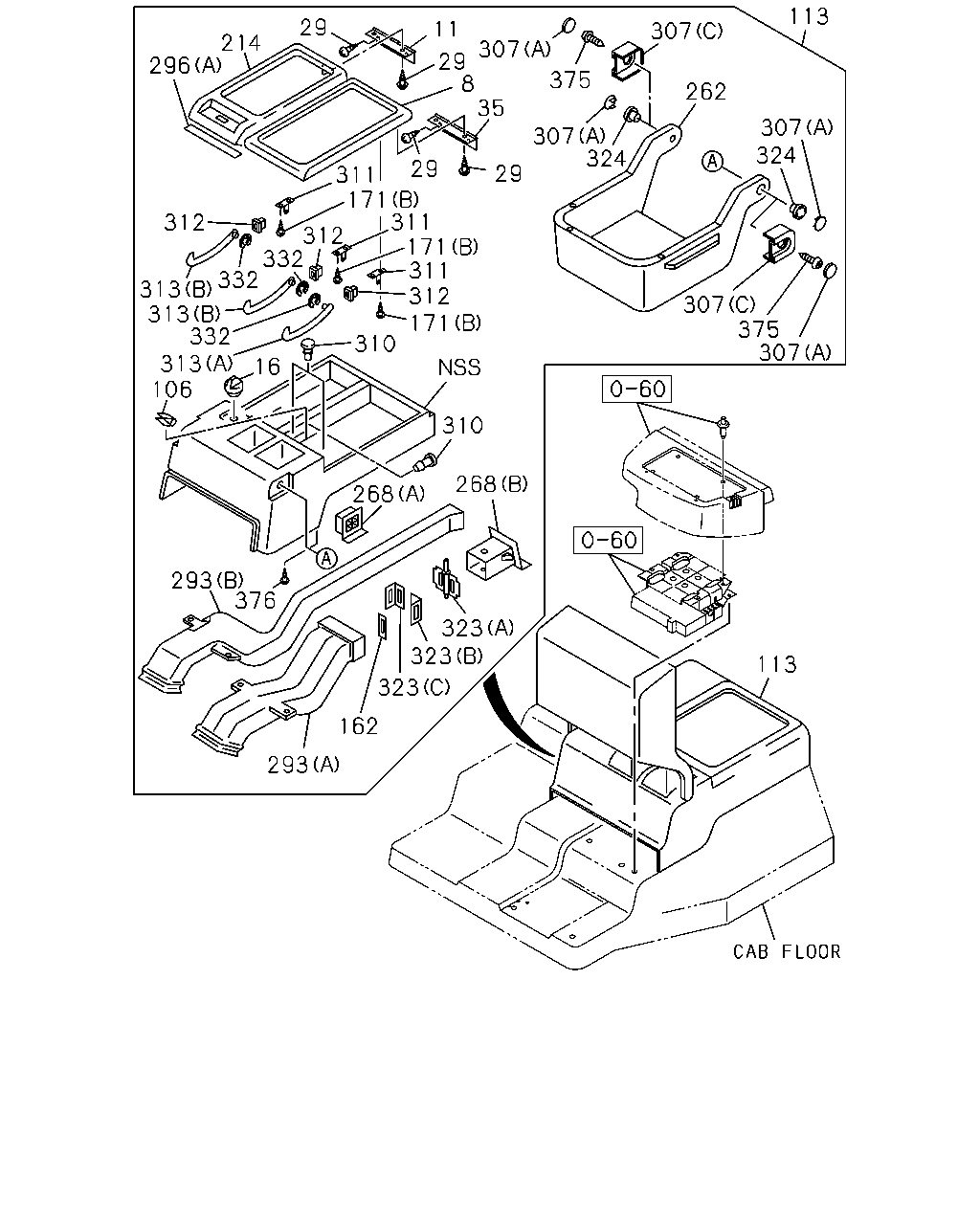

[745A] COMPONENT (34 parça)
▶
113
307
171
44
212
44
296
317
250
249
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0710-0904
44
BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
113
BOX; CONSOLE
TABLE CONSOLE BOX<TDL>
1-72537-326-1
01
1
0710-
113
BOX; CONSOLE
EXC. TABLE CONSOLE BOX<TDL>
1-72537-324-1
01
1
0710-
171
SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD
1-72537-169-0
06
1
0710-
171
SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0710-
212
SUPPORT; CONSOLE TO COMPT
1-72537-095-1
01
1
0710-
249
COVER
1-82529-001-0
01
1
0710-
250
GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
03
1
0710-
296
SEAL
(A)
1-72537-094-1
01
1
0710-
296
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
0710-
307
COVER; HOLE,CTR CONSOLE
(A)
1-72537-188-0
02
1
0710-
307
COVER; HOLE,CTR CONSOLE
(B)
1-76337-461-0
04
1
0710-
307
COVER; HOLE,CTR CONSOLE
EXC. TABLE CONSOLE BOX<TDL> (C)
1-72537-270-1
02
1
0710-
317
CONSENT
(B)
1-82523-020-2
01
1
0710-
317
CONSENT
(A)
8-94382-451-1
01
1
0710-
334
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
315
COVER; HOLE,SW
1-82359-069-2
AR
1
0710-
334
COVER; CHANGE LEVER
1-72447-969-1
01
1
0710-
113
307
262
307
324
307
375
307
324
307
375
307
11
29
8
35
29
29
311
29
214
296
171
311
171
311
312
171
310
16
106
313
332
313
313
312
332
332
312
310
268
268
293
376
293
162
323
323
323
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LID; CENTER CONSOLE
1-72537-332-0
01
1
0710-
11
HINGE; CONSOLE LID
1-72537-070-2
01
1
0710-
16
KNOB ASM
1-72537-189-0
01
1
0710-
29
SCREW; HINGE
M5X14 BINDING HEAD
1-72537-168-0
08
1
0710-
35
HINGE; CENTER CONSOLE
1-72538-182-1
01
1
0710-
106
LOCK; CONSOLE LID
1-72537-079-0
02
1
0710-
113
BOX; CONSOLE
TABLE CONSOLE BOX<TDL>
1-72537-326-1
01
1
0710-
113
BOX; CONSOLE
EXC. TABLE CONSOLE BOX<TDL>
1-72537-324-1
01
1
0710-
162
CUSHION; PARCEL BOX
1-72537-128-0
03
1
0710-
171
SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD
1-72537-169-0
06
1
0710-
171
SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0710-
214
LID; CONSOLE
1-72537-339-0
01
1
0710-
262
TABLE ASM
TABLE CONSOLE BOX<TDL>
1-72537-187-1
01
1
0710-
268
COVER; DUCT
(B)
1-72537-183-0
01
1
0710-
268
COVER; DUCT
(A)
1-72537-184-0
01
1
0710-
293
DUCT
TABLE CONSOLE BOX<TDL> (A)
1-72537-081-3
01
1
0710-
293
DUCT
TABLE CONSOLE BOX<TDL> (B)
1-72537-083-2
01
1
0710-
296
SEAL
(A)
1-72537-094-1
01
1
0710-
296
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
0710-
307
COVER; HOLE,CTR CONSOLE
(A)
1-72537-188-0
02
1
0710-
307
COVER; HOLE,CTR CONSOLE
(B)
1-76337-461-0
04
1
0710-
307
COVER; HOLE,CTR CONSOLE
EXC. TABLE CONSOLE BOX<TDL> (C)
1-72537-270-1
02
1
0710-
310
CUSHION; CTR CONSOLE
1-72538-187-0
02
1
0710-
311
HOLDER; CONSOLE
1-72538-188-2
03
1
0710-
312
STOPPER; CONSOLE
1-72538-186-1
03
1
0710-
313
ARM; CTR CONSOLE
(A)
1-72538-184-3
01
1
0710-
313
ARM; CTR CONSOLE
(B)
1-72538-185-3
02
1
0710-
323
SHUTTER
(A)
1-72537-084-1
01
1
0710-
323
SHUTTER
(B)
1-72537-126-0
01
1
0710-
323
SHUTTER
(C)
1-72537-127-0
01
1
0710-
324
BUSHING
TABLE CONSOLE BOX<TDL>
1-72537-116-0
02
1
0710-
332
RING; SNAP,CONSOLE BOX
1-72537-170-0
03
1
0710-
375
SCREW; TAP BUSHING
M6X20
1-72537-319-0
02
1
0710-
376
SCREW; TAP DUCT
M4X14
1-72537-320-0
03
1
0710-
