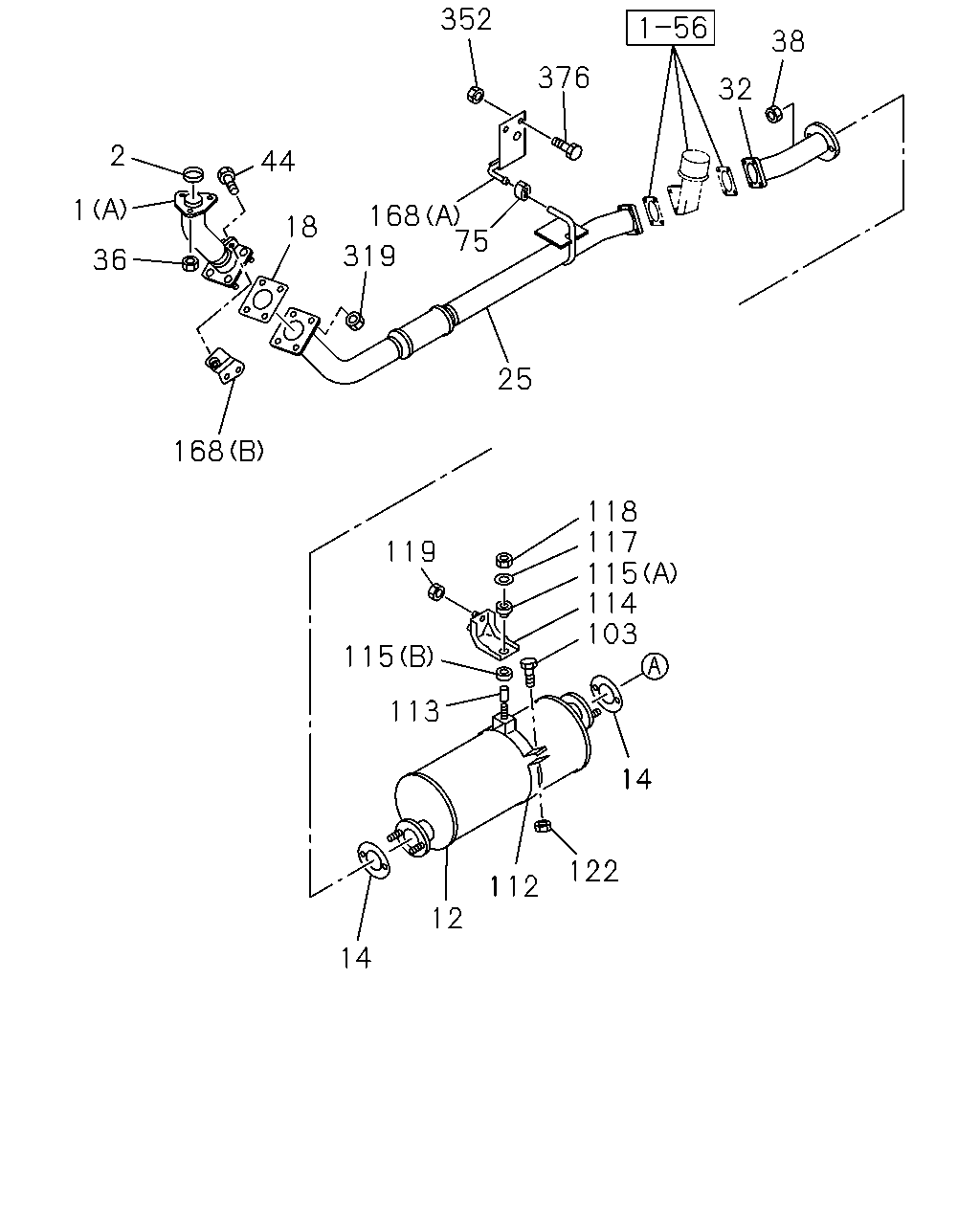

1-50 — EXHAUST PIPE AND SILENCER (#39706) — 284 parça

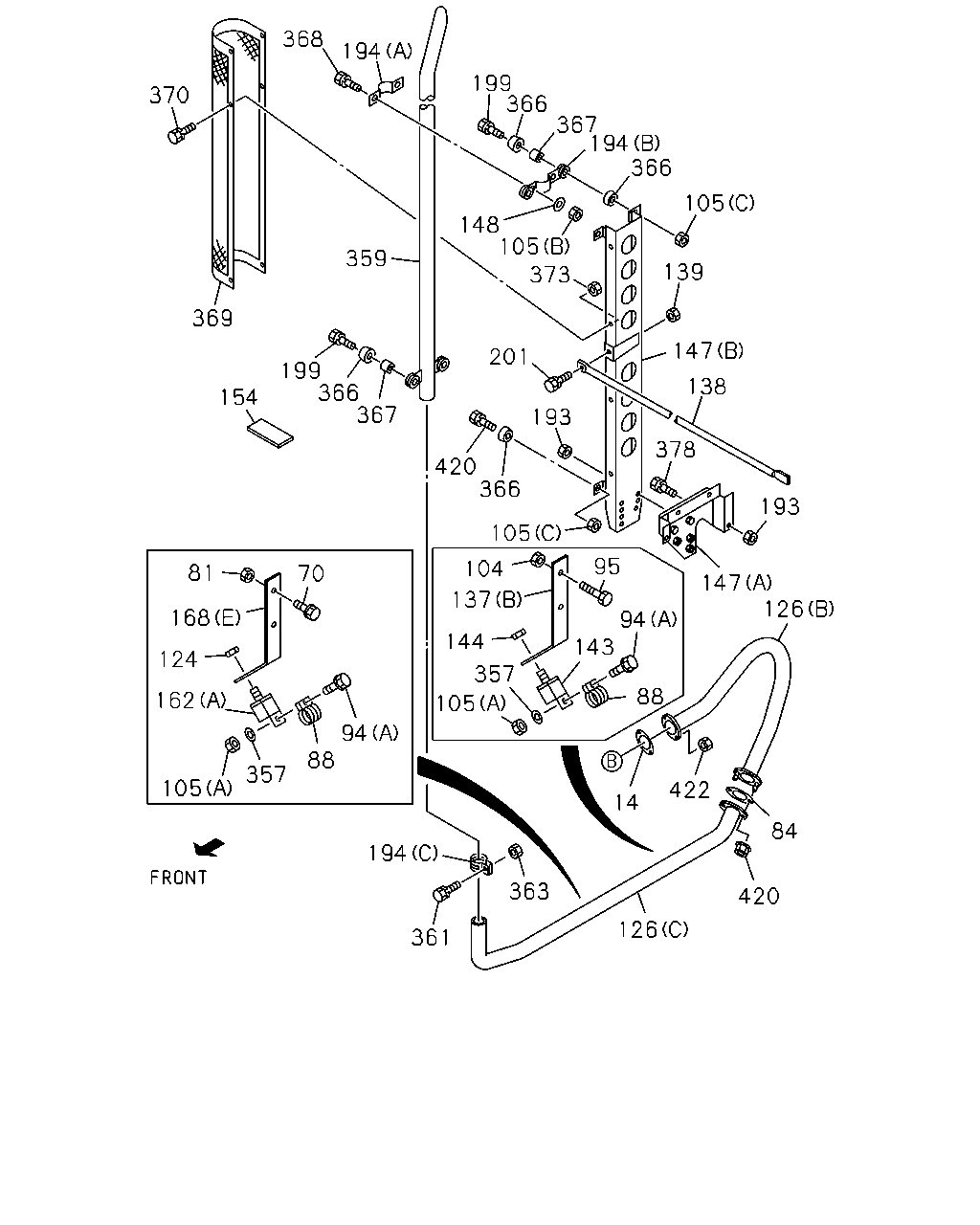

368 194 199 366 367 194 366 370 105 148 105 373 359 139 369 147 201 199 366 367 138 154 193 378 420 366 193 105 95 104 81 70 147 126 137 168 94 143 144 357 124 88 162 105 94 88 357 105 422 14 84 194 363 420 126 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0612-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0612-
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> ID=64.7	8-94328-352-0	01	1	0612-
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.704 ID=64.7	8-94328-352-0	01	1	0612-
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP)	8-98034-766-0	02	1	0807-
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0612-0806
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0612-0806
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0807-
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 00.685 (A) REAR M10X45 FLANGE	0-28051-045-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 03.023 (A) FRONT M10X50 FLANGE	8-97301-165-0	01	1	0807-
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0612-0806
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0612-0806
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0612-
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0612-0806
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0612-0806
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0612-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0612-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0612-0806
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 4HG1-T ENG(RDP) 00.833 (B) M10	0-91110-510-0	02	1	0807-
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (A)	8-97043-236-0	01	1	0612-
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) (A)	8-98049-519-0	01	1	0612-0805
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) (A)	8-98125-496-1	01	1	0806-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97254-253-0	01	1	0612-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (C)	8-97379-245-0	01	1	0612-
137	03.706 BRACKET; TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (A)	8-94114-022-1	01	1	0612-
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97354-438-0	01	1	0612-
138	03.704 STAY; EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-94139-804-0	01	1	0612-
139	03.704 NUT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
143	03.704 RUBBER; SUPPORT 4HG1-T ENG(RDP)	8-98034-767-0	01	1	0807-
143	03.704 RUBBER; SUPPORT	8-97371-655-0	01	1	0612-0806
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97371-655-1	01	1	0807-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97019-513-2	01	1	0612-
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (A)	8-97354-439-1	01	1	0612-
148	03.708 WASHER; LK,CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 06.606 ID=10.2	0-91510-510-0	02	1	0612-
154	03.613 CUSHION; HEAT PROTECTOR EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.629 125X50X10	8-94341-284-0	05	1	0612-
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) (B) L=115	8-98034-765-0	01	1	0807-
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.704 (A)	8-97371-655-1	01	1	0612-
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0612-0806
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0807-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (C)	5-22151-044-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (D)	8-97354-431-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.706 (E)	8-97354-438-0	01	1	0612-
193	03.704 NUT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (A)	1-22133-052-0	01	1	0612-
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	1-22133-065-0	01	1	0612-
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (C) ID=61.6	8-97010-307-0	01	1	0612-
199	03.708 BOLT; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.173 M10X50 FLANGE	0-28051-050-0	04	1	0612-
201	03.704 BOLT; STAY 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.613 M10X40 FLANGE	0-28651-040-0	02	1	0612-
357	03.708 WASHER; PL,CLAMP 4HG1-T ENG(RDP) 00.002 ID=10.5 OD=22	0-91614-610-0	02	1	0807-
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0612-0806
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0612-0806
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0807-
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0807-
359	03.069 PIPE; EXH,VERTICAL EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-97128-546-1	01	1	0612-
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0612-0707
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-
363	03.704 NUT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 02.334 M8	0-91110-508-0	01	1	0612-
366	03.706 RUBBER; SUPPORT,EXH PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> OD=40	1-22159-193-0	08	1	0612-
367	03.704 COLLAR; DIST,SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> L=22	9-22159-024-0	04	1	0612-
368	03.704 BOLT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.439 M10X30 W/LK WASHER	0-50541-030-0	02	1	0612-
369	03.704 NET; EXH PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-97321-334-0	01	1	0612-
370	03.704 BOLT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.386 M6X20 FLANGE	0-28050-620-0	14	1	0612-
373	03.704 NUT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.829 M6 FLANGE	5-09440-004-0	10	1	0612-
378	03.704 BOLT; BRKT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0612-
420	03.704 BOLT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.171 M10X25 FLANGE	0-28051-025-0	03	1	0612-
422	03.704 NUT; PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-

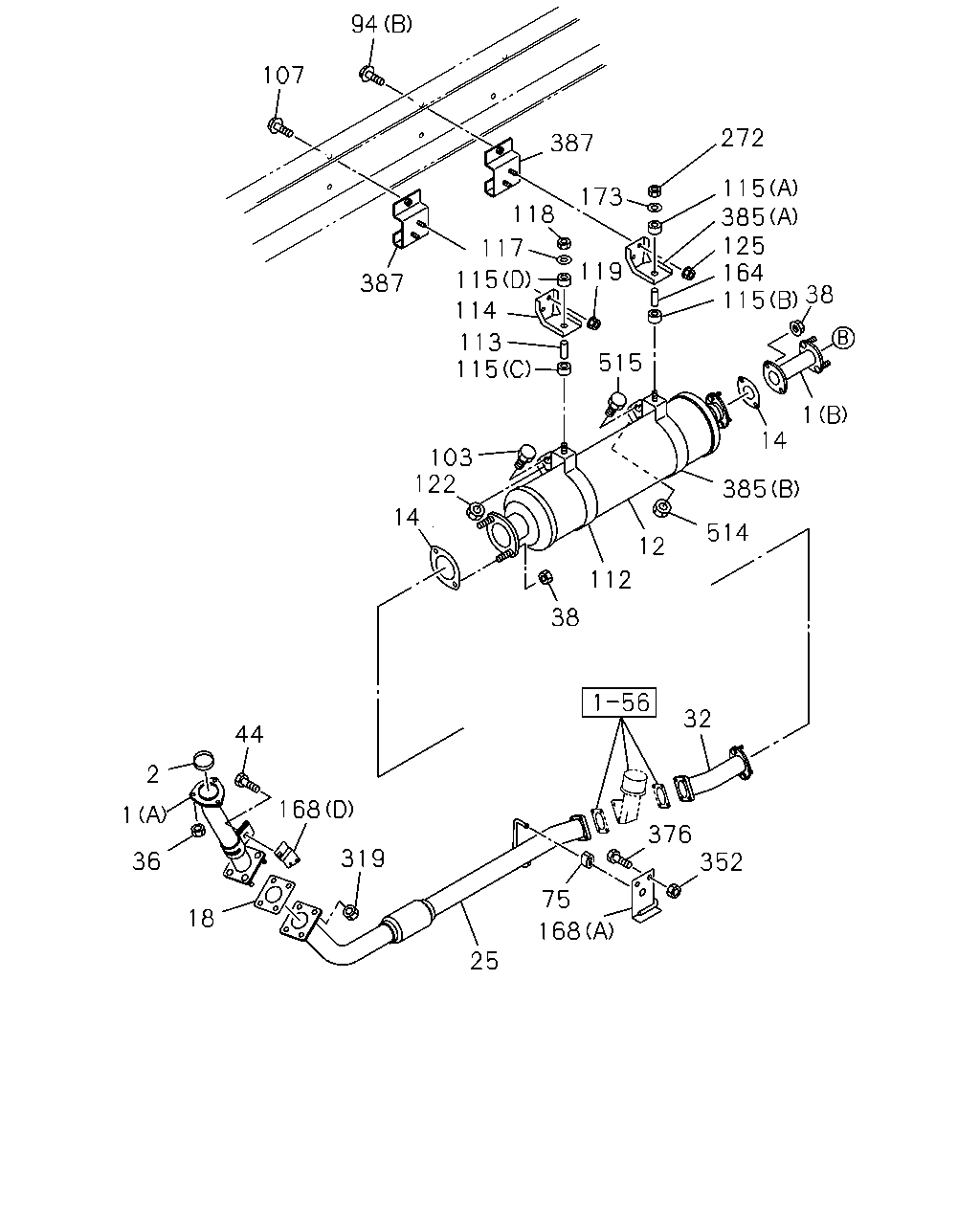

94 107 272 387 115 385 125 164 38 115 173 118 117 119 115 387 114 113 115 515 1 14 103 122 385 14 514 12 112 38 32 44 2 168 1 376 352 319 36 75 18 168 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-97226-272-0	01	1	0612-
1	03.609 PIPE; EXH 4HG1-T ENG(RDP) (A)	8-98049-518-3	01	1	0612-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-97354-373-0	01	1	0612-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97210-052-0	01	1	0612-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0612-
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-97206-525-3	01	1	0612-
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-97114-564-1	01	1	0612-0805
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-98125-505-0	01	1	0806-0806
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-97114-564-1	01	1	0807-0807
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-98125-505-0	01	1	0807-
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-97222-489-1	01	1	0612-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0612-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0612-
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> ID=64.7	8-94328-352-0	01	1	0612-
18	03.611 GASKET; EXH PIPE TO PIPE 03.634 ID=64	8-97037-694-0	01	1	0612-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP)	8-98125-494-1	01	1	0807-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97201-746-1	01	1	0612-0805
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-494-0	01	1	0806-0806
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97201-746-1	01	1	0807-0807
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97201-746-1	01	1	0807-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-97354-374-0	01	1	0612-
32	03.609 PIPE; EXH,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97254-685-0	01	1	0612-0805
32	03.609 PIPE; EXH,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-495-0	01	1	0806-
32	03.609 PIPE; EXH,FRT 4HK1-TCN ENG(RDQ)	8-98000-939-0	01	1	0612-
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0612-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
44	03.613 BOLT; BRKT	0-50641-050-0	01	1	0612-
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-0	01	1	0612-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 00.685 (A) REAR M10X45 FLANGE	0-28051-045-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 03.023 (A) FRONT M10X50 FLANGE	8-97301-165-0	01	1	0807-
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0612-0806
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0612-0806
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0612-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0612-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-
107	03.704 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-
112	03.706 BRACKET; HANGER 4HG1 ENG(RJH)	8-97076-020-0	01	1	0807-
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97076-020-0	01	1	0612-0805
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-504-0	01	1	0806-0806
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP)	8-98125-504-0	01	1	0807-
112	03.706 BRACKET; HANGER 4HK1-TCN ENG(RDQ) 03.704	8-97207-224-0	01	1	0612-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0612-
114	03.704 BRACKET; EXH SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94329-996-0	01	1	0612-
114	03.704 BRACKET; EXH SILENCER 4HK1-TCN ENG(RDQ)	8-97172-313-0	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (C)	8-97379-882-0	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (D)	8-97379-927-0	01	1	0612-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0612-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0612-
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0612-
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	0612-
164	03.706 COLLAR; DIST,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> L=37.5	9-22151-217-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (C)	5-22151-044-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (D)	8-97354-431-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.706 (E)	8-97354-438-0	01	1	0612-
173	03.685 WASHER; PL 4HK1-TCN ENG(RDQ) 03.704 OD=55	9-09852-169-0	01	1	0612-
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	01	1	0612-
319	03.602 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	04	1	0612-
352	03.613 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
376	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-97172-313-0	01	1	0612-
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	01	1	0612-
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ)	8-97354-437-0	01	1	0612-
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ)	8-97354-437-0	01	1	0612-
514	03.704 NUT; BAND 4HK1-TCN ENG(RDQ) 02.334 M8	0-91110-508-0	01	1	0612-
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0612-0707
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-

165 164 95 162 166 104 124 137 105 357 88 94 126 81 105 70 88 144 143 168 357 94 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP)	8-98034-766-0	02	1	0807-
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0612-0806
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0612-0806
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0807-
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 00.685 (A) REAR M10X45 FLANGE	0-28051-045-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 03.023 (A) FRONT M10X50 FLANGE	8-97301-165-0	01	1	0807-
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0612-0806
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0612-0806
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0612-
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0612-0806
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0612-0806
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0612-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0612-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0612-0806
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 4HG1-T ENG(RDP) 00.833 (B) M10	0-91110-510-0	02	1	0807-
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (A)	8-97043-236-0	01	1	0612-
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) (A)	8-98049-519-0	01	1	0612-0805
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) (A)	8-98125-496-1	01	1	0806-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97254-253-0	01	1	0612-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (C)	8-97379-245-0	01	1	0612-
137	03.706 BRACKET; TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (A)	8-94114-022-1	01	1	0612-
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97354-438-0	01	1	0612-
143	03.704 RUBBER; SUPPORT 4HG1-T ENG(RDP)	8-98034-767-0	01	1	0807-
143	03.704 RUBBER; SUPPORT	8-97371-655-0	01	1	0612-0806
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97371-655-1	01	1	0807-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) (B) L=115	8-98034-765-0	01	1	0807-
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.704 (A)	8-97371-655-1	01	1	0612-
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0612-0806
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0807-
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	0612-
164	03.706 COLLAR; DIST,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> L=37.5	9-22151-217-0	01	1	0612-
165	03.706 BOLT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> M10X70 FLANGE	0-28051-070-0	01	1	0612-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (C)	5-22151-044-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (D)	8-97354-431-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.706 (E)	8-97354-438-0	01	1	0612-
357	03.708 WASHER; PL,CLAMP 4HG1-T ENG(RDP) 00.002 ID=10.5 OD=22	0-91614-610-0	02	1	0807-
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0612-0806
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0612-0806
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0807-
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0807-

352 38 376 32 2 44 1 168 75 18 319 36 25 168 118 117 115 114 103 119 115 113 14 122 112 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-97226-272-0	01	1	0612-
1	03.609 PIPE; EXH 4HG1-T ENG(RDP) (A)	8-98049-518-3	01	1	0612-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-97354-373-0	01	1	0612-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97210-052-0	01	1	0612-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0612-
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-97206-525-3	01	1	0612-
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-97114-564-1	01	1	0612-0805
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-98125-505-0	01	1	0806-0806
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-97114-564-1	01	1	0807-0807
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-98125-505-0	01	1	0807-
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-97222-489-1	01	1	0612-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0612-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0612-
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> ID=64.7	8-94328-352-0	01	1	0612-
18	03.611 GASKET; EXH PIPE TO PIPE 03.634 ID=64	8-97037-694-0	01	1	0612-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP)	8-98125-494-1	01	1	0807-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97201-746-1	01	1	0612-0805
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-494-0	01	1	0806-0806
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97201-746-1	01	1	0807-0807
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97201-746-1	01	1	0807-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-97354-374-0	01	1	0612-
32	03.609 PIPE; EXH,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97254-685-0	01	1	0612-0805
32	03.609 PIPE; EXH,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-495-0	01	1	0806-
32	03.609 PIPE; EXH,FRT 4HK1-TCN ENG(RDQ)	8-98000-939-0	01	1	0612-
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0612-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
44	03.613 BOLT; BRKT	0-50641-050-0	01	1	0612-
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-0	01	1	0612-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0612-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-
112	03.706 BRACKET; HANGER 4HG1 ENG(RJH)	8-97076-020-0	01	1	0807-
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97076-020-0	01	1	0612-0805
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-504-0	01	1	0806-0806
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP)	8-98125-504-0	01	1	0807-
112	03.706 BRACKET; HANGER 4HK1-TCN ENG(RDQ) 03.704	8-97207-224-0	01	1	0612-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0612-
114	03.704 BRACKET; EXH SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94329-996-0	01	1	0612-
114	03.704 BRACKET; EXH SILENCER 4HK1-TCN ENG(RDQ)	8-97172-313-0	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (C)	8-97379-882-0	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (D)	8-97379-927-0	01	1	0612-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0612-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0612-
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (C)	5-22151-044-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (D)	8-97354-431-0	01	1	0612-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.706 (E)	8-97354-438-0	01	1	0612-
319	03.602 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	04	1	0612-
352	03.613 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
376	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
