1-45 — WATER SEDIMENTER; FUEL (#39705) — 58 parça

21 20 1 1 20 19 20 21 20 19 1 1 20 55 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-4	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (C)	8-97081-814-3	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98017-806-2	01	1	0612-
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH) (A)	8-98017-562-0	01	1	0612-0804
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-98017-562-0	01	1	0805-
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) (B)	8-98011-681-0	01	1	0612-0804
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) (B)	8-98011-681-0	01	1	0805-
19	03.890 BRACKET; FUEL SEDIMENTER 4HK1-TCN ENG(RDQ) (C)	8-98012-530-0	01	1	0612-
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) (A) M10X30 FLANGE	0-28051-030-0	03	1	0612-0804
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) M10X30 FLANGE	0-28051-030-0	03	1	0805-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) (A) M10X30 FLANGE	0-28051-030-0	02	1	0612-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-0804
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-
21	03.890 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
55	03.890 BOLT; BRKT 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0612-0804
55	03.890 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0805-

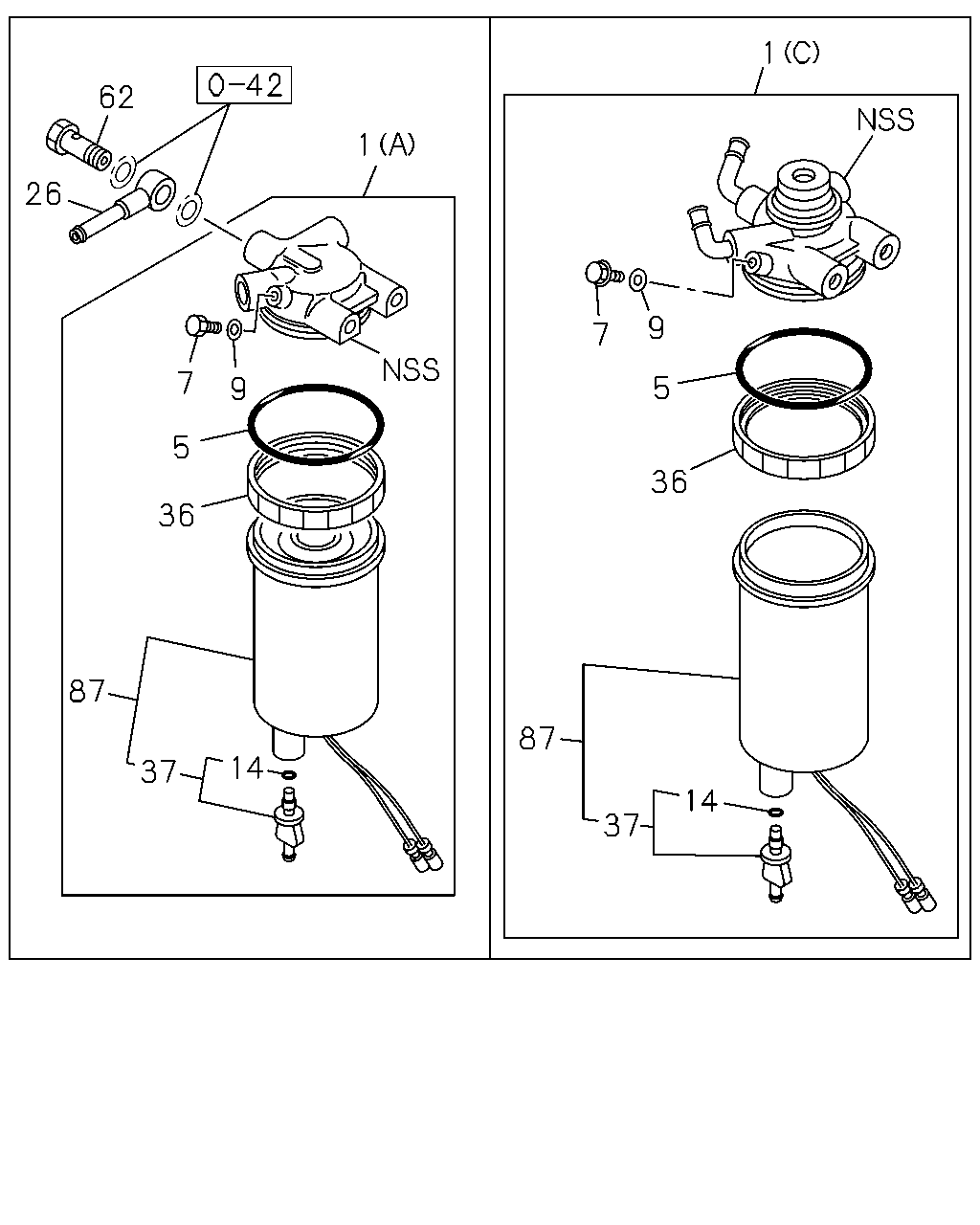

1 62 1 26 9 7 7 5 9 5 36 36 87 87 14 37 14 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-4	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (C)	8-97081-814-3	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98017-806-2	01	1	0612-
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-09623-075-0	01	1	0612-
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94132-674-0	01	1	0612-
7	03.890 PLUG; DRAIN,SEDIMENTER 4HK1-TCN ENG(RDQ)	8-97172-546-1	01	1	0612-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) 03.895	9-09571-406-0	01	1	0612-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	0612-
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94447-156-0	01	1	0612-
26	03.163 PIPE; FUEL,IN & OUT 4HG1 ENG(RJH)	5-15411-223-1	02	1	0612-
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-13234-001-0	01	1	0612-
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94453-746-0	01	1	0612-
37	03.890 PLUG; SENSOR 4HK1-TCN ENG(RDQ)	8-98004-899-0	01	1	0612-
62	03.162 BOLT; EYE,FUEL FILTER 4HG1 ENG(RJH) M14X29 EYE-BOLT	9-09906-325-1	02	1	0612-
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97219-363-1	01	1	0612-

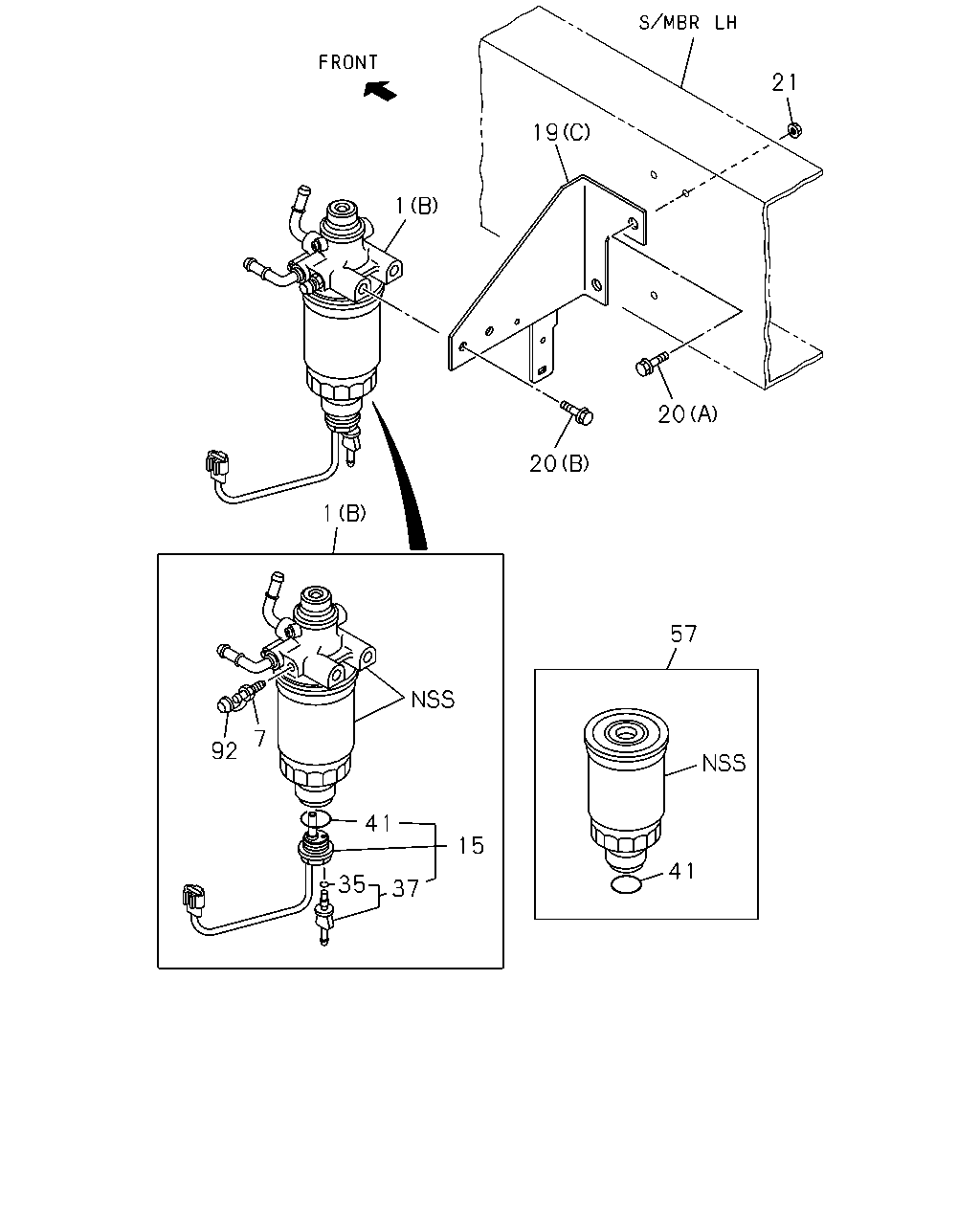

21 19 1 20 20 1 57 7 92 41 15 41 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-4	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (C)	8-97081-814-3	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98017-806-2	01	1	0612-
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94132-674-0	01	1	0612-
7	03.890 PLUG; DRAIN,SEDIMENTER 4HK1-TCN ENG(RDQ)	8-97172-546-1	01	1	0612-
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ)	8-98009-886-0	01	1	0612-
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH) (A)	8-98017-562-0	01	1	0612-0804
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-98017-562-0	01	1	0805-
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) (B)	8-98011-681-0	01	1	0612-0804
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) (B)	8-98011-681-0	01	1	0805-
19	03.890 BRACKET; FUEL SEDIMENTER 4HK1-TCN ENG(RDQ) (C)	8-98012-530-0	01	1	0612-
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) (A) M10X30 FLANGE	0-28051-030-0	03	1	0612-0804
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) M10X30 FLANGE	0-28051-030-0	03	1	0805-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) (A) M10X30 FLANGE	0-28051-030-0	02	1	0612-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-0804
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-
21	03.890 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-
35	03.890 GASKET; DRAIN PLUG 4HK1-TCN ENG(RDQ)	8-98004-898-0	01	1	0612-
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94453-746-0	01	1	0612-
37	03.890 PLUG; SENSOR 4HK1-TCN ENG(RDQ)	8-98004-899-0	01	1	0612-
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ) 03.417	1-09623-649-0	01	1	0612-
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ)	8-98037-481-0	01	1	0612-
92	01.203 CAP; DRAIN 4HK1-TCN ENG(RDQ) 03.417	8-97172-548-0	01	1	0612-
