◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#39701) — 111 parça

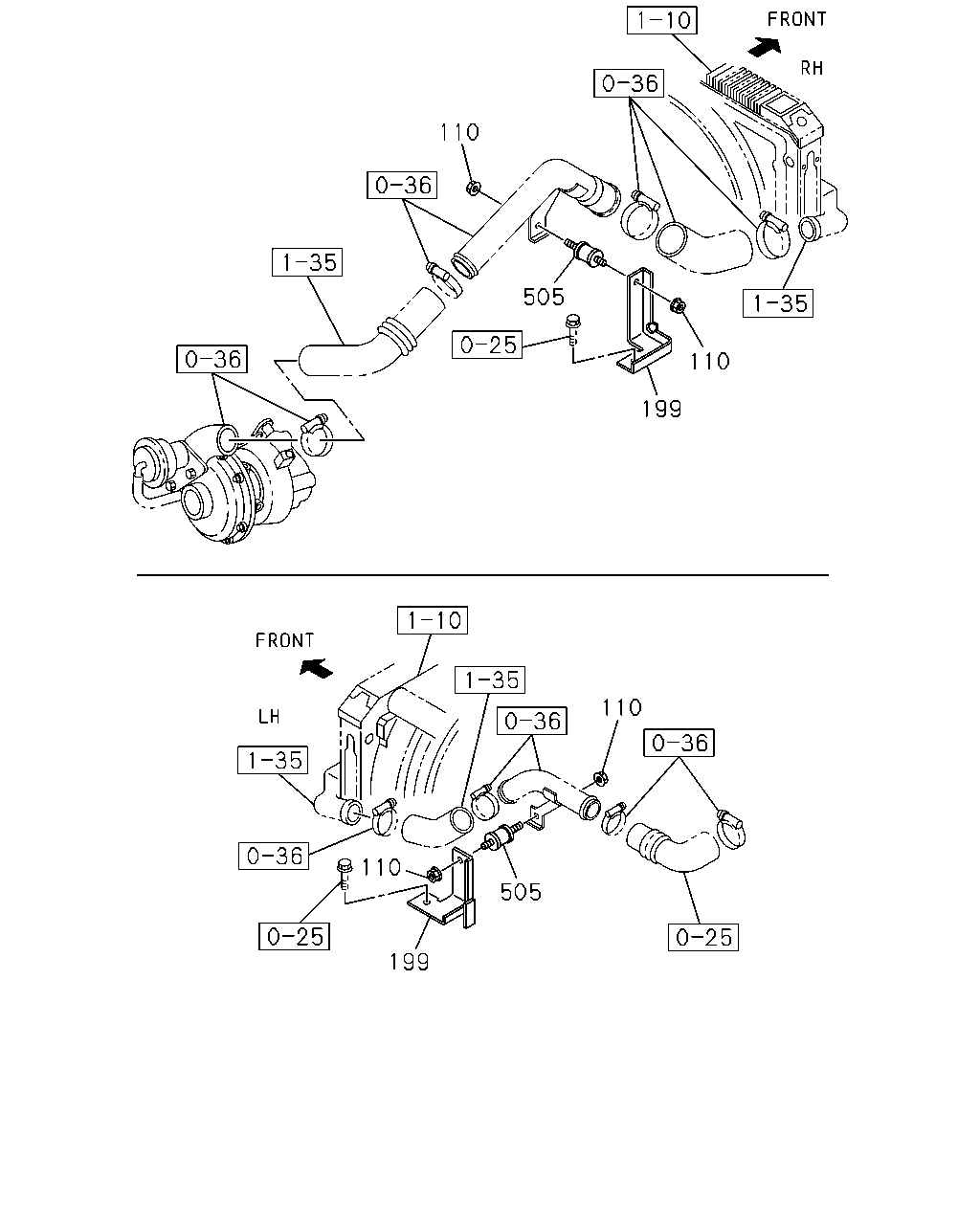

çizim 12656
110 505 110 199 110 110 505 199
BalonParca AdiParca NoAdetTipApplied Date
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0612-
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ) 		8-97350-402-0 01 1 0612-
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ) 		8-97350-403-0 01 1 0612-
426 03.417 CLIP; DUCT
4HG1-T ENG(RDP) 03.407 ID=127 		1-14239-263-0 01 1 0803-
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ) 03.405 		8-94158-155-1 02 1 0612-0612
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ) 03.417 		8-98036-826-0 02 1 0612-

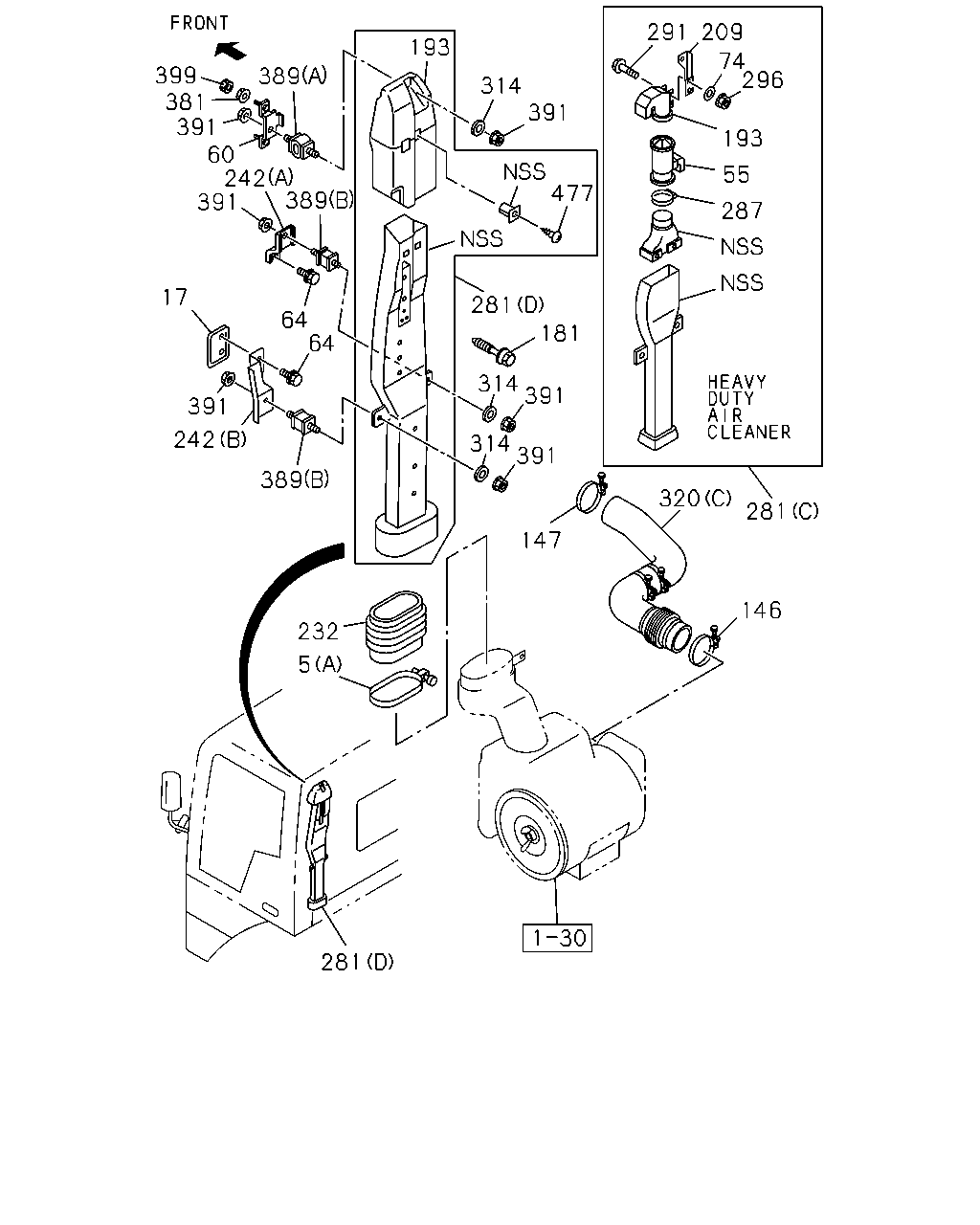

çizim 13808
291 209 193 74 296 399 381 391 60 242 391 389 314 391 193 477 55 389 287 17 281 64 64 181 314 391 314 391 391 242 389 320 281 147 146 232 5 281
BalonParca AdiParca NoAdetTipApplied Date
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP) (A) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=68-85 		1-09707-202-0 01 1 0612-0810
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 0811-
17 03.403 GASKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97853-699-2 01 1 0612-
55 03.402 CLEANER ASM; AIR,PRE
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97126-267-0 01 1 0612-
60 03.417 BRACKET; AIR DUCT,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97856-957-1 01 1 0612-
64 03.417 BOLT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0612-
74 03.417 WASHER; PL,ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 04.595 ID=8.4 OD=22 		0-91610-708-0 02 1 0612-
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0612-
146 03.417 CLIP; HOSE,ACL
4HG1-T ENG(RDP) 03.407 ID=117 		9-09915-075-1 01 1 0612-
146 03.417 CLIP; HOSE,ACL
4HK1-TCN ENG(RDQ) 03.407 ID=112 		9-09915-074-1 01 1 0612-
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0612-
181 03.407 BOLT; AIR DUCT TO RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612-
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-2 01 1 0612-
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-1 01 1 0612-
193 03.417 COVER; DUCT,AIR INT
4HG1-T ENG(RDP) 		8-97044-953-1 01 1 0612-
209 03.405 BRACKET; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 0612-
232 03.417 HOSE; CONN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97109-423-0 01 1 0612-0802
232 03.417 HOSE; CONN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.407 		8-98115-594-0 01 1 0803-
242 03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 		8-97853-633-2 01 1 0612-
242 03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) 		8-97857-844-1 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (C) 		8-97120-084-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97161-847-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP) (A) 		8-97125-174-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (B) 		8-97180-995-0 01 1 0612-
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87 		9-09915-071-1 01 1 0612-
291 03.405 BOLT; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0612-
296 03.405 NUT; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612-
314 03.417 WASHER; PL,AIR INT DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0612-
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) (C) 		8-97043-079-1 01 1 0612-
320 03.417 HOSE; CONN,ACL
4HG1-T ENG(RDP) (A) 		8-98049-601-0 01 1 0612-
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ) (B) 		8-98000-873-1 01 1 0612-
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0612-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 (A) 		8-97080-149-0 01 1 0612-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 (B) 		8-97081-886-0 02 1 0612-
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M8 FLANGE 		8-94279-517-0 06 1 0612-
399 03.417 CAP; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94273-605-0 02 1 0612-
426 03.417 CLIP; DUCT
4HG1-T ENG(RDP) 03.407 ID=127 		1-14239-263-0 01 1 0803-
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER 		0-74160-516-0 04 1 0612-
477 03.417 SCREW; COVER
4HG1-T ENG(RDP) 02.895 M5X16 TAPPING W/PL WASHER 		0-74160-516-0 04 1 0612-
çizim 56343
281 13 409 320 146 288 10 10 5 345
BalonParca AdiParca NoAdetTipApplied Date
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP) (A) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=68-85 		1-09707-202-0 01 1 0612-0810
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 0811-
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0612-
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0612-
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612-
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0612-
146 03.417 CLIP; HOSE,ACL
4HG1-T ENG(RDP) 03.407 ID=117 		9-09915-075-1 01 1 0612-
146 03.417 CLIP; HOSE,ACL
4HK1-TCN ENG(RDQ) 03.407 ID=112 		9-09915-074-1 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (C) 		8-97120-084-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97161-847-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP) (A) 		8-97125-174-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (B) 		8-97180-995-0 01 1 0612-
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ) 		8-97183-041-2 01 1 0612-
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) (C) 		8-97043-079-1 01 1 0612-
320 03.417 HOSE; CONN,ACL
4HG1-T ENG(RDP) (A) 		8-98049-601-0 01 1 0612-
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ) (B) 		8-98000-873-1 01 1 0612-
345 03.417 CLIP; PCV HOSE
4HG1-T ENG(RDP) 		8-97369-959-0 01 1 0612-
345 03.417 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ) 		8-98020-040-0 01 1 0612-
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0612-
426 03.417 CLIP; DUCT
4HG1-T ENG(RDP) 03.407 ID=127 		1-14239-263-0 01 1 0803-

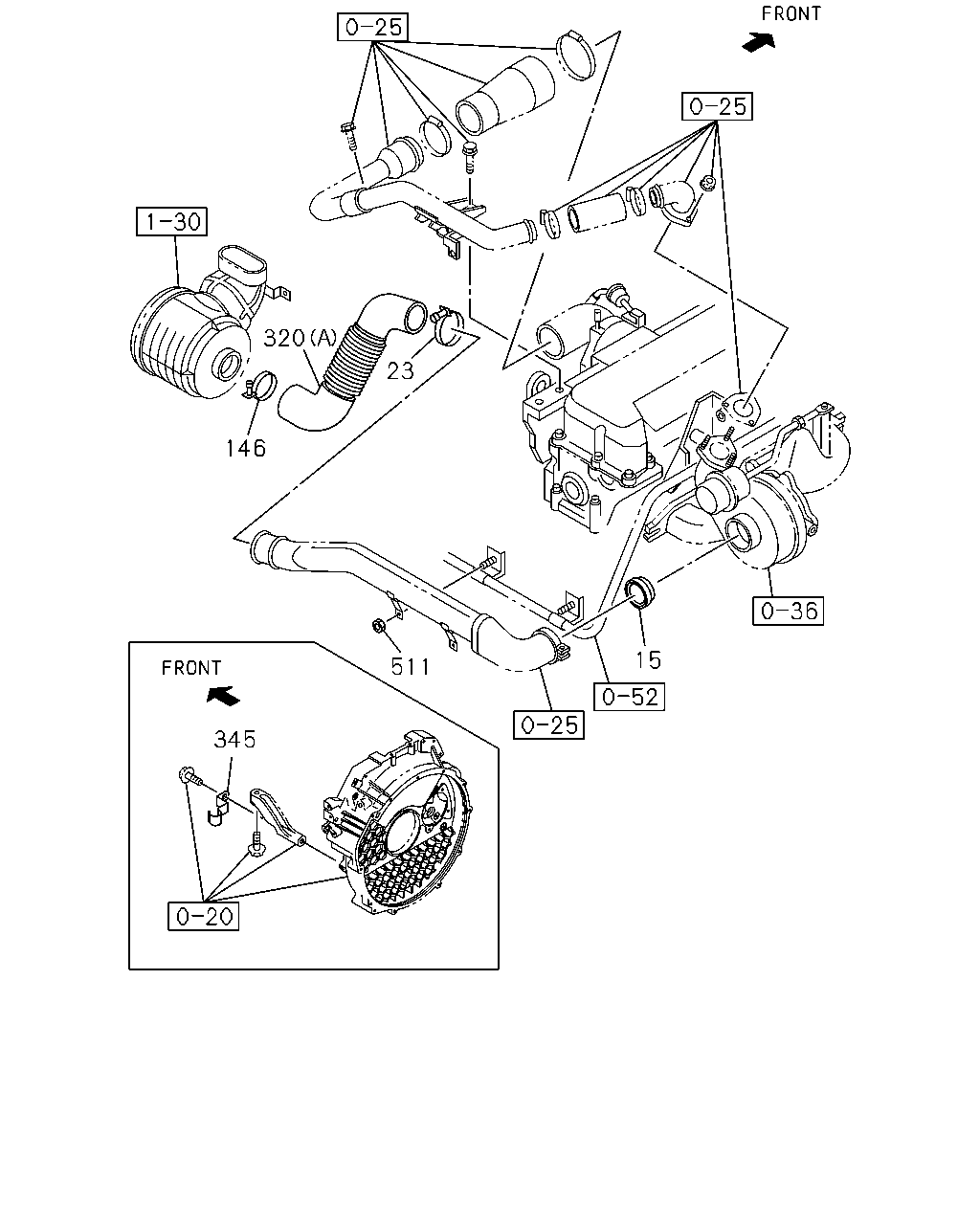

çizim 56814
320 23 146 15 511 345
BalonParca AdiParca NoAdetTipApplied Date
15 03.417 INSULATOR
4HG1-T ENG(RDP) 03.407 		8-94454-802-0 01 1 0612-
23 03.417 CLIP; HOSE
4HG1-T ENG(RDP) 03.407 ID=87 		8-97087-432-0 01 1 0612-
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0612-
146 03.417 CLIP; HOSE,ACL
4HG1-T ENG(RDP) 03.407 ID=117 		9-09915-075-1 01 1 0612-
146 03.417 CLIP; HOSE,ACL
4HK1-TCN ENG(RDQ) 03.407 ID=112 		9-09915-074-1 01 1 0612-
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) (C) 		8-97043-079-1 01 1 0612-
320 03.417 HOSE; CONN,ACL
4HG1-T ENG(RDP) (A) 		8-98049-601-0 01 1 0612-
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ) (B) 		8-98000-873-1 01 1 0612-
345 03.417 CLIP; PCV HOSE
4HG1-T ENG(RDP) 		8-97369-959-0 01 1 0612-
345 03.417 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ) 		8-98020-040-0 01 1 0612-
426 03.417 CLIP; DUCT
4HG1-T ENG(RDP) 03.407 ID=127 		1-14239-263-0 01 1 0803-
511 03.417 NUT; PIPE
4HG1-T ENG(RDP) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612-

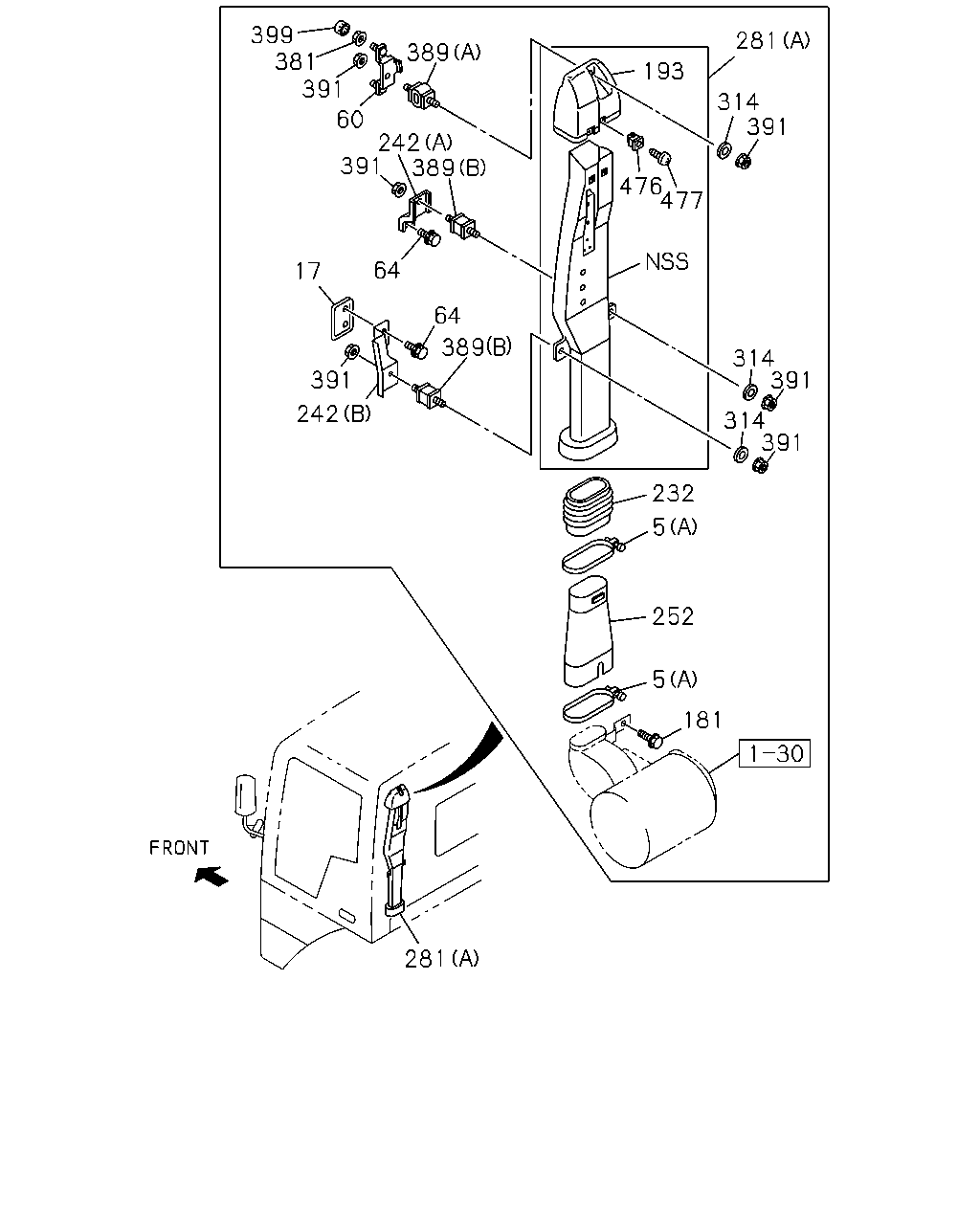

çizim 57323
399 381 391 281 389 193 314 391 60 242 391 389 476 477 64 17 64 389 314 391 391 314 391 242 232 5 252 5 181 281
BalonParca AdiParca NoAdetTipApplied Date
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP) (A) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=68-85 		1-09707-202-0 01 1 0612-0810
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 0811-
17 03.403 GASKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97853-699-2 01 1 0612-
60 03.417 BRACKET; AIR DUCT,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97856-957-1 01 1 0612-
64 03.417 BOLT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0612-
181 03.407 BOLT; AIR DUCT TO RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612-
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-2 01 1 0612-
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-1 01 1 0612-
193 03.417 COVER; DUCT,AIR INT
4HG1-T ENG(RDP) 		8-97044-953-1 01 1 0612-
232 03.417 HOSE; CONN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97109-423-0 01 1 0612-0802
232 03.417 HOSE; CONN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.407 		8-98115-594-0 01 1 0803-
242 03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 		8-97853-633-2 01 1 0612-
242 03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) 		8-97857-844-1 01 1 0612-
252 03.417 DUCT; AIR INT
4HG1-T ENG(RDP) 		8-98049-610-1 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> (C) 		8-97120-084-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97161-847-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP) (A) 		8-97125-174-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (B) 		8-97180-995-0 01 1 0612-
314 03.417 WASHER; PL,AIR INT DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0612-
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0612-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 (A) 		8-97080-149-0 01 1 0612-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 (B) 		8-97081-886-0 02 1 0612-
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M8 FLANGE 		8-94279-517-0 06 1 0612-
399 03.417 CAP; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94273-605-0 02 1 0612-
426 03.417 CLIP; DUCT
4HG1-T ENG(RDP) 03.407 ID=127 		1-14239-263-0 01 1 0803-
476 03.417 GROMMET; SCREW,COVER
4HG1-T ENG(RDP) 16.445 		1-09983-081-0 04 1 0612-
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER 		0-74160-516-0 04 1 0612-
477 03.417 SCREW; COVER
4HG1-T ENG(RDP) 02.895 M5X16 TAPPING W/PL WASHER 		0-74160-516-0 04 1 0612-
