1-30 — AIR CLEANER (#39700) — 135 parça

1 2 3 6 99 100 94 1 146 54 50 130 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP)	8-97228-084-2	01	1	0612-0804
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP)	8-98050-415-1	01	1	0805-
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH)	8-97331-412-1	01	1	0612-
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-97189-166-5	01	1	0612-
2	03.403 NUT; WING,ELEMENT 4HG1 ENG(RJH)	1-14217-068-0	02	1	0612-
2	03.403 NUT; WING,ELEMENT 4HK1-TCN ENG(RDQ)	8-94447-989-0	01	1	0612-
3	03.403 WASHER; SEAL,WING NUT 4HG1 ENG(RJH)	1-14219-225-0	02	1	0612-
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCN ENG(RDQ)	8-94447-990-0	01	1	0612-
6	03.410 FILTER; ACL 4HG1-T ENG(RDP)	8-97062-294-0	01	1	0612-
6	03.410 FILTER; ACL 4HG1 ENG(RJH)	8-94156-052-0	01	1	0612-
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-94430-250-0	01	1	0612-0708
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-98091-394-0	01	1	0709-
50	03.403 WASHER; PL,ACL 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	0612-
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) (A)	8-97043-084-2	01	1	0612-
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) (C)	8-97170-449-1	01	1	0612-
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) (B)	8-98049-552-1	01	1	0612-
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) (E)	8-98049-589-1	01	1	0612-
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (D)	8-98012-794-0	01	1	0612-
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP)	8-97093-694-0	01	1	0612-0804
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP)	8-97352-112-0	01	1	0805-
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH)	8-94447-157-0	01	1	0612-
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ)	1-14219-075-0	01	1	0612-
99	03.403 CAP; NIPPLE 4HK1-TCN ENG(RDQ)	8-94448-008-0	01	1	0612-
100	03.417 ADAPTER; ELBOW 4HG1-T ENG(RDP)	8-97093-075-0	01	1	0612-0804
100	03.417 ADAPTER; ELBOW 4HK1-TCN ENG(RDQ)	8-94430-259-0	01	1	0612-
130	03.405 BOLT; BRKT TO ACL 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 02.277 M10X35 FLANGE	0-28651-035-0	03	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0612-
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) 03.162 M10 FLANGE	0-91180-110-0	08	1	0612-
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-

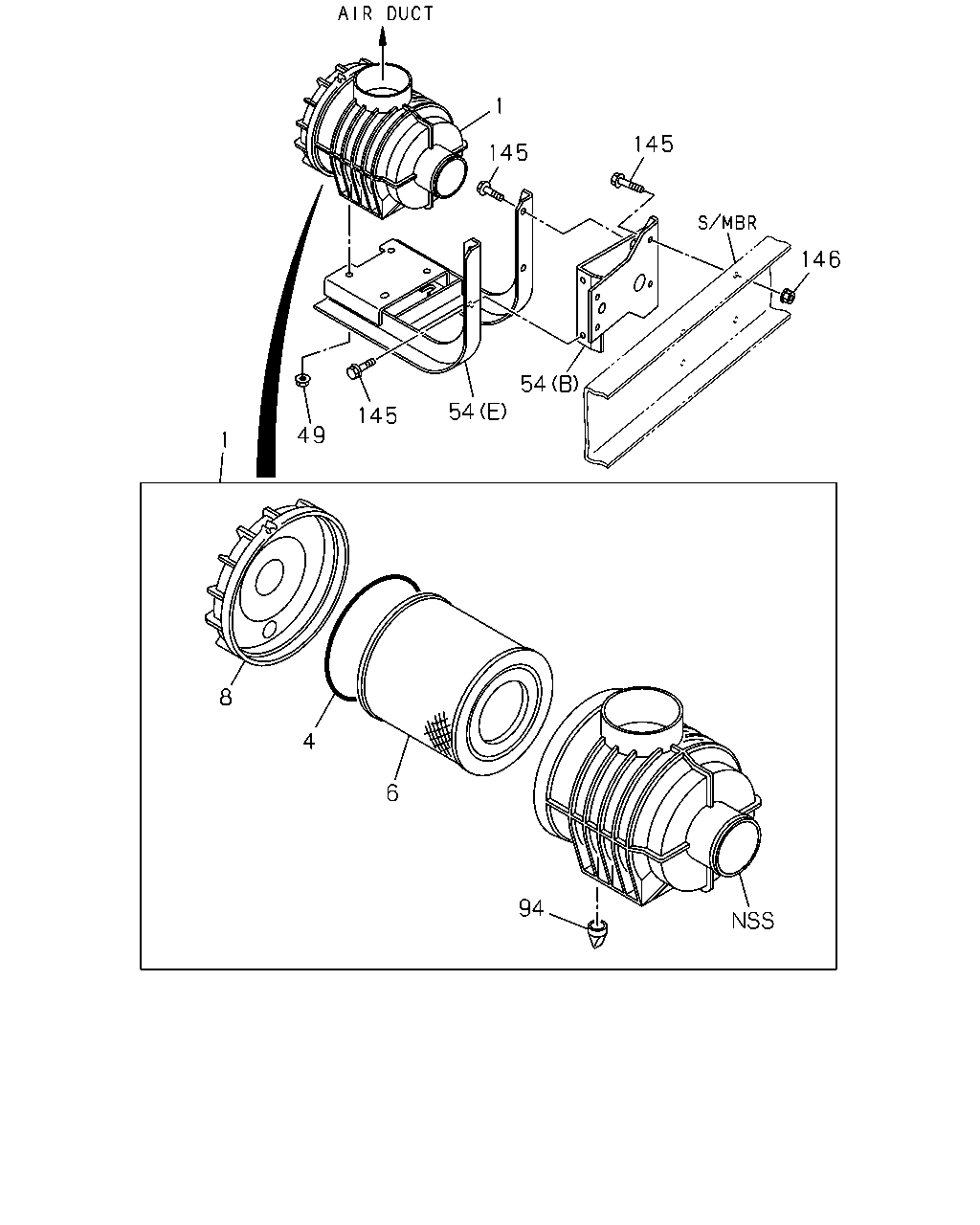

1 145 145 146 54 54 145 49 1 8 4 6 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP)	8-97228-084-2	01	1	0612-0804
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP)	8-98050-415-1	01	1	0805-
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH)	8-97331-412-1	01	1	0612-
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-97189-166-5	01	1	0612-
4	03.403 GASKET; COVER TO BODY 4HG1-T ENG(RDP)	8-97228-092-0	01	1	0612-0804
4	03.403 GASKET; COVER TO BODY 4HG1-T ENG(RDP)	8-97352-113-0	01	1	0805-
6	03.410 FILTER; ACL 4HG1-T ENG(RDP)	8-97062-294-0	01	1	0612-
6	03.410 FILTER; ACL 4HG1 ENG(RJH)	8-94156-052-0	01	1	0612-
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-94430-250-0	01	1	0612-0708
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-98091-394-0	01	1	0709-
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP)	8-97228-090-0	01	1	0612-0804
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP)	8-98050-434-1	01	1	0805-
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH)	8-97093-023-0	01	1	0612-
49	03.403 NUT; ACL 4HG1-T ENG(RDP) 01.062 M8 FLANGE	0-91180-108-0	04	1	0805-
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) (A)	8-97043-084-2	01	1	0612-
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) (C)	8-97170-449-1	01	1	0612-
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) (B)	8-98049-552-1	01	1	0612-
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) (E)	8-98049-589-1	01	1	0612-
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (D)	8-98012-794-0	01	1	0612-
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP)	8-97093-694-0	01	1	0612-0804
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP)	8-97352-112-0	01	1	0805-
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH)	8-94447-157-0	01	1	0612-
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ)	1-14219-075-0	01	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 02.277 M10X35 FLANGE	0-28651-035-0	03	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0612-
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) 03.162 M10 FLANGE	0-91180-110-0	08	1	0612-
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-

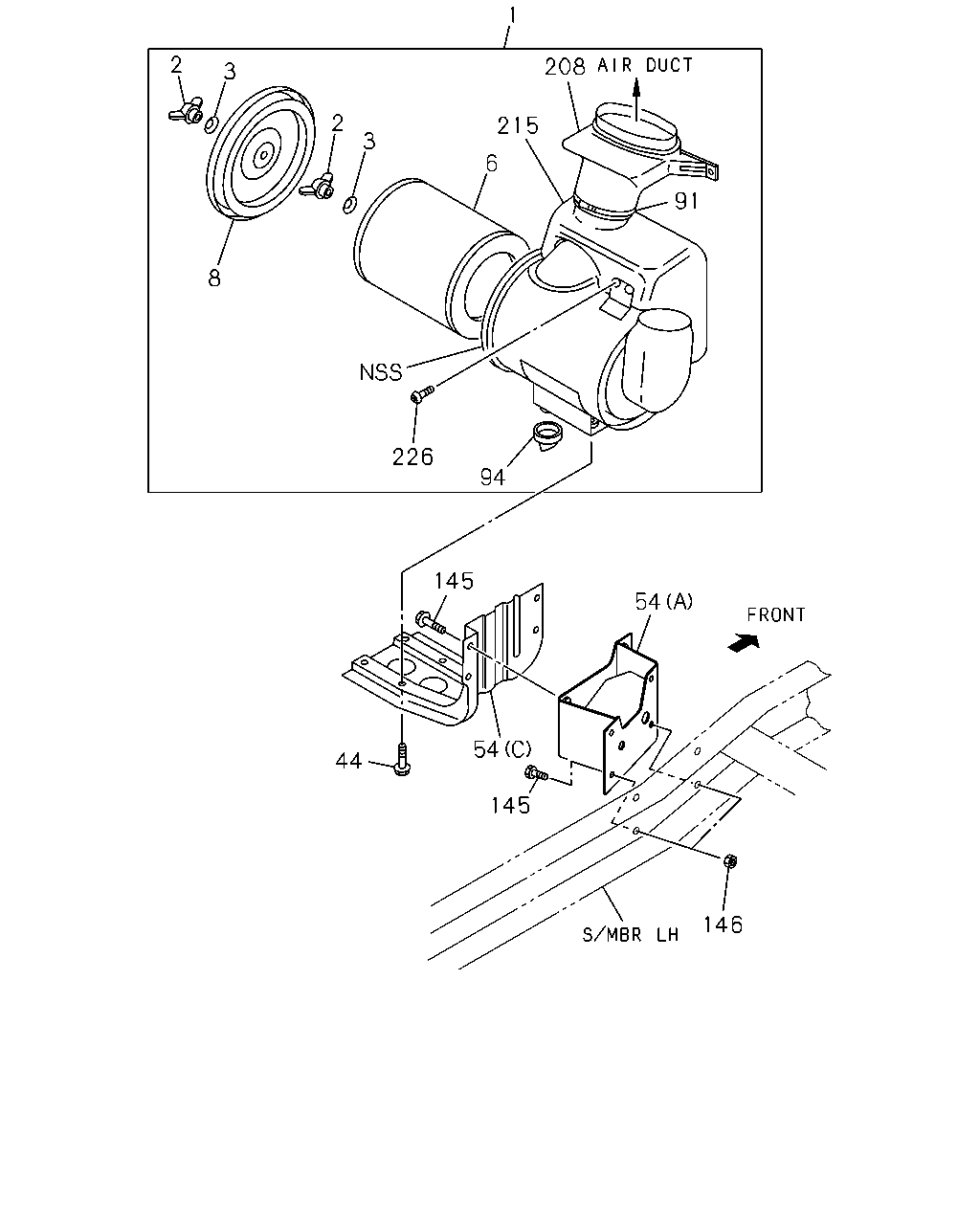

1 2 208 3 2 215 3 6 91 8 226 94 145 54 54 44 145 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP)	8-97228-084-2	01	1	0612-0804
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP)	8-98050-415-1	01	1	0805-
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH)	8-97331-412-1	01	1	0612-
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-97189-166-5	01	1	0612-
2	03.403 NUT; WING,ELEMENT 4HG1 ENG(RJH)	1-14217-068-0	02	1	0612-
2	03.403 NUT; WING,ELEMENT 4HK1-TCN ENG(RDQ)	8-94447-989-0	01	1	0612-
3	03.403 WASHER; SEAL,WING NUT 4HG1 ENG(RJH)	1-14219-225-0	02	1	0612-
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCN ENG(RDQ)	8-94447-990-0	01	1	0612-
6	03.410 FILTER; ACL 4HG1-T ENG(RDP)	8-97062-294-0	01	1	0612-
6	03.410 FILTER; ACL 4HG1 ENG(RJH)	8-94156-052-0	01	1	0612-
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-94430-250-0	01	1	0612-0708
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-98091-394-0	01	1	0709-
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP)	8-97228-090-0	01	1	0612-0804
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP)	8-98050-434-1	01	1	0805-
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH)	8-97093-023-0	01	1	0612-
44	03.403 BOLT; ACL 4HG1 ENG(RJH) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0612-
44	03.403 BOLT; ACL 4HG1-T ENG(RDP) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-0804
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) (A)	8-97043-084-2	01	1	0612-
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) (C)	8-97170-449-1	01	1	0612-
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) (B)	8-98049-552-1	01	1	0612-
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) (E)	8-98049-589-1	01	1	0612-
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (D)	8-98012-794-0	01	1	0612-
91	03.403 CLAMP 4HG1-T ENG(RDP)	8-97093-695-1	01	1	0612-0804
91	03.403 CLAMP 4HG1 ENG(RJH)	8-97093-696-2	01	1	0612-
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP)	8-97093-694-0	01	1	0612-0804
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP)	8-97352-112-0	01	1	0805-
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH)	8-94447-157-0	01	1	0612-
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ)	1-14219-075-0	01	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 02.277 M10X35 FLANGE	0-28651-035-0	03	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0612-
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) 03.162 M10 FLANGE	0-91180-110-0	08	1	0612-
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-
208	03.407 DUCT; ACL 4HG1-T ENG(RDP)	8-97230-869-0	01	1	0612-0804
208	03.407 DUCT; ACL 4HG1 ENG(RJH)	8-97074-907-1	01	1	0612-
215	03.402 SILENCER ASM; INT,ACL 4HG1 ENG(RJH)	8-97074-906-1	01	1	0612-
226	03.405 SCREW; SILENCER 4HG1 ENG(RJH)	8-94158-135-0	04	1	0612-

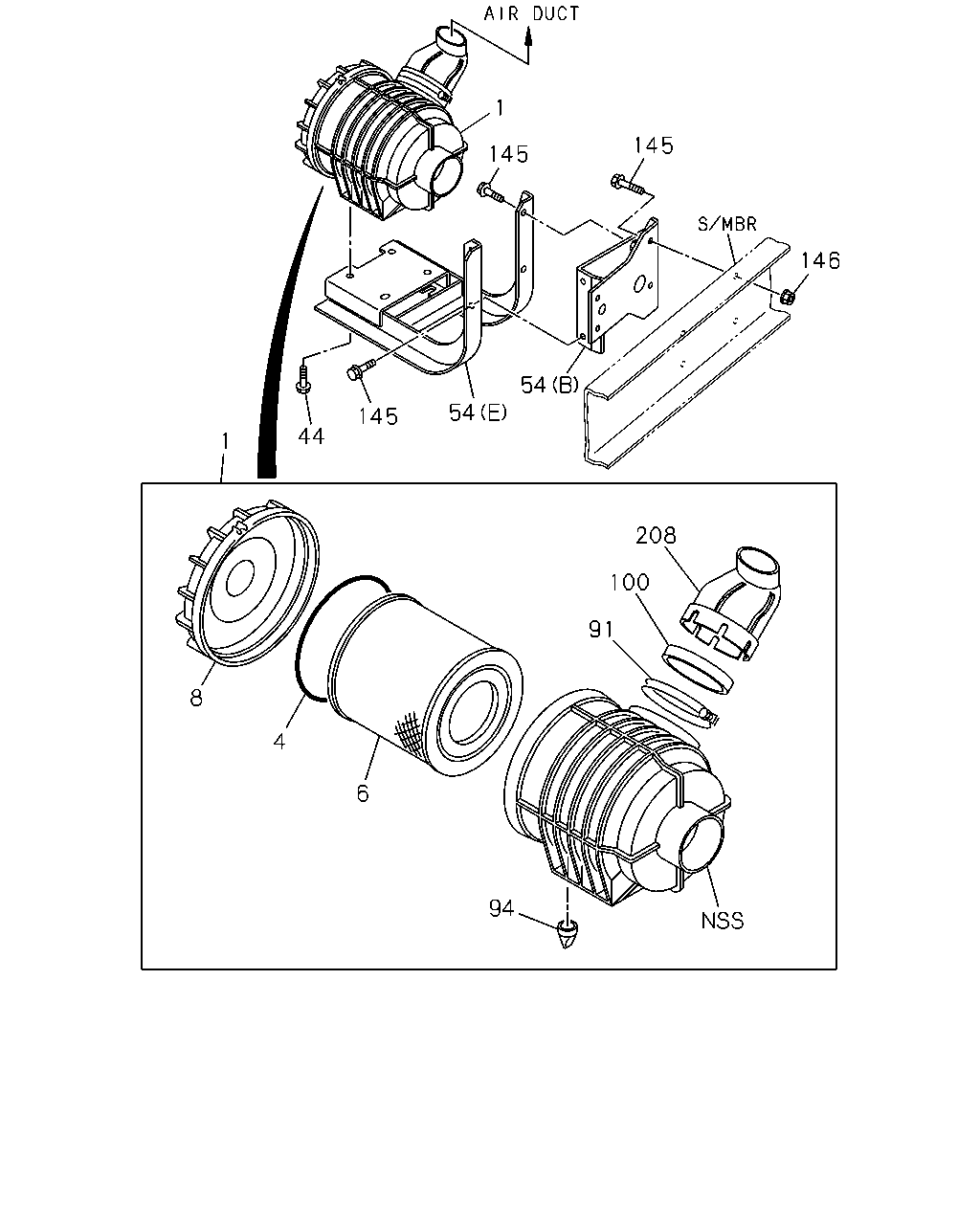

1 145 145 146 54 54 145 44 1 208 100 91 8 4 6 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP)	8-97228-084-2	01	1	0612-0804
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP)	8-98050-415-1	01	1	0805-
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH)	8-97331-412-1	01	1	0612-
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-97189-166-5	01	1	0612-
4	03.403 GASKET; COVER TO BODY 4HG1-T ENG(RDP)	8-97228-092-0	01	1	0612-0804
4	03.403 GASKET; COVER TO BODY 4HG1-T ENG(RDP)	8-97352-113-0	01	1	0805-
6	03.410 FILTER; ACL 4HG1-T ENG(RDP)	8-97062-294-0	01	1	0612-
6	03.410 FILTER; ACL 4HG1 ENG(RJH)	8-94156-052-0	01	1	0612-
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-94430-250-0	01	1	0612-0708
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-98091-394-0	01	1	0709-
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP)	8-97228-090-0	01	1	0612-0804
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP)	8-98050-434-1	01	1	0805-
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH)	8-97093-023-0	01	1	0612-
44	03.403 BOLT; ACL 4HG1 ENG(RJH) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0612-
44	03.403 BOLT; ACL 4HG1-T ENG(RDP) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-0804
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) (A)	8-97043-084-2	01	1	0612-
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) (C)	8-97170-449-1	01	1	0612-
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) (B)	8-98049-552-1	01	1	0612-
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) (E)	8-98049-589-1	01	1	0612-
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (D)	8-98012-794-0	01	1	0612-
91	03.403 CLAMP 4HG1-T ENG(RDP)	8-97093-695-1	01	1	0612-0804
91	03.403 CLAMP 4HG1 ENG(RJH)	8-97093-696-2	01	1	0612-
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP)	8-97093-694-0	01	1	0612-0804
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP)	8-97352-112-0	01	1	0805-
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH)	8-94447-157-0	01	1	0612-
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ)	1-14219-075-0	01	1	0612-
100	03.417 ADAPTER; ELBOW 4HG1-T ENG(RDP)	8-97093-075-0	01	1	0612-0804
100	03.417 ADAPTER; ELBOW 4HK1-TCN ENG(RDQ)	8-94430-259-0	01	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 02.277 M10X35 FLANGE	0-28651-035-0	03	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0612-
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0612-
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) 03.162 M10 FLANGE	0-91180-110-0	08	1	0612-
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-
208	03.407 DUCT; ACL 4HG1-T ENG(RDP)	8-97230-869-0	01	1	0612-0804
208	03.407 DUCT; ACL 4HG1 ENG(RJH)	8-97074-907-1	01	1	0612-
