1-10 — RADIATOR (#39698) — 125 parça

132 131 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0612-
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (A)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (B)	8-97377-235-0	01	1	0612-
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0612-
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0612-

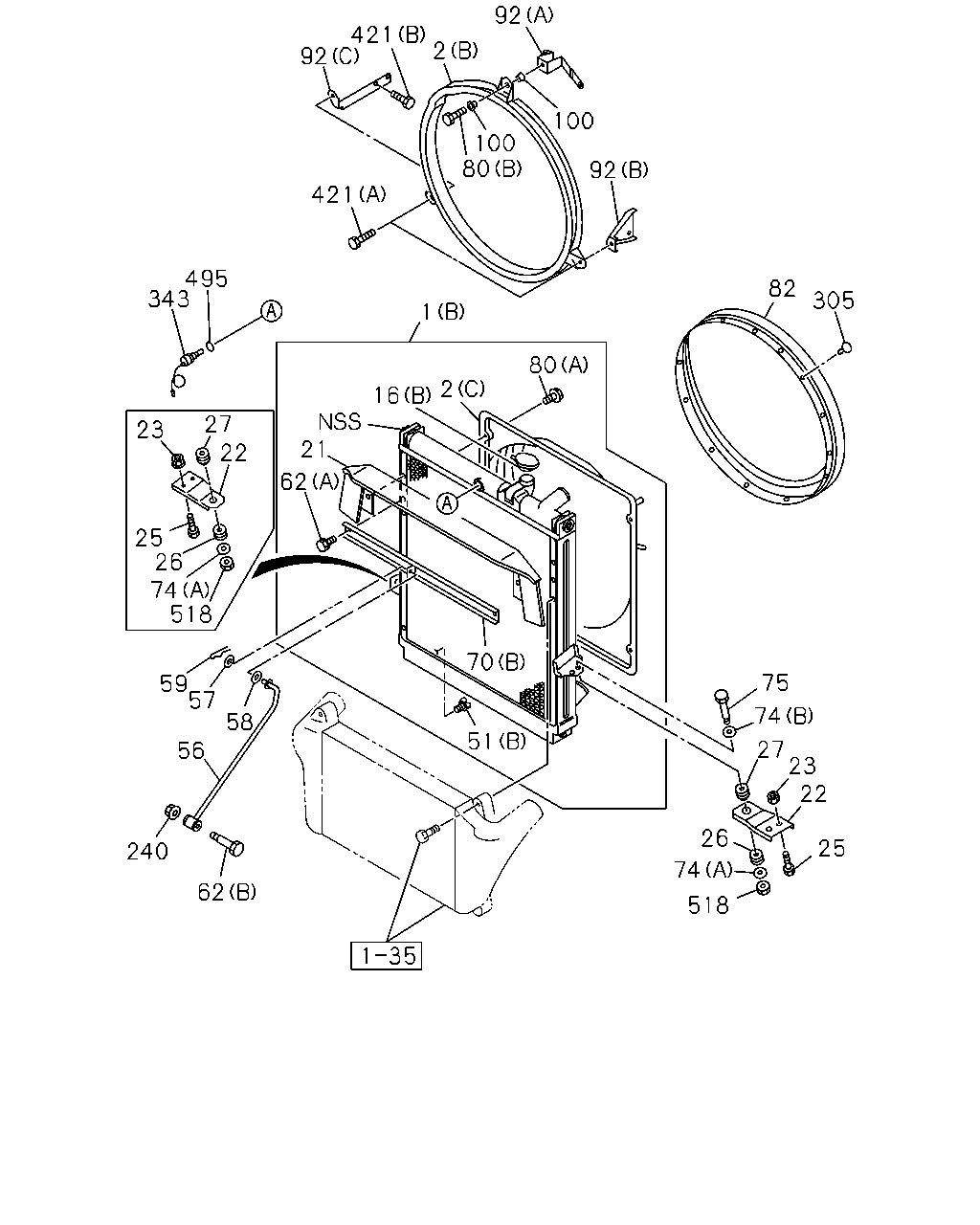

92 421 2 92 100 100 80 92 421 495 343 82 305 1 80 2 16 21 27 22 23 62 25 26 74 518 70 75 59 57 74 58 51 27 23 22 56 26 25 240 74 62 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0612-
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (A)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (B)	8-97377-235-0	01	1	0612-
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97068-803-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97218-802-1	01	1	0612-
16	01.203 CAP; RAD 4HG1 ENG(RJH) (A)	8-97177-872-0	01	1	0612-
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0612-
21	01.276 SEAL; RAD 4HG1-T ENG(RDP)	8-97372-501-0	01	1	0612-
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-0	01	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0612-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0612-
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0612-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0612-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0612-
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 (C) W/GASKET	8-94321-236-0	01	1	0612-
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP) (A) W/GASKET	8-97171-437-0	01	1	0612-
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) (B) W/GASKET	1-09609-023-0	01	1	0612-
56	01.270 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97032-801-2	01	1	0612-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97330-387-0	01	1	0612-
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0612-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0612-
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0612-
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0612-
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0612-
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) (B)	8-97073-125-0	01	1	0612-
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0612-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0612-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0612-
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0612-
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0612-0806
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0807-
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0612-
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0612-
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0612-
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0612-
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ)	1-09337-027-0	06	1	0612-
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0612-
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HK1-TCN ENG(RDQ)	1-09470-009-0	12	1	0612-
343	01.271 PLUG; WATER LEVEL 4HK1-TCN ENG(RDQ) M18X12	1-09604-081-0	01	1	0612-
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0612-
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0612-
495	01.274 GASKET; SENSOR 4HK1-TCN ENG(RDQ) 01.097	1-09623-185-0	01	1	0612-
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-

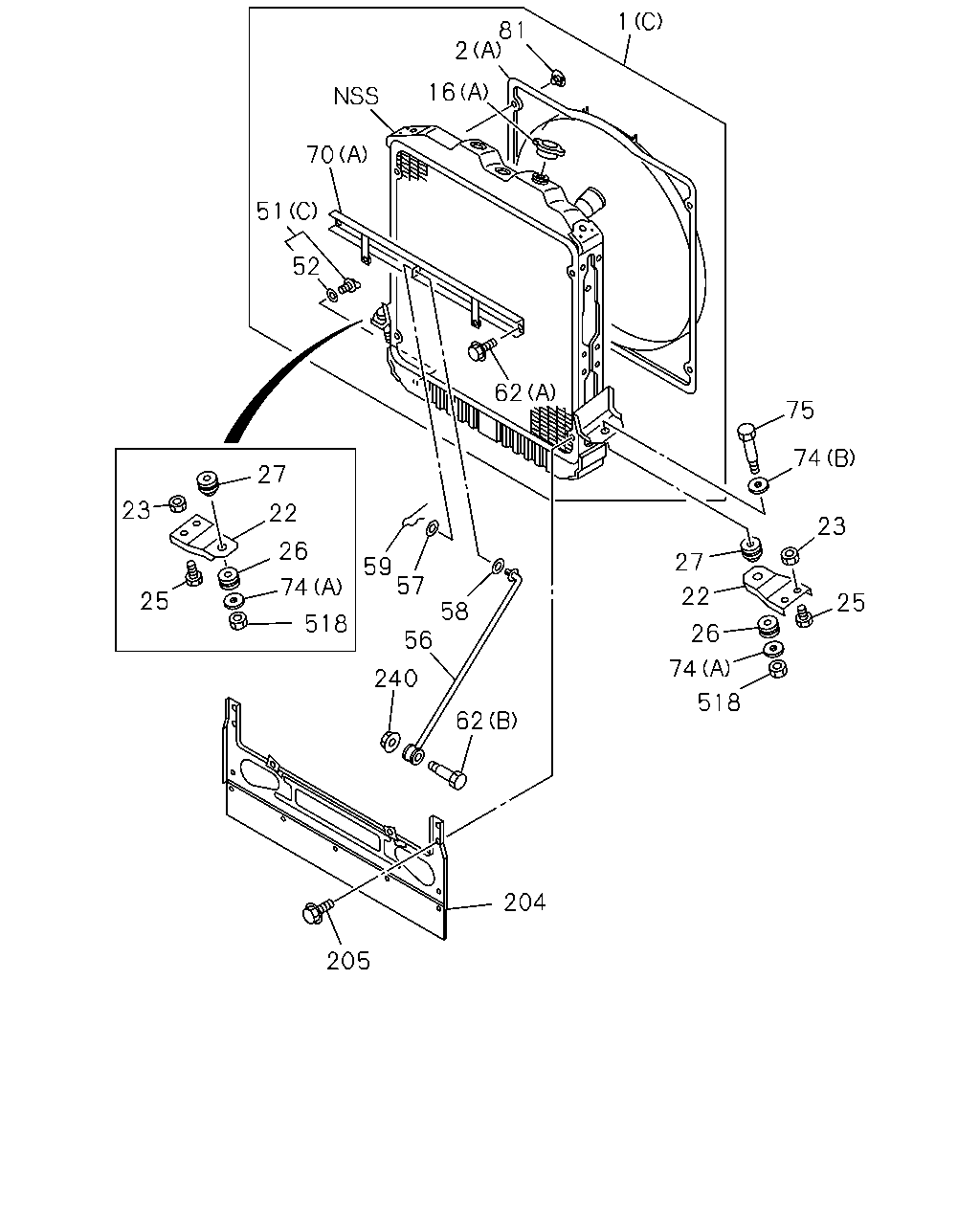

1 81 2 16 70 51 52 62 75 74 27 23 22 23 26 27 59 57 74 22 25 25 58 56 518 26 74 240 518 62 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0612-
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (A)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (B)	8-97377-235-0	01	1	0612-
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97068-803-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97218-802-1	01	1	0612-
16	01.203 CAP; RAD 4HG1 ENG(RJH) (A)	8-97177-872-0	01	1	0612-
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0612-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0612-
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0612-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0612-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0612-
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 (C) W/GASKET	8-94321-236-0	01	1	0612-
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP) (A) W/GASKET	8-97171-437-0	01	1	0612-
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) (B) W/GASKET	1-09609-023-0	01	1	0612-
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) 01.203 ID=10	9-09720-557-0	01	1	0612-
56	01.270 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97032-801-2	01	1	0612-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97330-387-0	01	1	0612-
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0612-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0612-
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0612-
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0612-
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0612-
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) (B)	8-97073-125-0	01	1	0612-
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0612-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0612-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0612-
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97088-810-0	04	1	0612-
204	01.267 GUIDE ASM; AIR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97376-880-0	01	1	0612-
205	01.267 BOLT; AIR GUIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0612-
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0612-
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-

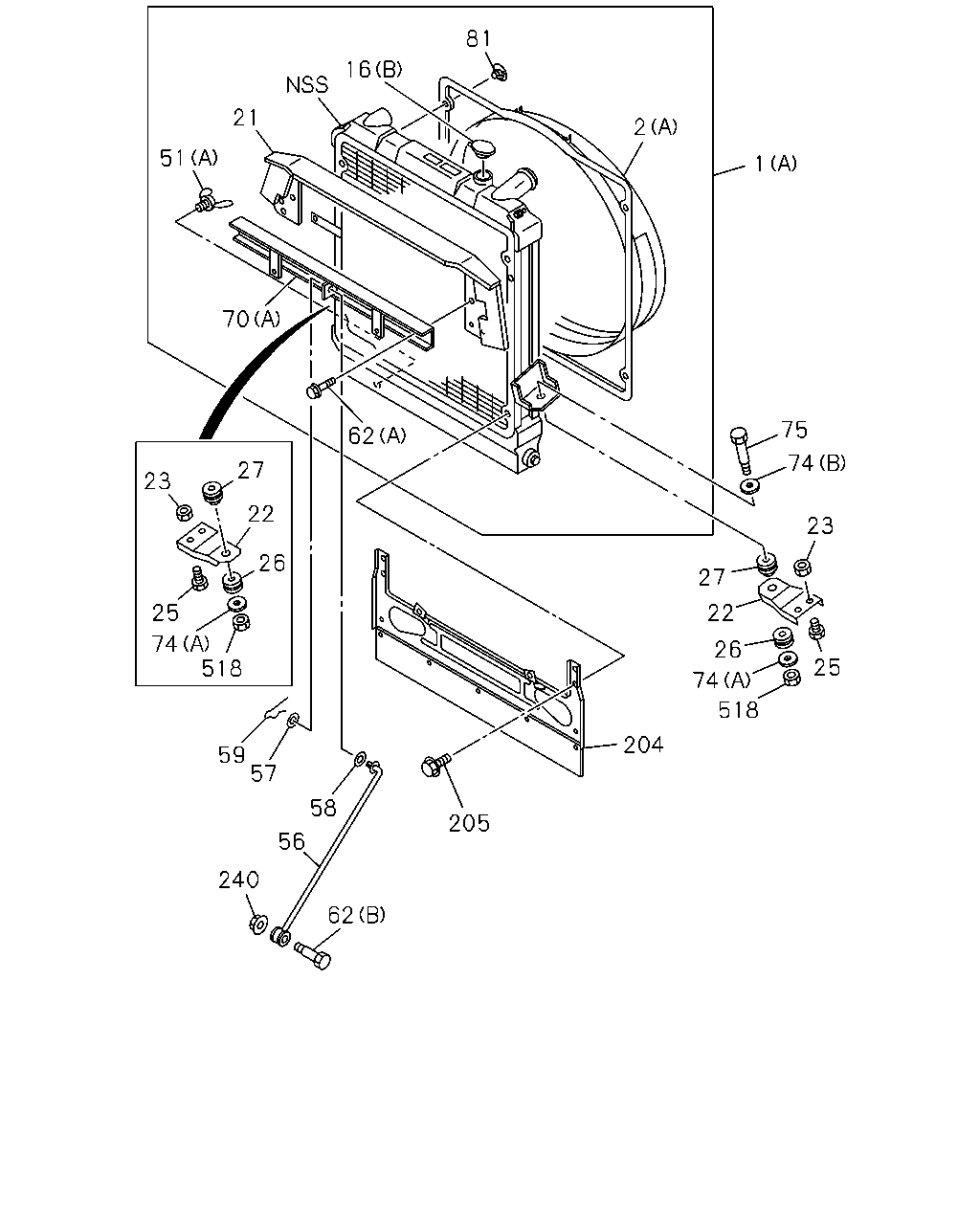

81 16 21 2 51 1 70 75 62 74 27 23 22 23 26 27 25 22 74 518 26 25 74 518 204 59 57 58 205 56 240 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0612-
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (A)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (B)	8-97377-235-0	01	1	0612-
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97068-803-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97218-802-1	01	1	0612-
16	01.203 CAP; RAD 4HG1 ENG(RJH) (A)	8-97177-872-0	01	1	0612-
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0612-
21	01.276 SEAL; RAD 4HG1-T ENG(RDP)	8-97372-501-0	01	1	0612-
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-0	01	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0612-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0612-
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0612-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0612-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0612-
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 (C) W/GASKET	8-94321-236-0	01	1	0612-
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP) (A) W/GASKET	8-97171-437-0	01	1	0612-
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) (B) W/GASKET	1-09609-023-0	01	1	0612-
56	01.270 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97032-801-2	01	1	0612-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97330-387-0	01	1	0612-
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0612-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0612-
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0612-
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0612-
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0612-
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) (B)	8-97073-125-0	01	1	0612-
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0612-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0612-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0612-
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97088-810-0	04	1	0612-
204	01.267 GUIDE ASM; AIR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97376-880-0	01	1	0612-
205	01.267 BOLT; AIR GUIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0612-
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0612-
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
