Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#39697) — 66 parça

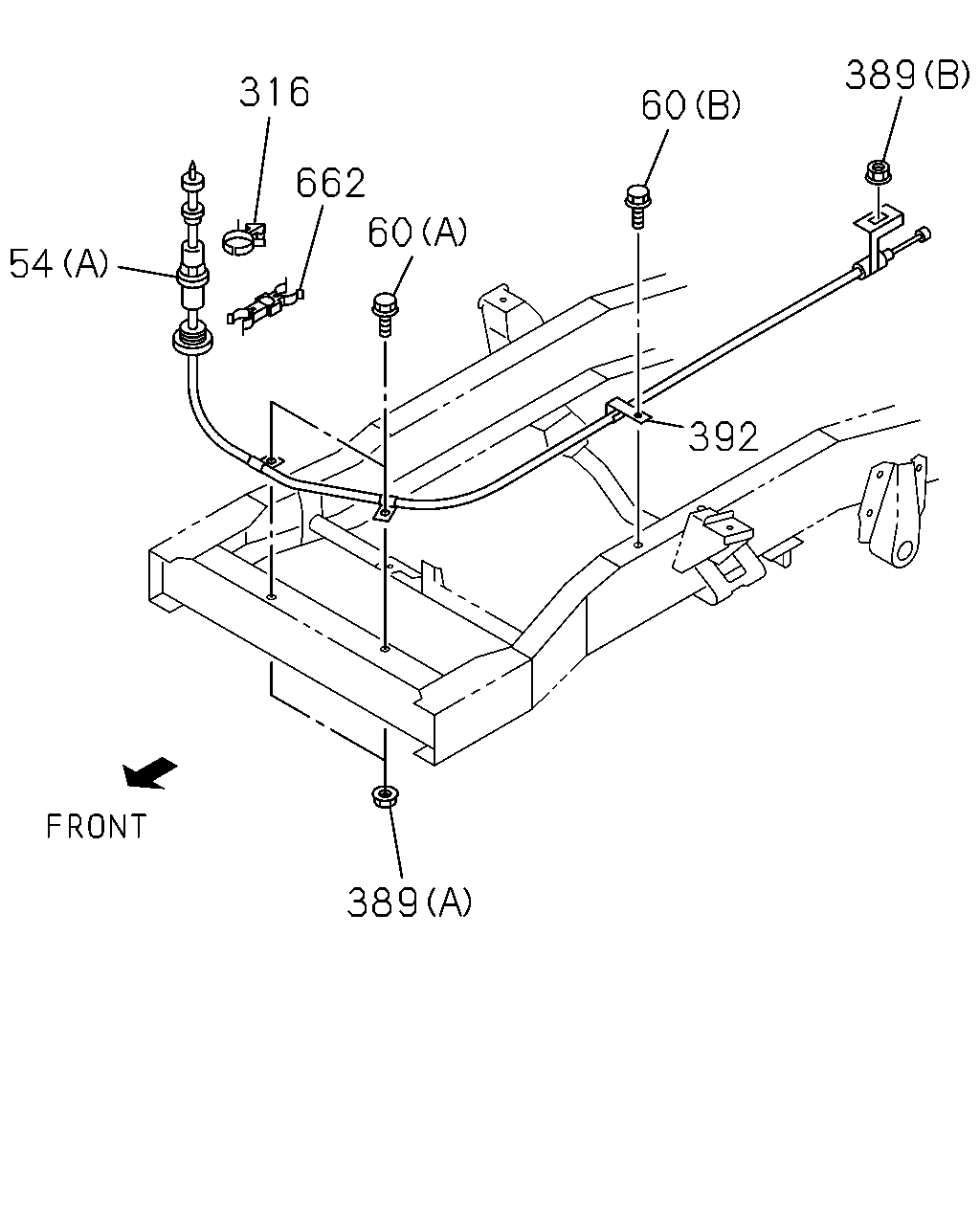

389 316 60 662 60 54 392 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0612-
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=2775	8-97167-703-2	01	1	0612-
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0612-
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-0805
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0806-
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0806-
316	03.425 CLIP; LAMP BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 16.065 ID=9	5-09707-027-0	01	1	0612-
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0612-
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	02	1	0612-0805
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	02	1	0806-
392	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.785 ID=13 L=50	0-95235-286-0	01	1	0806-
662	03.430 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.634 ID=6 & 6	1-09709-217-0	01	1	0612-

54 99 54 99 100 101 108 729 218 101 104 391 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0612-
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=2775	8-97167-703-2	01	1	0612-
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-729-0	01	1	0612-
100	03.463 SHAFT ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-737-0	01	1	0612-
101	03.463 WASHER; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0612-
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
108	03.463 BUSHING; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97120-004-0	01	1	0612-
110	03.463 BOLT; BRKT TO HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0612-
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
391	03.452 BRACKET; ENG CONT (B)	8-97360-271-0	01	1	0612-
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0612-
729	03.451 COLLAR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-760-0	01	1	0612-

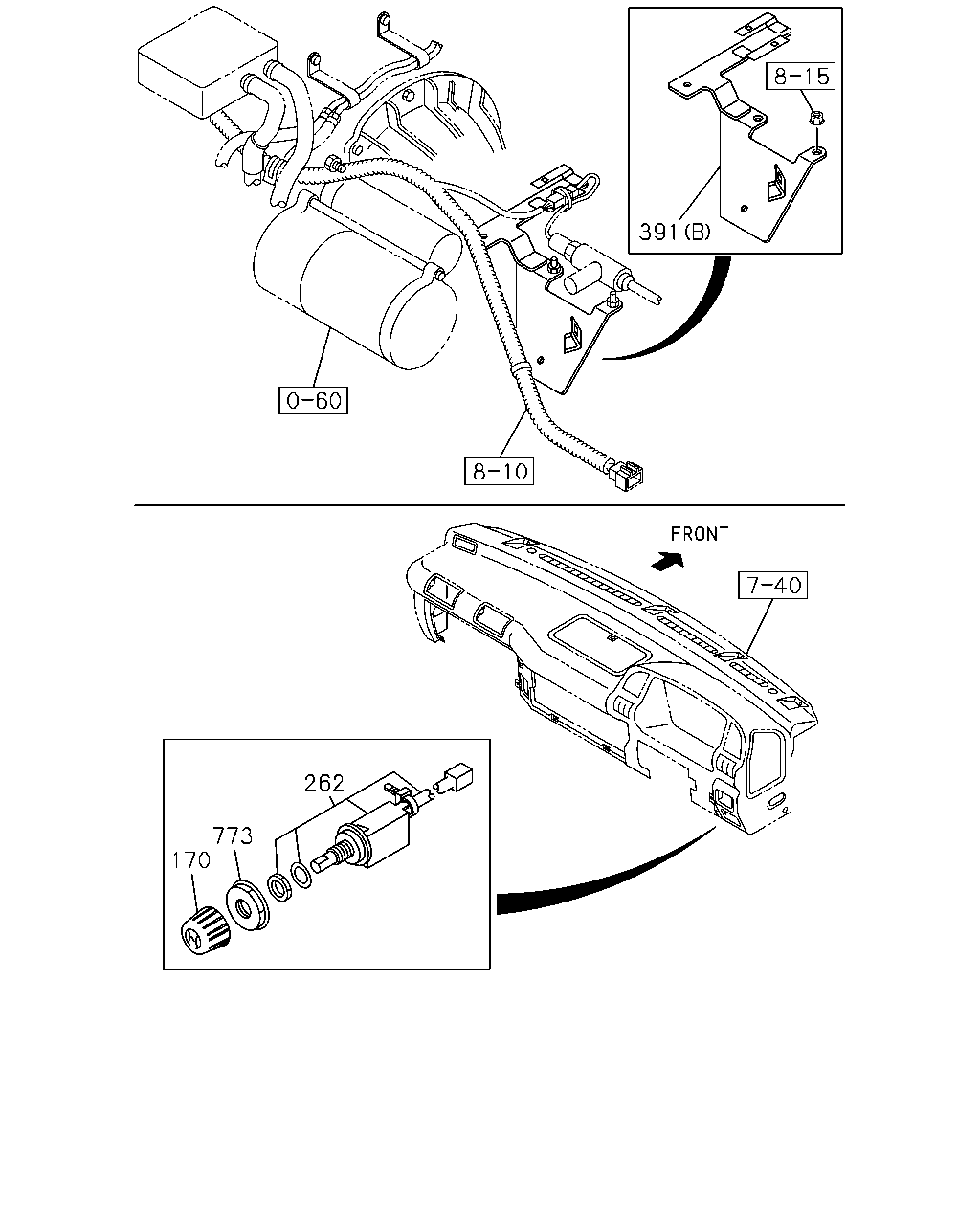

391 262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
170	03.480 KNOB 4HK1-TCN ENG(RDQ)	8-97310-165-0	01	1	0612-
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ)	8-97215-119-1	01	1	0612-
391	03.452 BRACKET; ENG CONT (B)	8-97360-271-0	01	1	0612-
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0612-
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	0612-

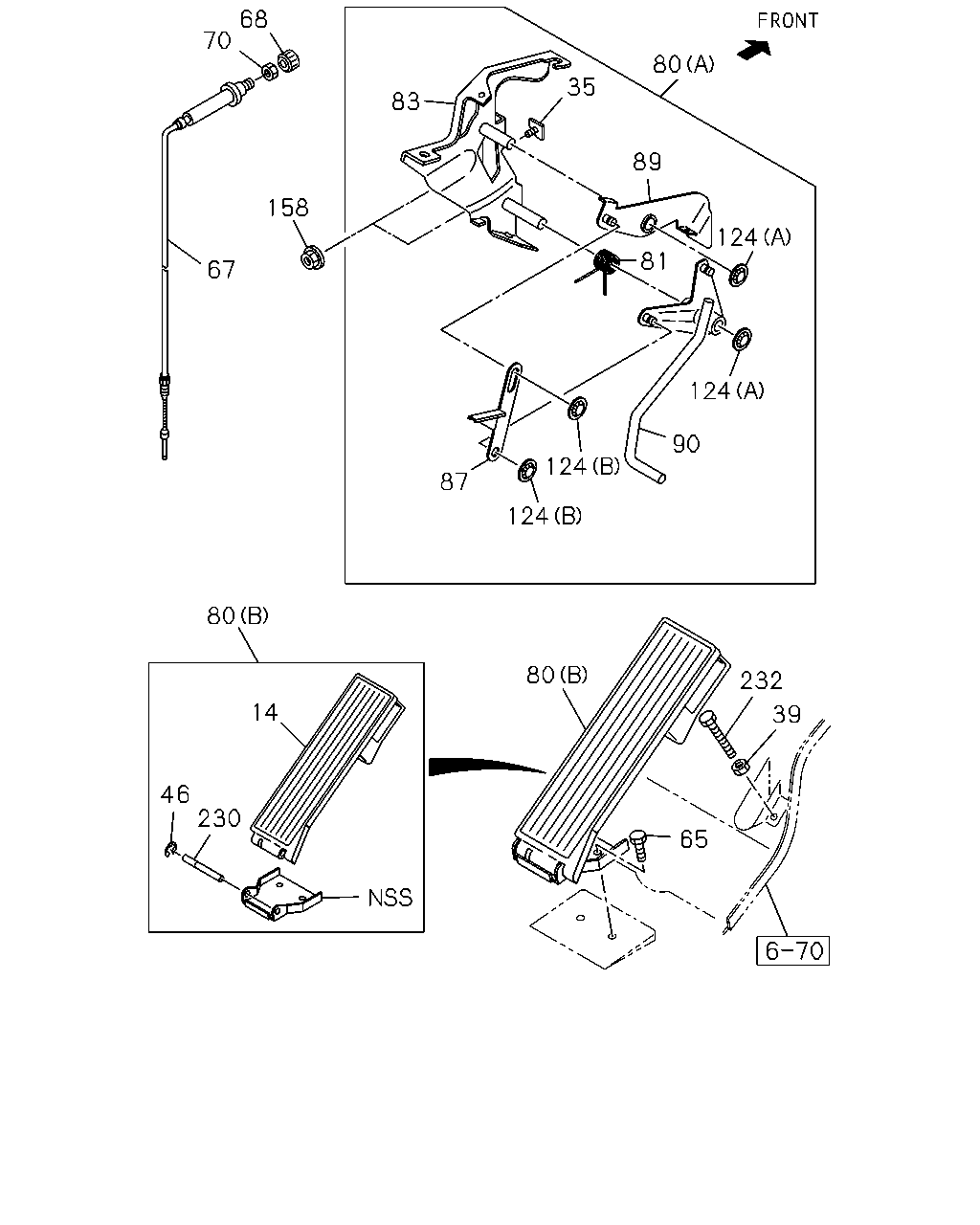

68 70 80 35 83 89 158 124 81 67 124 90 124 87 124 80 80 232 14 39 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0612-
35	03.459 STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97302-305-0	01	1	0612-
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0612-
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0612-
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0612-
67	03.480 CABLE ASM; IDLE CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) L=439	8-97853-058-1	01	1	0612-
68	03.480 KNOB; IDLE CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-765-1	01	1	0612-
70	03.483 NUT; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M18	8-97853-233-0	01	1	0612-
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0612-
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97853-057-9	01	1	0612-
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97997-556-6	01	1	0612-
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-205-1	01	1	0612-
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-201-4	01	1	0612-
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ)	8-97581-415-5	01	1	0612-
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-204-1	01	1	0612-
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97868-042-0	01	1	0612-
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97868-039-0	01	1	0612-
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0612-
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) 09.011 (A) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0612-
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0612-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0612-
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0612-

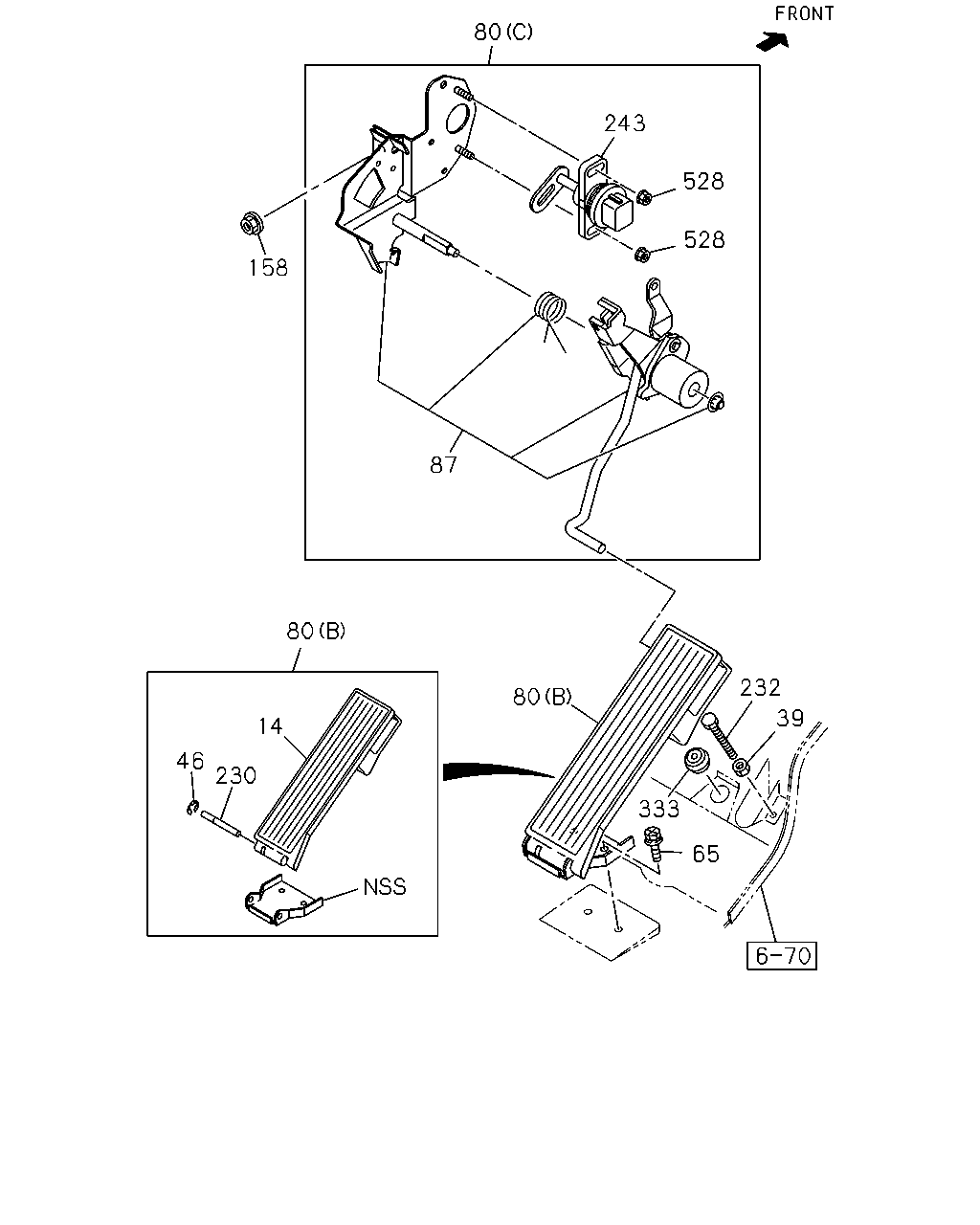

80 243 528 528 158 87 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0612-
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0612-
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0612-
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0612-
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0612-
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97853-057-9	01	1	0612-
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97997-556-6	01	1	0612-
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ)	8-97581-415-5	01	1	0612-
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-204-1	01	1	0612-
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0612-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0612-
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0612-
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-97602-416-0	01	1	0612-
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCN ENG(RDQ) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0612-
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) 12.183 M5	8-94169-022-0	02	1	0612-
