Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

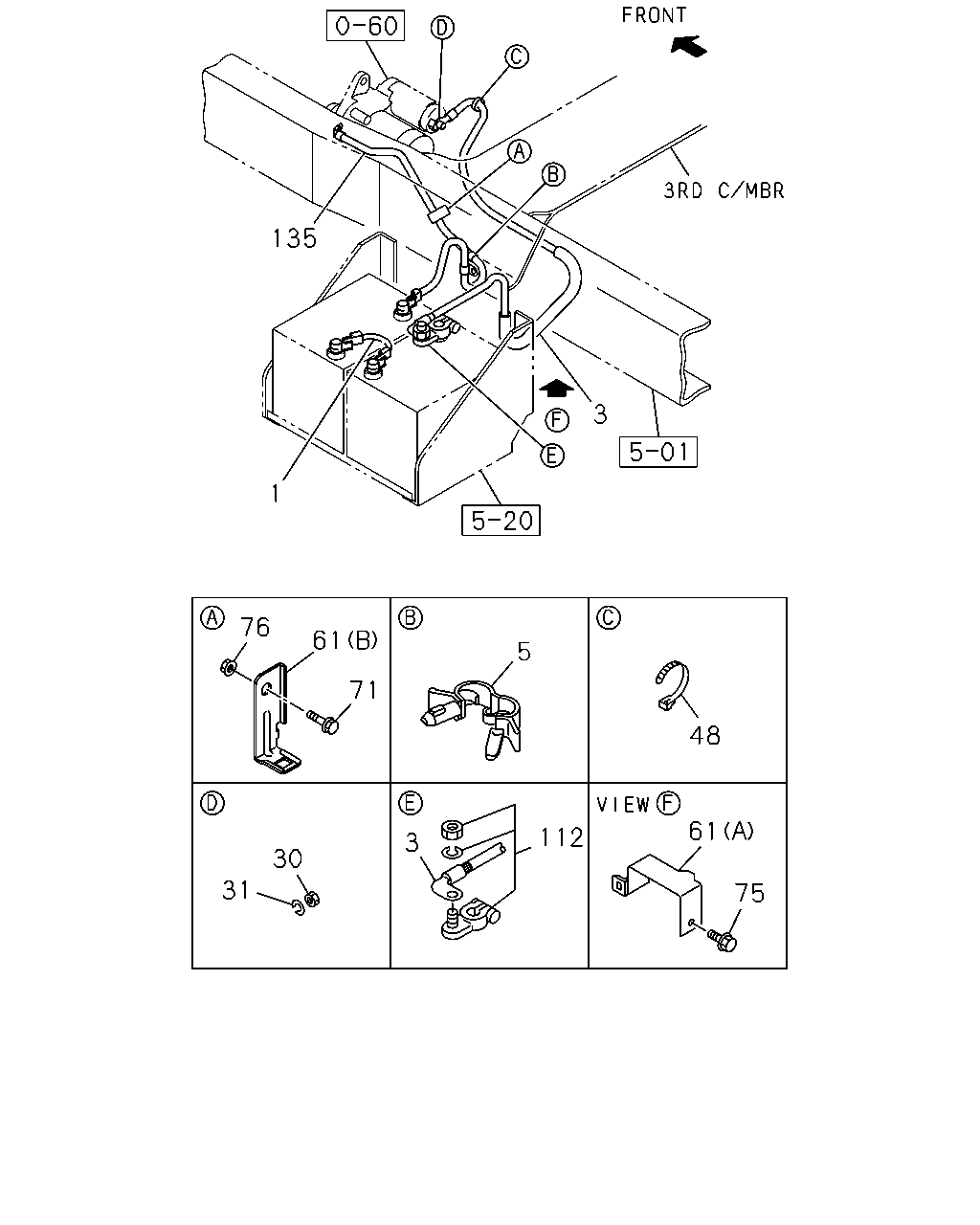

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#39687) — 13 parça

135 3 1 76 61 5 71 48 61 112 3 30 31 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0612-	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97377-776-0	01	1	0612-	●	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.162 ID=13-18 L=14.5	1-09709-290-0	01	1	0612-	●	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0612-	●	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0612-	●	●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0612-	●	●	●
61	02.333 BRACKET; BATTERY CABLE 02.559 (B)	8-97046-762-0	01	1	0612-	●	●	●
61	02.333 BRACKET; BATTERY CABLE (A)	8-97369-198-1	01	1	0612-	●	●	●
71	02.343 BOLT; BATTERY CABLE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0612-	●	●	●
75	02.333 BOLT; BRKT 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0612-	●	●	●
76	02.343 NUT; BATTERY CABLE 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-	●	●	●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0612-	●	●	●
135	02.343 CABLE; ENG TO BATTERY	8-98000-043-2	01	1	0612-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
