0-60 — ENGINE ELECTRICAL CONTROL PARTS (#39686) — 66 parça
çizim 13953
578 10 645 46 10
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
(A) 24V 50A 		8-97264-947-0 01 1 0612- ● ● ●
10 02.100 RELAY; STARTER
08.852 (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0612- ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 0612- ● ● ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0612- ● ● ●
645 02.510 RELAY; ENG CONT
24V 30A MITUBA 		8-97238-540-0 01 1 0612- ●

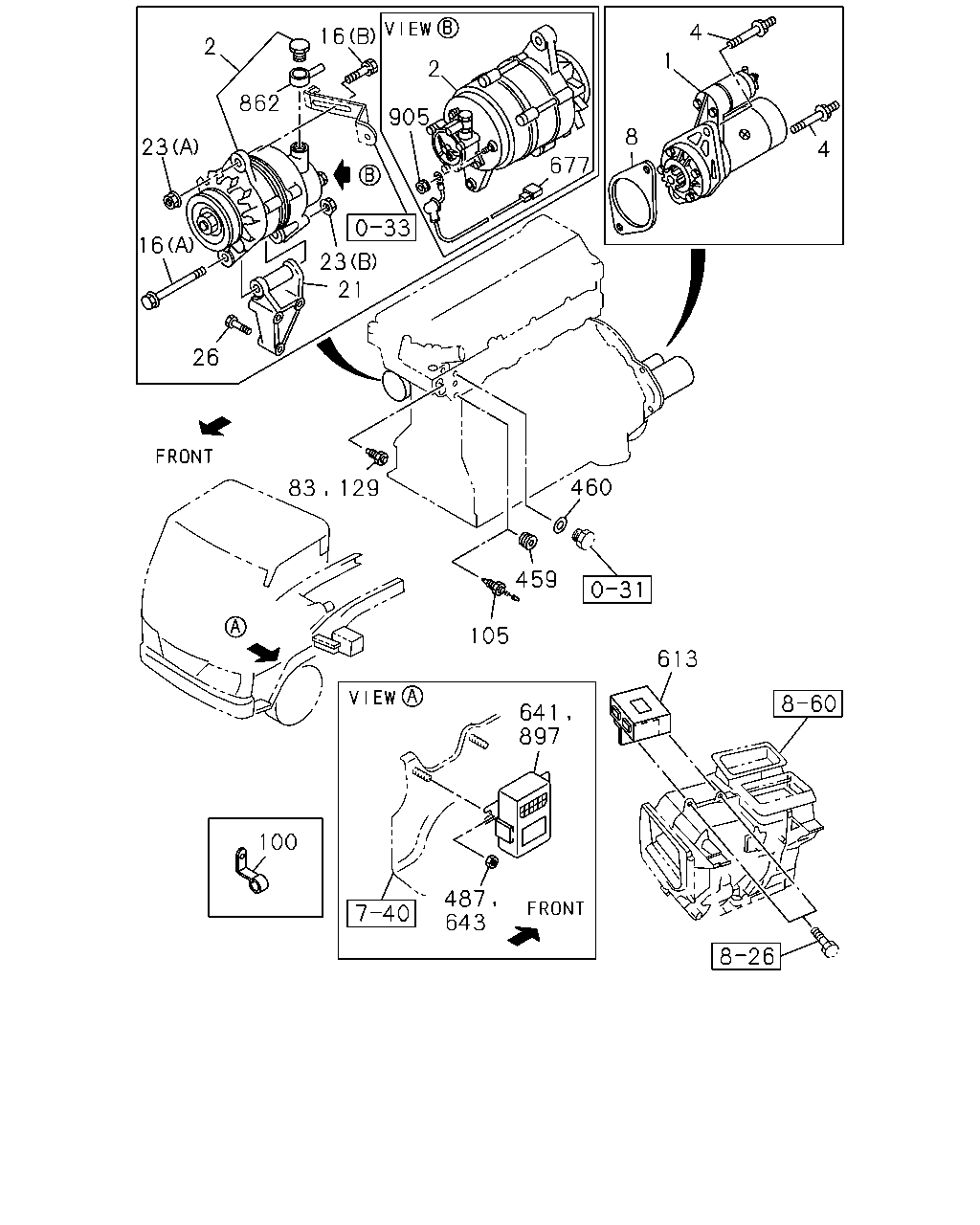

çizim 57394
16 4 2 1 2 862 905 8 23 4 677 16 23 21 26 460 83 129 459 105 613 641 897 100 487 643
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0612- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0612- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0612- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0612- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0612- ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0612- ● ● ●
8 02.042 SPACER; STARTER 8-97350-947-0 01 1 0612- ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0612- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0612- ● ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0612- ● ● ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0612- ● ● ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0612- ● ● ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0612- ● ● ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0612- ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0612- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0612- ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 01 1 0612- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0612- ● ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0612- ● ●
105 01.150 SWITCH; THERMO,QOS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 		8-94121-152-1 01 1 0612- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0612- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0612- ● ●
459 02.183 PLUG
GLOW SYSTEM DELETE<7RK> 01.073 PT3/8 		5-09605-005-0 01 1 0612- ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0612- ● ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0612- ●
613 03.670 CONTROL UNIT; ENG 8-97187-466-5 01 1 0612- ●
613 03.670 CONTROL UNIT; ENG
EXC. KD PREPARATORY PACK<6HF> 		8-98000-589-5 01 1 0612- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. INDONESIA EQUIPMENT(S4S) 		8-97361-318-0 01 1 0612- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. INDONESIA EQUIPMENT(S4S) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0612- ●
677 02.277 HARNESS; GEN 8-97367-772-0 01 1 0612- ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0612- ● ●
862 02.313 CONNECTOR; GEN 8-97351-627-0 01 1 0612- ●
897 02.510 DRM 8-98013-144-6 01 1 0612- ●
905 02.559 NUT; HARNESS
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0612- ●

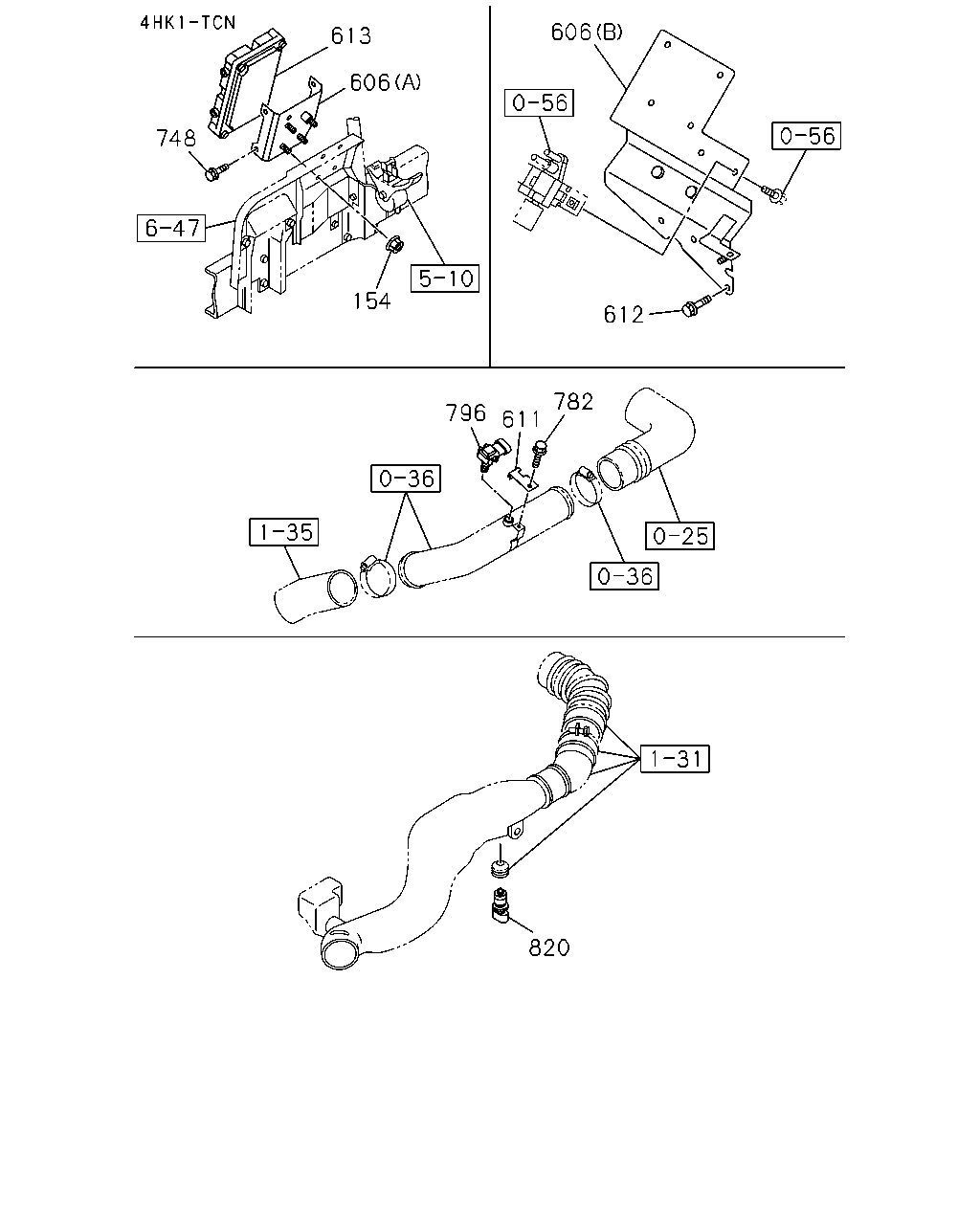

çizim 57396
606 613 606 748 154 612 782 796 611 820
BalonParca AdiParca NoAdetTipApplied Date A B C
154 02.510 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 0612- ●
154 02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 0612-0612 ●
154 02.510 NUT; BRKT FIX
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0612- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98000-703-0 01 1 0612- ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98013-406-1 01 1 0612- ●
611 01.150 BRACKET; SENSOR 8-97368-621-0 01 1 0612- ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0612- ● ●
612 02.510 BOLT; BRKT
09.171 M10X25 FLANGE 		0-28051-025-0 01 1 0612- ●
612 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0612- ●
613 03.670 CONTROL UNIT; ENG 8-97187-466-5 01 1 0612- ●
613 03.670 CONTROL UNIT; ENG
EXC. KD PREPARATORY PACK<6HF> 		8-98000-589-5 01 1 0612- ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0612- ●
782 02.510 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0612- ●
796 01.150 SENSOR; MAP 8-09373-269-1 01 1 0612-0810 ●
796 01.150 SENSOR; MAP 8-28139-775-0 01 1 0811- ●
820 01.150 SENSOR; INTAKE AIR TEMP 8-12146-830-0 01 1 0612- ●
çizim 57888
636 553 492 211 593 219 733 555 612
BalonParca AdiParca NoAdetTipApplied Date A B C
211 02.343 NUT; CABLE FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 0612- ● ●
219 03.483 CLIP; ENG STOP CABLE
02.525 T=4.5 & 9 		5-09709-023-0 02 1 0612- ● ●
492 03.483 BRACKET; ENG STOPPER
03.485 		8-97113-497-1 01 1 0612- ● ●
553 03.485 MOTOR ASM; ENG STOP 8-97255-068-0 01 1 0612- ● ●
555 03.485 BRACKET; ENG STOP 8-97119-039-2 01 1 0612- ● ●
593 02.483 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0612- ● ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0612- ● ●
612 02.510 BOLT; BRKT
09.171 M10X25 FLANGE 		0-28051-025-0 01 1 0612- ●
612 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0612- ●
636 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0612- ● ●
733 02.343 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
