Sayfa 0-41 - Isuzu EPC

0-41 — FUEL FILTER AND BRACKET (#39679) — 19 parça

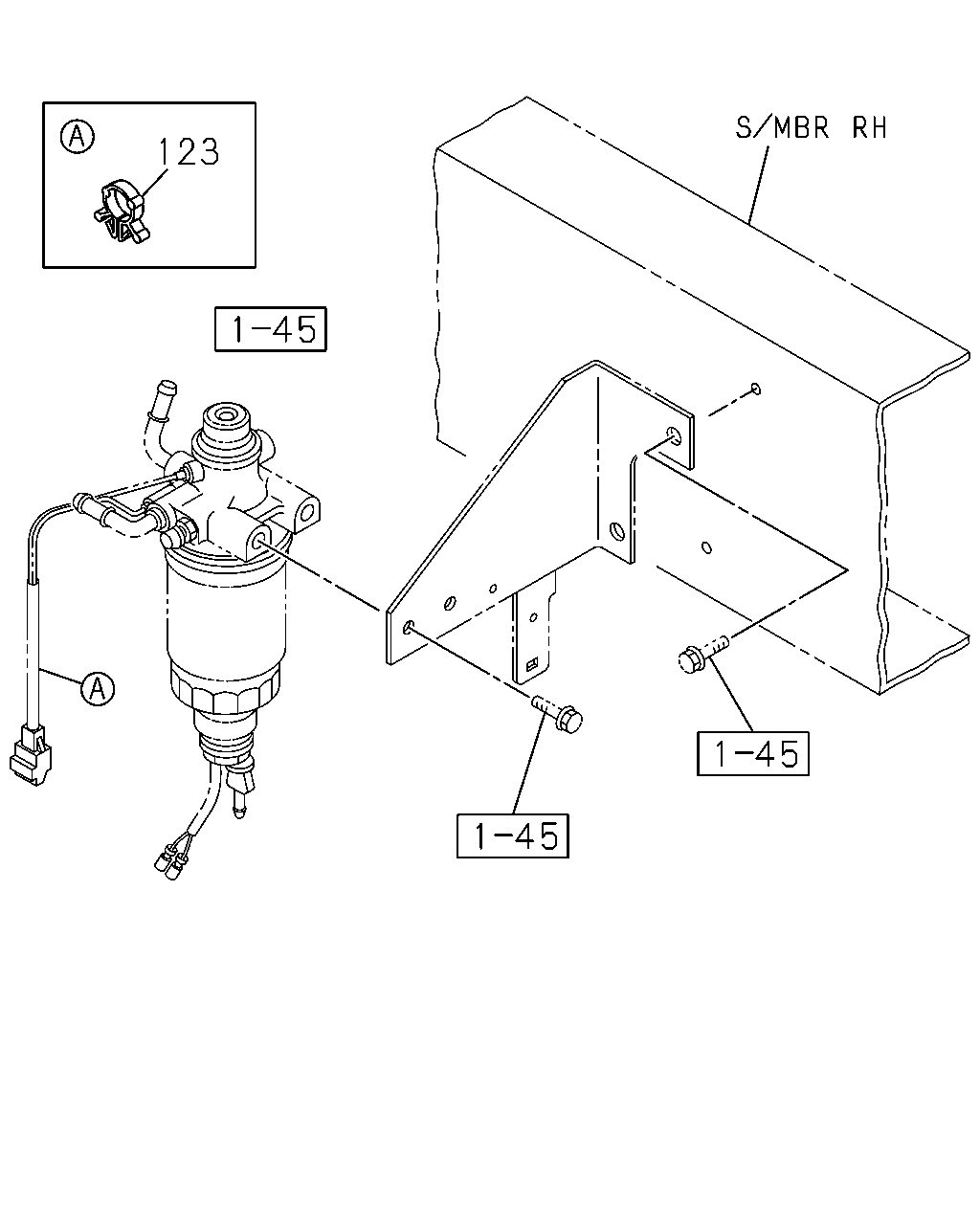

123

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	123	03.890 CLIP; HARNESS 02.559 ID=9	8-97063-874-0	01	1	0612-	●

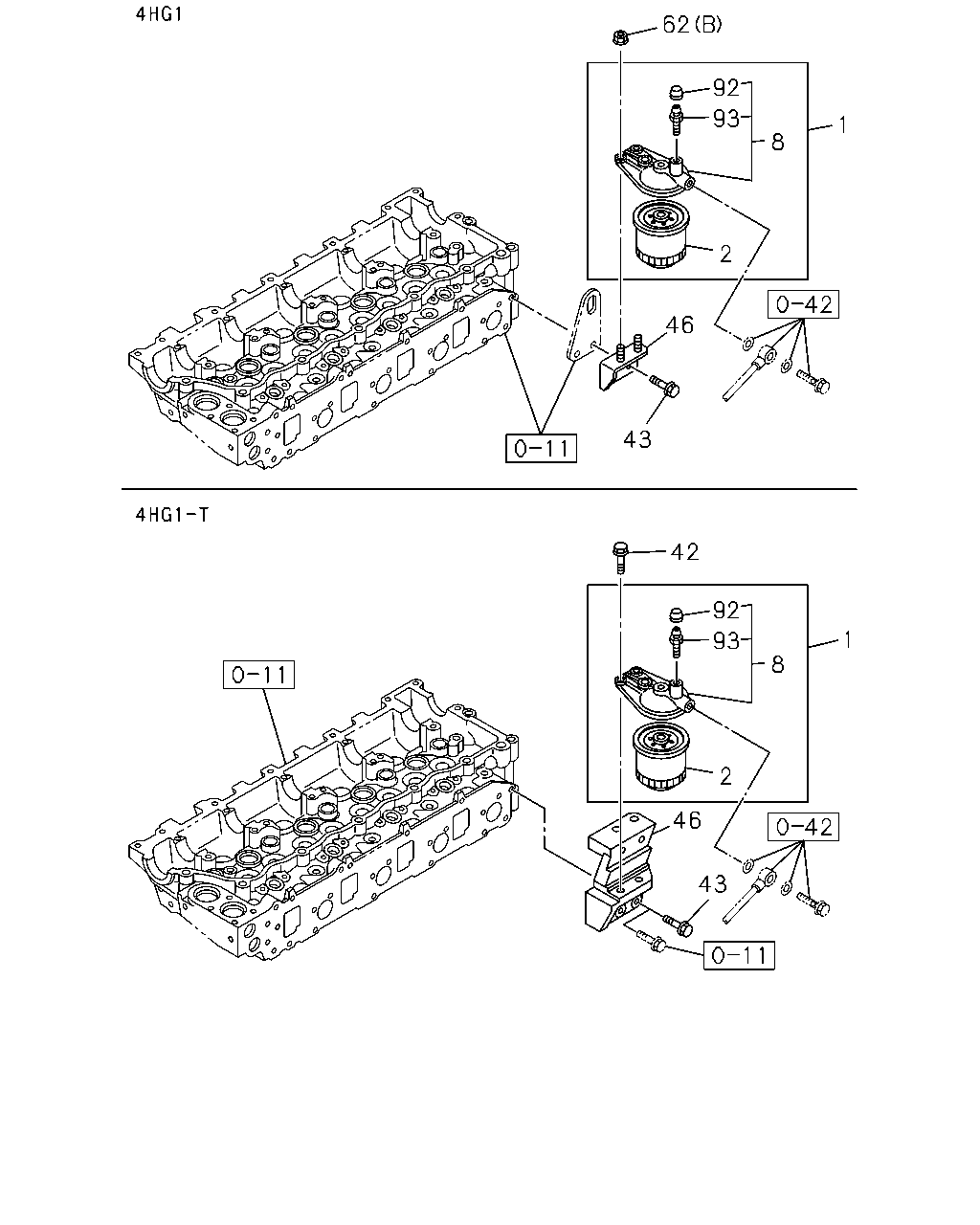

62 92 93 1 8 2 46 43 42 92 1 93 8 2 46 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	0612-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0612-	●	●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0612-	●	●
42	03.890 BOLT; FUEL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0612-	●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0612-	●	●
46	03.890 BRACKET	8-94313-323-1	01	1	0612-		●
46	03.890 BRACKET	8-97061-452-0	01	1	0612-	●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0612-	●	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0612-	●	●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0612-	●	●

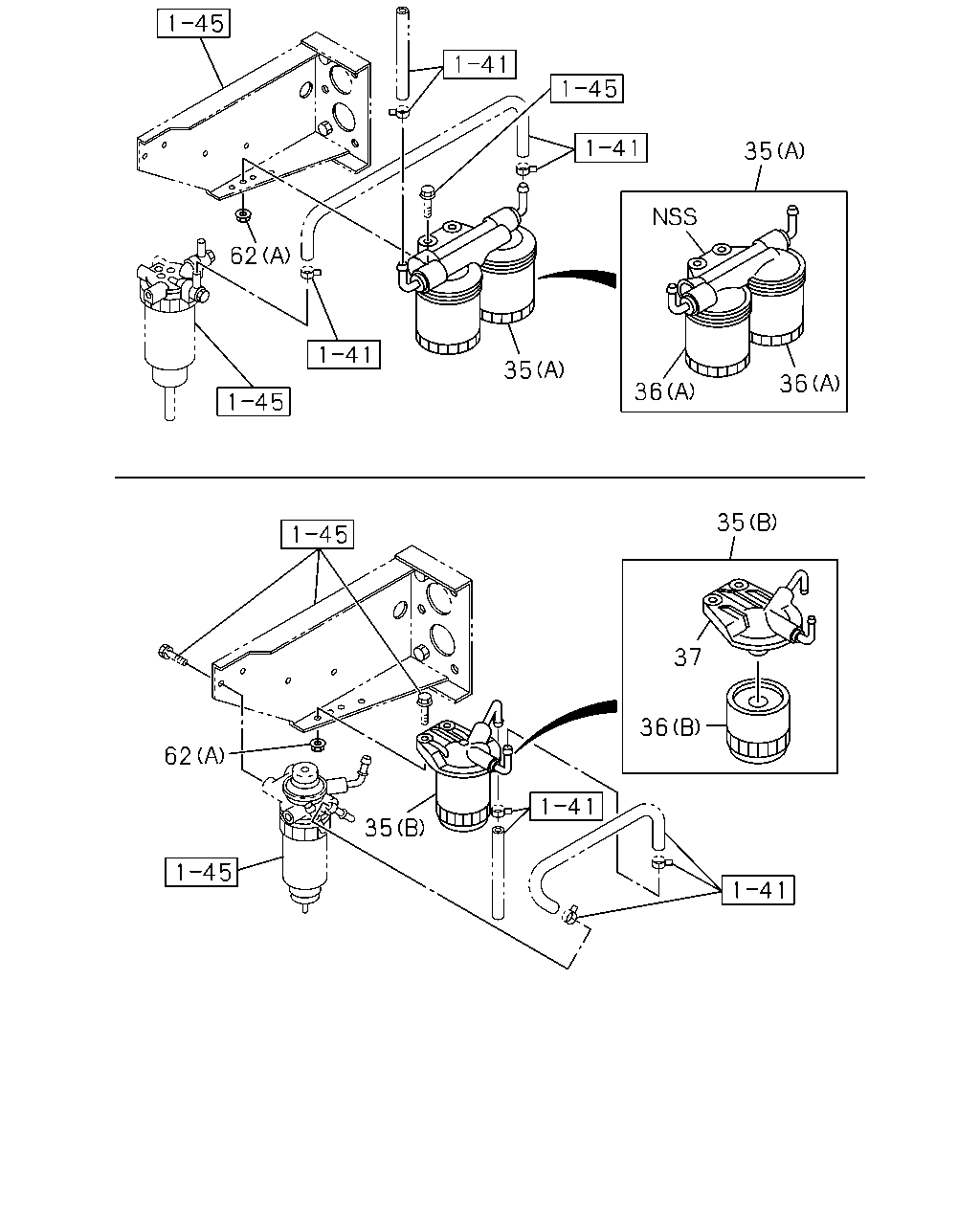

35 62 35 36 36 35 37 36 62 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100L<N02> (A)	8-97070-864-0	01	1	0612-	●	●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100L<N02> FUEL FILTER DUAL(S6B) (B)	8-98006-454-0	01	1	0612-	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100L<N02> 01.836 (A)	8-94144-613-0	02	1	0612-	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100L<N02> FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0612-	●	●
37	03.890 COVER; FUEL FILTER FUEL TANK 100L<N02> FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0612-	●	●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0612-	●	●
