Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#39678) — 288 parça

31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0612-	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-		●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-4	04	1	0612-			●
32	03.332 HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	0612-	●
32	03.332 HOLDER ASM; NOZZLE (B)	8-97078-783-1	04	1	0612-		●
33	03.332 NOZZLE; INJ	8-97119-809-0	04	1	0612-	●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0612-	●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	0612-		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0612-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0612-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0612-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97223-339-0	04	1	0612-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C)	8-97349-452-0	04	1	0612-		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0612-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0612-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0612-		●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0612-	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	0612-		●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0612-	●	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	04	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	1-15349-042-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	1-15349-043-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.10	8-97116-029-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.20	8-97116-032-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.30	8-97116-033-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	8-97116-034-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	8-97116-035-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.51	8-97116-036-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	8-97116-037-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.53	8-97116-038-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	8-97116-039-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.55	8-97116-040-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	8-97116-041-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.57	8-97116-042-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	8-97116-043-0	AR	1	0612-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.59	8-97116-044-0	AR	1	0612-		●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0612-	●
272	03.332 NOZZLE KIT; INJ	8-97352-267-0	04	1	0612-		●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0612-			●

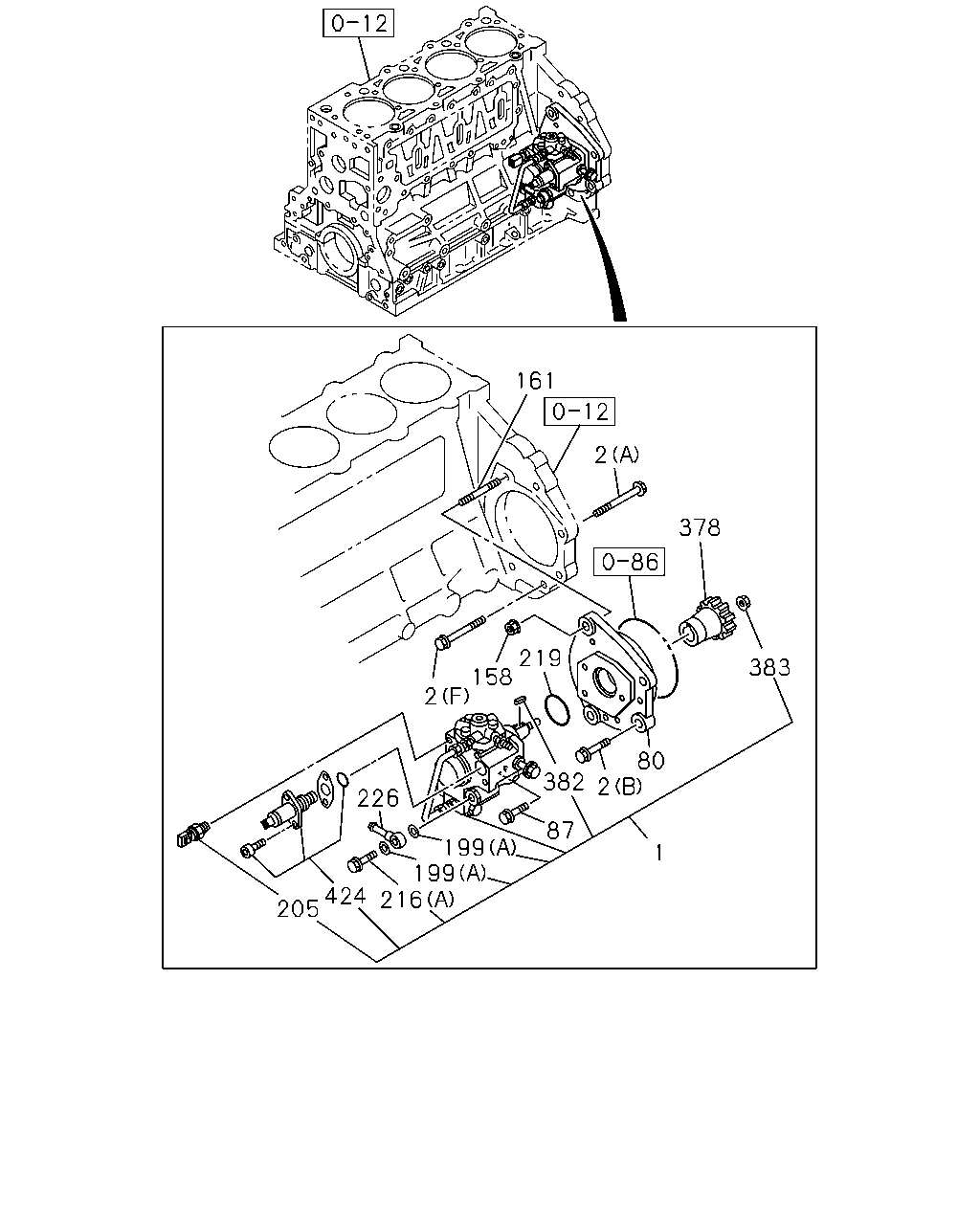

161 2 378 219 158 2 383 80 2 382 226 87 199 199 216 1 424 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0612-0612	●
1	03.306 PUMP ASM; INJ FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0612-	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0612-0612	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0612-	●
1	03.306 PUMP ASM; INJ FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0612-		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97215-704-2	01	1	0612-		●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0612-			●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 02.042 (F) M10X50 FLANGE	0-28151-050-0	01	1	0612-			●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0612-			●
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	0612-			●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0612-	●	●	●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0612-			●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0612-			●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0612-			●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0612-			●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0612-			●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0612-			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0612-			●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0612-	●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0612-0808			●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-			●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0612-			●
378	03.330 GEAR; PUMP Z=35	8-97601-698-1	01	1	0612-			●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	0612-			●
383	03.162 NUT; DRIVE SHAFT 03.616	8-97141-469-0	01	1	0612-			●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0612-			●

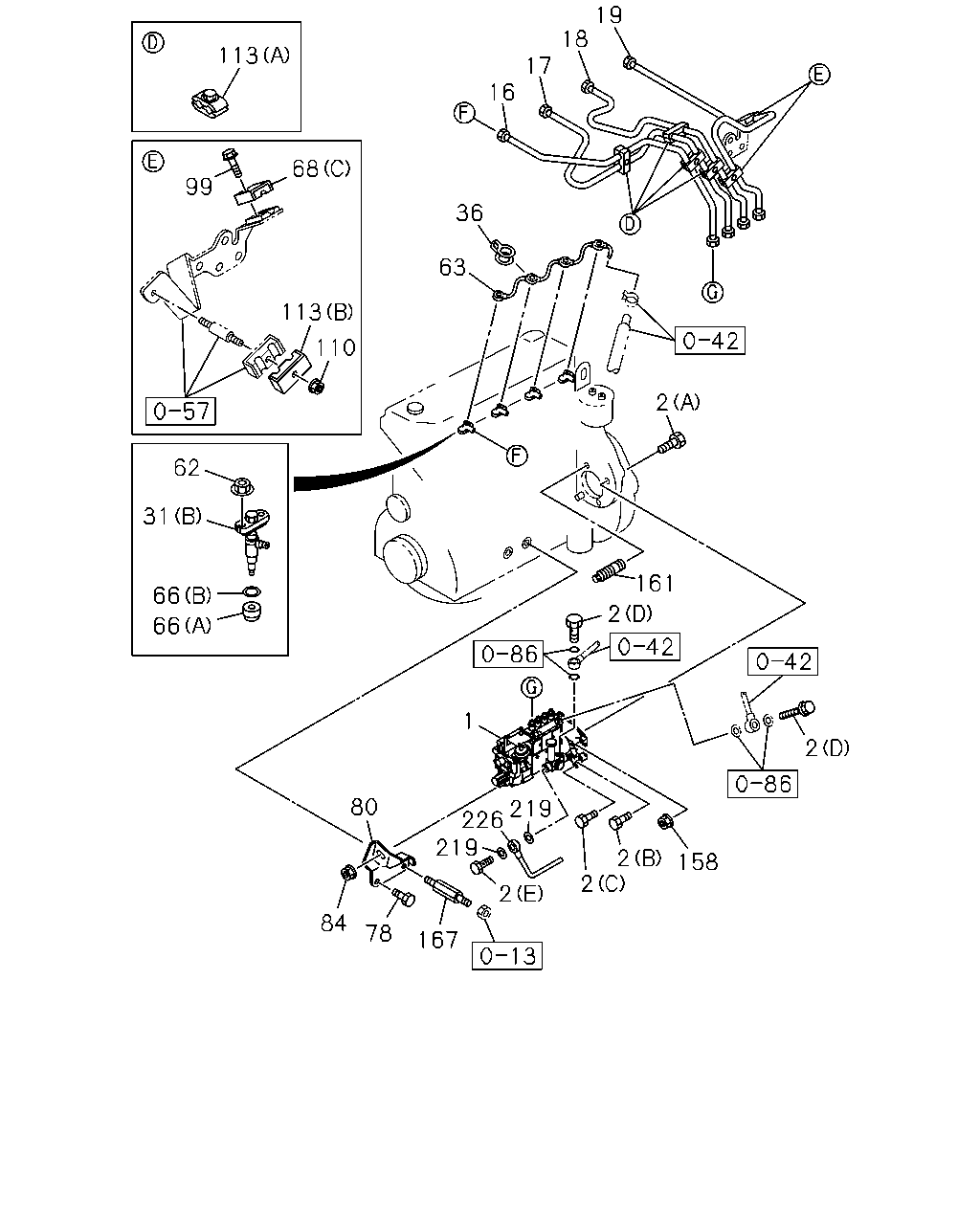

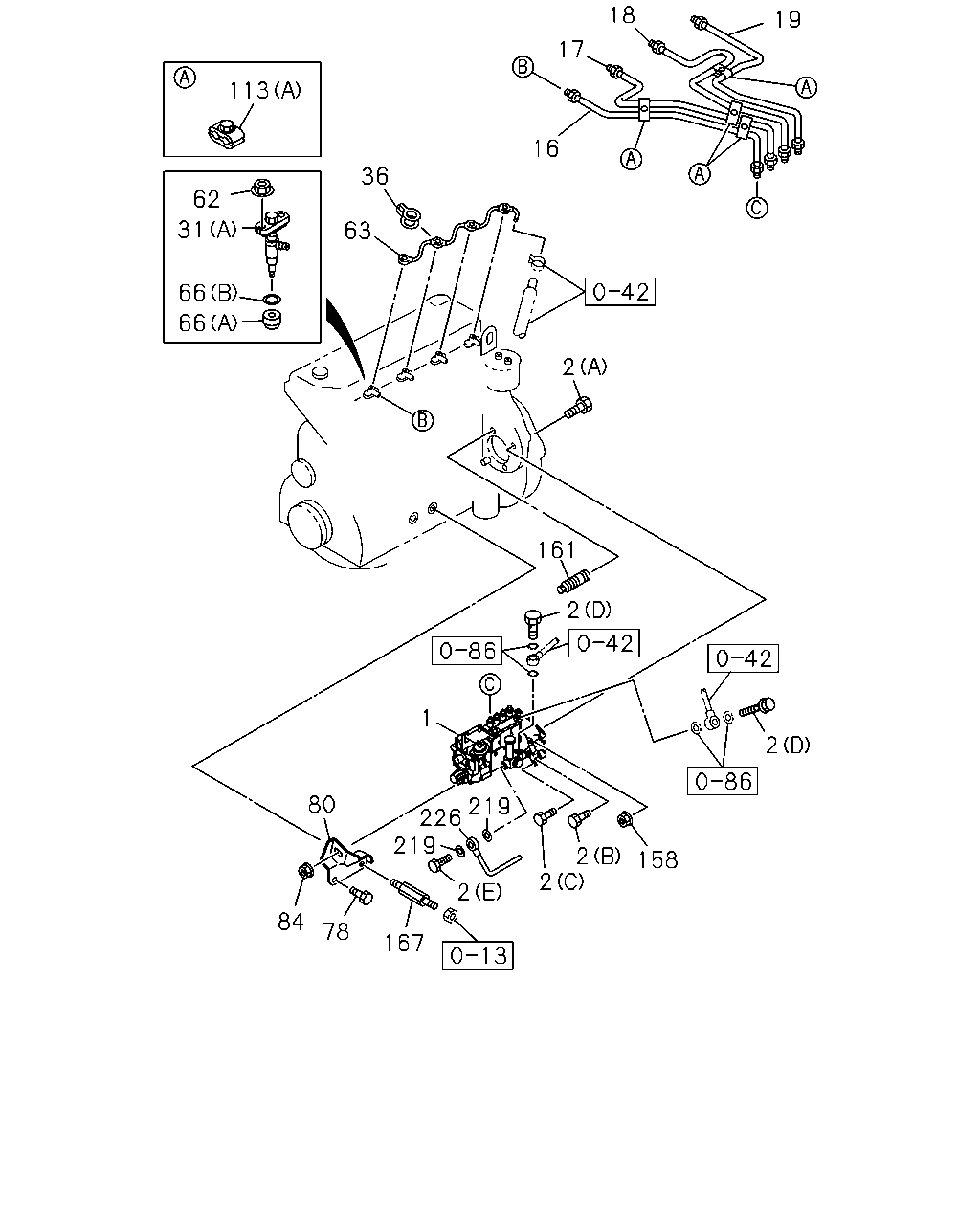

19 18 113 17 16 68 99 36 63 113 110 2 62 31 161 66 2 66 1 2 219 226 219 80 2 2 158 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0612-0612	●
1	03.306 PUMP ASM; INJ FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0612-	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0612-0612	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0612-	●
1	03.306 PUMP ASM; INJ FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0612-		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97215-704-2	01	1	0612-		●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0612-			●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 02.042 (F) M10X50 FLANGE	0-28151-050-0	01	1	0612-			●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0612-	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0612-		●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0612-			●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0612-	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0612-		●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0612-			●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0612-	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0612-		●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0612-			●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0612-	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0612-		●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0612-			●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0612-	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-		●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-4	04	1	0612-			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0612-	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.162 ID=8.3	8-97600-925-0	04	1	0612-0908			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-98065-992-0	04	1	0909-			●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0612-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0612-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0612-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0612-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0612-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0612-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 07.003 (A)	8-97171-332-0	04	1	0612-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	0612-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-97601-447-2	04	1	0612-0906			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	0907-			●
68	03.162 CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0612-		●
68	03.162 CLIP; INJ PIPE (A)	8-97330-118-1	04	1	0612-			●
68	03.162 CLIP; INJ PIPE (B)	8-97330-119-1	04	1	0612-			●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0612-			●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0612-	●	●
99	03.330 BOLT; CLIP,INJ,PIPE 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0612-		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	04	1	0612-			●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0612-	●	●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0612-		●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0612-	●	●	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0612-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0612-			●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0612-	●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0612-0808			●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-			●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0612-			●

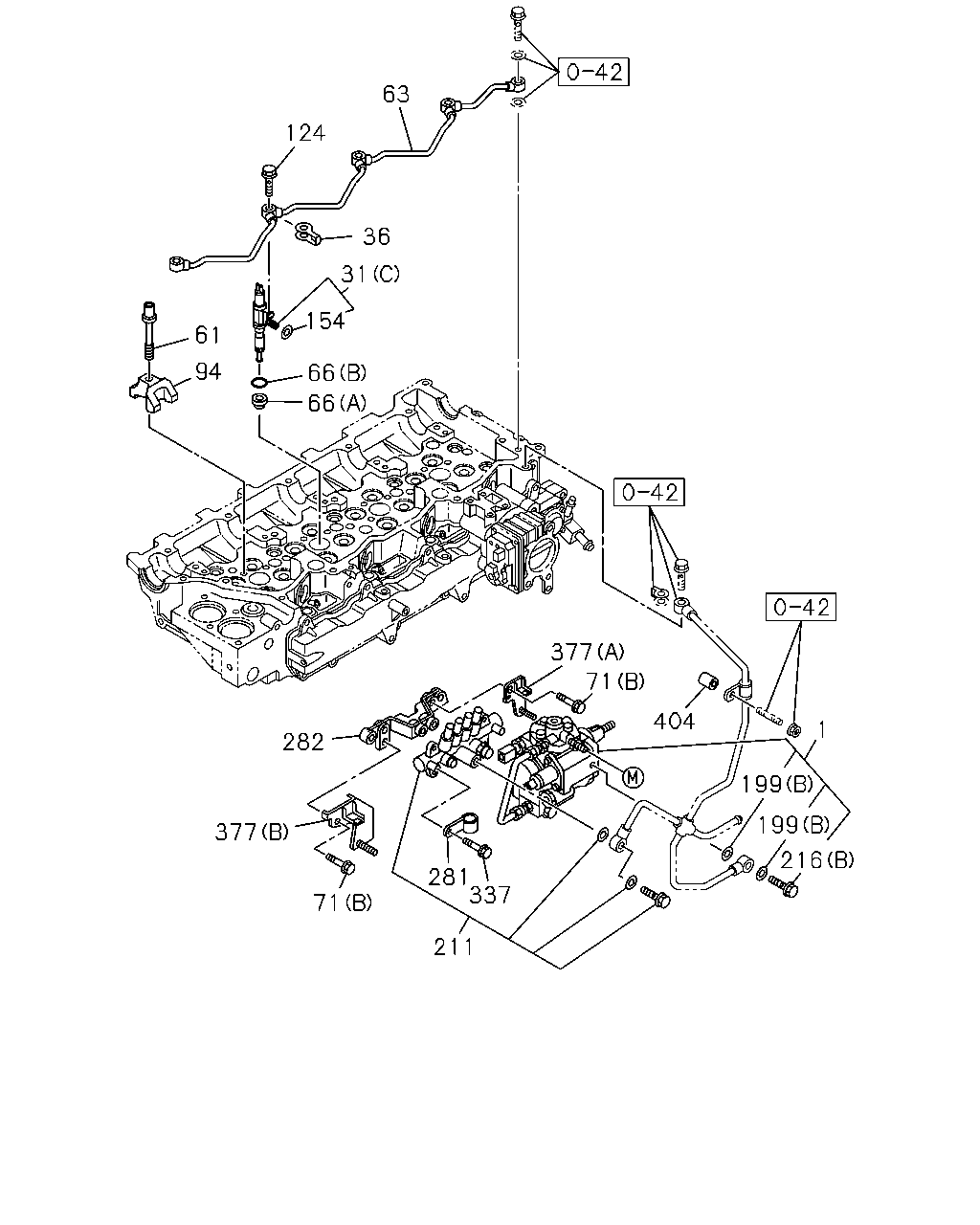

63 124 36 31 154 61 94 66 66 377 71 404 1 282 199 199 377 216 281 337 71 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0612-0612	●
1	03.306 PUMP ASM; INJ FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0612-	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0612-0612	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0612-	●
1	03.306 PUMP ASM; INJ FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0612-		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97215-704-2	01	1	0612-		●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0612-			●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0612-	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-		●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-4	04	1	0612-			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0612-	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.162 ID=8.3	8-97600-925-0	04	1	0612-0908			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-98065-992-0	04	1	0909-			●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0612-			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0612-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0612-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0612-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0612-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0612-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 07.003 (A)	8-97171-332-0	04	1	0612-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	0612-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-97601-447-2	04	1	0612-0906			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	0907-			●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0612-			●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-			●
71	03.162 BOLT; BRKT 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	0612-			●
71	03.162 BOLT; BRKT 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	0612-			●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-0	04	1	0612-			●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	0612-			●
154	03.332 GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 06.609 ID=11.0	9-09561-111-0	04	1	0612-			●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0612-			●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0612-			●
211	03.331 RAIL ASM; COMMON	8-97306-063-2	01	1	0612-			●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0612-			●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0612-			●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0612-			●
281	03.162 CLIP ID=16 H=24 L=20	0-95207-315-0	01	1	0612-			●
282	03.163 BRACKET; COMMON RAIL	8-97324-194-0	01	1	0612-			●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0612-			●
337	03.163 BOLT; CLIP 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0612-			●
377	03.332 BRACKET; HARNESS (A)	8-97374-283-1	01	1	0612-			●
377	03.332 BRACKET; HARNESS (B)	8-98001-141-0	01	1	0612-			●
404	03.330 SPACER; FUEL LEAK OFF L=24.5	1-33659-186-1	01	1	0612-			●

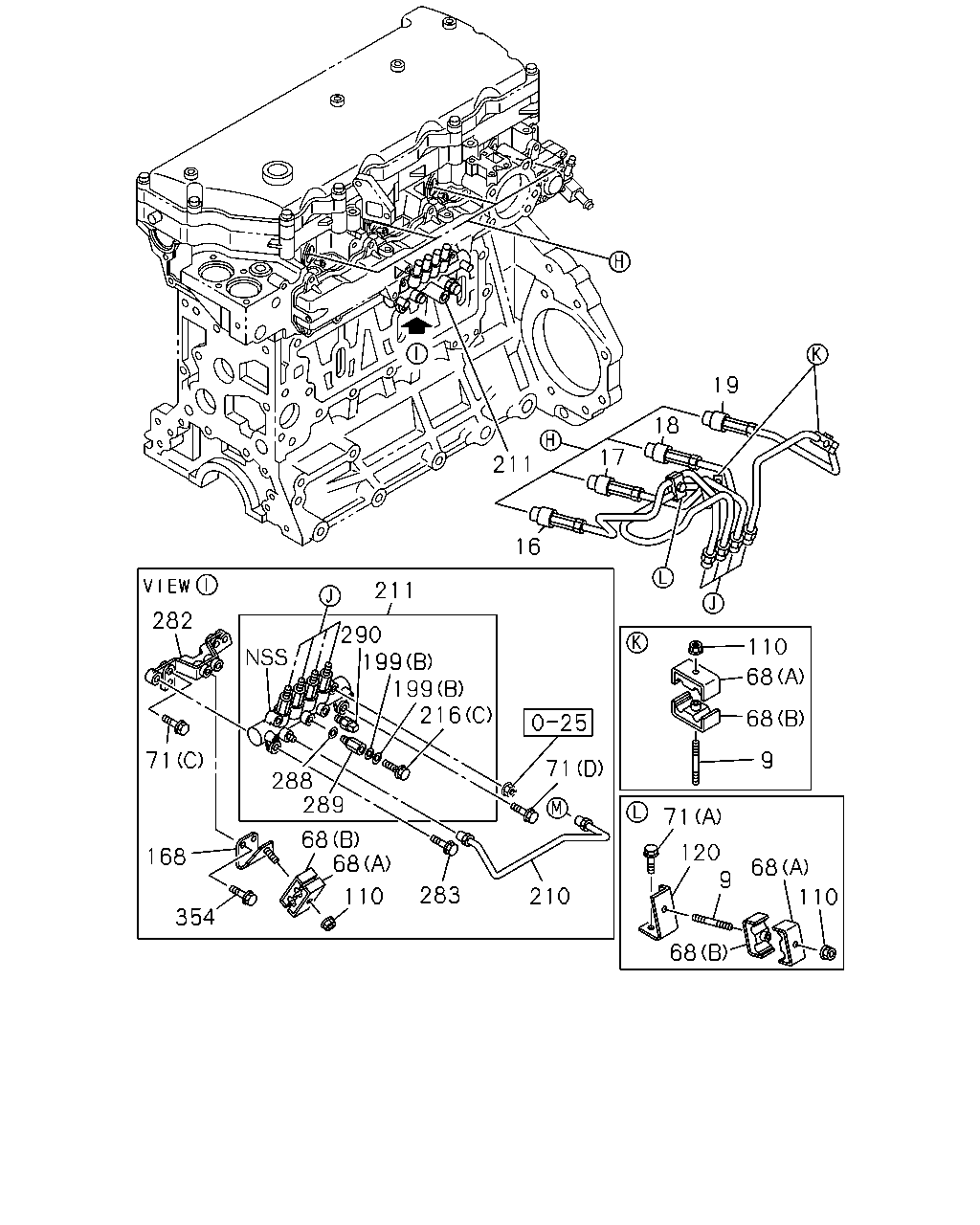

19 18 17 211 16 211 282 290 199 199 216 110 68 68 71 9 71 288 289 71 68 68 120 9 168 68 283 110 210 110 354 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	03	1	0612-			●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0612-	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0612-		●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0612-			●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0612-	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0612-		●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0612-			●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0612-	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0612-		●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0612-			●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0612-	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0612-		●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0612-			●
68	03.162 CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0612-		●
68	03.162 CLIP; INJ PIPE (A)	8-97330-118-1	04	1	0612-			●
68	03.162 CLIP; INJ PIPE (B)	8-97330-119-1	04	1	0612-			●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0612-			●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-			●
71	03.162 BOLT; BRKT 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	0612-			●
71	03.162 BOLT; BRKT 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	0612-			●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	04	1	0612-			●
120	03.330 BRACKET; INJ PIPE	8-97306-084-2	01	1	0612-			●
168	03.890 BRACKET; FUEL PIPE	8-97324-195-0	01	1	0612-			●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0612-			●
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0612-			●
210	03.330 PIPE; INJ,C/R	8-97312-509-3	01	1	0612-			●
211	03.331 RAIL ASM; COMMON	8-97306-063-2	01	1	0612-			●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0612-			●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0612-			●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0612-			●
282	03.163 BRACKET; COMMON RAIL	8-97324-194-0	01	1	0612-			●
283	03.330 BOLT; COMMON RAIL 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0612-			●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0612-			●
289	03.331 LIMITER; FUEL PRESS	8-97318-691-0	01	1	0612-			●
290	03.331 SENSOR; PRESS	8-97318-684-0	01	1	0612-			●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0612-			●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-			●

18 19 17 113 16 36 62 31 63 66 66 2 161 2 1 2 219 226 219 80 2 2 158 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0612-0612	●
1	03.306 PUMP ASM; INJ FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0612-	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0612-0612	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0612-	●
1	03.306 PUMP ASM; INJ FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0612-		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97215-704-2	01	1	0612-		●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0612-			●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 02.042 (F) M10X50 FLANGE	0-28151-050-0	01	1	0612-			●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0612-	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0612-		●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0612-			●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0612-	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0612-		●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0612-			●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0612-	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0612-		●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0612-			●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0612-	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0612-		●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0612-			●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0612-	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-		●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-4	04	1	0612-			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0612-	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.162 ID=8.3	8-97600-925-0	04	1	0612-0908			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-98065-992-0	04	1	0909-			●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0612-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0612-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0612-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0612-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0612-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0612-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 07.003 (A)	8-97171-332-0	04	1	0612-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	0612-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-97601-447-2	04	1	0612-0906			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	0907-			●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0612-			●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0612-	●	●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0612-	●	●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0612-		●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0612-	●	●	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0612-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0612-			●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0612-	●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0612-0808			●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-			●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0612-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
