Sayfa 0-25 - Isuzu EPC

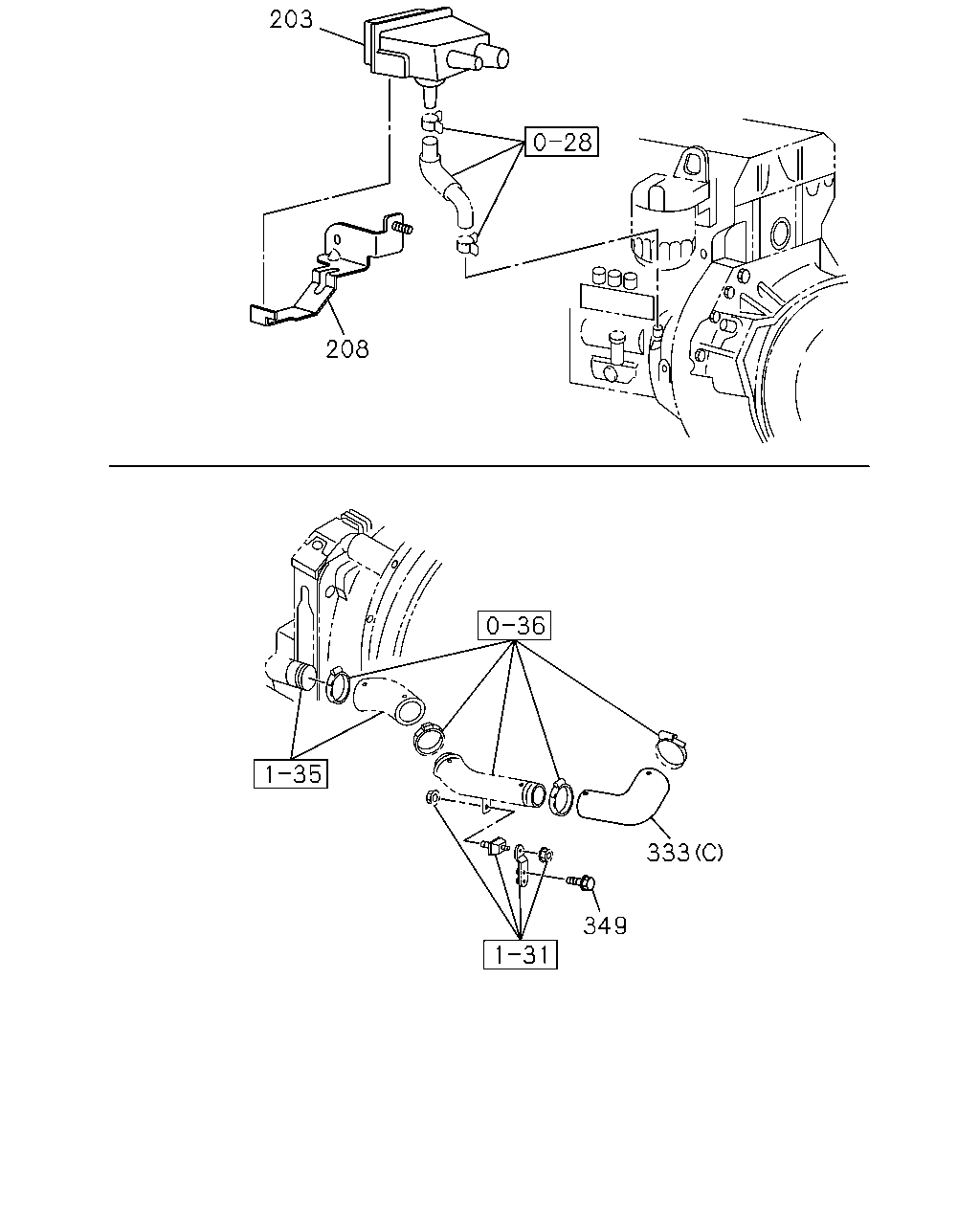

203 208 333 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0612-	●
208	01.750 BRACKET; CATCH TANK,OIL	8-97375-702-0	01	1	0612-	●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	0612-		●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-1	01	1	0612-		●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-98053-755-0	01	1	0612-	●
349	03.417 BOLT; BRKT,INL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●

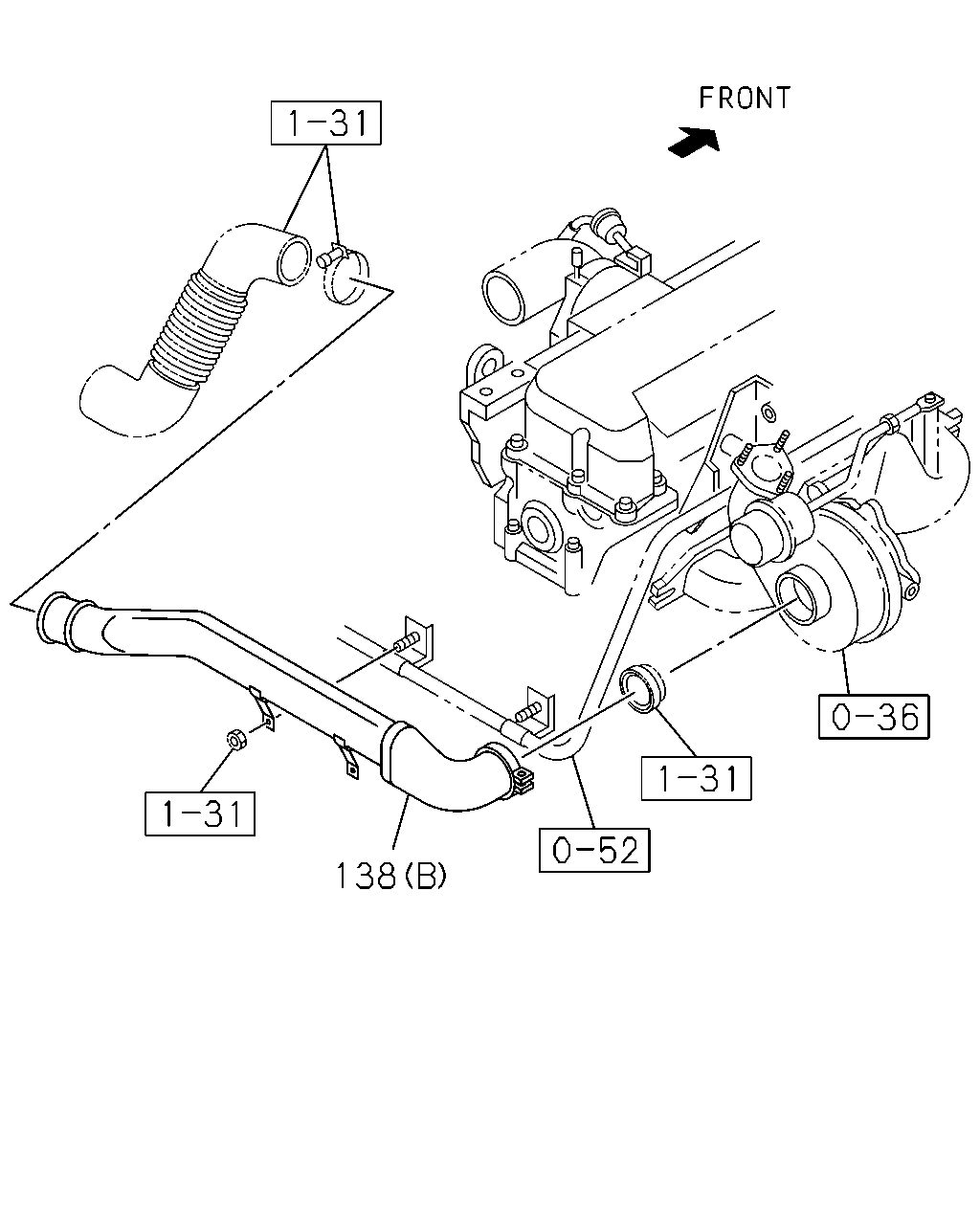

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-		●	●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-		●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0612-	●

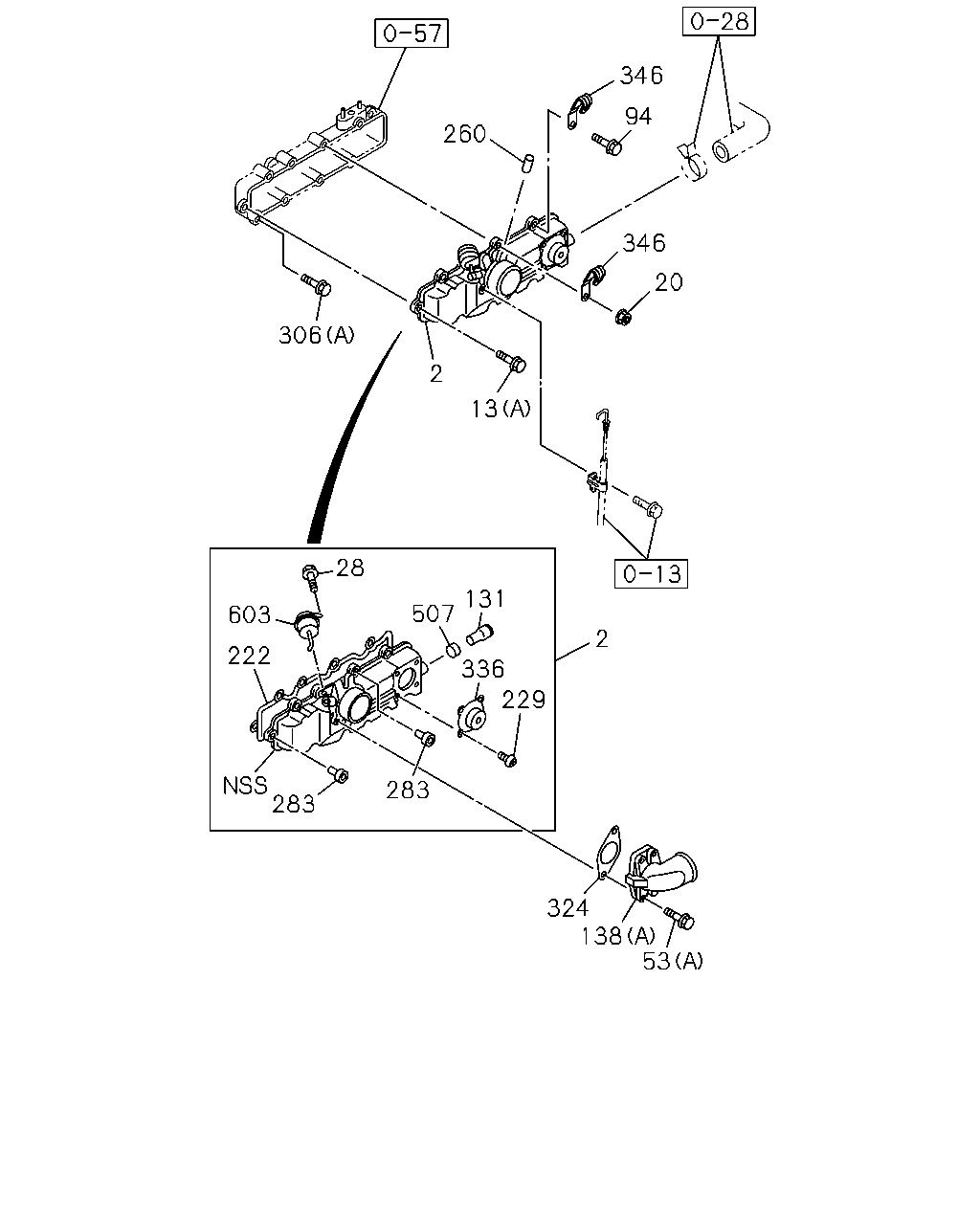

346 94 260 346 20 306 2 13 28 131 507 603 2 222 336 229 283 283 324 138 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL	8-97146-866-2	01	1	0612-			●
2	03.407 COVER; INL	8-97212-454-2	01	1	0612-		●
2	03.407 COVER; INL	8-97310-495-0	01	1	0612-	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0612-			●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0612-		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0612-0701		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0612-	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-		●	●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-		●	●
53	03.602 BOLT; INL PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0612-		●
53	03.602 BOLT; INL PIPE 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0612-	●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0612-	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0612-			●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0612-		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0612-			●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-		●	●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-		●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0612-	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0612-		●	●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	0612-			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0612-			●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0612-			●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0612-		●	●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-97118-454-0	01	1	0612-0701		●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	0702-		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	0612-		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97306-025-1	01	1	0612-	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0612-			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0612-0801		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0612-0801	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●
507	03.415 ORIFICE	8-97088-649-0	01	1	0612-			●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0612-		●	●

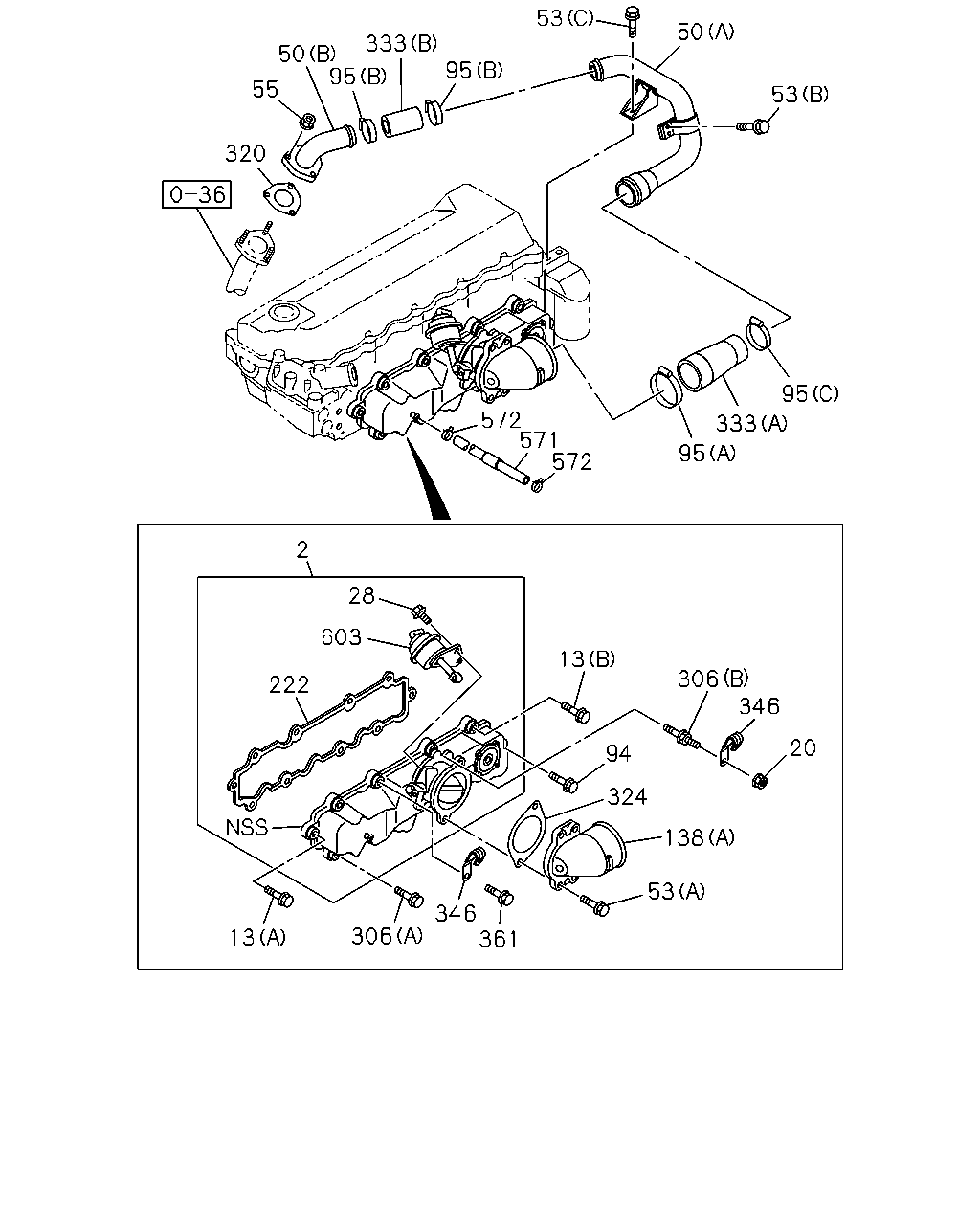

53 50 333 95 50 95 55 53 320 572 571 572 95 333 95 2 28 603 13 306 346 222 20 94 324 138 53 346 361 306 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL	8-97146-866-2	01	1	0612-			●
2	03.407 COVER; INL	8-97212-454-2	01	1	0612-		●
2	03.407 COVER; INL	8-97310-495-0	01	1	0612-	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0612-			●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0612-		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0612-0701		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0612-	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-		●	●
50	03.265 PIPE; INL (A)	8-97178-735-4	01	1	0612-		●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	0612-		●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-		●	●
53	03.602 BOLT; INL PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0612-		●
53	03.602 BOLT; INL PIPE 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0612-	●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0612-	●
55	03.407 NUT; INL PIPE 01.540 M6 FLANGE	0-91180-206-0	03	1	0612-		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0612-			●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0612-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0612-0810		●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0811-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0612-0810		●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0811-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0612-0810		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0811-		●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-		●	●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-		●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0612-	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	0612-		●	●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0612-		●	●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-97118-454-0	01	1	0612-0701		●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	0702-		●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97202-328-1	01	1	0612-		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	0612-		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97306-025-1	01	1	0612-	●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	0612-		●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-1	01	1	0612-		●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-98053-755-0	01	1	0612-	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0612-0801		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0612-0801	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0612-		●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0612-		●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0612-		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0612-		●	●

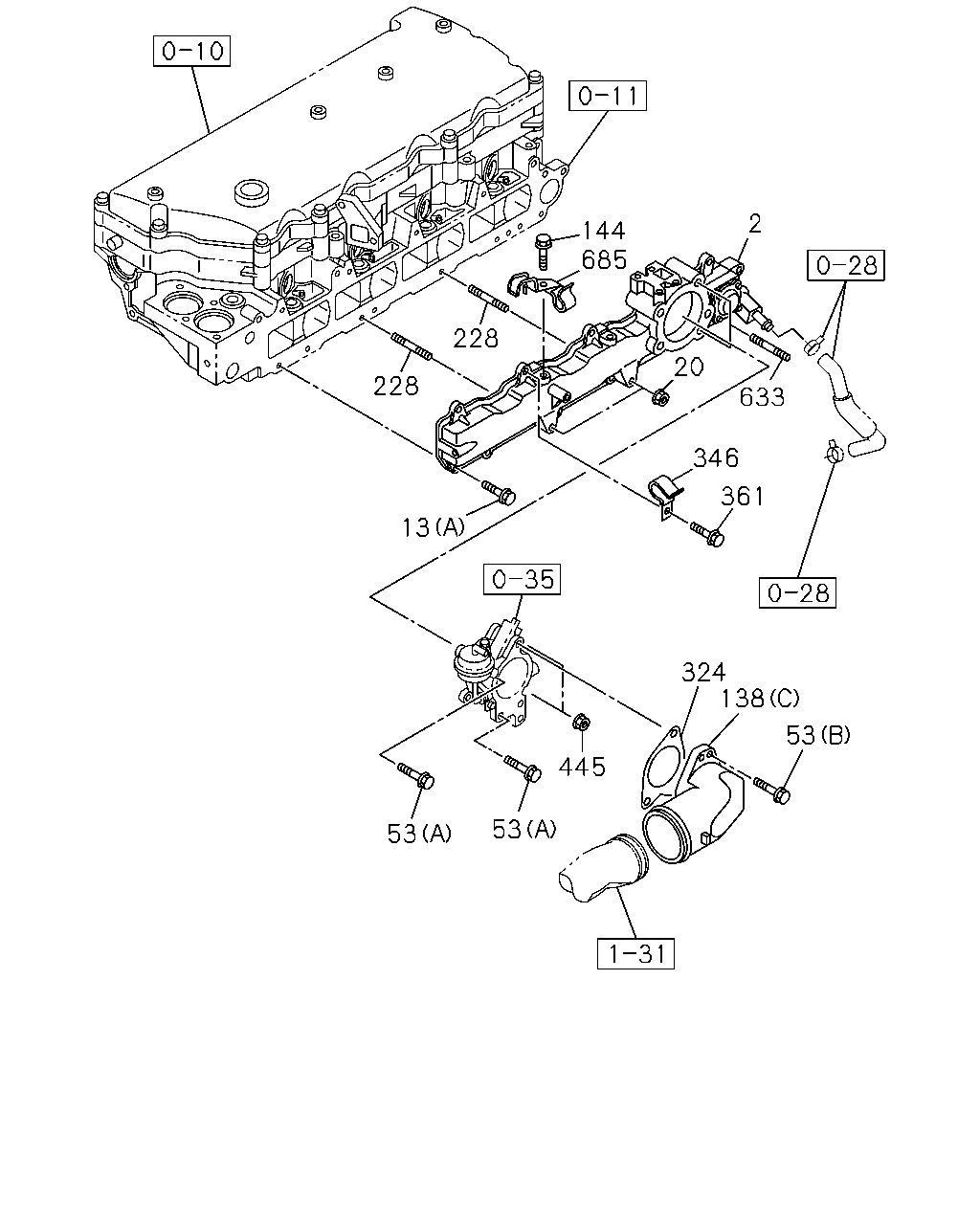

2 144 685 228 20 228 633 346 361 13 324 138 53 445 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL	8-97146-866-2	01	1	0612-			●
2	03.407 COVER; INL	8-97212-454-2	01	1	0612-		●
2	03.407 COVER; INL	8-97310-495-0	01	1	0612-	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0612-			●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0612-		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0612-0701		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0612-	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-		●	●
53	03.602 BOLT; INL PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0612-		●
53	03.602 BOLT; INL PIPE 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0612-	●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0612-	●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-		●	●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-		●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0612-	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0612-	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	0612-		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97306-025-1	01	1	0612-	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0612-0801		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0612-0801	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0612-		●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●
633	03.275 STUD; THROTTLE BODY M8X25 L=37	0-41010-825-0	01	1	0612-	●
633	03.275 STUD; THROTTLE BODY 01.097 M8X55 L=67	0-41010-855-0	01	1	0612-	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	0612-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
