0-22 — ENGINE MOUNTING (#39667) — 20 parça

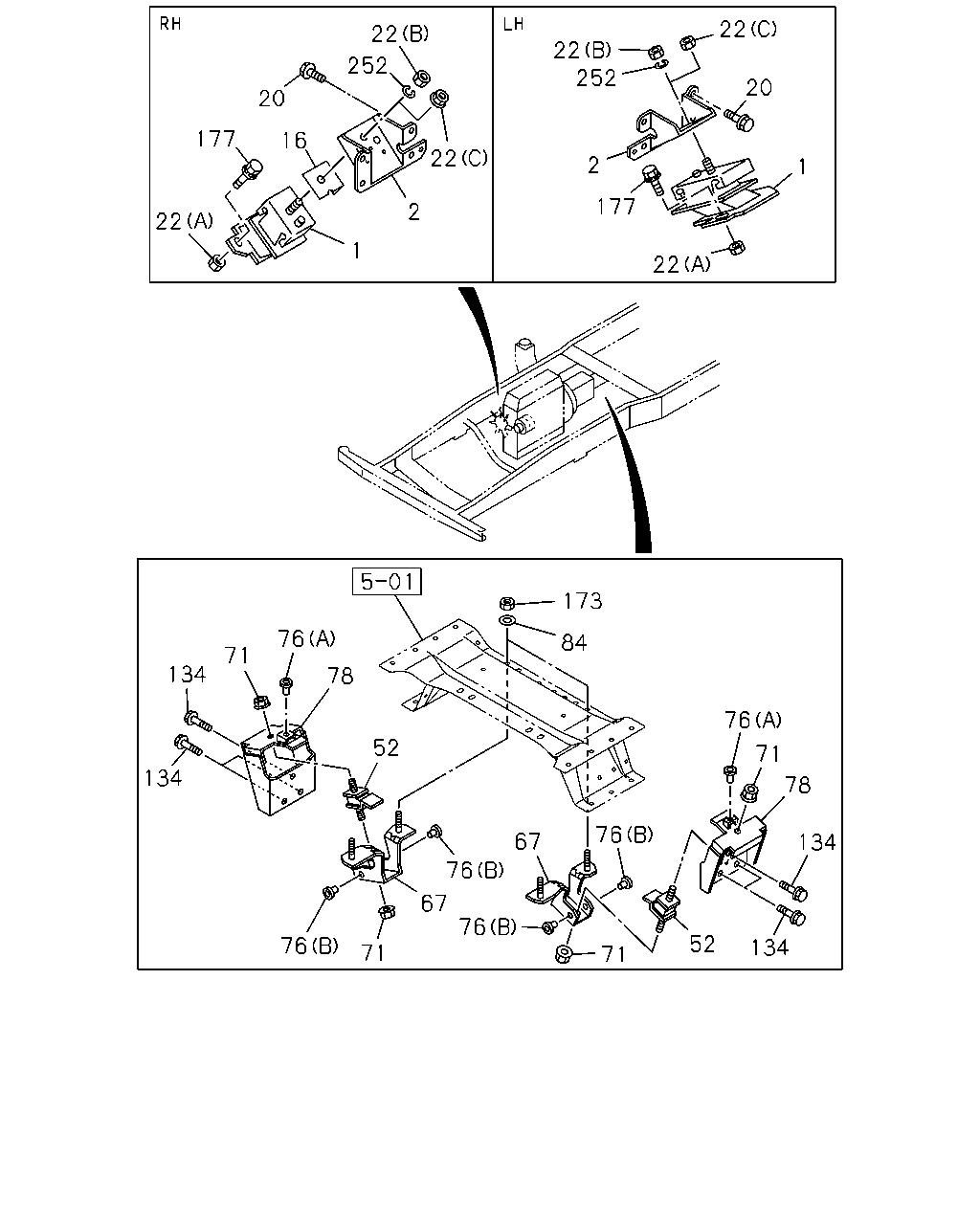

çizim 12816
22 22 22 252 252 20 20 177 16 22 2 1 177 2 22 1 22 173 76 84 71 134 78 76 52 71 134 78 76 67 134 76 67 76 52 76 134 71 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT 8-97100-677-0 01 1 0612- ● ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97100-676-0 01 1 0612- ● ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0612- ● ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT
00.027 		8-94365-486-0 01 1 0612- ● ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0612- ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0612-0612 ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (C) M12 FLANGE 		0-91180-112-0 02 1 0701- ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0612- ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97107-795-0 02 1 0612- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97303-873-0 02 1 0612- ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0612- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 02 1 0612- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 0612- ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97303-861-0 01 1 0612- ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97303-862-0 01 1 0612- ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0612- ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0612- ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 04 1 0612- ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0612- ● ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0612-0612 ● ● ●
