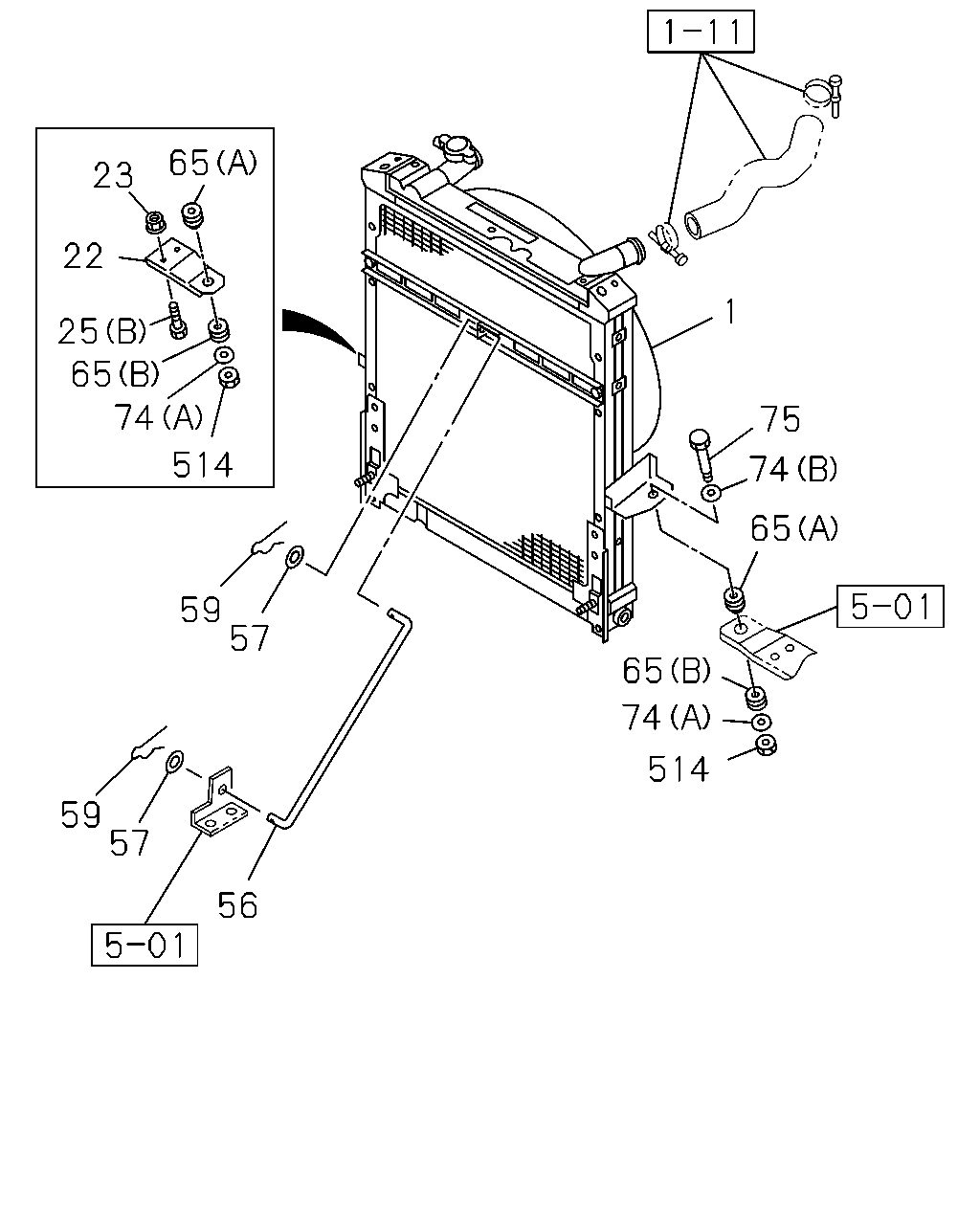

1-10 — RADIATOR (#39656) — 45 parça

65 23 22 1 25 65 74 75 514 74 65 59 57 65 74 514 59 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM	8-98070-468-1	01	1	0804-1308
1	01.219 RADIATOR ASM	8-98245-664-1	01	1	1309-1410
1	01.219 RADIATOR ASM	8-98259-941-0	01	1	1411-
22	01.270 BRACKET; RAD MTG	8-97074-093-0	01	1	0804-
23	01.271 NUT; RAD MTG 04.085 M10 FLANGE	0-91180-210-0	02	1	0804-0909
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	02	1	0910-
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	0804-
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0804-
56	01.270 STAY; RAD	8-98101-270-0	01	1	0804-
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	0804-
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	0804-
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	0804-
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	0804-
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0804-
74	01.270 WASHER; PL,CUSHION RUBBER (B) ID=10.5	0-91610-710-0	01	1	0804-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0804-
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-

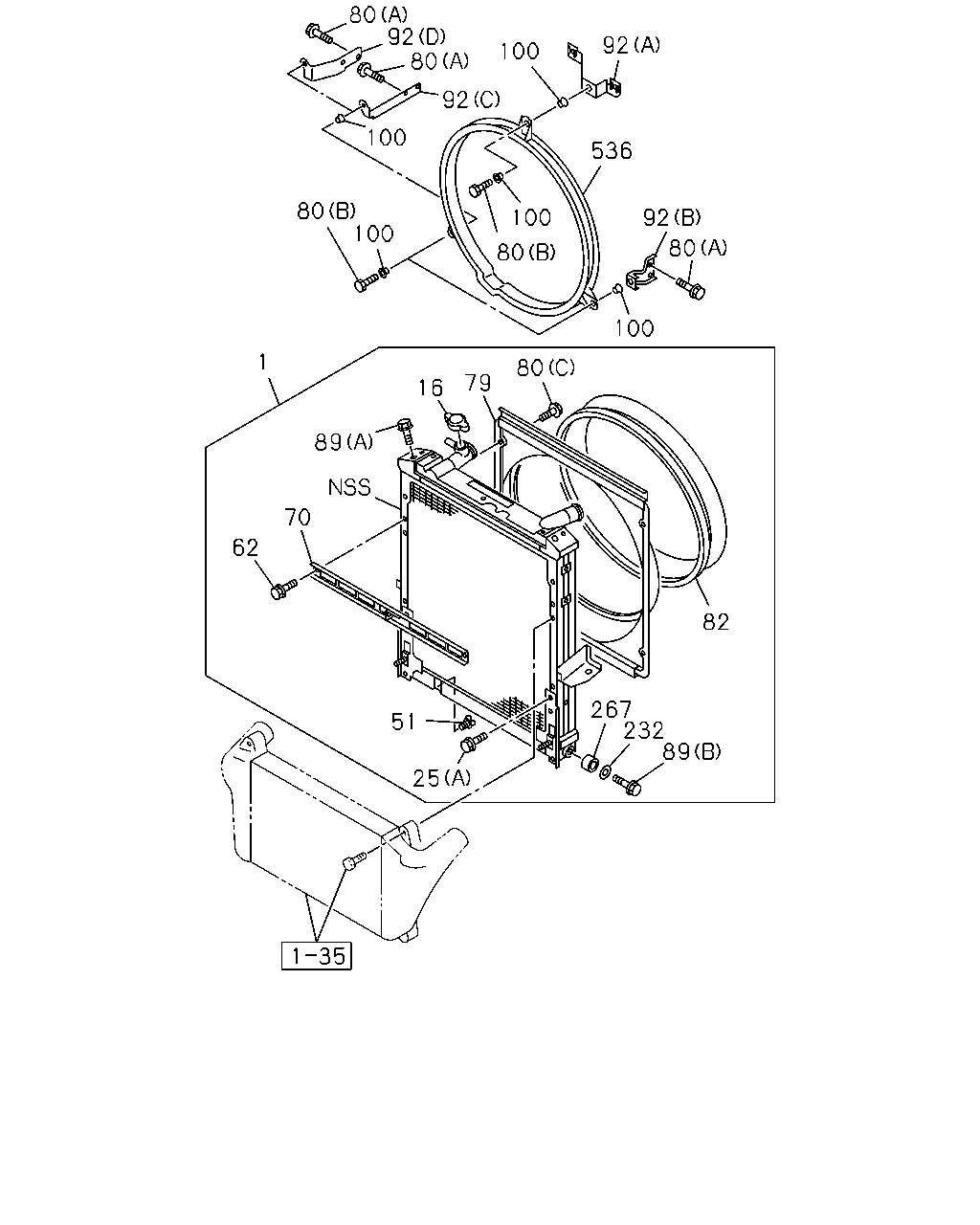

80 92 80 92 100 92 100 536 80 100 92 100 80 80 100 1 80 79 16 89 70 62 82 267 232 89 51 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM	8-98070-468-1	01	1	0804-1308
1	01.219 RADIATOR ASM	8-98245-664-1	01	1	1309-1410
1	01.219 RADIATOR ASM	8-98259-941-0	01	1	1411-
16	01.203 CAP; RAD	8-97239-187-0	01	1	0804-
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	0804-
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0804-
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0804-
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0804-
70	01.271 STAY; RAD	8-98034-644-0	01	1	0804-
79	01.277 GUIDE; FAN,RAD	8-98004-326-0	01	1	0804-1308
79	01.277 GUIDE; FAN,RAD	8-98245-715-0	01	1	1309-
80	01.277 BOLT; FAN GUIDE 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	0804-0806
80	01.277 BOLT; FAN GUIDE GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	0807-
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0804-
80	01.277 BOLT; FAN GUIDE (C) M6X12	8-98039-672-0	02	1	0804-1401
80	01.277 BOLT; FAN GUIDE (C) M6X12	8-98039-672-0	04	1	1402-
82	01.277 COVER; FAN,RAD	8-98006-478-0	01	1	0804-
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0804-
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	0804-
92	01.277 BRACKET; FAN GUIDE (A)	8-97382-827-2	01	1	0804-
92	01.277 BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	0804-
92	01.277 BRACKET; FAN GUIDE GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	0804-
92	01.277 BRACKET; FAN GUIDE EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0804-
100	01.277 RUBBER; MTG	1-09337-027-0	06	1	0804-
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	0804-1308
232	01.540 COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	1309-
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	0804-
536	01.020 SHROUD; FAN 01.277	8-97350-995-0	01	1	0804-
