◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#3965) — 34 parça

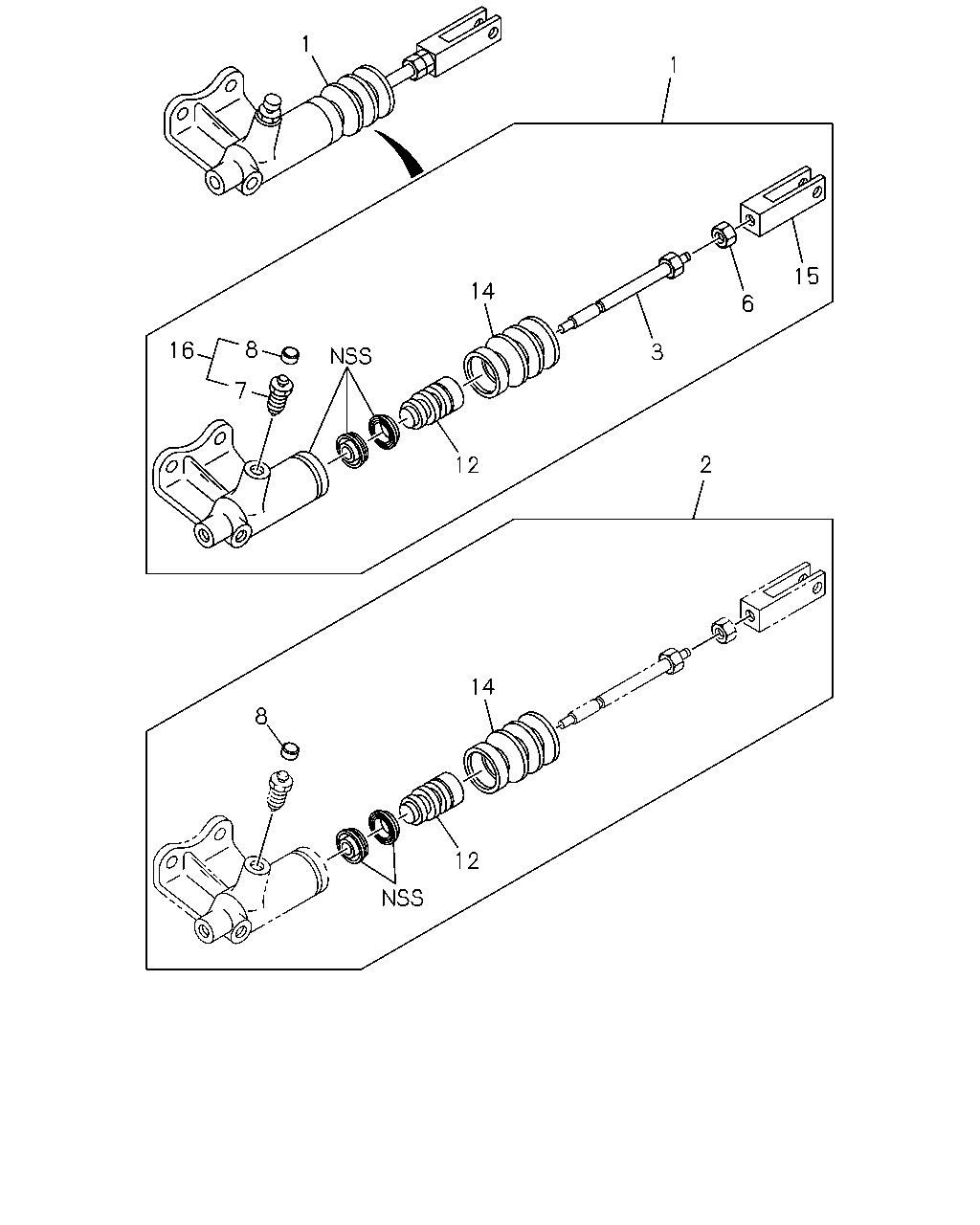

çizim 115995
1 1 15 14 6 8 16 3 7 2 12 14 8 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER; SLAVE,CLU 1-47570-050-2 01 1 9510-9802 ● ●
1 CYLINDER; SLAVE,CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-47570-050-3 01 1 9803- ● ●
1 CYLINDER; SLAVE,CLU 1-47570-050-3 01 1 9803- ●
2 REPAIR KIT; CLU SLAVE CYL 1-87830-533-0 01 1 9510-9802 ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-87830-533-1 01 1 9803- ● ●
2 REPAIR KIT; CLU SLAVE CYL 1-87830-533-1 01 1 9803- ●
3 ROD; PUSH,SLAVE CYL 1-47573-005-0 01 1 9510-9802 ● ●
3 ROD; PUSH,SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-47573-005-0 01 1 9803- ● ●
3 ROD; PUSH,SLAVE CYL 1-47573-005-0 01 1 9803- ●
6 NUT; LK,ROD END
M10 		9-09111-410-0 01 1 9510-9802 ● ●
6 NUT; LK,ROD END
EXC. AIR ASSIST CLUTCH<PK1> M10 		9-09111-410-0 01 1 9803-0512 ● ●
6 NUT; LK,ROD END
M10 		9-09111-410-0 01 1 9803-0512 ●
6 NUT; LK,ROD END
EXC. AIR ASSIST CLUTCH<PK1> M10 		0-91111-510-0 01 1 0601- ● ●
6 NUT; LK,ROD END
M10 		0-91111-510-0 01 1 0601- ●
7 SCREW; BLEEDER,SLAVE CYL 1-47615-019-0 01 1 9510-9802 ● ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-47615-019-0 01 1 9803- ● ●
7 SCREW; BLEEDER,SLAVE CYL 1-47615-019-0 01 1 9803- ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9510-9802 ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> OD=9.5 		9-47619-005-0 01 1 9803-1209 ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9803-1209 ●
8 CAP; BLEEDER,SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> OD=10 		8-97940-638-0 01 1 1210- ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1210- ●
12 PISTON; SLAVE CYL 1-47572-006-0 01 1 9510-9802 ● ●
12 PISTON; SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-47572-006-0 01 1 9803- ● ●
12 PISTON; SLAVE CYL 1-47572-006-0 01 1 9803- ●
14 BOOT; SLAVE CYL 1-47579-048-0 01 1 9510-9802 ● ●
14 BOOT; SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-47579-048-0 01 1 9803- ● ●
14 BOOT; SLAVE CYL 1-47579-048-0 01 1 9803- ●
15 JOINT; JAW,SLAVE CYL 1-47579-014-1 01 1 9510-9802 ● ●
15 JOINT; JAW,SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-47579-014-1 01 1 9803- ● ●
15 JOINT; JAW,SLAVE CYL 1-47579-014-1 01 1 9803- ●
16 VALVE; SLAVE CYL 9-48410-037-0 01 1 9510-9802 ● ●
16 VALVE; SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		9-48410-037-0 01 1 9803- ● ●
16 VALVE; SLAVE CYL 9-48410-037-0 01 1 9803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
