◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#3963) — 85 parça

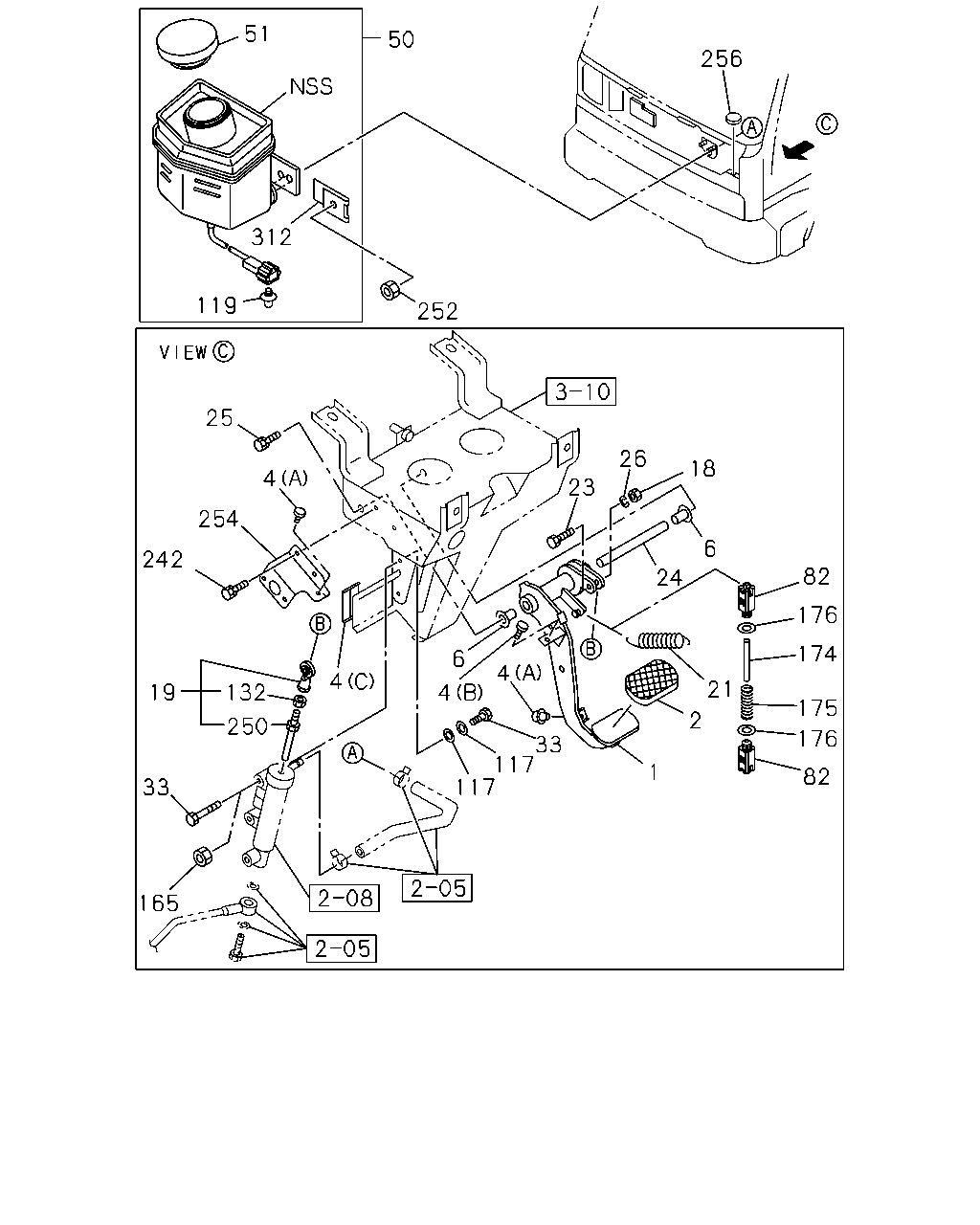

çizim 116002
51 256 312 119 252 25 26 18 4 23 254 6 242 82 24 176 174 6 4 4 21 19 132 4 175 2 250 176 33 117 117 1 82 33 165 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 1-73908-078-3 01 1 9510-9510 ● ●
1 PEDAL; CLU 1-73908-078-3 01 1 9511-9802 ●
1 PEDAL; CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-078-3 01 1 9511-9802 ●
1 PEDAL; CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-078-3 01 1 9803-9803 ● ●
1 PEDAL; CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-342-2 01 1 9804- ● ●
1 PEDAL; CLU
AIR ASSIST CLUTCH<PK1> 		1-73908-079-1 01 1 9511-9802 ●
1 PEDAL; CLU
AIR ASSIST CLUTCH<PK1> 		1-73908-079-3 01 1 9803- ● ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 9510-0103 ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0104- ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 9510-9512 ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 9601-9802 ●
4 STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 02 1 9601-9802 ●
4 STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 02 1 9803- ● ●
4 STOPPER; CLU PEDAL
(C) 		1-73908-088-0 01 1 9510-9510 ● ●
4 STOPPER; CLU PEDAL
(C) 		1-73908-088-0 01 1 9511-9612 ●
4 STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> (C) 		1-73908-088-0 01 1 9511-9612 ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 9510-9904 ● ●
4 STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> (C) 		1-73908-088-1 01 1 9701- ● ●
4 STOPPER; CLU PEDAL
AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 02 1 9601-9802 ●
4 STOPPER; CLU PEDAL
AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 02 1 9803-0607 ● ●
4 STOPPER; CLU PEDAL
AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 04 1 0608- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 9510- ● ●
18 NUT; PUSH ROD
AIR ASSIST CLUTCH<PK1> M8 		0-91110-508-0 01 1 0005- ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 9510-0004 ● ●
18 NUT; PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> M8 		9-09110-508-0 01 1 0005- ● ●
19 ROD ASM; PUSH,CLU 1-73996-144-0 01 1 9510-9803 ● ●
19 ROD ASM; PUSH,CLU
AIR ASSIST CLUTCH<PK1> 		1-73996-144-1 01 1 9804- ● ●
19 ROD ASM; PUSH,CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-332-0 01 1 9804- ● ●
21 SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1> 		1-73998-820-0 01 1 9511-9608 ●
21 SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1> 		1-73908-265-0 01 1 9609-9802 ●
21 SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1> 		1-73908-265-0 01 1 9803- ● ●
23 BOLT; PUSH ROD
AIR ASSIST CLUTCH<PK1> M8X35 		0-10960-835-0 01 1 0005- ● ●
23 BOLT; PUSH ROD
M8X35 		9-01060-835-0 01 1 9510-9803 ● ●
23 BOLT; PUSH ROD
AIR ASSIST CLUTCH<PK1> M8X35 		9-01060-835-0 01 1 9804-0004 ● ●
23 BOLT; PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> M8X43.7 		1-73908-333-0 01 1 9804- ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 9510- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 9510- ● ●
26 WASHER; LK,PUSH ROD
AIR ASSIST CLUTCH<PK1> ID=8.2 		0-91510-608-0 01 1 0005- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 9510-0004 ● ●
26 WASHER; LK,PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> ID=8.2 		9-09150-608-0 01 1 0005- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 9510-9703 ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 9704-9802 ●
33 BOLT; CLU M/CYL TO BRKT
EXC. AIR ASSIST CLUTCH<PK1> M10X65 		5-09030-024-1 02 1 9704-9802 ●
33 BOLT; CLU M/CYL TO BRKT
EXC. AIR ASSIST CLUTCH<PK1> M10X65 		5-09030-024-1 02 1 9803- ● ●
33 BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1> M10X60 FLANGE 		0-28081-060-0 02 1 9704-9802 ●
33 BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1> M10X60 FLANGE 		0-28081-060-0 02 1 9803-0512 ● ●
33 BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1> M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 9510- ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 9511- ● ●
82 CLEVIS; HELPER,CLU PEDAL 1-73998-472-1 02 1 9510-9510 ● ●
82 CLEVIS; HELPER,CLU PEDAL 1-73998-472-1 02 1 9511-9802 ●
82 CLEVIS; HELPER,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-472-1 02 1 9511-9802 ●
82 CLEVIS; HELPER,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-472-1 02 1 9803- ● ●
117 WASHER; PL,CLU M/CYL
ID=10.5 OD=18 		1-09985-173-0 04 1 9510-9510 ● ●
117 WASHER; PL,CLU M/CYL
ID=10.5 OD=18 		1-09985-173-0 04 1 9511-9601 ●
117 WASHER; PL,CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> ID=10.5 OD=18 		1-09985-173-0 04 1 9511-9601 ●
119 CLIP; CONNECTOR
OD=7 H=1.2 		8-94364-750-0 01 1 9903- ● ●
132 NUT; LK,PUSH ROD
AIR ASSIST CLUTCH<PK1> M8 		0-91110-508-0 01 1 0005- ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 9510-0004 ● ●
132 NUT; LK,PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> M8 		9-09110-408-0 01 1 0005- ● ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91150-210-0 02 1 9510-9510 ● ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91150-210-0 02 1 9511-9802 ●
165 NUT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE 		0-91150-210-0 02 1 9511-9802 ●
165 NUT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE 		0-91150-210-0 02 1 9803-0602 ● ●
165 NUT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
174 PIN; STRAIGHT,CLU PEDAL 1-73998-474-0 01 1 9510-9510 ● ●
174 PIN; STRAIGHT,CLU PEDAL 1-73998-474-0 01 1 9511-9802 ●
174 PIN; STRAIGHT,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-474-0 01 1 9511-9802 ●
174 PIN; STRAIGHT,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-474-0 01 1 9803- ● ●
175 SPRING; HELPER 1-73908-052-0 01 1 9510-9510 ● ●
175 SPRING; HELPER 1-73908-052-0 01 1 9511-9802 ●
175 SPRING; HELPER
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-052-0 01 1 9511-9802 ●
175 SPRING; HELPER
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-052-0 01 1 9803- ● ●
176 SEAT; SPRING 1-09503-114-0 02 1 9510-9510 ● ●
176 SEAT; SPRING 1-09503-114-0 02 1 9511-9612 ●
176 SEAT; SPRING
EXC. AIR ASSIST CLUTCH<PK1> 		1-09503-114-0 02 1 9511-9612 ●
176 SEAT; SPRING
EXC. AIR ASSIST CLUTCH<PK1> 		1-09503-114-0 02 1 0104- ● ●
242 BOLT; BRKT,CLUTCH
AIR ASSIST CLUTCH<PK1> M6X16 W/LK WASHER 		0-50540-616-0 02 1 0005- ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9510-0004 ● ●
242 BOLT; BRKT,CLUTCH
EXC. AIR ASSIST CLUTCH<PK1> M6X16 W/LK WASHER 		0-50040-616-0 02 1 0005- ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 9510- ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9510- ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 9510- ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9510- ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 9803- ● ●
