Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#3962) — 362 parça

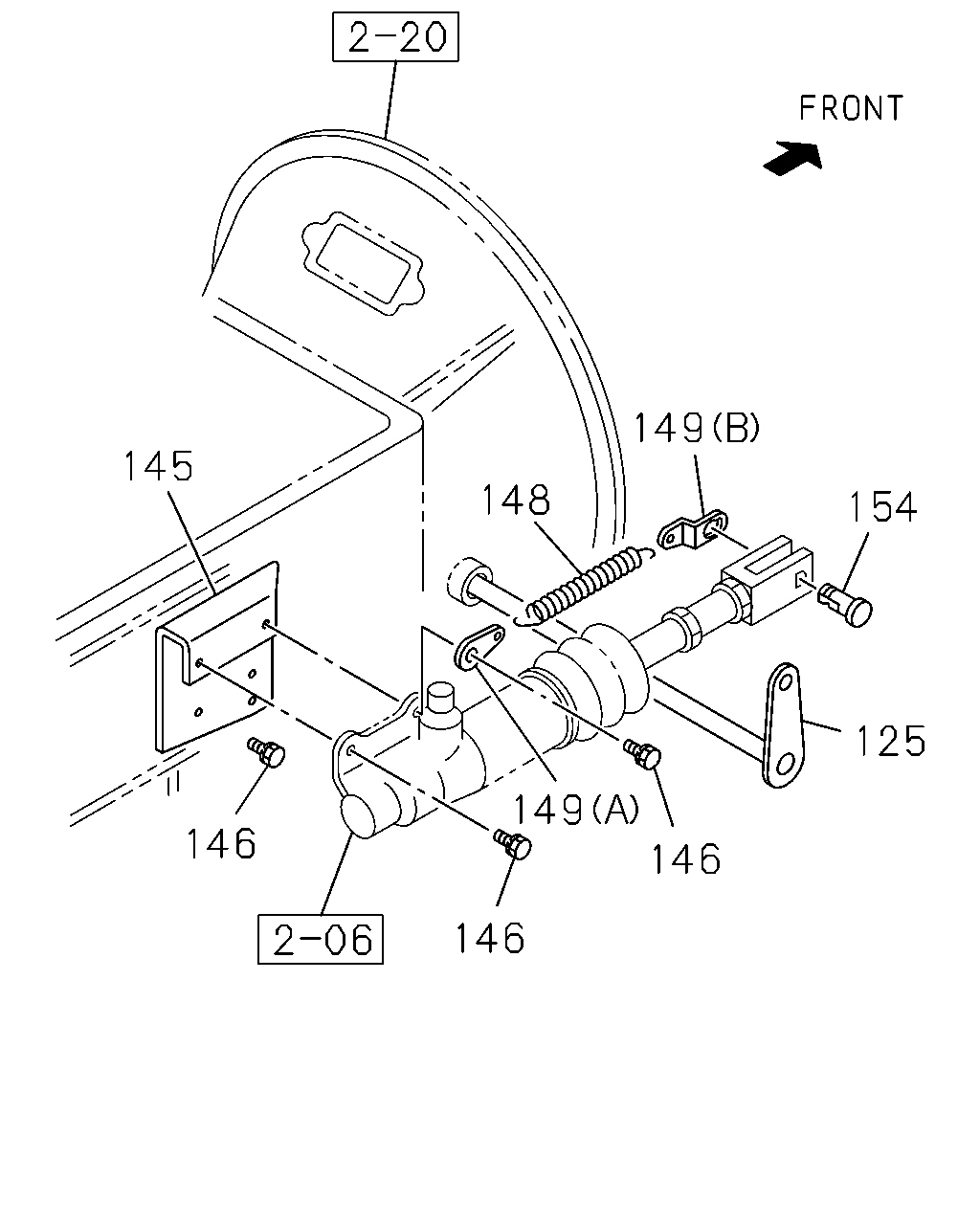

149 145 148 154 125 149 146 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
125	SHAFT; CLU	1-31342-271-0	01	1	9510-9802	●	●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-271-0	01	1	9803-9803		●	●
125	SHAFT; CLU	1-31342-271-0	01	1	9803-9803	●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-298-1	01	1	9804-		●	●
125	SHAFT; CLU	1-31342-298-1	01	1	9804-	●
125	SHAFT; CLU	1-31342-169-1	01	1	9511-9802			●	●	●
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-169-1	01	1	9803-		●	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-052-0	01	1	9510-9802	●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. AIR ASSIST CLUTCH<PK1>	1-47579-052-0	01	1	9803-9803		●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-052-0	01	1	9803-9803	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. AIR ASSIST CLUTCH<PK1>	1-47579-058-0	01	1	9804-		●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-058-0	01	1	9804-	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9510-9802	●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28181-025-0	04	1	9803-0512		●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9803-0512	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28151-025-0	04	1	0601-		●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28151-025-0	04	1	0601-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9510-9802	●	●
148	SPRING; CLU RETURN EXC. AIR ASSIST CLUTCH<PK1>	1-09583-249-0	01	1	9803-		●	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9803-	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9511-9802			●	●	●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=135	1-09583-305-0	01	1	9803-		●	●	●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9510-9802	●	●
149	EYE; SPRING,RETURN SPRING EXC. AIR ASSIST CLUTCH<PK1> (B)	1-31426-019-1	01	1	9803-		●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9803-	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9510-9802	●	●
149	EYE; SPRING,RETURN SPRING EXC. AIR ASSIST CLUTCH<PK1> (A) T=2.3	1-47324-005-1	01	1	9803-		●	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9803-	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9510-9802	●	●
154	PIN; JAW JOINT EXC. AIR ASSIST CLUTCH<PK1>	1-31424-009-0	01	1	9803-		●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9803-	●

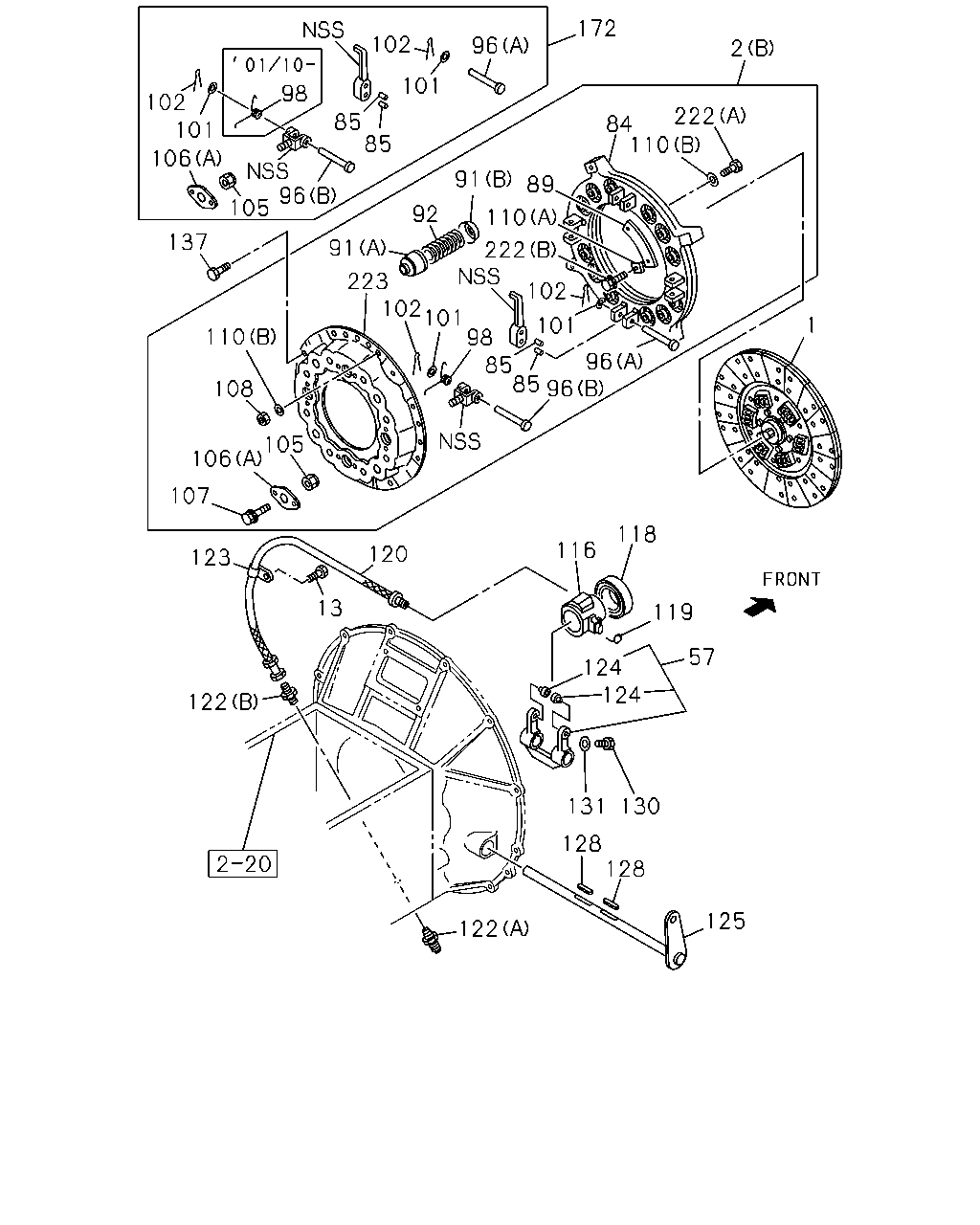

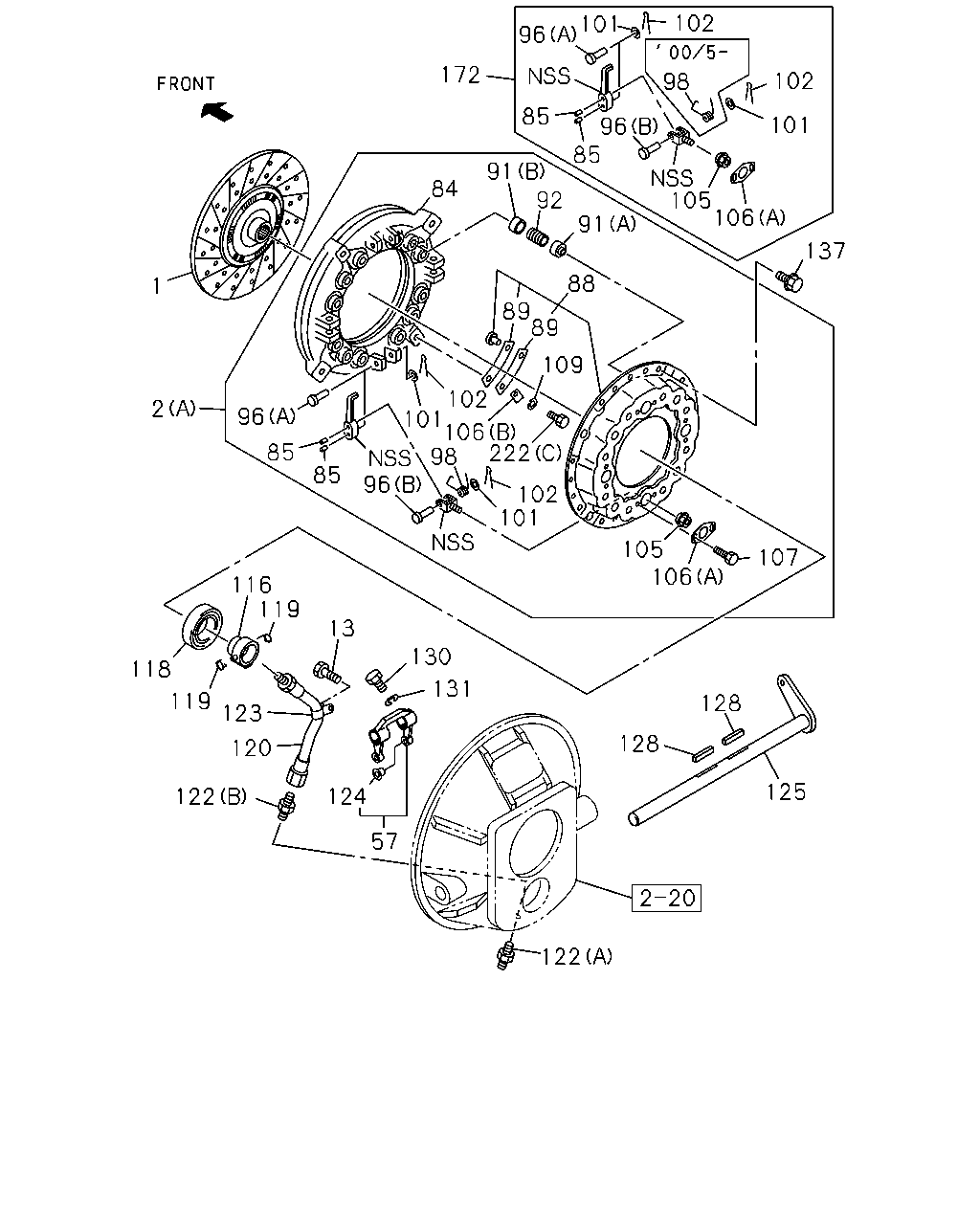

172 102 96 2 101 98 102 101 222 85 85 84 110 106 96 91 89 105 92 110 137 91 222 223 102 101 101 98 85 96 85 96 102 1 110 108 105 106 107 118 116 120 123 13 119 57 124 124 122 131 130 128 128 125 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9510-9510	●	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9511-0105	●	●			●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-671-0	01	1	9511-0105			●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-	●	●			●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-901-0	01	1	0106-			●	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-676-0	01	1	9511-0105			●	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-902-0	01	1	0106-			●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	0106-	●	●			●
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-139-0	01	1	0106-			●	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-291-0	01	1	9510-9510	●	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-291-0	01	1	9511-0109	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (A)	1-31220-291-0	01	1	9511-0109			●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-364-2	01	1	0110-1005	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (A)	1-31220-364-2	01	1	0110-1005			●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-447-0	01	1	1006-	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (A)	1-31220-447-0	01	1	1006-			●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-304-0	01	1	9511-0109					●
2	PLATE ASM; PRESSURE,CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6) (A)	1-31220-304-0	01	1	9511-0109			●	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-365-2	01	1	0110-					●
2	PLATE ASM; PRESSURE,CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6) (A)	1-31220-365-2	01	1	0110-			●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9) (B)	1-31220-305-1	01	1	9511-0109			●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9) (B)	1-31220-373-2	01	1	0110-			●	●
2	PLATE ASM; PRESSURE,CLU (A) BEST VALUE PARTS	1-87610-144-0	01	1	1006-	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (A) BEST VALUE PARTS	1-87610-144-0	01	1	1006-			●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9510-0512	●	●	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9510-	●	●	●	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9510-9510	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9511-	●	●			●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-082-0	01	1	9511-			●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-051-0	01	1	9511-9810			●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	9811-			●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9510-	●	●	●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9510-9510	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9511-	●	●			●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	9511-			●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-001-0	12	1	9511-9810			●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	9811-			●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-	●	●
91	SEAT; SPR 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	1006-			●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-	●	●
91	SEAT; SPR 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	1006-			●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9510-1005	●	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1006-				●	●
91	SEAT; SPR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	12	1	1006-			●
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	1006-			●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9510-1005	●	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1006-				●	●
91	SEAT; SPR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	12	1	1006-			●
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	1006-			●
92	SPRING; CLU	1-09580-234-0	12	1	9510-9510	●	●
92	SPRING; CLU	1-09580-234-0	12	1	9511-0308	●	●
92	SPRING; CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6)	1-09580-234-0	12	1	9511-0308			●
92	SPRING; CLU	1-31214-088-0	12	1	0309-1005	●	●
92	SPRING; CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6)	1-31214-088-0	12	1	0309-1005			●
92	SPRING; CLU	1-31214-060-0	08	1	1006-	●	●
92	SPRING; CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6)	1-31214-060-0	08	1	1006-			●
92	SPRING; CLU	1-31214-038-0	12	1	9511-0109					●
92	SPRING; CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6)	1-31214-038-0	12	1	9511-0109			●	●
92	SPRING; CLU	1-31214-064-0	12	1	0110-					●
92	SPRING; CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6)	1-31214-064-0	12	1	0110-			●	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-039-0	12	1	9511-0109			●	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-065-0	12	1	0110-			●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9510-9510	●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9511-9810	●	●			●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=57.0	1-31232-014-0	04	1	9511-9810			●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9811-	●	●	●	●	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9510-	●	●	●	●	●
96	PIN; RELEASE LEVER 15" CLUTCH(RE9) (A) L=57.0	1-31232-008-0	04	1	9511-9810			●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9510-	●	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9510-0109	●	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0110-	●	●			●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-039-0	08	1	0110-			●	●
101	WASHER; RELEASE LEVER 15" CLUTCH(RE9)	1-31239-058-0	08	1	0110-			●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9510-9510	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9511-	●	●			●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	9511-			●	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	9511-			●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-0309	●	●			●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	0309-0309			●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9510-0109	●	●	●	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●	●	●	●	●
105	NUT; SUPPORT 15" CLUTCH(RE9)	1-31235-012-0	04	1	0309-0309			●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9510-9510	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9511-0109	●	●			●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	08	1	9511-0109			●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	0110-					●
106	PLATE; LK,LEVER SUPPORT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6) (B)	1-31235-008-0	08	1	0110-			●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-	●	●
106	PLATE; LK,LEVER SUPPORT 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0110-			●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9510-	●	●	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-0309	●	●			●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	0309-0309			●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9510-0308	●	●	●	●	●
107	BOLT; LK PLATE 15" CLUTCH(RE9) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-0309			●	●
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	9511-			●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	1-09503-095-0	08	1	9511-0403			●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	0404-			●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	9511-			●	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9510-	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9510-0111	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-	●	●	●	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	9510-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	9510-	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9510-0003	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9510-	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9510-0512	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9510-0606	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9510-	●	●	●	●	●
125	SHAFT; CLU	1-31342-271-0	01	1	9510-9802	●	●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-271-0	01	1	9803-9803		●	●
125	SHAFT; CLU	1-31342-271-0	01	1	9803-9803	●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-298-1	01	1	9804-		●	●
125	SHAFT; CLU	1-31342-298-1	01	1	9804-	●
125	SHAFT; CLU	1-31342-169-1	01	1	9511-9802			●	●	●
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-169-1	01	1	9803-		●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9510-	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9510-0512	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9510-0603	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9510-0512	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-0	01	1	0307-0307	●	●			●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87831-173-0	01	1	0307-0307			●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0308-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9510-9510	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9511-0004	●	●			●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87830-620-0	01	1	9511-0004			●	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-0	01	1	0005-0109	●	●			●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87830-902-0	01	1	0005-0109			●	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0110-0306	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9)	1-87830-902-1	01	1	0307-0307			●	●
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9)	1-87830-808-0	01	1	9511-0109			●	●
222	BOLT; STRAP (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9510-9510	●	●
222	BOLT; STRAP (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9511-0109	●	●			●
222	BOLT; STRAP 14" CLUTCH(WF6) (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9511-0109			●	●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-	●	●			●
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	0110-			●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	9511-			●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9511-			●	●
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	0005-			●	●

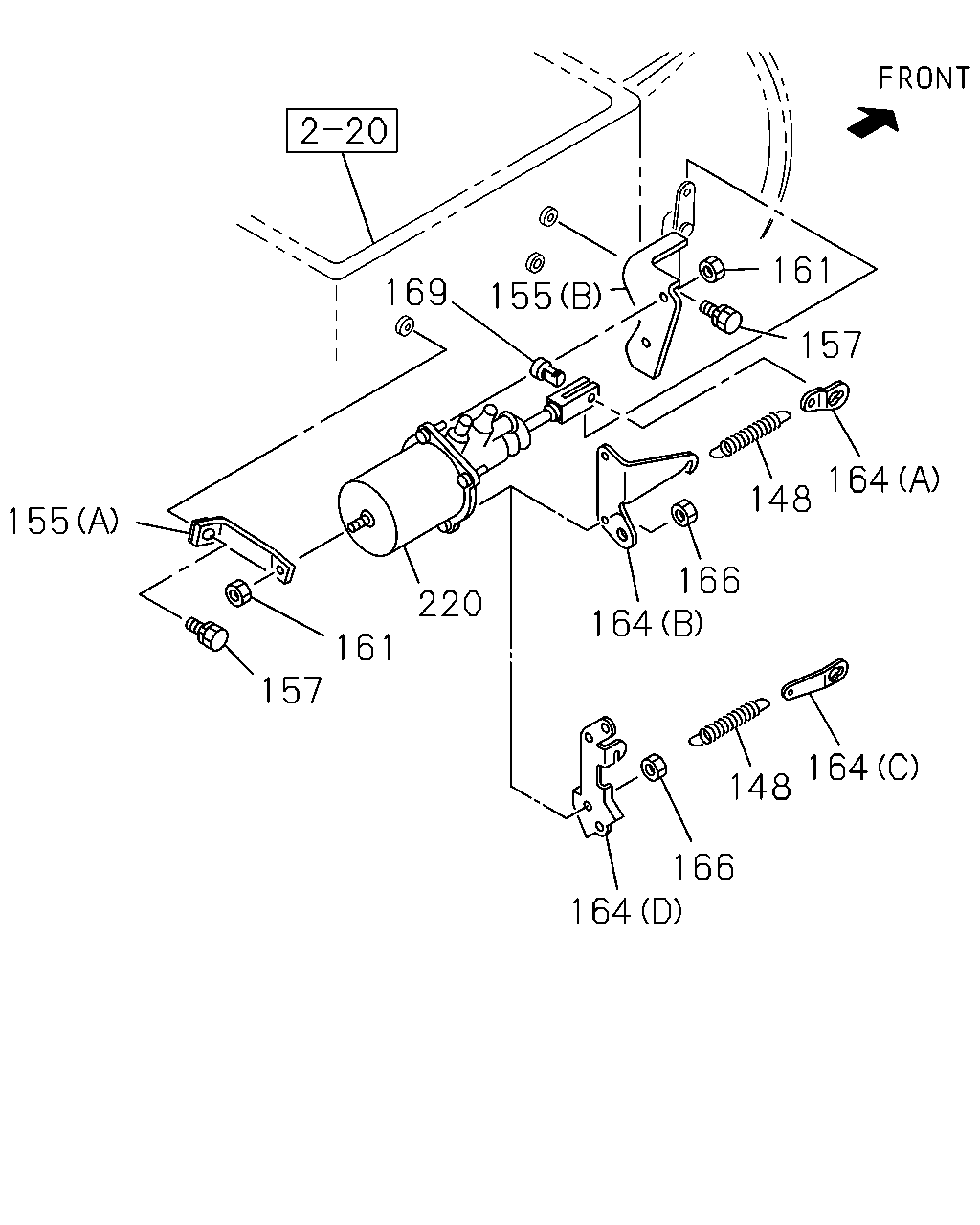

161 155 169 157 164 148 155 166 164 220 161 157 164 148 166 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9510-9802	●	●
148	SPRING; CLU RETURN EXC. AIR ASSIST CLUTCH<PK1>	1-09583-249-0	01	1	9803-		●	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9803-	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9511-9802			●	●	●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=135	1-09583-305-0	01	1	9803-		●	●	●	●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	9511-9802			●	●	●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (B)	1-31429-175-2	01	1	9803-		●	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	9511-9802			●	●	●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (A)	1-31429-176-0	01	1	9803-		●	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9511-9802			●	●	●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X18 FLANGE	0-28181-018-0	03	1	9803-		●	●	●	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9511-9802			●	●	●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	03	1	9803-0602		●	●	●	●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-208-0	03	1	0603-		●	●	●	●
164	EYE; SPRING (A)	1-31426-019-1	01	1	9511-9802			●	●	●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (C)	1-31426-041-0	01	1	9803-		●	●	●	●
164	EYE; SPRING (B) L=85	1-47476-574-0	01	1	9511-9605			●	●	●
164	EYE; SPRING (B) L=85	1-47477-788-0	01	1	9606-9802			●	●	●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (D)	1-47477-789-0	01	1	9803-		●	●	●	●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9511-9802			●	●	●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	02	1	9803-0602		●	●	●	●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-208-0	02	1	0603-		●	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9511-9802			●	●	●
169	PIN; JOINT,MINIPACK AIR ASSIST CLUTCH<PK1>	1-31424-009-0	01	1	9803-		●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-383-0	01	1	9511-9802			●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1>	1-31800-383-3	01	1	9803-		●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> BEST VALUE PARTS	1-87610-083-0	01	1	9803-		●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-083-0	01	1	9511-9802			●	●	●

102 101 96 172 102 98 96 85 85 101 91 92 105 106 84 91 137 88 1 89 89 109 101 106 222 96 102 2 96 85 85 102 101 105 106 107 116 119 13 130 118 131 119 128 123 128 120 124 125 122 57 122 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9510-9510	●	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9511-0105	●	●			●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-671-0	01	1	9511-0105			●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-	●	●			●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-901-0	01	1	0106-			●	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-676-0	01	1	9511-0105			●	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-902-0	01	1	0106-			●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	0106-	●	●			●
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-139-0	01	1	0106-			●	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-291-0	01	1	9510-9510	●	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-291-0	01	1	9511-0109	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (A)	1-31220-291-0	01	1	9511-0109			●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-364-2	01	1	0110-1005	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (A)	1-31220-364-2	01	1	0110-1005			●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-447-0	01	1	1006-	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (A)	1-31220-447-0	01	1	1006-			●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-304-0	01	1	9511-0109					●
2	PLATE ASM; PRESSURE,CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6) (A)	1-31220-304-0	01	1	9511-0109			●	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-365-2	01	1	0110-					●
2	PLATE ASM; PRESSURE,CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6) (A)	1-31220-365-2	01	1	0110-			●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9) (B)	1-31220-305-1	01	1	9511-0109			●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9) (B)	1-31220-373-2	01	1	0110-			●	●
2	PLATE ASM; PRESSURE,CLU (A) BEST VALUE PARTS	1-87610-144-0	01	1	1006-	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (A) BEST VALUE PARTS	1-87610-144-0	01	1	1006-			●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9510-0512	●	●	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9510-	●	●	●	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9510-9510	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9511-	●	●			●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-082-0	01	1	9511-			●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-051-0	01	1	9511-9810			●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	9811-			●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9510-	●	●	●	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9510-9510	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9511-9802	●	●			●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-036-0	01	1	9511-9802			●	●
88	COVER SUB ASM; CLU	1-31211-036-0	02	1	9803-0004	●	●			●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-036-0	02	1	9803-0004			●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	0005-	●	●			●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-036-0	01	1	0005-			●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9510-9510	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9511-	●	●			●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	9511-			●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-001-0	12	1	9511-9810			●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	9811-			●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-	●	●
91	SEAT; SPR 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	1006-			●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-	●	●
91	SEAT; SPR 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	1006-			●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9510-1005	●	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1006-				●	●
91	SEAT; SPR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	12	1	1006-			●
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	1006-			●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9510-1005	●	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1006-				●	●
91	SEAT; SPR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	12	1	1006-			●
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	1006-			●
92	SPRING; CLU	1-09580-234-0	12	1	9510-9510	●	●
92	SPRING; CLU	1-09580-234-0	12	1	9511-0308	●	●
92	SPRING; CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6)	1-09580-234-0	12	1	9511-0308			●
92	SPRING; CLU	1-31214-088-0	12	1	0309-1005	●	●
92	SPRING; CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6)	1-31214-088-0	12	1	0309-1005			●
92	SPRING; CLU	1-31214-060-0	08	1	1006-	●	●
92	SPRING; CLU 6HH1 STD ENG(65L) 14" CLUTCH(WF6)	1-31214-060-0	08	1	1006-			●
92	SPRING; CLU	1-31214-038-0	12	1	9511-0109					●
92	SPRING; CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6)	1-31214-038-0	12	1	9511-0109			●	●
92	SPRING; CLU	1-31214-064-0	12	1	0110-					●
92	SPRING; CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6)	1-31214-064-0	12	1	0110-			●	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-039-0	12	1	9511-0109			●	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-065-0	12	1	0110-			●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9510-9510	●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9511-9810	●	●			●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=57.0	1-31232-014-0	04	1	9511-9810			●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9811-	●	●	●	●	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9510-	●	●	●	●	●
96	PIN; RELEASE LEVER 15" CLUTCH(RE9) (A) L=57.0	1-31232-008-0	04	1	9511-9810			●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9510-	●	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9510-0109	●	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0110-	●	●			●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-039-0	08	1	0110-			●	●
101	WASHER; RELEASE LEVER 15" CLUTCH(RE9)	1-31239-058-0	08	1	0110-			●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9510-9510	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9511-	●	●			●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	9511-			●	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	9511-			●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-0309	●	●			●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	0309-0309			●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9510-0109	●	●	●	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●	●	●	●	●
105	NUT; SUPPORT 15" CLUTCH(RE9)	1-31235-012-0	04	1	0309-0309			●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9510-9510	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9511-0109	●	●			●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	08	1	9511-0109			●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	0110-					●
106	PLATE; LK,LEVER SUPPORT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 14" CLUTCH(WF6) (B)	1-31235-008-0	08	1	0110-			●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-	●	●
106	PLATE; LK,LEVER SUPPORT 6HH1 STD ENG(65L) 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0110-			●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9510-	●	●	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-0309	●	●			●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	0309-0309			●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9510-0308	●	●	●	●	●
107	BOLT; LK PLATE 15" CLUTCH(RE9) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-0309			●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	9510-9510	●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	9511-0603	●	●			●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	9-09150-510-0	04	1	9511-0603			●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	0604-	●	●			●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	0604-			●	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9510-	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9510-0111	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-	●	●	●	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	9510-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	9510-	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9510-0003	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9510-	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9510-0512	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9510-0606	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9510-	●	●	●	●	●
125	SHAFT; CLU	1-31342-271-0	01	1	9510-9802	●	●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-271-0	01	1	9803-9803		●	●
125	SHAFT; CLU	1-31342-271-0	01	1	9803-9803	●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-298-1	01	1	9804-		●	●
125	SHAFT; CLU	1-31342-298-1	01	1	9804-	●
125	SHAFT; CLU	1-31342-169-1	01	1	9511-9802			●	●	●
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-169-1	01	1	9803-		●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9510-	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9510-0512	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9510-0603	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9510-0512	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-0	01	1	0307-0307	●	●			●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87831-173-0	01	1	0307-0307			●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0308-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9510-9510	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9511-0004	●	●			●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87830-620-0	01	1	9511-0004			●	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-0	01	1	0005-0109	●	●			●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87830-902-0	01	1	0005-0109			●	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0110-0306	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9)	1-87830-902-1	01	1	0307-0307			●	●
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9)	1-87830-808-0	01	1	9511-0109			●	●
222	BOLT; STRAP (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9510-9510	●	●
222	BOLT; STRAP (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9511-0109	●	●			●
222	BOLT; STRAP 14" CLUTCH(WF6) (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9511-0109			●	●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-	●	●			●
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	0110-			●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	9511-			●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9511-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
