0-13 — OIL PAN AND LEVEL GAUGE (#39619) — 38 parça

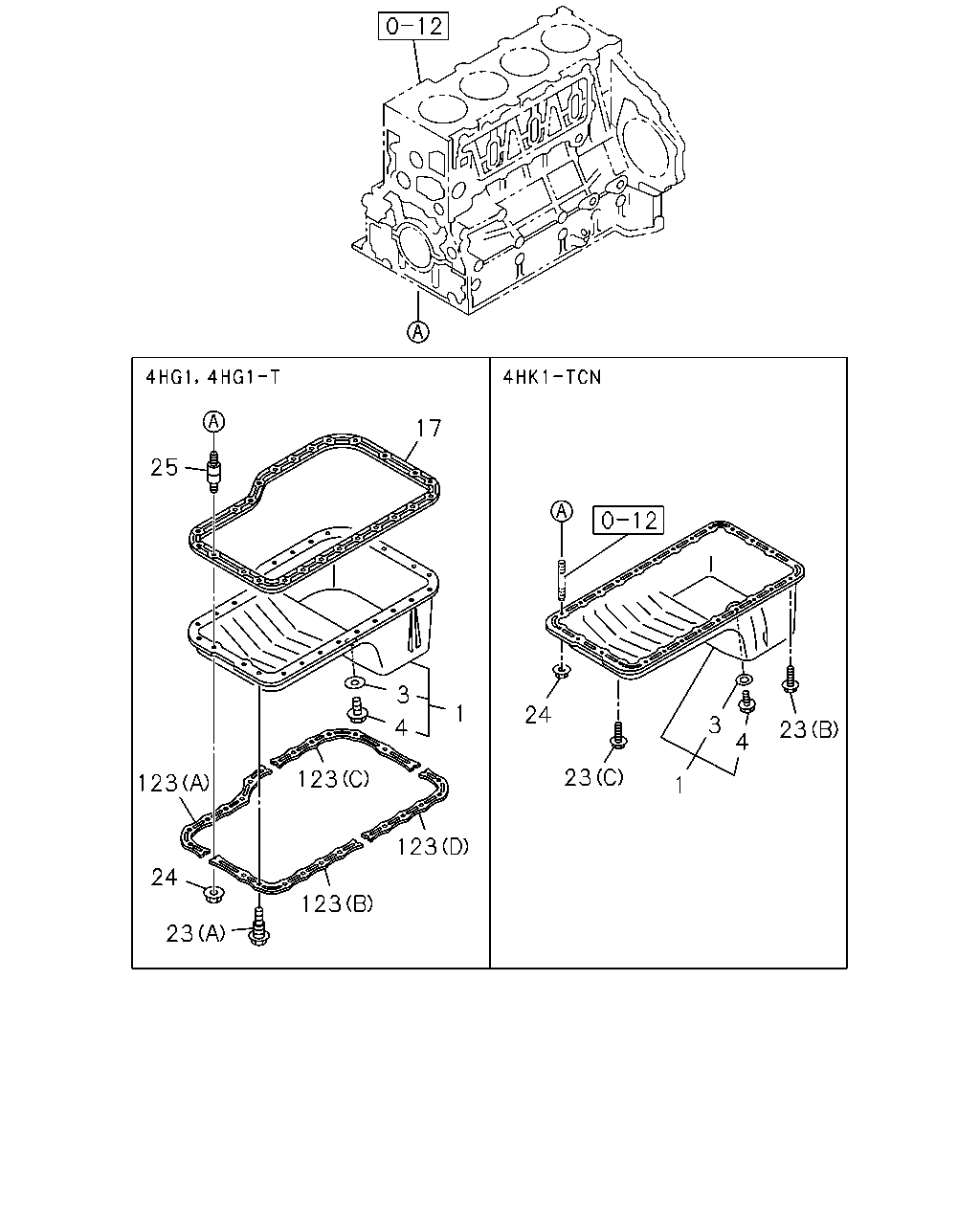

çizim 58417
17 25 3 1 24 3 4 23 4 23 123 123 1 123 24 123 23
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.426 PAN ASM; OIL 8-97385-244-0 01 1 0612-0612 ● ●
1 01.426 PAN ASM; OIL 8-97385-244-1 01 1 0612- ●
1 01.426 PAN ASM; OIL 8-97385-249-0 01 1 0612- ●
1 01.426 PAN ASM; OIL 8-97149-314-0 01 1 0612- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94158-328-0 01 1 0612- ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> ID=14.2 OD=24 		8-94158-328-0 01 1 0612- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0612- ● ●
4 01.453 PLUG; DRAIN,OIL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.001 M14X14 		8-94152-613-0 01 1 0612- ●
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0612- ● ●
23 01.428 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0612- ● ●
23 01.428 BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 0612- ●
23 01.428 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 0612- ●
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE 		0-91180-108-0 13 1 0612- ● ●
24 01.453 NUT; OIL PAN
07.833 M8 W/LK WASHER 		8-94327-073-0 07 1 0612-0805 ●
24 01.453 NUT; OIL PAN
03.417 M8 W/LK WASHER 		8-97581-234-0 07 1 0806- ●
25 01.453 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0612- ● ●
25 01.453 STUD; OIL PAN
01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0612- ● ●
123 01.516 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0612- ● ●
123 01.516 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0612- ● ●
123 01.516 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0612- ● ●
123 01.516 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0612- ● ●

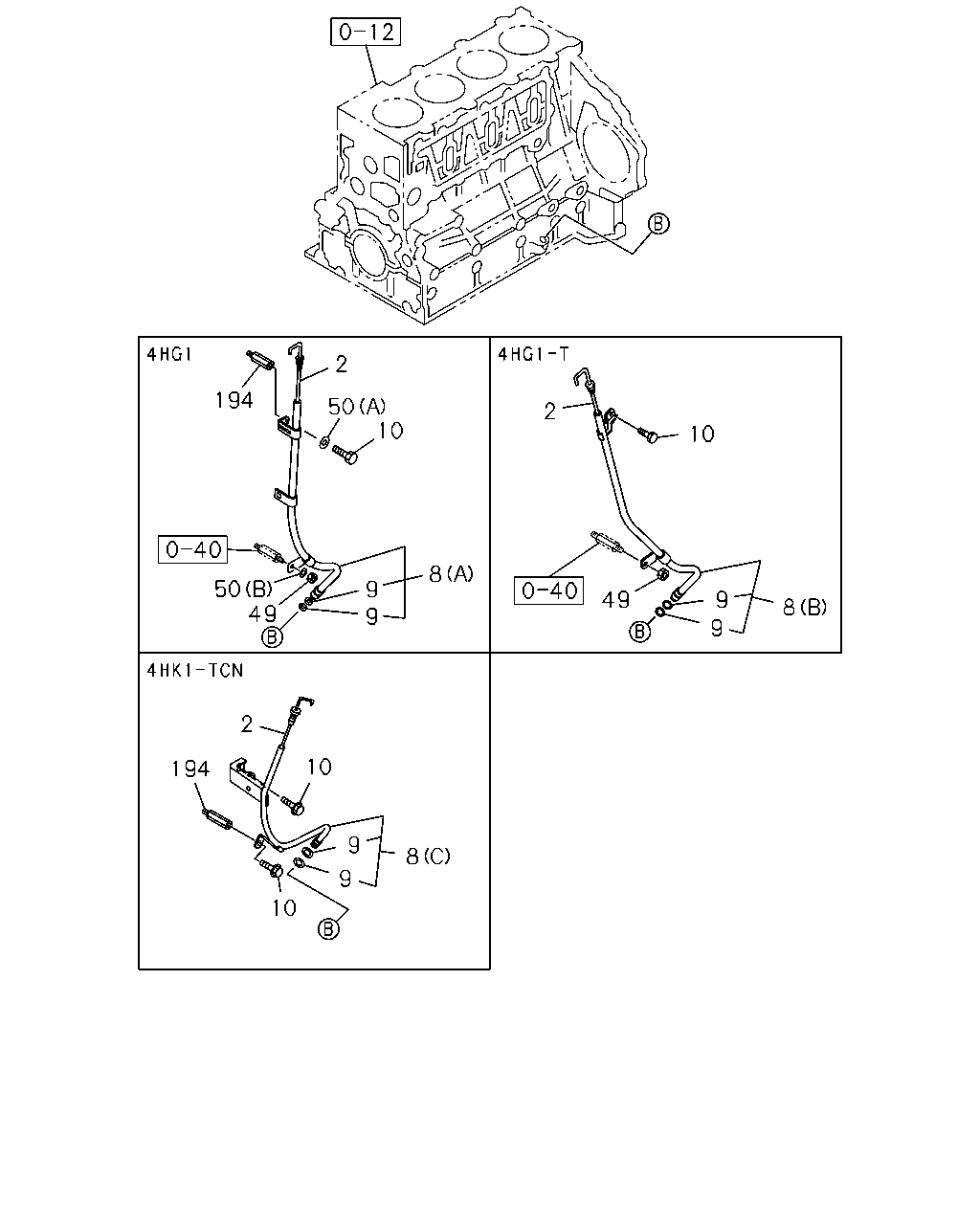

çizim 58426
2 194 50 10 2 10 8 50 49 9 9 49 9 9 8 2 10 194 9 8 9 10
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.516 GAUGE; OIL LEVEL 8-97251-080-1 01 1 0612- ●
2 01.516 GAUGE; OIL LEVEL 8-97094-460-2 01 1 0612- ●
2 01.516 GAUGE; OIL LEVEL 8-97019-885-1 01 1 0612- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-97106-685-3 01 1 0612- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-97200-567-1 01 1 0612- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		8-97354-831-0 01 1 0612- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-469-0 02 1 0612- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> ID=11 		1-09623-469-0 02 1 0612- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0612- ●
10 01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612- ●
10 01.516 BOLT; GUIDE TUBE
09.171 M10X110 FLANGE 		0-28156-011-0 01 1 0612- ●
10 01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0612- ●
49 01.516 NUT; GUIDE TUBE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0612- ● ●
50 01.516 WASHER; PL,GUIDE TUBE
00.002 (A) ID=10.5 OD=22 		0-91614-610-0 01 1 0612- ●
50 01.516 WASHER; PL,GUIDE TUBE
04.085 (B) ID=10.5 OD=26 		0-91614-710-0 01 1 0612- ●
194 01.429 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0612- ●
194 01.429 SPACER; GUIDE TUBE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 		8-97101-215-0 01 1 0612- ●
