0-05 — ENGINE GASKET KIT (#39615) — 60 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

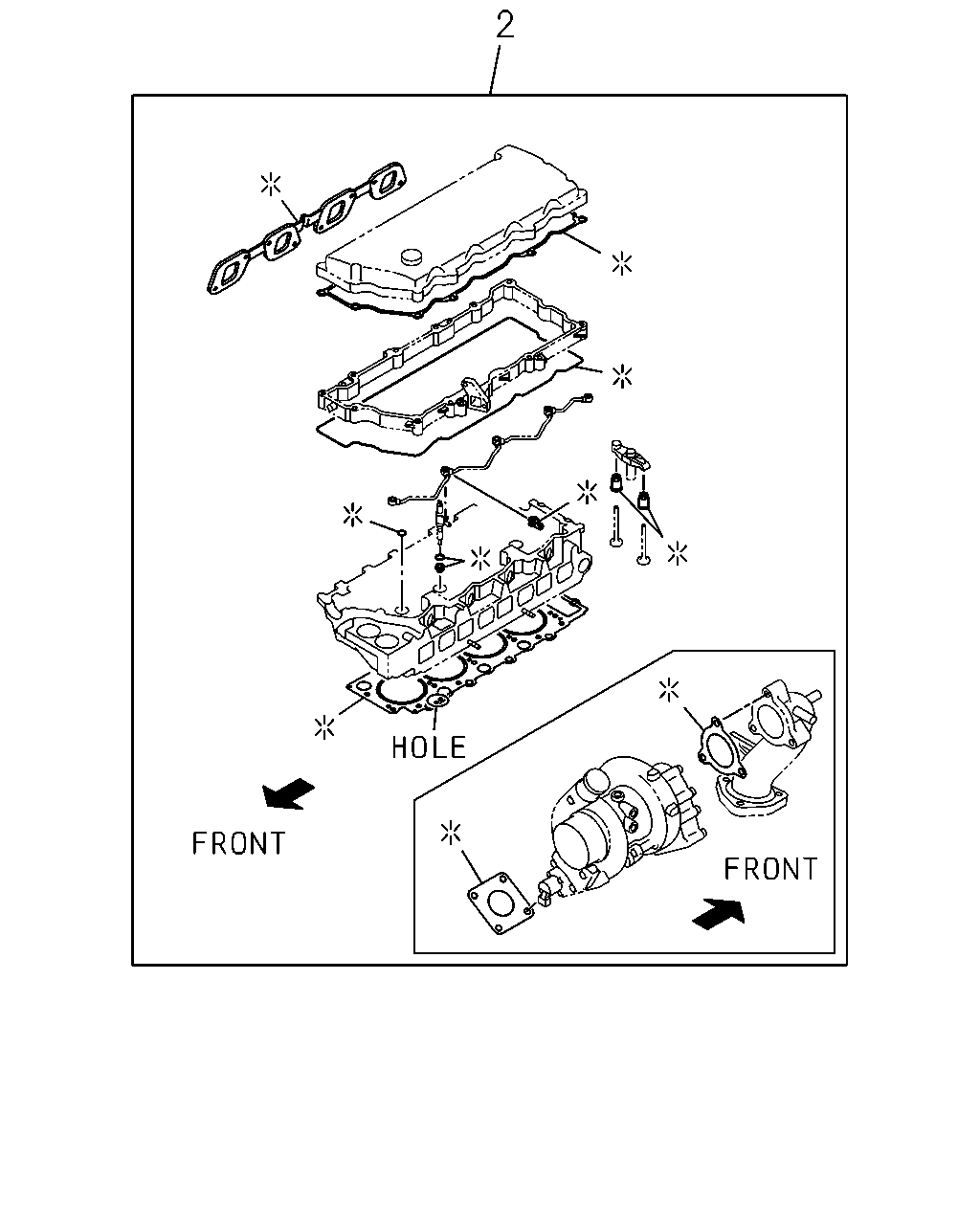

2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-232-1	01	1	0612-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-233-1	01	1	0612-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-234-1	01	1	0612-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87813-963-2	01	1	0612-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87813-964-2	01	1	0612-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87813-965-2	01	1	0612-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-938-0	01	1	0612-0707			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-127-1	01	1	0708-			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-939-0	01	1	0612-0707			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-128-1	01	1	0708-			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-940-0	01	1	0612-0707			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-129-1	01	1	0708-			●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

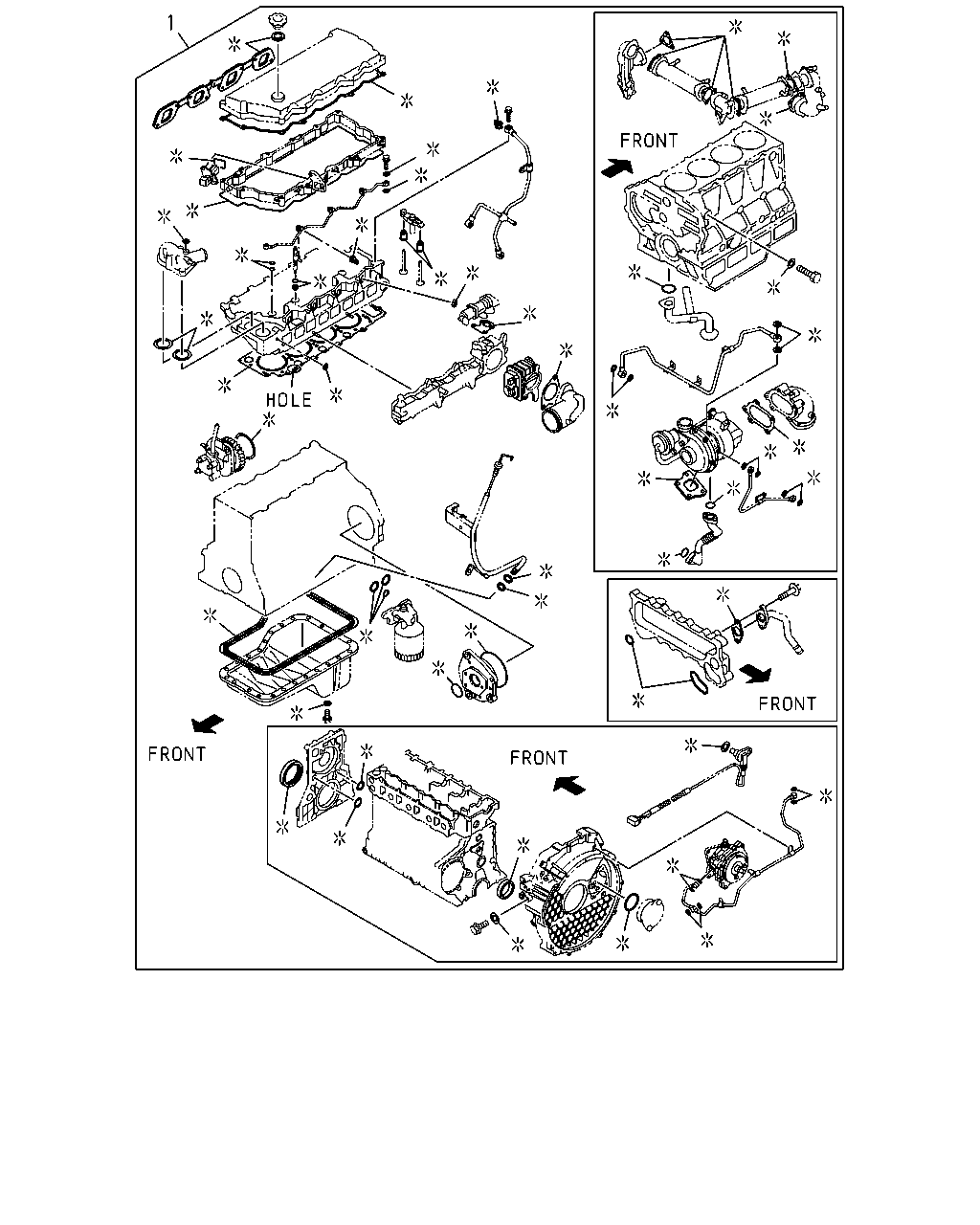

1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-347-4	01	1	0612-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-348-4	01	1	0612-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-349-4	01	1	0612-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-350-3	01	1	0612-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-494-0	01	1	0903-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-351-3	01	1	0612-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-495-0	01	1	0903-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-352-3	01	1	0612-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-496-0	01	1	0903-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-881-2	01	1	0612-0707			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-193-1	01	1	0708-0902			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-473-0	01	1	0903-			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-882-2	01	1	0612-0707			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-194-1	01	1	0708-0902			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-474-0	01	1	0903-			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-883-2	01	1	0612-0707			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-195-1	01	1	0708-0902			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-475-0	01	1	0903-			●

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

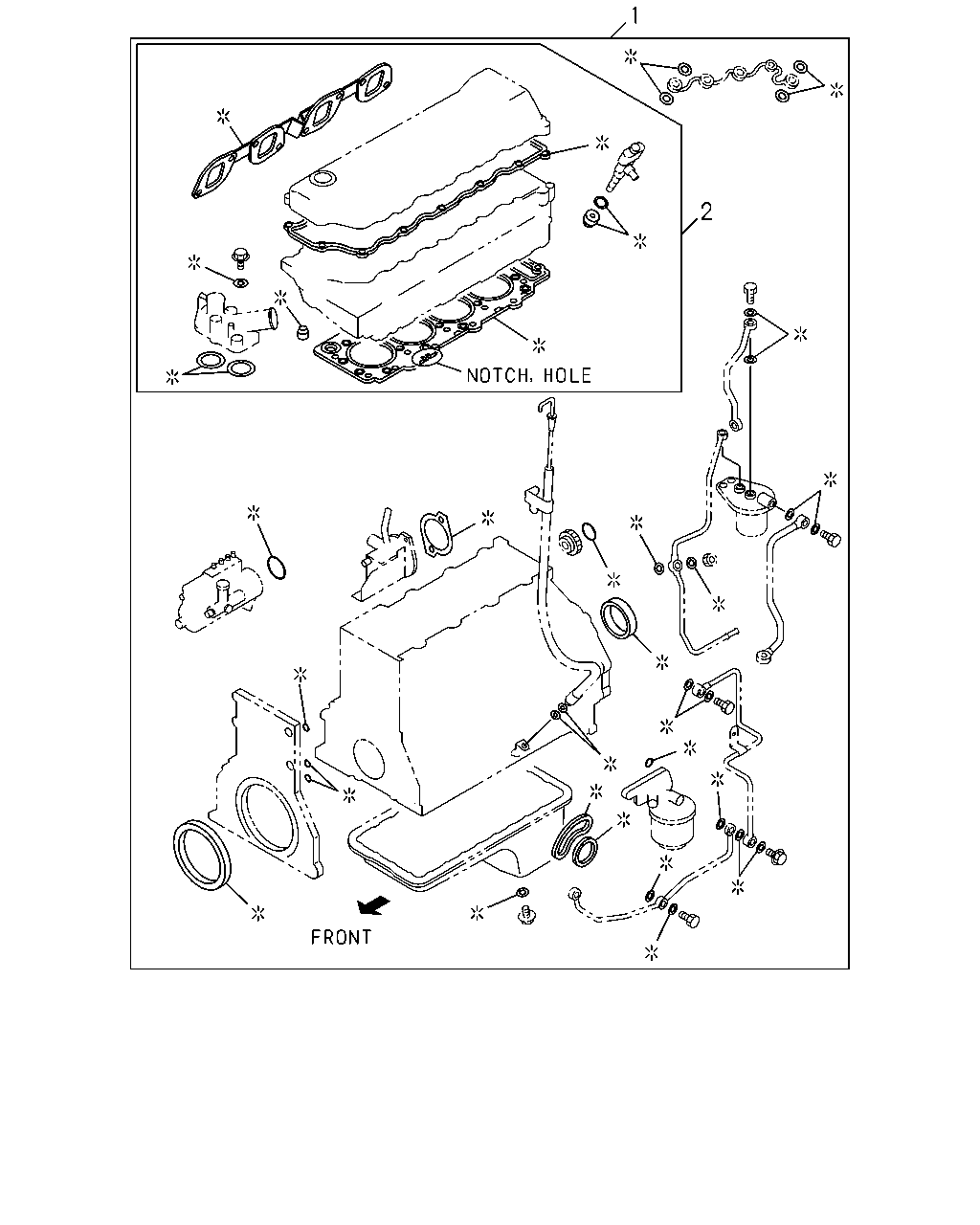

1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-347-4	01	1	0612-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-348-4	01	1	0612-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-349-4	01	1	0612-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-350-3	01	1	0612-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-494-0	01	1	0903-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-351-3	01	1	0612-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-495-0	01	1	0903-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-352-3	01	1	0612-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-496-0	01	1	0903-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-881-2	01	1	0612-0707			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-193-1	01	1	0708-0902			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-473-0	01	1	0903-			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-882-2	01	1	0612-0707			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-194-1	01	1	0708-0902			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-474-0	01	1	0903-			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-883-2	01	1	0612-0707			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-195-1	01	1	0708-0902			●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-475-0	01	1	0903-			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-232-1	01	1	0612-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-233-1	01	1	0612-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-234-1	01	1	0612-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87813-963-2	01	1	0612-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87813-964-2	01	1	0612-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87813-965-2	01	1	0612-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-938-0	01	1	0612-0707			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-127-1	01	1	0708-			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-939-0	01	1	0612-0707			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-128-1	01	1	0708-			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-940-0	01	1	0612-0707			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-129-1	01	1	0708-			●
