◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#39614) — 12 parça

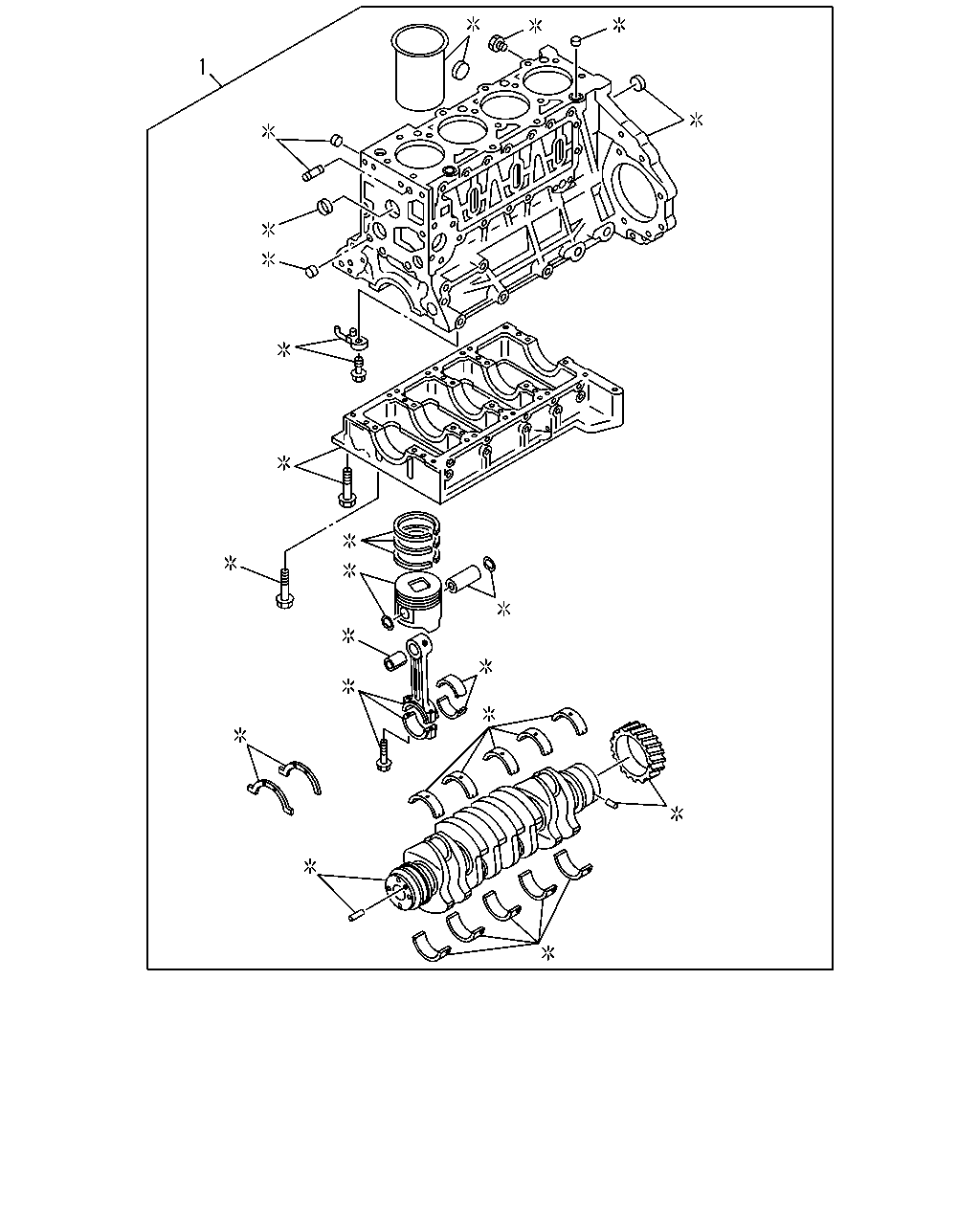

çizim 12660
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 ENGINE ASM; PARTIAL 5-87310-774-3 01 1 0612-0704 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-933-4 01 1 0705- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-777-3 01 1 0612-0704 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-934-4 01 1 0705- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-784-5 01 1 0612-0706 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-936-3 01 1 0707- ●

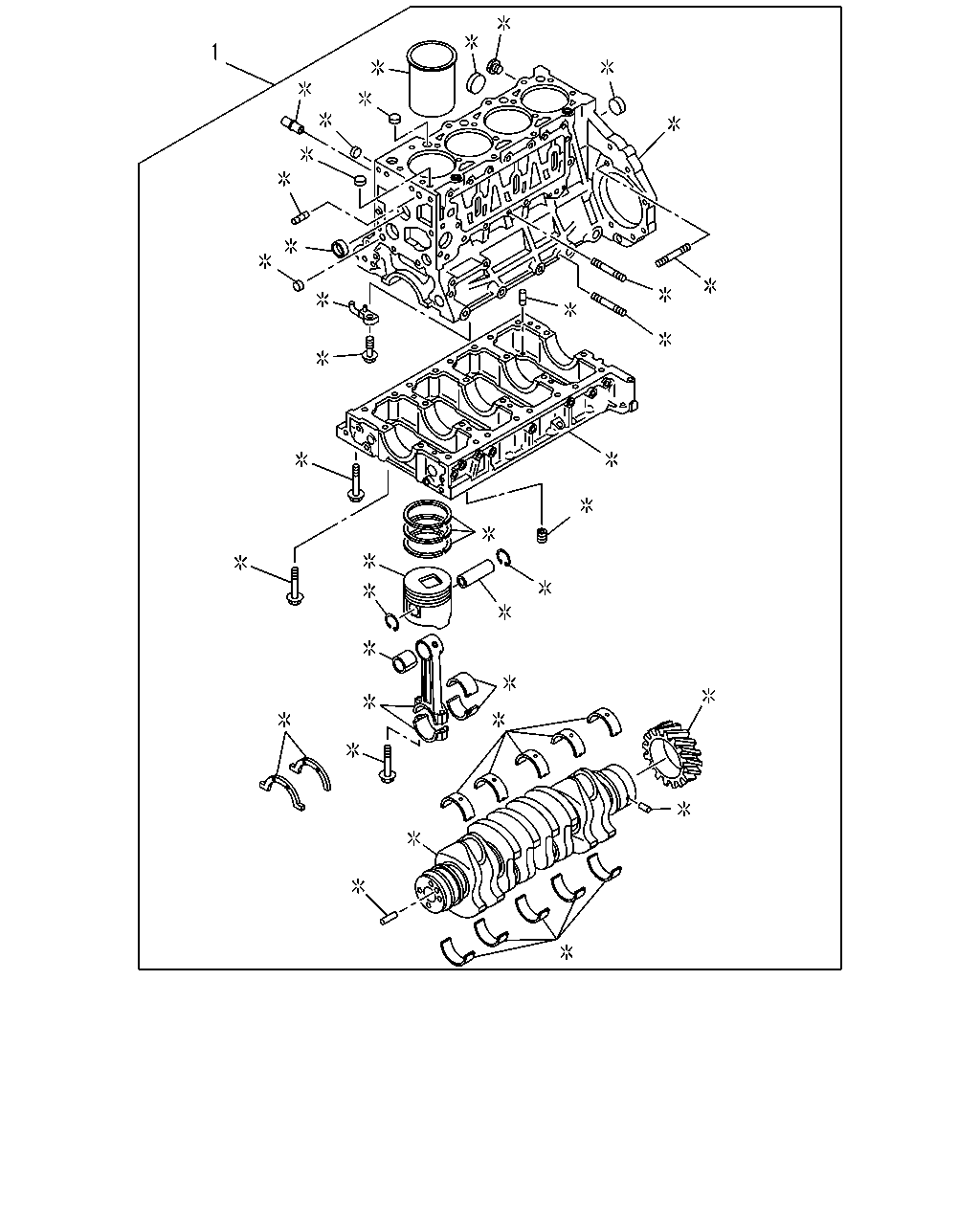

çizim 14237
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 ENGINE ASM; PARTIAL 5-87310-774-3 01 1 0612-0704 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-933-4 01 1 0705- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-777-3 01 1 0612-0704 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-934-4 01 1 0705- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-784-5 01 1 0612-0706 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-936-3 01 1 0707- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
